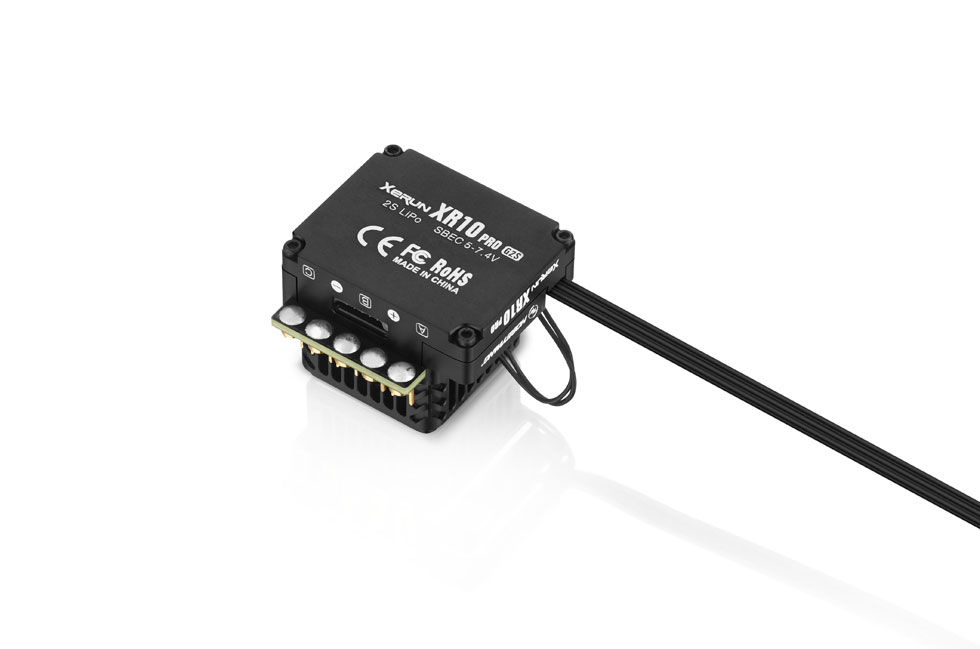

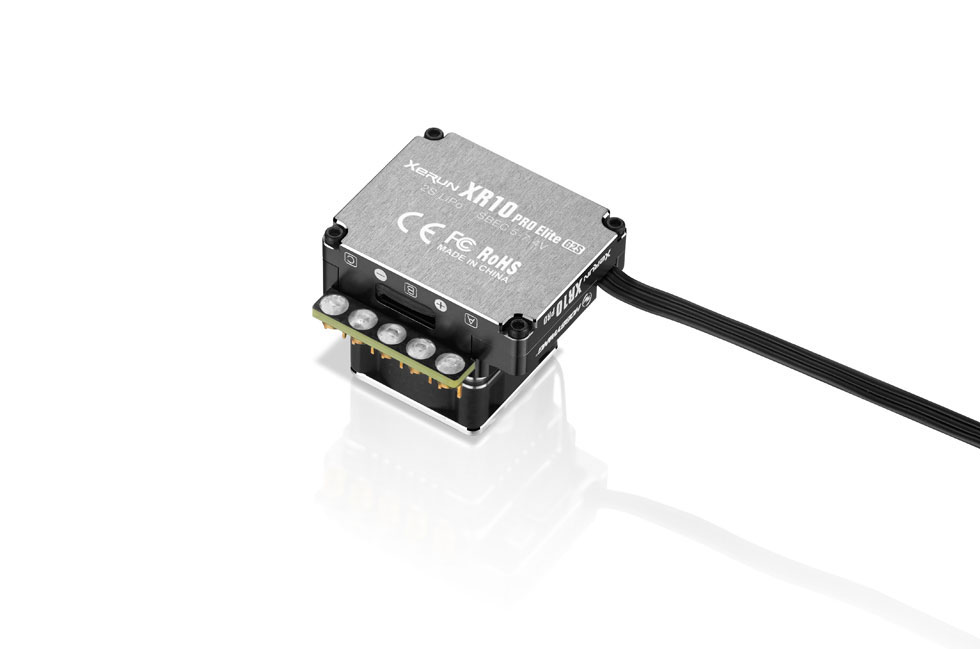

XeRun XR10 Pro G2S & XeRun XR10 Pro Elite G2S

Overview
Specifications
Support
Accessories
Detail

32-bit M4 Microprocessor for Top Racing

High-performance 32-bit M4 microprocessor greatly improves processing capability----make the
more complicated and precise data operation possible, that allows the ESC to have a very rapid
response and a remarkable potential to optimize and extend its functions. Hardware for professional
racing combined with powerful software turns the ESC into a “sharp weapon” for top racing.

32-bit M4 Microprocessor
for Top Racing

Reverse Polarity Protected

The XeRun XR10 PRO G2S is reverse polarity protected. In an event when a user makes a
mistake by reversing the polarity, the ESC will not be broken.
Note: The standard capacitor included in the ESC will be damaged when the polarity is
reversed. By selecting the optional non-polarity capacitors (Item number: 30840004,
30840005), it will be able to prevent any sort of damages from happening.

Reverse Polarity Protected

ESC

Built-in battery-reversal
protection circuitry frees you
from worrying about damage
caused by reverse installation.

BATT

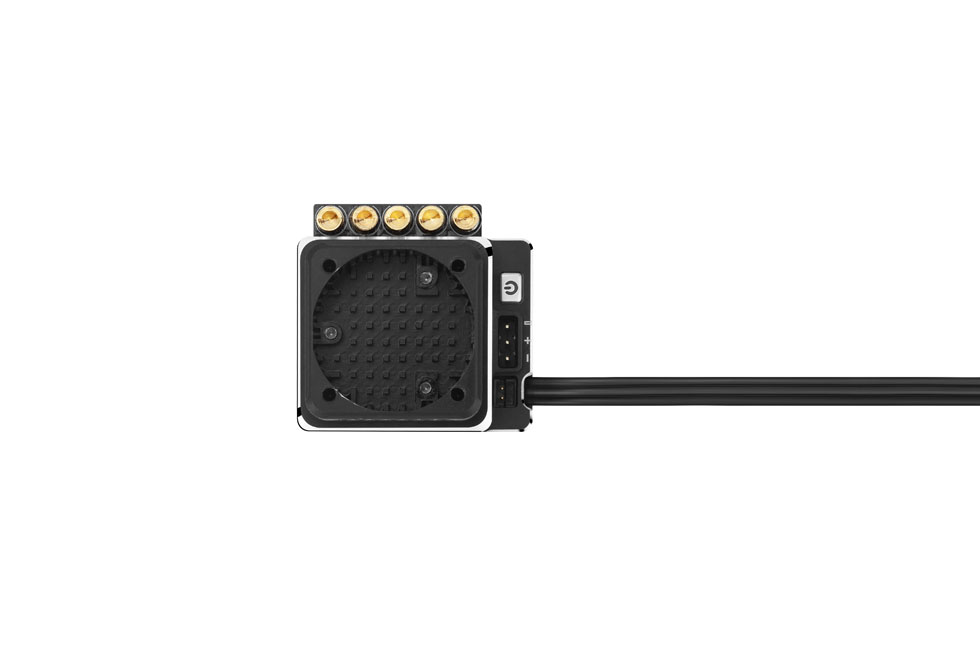

Frameless fan design

The frameless fan design is a patented technology. The
rapid transmission of internal heat to the integrated housing
radiator are made up of high airflow from the side of the fan
and a copper thermal conduction sink on the internal power
plate. These are built into high-reliability thermal systems to
ensure that it is always in good thermal condition.
Patent PCT/CN2021/115679

Frameless fan design

Durable frameless fan

The all-new frameless fan blades uses a special material and
are extremely hard and reliable. It greatly reduces the damage
of the fan blades caused by the impact of small stones, sand
and other foreign objects. Thus, reduces the failure rate of the
fan than compared with the traditional pbt fan.
Note: The elite version is equipped with an ordinary fan.

Durable frameless fan

New communication protocol for quick
setup of parameters, firmware upgrades

The new communication protocol is used to set parameters and significantly
increase the speed of firmware upgrades, and the LCD G2 is twice as fast as
the OTA Programmer speed is 3-4 times faster.

Quick setup of
parameters

Firmware
upgrades

Precisely adjustable throttle and
brake PWM frequencies

The Throttle and Brake PWM Frequency support the ability to customize the
frequency of each throttle segments. For example, the variables on the frequency are
fully adjustable for precise control to meet the requirements of different driver needs.

Fine-tunable PWM (Drive)
& Brake Frequencies

Optimized programmable parameters

Parameter are optimized for top-level competition applications, including new AC
line switching, initial start-up force adjustment, drag acceleration adjustment, etc.
Note! Use appropriate settings provided by the factory or team drivers. Check
operating temperature in order to maximize your electronics. The wrong settings
may damage the ESC/motor!

Optimized
programmable
parameters

Extended Range of Max. Brake Force
(Extra Brake: 101%-150%)

Extra brake provides the bigger brake force than standard brakes. Even if it’s applied
in the Stock/Blinky class by vehicles with a very small gear ration/FDR, it can still
guarantee sufficient brake force.

Extended Range of
Max. Brake Force

New drag acceleration adjustment

This parameter is used to control the speed of the drag-brake response. Setting a suitable value can improve the drag
braking effect of the vehicle, thus, improving drivability to suit each user.
The value can be adjusted up to 20 levels. Increasing the value will result in a greater drag brake effect.

New drag acceleration
adjustment

Super Internal BEC

Built-in switch mode BEC with a maximum output of 10A and voltage
adjustable from 5V to 7.4V (step:0.1V) for usage with high voltage servos.

Super Internal BEC

Softening Function (*Hobbywing’s Patented Technology)

Softening function implemented by this ESC allows users to fine-tune the bottom end and
maximum the control feel of vehicles in Modified class of high speed racing.

Softening Function

Seamless connectivity with OTA
module box and mobile phone

Simple and convenient, parameter settings, firmware upgrading and
other operations can be established using Hobbywing’s OTA
Bluetooth module and your mobile phone via the Hobbywing app.

Seamless connectivity
with OTA module box
and mobile phone

Real-time data log makes it easy to
access operating status

After connecting the OTA module box, turn on real-time data recording
function to access the operating status.
Note: Bluetooth transmission distance is most effective within the 5m radius.

Data-logging
Function

Product Name
Product Number
Type	Scale Brushed/Brushless Sensored/Sensorless Waterproof
Specifications	Cont./Peak Current Input Voltage BEC Output
Wires & Connectors	Input Wires Output Wires Input Connectors Output Connectors
ESC Programing via	SET Button on ESC LED Program Box LCD Program Box WiFi Module OTA Programmer Programming Port
Fan	Type Size Output Wires Input Connectors
Data Recording	Extreme value Real-time Data Historical data (Graph)
Firmware	Firmware Upgrade
Size & Weight	Size Weight
Applications	Applications Vehicles KV Rating/T Count

Product Name		XeRun XR10 Pro G2S	XeRun XR10 Pro Elite G2S
Product Number		30112613	30112617
Type	Scale Brushed/Brushless Sensored/Sensorless Waterproof	1/10^th BL SD No	1/10^th BL SD No
Specifications	Cont./Peak Current Input Voltage BEC Output	160A/1200A 2S Lipo 5-7.4V，5A	160A/1200A 2S Lipo 5-7.4V，5A
Wires & Connectors	Input Wires Output Wires Input Connectors Output Connectors	Black-13AWG-200mm2 Black-13AWG-200mm3 No No	Black-13AWG-200mm2 Black-13AWG-200mm3 No No
ESC Programing via	SET Button on ESC LED Program Box LCD Program Box WiFi Module OTA Programmer Programming Port	No No Supported Supported Supported Separate	No No Supported Supported Supported Separate
Fan	Type Size Output Wires Input Connectors	Frameless fan 25x25x10mm 5-7.4V Powered by BEC	Normal framed fan 25x25x10mm 5-7.4V Powered by BEC
Data Recording	Extreme value Real-time Data Historical data (Graph)	Supported Supported Supported	Supported Supported Supported
Firmware	Firmware Upgrade	Supported	Supported
Size & Weight	Size Weight	37.530.932.5mm(w/Fan) 90g(w/Wires)	37.530.932.5mm(w/Fan) 88g(w/Wires)
Applications	Applications Vehicles KV Rating/T Count	SL BL Motors / SD BL Motors 1/10^thTouring car & Buggy racing 1/10^th Touring car≥4.5T;1/10^th Buggy≥5.5T	SL BL Motors / SD BL Motors 1/10^thTouring car & Buggy racing 1/10^th Touring car≥4.5T;1/10^th Buggy≥5.5T

Support

Manuals & Documents

Manuals

Setup Sheet Form (Blank)

Software Download

Application Guidance

TITC 2024 Simon Lauter XeRun XR10Pro G2S Setup Sheet

GP3F 2024 Michal Orlowski XeRun XR10 PRO G2S SETUP SHEET

TITC 2024 Bruno Coelho XeRun XR10Pro G2S Setup Sheet

TITC 2024 Alexander Hagberg XeRun XR10Pro G2S Setup Sheet

Season 2023/24 ETS Rd6 Michal Orlowski XeRun XR10 Pro G2S Setup Sheet

Nonpolar Capacitor Package

Part Number: 30840004, 30840005

Multifunction LCD Program Box

Part Number: 30502001
Size: 91x51x17mm (LxWxH)
Applications: Platinum series of
brushless aircraft ESCs, XeRun
series & EzRun series of brushless
car ESCs, SeaKing Pro series of
brushless boat ESCs

OTA Programmer

Product Number: 30850400
Working Voltage: 5-12.6V
Supported Bluetooh Version: ≥ 4.0
Effective Range: 0-5m (Open Field)
Applications: work on the XzRun series,
EzRun series of car ESCs, and the Platinum
series of aircraft ESCs, and
Seaking Prp series of boat ESCs.
