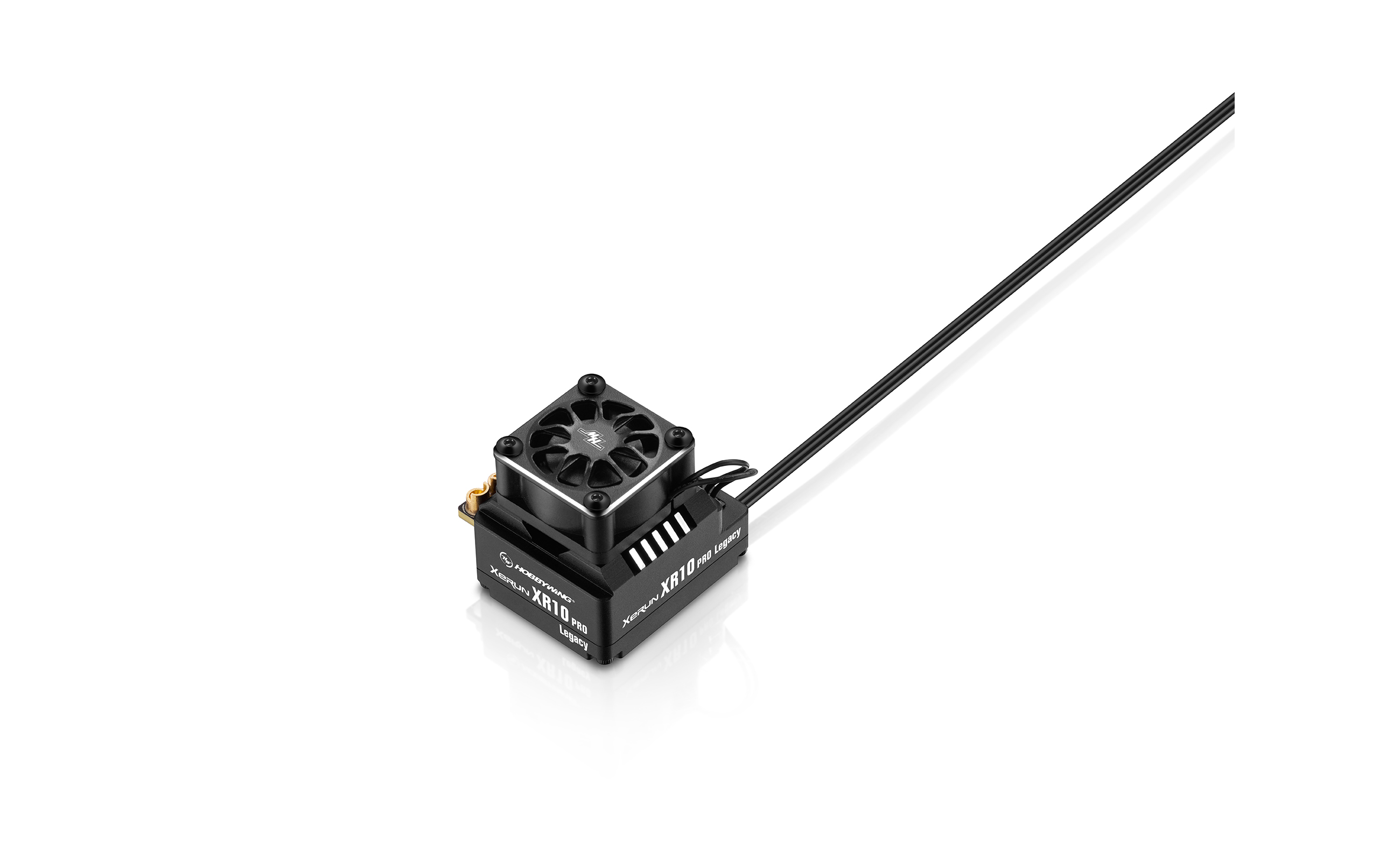

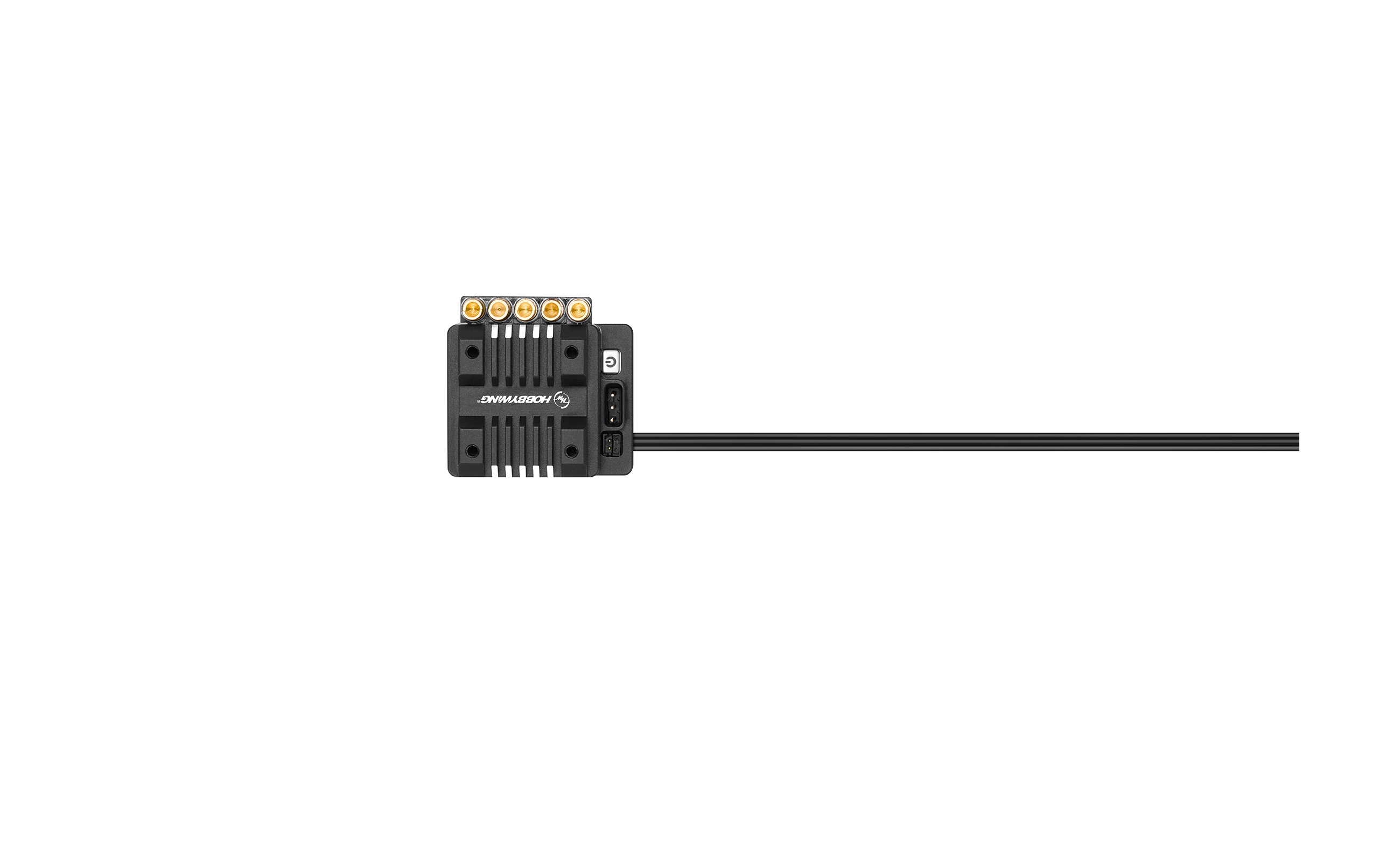

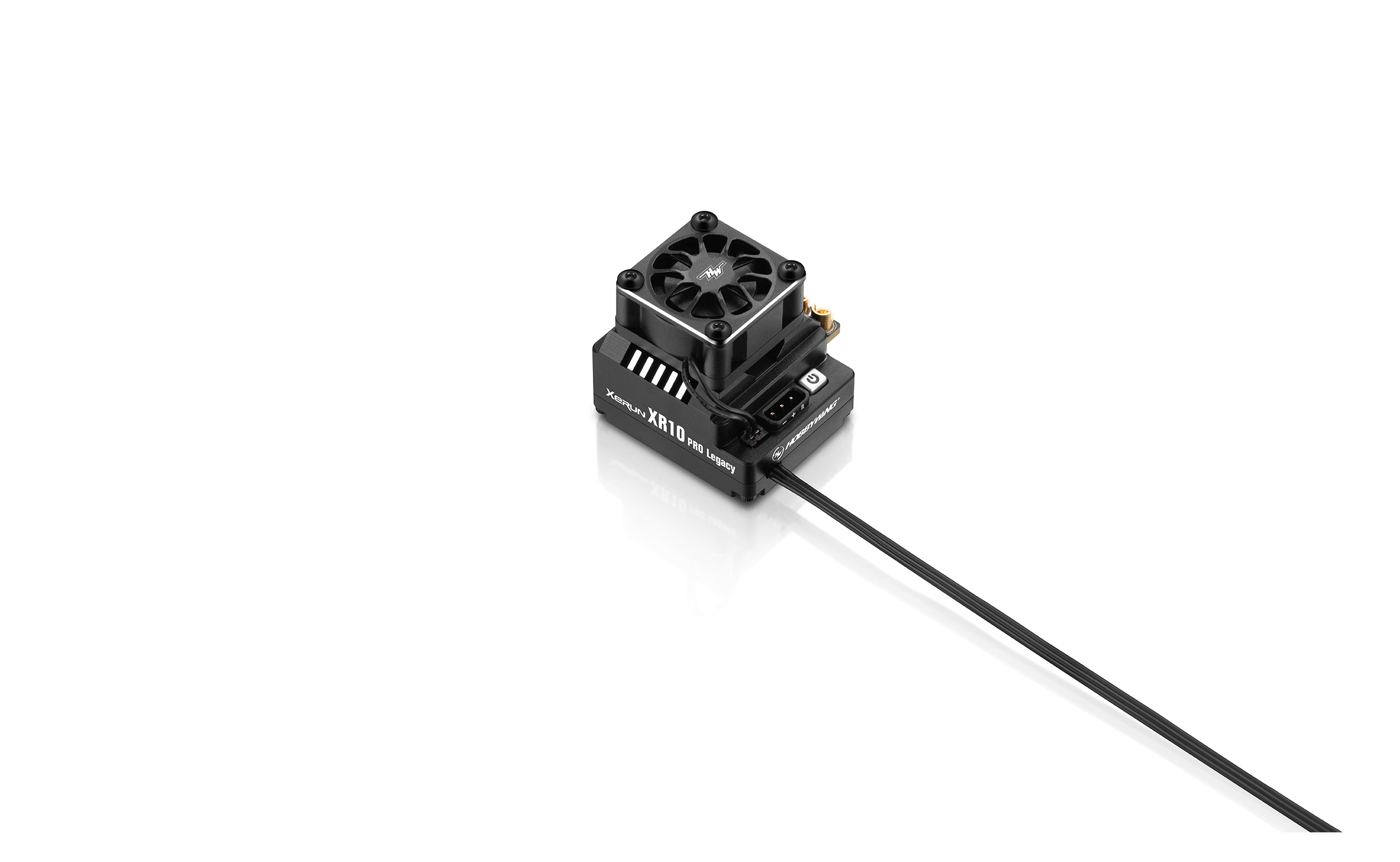

XeRun XR10 Pro LegacyLegendary Design, Proven Performance, Amazing Value

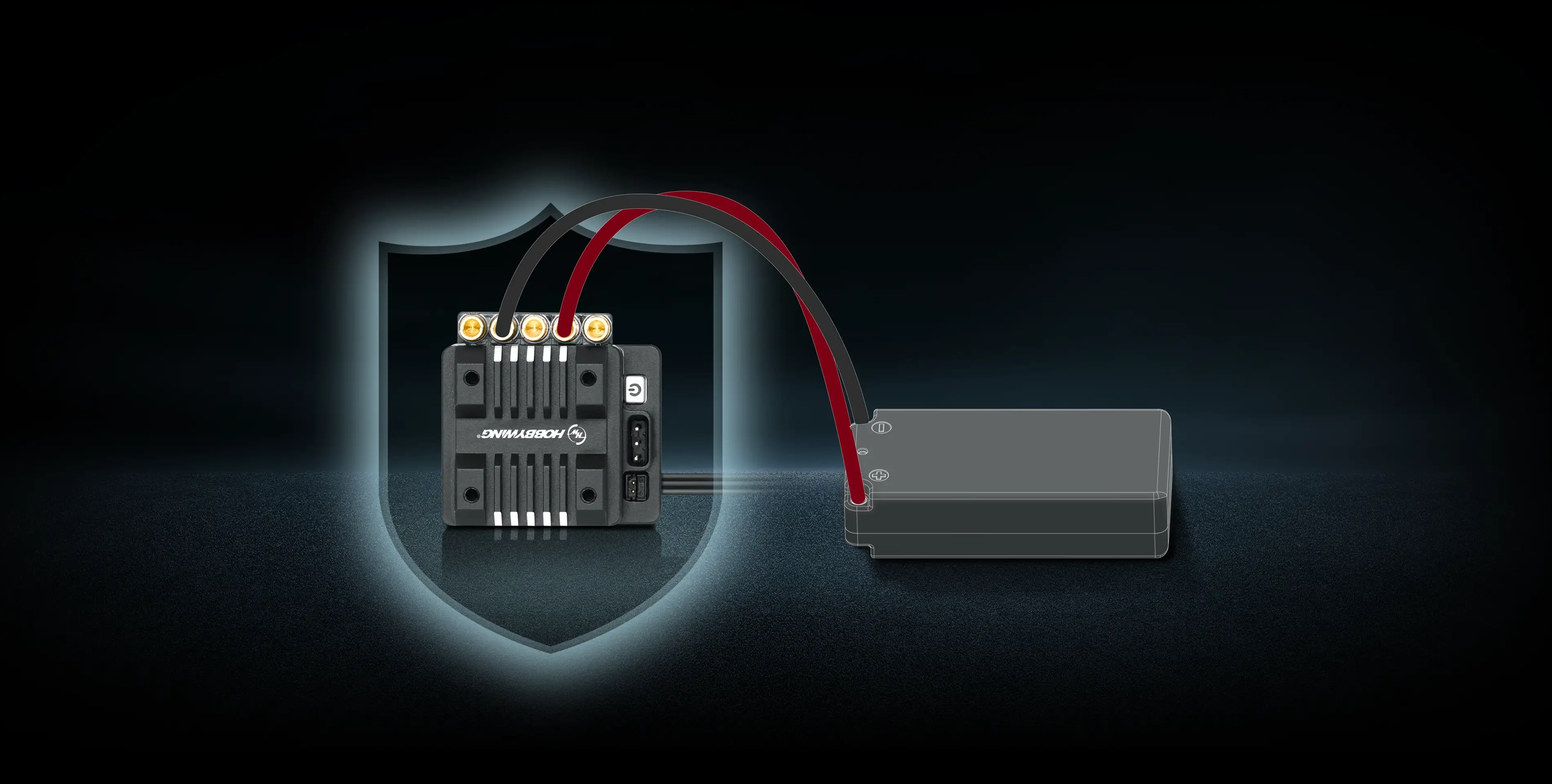

Built-in Reverse Polarity Protection

Equipped with a built-in reverse polarity protection circuit, the ESC offers

worry-free operation by preventing damage from incorrect battery connections,

ensuring reliability and peace of mind every time you power up.

Note: Full reverse polarity protection of the entire power system can only be achieved when

using the optional non-polarized capacitor. The standard ESC is equipped with capacitor that

is not protected against reverse polarity. If the battery is connected incorrectly, the capacitor

may be damaged; however, the ESC itself will not be affected.

Built-in reverse polarity protection circuit

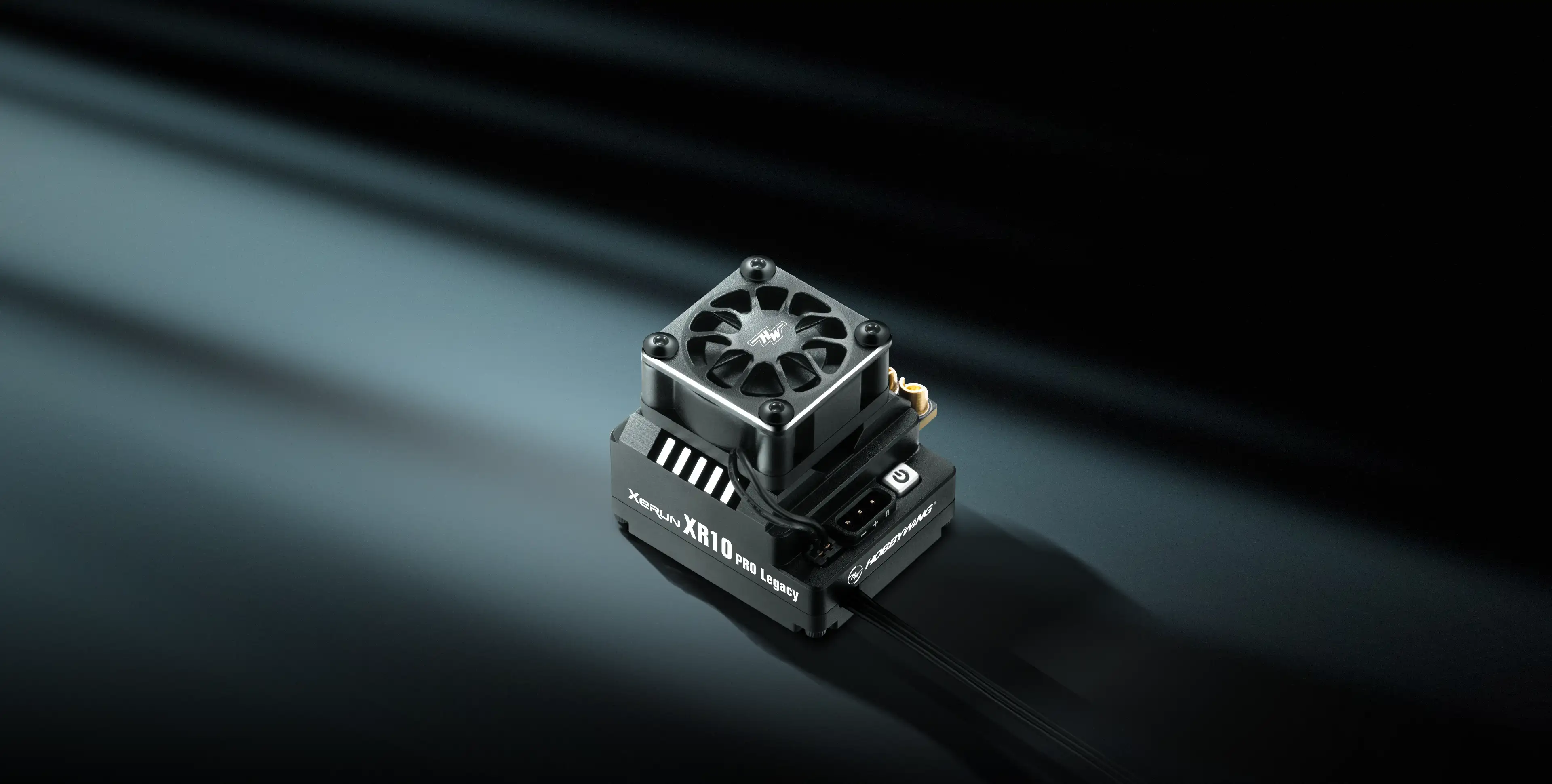

Competition-Ready,
Driven by a Powerful Core

with precision. With the potential for continuous feature optimization and expansion, it combines

pro-level racing hardware with advanced software to create the ultimate game-changer on track.

Lightning-fast
Response

Large Data
Volume

More Accurate
Calculations

Function Optimization
and Expansion

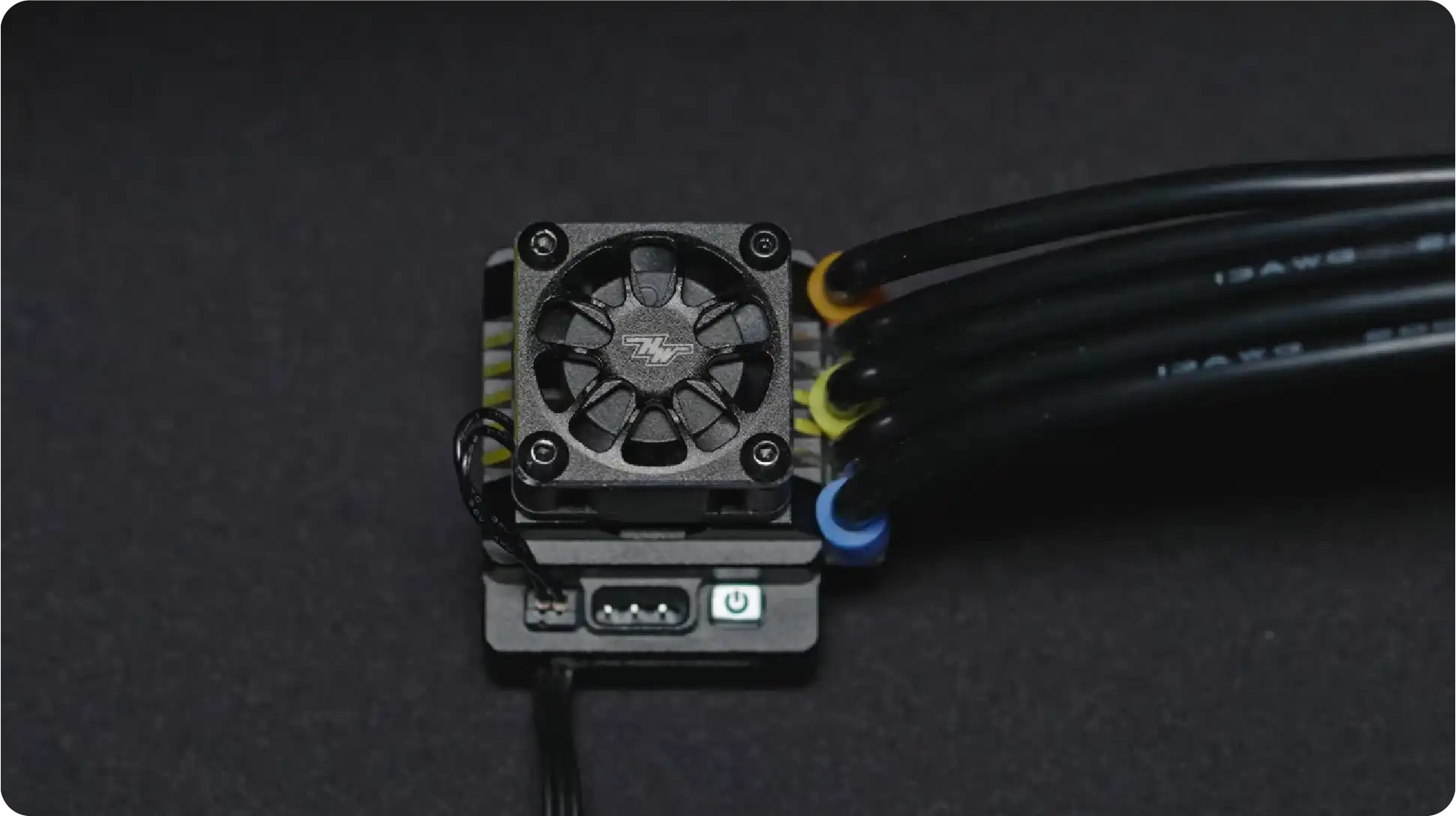

Smart Fan Circuitry

The Legacy now includes Smart Fan technology that runs the fan only when needed. This

temperature controlled fan circuit prolongs fan life and improves overall performance.

RC car ESC with smartstart-stop technology

Note: The intelligent fan start-stop function can be disabled through parameter settings.

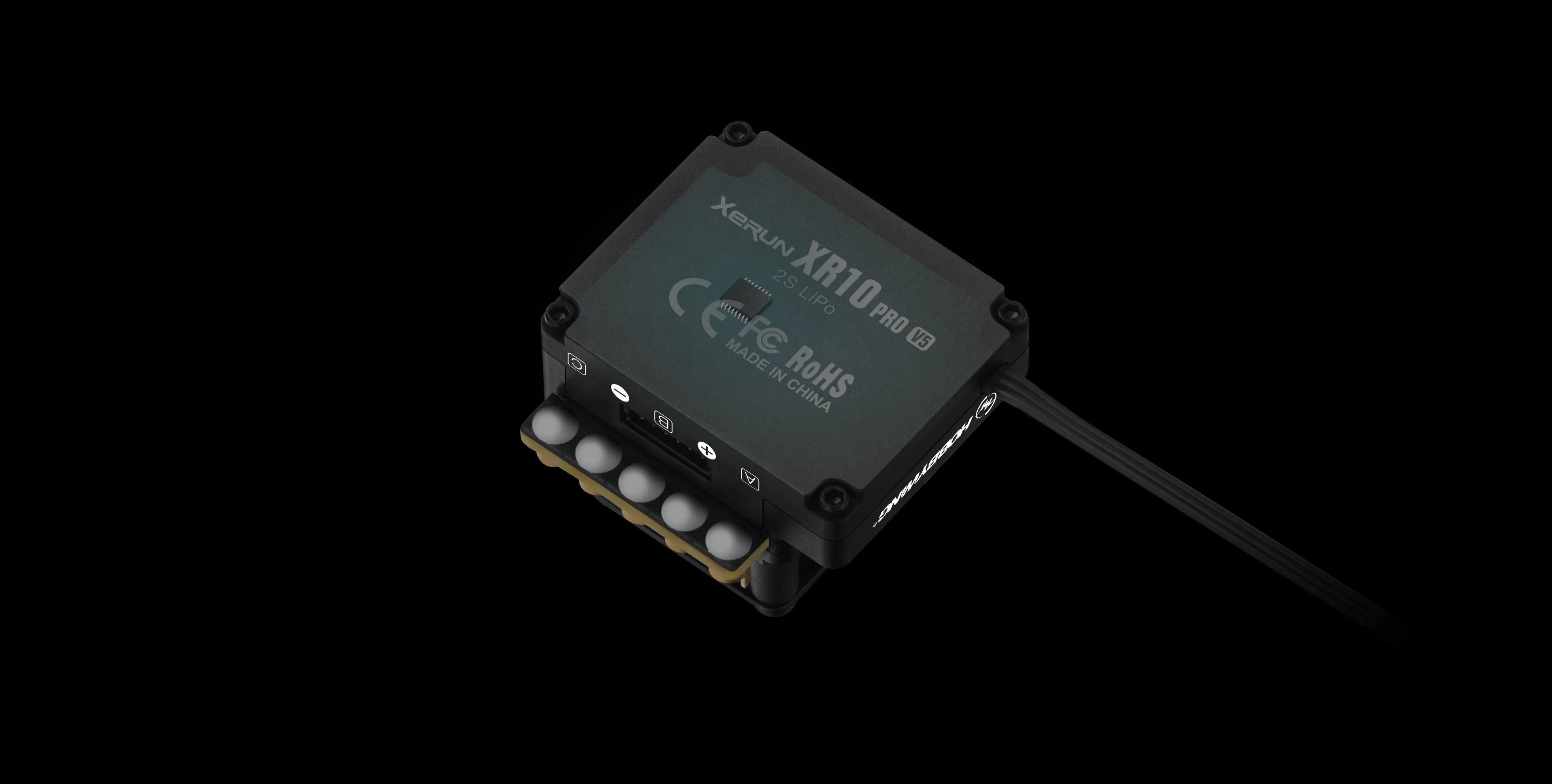

Built-in BEC Supporting
High-Voltage Servos

Built-in BEC

Built-in Maximum
output current up to 10A
switch-mode BEC

Adjustable voltage from
5.0 to 7.4V(0.1V steps)

Delivering power and precision
demanded by high-torque and
high-voltage servos.

Softening Function for
Enhanced Control

Updated to include HOBBYWING's patended Softening, the Legacy now includes

a useful tool for tuning tricky track conditions.

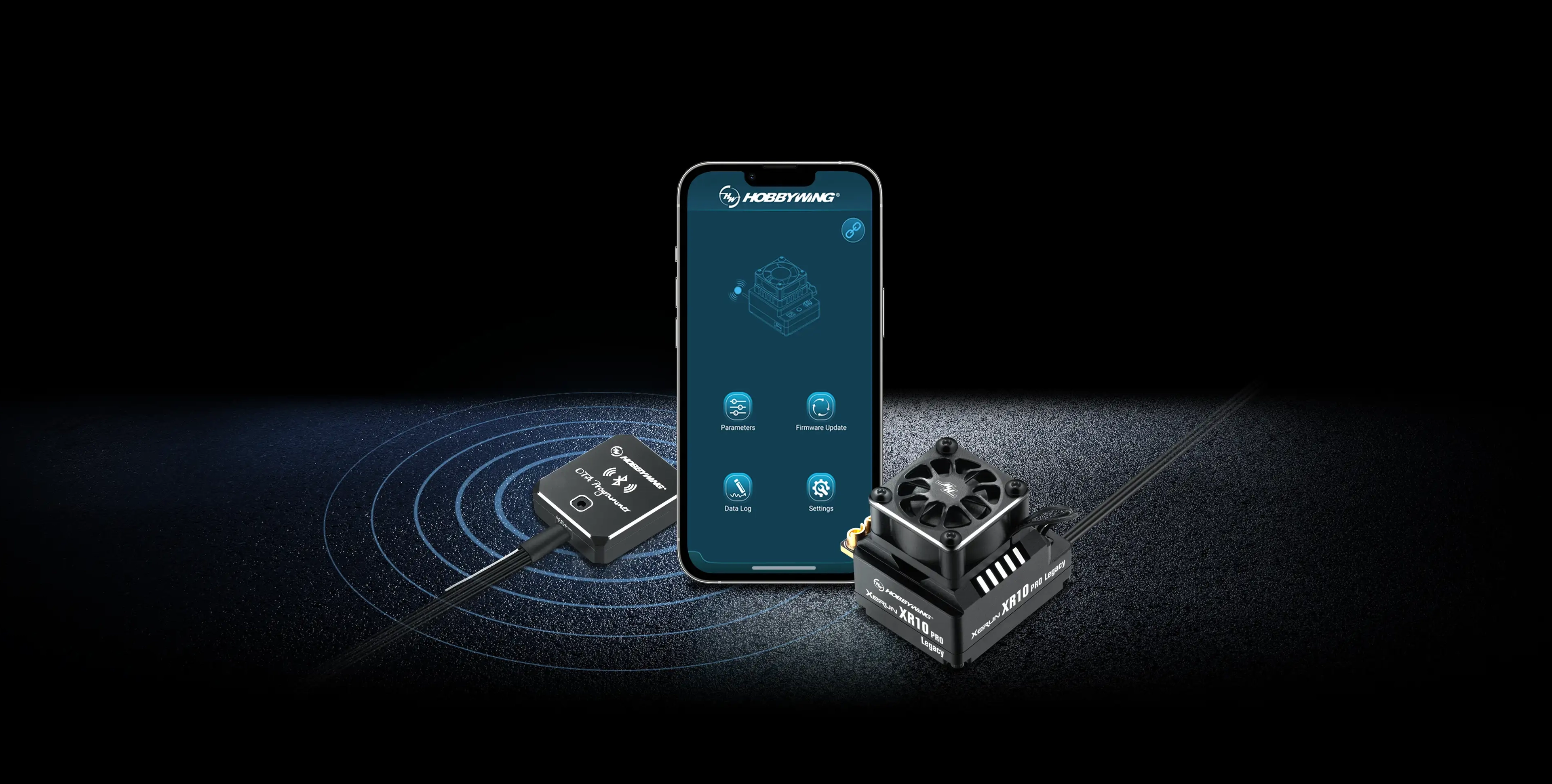

External OTA Makes Parameter
Tuning and Firmware Upgrades
More Convenient

Pair the ESC with the OTA Bluetooth module to access wireless connectivity with your smartphone.

Using the mobile app, you will effortlessly adjust parameters, read data, and upgrade firmware

improving quality of life.

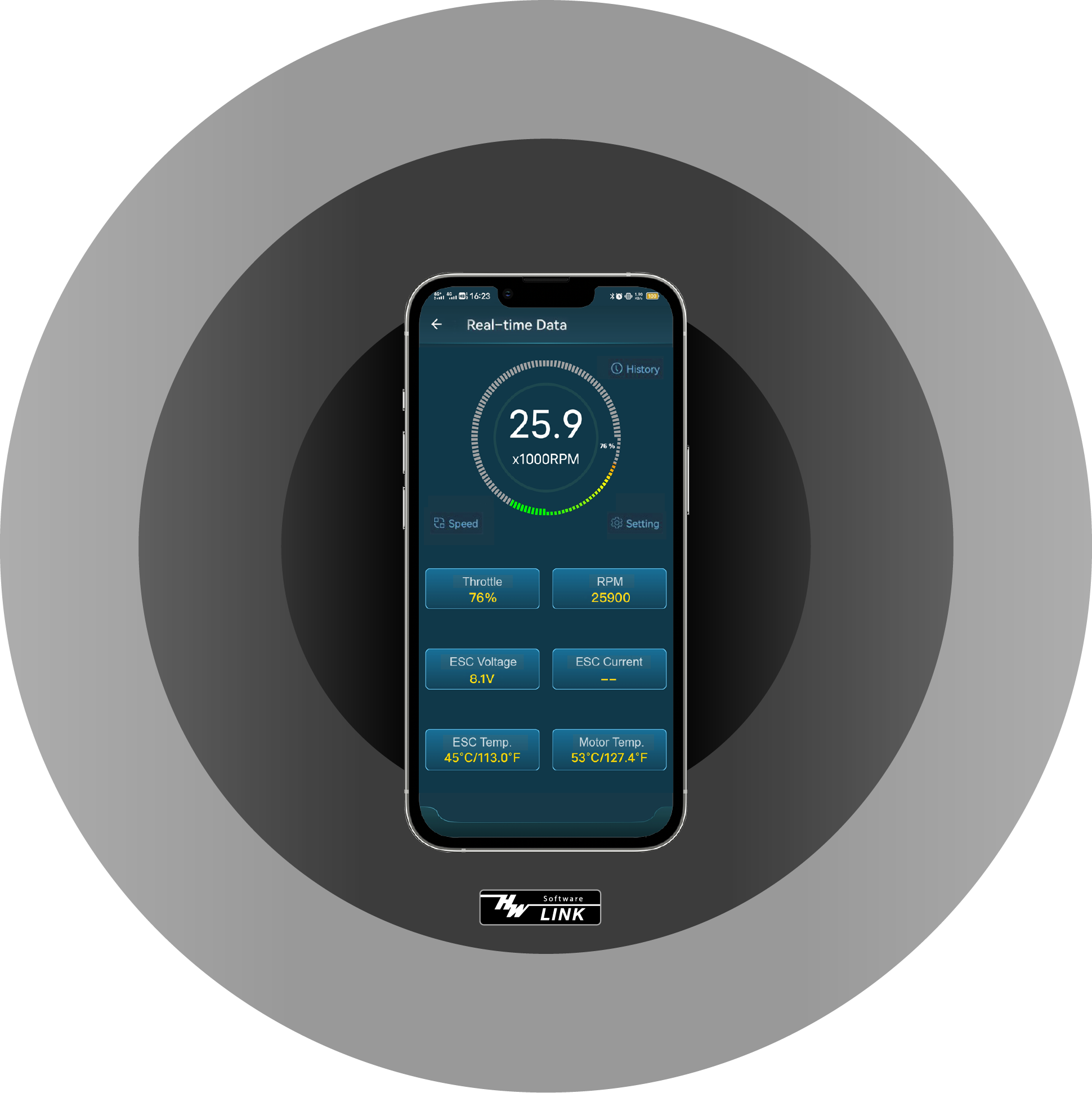

Real-time Data Logging
Function for Easy Access to
Power System Status

Connect the ESC to the OTA Bluetooth module and pair it with the HW Link mobile app to access real-time

data monitoring. Monitor throttle, voltage, temperature, RPM and other data, while the OTA’s built-in

memory records everything for detailed post-race analysis to fine-tune performance like never before.

Note: Due to Bluetooth transmission limits, the effective range is approximately 5 meters.

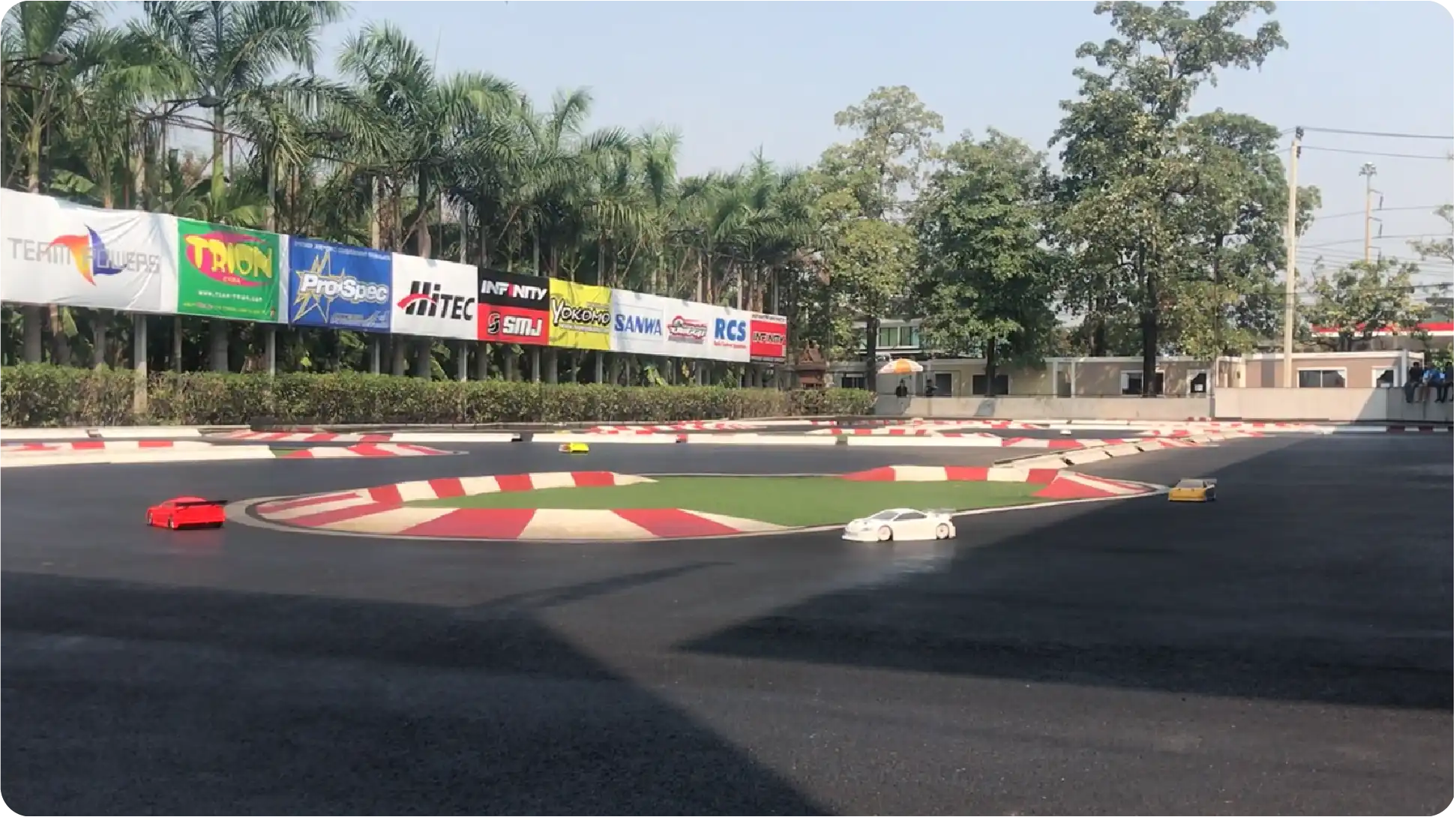

Designed for All
Forms of Racing

Built on the stable and powerful XR10 Pro series platform, this ESC is perfect for 1/10^th on-road and off-road racing across both Modified and Stock classes.

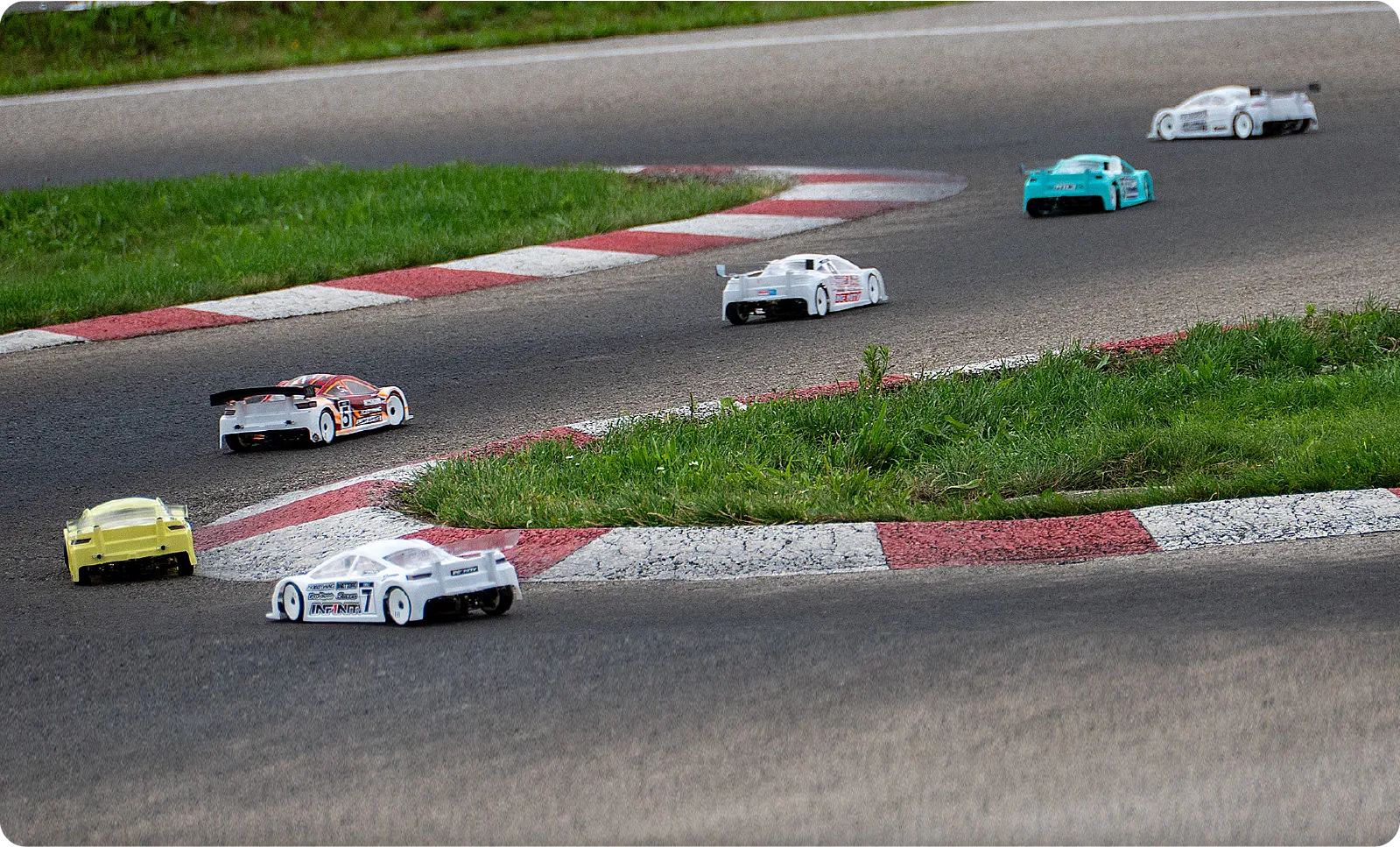

1/10thOn-Road
1/10thOff-Road

1/10th On-Road

1/10th Off-Road

Product NameXeRun XR10 Pro Legacy

Product Number

30112800

Type

Scale Brushed/Brushless Sensored/Sensorless Waterproof

1/10^th
Brushless
Sensored
No

Specifications

Cont./Peak Current Input Voltage BEC Output

150A/1000A
2S LiPo
5V-7.4V,5A

Wires & Connectors

Input Wires Output Wires Input Connectors Output Connectors

Black-13AWG-200MM*2
Black-13AWG-200MM*3
No
No

ESC Programing via

SET Button on ESC LED Program Box LCD G2 Program Box LCD PRO OTA Programmer Program Port

Not Supported
Not Supported
Supported
Supported
Supported
Independent program port

Data Recording

Extreme value Real-time Data Historical data (Graph)

Supported
Supported
Supported

Firmware

Firmware Upgrade

Supported

Size & Weight

Size Weight

37.7*37.0*33.2mm
94.2g( Included wires & connectors)

Applications

Motors Vehicles KV Rating/T Count

Sensorless Brushless/Sensored Brushless Motor
1/10^thOn-Road/Off-Road Racing,1/10^th Drift/F1/Rally
3650 (540) size 2-pole motor, On-Road ≥ 4.5T≥ Off-Road ≥ 5.5T

Support

Manuals & Documents

Manuals

Software Download

OTA Programmer

Product Number: 30850400
Working Voltage: 5-12.6V
Supported Bluetooh Version: ≥ 4.0
Effective Range: 0-5m (Open Field)
Applications: work on the XzRun series,
EzRun series of car ESCs, and the Platinum
series of aircraft ESCs, and
Seaking Prp series of boat ESCs.
