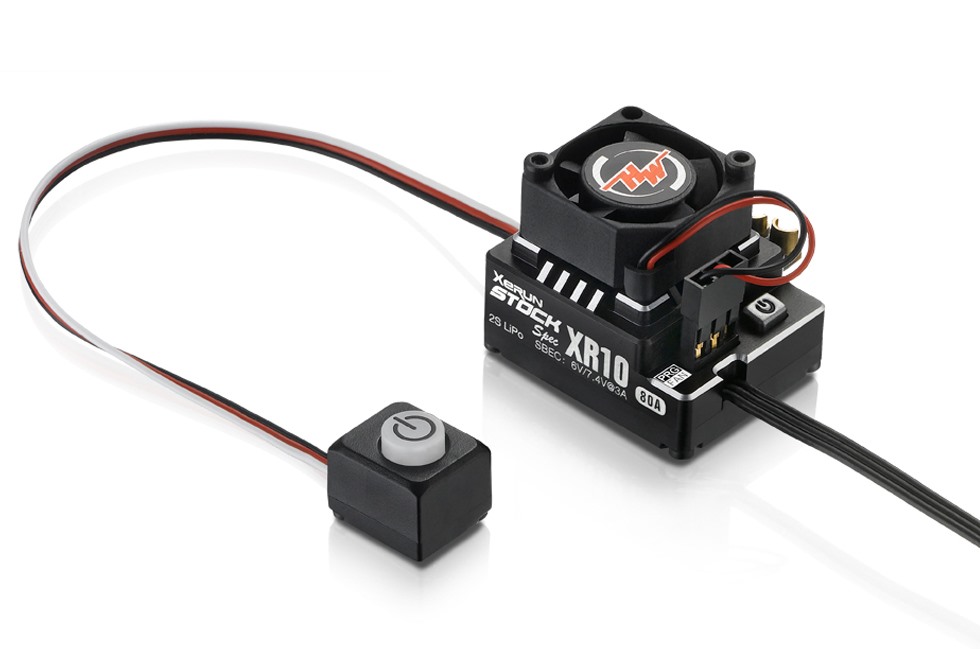

Innovative Double-switch Design

A built-in electronic switch combined with an external detachable switch effectively helps
the XR10 Stock Spec avoid some flaws of ordinary or one-switch ESCs. The internal switch
makes the wiring convenient, the external switch is really handy when the car shell is
installed on and the built-in switch is no longer touchable.
(Warning! Patented design, do not copy.)

Innovative
Double-switch Design

Special Design for STOCK Class Racing

Reliable hardware combined with great software (contains 5 common ready-to-use
profiles) creates an ideal power solution to the STOCK class of 1/10 scale touring car,
buggy racing.

Best  for
STOCK Class Racing

Programming/Upgrading/
Data Reading Wirelessly

With Hobbywing's "WiFi Express" module and iPhone or an Android phone (with the HOBBYWING
WiFi Link software installed), the user can remotely program parameters, upgrade firmware and
check relevant data of the ESC without leaving the control stand.

WiFi Express

WiFi Module

Small Size & Light Weight

This ESC is smaller and lighter than the standard version XR10
Pro and it's the mini version of XR10 Pro 160A. The small size
(31.5x25.6x16.1mm) makes the installation convenient and the
light weight (only 28g w/o wires) provides more weight margin
when adjusting the balance of the chassis.

Small Size &
Light Weight

16.1mm

31.5mm

25.6mm

31mm

37.5mm

19mm

XeRun XR10 Stock Spec

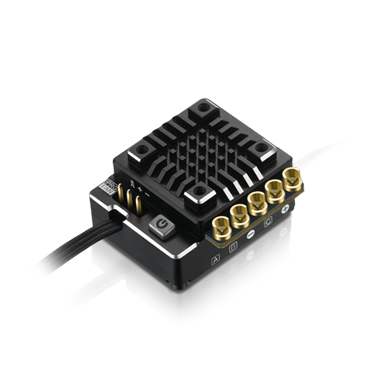

XeRun XR10 PRO 160A

Super Internal BEC

The built-in switch mode BEC with a maximum output
of 6A and voltage adjustable between 6V and 7.4V
allows the user to use various high voltage servos.

Super Internal BEC

Adjustable Throttle & Brake PWM Frequencies

Independent and adjustable throttle & brake PWM frequencies guarantee precise and accurate
throttle and brake control for all classes of competitions (esp. the Stock class).

Adjustable Throttle &
Brake PWM Frequencies

Data-logging Capability

This ESC features the data-logging function which can record
the maximum ESC & motor temperatures, the minimum battery
voltage, the maximum motor RPM and etc. in real time and
allows users to check those data via a LCD program box or
WiFi module after each use.

Data-logging
Capability

LCD Program Box

WiFi Module

Product Name
Product Number
Type Scale

Brushed/Brushless

Sensored/Sensorless

Waterproof
Specifications Cont./Peak Current

Input Voltage

BEC Output
Wires & Connectors Input Wires

Output Wires

Input Connectors

Output Connectors
ESC Programing via SET Button on ESC

LED Program Box

LCD Program Box

WiFi Module

OTA Programmer

Program Port
Fan Size

Voltage Range

Powered by
Data Recording Extreme value

Real-time Data

Historical data (Graph)
Firmware Firmware Upgrade
Size & Weight Size

Weight
Applications Motors



Vehicles

KV Rating/T Count
Product Name XeRun XR10 Stock Spec
Product Number 30112401
Type Scale

Brushed/Brushless

Sensored/Sensorless

Waterproof		 1/10th

BL

SD

No
Specifications Cont./Peak Current

Input Voltage

BEC Output		 80A/380A

2S Lipo/5-7 Cell NiMH

Switch Mode:6V/7.4V,3A
Wires & Connectors Input Wires

Output Wires

Input Connectors

Output Connectors 		Black-14AWG-200mm*2

Black-14AWG-200mm*3

No

No
ESC Programing via SET Button on ESC

LED Program Box

LCD Program Box

WiFi Module

OTA Programmer

Program Port		 Not Supported

Not Supported

Supported

Supported

Supported

Separate Program Port
Fan Size

Voltage Range

Powered by		 20x20x8mm

5-7.4V

BEC
Data Recording Extreme value

Real-time Data

Historical data (Graph)		 Supported(LCD)

Not Supported

Not Supported
Firmware Firmware Upgrade Supported
Size & Weight Size

Weight



 31.5x30.2x16.1mm

54.5g (w/Wires)
Applications Motors



Vehicles

KV Rating/T Count		 SL BL Motors

SD BL Motors

STOCK class of 1/10th Touring Car & Buggy Racing

1/10th Touring Cars≥10.5T, 1/10th Buggy≥13.5T
Support

Manuals & Documents

Manuals

Software Download

FAQ

WiFi Express

STOPPED

WiFi Express

Product Number: 30503000
Working Voltage: 5V-12.6V
WiFi Protocol: IEEE802.11 b/g/n
WiFi Signal Effective Range: 0-10m
(Open Field) Applications: work on
the XeRun series, EzRun series
of car ESCs, and the Platinum series
of aircraft ESCs, and Seaking Pro
series of boat ESCs.

+
Multifunction LCD Program Box

Multifunction LCD Program Box

Part Number: 30502001
Size: 91x51x17mm (LxWxH)
Applications: Platinum series of
brushless aircraft ESCs, XeRun
series & EzRun series of brushless
car ESCs, SeaKing Pro series of
brushless boat ESCs

+
OTA Programmer

OTA Programmer

Product Number: 30850400
Working Voltage: 5-12.6V
Supported Bluetooh Version: ≥ 4.0
Effective Range: 0-5m (Open Field)
Applications: work on the XzRun series,
EzRun series of car ESCs, and the Platinum
series of aircraft ESCs, and
Seaking Prp series of boat ESCs.

+
