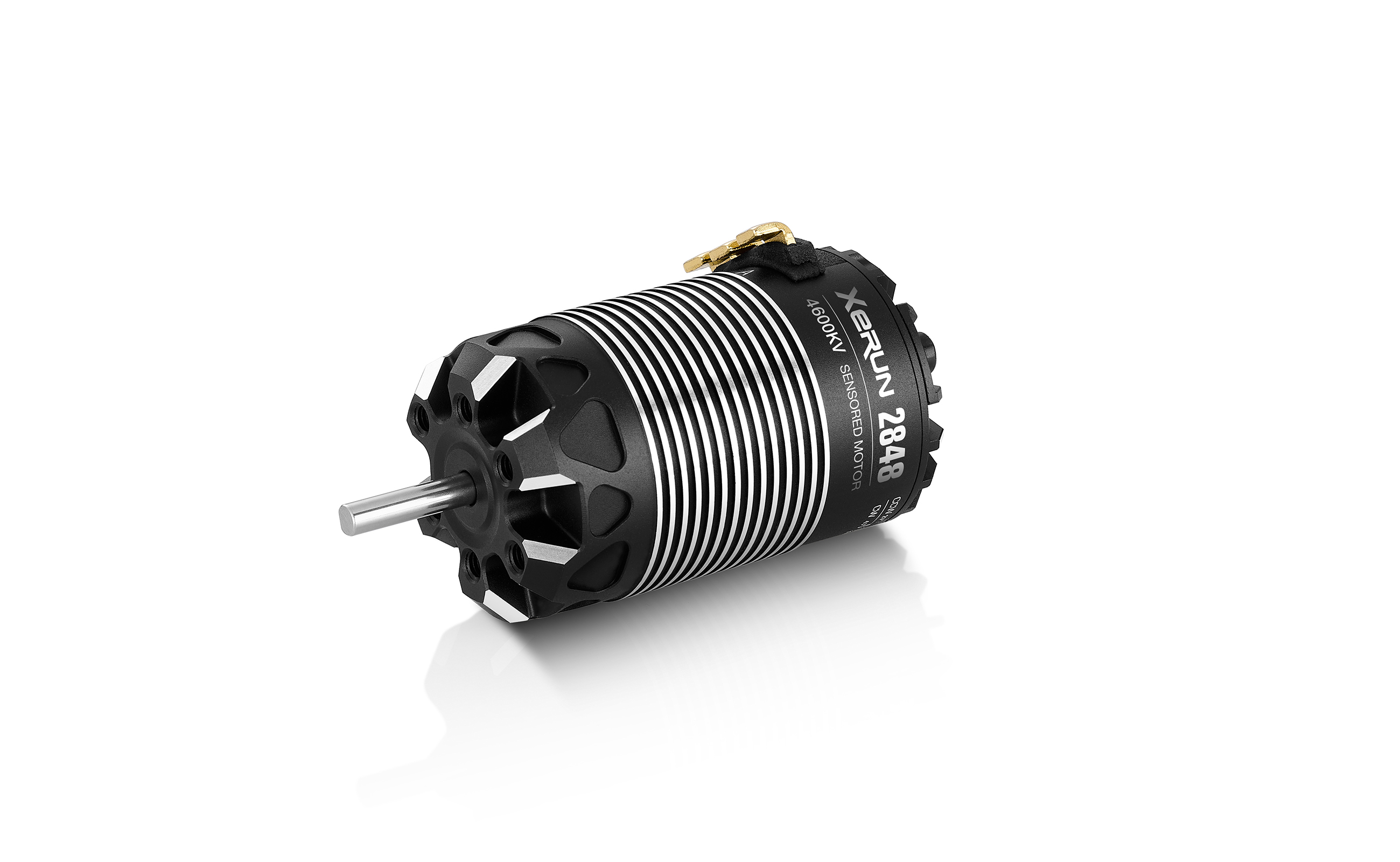

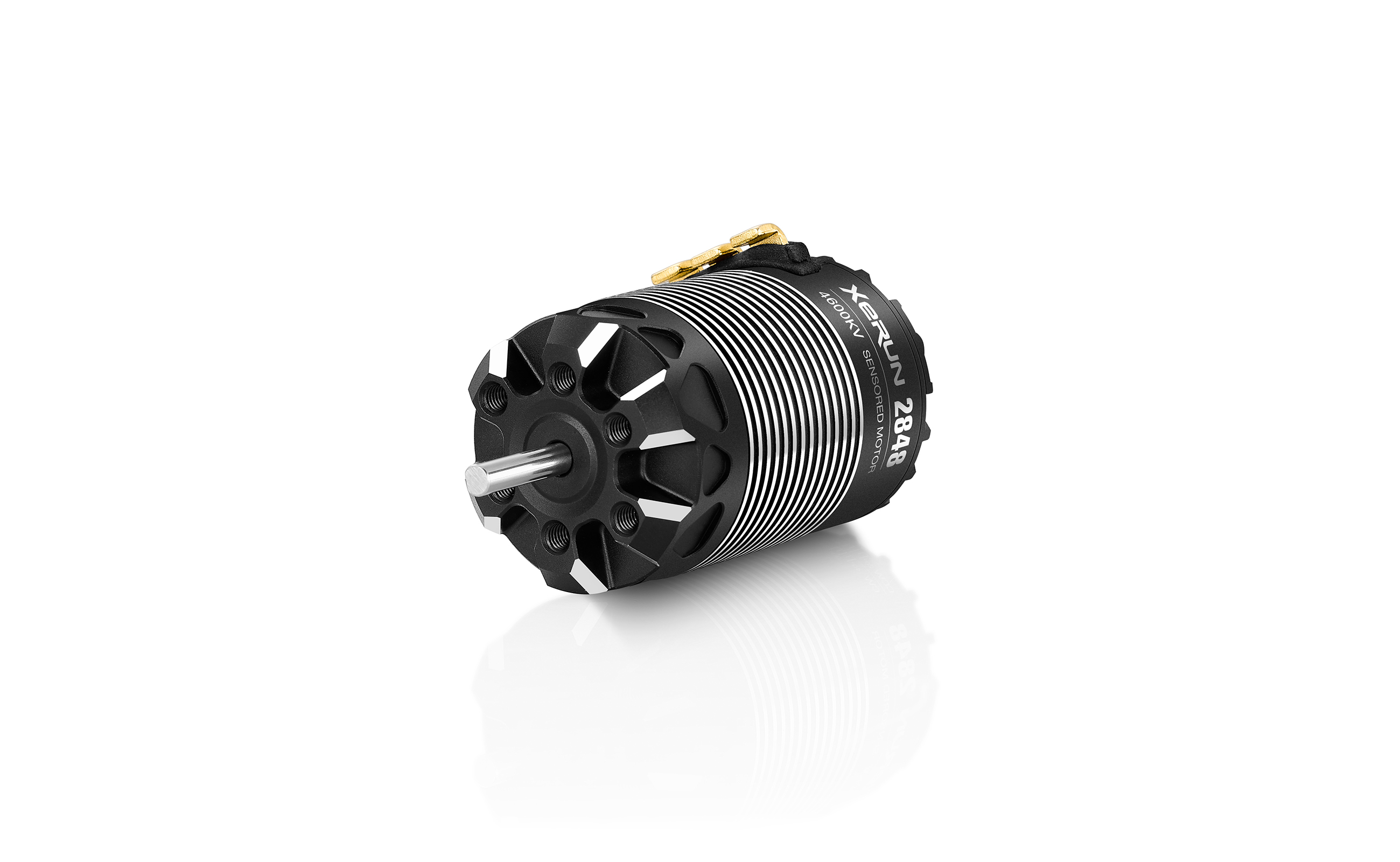

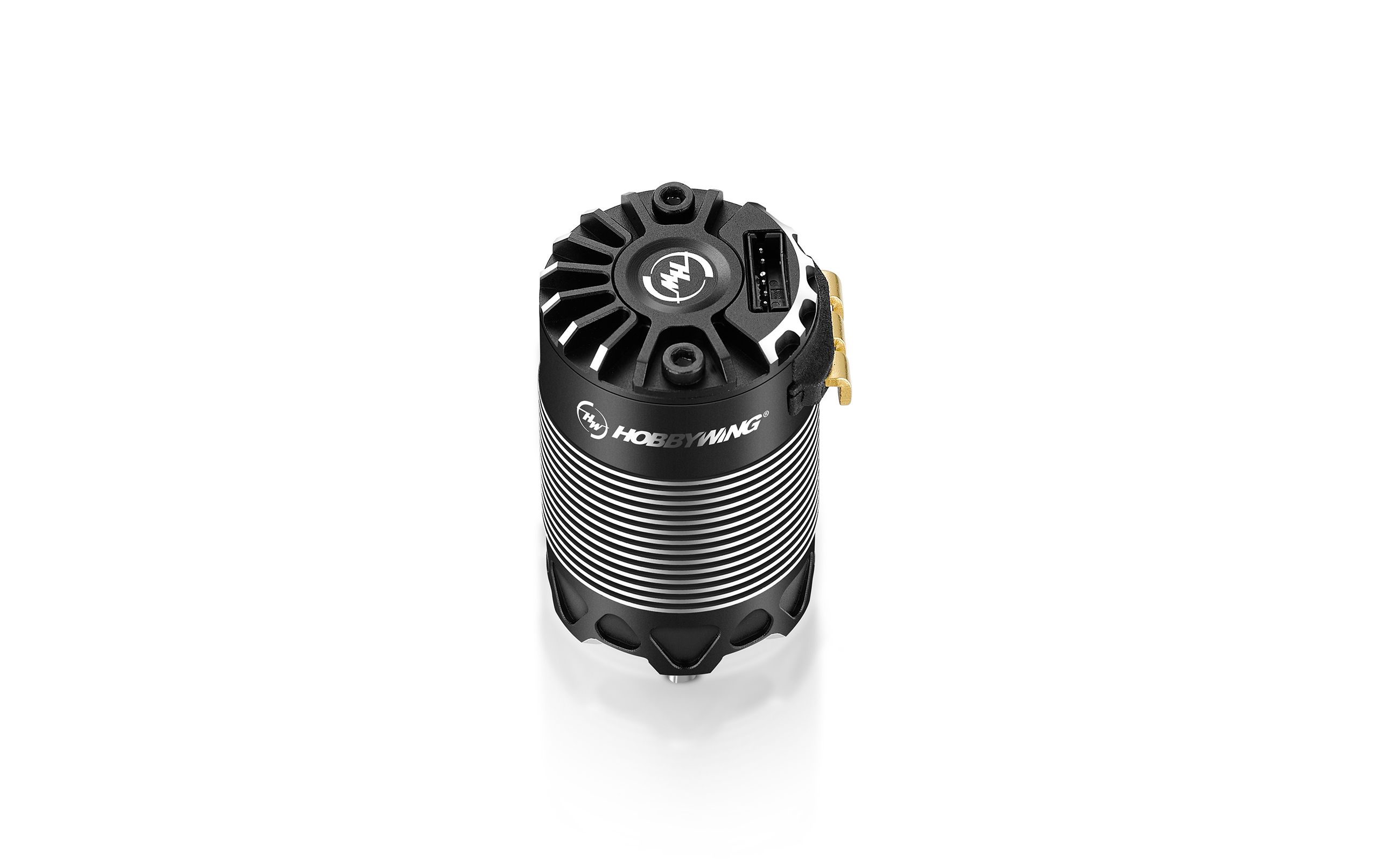

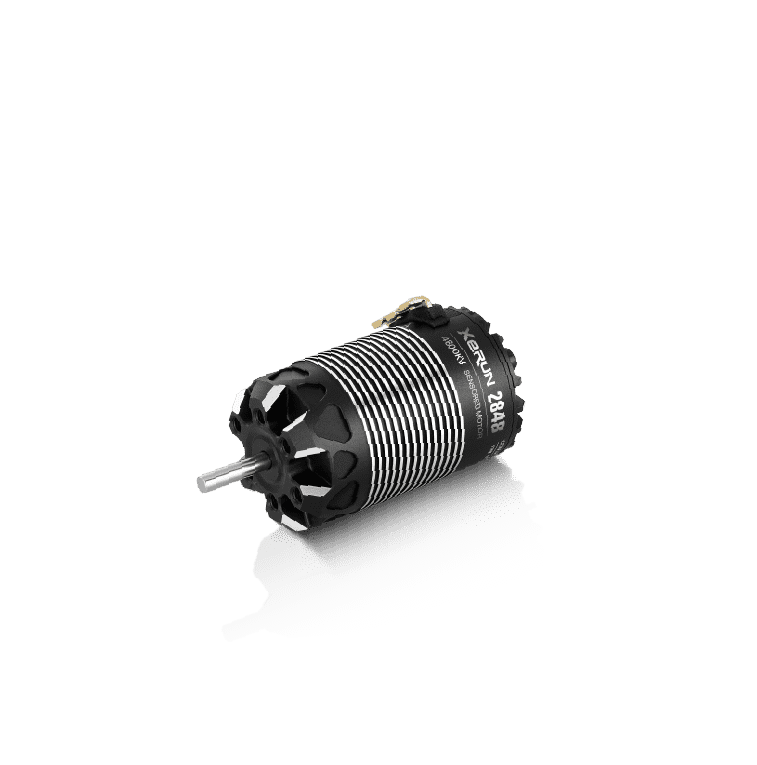

2800KV / 4000KV / 4600KV
Sensored motor.
High power output,
designed for heavy duty
1/14thscale applications.

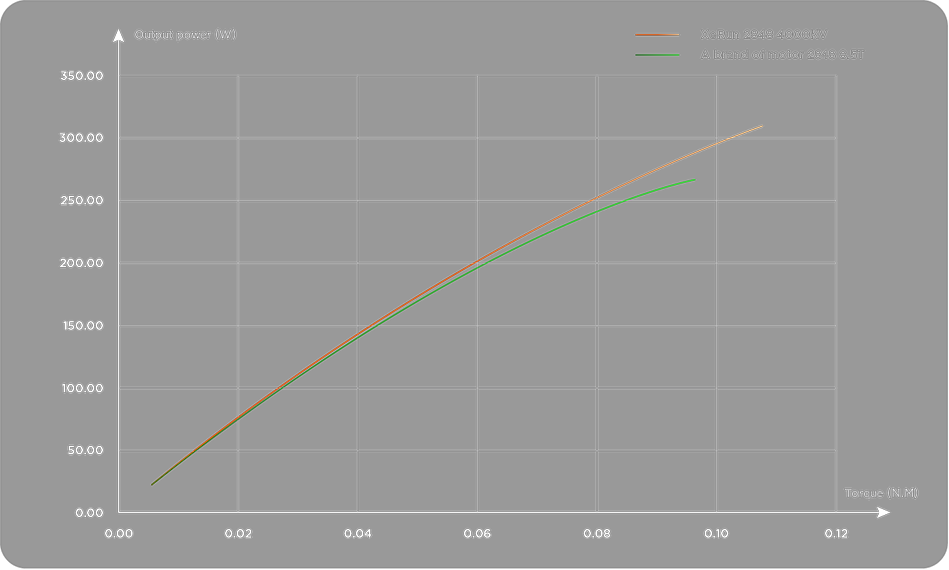

Power output is increased by

when compared to motors of
equal size and specifications.

It is the best choice for

scale competitions.

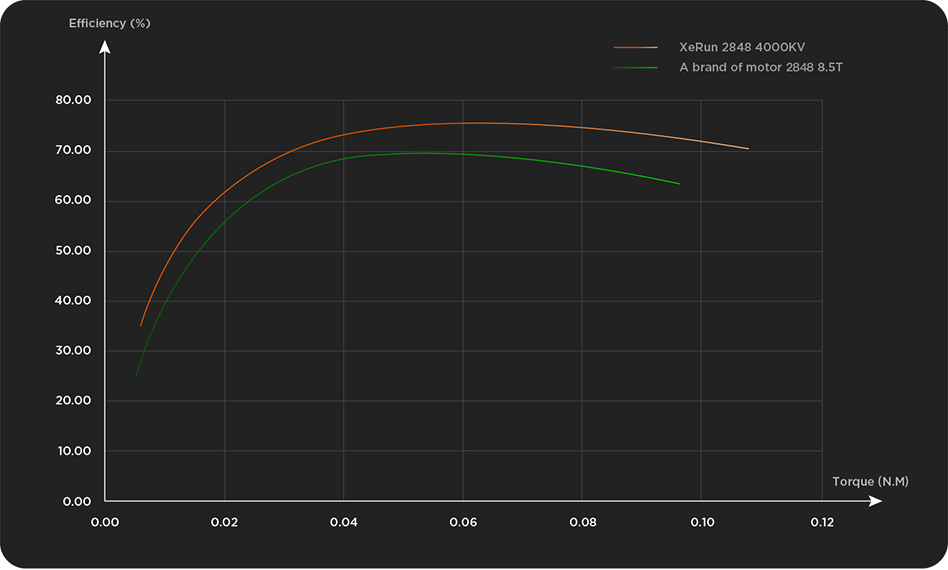

Using a 0.1N·m load test
to compare the same
specifications motors
with our competitors.
The maximum efficiency
of the motor is
6%higher
The internal temperature
is approximately
20°C lower
The external
temperature is
10°C lower
High efficiency,
low temperatures
High efficiency and low temperatures ensure
that the motor is always in a safe state.
Excellent
dust resistance
The protection level isIP5X
with excellent dustproof performance.
It is able to cope with various
Off-Road dusty track environments.

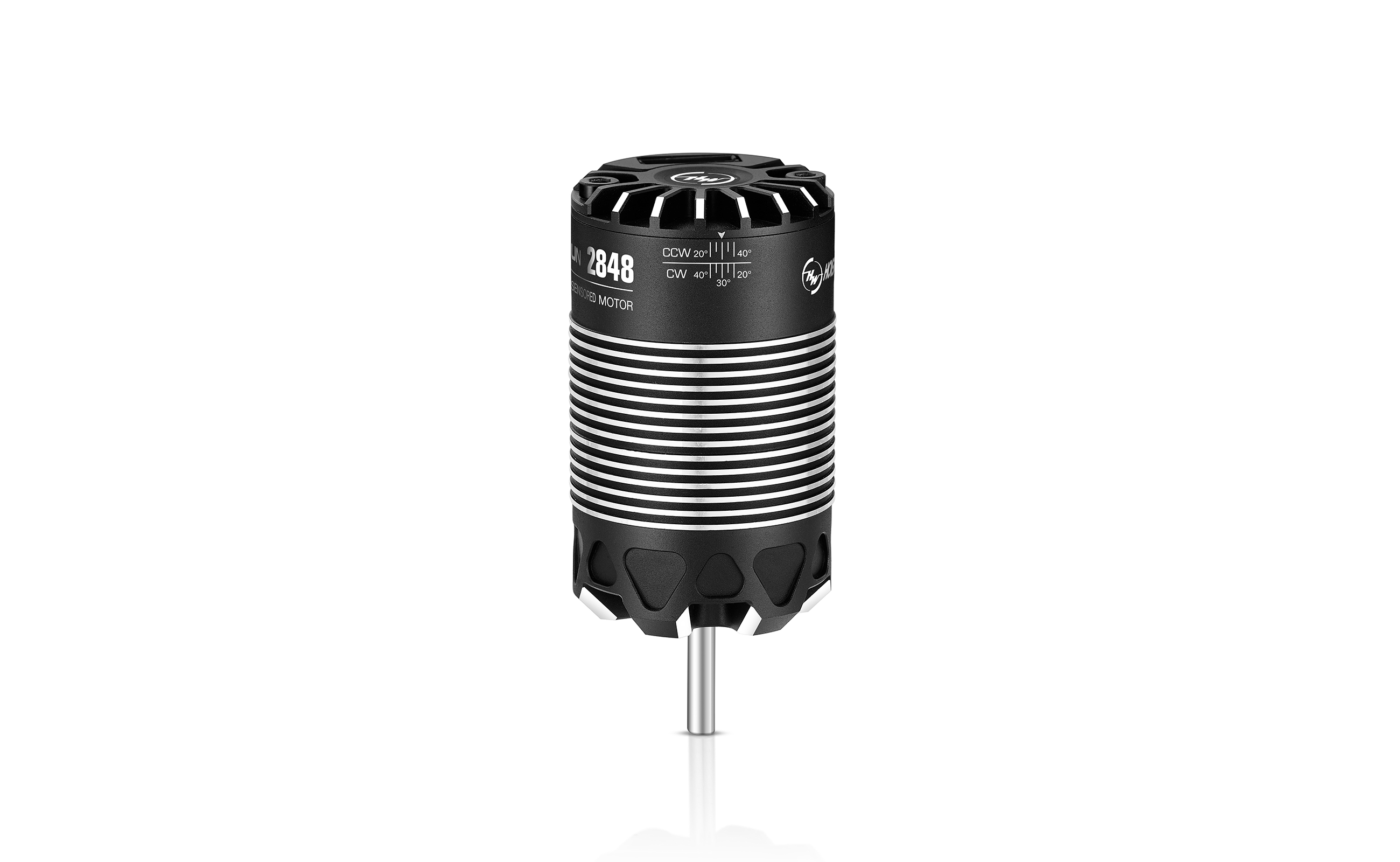

Mechanical endbell timing,
allows the motor to be setup
for CW or CCW rotation.

  • The mechanical timing can be adjustable between
    20-40° degrees.

  • Convenient for the drivers to adjust the motor
    Output power.

  • Meet the
    Power demand
    for various application environments.

Low cogging moment

The motor has a very low speed start up,
offering extremely smooth and linear throttle response.
(about 1/4 of popular brands),
Extremely smooth and linear operation
at low speed, with great control.

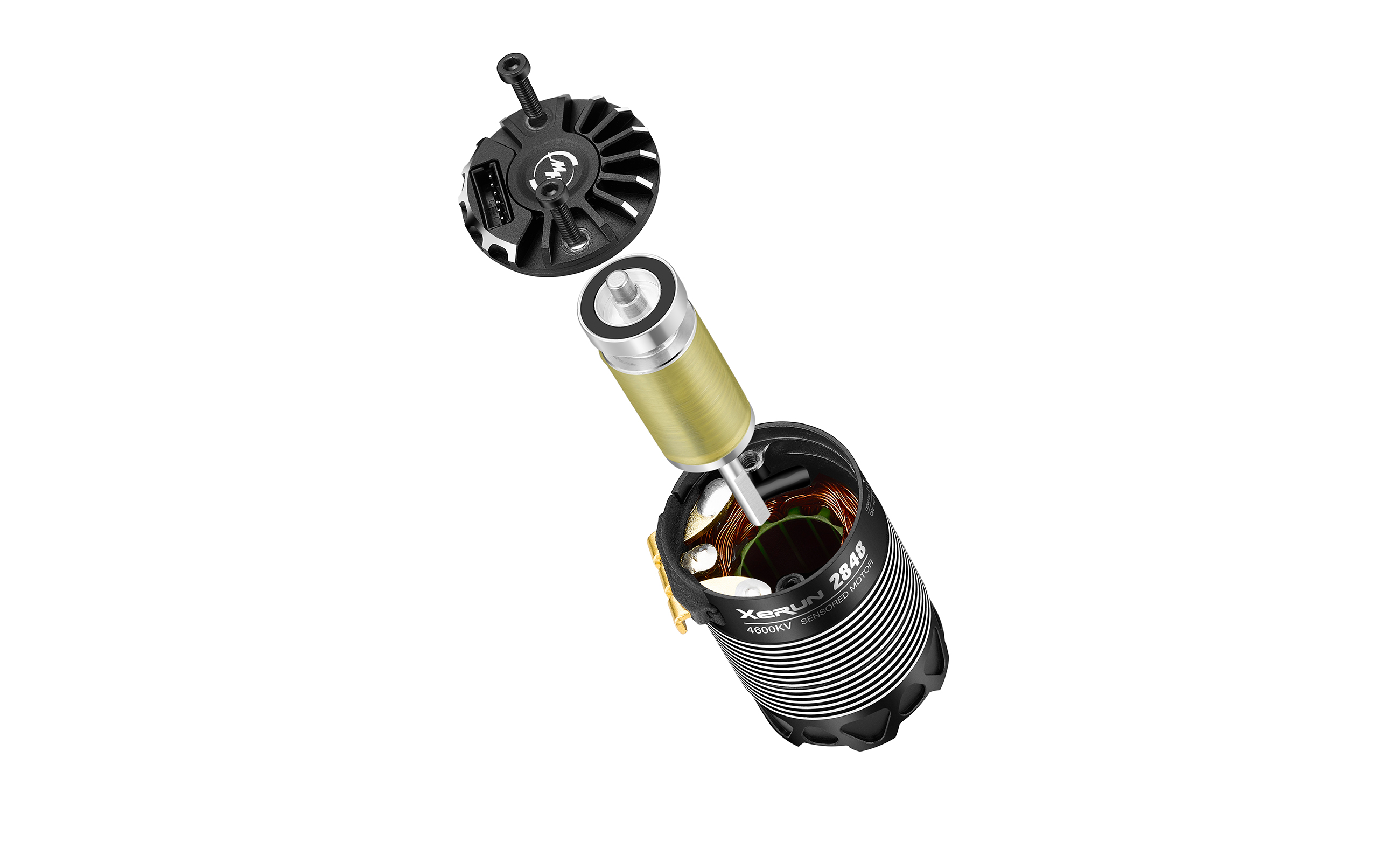

Easy to maintain
The motor's modular design allows it be easily
disassembled for cleaning and maintenance.
This will prolong the motor life and maintain
overall performance and efficiency.
Industry-leading materials
and excellent product design
Easily tackles rigorous racing competitions.

  • Adopts high-performance top-tier brand
    Iron core.

  • High-precision grade
    Bearings.

  • High temperature
    resistant wire
    (200°C).

  • high temperature resistant (180°C)
    Explosion-proof rotor.

  • The soldering terminals adopt customized widened
    U-shaped gold-plated curved copper bars
    that has extremely low internal resistance.
    The gap between the copper bars has been increased to ease soldering.

Product Name
Product Number
Type Scale

Brushed/Brushless

Sensored/Sensorless

Pole Count
Relevant Parameters KV Rating

LiPo Cells

No-load Current(A)
Size & Weight O.D.(mm)

Length (mm)

Shaft Diameter (mm)

Weight (g)

Front Bearing

Rear Bearing
Other Parameters ESC

Vehicles
Product Name XeRun 2848SD 2800KV XeRun 2848SD 4000KV XeRun 2848SD 4600KV
Product Number 30401320 30401321 30401322
Type Scale

Brushed/Brushless

Sensored/Sensorless

Pole Count		 1/14th,1/12th

BL

SD

4		 1/14th,1/12th

BL

SD

4		 1/14th,1/12th

BL

SD

4
Relevant Parameters KV Rating

LiPo Cells

No-load Current(A)		 2800KV

2-3S LIPO

1.5A		 4000KV

2-3S LIPO

2.1A		 4600KV

2S LIPO

2.6A
Size & Weight O.D.(mm)

Length (mm)

Shaft Diameter (mm)

Weight (g)

Front Bearing

Rear Bearing		 28.5

48

3.175

100g

D9.525*D3.175*T3.9675

D6.35*D3.175*T2.778		 28.5

48

3.175

100g



 28.5

48

3.175

100g
Other Parameters ESC

Vehicles		 XeRun XR10 Stock Spec

1/14th,1/12thOn-road,Off-road
Support

Manuals & Documents

Manuals

FAQ

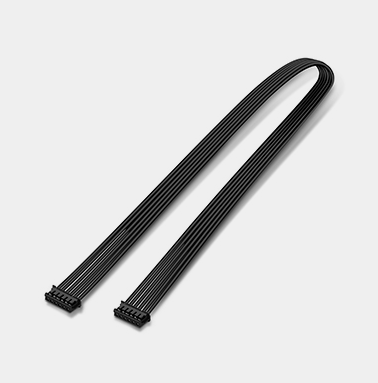

Hall Sensor Cable

Hall Sensor Cable

Part Number: 30850100, 30810000,
30850102, 30850103...
Size: The sensor cable is available
in five different lengths.
Applications: (Connection between)
the Sensored Motor(s) and ESC(s)

+
