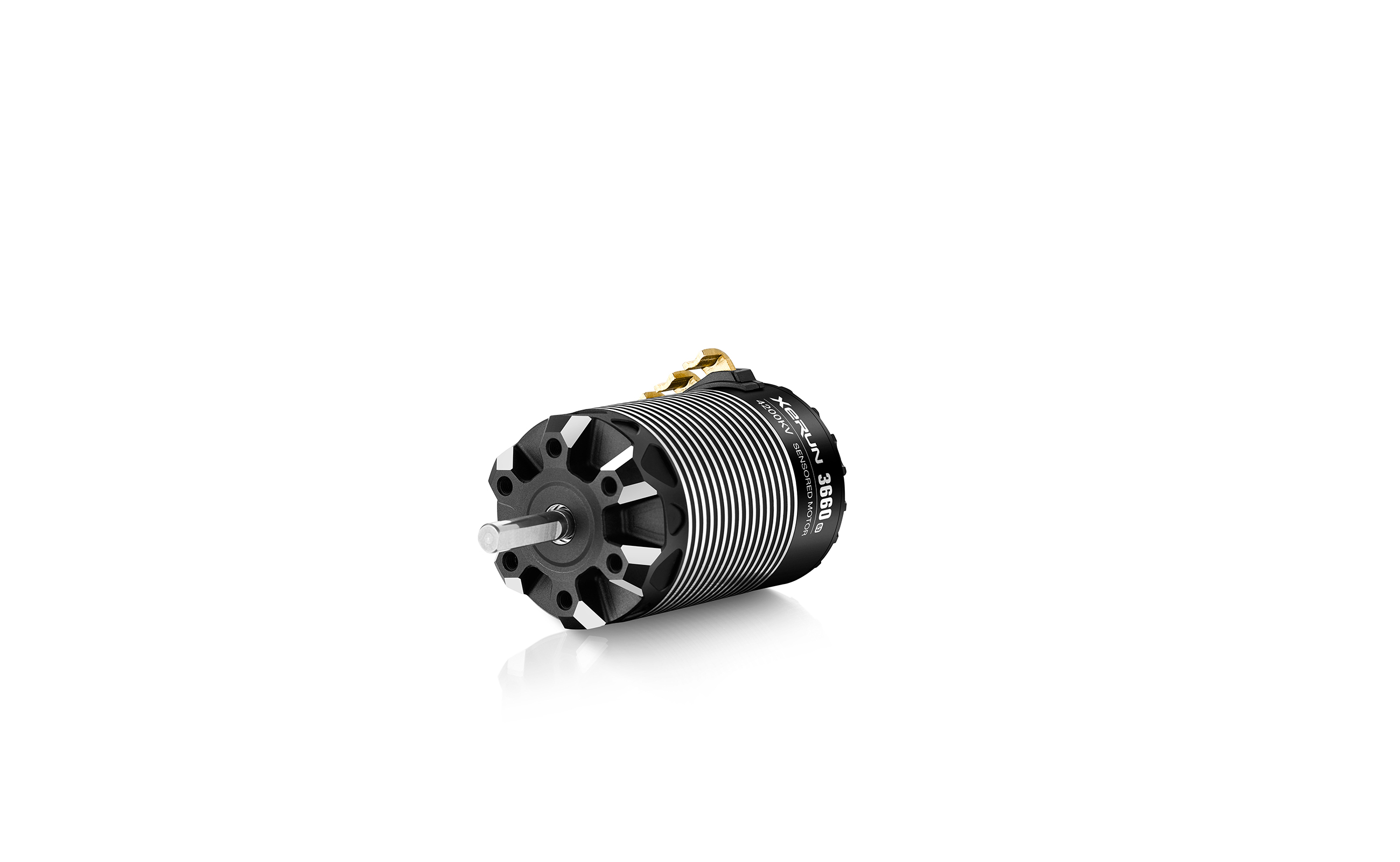

XeRun 3652 / 3660 G3

Overview
Specifications
Support
Accessories
Detail

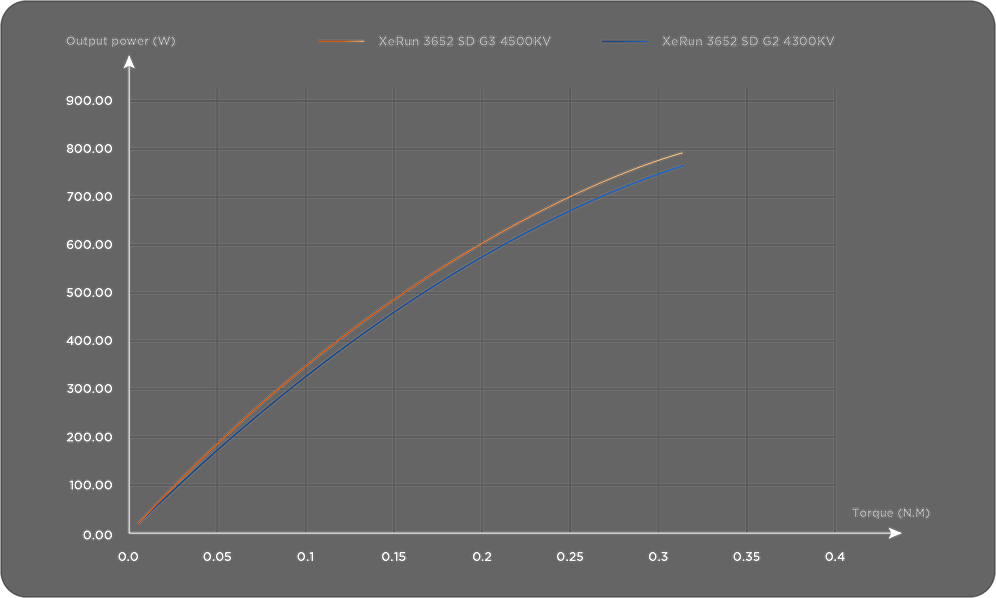

with the 3652-4500KV
motor showing
a power increase of

Overall Power has
been lmproved

When compared to the previous generations (G2),
the new G3 series offers better
overall power and efficiency.

Large power gains
after turbo is turned on

Compared to the XeRun 3652/3660 G2 motor,
the maximum Motor RPM increases by 50% to 100%
when the Turbo timing is activated at 24°.

Note:
Due to the differences in KV characteristics of each motor,
there is a slight difference in speed increment.

Safe and reliable motor
hall sensor system

The motor utilizes a patented 'error-free' hall sensor system,
with an independent high-speed,
high-precision encoder that consistently outputs a pure rotor position signal.
This design prevents sensor signal interference,
ensuring stable operation sensored.

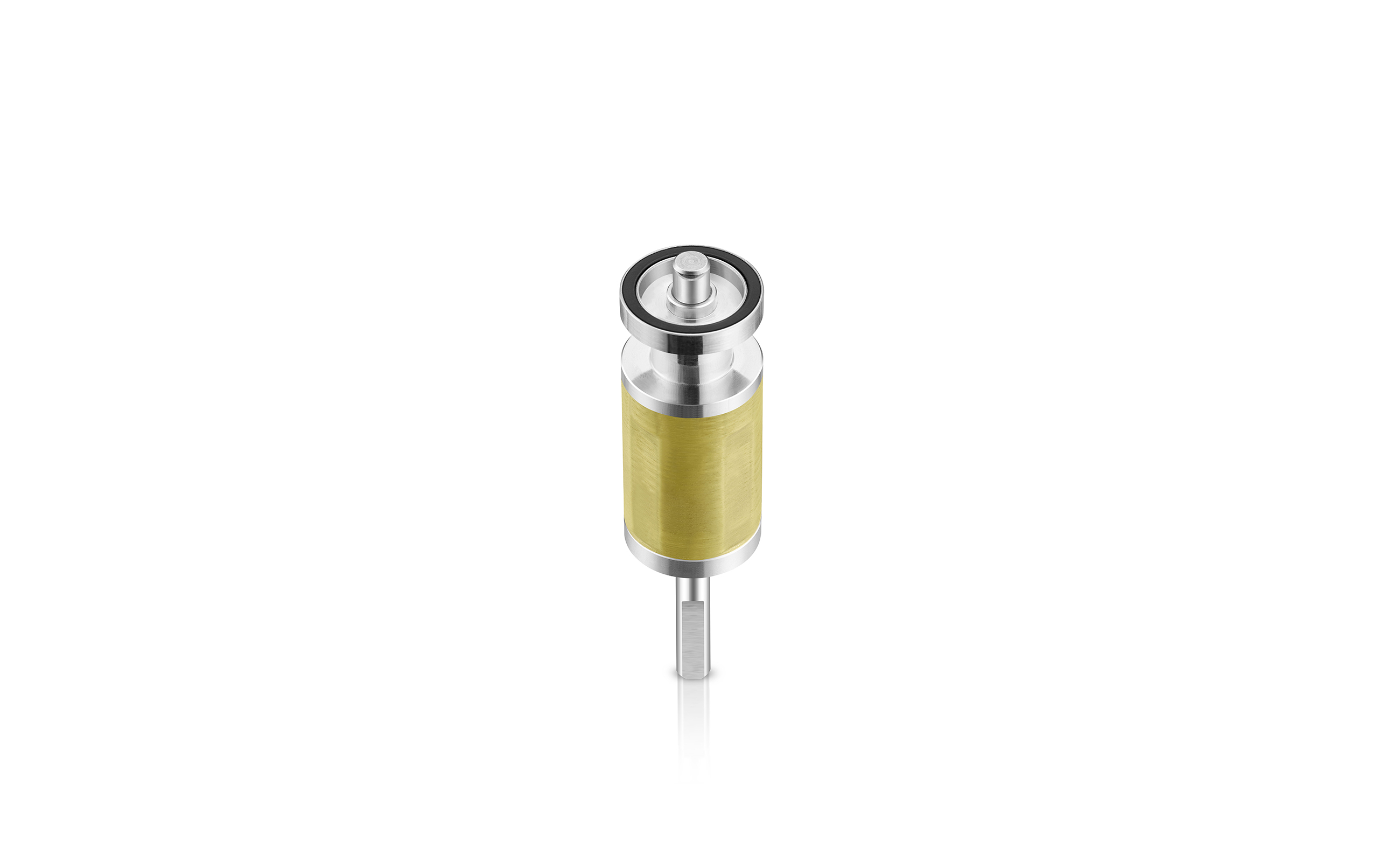

Ultra Reliable
Rotor design

Compared with the XeRun 3660 G2 motor, the XeRun 3660 G3
boasts up to 75,000 RPM, even under high temperatures of up to
140°C. The rotor durability has been increased by over 15%,
ensuring trouble free operation in the most demanding conditions.

The durability and reliability
has been increased by over

Excellent dust resistance

The motor has an

protection rating,
providing excellent performance.
It is designed to easily cope
with the challenges of off-road,
track environments.

Dual hall sensor ports
design for ease of wiring

The dual hall sensor output socket design on the endbell of
the motor accommodates various wiring needs.
Additionally, a custom-made dust-proof plug protects unused sockets,
preventing dirt from entering them.

Precise adjustment of two-way
mechanical advance timing

The mechanical advance timing of
the motor is adjustable in both
directions (CW/CCW) within a range of
20-40°
This flexibility allows user to fine-tune
the motor's
output power
Ensuring it meets the specific
power needs
of various applications

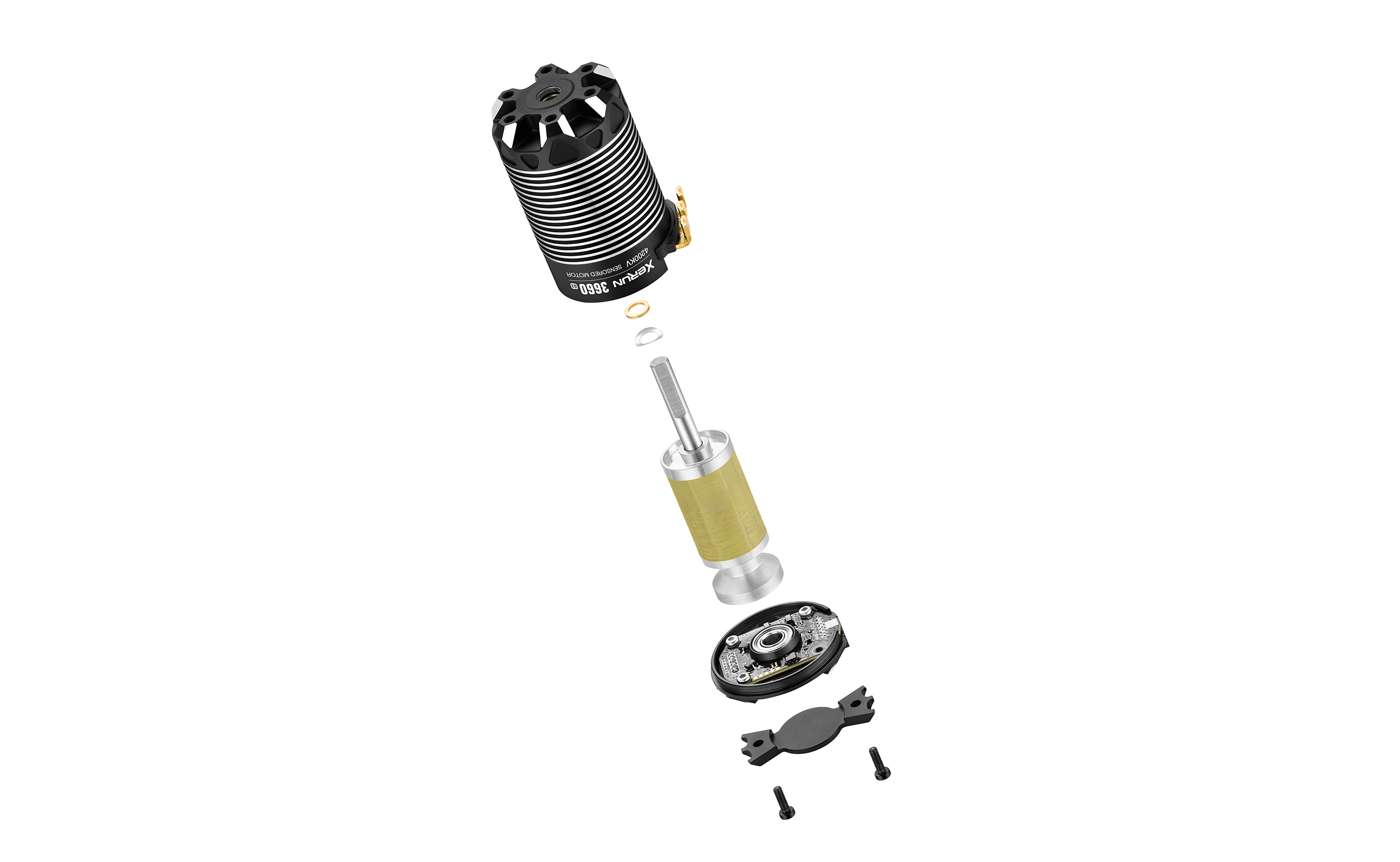

Easy to service
and maintain

The motor features a modular structure design
that simplifies daily cleaning and maintenance.
This design prolongs the motor’s service life
while maintaining its working efficiency.

Smooth cog
free operation

The motor features a low cogging design
and minimal torque pulsation,
ensuring smooth and precise operation,
especially at low speed.
This results in excellent feel and performance.

Unique design
High quality materials 1

The outlet terminal features a widened
U-shaped, gold-plated copper solder tab 2
with extremely low internal resistance.
Added solder tab spacing makes soldering easier.

It incorporates a high-performance
iron core3
International top-tier brand
bearings4

200°C high-temperature resistant
enameled wire5

These components ensure the motor to easily handle the demands of harsh
competition

Model

XERUN 3652SD-5300KV G3

XERUN 3652SD-4500KV G3

XERUN 3660SD-4200KV G3

XERUN 3660SD-3200KV G3

Type

Scale	1/10^th	1/10^th	1/10^th	1/10^th
Brushed/Brushless	BL	BL	BL	BL
Sensored/Sensorless	SD	SD	SD	SD
Pole Count	4	4	4	4

Relevant Parameters

KV Rating	5300KV	4500KV	4200KV	3200KV
LiPo Cells	2S	2S	2-3S	2-3S
No-load Current(A)	7.5A	6.1A	5.7A	4.4A

Size & Weight

O.D.(mm)	36.6	36.6	36.6	36.6
Length (mm)	53	53	60.1	60.1
Shaft Diameter (mm)	5	5	5	5
Weight (g)	194g	189g	230g	227g
Front Bearing	D13D5T4	D13D5T4	D13D5T4	D13D5T4
Rear Bearing	D11D5T5	D11D5T5	D11D5T5	D11D5T5

Other Parameters

ESC	XERUN XR8 PRO G3	XERUN XR8 PRO G3	XERUN XR8 PRO G3	XERUN XR8 PRO G3
Vehicles	1/10^thShort course car (2WD),Buggy,Rally	1/10^thShort course car (2WD),Buggy,Rally	1/10^th Short course car (4WD),Truck,Monster truck	1/10^th Short course car (4WD),Truck,Monster truck

Support

Manuals & Documents

Manuals

Hall Sensor Cable

Part Number: 30850100, 30810000,
30850102, 30850103...
Size: The sensor cable is available
in five different lengths.
Applications: (Connection between)
the Sensored Motor(s) and ESC(s)
