XeRun XR10 Justock G3S

Overview
Specifications
Support
Accessories
Detail

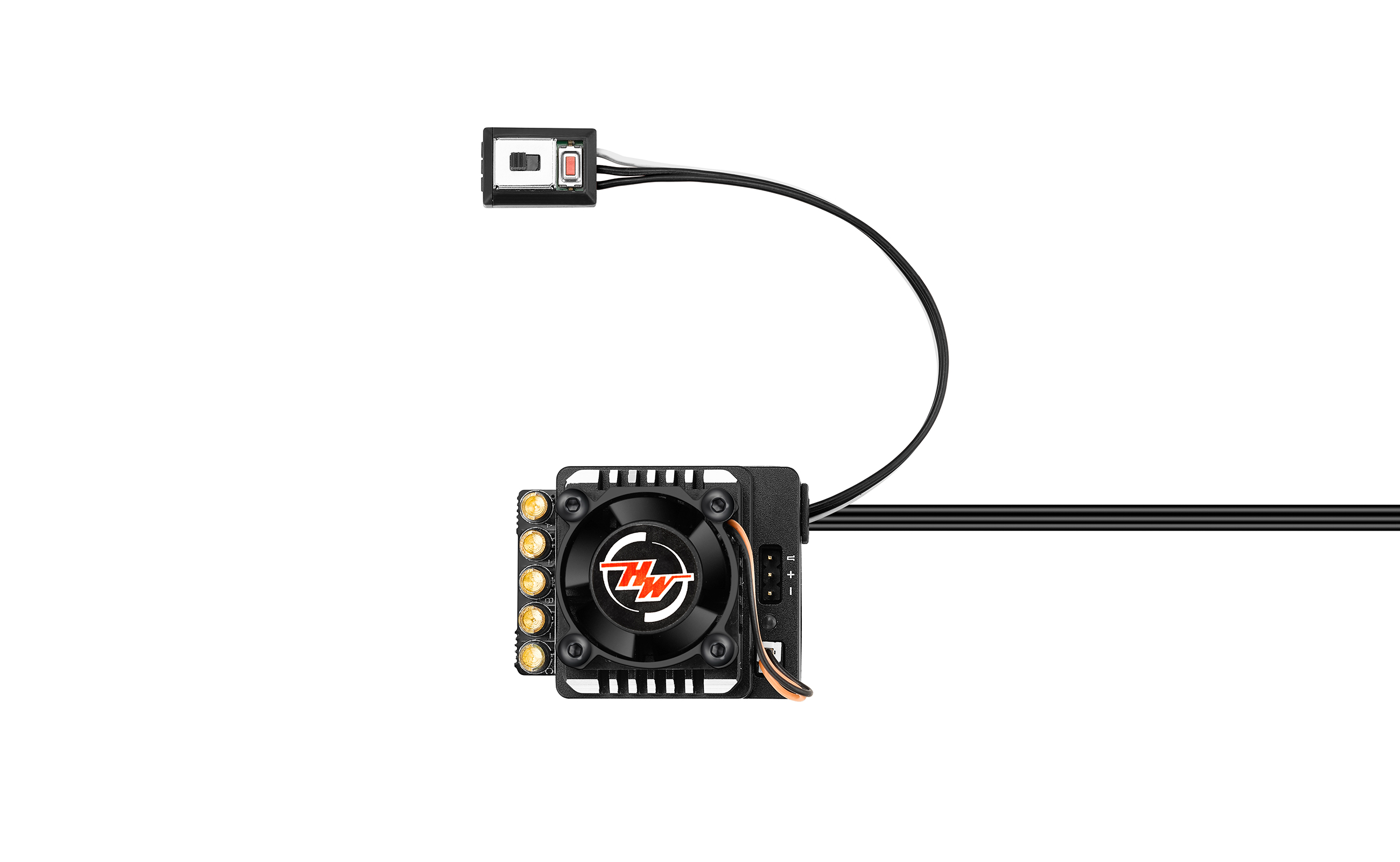

The XR10 Justock G3S
has precise control and powerful performance.
It is suitable for 1/10^th on-road and off-road
zero-timing (blinky) competitions.

Fan intelligent start and stop function

When the ESC temperature is low, the fan does not activate,
when the ESC temperature reaches the preset value,
the fan automatically turns on.
The intelligent start and stop function of
the fan not only reduces noise, saves power,
but also ensures that the ESC works in a good temperature range.

Freewheeling
Feature

With the freewheeling function turned-on,
the ESC temperature is lower,
the vehicle decelerates faster when the throttle input is off,
and it has better controllability around the corners.

Built-in polarity protection

One danger that all electrical systems face is a
reversed polarity from the power source.
This can be caused by a short circuit, or usually,
accidentally reversing the terminals.

Multi RPM limit,
select as needed

Supports79RPM Limits

（10000-88000RPM）RPM limit value selection.
It can be programmed through the LCD programming box or OTA module.
It is simple and convenient to meet
the RPM limit requirements of various competitions in the world.

Built-in capacitor module,
optimized layout

The built-in capacitor module eliminates
the need for external capacitors and unwanted space.

The ESC has a built-in BEC
which can support a maximum
output current of up to
8A

The output voltage at either
6V or 7.4V

This will ensure constant power
supplied to today’s high-torque
servos in the market.

Built-in data
logging function

The ESC has a built-in data recording function.
making it easy to obtain the operating status.

The data includes the

Minimum
voltage
Maximum ESC
temperature
Maximum
current
Maximum motor
temperature
Maximum
RPM

Wireless connection for data
recording and analysis

After the ESC is connected to the OTA Bluetooth module,
connect to the ESC through the HW Link mobile app and
turn on the real-time data recording function.
You can view data such as
throttle, voltage, current, temperature, speed, etc. in real time.
In addition, OTA can record the above data using HW Link.
Easy to implement data analysis functions.

Note: Due to the Bluetooth transmission distance, the effective distance is about 5m!

Parameters optimized

It is tailored and are more in line with competition needs.

Product Name
Product Number
Type	Scale Brushed/Brushless Sensored/Sensorless Waterproof
Specifications	Cont./Peak Current Input Voltage BEC Output
Wires & Connectors	Input Wires Output Wires Input Connectors Output Connectors
ESC Programing via	SET Button on ESC LED Program Box LCD G2 Program Box LCD Box Pro OTA Programmer Programming Port
Fan	Size Output Wires Input Connectors
Data Recording	Extreme value Real-time Data Historical data (Graph)
Firmware	Firmware Upgrade
Size & Weight	Size Weight
Applications	Applications Vehicles KV Rating/T Count

Product Name		XeRun XR10 Justock G3S
Product Number		30112005
Type	Scale Brushed/Brushless Sensored/Sensorless Waterproof	1/10^th BL SD No
Specifications	Cont./Peak Current Input Voltage BEC Output	60A/380A 2S Lipo 6V/7.4V @4A
Wires & Connectors	Input Wires Output Wires Input Connectors Output Connectors	Black-14AWG-200mm1 Red-14AWG-200mm1 Black-14AWG-200mm1 Black-14AWG-200mm1 Black-14AWG-200mm*1 No No
ESC Programing via	SET Button on ESC LED Program Box LCD G2 Program Box LCD Box Pro OTA Programmer Programming Port	Not Supported Not Supported Supported Supported Supported Separate
Fan	Size Output Wires Input Connectors	252510mm 5-7.4V BEC
Data Recording	Extreme value Real-time Data Historical data (Graph)	Supported Supported Supported
Firmware	Firmware Upgrade	Supported
Size & Weight	Size Weight	40.9X33.9X32.1mm 75.4g(w/Wires)
Applications	Applications Vehicles KV Rating/T Count	SL BL Motors / SD BL Motors 1/10^th,1/12^th On-road and Off-road club competition and normal training ≥10.5T 3650 Motor
