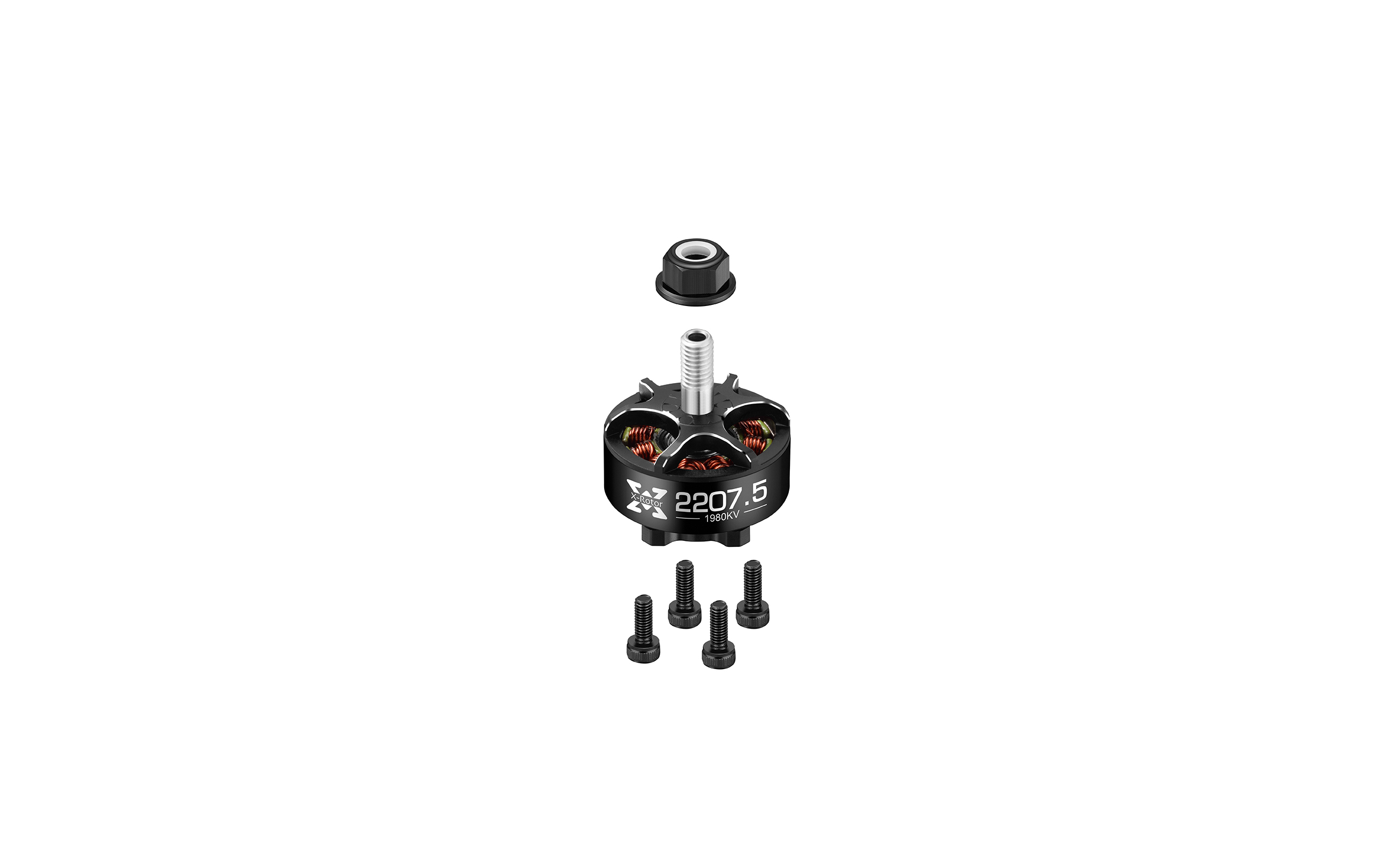

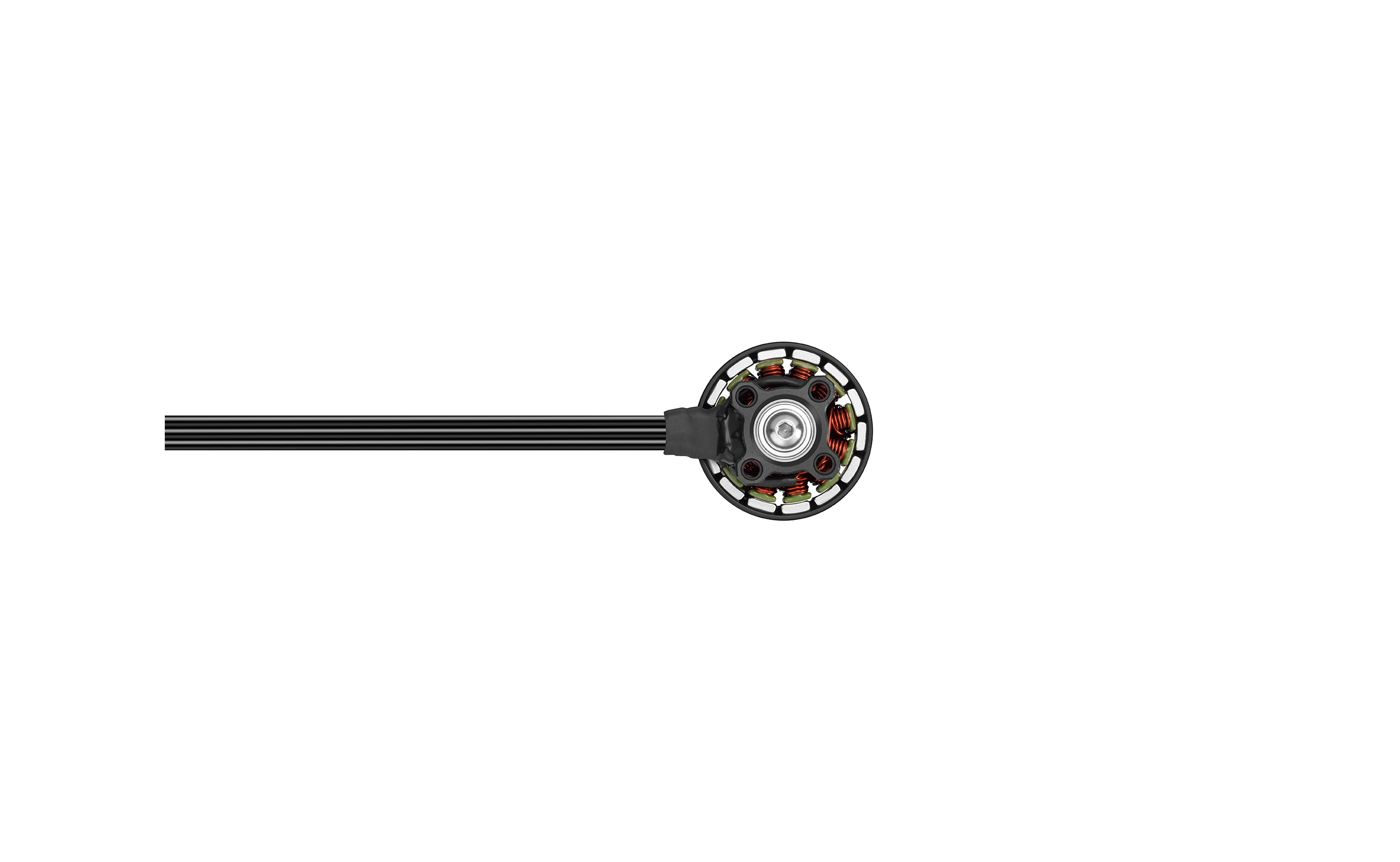

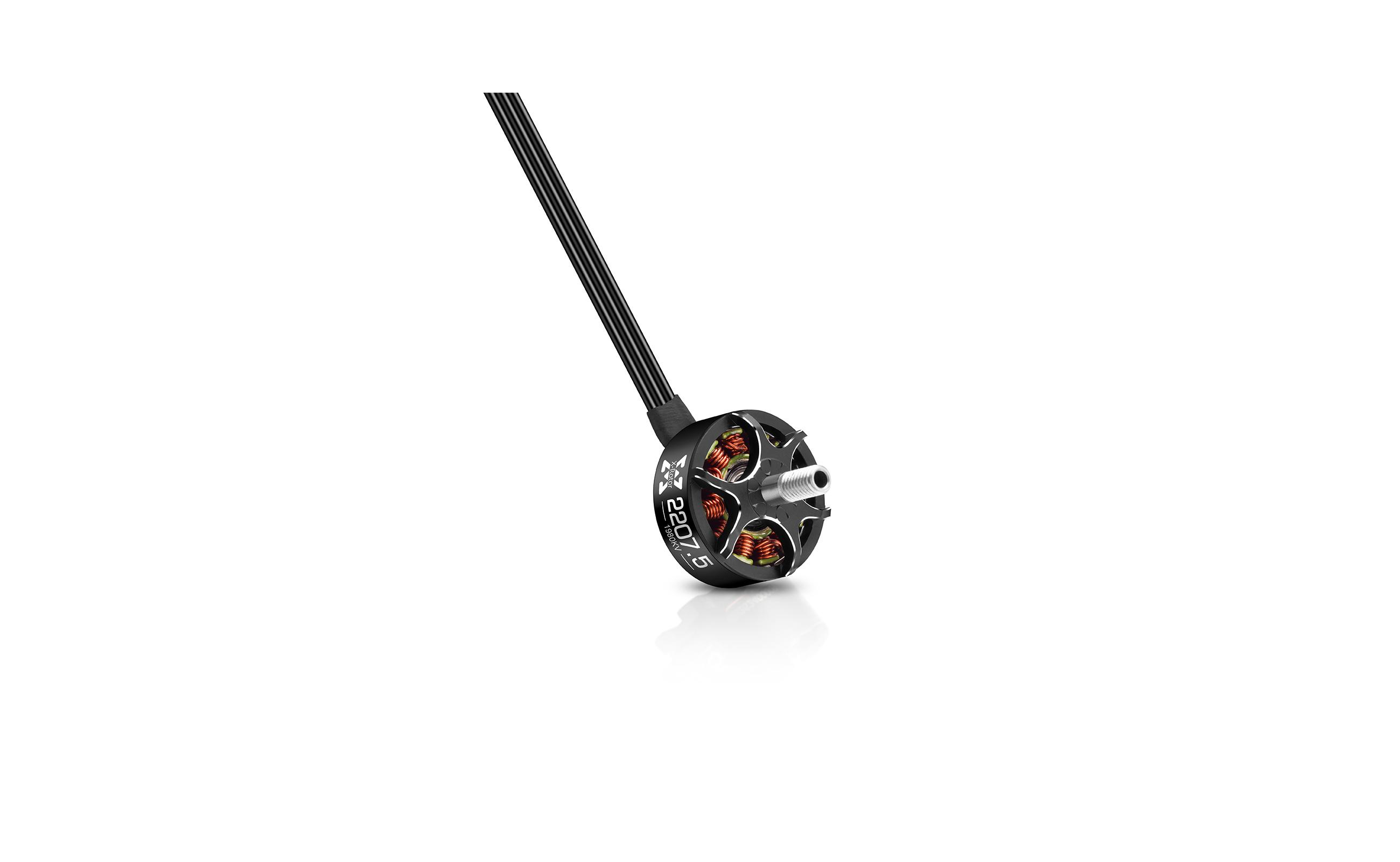

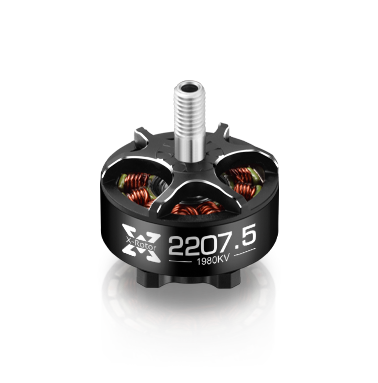

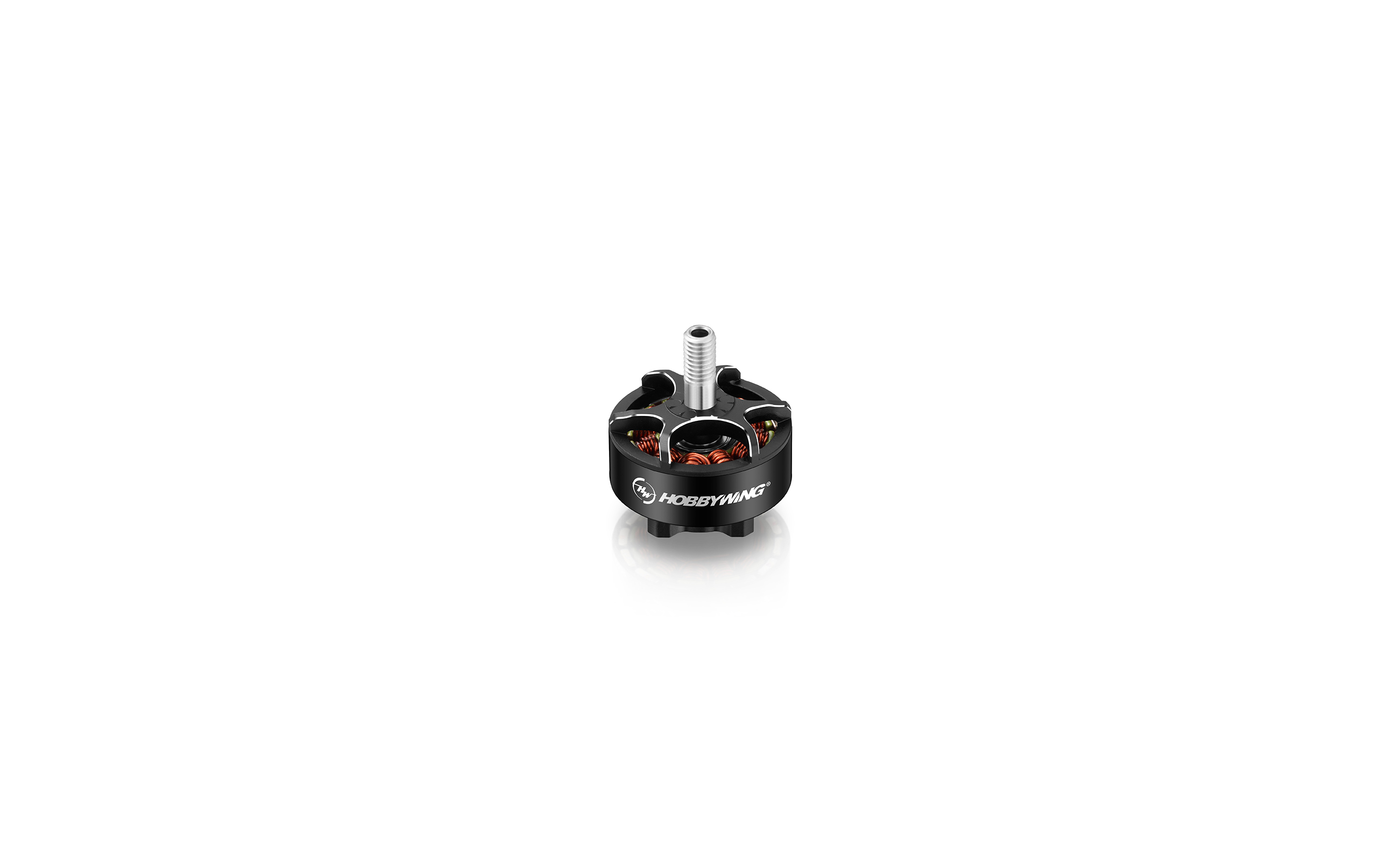

HOBBYWING XRotor 2207.5 FPV Drone Brushless Motor
XRotor 2207.5FPV MOTOR
Excellent Linearity,
High Efficiency
First Person View Drone Motor
Electromagnetic Optimization, more torque at lower RPM:
A more linear throttle response improves maneuverability at all throttle ranges.
FPV Drone Motor with Efficient Single-Strand Winding
Efficient Single-Strand Winding:
Single-strand winding design ensures smoother throttle response and enhanced thermal dissipation.
Excellent Heat Dissipation,
lower motor temperatures.
  • The motor's propeller mount features a self-cooling design, rapidly dissipating coil heat during flight.
  • Enables sustained low-temperature operation, boosting efficiency and extending lifespan.
Best FPV Drone Motor
Innovative Anti-Slip
Tooth Design on
Propeller Mount
  • The propeller mount incorporates an
  • innovative anti-slip tooth structure,
  • effectively preventing propeller slippage
  • and rotation loss, enhancing flight safety.
HOBBYWING XRotor 2207.5 FPV Drone Motor
Dual KV Options
  • 1780 KV: High torque for confident control. Ideal for smooth, precise freestyle flying.
  • 1980 KV: Ultra-fast response for precise cornering.
    High-power output makes it the ideal choice for racing.
1780kv 1980kv Drone Motor
Premium Materials,
Exceptional Quality
High-performance 0.2mm Motor Core
Utilizes high-performance
0.2mm thick first-tier stator
core laminations
Significantly increases
magnetic flux density
and magnetic field
intensity
High efficiency, superior
thermal demagnetization
resistance, and increased
motor reliability
HOBBYWING XRotor 2207.5 FPV Drone Motor
Strong arc-shaped magnets
design
Motor with 220℃ R-grade High-temperature Enameled Wire
220℃ R-grade
high-temperature
enameled wire
Delivering ample
power and precise
attitude control
throughout the flight
Premium Materials,
Exceptional Quality
High-performance 0.2mm Motor Core
Utilizes high-performance
0.2mm thick first-tier stator
core laminations
Significantly increases
magnetic flux density
and magnetic field
intensity
Motor with 220℃ R-grade High-temperature Enameled Wire
220℃ R-grade
high-temperature
enameled wire
High efficiency, superior
thermal demagnetization
resistance, and increased
motor reliability
HOBBYWING XRotor 2207.5 FPV Drone Motor
Strong arc-shaped magnets
design
Delivering ample
power and precise
attitude control
throughout the flight

ModelXRotor 2207.5SL
  • 1980KV
  • 1780KV
Specification
  • KV
  • LiPo Cells(LiPo)
  • No-Load Current
  • Maximum Continuous Current
  • Maximum Continuous Rating
  • Maximum Thrust
  • Motor Weight
  • Motor Size
  • Slot/Pole
  • Wire Size
  • Wire Length
  • Enamelled Wire Insulation Class
  • Internal Resistance
  • Shaft Diameter
  • Shaft Length
  • Screw Diameter / Thread
  • 1980KV
  • 6S
  • 3.2A/24V
  • 49A/3s
  • 1166W/3s
  • 1868g(HQ-5037)
  • 38g (With wire)
  • Φ28*H19.9mm
  • 12N14P
  • 20AWG
  • 150mm
  • 220℃ High temperature Resistant, R Class insulation
  • 65mΩ
  • Φ5mm+M5
  • 12mm
  • Φ16mm-4×M3
  • 1780KV
  • 6S
  • 2.7A/24V
  • 41A/3s
  • 988W/3s
  • 1827g(GF-51477)
  • 38g (With wire)
  • Φ28*H19.9mm
  • 12N14P
  • 20AWG
  • 150mm
  • 220℃ High temperature Resistant, R Class insulation
  • 76mΩ
  • Φ5mm+M5
  • 12mm
  • Φ16mm-4×M3
Recommended Props/ESCs
  • Recommended ESC
  • Propeller
  • XRotor FPV G2 65A 4in1 ESC
  • 6S LiPo:HQ-5037,HQ J37
  • XRotor FPV G2 65A 4in1 ESC
  • 6S LiPo:GF-51477,GF-F4S
