XRotor 2812
XRotor 2812
FPV MOTOR
High Efficiency
and Strong Performance

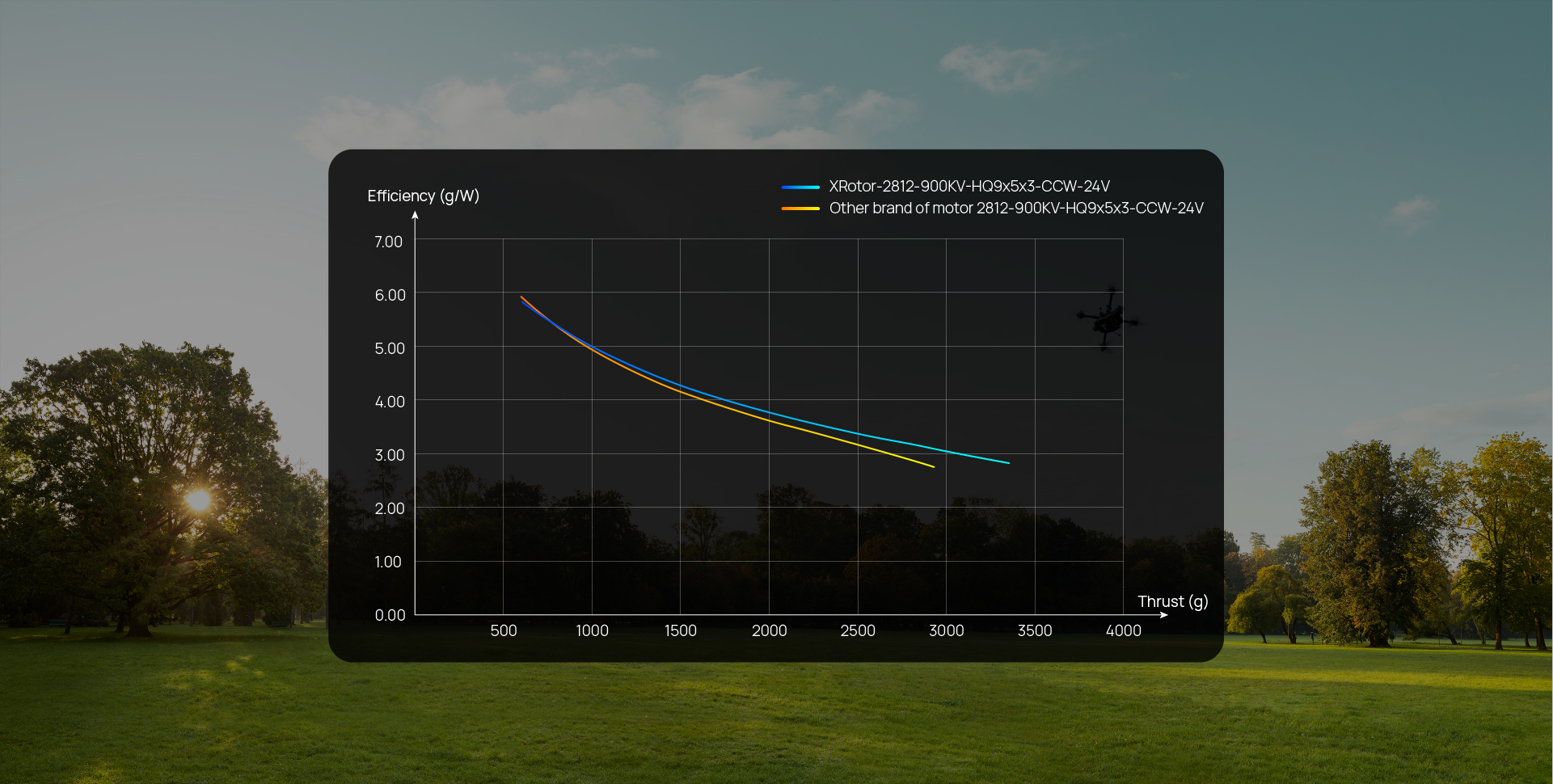

The 2812 motor has a better heavy-load efficiency by approximately more than 5%,
compared to motors of same specifications from other brands.
Good Heat Dissipation,
Efficient Cooling

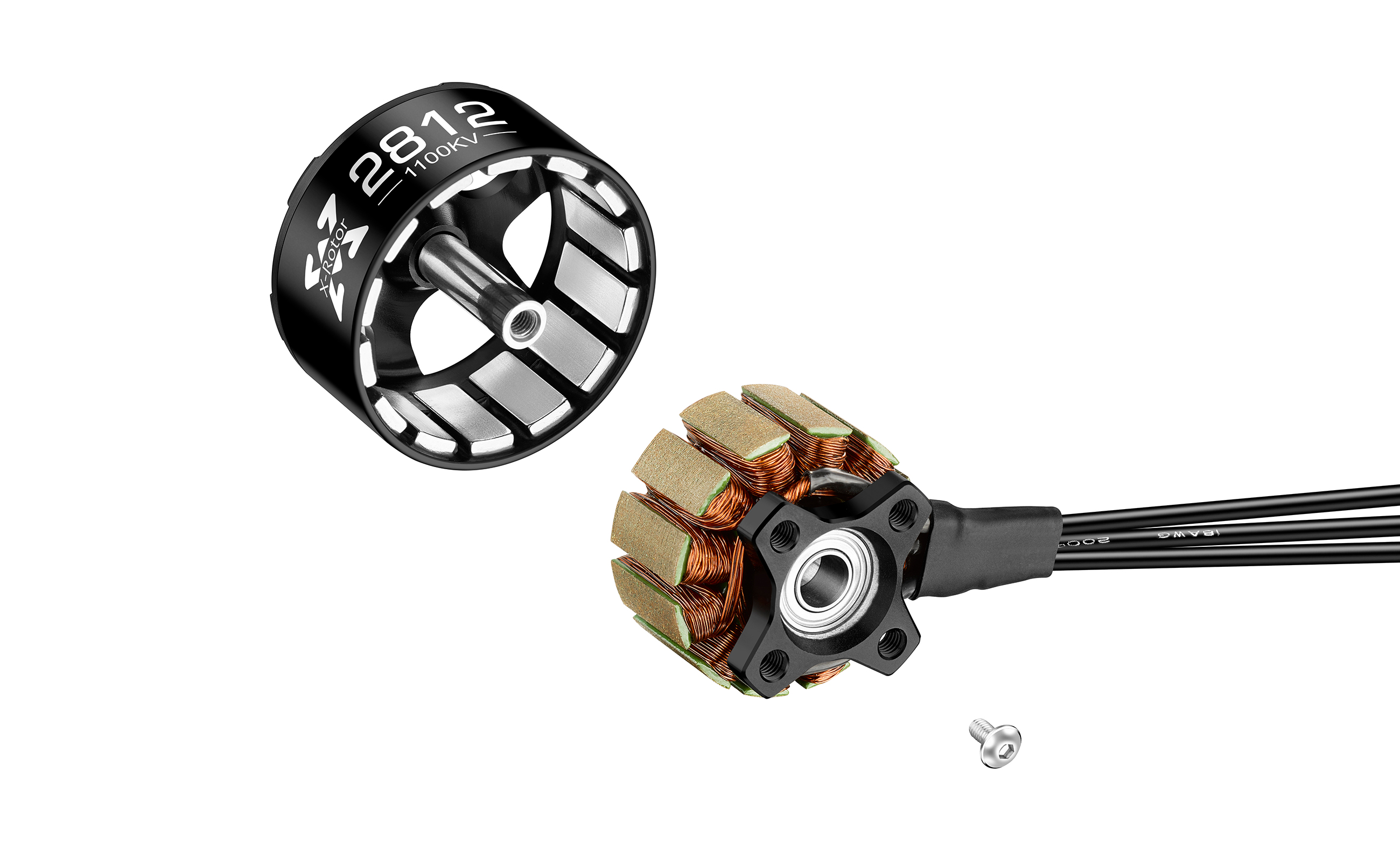

The rotor has a cooling structure to improve heat dissipation performance.

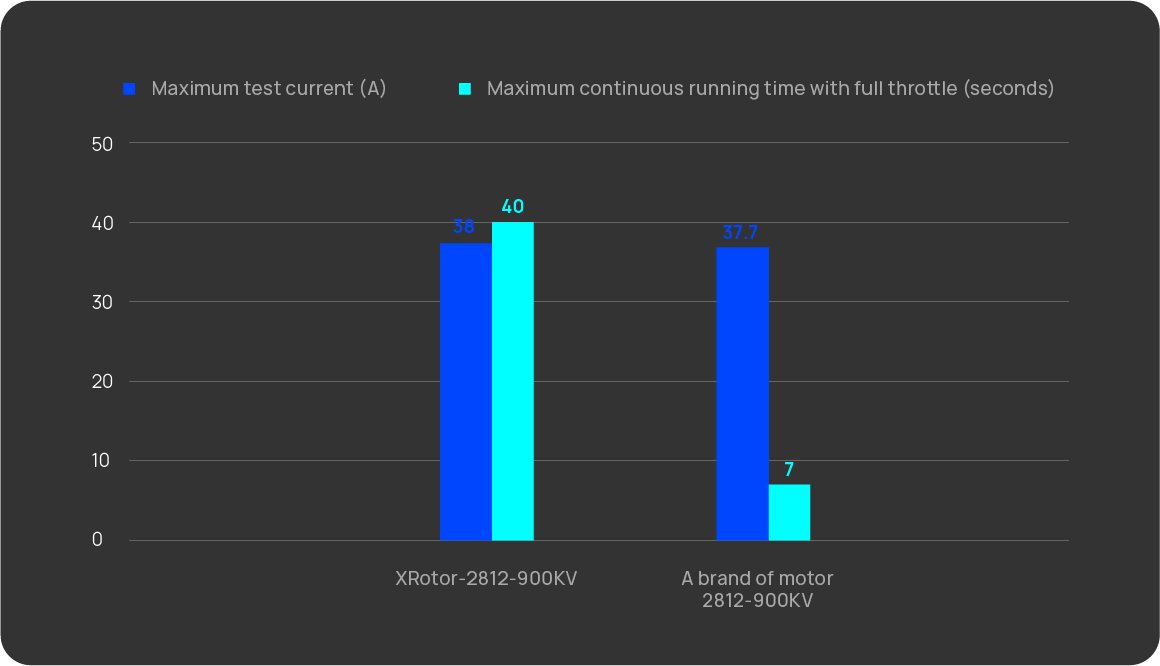

The maximum running time under full load is extended by more than 40%
compared to motors of same specifications from other brands.
Longer running time under actual load to ensure that the motor is always in optimal condition.

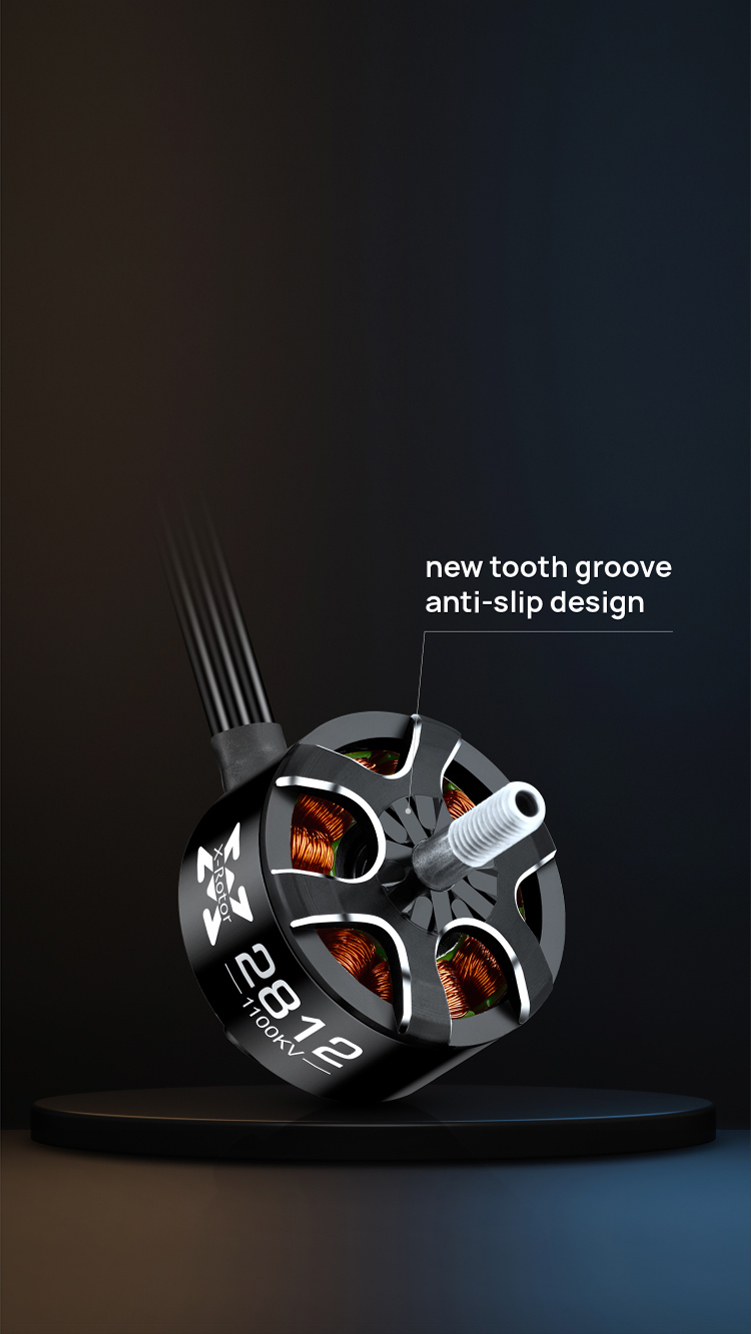

New Tooth Groove
Anti-slip Design
To achieve a safer and more reliable flight,
the propeller mount has a new grooved design
preventing the propeller from slipping.
Excellent Product Design,
Industry-leading Materials
  • High-performance
    0.2mm silicon
    steel sheets
  • 200℃
    High-temperature
    resistant enameled wire
  • To meet users’ demands
    for the ultimate performance
    of the motor
  • The multi-strand enameled
    wire winding design increases
    the slot full rate by
    approximately more than 5%
  • The temperature is lower
    when compared with
    motors from other brands
  • Uses N52 strong magnetic tiles
    with an arc- shaped design to
    provide the motor
    with strong torque
Thank you for your interest in HOBBYWING propulsion systems! For customized solutions,
please provide your contact information and technical requirements,
and we will get in touch with you within 24 hours.
captcha
By submitting this form, you agree to HOBBYWING's Privacy Policy
Thanks for reaching out!We have received your message and will get back to you shortly.
Best Regards,
HOBBYWING Team
Model
XRotor 2812 900KV XRotor 2812 1100KV
Specifications
Product Number 30418003 30418004
KV Rating 900KV 1100KV
LiPo Cells(LiPo) 4-6S 4-6S
No-Load Current 1.5A/24V 1.88A/24V
Maximum Continuous Current 49.6A/9s 64.1A/10s
Maximum Continuous Rating 1191W/9s 1538W/10s
Maximum Thrust 3355g 3722g
Motor Weight 83.4g 83.8g
Motor Size Φ34x25.5mm Φ34x25.5mm
Slot/Pole 12N14P 12N14P
Wire Size 18AWG 18AWG
Wire Length 250mm 250mm
Enamelled Wire Insulation Class 200℃ High temperature Resistant, H Class insulation 200℃ High temperature Resistant, H Class insulation
Internal Resistance 63.9mΩ 46.6mΩ
Shaft Diameter D5+M5 D5+M5
Shaft Length 15mm 15mm
Screw Diameter / Thread Φ19mm-4xM3 Φ19mm-4xM3
Recommended
Props/ESCs
Recommended ESC XRotor FPV G2 65A 4in1 ESC XRotor FPV G2 65A 4in1 ESC
Propeller 4-6S:HQ8x4.5x3;
HQ9x5x3
4-6S:HQ8x4.5x3
