XRotor 3115
XRotor 3115
FPV MOTOR
High Efficiency
and Strong Performance

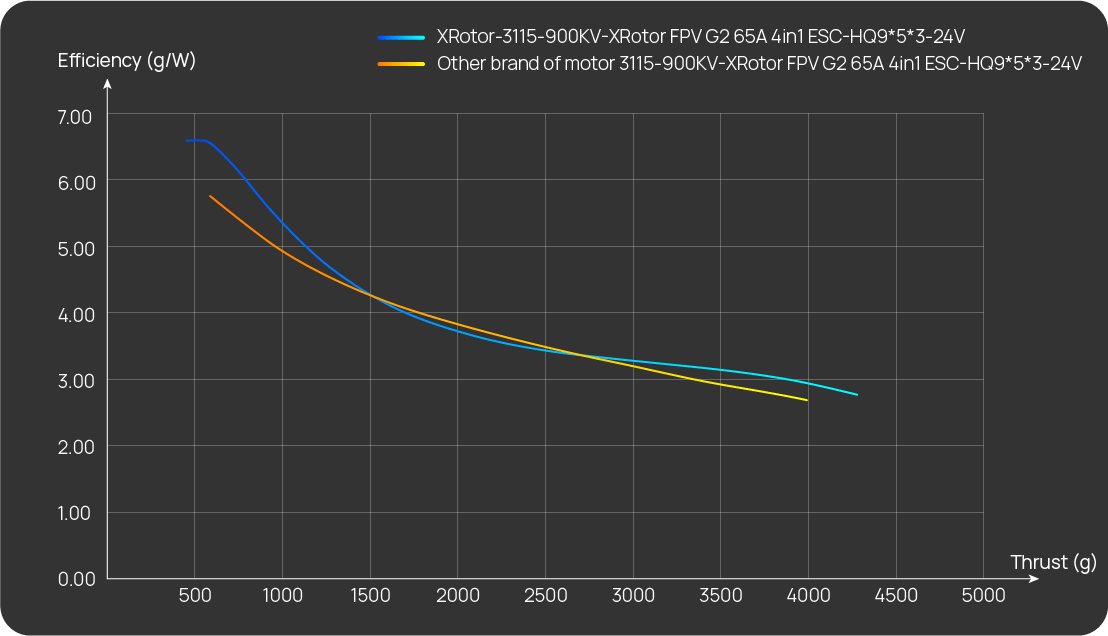

The 3115 motor has a better heavy-load efficiency
in the rear sections by approximately more than5%
compared to motors of same specifications from other brands.​ ​
Exceptional Heat Dissipation
and Low Temperature Rise

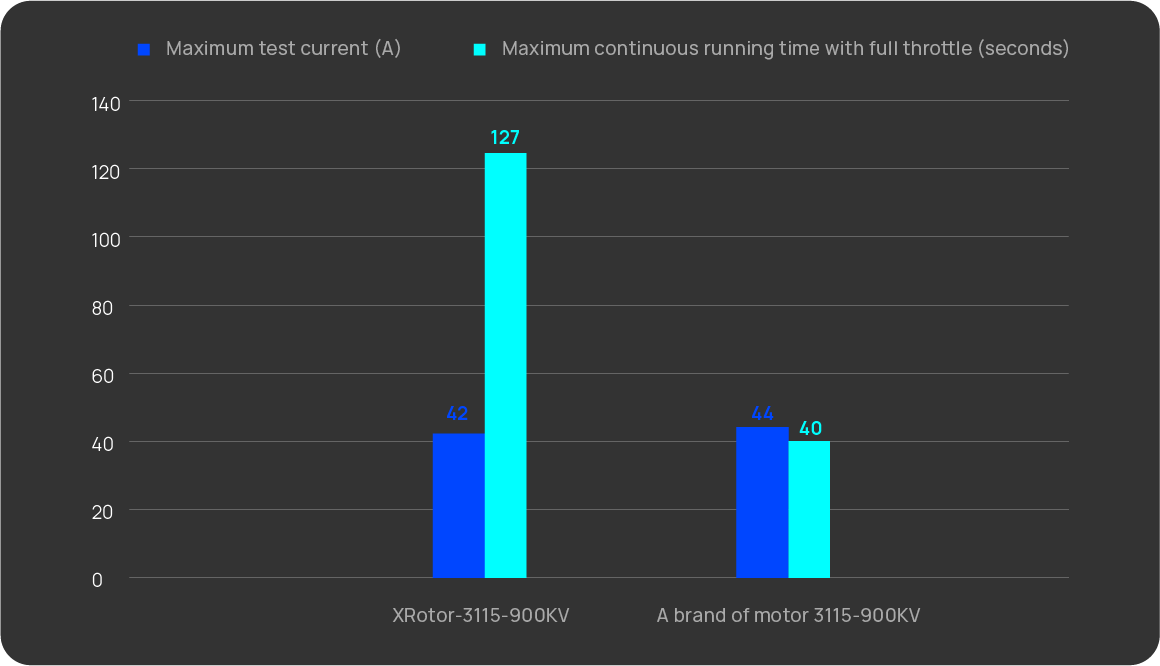

The rotor adopts a self-cooling structure to improve heat dissipation performance.
The maximum running time under full load is extended by more than 50%
compared to motors of same specifications from other brands.
Longer running time under actual load to ensure that the motor is always in optimal condition.

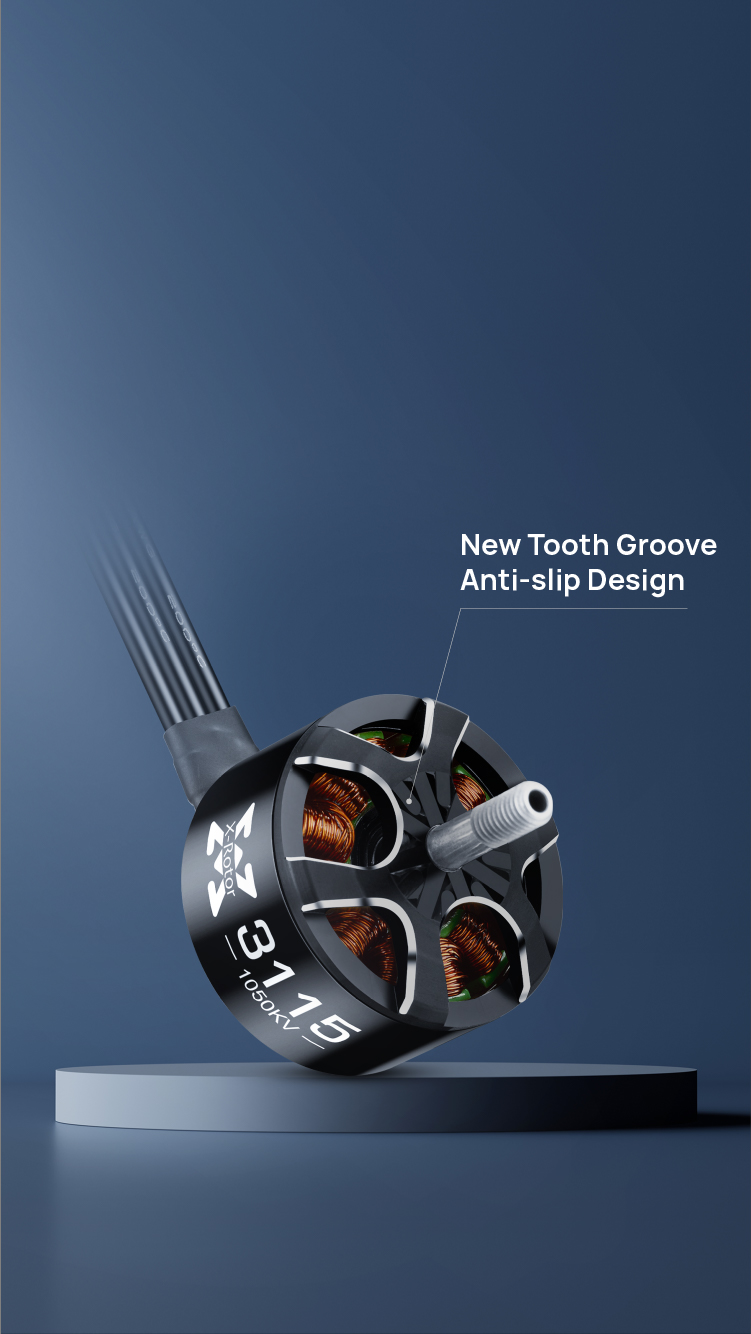

New Tooth Groove
Anti-slip Design
To achieve a safer and more reliable flight,
the propeller mount has a new grooved design
preventing the propeller from slipping.
Excellent Product Design,
Industry-leading Materials
  • High-performance
    0.2mm silicon
    steel sheets
  • 200°C
    high-temperature
    resistant enameled wire
  • To meet users’ demands
    for the ultimate performance
    of the motor
  • The multi-strand enameled
    wire winding design increases
    the slot full rate by
    approximately more than 5%
  • The temperature is lower
    when compared with
    motors from other brands
  • Uses N52 strong magnetic tiles
    with an arc- shaped design to
    provide the motor with strong torque
Thank you for your interest in HOBBYWING propulsion systems! For customized solutions,
please provide your contact information and technical requirements,
and we will get in touch with you within 24 hours.
captcha
By submitting this form, you agree to HOBBYWING's Privacy Policy
Thanks for reaching out!We have received your message and will get back to you shortly.
Best Regards,
HOBBYWING Team
Model
XRotor 3115 900KV XRotor 3115 1050KV
Specifications
Product Number 30418007 30418008
KV Rating 900KV 1050KV
LiPo Cells(LiPo) 4-6S 4-6S
No-Load Current 2.0A/24V 2.8A/24V
Maximum Continuous Current 81A/9s 70A/30s
Maximum Continuous Rating 1940W/9s 1675W/30s
Maximum Thrust 5177g 4420g
Motor Weight 125g 126g
Motor Size Φ37.2 *32mm Φ37.2 *32mm
Slot/Pole 12N14P 12N14P
Wire Size 16AWG 16AWG
Wire Length 300mm 300mm
Enamelled Wire Insulation Class 200℃ High temperature Resistant, H Class insulation 200℃ High temperature Resistant, H Class insulation
Internal Resistance 41mΩ 31mΩ
Shaft Diameter D5+M5 D5+M5
Shaft Length 16mm 16mm
Screw Diameter / Thread Φ19mm-4*M3 Φ19mm-4*M3
Recommended
Props/ESCs
Recommended ESC XRotor FPV G2 65A 4in1 ESC XRotor FPV G2 65A 4in1 ESC
Propeller 6S:HQ9x4x3;HQ9x5x3;HQ10x4.5x3;HQ10x5x3 6S:HQ8x4.5x3;HQ9x4x3
