HOBBYWING has officially launched the upgraded EzRun MAX10 G2S Sensored ESC, a high-performance brushless ESC designed for RC vehicles. Combining powerful and stable power delivery, precise throttle response, IP67 waterproof and dustproof protection, intelligent cooling, built-in data logging, and convenient programming options, the EzRun MAX10 G2S delivers a more responsive and reliable driving experience.

From aggressive launches and wheelies to high-speed running, low-speed control, and jumps, the EzRun MAX10 G2S provides strong and consistent power output to keep every throttle input precise and predictable.

Three Built-in Modules for Convenient Adjustment

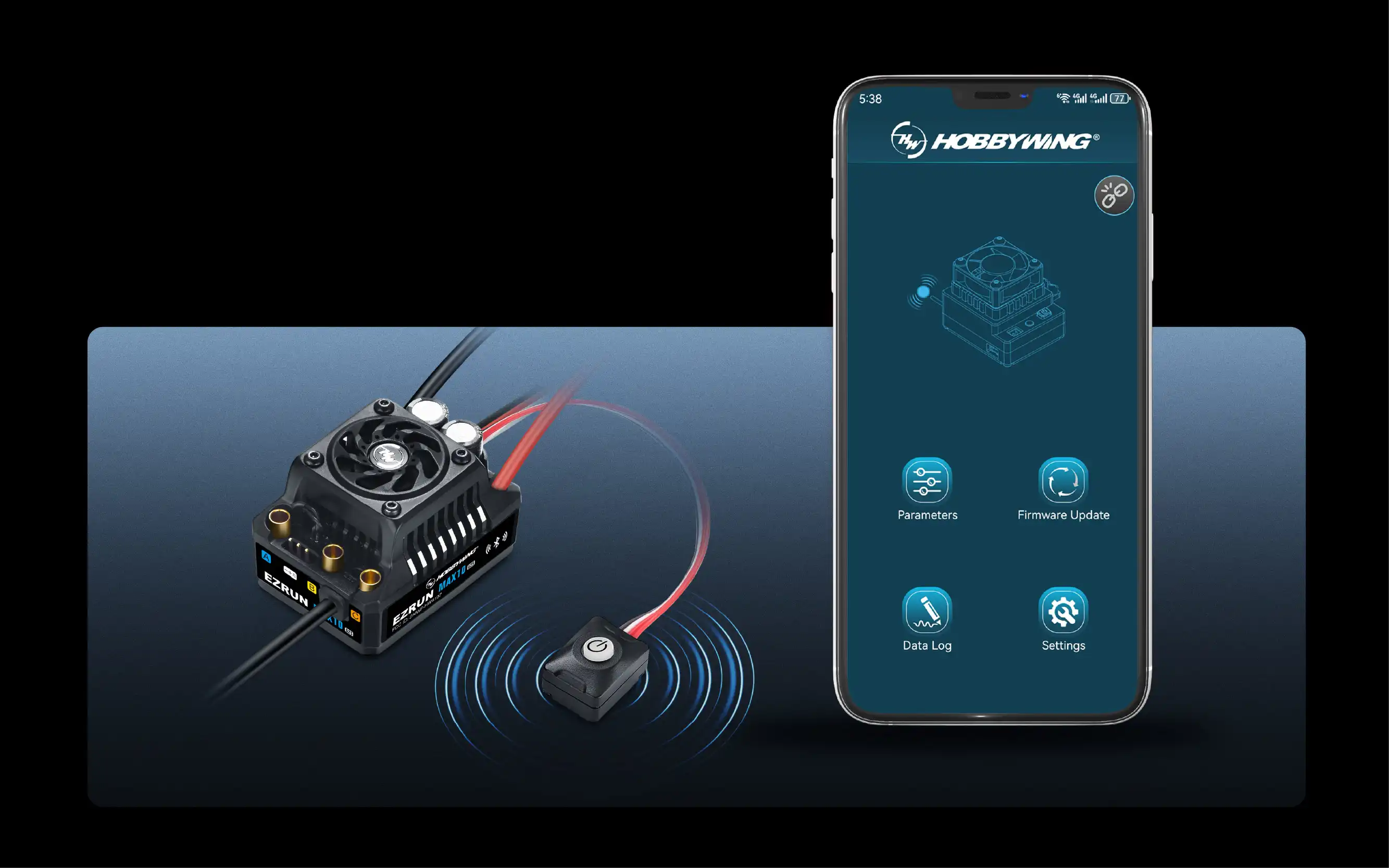

1.ESC Switch with Built-in Bluetooth Module

The EzRun MAX10 G2S Sensored brushless ESC connects directly to the HW LINK APP on your mobile phone without requiring other devices for ESC parameter settings, data reading, firmware upgrades, and other operations—simple and convenient.
Note: Data includes throttle, voltage, current, temperature, and speed.

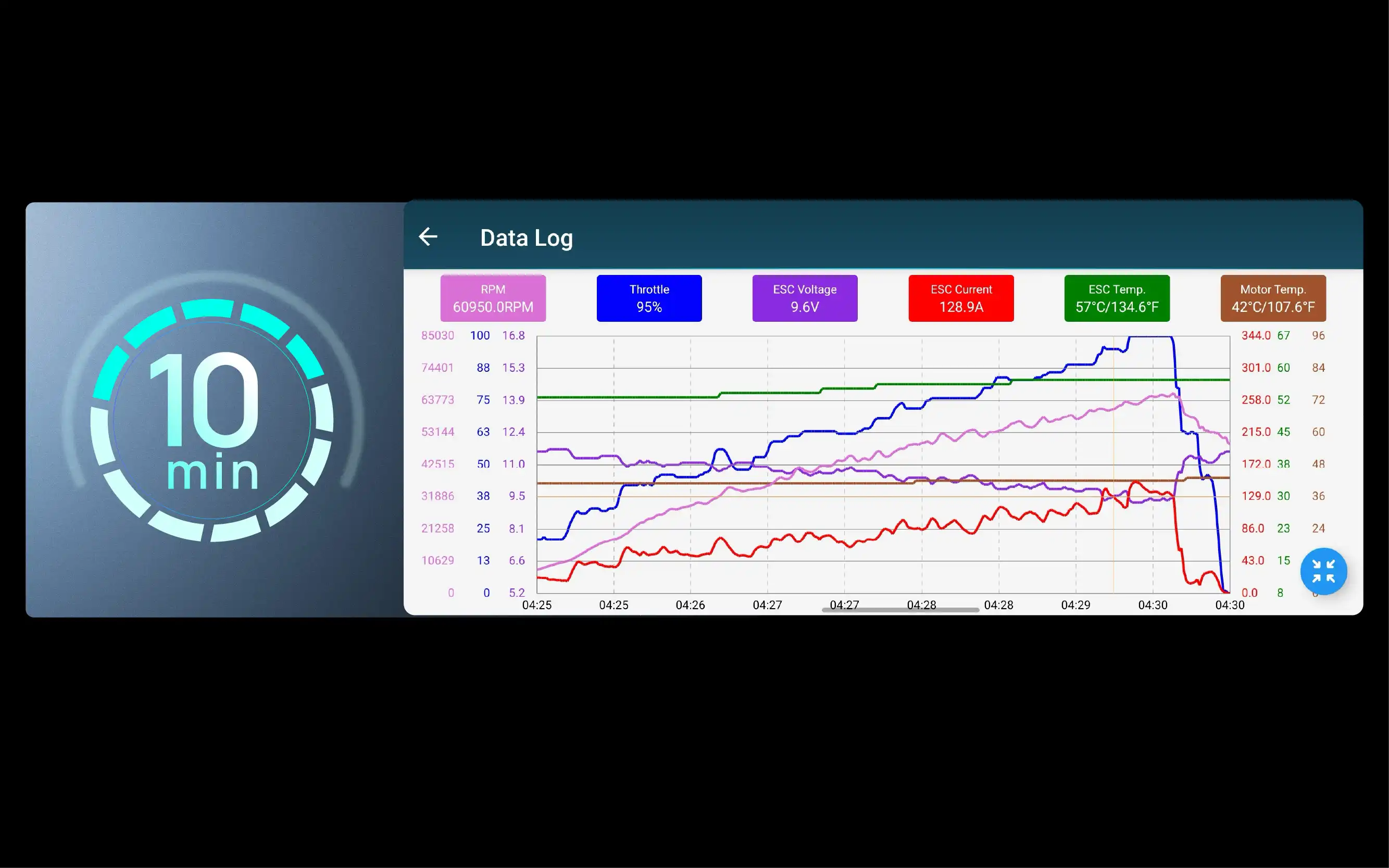

2.ESC with Built-in Data Recording Module

Records 10 minutes of ESC operating data (latest). After running, the historical data (graph) can be easily viewed directly through the HW LINK APP on your mobile phone, providing easy access to the RC car ESC and motor operating status.
Note: Due to Bluetooth transmission distance limitations, the effective range is approximately 5 meters.

3.ESC with Built-in Powerful BEC

The BEC delivers a maximum output of up to 10A, and the output voltage can be switched between 6V/7.4V/8.4V. It provides stable and ample power supply for powerful or high-voltage servos, allowing for precise and intuitive control.
Note: Stable output at 7.4V/8.4V requires 3 seconds or more of use.

Highly Efficient Heat Dissipation& Intelligent Temperature Control

The RC car ESC features a frameless fan design that enables high airflow discharge from the sides, improving overall cooling efficiency. Combined with an integrated heatsink housing, heat generated during operation is rapidly dissipated.

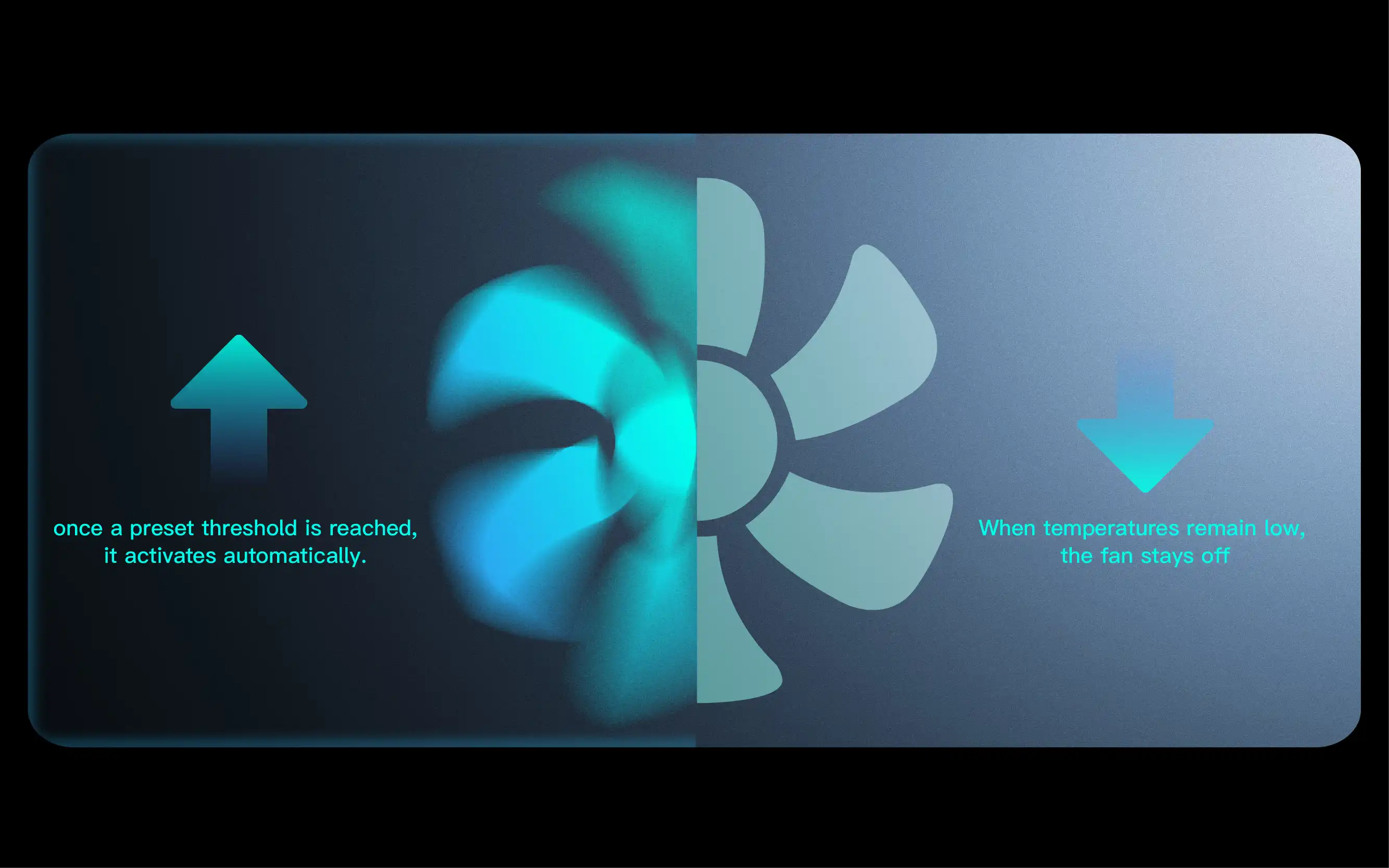

It also features intelligent fan start/stop functionality, automatically switching fan operating modes based on the ESC's real-time temperature, achieving both energy saving and noise reduction while maintaining precise temperature control.

The ESC features built-in capacitor overheat protection designed to reduce the risk of damage caused by excessive load conditions. By preventing potential capacitor failure, the system adds an additional layer of safety and helps protect the ESC from severe damage.

Turbo Timing Technology

The brushless ESC supports adjustable Turbo timing up to 32 degrees. When paired with HOBBYWING EzRun 3652/3665 G3 RC car motors, the system delivers a noticeable Turbo effect, with maximum RPM increased by up to approximately 25%. This provides enhanced top-end performance while maintaining controlled power delivery.

Dual Programming Options

The RC car brushless ESC offers two convenient methods for parameter adjustment. Users can connect wirelessly via Bluetooth using the HW LINK smartphone app, or with a LCD programming box. Options provide flexibility across different usage scenarios, allowing drivers to tune the system according to their personal preference.
