Voltage(V) |
Propeller |
Throttle(%) |
Thrust(g) |
Current(A) |
Power Input(W) |
Speed(RPM) |
Efficiency(g/W) |
Torque(N·m) |
Power Output(W) |
Temperature(℃) |
|---|---|---|---|---|---|---|---|---|---|---|
|
92V(24S LiPo) |
MV42*16.5" |
33% |
9914 |
11.8 |
1085.3 |
1664 |
9.1 |
5.0 |
871.3 |
96°C |
|
35% |
11069 |
13.7 |
1260.4 |
1754 |
8.8 |
5.6 |
1022.2 |
|||
|
37% |
12315 |
15.9 |
1459.7 |
1847 |
8.4 |
6.2 |
1195.2 |
|||
|
39% |
13633 |
18.3 |
1682.0 |
1940 |
8.1 |
6.8 |
1388.8 |
|||
|
42% |
15712 |
22.3 |
2055.2 |
2080 |
7.6 |
7.9 |
1714.9 |
|||
|
45% |
17878 |
26.9 |
2472.6 |
2216 |
7.2 |
9.0 |
2079.7 |
|||
|
48% |
20105 |
31.8 |
2930.8 |
2347 |
6.9 |
10.1 |
2479.0 |
|||
|
51% |
22380 |
37.2 |
3428.1 |
2472 |
6.5 |
11.2 |
2910.2 |
|||
|
54% |
24696 |
43.1 |
3964.5 |
2593 |
6.2 |
12.4 |
3372.2 |
|||
|
57% |
27057 |
49.3 |
4541.4 |
2709 |
6.0 |
13.6 |
3865.5 |
|||
|
60% |
29470 |
56.1 |
5162.4 |
2823 |
5.7 |
14.9 |
4392.0 |
|||
|
63% |
31944 |
63.4 |
5832.1 |
2933 |
5.5 |
16.1 |
4954.7 |
|||
|
66% |
34490 |
71.2 |
6556.2 |
3042 |
5.3 |
17.4 |
5557.2 |
|||
|
69% |
37115 |
79.8 |
7340.8 |
3150 |
5.1 |
18.8 |
6202.8 |
|||
|
72% |
39821 |
89.0 |
8191.6 |
3257 |
4.9 |
20.2 |
6894.2 |
|||
|
75% |
42606 |
99.0 |
9112.8 |
3363 |
4.7 |
21.7 |
7632.0 |
|||
|
78% |
45456 |
109.8 |
10105.9 |
3467 |
4.5 |
23.2 |
8413.6 |
|||
|
81% |
48347 |
121.3 |
11168.0 |
3569 |
4.3 |
24.7 |
9232.2 |
|||
|
84% |
51239 |
133.5 |
12289.4 |
3666 |
4.2 |
26.2 |
10074.9 |
|||
|
87% |
54079 |
146.2 |
13450.7 |
3758 |
4.0 |
27.8 |
10921.9 |
|||
|
90% |
56794 |
158.9 |
14619.9 |
3841 |
3.9 |
29.2 |
11745.6 |
|||
|
100% |
63344 |
192.3 |
17701.1 |
4028 |
3.6 |
32.6 |
13761.0 |
-
RC Systems
RC Cars Power SystemRC Plane Power SystemRC Boat Power SystemAccessories
-
Drone Propulsion System
-
- INTEGRATED PROPULSION SYSTEM Innovation and Performance for a simplified assembly.
- X Series
- H Series
- P Series
-
-
-
- PROPELLER Superior efficiency, exceptional stability.
- Carbon Plastic Propeller
- Carbon Fiber Propeller
-
- CENTRIFUGAL NOZZLE Efficient atomizing, precise spraying.
- 9L
-
- WATER PUMP Minimal maintenance, long service life.
- 5L
- 8L
- 30L
-
- INTEGRATEDPROPULSION SYSTEM Innovation and Performance for a simplified assembly.
- P Series
-
-
-
- PROPELLER Powerful burst, high intensity.
- Carbon Fiber Propeller
-
- MOTOR Convenient, efficient and stable.
-
-
Personal Travel Systems
Electric SkateboardElectric ScooterPersonal Travel Accessories
- Service and Support
Strong Propulsion Output
- With a weight of 1,666g, max. thrust of 63kg,
and a thrust-to-weight ratio up to 37.8,
the V11130 motor is suitable for VTOL UAVs
with a takeoff weight of 90~105kg.

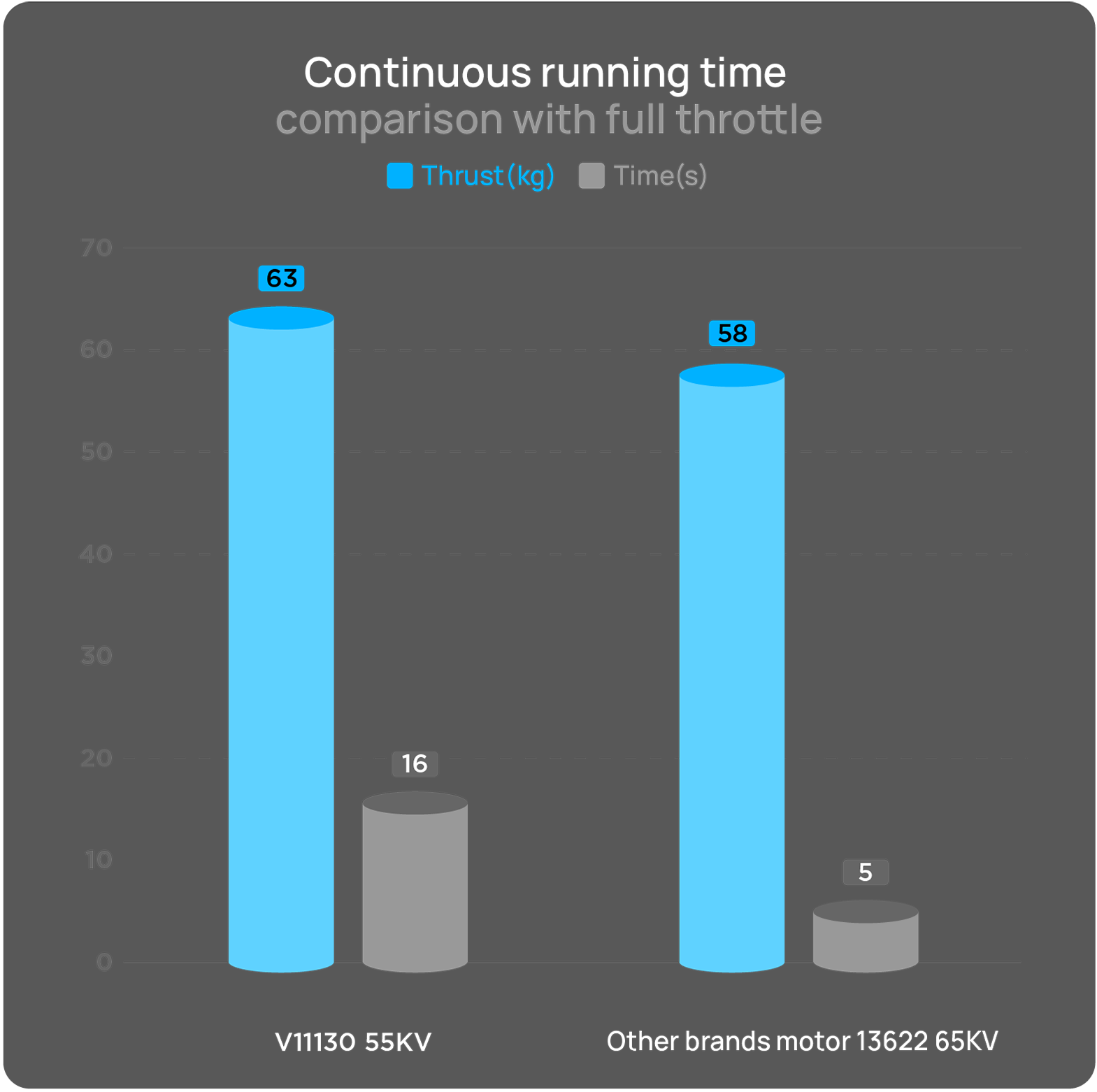

Compared with Motors of the Same Class From Other Brands
- Max. thrust
improved by - 14%
- Temperature rise under a rated
load of 26kg decreased by - 30%
- It features exceptional heat dissipation and
- extended continuous running time at full throttle,
- making it capable of handling the full-throttle
- output demands during sudden stall recovery.
Note: Data cut-off when the winding temperature reaches 180°C, subject to the same test criteria
Applications
- The V11130 motor passes the 48-hour neutral salt spray test specified in GB/T 10125-2012 and demonstrates outstanding reliability and durability in harsh offshore operating environments where salt spray corrosion is severe,such as
- Marine Inspection
- Offshore Wind Farm Operation and Maintenance
- Marine Search and Rescue
- ……
- It is also suitable for
power line inspection, hydrological monitoring, agriculture and forestry monitoring, emergency response, and other industrial applications.

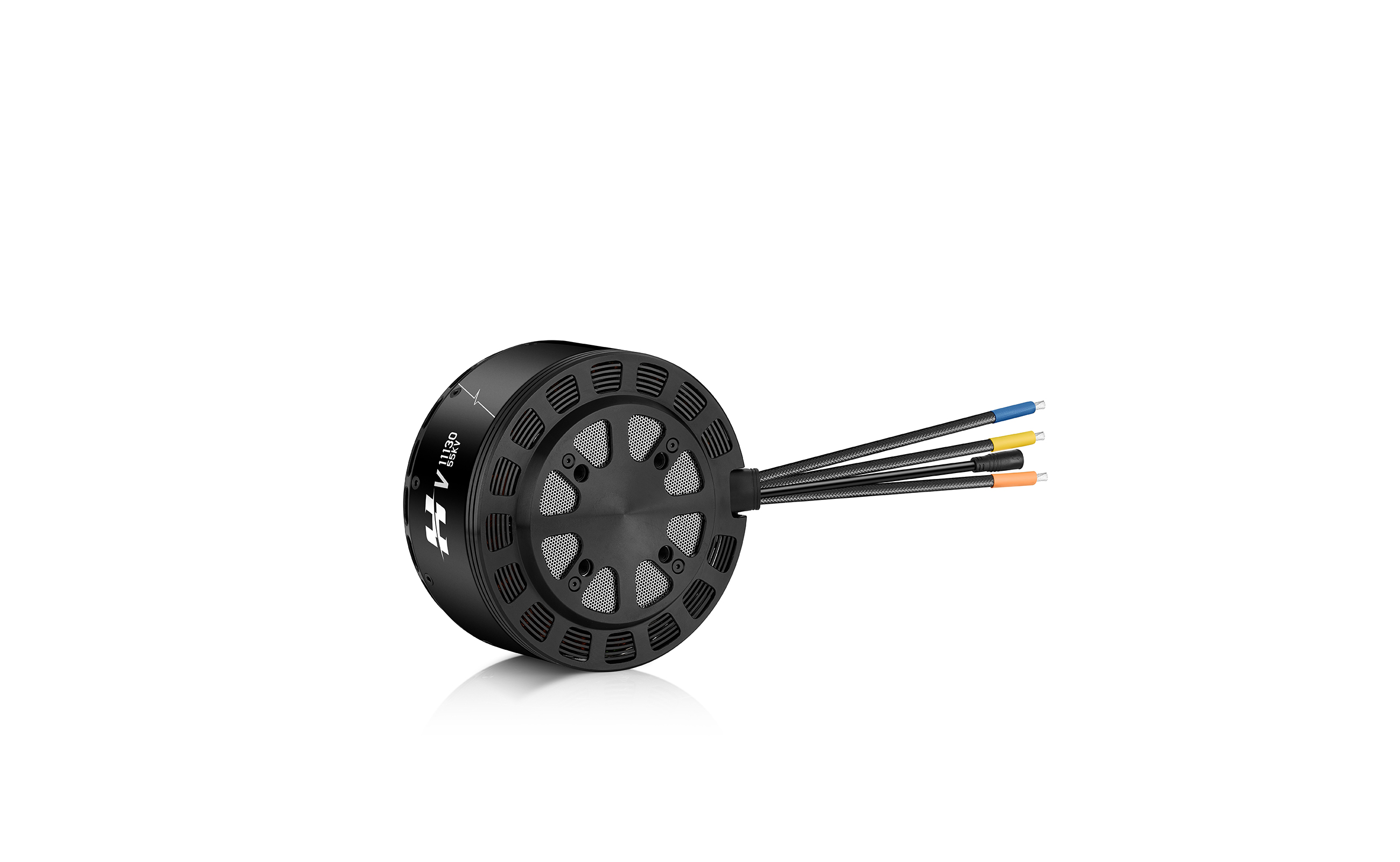

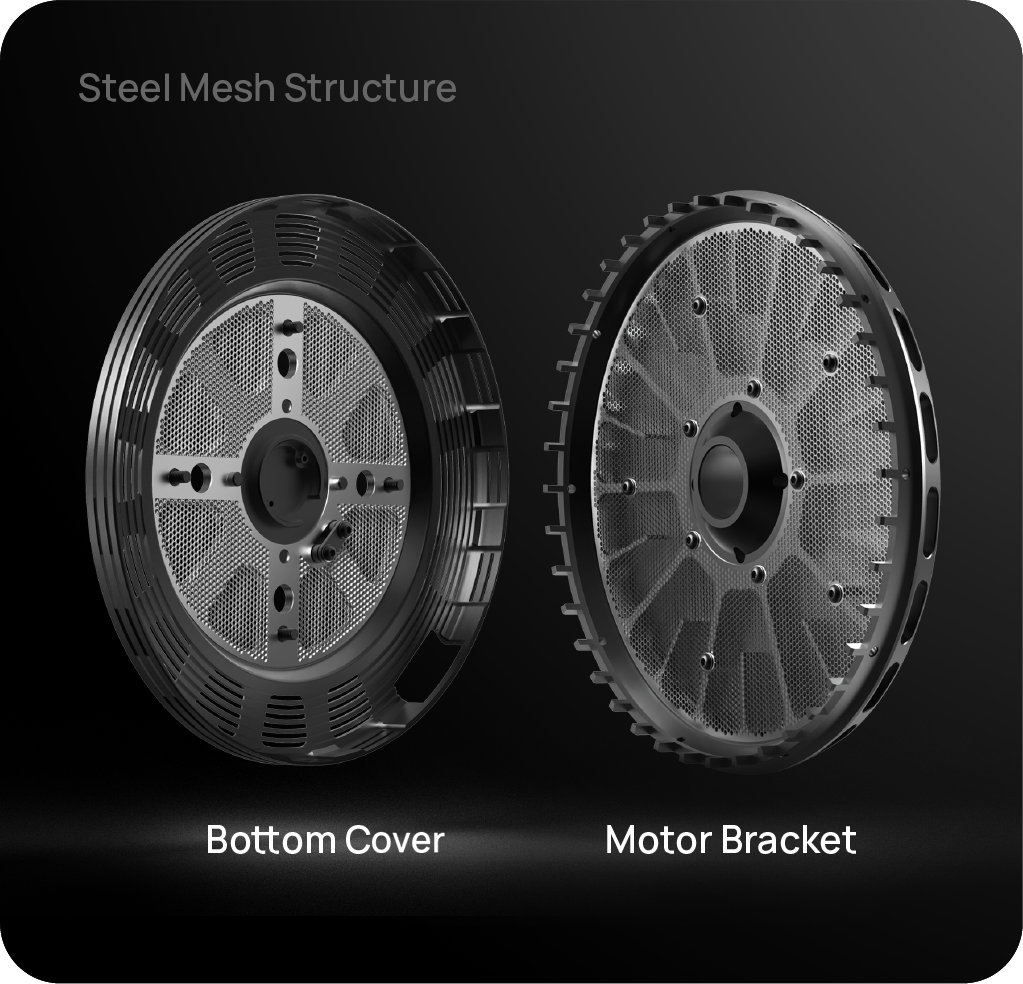

- The motor bracket and bottom cover feature a steel mesh structure,
- and its combination with large air outlets and a centrifugal cooling fan design can
- effectively resist dust intrusion and provide comprehensive and reliable protection.
Verified By Rigorous Tests
including drive compatibility test, water ingress test, and high and low temperature operation tests.
These ensure stable operation at all times in various complex environments.
and Flexible Configuration
- Low power consumption and accurate positioning with IPC
- When used with HOBBYWING’s IPC ESC,
it can flexibly and accurately set the propeller stopping position,
while reducing the resistance of the UAV during cruise flight and extending the flight endurance.

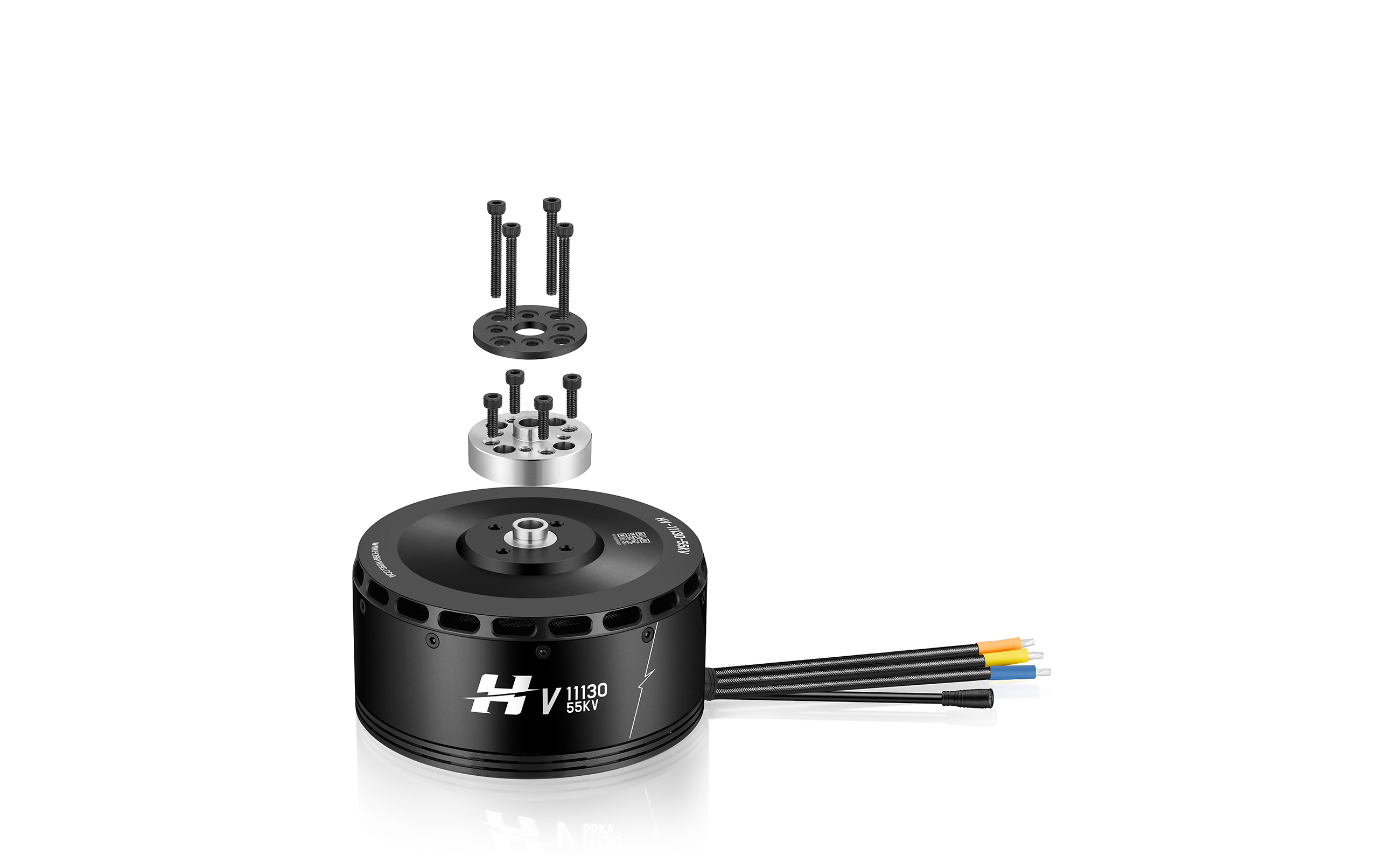

- Standardized Installation Connector
- A propeller adapter base is provided, which is compatible
with the installation of various conventional propeller,
thus meeting different configuration needs of users.
Propeller Adapter Base
MV 40.1x16"
MV 42x16.5"

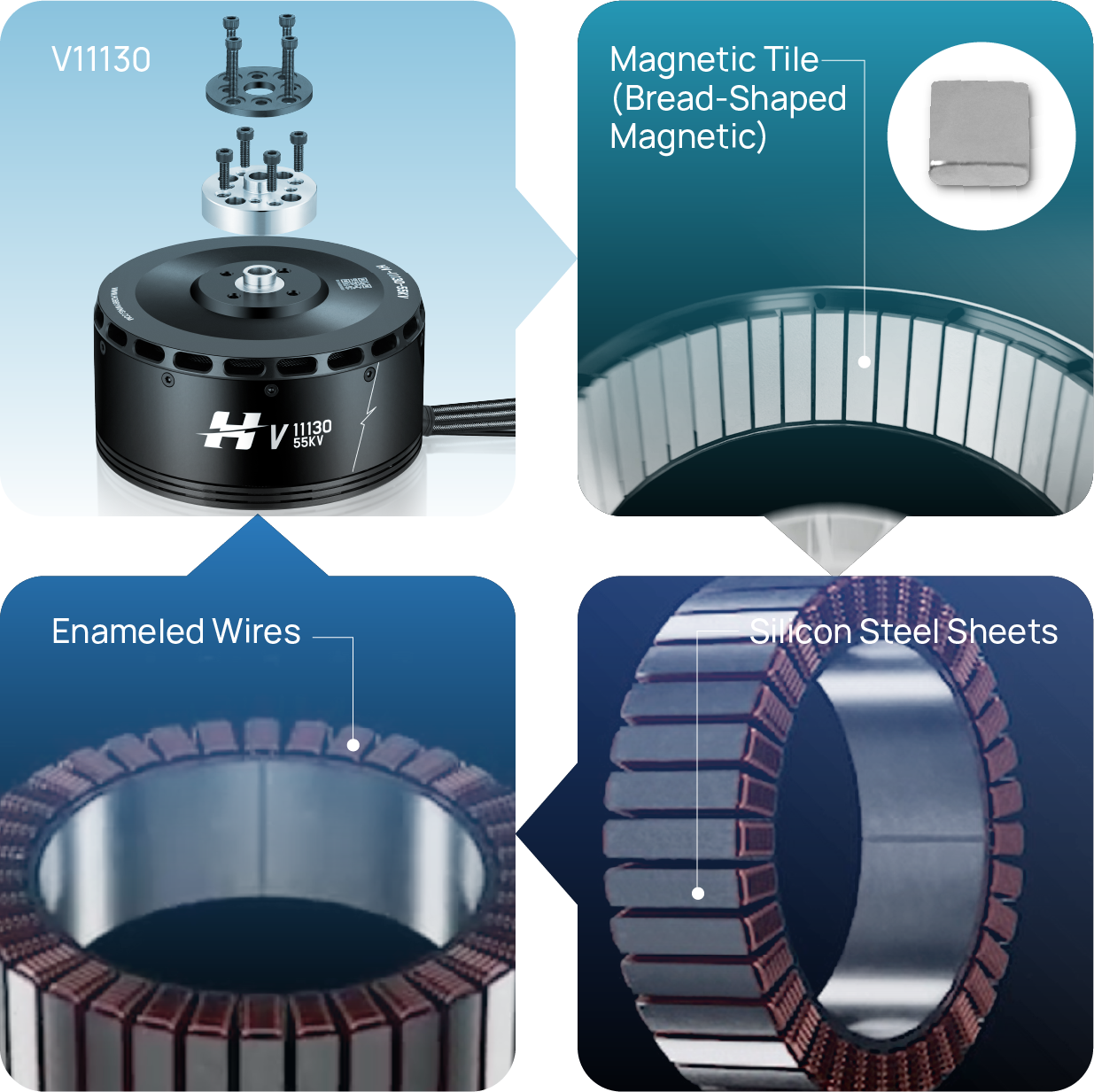

Premium-Specification
Materials
-
1The high-grade magnets provides strong torque for the motor, withstanding temperature up to 180°C.
-
2The high-grade enameled wires have a temperature resistance of up to 200°C, ensuring that the motor can smoothly handle harsh climbing conditions of the VTOL UAVs.
-
3The high-performance iron core is punched by
0.2 mm high-quality low-loss silicon steel sheets to enhance motor efficiency. -
4The bread-shaped magnetic structure improves the use efficiency of magnet and ensures powerful torque and thrust capacity of the motor.
- Motor
- V11130 55KV
- Propeller
- MV42x16.5"
- ESC
- XRotor PRO H200A 24S BLDC IPC
- Battery
- 24S LiPo
- Takeoff Weight/Rotor
- 23~26kg
- Max. Takeoff Weight of Quadrotor
- 90~105kg
-
