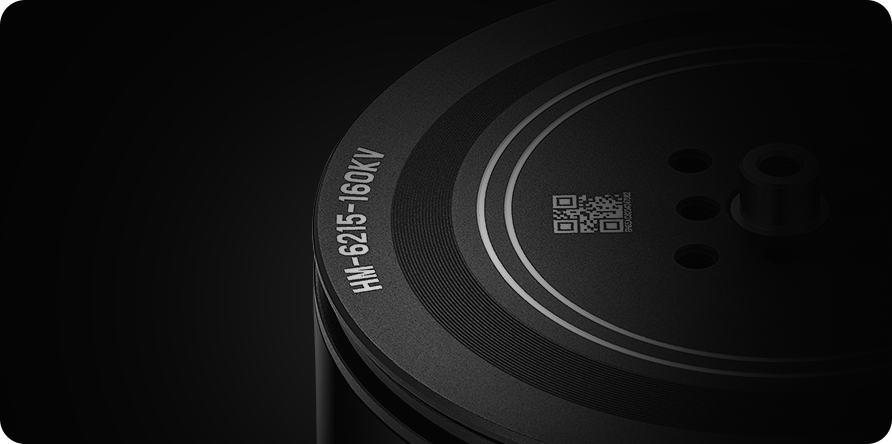

M6215 HP
Buy

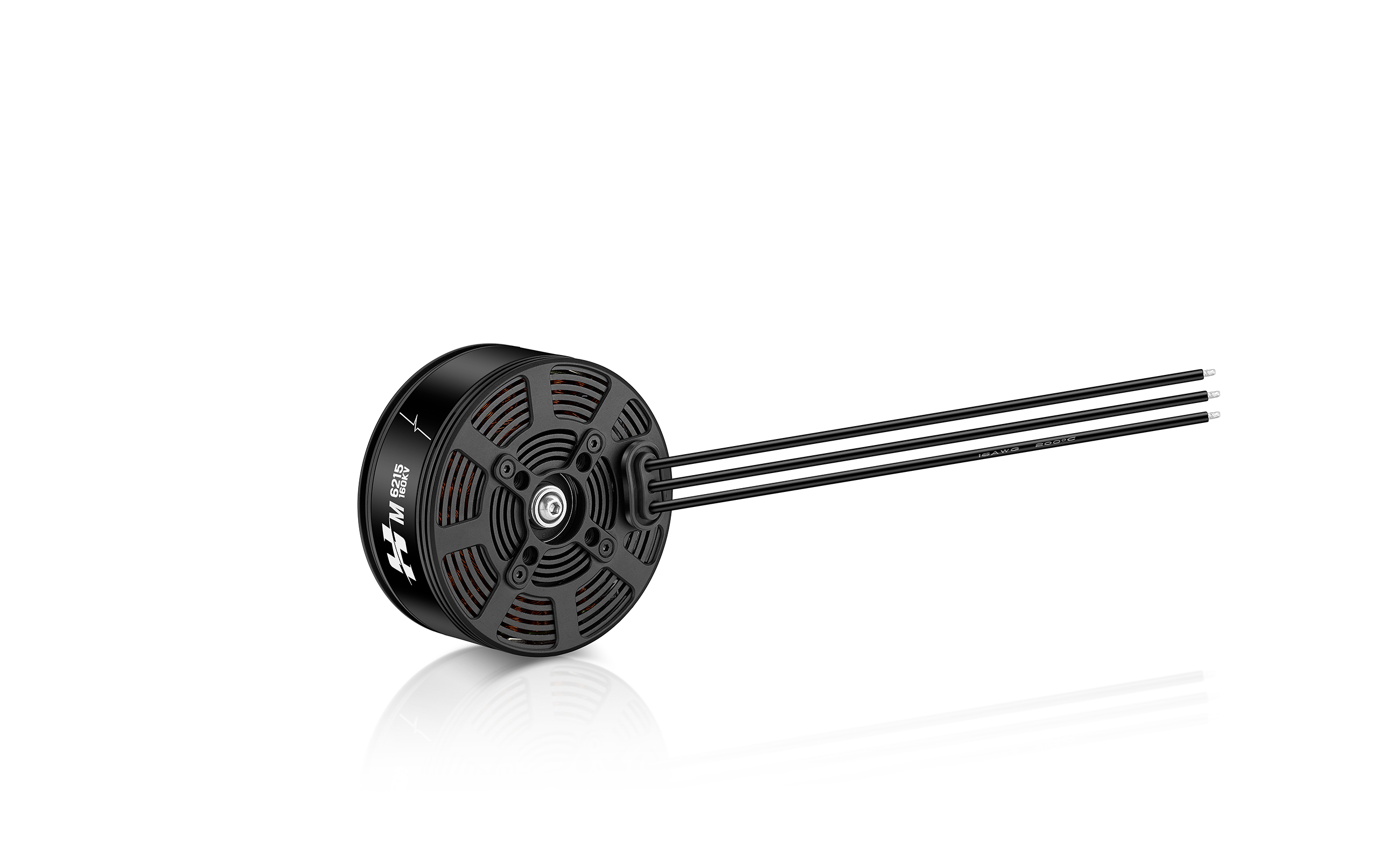

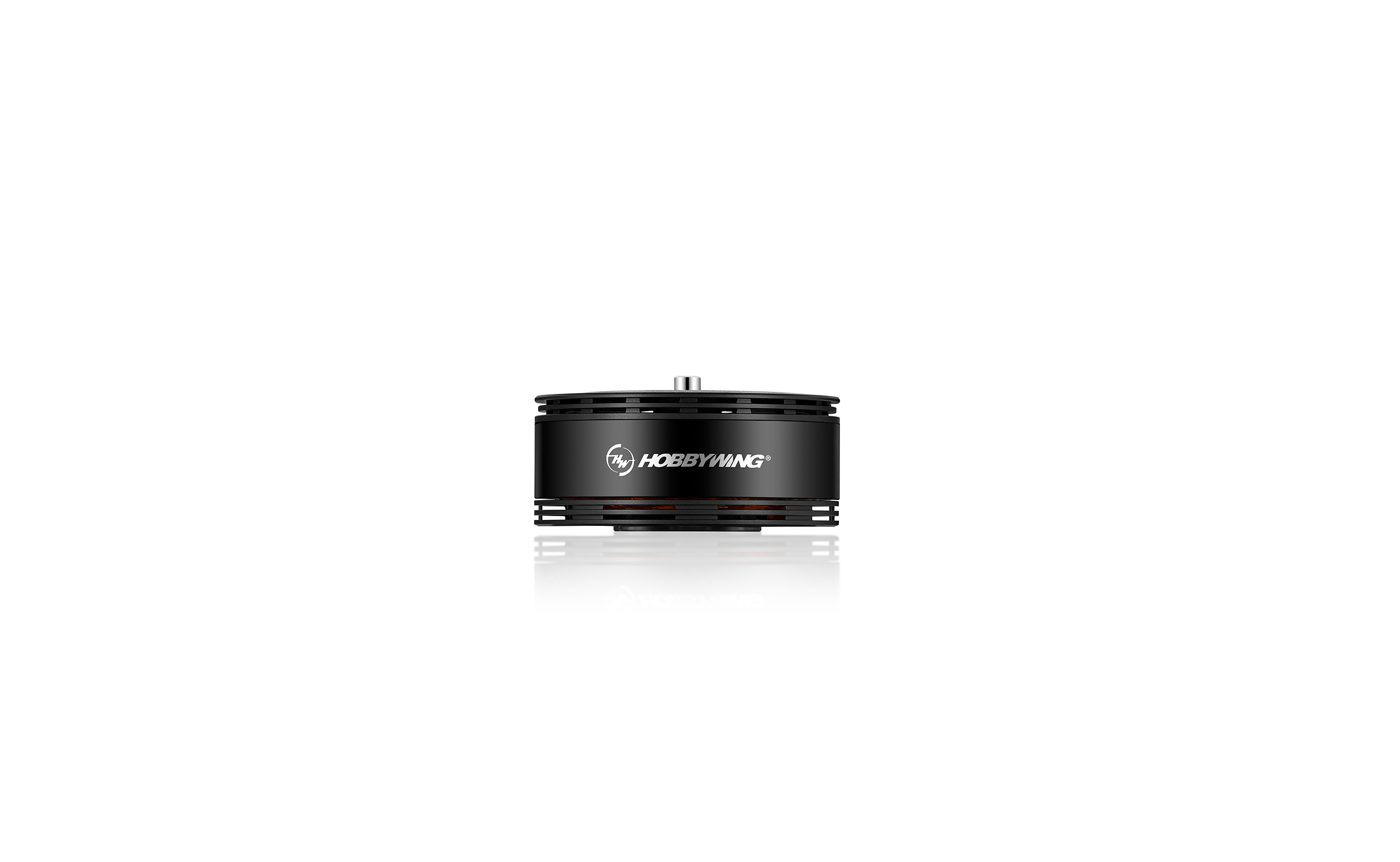

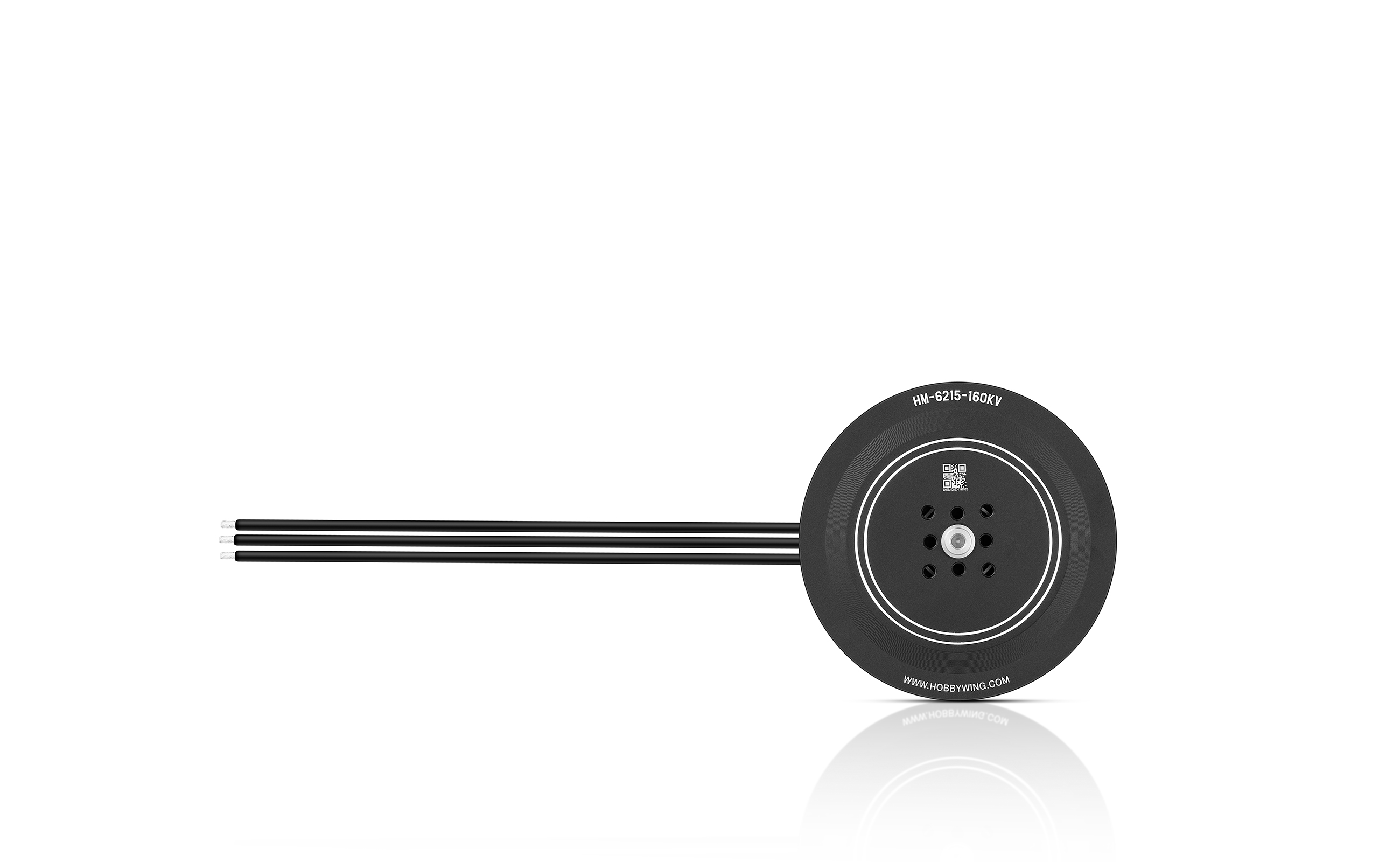

M6215 HP
Specially designed for multi-rotor drones.
High efficiency, strong protection, and high reliability.
M6215 HP
14kg
They are suitable for UAVs (quadrotor)
with a take-off weight of 14kg.
This motor uses two different core stack thicknesses in order to meet different
payload application requirements.
(The 160KV version equipped with ML22*7.8" propellers are measured in the laboratory at full throttle under 23V voltage).
An Abundance of Drone Applications
Brand-new Magnetic Circuit Design
Optimises the electromotive force harmonics. It creates a sinusoidal motion to perfectly matched with the ESC.
High Quality Materials and
Strong Protective Capabilities
The bracket and bottom cover of the motor are designed with a semi-enclosed structure with dust-proof grilles.
Regardless of how the motor is being installed, it can effectively resist dust and sand.​
Excellent nickel-plating
electrophoresis
treatment process
for the casing.
High toughness
carbide main shaft.

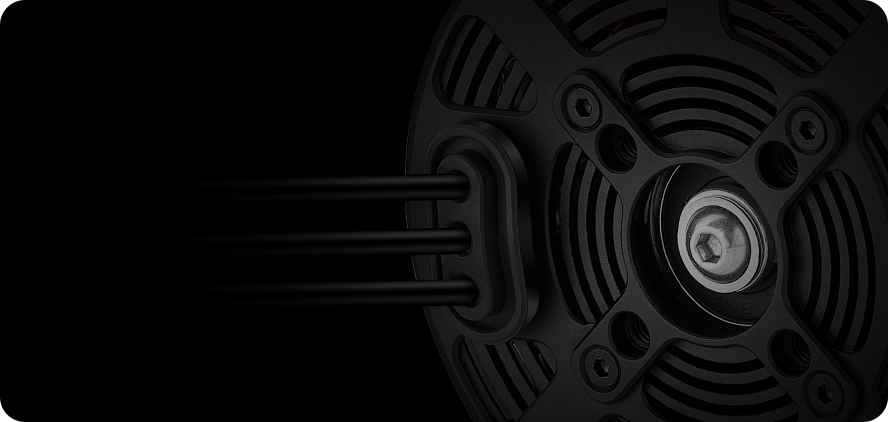

The back cover and the stator
base are designed separately,
and the outlet position is protected
by a rubber wire buckle to facilitate
waterproofing with the holes
in the motor base.

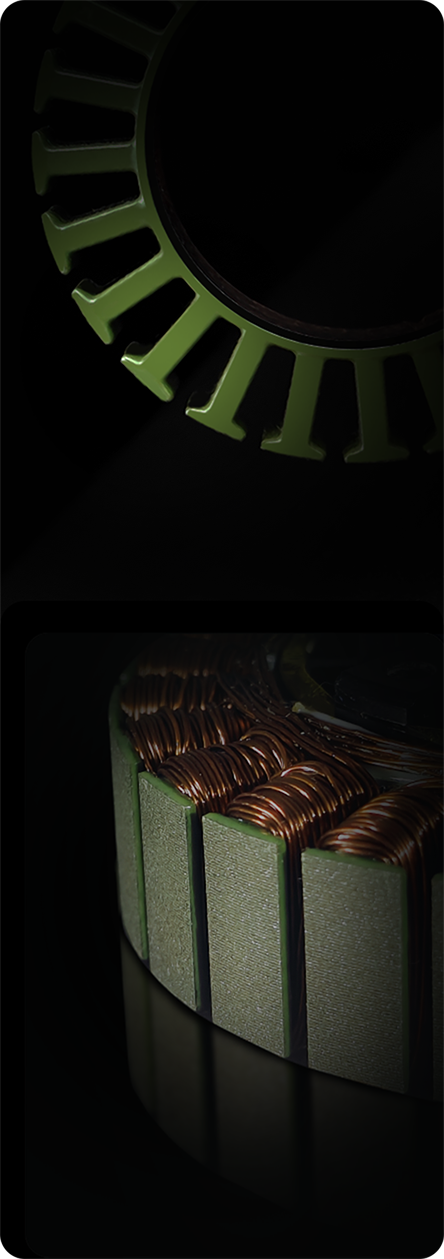

High-performance
iron core made from
low-loss silicon
steel sheets from
top-tier brands.
Silicon steel sheets
adopt new anti-rust and
anti-corrosion
treatment technology.
The motor is certified by NSS48.

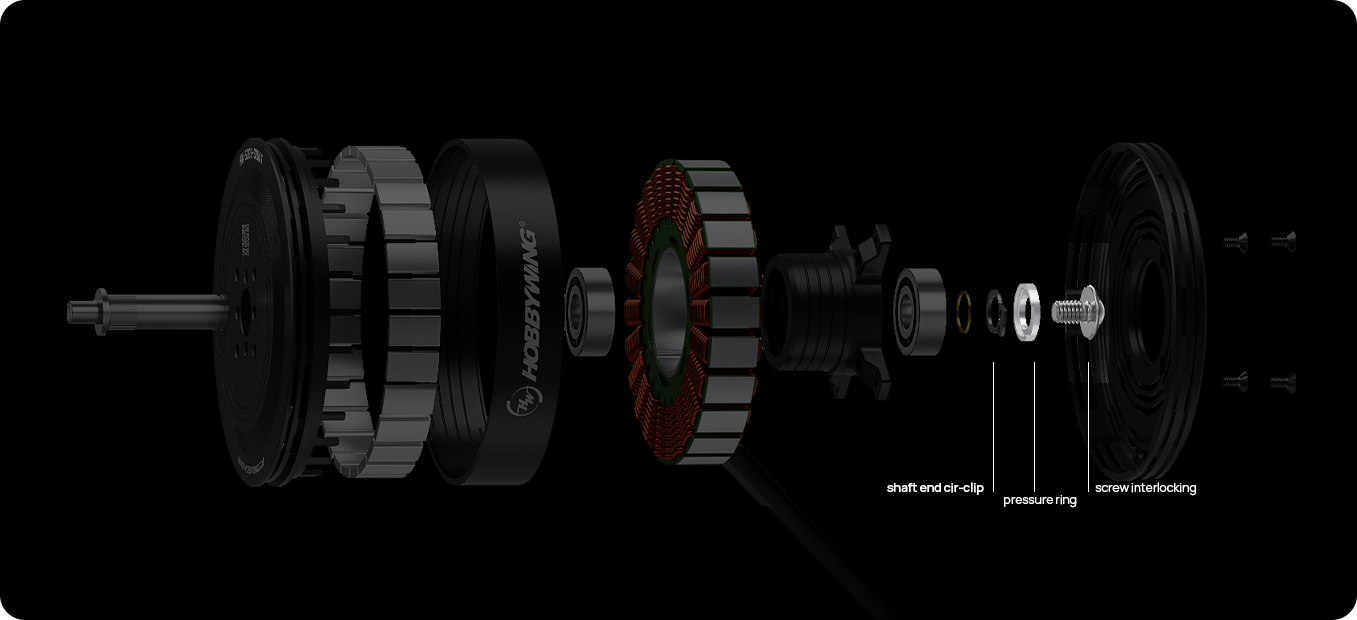

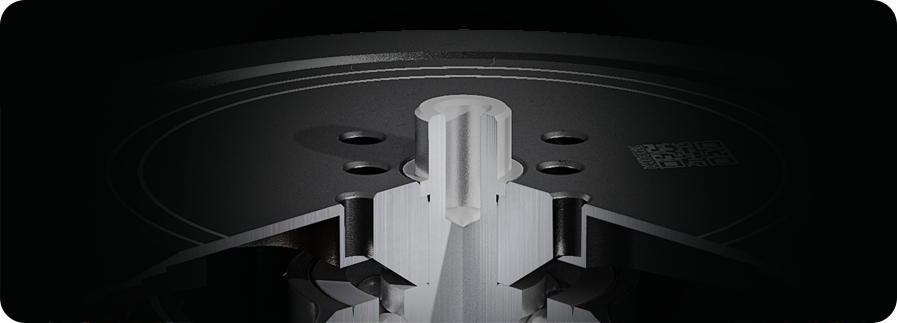

The motor adopts a motor shaft end cir-clip + pressure ring + screw interlocking
structure to ensure safety and to prevent it from falling off.
Recommended Combinations
  • Motor
    M6215 160KV
    M6215 320KV

    Battery
    12S LiPo
    6S LiPo
  • Propeller
    MP21x6.3"
    ML22x7.8"
    HF22x7.0"
    Thrust/rotor
    2.5~3.5kg
  • ESC
    XRotor Pro-H60A-14S
    XRotor Pro-H60A-6S

    Takeoff weight of quadrotor
    10.0~14.0kg
Thank you for your interest in HOBBYWING propulsion systems! For customized solutions,
please provide your contact information and technical requirements,
and we will get in touch with you within 24 hours.
captcha
By submitting this form, you agree to HOBBYWING's Privacy Policy
Thanks for reaching out!We have received your message and will get back to you shortly.
Best Regards,
HOBBYWING Team
M6215 HP CAD
Model
M6215 160KV HP M6215 320KV HP
Specification
Motor Size Φ68.7*H35.2mm Φ68.7*H35.2mm
Stator Size Φ61.5mm Φ61.5mm
Stator process High standard silicon steel sheet, rust proof, 180℃ high temperature resistance paint-coat High standard silicon steel sheet, rust proof, 180℃ high temperature resistance paint-coat
Enamelled wire 200℃ 200℃
Magnet 150℃ 150℃
Isolation test 500V AC high voltage resistance test 500V AC high voltage resistance test
Protection level IP45 IP45
Slot& Pole 24N28P 24N28P
Dynamic balance ≤8mg ≤8mg
Bearing Water proof bearing Water proof bearing
Motor axle diameter Φ6mm Φ6mm
Props mounting dimensions 4×M3@D12mm，4×M3@D18mm 4×M3@D12mm，4×M3@D18mm
Motor mounting dimensions 4×M4@D25mm 4×M4@D25mm
Specification
KV 160 320
Battery(LiPo) 12S LiPo 6S LiPo
No-load current 1.54A 3.14A
Maximum current (Non-hermeticAmbient Temperature ≤ 25℃） 38.6A 74.0A
Max power 1777W 1705W
Max thrust 9.2kg 8.8kg
Resistance 67mΩ 20.95mΩ
Wire Size 16AWG 16AWG
Wire length 150mm 150mm
Weight（With wire） 307g 308g
Rated power input 430W 430W
Rated power output 365.5W 365.5W
Recommended application combinations
Motor M6215 HP 160KV M6215 HP 320KV
Propeller MP21x6.3"/ML22x7.8"/HF22x7.0" MP21x6.3"/ML22x7.8"/HF22x7.0"
ESC XRotor Pro H60A 14S XRotor Pro H60A 6S
Battery 12S LiPo 6S LiPo
Thrust/rotor 2.5~3.5kg 2.5~3.5kg
Takeoff weight of quadrotor 10.0~14.0kg 10.0~14.0kg

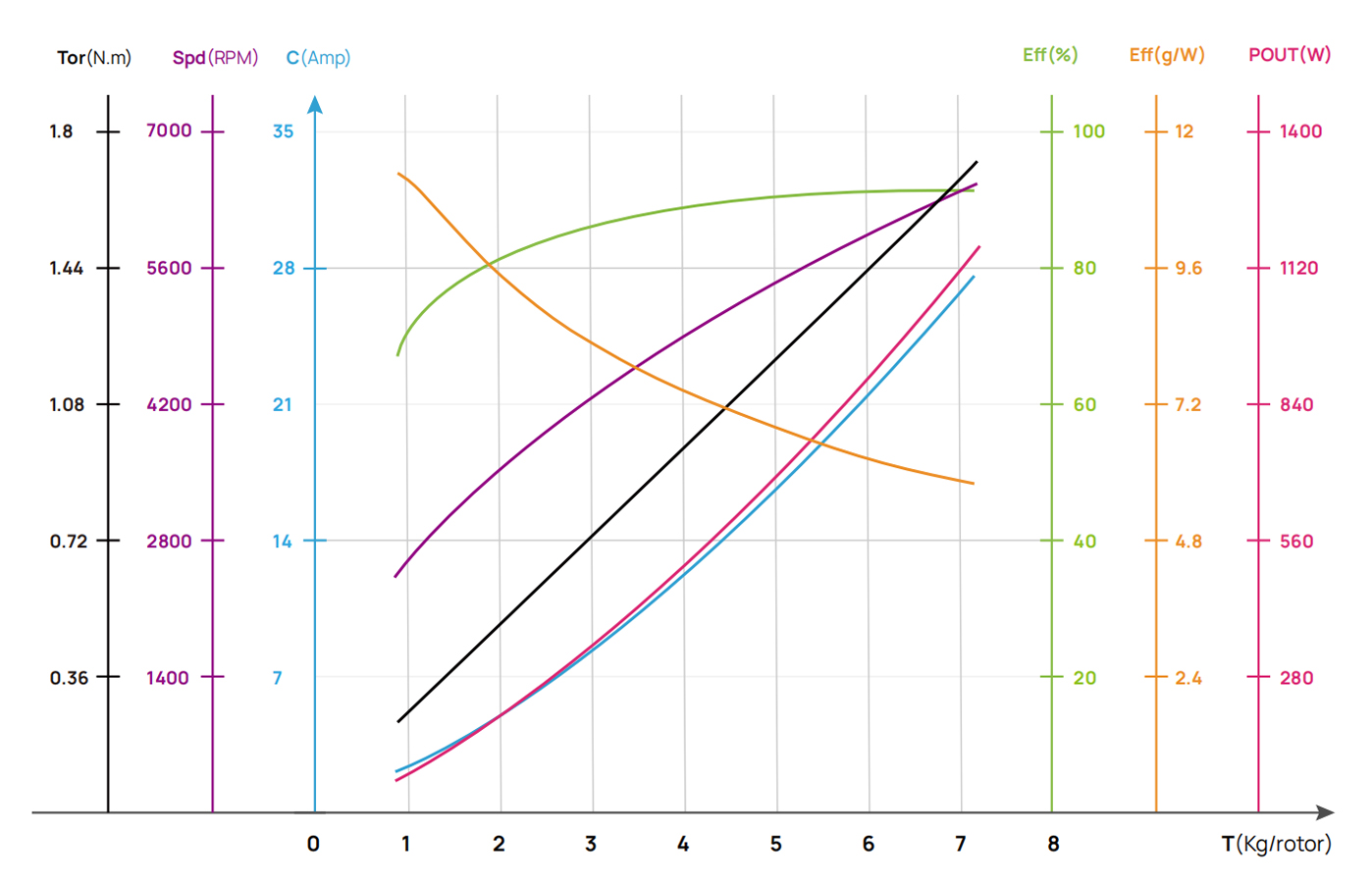

M6215 HP 160KV+MP21*6.3" Load performance parameters
M6215 HP 160KV+MP21*6.3" Motor Propeller Thrust Test Data

Voltage(V)

Propeller

Throttle(%)

Thrust(g)

Current(A)

Power(W)

Speed(RPM)

Efficiency(g/W)

Torque(N·m)

Temperature(℃)

46V (12S LiPo)

MP21*6.3"

33%

945

1.8

84.7

2388

11.2

0.23

47.8°C

35%

1036

2.0

93.6

2495

11.1

0.25

37%

1140

2.3

104.5

2614

10.9

0.27

39%

1257

2.5

117.4

2743

10.7

0.30

42%

1453

3.0

140.2

2945

10.4

0.35

45%

1667

3.6

166.9

3153

10.0

0.40

48%

1896

4.3

197.4

3361

9.6

0.45

51%

2136

5.0

231.2

3565

9.2

0.51

54%

2386

5.8

267.9

3764

8.9

0.57

57%

2643

6.7

307.5

3957

8.6

0.63

60%

2906

7.6

349.7

4143

8.3

0.69

63%

3175

8.6

394.4

4325

8.1

0.75

66%

3450

9.6

441.8

4502

7.8

0.81

69%

3730

10.7

492.0

4676

7.6

0.88

72%

4018

11.8

545.4

4848

7.4

0.95

75%

4312

13 1

602.4

5019

7.2

1.02

78%

4616

14.4

663.5

5190

7.0

1.09

81%

4931

15.8

729.2

5361

6.8

1.16

84%

5258

17.4

800.2

5534

6.6

1.24

87%

5598

19.0

877.0

5708

6.4

1.32

90%

5953

20.8

960.0

5882

6.2

1.41

100%

7195

27.4

1262.3

6432

5.7

1.70
The above data is measured by HobbyWing laboratory at room temperature 25℃, sea level, change the throttle input adjustment, the motor temperature is 65% and the throttle runs for 10 minutes, for reference only.

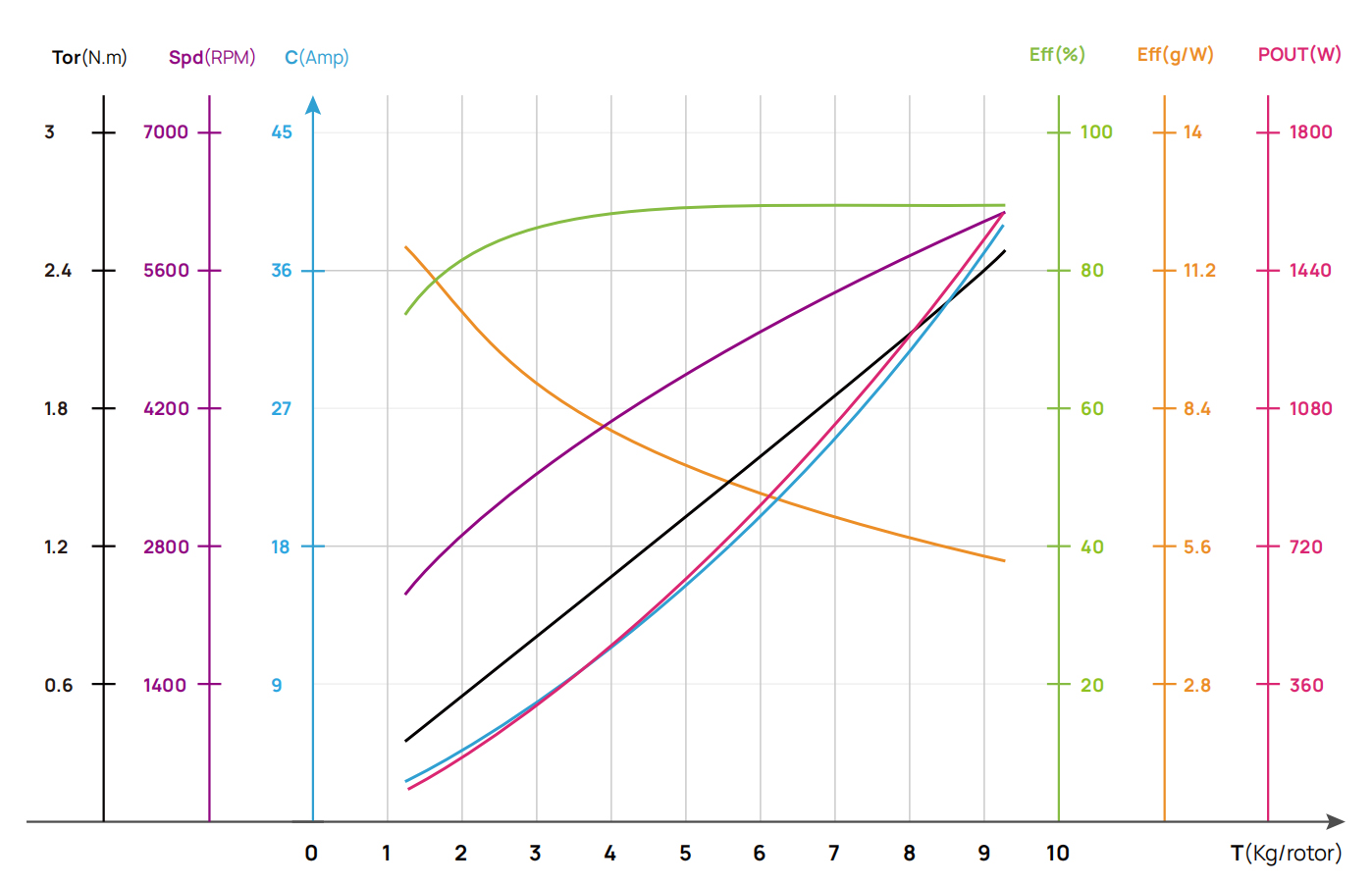

M6215 HP 160KV+MP22*7.8" Load performance parameters
M6215 HP 160KV+MP22*7.8" Motor Propeller Thrust Test Data

Voltage(V)

Propeller

Throttle(%)

Thrust(g)

Current(A)

Power(W)

Speed(RPM)

Efficiency(g/W)

Torque(N·m)

Temperature(℃)

46V (12S LiPo)

MP22*7.8"

33%

1244

2.3

107.9

2287

11.5

0.33

58.4°C

35%

1370

2.6

121.1

2396

11.3

0.37

37%

1511

3.0

136.9

2515

11.0

0.40

39%

1666

3.4

155.2

2640

10.7

0.44

42%

1923

4.1

187.6

2838

10.3

0.51

45%

2205

4.9

225.8

3042

9.8

0.59

48%

2509

5.9

269.6

3247

9.3

0.67

51%

2832

6.9

318.5

3448

8.9

0.75

54%

3171

8.1

372.2

3643

8.5

0.84

57%

3521

9.3

430.2

3830

8.2

0.93

60%

3881

10.7

492.4

4009

7.9

1.03

63%

4249

12.1

558.4

4179

7.6

1.12

66%

4621

13.6

628.4

4343

7.4

1.22

69%

4997

15.3

702.5

4503

7.1

1.31

72%

5376

17.0

781.0

4660

6.9

1.41

75%

5758

18.8

864.1

4816

6.7

1.51

78%

6143

20.7

952.3

4974

6.5

1.62

81%

6532

22.7

1046.1

5134

6.2

1.72

84%

6927

24.9

1146.1

5298

6.0

1.83

87%

7331

27.2

1252.9

5465

5.9

1.94

90%

7748

29.7

1367.2

5636

5.7

2.06

100%

9215

38.6

1777.3

6130

5.2

2.46
The above data is measured by HobbyWing laboratory at room temperature 25℃, sea level, change the throttle input adjustment, the motor temperature is 65% and the throttle runs for 10 minutes, for reference only.

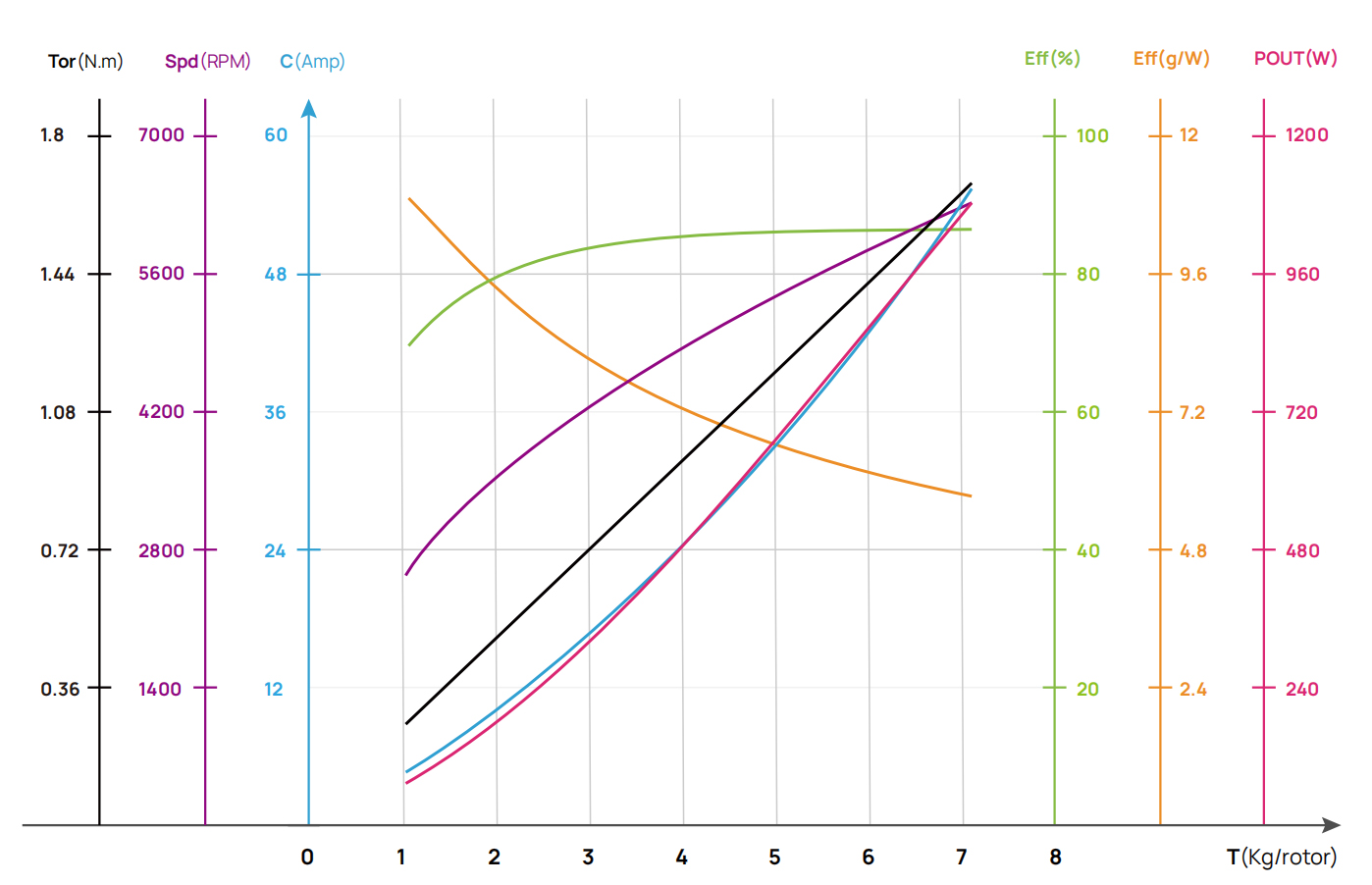

M6215 HP 320KV+MP21*6.3" Load performance parameters
M6215 HP 320KV+MP21*6.3" Motor Propeller Thrust Test Data

Voltage(V)

Propeller

Throttle(%)

Thrust(g)

Current(A)

Power(W)

Speed(RPM)

Efficiency(g/W)

Torque(N·m)

Temperature(℃)

23V(6S LiPo)

MP21*6.3"

33%

1084

4.3

100.4

2515

10.8

0.26

52.3°C

35%

1202

4.9

113.0

2639

10.6

0.29

37%

1333

5.5

127.7

2772

10.4

0.32

39%

1473

6.3

144.5

2910

10.2

0.35

42%

1696

7.5

173.1

3118

9.8

0.41

45%

1930

8.9

205.1

3324

9.4

0.46

48%

2170

10.4

240.0

3525

9.0

0.52

51%

2416

12.0

277.4

3717

8.7

0.57

54%

2666

13.7

317.1

3903

8.4

0.63

57%

2922

15.6

359.3

4083

8.1

0.69

60%

3184

17.5

404.3

4259

7.9

0.75

63%

3455

19.6

452.6

4432

7.6

0.82

66%

3736

21.9

504.6

4603

7.4

0.88

69%

4029

24.3

561.1

4775

7.2

0.95

72%

4334

27.0

622.7

4949

7.0

1.02

75%

4651

29.9

689.7

5123

6.7

1.10

78%

4979

33.0

762.1

5298

6.5

1.18

81%

5316

36.4

839.5

5472

6.3

1.26

84%

5655

39.9

920.3

5642

6.1

1.34

87%

5991

43.5

1002.0

5801

6.0

1.42

90%

6312

46.9

1081.1

5945

5.8

1.49

100%

7070

54.7

1261.0

6230

5.6

1.65
The above data is measured by HobbyWing laboratory at room temperature 25℃, sea level, change the throttle input adjustment, the motor temperature is 65% and the throttle runs for 10 minutes, for reference only.

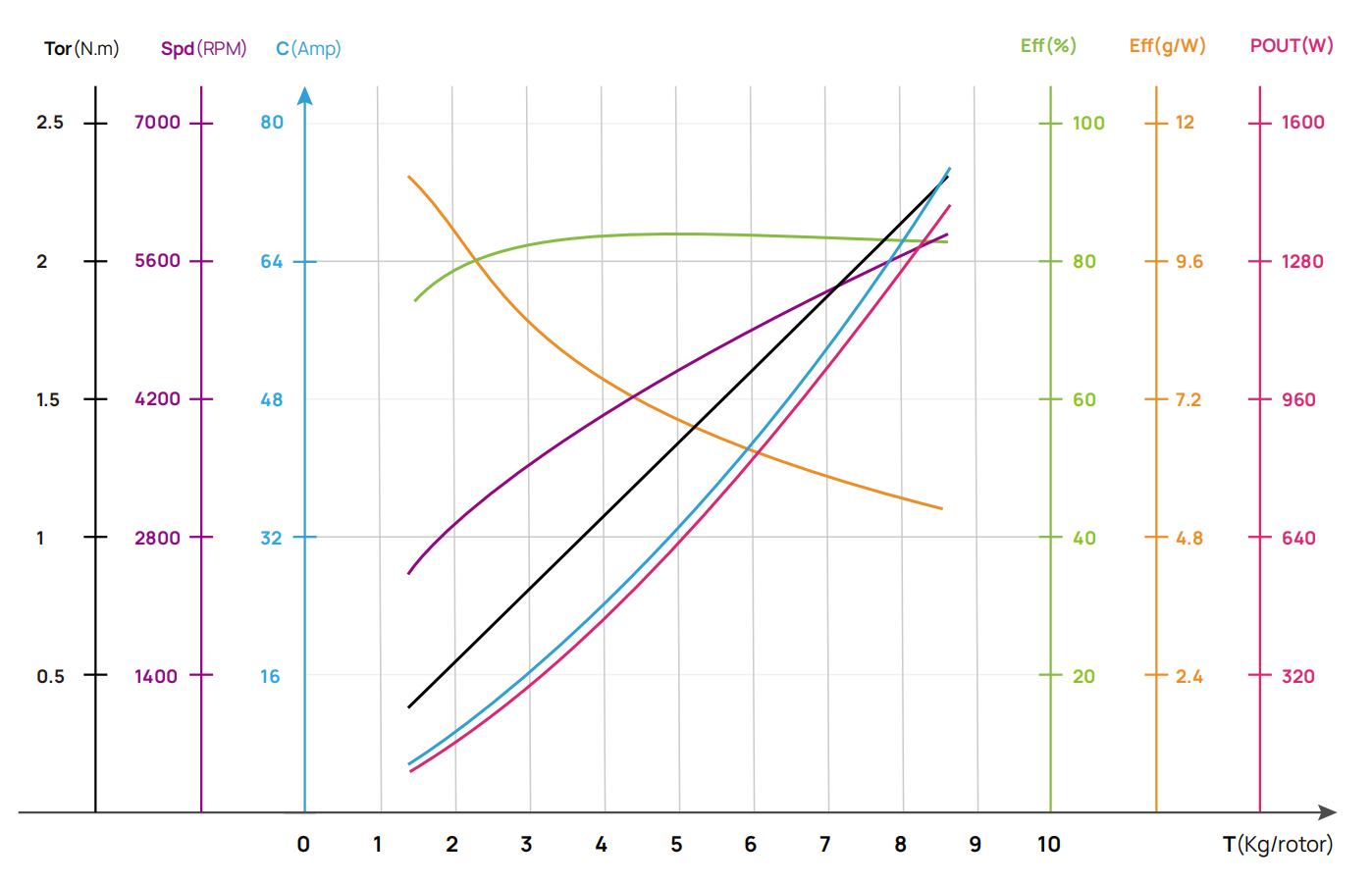

M6215 HP 320KV+MP22*7.8" Load performance parameters
M6215 HP 320KV+MP22*7.8" Motor Propeller Thrust Test Data

Voltage(V)

Propeller

Throttle(%)

Thrust(g)

Current(A)

Power(W)

Speed(RPM)

Efficiency(g/W)

Torque(N·m)

Temperature(℃)

23V(6S LiPo)

MP22*7.8"

33%

1392

5.5

127.5

2403

10.9

0.37

69.3°C

35%

1564

6.4

146.9

2537

10.6

0.42

37%

1745

7.3

169.1

2674

10.3

0.46

39%

1935

8.4

193.9

2813

10.0

0.51

42%

2230

10.2

235.5

3017

9.5

0.59

45%

2533

12.2

281.5

3215

9.0

0.67

48%

2844

14.3

331.1

3405

8.6

0.75

51%

3160

16.6

384.0

3585

8.2

0.84

54%

3481

19.1

440.1

3757

7.9

0.92

57%

3810

21.6

499.5

3921

7.6

1.00

60%

4147

24.4

562.6

4079

7.4

1.09

63%

4494

27.3

630.1

4233

7.1

1.18

66%

4853

30.4

702.7

4385

6.9

1.27

69%

5224

33.8

781.3

4536

6.7

1.37

72%

5608

37.5

866.4

4688

6.5

1.46

75%

6004

41.5

958.5

4841

6.3

1.57

78%

6408

45.8

1057.4

4995

6.1

1.68

81%

6817

50.4

1162.2

5150

5.9

1.78

84%

7223

55.1

1270.5

5302

5.7

1.89

87%

7618

59.8

1378.8

5445

5.5

2.00

90%

7988

64.3

1482.0

5573

5.4

2.09

100%

8801

74.0

1705.3

5814

5.2

2.29
The above data is measured by HobbyWing laboratory at room temperature 25℃, sea level, change the throttle input adjustment, the motor temperature is 65% and the throttle runs for 10 minutes, for reference only.
Support

Manuals & Documents

Disclaimer

The purpose of this website is only to introduce you to the basic situation of HOBBYWING company and product information. Unless otherwise stated, all information provided on this website should not be regarded as an offer or acceptance, and this website will not assume any binding obligations to you as a result of the provision of information. For all your requests, HOBBYWING reserves the full right to decide whether to commit or not.

This Website and its contents are provided for your convenience on an "as is" basis and your use of this Website is at your sole risk. HOBBYWING does not guarantee that this website will be uninterrupted or error-free, and reserves the right to amend this website or withdraw access to this Website at any time. We make no warranties, express or implied, as to the content, existence, accuracy or reliability of this Website, including, but not limited to, warranties of title, non-infringement or implied warranties of merchantability or fitness for a particular purpose or use.

HOBBYWING shall not be liable for any direct, indirect, incidental, special or consequential damages, loss of profits or business interruption caused by the use or inability to use the services provided by the Website, even if HOBBYWING has been advised of the possibility of similar losses. The exclusions and limitations of the warranty liability of HOBBYWING shall be effective to the extent permitted by applicable law.

HOBBYWING shall not be liable for any damage or loss to your computer system or any other software, hardware, IT system or property caused by viruses or other destructive programs caused by accessing, viewing and using this website or downloading any content from this Website (including but not limited to 2D model files, 3D model files).

HOBBYWING shall not be liable for any direct or indirect damage or loss caused by any third party using illegal means to access the website to obtain the relevant passwords, information and content.

If you or your company is located in the United States or Canada, you need to fill out this disclaimer confirmation letter online and submit it successfully before you can download the relevant materials you are interested in. The link address you fill in online is https://www.hobbywingdirect.com/pages/digital-file-release-form

If you do not agree with this disclaimer, please do not continue to this page. If you continue to access, browse and use this interface, you have read, understood and agreed to be bound by this statement and comply with all applicable laws and regulations.

HOBBYWING reserves the right to correct, modify and update this statement at any time.

Confirm >
M6215 HP Specification
M6215 HP Load performance parameters
M6215 HP 3D Model Drawing
M6215 HP CAD

FAQ

Products Center

Service and Support

News Center

About

Global Partners

Welcome to Brushless
System Trends

Privacy Policy 粤ICP备14009225号-1  |  ©2015 Hobbywing Technology CO., LTD.. All rights reserved
M6215 HP
Overview Specifications Support Accessories Detail Contact us Shop
Buy

Thank you for your interest in HOBBYWING propulsion systems! For customized solutions, please provide your contact information and technical requirements, and we will get in touch with you within 24 hours.
captcha
By submitting this form, you agree to HOBBYWING's Privacy Policy
Thanks for reaching out!We have received your message and will get back to you shortly.
Best Regards,
HOBBYWING Team
M6215 HP CAD
Model
M6215 160KV HP M6215 320KV HP
Specification
Motor Size Φ68.7*H35.2mm Φ68.7*H35.2mm
Stator Size Φ61.5mm Φ61.5mm
Stator process High standard silicon steel sheet, rust proof, 180℃ high temperature resistance paint-coat High standard silicon steel sheet, rust proof, 180℃ high temperature resistance paint-coat
Enamelled wire 200℃ 200℃
Magnet 150℃ 150℃
Isolation test 500V AC high voltage resistance test 500V AC high voltage resistance test
Protection level IP45 IP45
Slot& Pole 24N28P 24N28P
Dynamic balance ≤8mg ≤8mg
Bearing Water proof bearing Water proof bearing
Motor axle diameter Φ6mm Φ6mm
Props mounting dimensions 4×M3@D12mm，4×M3@D18mm 4×M3@D12mm，4×M3@D18mm
Motor mounting dimensions 4×M4@D25mm 4×M4@D25mm
Specification
KV 160 320
Battery(LiPo) 12S LiPo 6S LiPo
No-load current 1.54A 3.14A
Maximum current (Non-hermeticAmbient Temperature ≤ 25℃） 38.6A 74.0A
Max power 1777W 1705W
Max thrust 9.2kg 8.8kg
Resistance 67mΩ 20.95mΩ
Wire Size 16AWG 16AWG
Wire length 150mm 150mm
Weight（With wire） 307g 308g
Rated power input 430W 430W
Rated power output 365.5W 365.5W
Recommended application combinations
Motor M6215 HP 160KV M6215 HP 320KV
Propeller MP21x6.3"/ML22x7.8"/HF22x7.0" MP21x6.3"/ML22x7.8"/HF22x7.0"
ESC XRotor Pro H60A 14S XRotor Pro H60A 6S
Battery 12S LiPo 6S LiPo
Thrust/rotor 2.5~3.5kg 2.5~3.5kg
Takeoff weight of quadrotor 10.0~14.0kg 10.0~14.0kg
M6215 HP 160KV+MP21*6.3" Load performance parameters
M6215 HP 160KV+MP21*6.3" Motor Propeller Thrust Test Data

Voltage(V)

Propeller

Throttle(%)

Thrust(g)

Current(A)

Power(W)

Speed(RPM)

Efficiency(g/W)

Torque(N·m)

Temperature(℃)

46V (12S LiPo)

MP21*6.3"

33%

945

1.8

84.7

2388

11.2

0.23

47.8°C

35%

1036

2.0

93.6

2495

11.1

0.25

37%

1140

2.3

104.5

2614

10.9

0.27

39%

1257

2.5

117.4

2743

10.7

0.30

42%

1453

3.0

140.2

2945

10.4

0.35

45%

1667

3.6

166.9

3153

10.0

0.40

48%

1896

4.3

197.4

3361

9.6

0.45

51%

2136

5.0

231.2

3565

9.2

0.51

54%

2386

5.8

267.9

3764

8.9

0.57

57%

2643

6.7

307.5

3957

8.6

0.63

60%

2906

7.6

349.7

4143

8.3

0.69

63%

3175

8.6

394.4

4325

8.1

0.75

66%

3450

9.6

441.8

4502

7.8

0.81

69%

3730

10.7

492.0

4676

7.6

0.88

72%

4018

11.8

545.4

4848

7.4

0.95

75%

4312

13 1

602.4

5019

7.2

1.02

78%

4616

14.4

663.5

5190

7.0

1.09

81%

4931

15.8

729.2

5361

6.8

1.16

84%

5258

17.4

800.2

5534

6.6

1.24

87%

5598

19.0

877.0

5708

6.4

1.32

90%

5953

20.8

960.0

5882

6.2

1.41

100%

7195

27.4

1262.3

6432

5.7

1.70
The above data is measured by HobbyWing laboratory at room temperature 25℃, sea level, change the throttle input adjustment, the motor temperature is 65% and the throttle runs for 10 minutes, for reference only.
M6215 HP 160KV+MP22*7.8" Load performance parameters
M6215 HP 160KV+MP22*7.8" Motor Propeller Thrust Test Data

Voltage(V)

Propeller

Throttle(%)

Thrust(g)

Current(A)

Power(W)

Speed(RPM)

Efficiency(g/W)

Torque(N·m)

Temperature(℃)

46V (12S LiPo)

MP22*7.8"

33%

1244

2.3

107.9

2287

11.5

0.33

58.4°C

35%

1370

2.6

121.1

2396

11.3

0.37

37%

1511

3.0

136.9

2515

11.0

0.40

39%

1666

3.4

155.2

2640

10.7

0.44

42%

1923

4.1

187.6

2838

10.3

0.51

45%

2205

4.9

225.8

3042

9.8

0.59

48%

2509

5.9

269.6

3247

9.3

0.67

51%

2832

6.9

318.5

3448

8.9

0.75

54%

3171

8.1

372.2

3643

8.5

0.84

57%

3521

9.3

430.2

3830

8.2

0.93

60%

3881

10.7

492.4

4009

7.9

1.03

63%

4249

12.1

558.4

4179

7.6

1.12

66%

4621

13.6

628.4

4343

7.4

1.22

69%

4997

15.3

702.5

4503

7.1

1.31

72%

5376

17.0

781.0

4660

6.9

1.41

75%

5758

18.8

864.1

4816

6.7

1.51

78%

6143

20.7

952.3

4974

6.5

1.62

81%

6532

22.7

1046.1

5134

6.2

1.72

84%

6927

24.9

1146.1

5298

6.0

1.83

87%

7331

27.2

1252.9

5465

5.9

1.94

90%

7748

29.7

1367.2

5636

5.7

2.06

100%

9215

38.6

1777.3

6130

5.2

2.46
The above data is measured by HobbyWing laboratory at room temperature 25℃, sea level, change the throttle input adjustment, the motor temperature is 65% and the throttle runs for 10 minutes, for reference only.
M6215 HP 320KV+MP21*6.3" Load performance parameters
M6215 HP 320KV+MP21*6.3" Motor Propeller Thrust Test Data

Voltage(V)

Propeller

Throttle(%)

Thrust(g)

Current(A)

Power(W)

Speed(RPM)

Efficiency(g/W)

Torque(N·m)

Temperature(℃)

23V(6S LiPo)

MP21*6.3"

33%

1084

4.3

100.4

2515

10.8

0.26

52.3°C

35%

1202

4.9

113.0

2639

10.6

0.29

37%

1333

5.5

127.7

2772

10.4

0.32

39%

1473

6.3

144.5

2910

10.2

0.35

42%

1696

7.5

173.1

3118

9.8

0.41

45%

1930

8.9

205.1

3324

9.4

0.46

48%

2170

10.4

240.0

3525

9.0

0.52

51%

2416

12.0

277.4

3717

8.7

0.57

54%

2666

13.7

317.1

3903

8.4

0.63

57%

2922

15.6

359.3

4083

8.1

0.69

60%

3184

17.5

404.3

4259

7.9

0.75

63%

3455

19.6

452.6

4432

7.6

0.82

66%

3736

21.9

504.6

4603

7.4

0.88

69%

4029

24.3

561.1

4775

7.2

0.95

72%

4334

27.0

622.7

4949

7.0

1.02

75%

4651

29.9

689.7

5123

6.7

1.10

78%

4979

33.0

762.1

5298

6.5

1.18

81%

5316

36.4

839.5

5472

6.3

1.26

84%

5655

39.9

920.3

5642

6.1

1.34

87%

5991

43.5

1002.0

5801

6.0

1.42

90%

6312

46.9

1081.1

5945

5.8

1.49

100%

7070

54.7

1261.0

6230

5.6

1.65
The above data is measured by HobbyWing laboratory at room temperature 25℃, sea level, change the throttle input adjustment, the motor temperature is 65% and the throttle runs for 10 minutes, for reference only.
M6215 HP 320KV+MP22*7.8" Load performance parameters
M6215 HP 320KV+MP22*7.8" Motor Propeller Thrust Test Data

Voltage(V)

Propeller

Throttle(%)

Thrust(g)

Current(A)

Power(W)

Speed(RPM)

Efficiency(g/W)

Torque(N·m)

Temperature(℃)

23V(6S LiPo)

MP22*7.8"

33%

1392

5.5

127.5

2403

10.9

0.37

69.3°C

35%

1564

6.4

146.9

2537

10.6

0.42

37%

1745

7.3

169.1

2674

10.3

0.46

39%

1935

8.4

193.9

2813

10.0

0.51

42%

2230

10.2

235.5

3017

9.5

0.59

45%

2533

12.2

281.5

3215

9.0

0.67

48%

2844

14.3

331.1

3405

8.6

0.75

51%

3160

16.6

384.0

3585

8.2

0.84

54%

3481

19.1

440.1

3757

7.9

0.92

57%

3810

21.6

499.5

3921

7.6

1.00

60%

4147

24.4

562.6

4079

7.4

1.09

63%

4494

27.3

630.1

4233

7.1

1.18

66%

4853

30.4

702.7

4385

6.9

1.27

69%

5224

33.8

781.3

4536

6.7

1.37

72%

5608

37.5

866.4

4688

6.5

1.46

75%

6004

41.5

958.5

4841

6.3

1.57

78%

6408

45.8

1057.4

4995

6.1

1.68

81%

6817

50.4

1162.2

5150

5.9

1.78

84%

7223

55.1

1270.5

5302

5.7

1.89

87%

7618

59.8

1378.8

5445

5.5

2.00

90%

7988

64.3

1482.0

5573

5.4

2.09

100%

8801

74.0

1705.3

5814

5.2

2.29
The above data is measured by HobbyWing laboratory at room temperature 25℃, sea level, change the throttle input adjustment, the motor temperature is 65% and the throttle runs for 10 minutes, for reference only.
Support

Manuals & Documents

Disclaimer

The purpose of this website is only to introduce you to the basic situation of HOBBYWING company and product information. Unless otherwise stated, all information provided on this website should not be regarded as an offer or acceptance, and this website will not assume any binding obligations to you as a result of the provision of information. For all your requests, HOBBYWING reserves the full right to decide whether to commit or not.

This Website and its contents are provided for your convenience on an "as is" basis and your use of this Website is at your sole risk. HOBBYWING does not guarantee that this website will be uninterrupted or error-free, and reserves the right to amend this website or withdraw access to this Website at any time. We make no warranties, express or implied, as to the content, existence, accuracy or reliability of this Website, including, but not limited to, warranties of title, non-infringement or implied warranties of merchantability or fitness for a particular purpose or use.

HOBBYWING shall not be liable for any direct, indirect, incidental, special or consequential damages, loss of profits or business interruption caused by the use or inability to use the services provided by the Website, even if HOBBYWING has been advised of the possibility of similar losses. The exclusions and limitations of the warranty liability of HOBBYWING shall be effective to the extent permitted by applicable law.

HOBBYWING shall not be liable for any damage or loss to your computer system or any other software, hardware, IT system or property caused by viruses or other destructive programs caused by accessing, viewing and using this website or downloading any content from this Website (including but not limited to 2D model files, 3D model files).

HOBBYWING shall not be liable for any direct or indirect damage or loss caused by any third party using illegal means to access the website to obtain the relevant passwords, information and content.

If you or your company is located in the United States or Canada, you need to fill out this disclaimer confirmation letter online and submit it successfully before you can download the relevant materials you are interested in. The link address you fill in online is https://www.hobbywingdirect.com/pages/digital-file-release-form

If you do not agree with this disclaimer, please do not continue to this page. If you continue to access, browse and use this interface, you have read, understood and agreed to be bound by this statement and comply with all applicable laws and regulations.

HOBBYWING reserves the right to correct, modify and update this statement at any time.

Confirm >
M6215 HP Specification
M6215 HP Load performance parameters
M6215 HP 3D Model Drawing
M6215 HP CAD

FAQ
Top

Products Center

Service and Support

News Center

About

Global Partners

Welcome to Brushless
System Trends

Privacy Policy | 粤ICP备14009225号-1  |  ©2015 Hobbywing Technology CO., LTD.. All rights reserved
