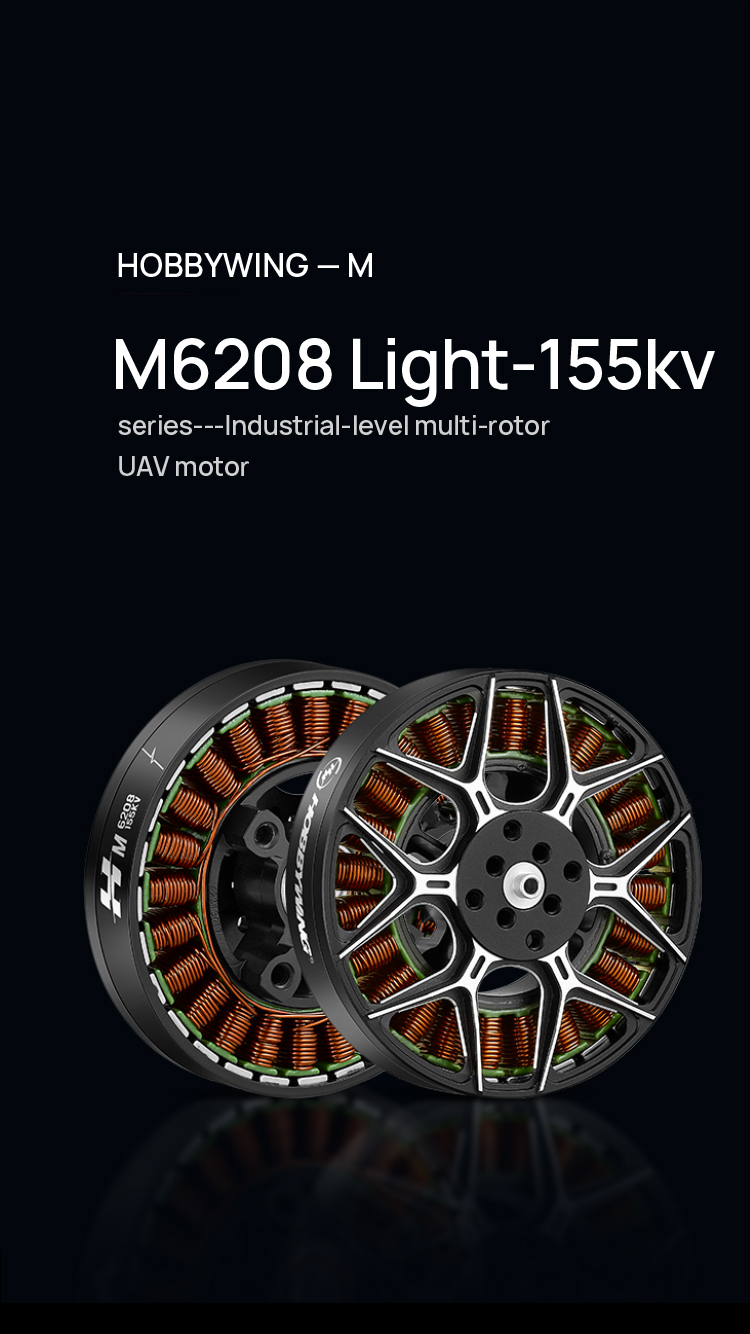

M6208 UL
6208-155KV/310KV
Industrial-level Multi-rotor UAV Motor
Reliable and Efficient,
Ideal for Long Endurance.
Designed for high-end industrial-grade multi-rotor drone applications. It is widely used in aerial
photography, surveying, monitoring, inspection, public safety and other scenarios.

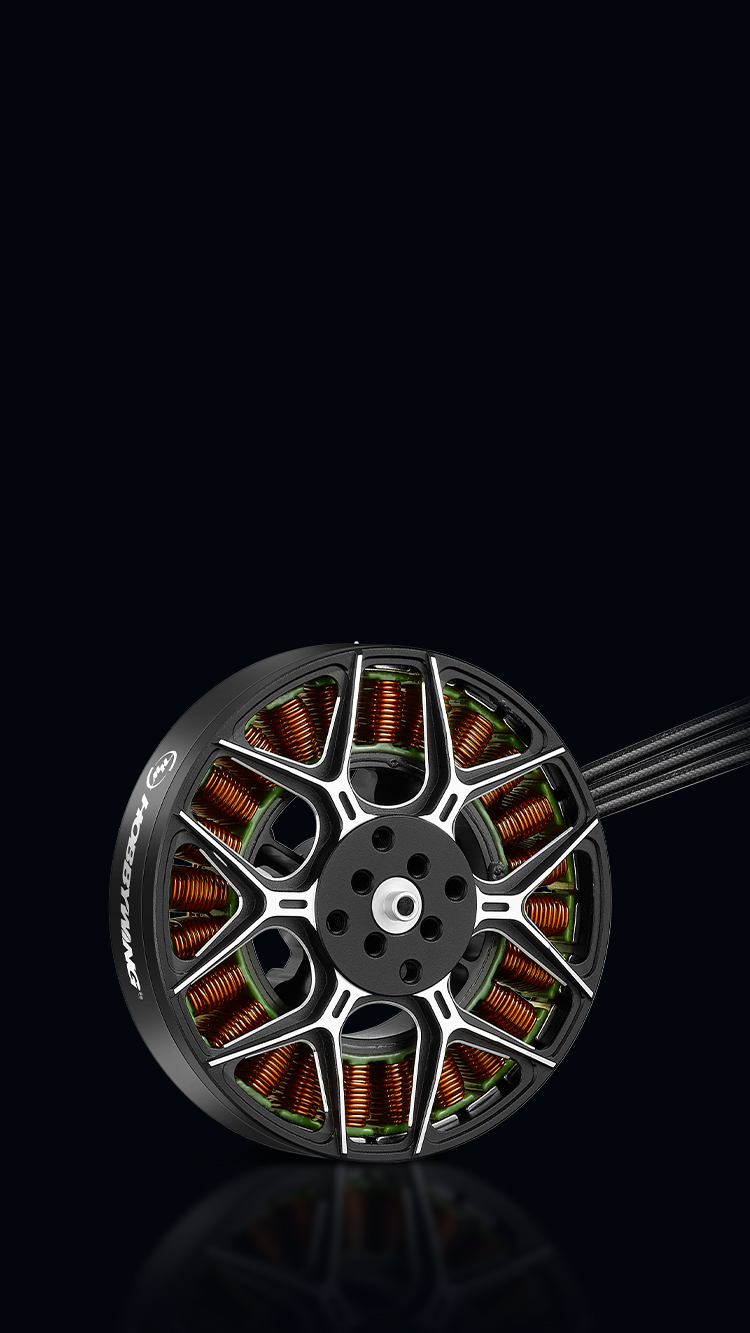

The Sharp and Distinct Edges
Stands Out Remarkably
The rotor is well balanced, featuring
an ultimate hollow design for maximum
weight reduction. The motor weighs 165g only.

Sharp and distinct edges, presenting a
dynamic beauty.

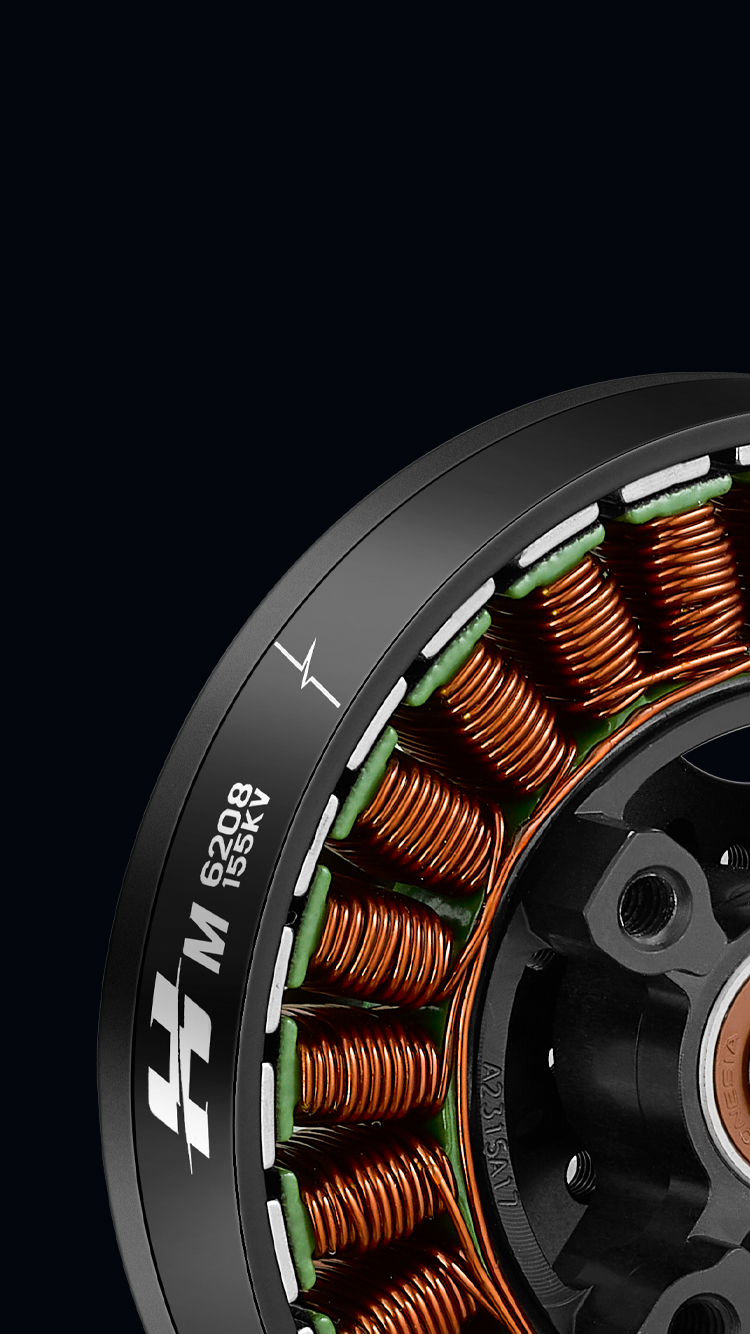

Craftsmanship
Manual winding, high groove full rate effectively reduces resistance,
lower motor temperature rise and higher efficiency

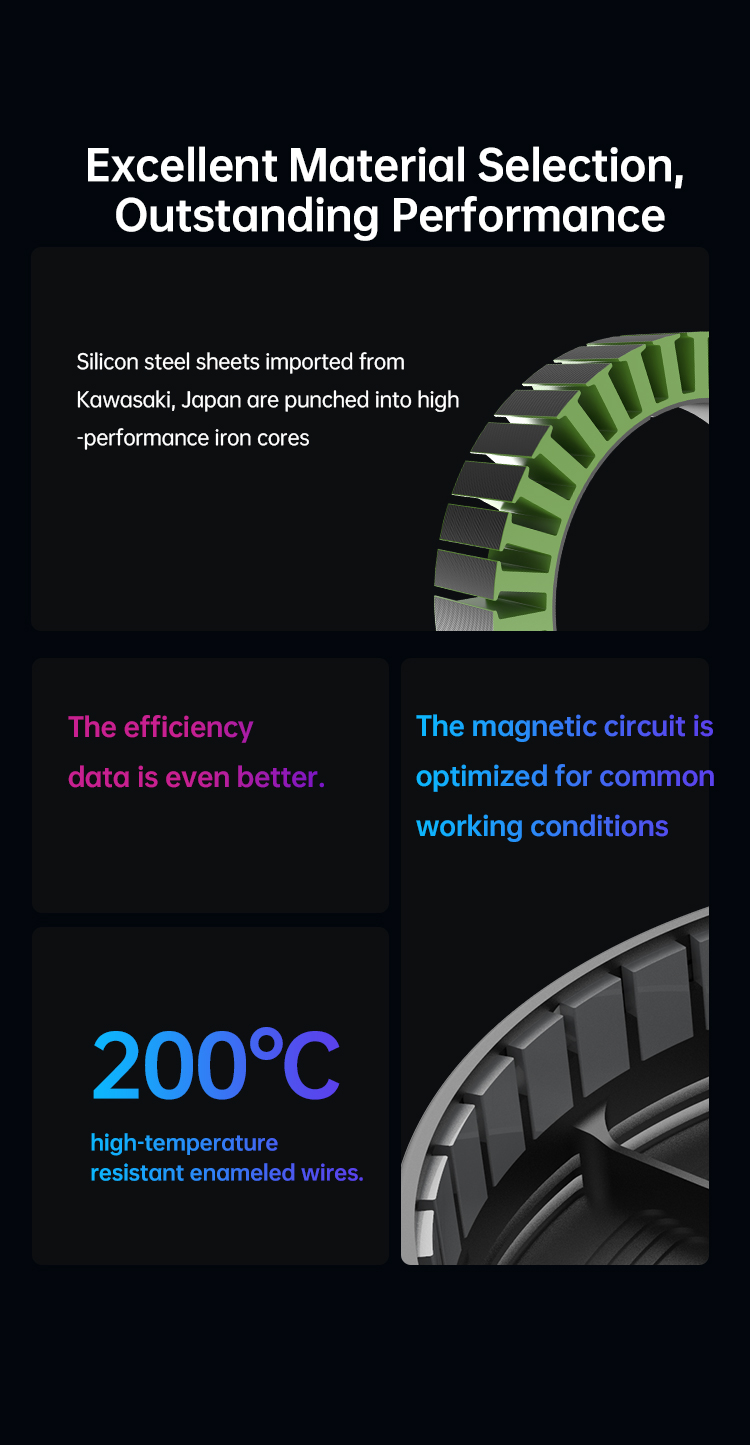

Excellent Material Selection,
Outstanding Performance
Silicon steel sheets imported from
Kawasaki, Japan are punched into high
-performance iron cores
The efficiency
data is even better.
The magnetic circuit is
optimized for common
working conditions
200℃
high-temperature
resistant enameled wires.
Recommended Combinations
  • Motor
    M6208 155KV
    Battery
    12S LiPo
  • Propeller
    MP21*6.3/ML22*7.8
    Thrust / rotor
    2~2.5kg
  • ESC
    XRotor Pro-H60A-14S
    Takeoff weight of quadrotor
    8~10kg
  • Motor
    M6208 310KV
    Battery
    6S LiPo
  • Propeller
    MP21*6.3/ML22*7.8
    Thrust / rotor
    2~2.5kg
  • ESC
    XRotor Pro-H60A-6S
    Takeoff weight of quadrotor
    8~10kg

Thank you for your interest in HOBBYWING propulsion systems! For customized solutions,
please provide your contact information and technical requirements,
and we will get in touch with you within 24 hours.
captcha
By submitting this form, you agree to HOBBYWING's Privacy Policy
Thanks for reaching out!We have received your message and will get back to you shortly.
Best Regards,
HOBBYWING Team
M6208  CAD
Model
M6208 155KV M6208 310KV
Specification
Battery(LiPo) 12S 6S
No-load current 0.92 1.65
Maximum current (Non-hermetic Ambient Temperature ≤ 25℃) 28.5 60
KV 155 310
Stator Size Φ61.5 Φ61.5
Motor Size Φ68.7*25.8 Φ68.7*25.8
Resistance 161.4 42.3
Slot& Pole 24N28P 24N28P
Bearing Water proof bearing Water proof bearing
Weight(With wire) 165 169
Props mounting dimensions 4×M3@D12+D18 4×M3@D12+D18
Motor mounting dimensions 4×M4@D32 4×M4@D32
Dynamic balance ≤8mg ≤8mg
Wire length Wire Size 50mm/enamelled wire outlet 50mm/enamelled wire outlet
Protection level IPX5 IPX5
Rated power input 250W 250W
Rated power output 212.5W 212.5W
Recommended application combinations
Motor M-6208-155KV M-6208-310KV
Propeller MP21*6.3/ML22*7.8 MP21*6.3/ML22*7.8
ESC XRotor Pro-H60A-14S XRotor Pro-H60A-6S
Battery 12S LiPo 6S LiPo
Takeoff weight / rotor 2~2.5Kg 2~2.5Kg
Takeoff weight of quadrotor 8~10Kg 8~10Kg
M6208 155KV+21*6.3"Load performance parameters
M6208 155KV+21*6.3" Motor Propeller Pull Test Data

Voltage(V)

Propeller

Throttle(%)

Thrust(g)

Current(A)

Power Input(W)

Speed(RPM)

Efficiency(g/W)

Torque(N·m)

Power Output(W)

Temperature(℃)

46V (12S LiPo)

MP21*6.3"

33%

853

1.5

67.7

2152

12.6

0.22

57.5

58.0°C

35%

953

1.7

77.8

2249

12.2

0.24

66.1

37%

1075

2.0

90.2

2363

11.9

0.27

76.7

39%

1212

2.3

104.6

2487

11.6

0.31

88.9

42%

1440

2.8

129.2

2680

11.1

0.37

109.8

45%

1683

3.4

157.2

2875

10.7

0.42

133.6

48%

1934

4.1

188.1

3065

10.3

0.49

159.9

51%

2185

4.8

221.7

3246

9.9

0.55

188.4

54%

2436

5.6

257.7

3420

9.5

0.61

219.1

57%

2684

6.4

296.1

3585

9.1

0.67

251.7

60%

2931

7.3

336.7

3743

8.7

0.73

286.2

63%

3178

8.2

379.8

3896

8.4

0.79

322.9

66%

3428

9.2

425.8

4046

8.1

0.85

361.9

69%

3684

10.3

475.0

4192

7.8

0.92

403.8

72%

3949

11.5

528.1

4337

7.5

0.98

448.9

75%

4225

12.7

585.5

4480

7.2

1.05

497.6

78%

4512

14.1

647.4

4621

7.0

1.13

550.3

81%

4812

15.5

714.2

4760

6.7

1.20

607.1

84%

5121

17.1

785.7

4896

6.5

1.28

667.8

87%

5435

18.7

861.4

5028

6.3

1.36

732.2

90%

5748

20.4

940.3

5157

6.1

1.44

799.3

100%

6582

25.6

1180.0

5536

5.6

1.65

1003.0

The above data is measured by HobbyWing laboratory at room temperature 25℃, sea level, change the throttle input adjustment, the motor temperature is 65% and the throttle runs for 10 minutes, for reference only.
M6208 155kv+22*7.8" Load performance parameters
M6208 155kv+22*7.8" Motor Propeller Pull Test Data

Voltage(V)

Propeller

Throttle(%)

Thrust(g)

Current(A)

Power Input(W)

Speed(RPM)

Efficiency(g/W)

Torque(N·m)

Power Output(W)

Temperature(℃)

46V (12S LiPo)

ML22*7.8"

33%

1030

1.7

77.2

2101

13.3

0.29

65.6

79.0°C

35%

1132

1.9

87.5

2195

12.9

0.31

74.4

37%

1258

2.2

100.5

2307

12.5

0.35

85.4

39%

1402

2.5

116.0

2429

12.1

0.38

98.6

42%

1641

3.1

143.2

2622

11.5

0.45

121.7

45%

1900

3.8

174.8

2816

10.9

0.51

148.6

48%

2168

4.6

210.1

3004

10.3

0.58

178.6

51%

2440

5.4

248.5

3184

9.8

0.65

211.2

54%

2712

6.3

289.7

3353

9.4

0.72

246.2

57%

2981

7.2

333.2

3514

8.9

0.79

283.2

60%

3249

8.2

379.1

3666

8.6

0.86

322.2

63%

3516

9.3

427.3

3812

8.2

0.93

363.2

66%

3784

10.4

478.3

3953

7.9

1.00

406.5

69%

4056

11.6

532.4

4091

7.6

1.07

452.5

72%

4334

12.8

590.2

4226

7.3

1.15

501.7

75%

4619

14.2

652.4

4361

7.1

1.22

554.5

78%

4915

15.6

719.5

4494

6.8

1.30

611.6

81%

5220

17.2

792.0

4625

6.6

1.38

673.2

84%

5534

18.9

870.2

4755

6.4

1.46

739.7

87%

5852

20.7

953.8

4880

6.1

1.54

810.8

90%

6171

22.6

1042.2

5000

5.9

1.63

885.9

100%

7062

28.7

1323.1

5317

5.3

1.87

1124.6

The above data is measured by HobbyWing laboratory at room temperature 25℃, sea level, change the throttle input adjustment, the motor temperature is 65% and the throttle runs for 10 minutes, for reference only.
M6208 310kv+21*6.3" Load performance parameters
M6208 310kv+21*6.3" Motor Propeller Pull Test Data

Voltage(V)

Propeller

Throttle(%)

Thrust(g)

Current(A)

Power Input(W)

Speed(RPM)

Efficiency(g/W)

Torque(N·m)

Power Output(W)

Temperature(℃)

23V (6S LiPo)

MP21*6.3"

33%

1038

3.8

87.7

2588

11.8

0.25

74.6

55°C

35%

1157

4.3

98.7

2714

11.7

0.28

83.9

37%

1273

4.8

111.3

2836

11.4

0.30

94.6

39%

1388

5.4

125.2

2955

11.1

0.33

106.4

42%

1560

6.4

147.9

3128

10.5

0.37

125.7

45%

1732

7.5

172.5

3295

10.0

0.41

146.7

48%

1906

8.6

198.8

3457

9.6

0.45

168.9

51%

2084

9.8

226.3

3613

9.2

0.50

192.4

54%

2265

11.1

255.1

3764

8.9

0.54

216.9

57%

2449

12.4

285.1

3909

8.6

0.58

242.3

60%

2638

13.7

316.3

4050

8.3

0.63

268.9

63%

2830

15.1

348.9

4186

8.1

0.67

296.6

66%

3026

16.6

383.1

4319

7.9

0.72

325.7

69%

3226

18.2

419.3

4450

7.7

0.76

356.4

72%

3428

19.9

457.9

4580

7.5

0.81

389.2

75%

3635

21.7

499.3

4711

7.3

0.86

424.4

78%

3845

23.6

544.1

4844

7.1

0.91

462.5

81%

4060

25.7

592.6

4981

6.9

0.96

503.7

84%

4282

28.0

645.3

5123

6.6

1.01

548.5

87%

4512

30.5

702.5

5270

6.4

1.07

597.1

90%

4754

33.1

764.0

5420

6.2

1.13

649.4

100%

5634

41.9

965.1

5837

5.8

1.34

820.4

The above data is measured by HobbyWing laboratory at room temperature 25℃, sea level, change the throttle input adjustment, the motor temperature is 65% and the throttle runs for 10 minutes, for reference only.
M6208 310kv+22*7.8" Load performance parameters
M6208 310kv+22*7.8" Motor Propeller Pull Test Data

Voltage(V)

Propeller

Throttle(%)

Thrust(g)

Current(A)

Power Input(W)

Speed(RPM)

Efficiency(g/W)

Torque(N·m)

Power Output(W)

Temperature(℃)

23V(6S LiPo)

22*7.8"

33%

1399

5.1

118.1

2465

11.8

0.37

100.4

83.0°C

35%

1528

5.8

133.0

2572

11.5

0.40

113.0

37%

1666

6.5

150.2

2682

11.1

0.44

127.6

39%

1809

7.4

169.5

2793

10.7

0.48

144.1

42%

2031

8.8

201.8

2957

10.1

0.54

171.5

45%

2259

10.3

237.3

3116

9.5

0.60

201.7

48%

2488

11.9

275.0

3268

9.0

0.66

233.8

51%

2716

13.6

314.3

3411

8.6

0.72

267.2

54%

2943

15.4

354.8

3546

8.3

0.78

301.6

57%

3167

17.2

396.2

3674

8.0

0.84

336.8

60%

3390

19.0

438.7

3795

7.7

0.89

372.9

63%

3613

20.9

482.4

3912

7.5

0.95

410.1

66%

3837

22.9

527.9

4026

7.3

1.01

448.7

69%

4064

25.0

575.8

4139

7.1

1.07

489.4

72%

4297

27.2

626.7

4252

6.9

1.13

532.7

75%

4537

29.6

681.5

4366

6.7

1.19

579.3

78%

4787

32.2

741.4

4484

6.5

1.26

630.2

81%

5049

35.0

807.2

4605

6.3

1.33

686.1

84%

5324

38.2

880.2

4732

6.0

1.40

748.2

87%

5614

41.7

961.3

4863

5.8

1.48

817.1

90%

5919

45.6

1051.2

4997

5.6

1.56

893.6

100%

6977

60.4

1390.7

5399

5.0

1.86

1182.1

The above data is measured by HobbyWing laboratory at room temperature 25℃, sea level, change the throttle input adjustment, the motor temperature is 65% and the throttle runs for 10 minutes, for reference only.
Support

Manuals & Documents

Disclaimer

The purpose of this website is only to introduce you to the basic situation of HOBBYWING company and product information. Unless otherwise stated, all information provided on this website should not be regarded as an offer or acceptance, and this website will not assume any binding obligations to you as a result of the provision of information. For all your requests, HOBBYWING reserves the full right to decide whether to commit or not.

This Website and its contents are provided for your convenience on an "as is" basis and your use of this Website is at your sole risk. HOBBYWING does not guarantee that this website will be uninterrupted or error-free, and reserves the right to amend this website or withdraw access to this Website at any time. We make no warranties, express or implied, as to the content, existence, accuracy or reliability of this Website, including, but not limited to, warranties of title, non-infringement or implied warranties of merchantability or fitness for a particular purpose or use.

HOBBYWING shall not be liable for any direct, indirect, incidental, special or consequential damages, loss of profits or business interruption caused by the use or inability to use the services provided by the Website, even if HOBBYWING has been advised of the possibility of similar losses. The exclusions and limitations of the warranty liability of HOBBYWING shall be effective to the extent permitted by applicable law.

HOBBYWING shall not be liable for any damage or loss to your computer system or any other software, hardware, IT system or property caused by viruses or other destructive programs caused by accessing, viewing and using this website or downloading any content from this Website (including but not limited to 2D model files, 3D model files).

HOBBYWING shall not be liable for any direct or indirect damage or loss caused by any third party using illegal means to access the website to obtain the relevant passwords, information and content.

If you or your company is located in the United States or Canada, you need to fill out this disclaimer confirmation letter online and submit it successfully before you can download the relevant materials you are interested in. The link address you fill in online is https://www.hobbywingdirect.com/pages/digital-file-release-form

If you do not agree with this disclaimer, please do not continue to this page. If you continue to access, browse and use this interface, you have read, understood and agreed to be bound by this statement and comply with all applicable laws and regulations.

HOBBYWING reserves the right to correct, modify and update this statement at any time.

Confirm >

FAQ

M6208 UL
6208-155KV/310KV
Industrial-level Multi-rotor UAV Motor
Reliable and Efficient, Ideal for Long Endurance.
Designed for high-end industrial-grade multi-rotor drone applications. It is widely used in aerial photography, surveying, monitoring, inspection, public safety and other scenarios.
The Sharp and Distinct Edges Stands Out Remarkably
The rotor is well balanced, featuring an ultimate hollow design for maximum weight reduction. The motor weighs 165g only.

Sharp and distinct edges, presenting a dynamic beauty.
Craftsmanship
Manual winding, high groove full rate effectively reduces resistance, lower motor temperature rise and higher efficiency
Thank you for your interest in HOBBYWING propulsion systems! For customized solutions, please provide your contact information and technical requirements, and we will get in touch with you within 24 hours.
captcha
By submitting this form, you agree to HOBBYWING's Privacy Policy
Thanks for reaching out!We have received your message and will get back to you shortly.
Best Regards,
HOBBYWING Team
M6208  CAD
Model
M6208 155KV M6208 310KV
Specification
Battery(LiPo) 12S 6S
No-load current 0.92 1.65
Maximum current (Non-hermetic Ambient Temperature ≤ 25℃) 28.5 60
KV 155 310
Stator Size Φ61.5 Φ61.5
Motor Size Φ68.7*25.8 Φ68.7*25.8
Resistance 161.4 42.3
Slot& Pole 24N28P 24N28P
Bearing Water proof bearing Water proof bearing
Weight(With wire) 165 169
Props mounting dimensions 4×M3@D12+D18 4×M3@D12+D18
Motor mounting dimensions 4×M4@D32 4×M4@D32
Dynamic balance ≤8mg ≤8mg
Wire length Wire Size 50mm/enamelled wire outlet 50mm/enamelled wire outlet
Protection level IPX5 IPX5
Rated power input 250W 250W
Rated power output 212.5W 212.5W
Recommended application combinations
Motor M-6208-155KV M-6208-310KV
Propeller MP21*6.3/ML22*7.8 MP21*6.3/ML22*7.8
ESC XRotor Pro-H60A-14S XRotor Pro-H60A-6S
Battery 12S LiPo 6S LiPo
Takeoff weight / rotor 2~2.5Kg 2~2.5Kg
Takeoff weight of quadrotor 8~10Kg 8~10Kg
M6208 155KV+21*6.3"Load performance parameters
M6208 155KV+21*6.3" Motor Propeller Pull Test Data

Voltage(V)

Propeller

Throttle(%)

Thrust(g)

Current(A)

Power Input(W)

Speed(RPM)

Efficiency(g/W)

Torque(N·m)

Power Output(W)

Temperature(℃)

46V (12S LiPo)

MP21*6.3"

33%

853

1.5

67.7

2152

12.6

0.22

57.5

58.0°C

35%

953

1.7

77.8

2249

12.2

0.24

66.1

37%

1075

2.0

90.2

2363

11.9

0.27

76.7

39%

1212

2.3

104.6

2487

11.6

0.31

88.9

42%

1440

2.8

129.2

2680

11.1

0.37

109.8

45%

1683

3.4

157.2

2875

10.7

0.42

133.6

48%

1934

4.1

188.1

3065

10.3

0.49

159.9

51%

2185

4.8

221.7

3246

9.9

0.55

188.4

54%

2436

5.6

257.7

3420

9.5

0.61

219.1

57%

2684

6.4

296.1

3585

9.1

0.67

251.7

60%

2931

7.3

336.7

3743

8.7

0.73

286.2

63%

3178

8.2

379.8

3896

8.4

0.79

322.9

66%

3428

9.2

425.8

4046

8.1

0.85

361.9

69%

3684

10.3

475.0

4192

7.8

0.92

403.8

72%

3949

11.5

528.1

4337

7.5

0.98

448.9

75%

4225

12.7

585.5

4480

7.2

1.05

497.6

78%

4512

14.1

647.4

4621

7.0

1.13

550.3

81%

4812

15.5

714.2

4760

6.7

1.20

607.1

84%

5121

17.1

785.7

4896

6.5

1.28

667.8

87%

5435

18.7

861.4

5028

6.3

1.36

732.2

90%

5748

20.4

940.3

5157

6.1

1.44

799.3

100%

6582

25.6

1180.0

5536

5.6

1.65

1003.0

The above data is measured by HobbyWing laboratory at room temperature 25℃, sea level, change the throttle input adjustment, the motor temperature is 65% and the throttle runs for 10 minutes, for reference only.
M6208 155kv+22*7.8" Load performance parameters
M6208 155kv+22*7.8" Motor Propeller Pull Test Data

Voltage(V)

Propeller

Throttle(%)

Thrust(g)

Current(A)

Power Input(W)

Speed(RPM)

Efficiency(g/W)

Torque(N·m)

Power Output(W)

Temperature(℃)

46V (12S LiPo)

ML22*7.8"

33%

1030

1.7

77.2

2101

13.3

0.29

65.6

79.0°C

35%

1132

1.9

87.5

2195

12.9

0.31

74.4

37%

1258

2.2

100.5

2307

12.5

0.35

85.4

39%

1402

2.5

116.0

2429

12.1

0.38

98.6

42%

1641

3.1

143.2

2622

11.5

0.45

121.7

45%

1900

3.8

174.8

2816

10.9

0.51

148.6

48%

2168

4.6

210.1

3004

10.3

0.58

178.6

51%

2440

5.4

248.5

3184

9.8

0.65

211.2

54%

2712

6.3

289.7

3353

9.4

0.72

246.2

57%

2981

7.2

333.2

3514

8.9

0.79

283.2

60%

3249

8.2

379.1

3666

8.6

0.86

322.2

63%

3516

9.3

427.3

3812

8.2

0.93

363.2

66%

3784

10.4

478.3

3953

7.9

1.00

406.5

69%

4056

11.6

532.4

4091

7.6

1.07

452.5

72%

4334

12.8

590.2

4226

7.3

1.15

501.7

75%

4619

14.2

652.4

4361

7.1

1.22

554.5

78%

4915

15.6

719.5

4494

6.8

1.30

611.6

81%

5220

17.2

792.0

4625

6.6

1.38

673.2

84%

5534

18.9

870.2

4755

6.4

1.46

739.7

87%

5852

20.7

953.8

4880

6.1

1.54

810.8

90%

6171

22.6

1042.2

5000

5.9

1.63

885.9

100%

7062

28.7

1323.1

5317

5.3

1.87

1124.6

The above data is measured by HobbyWing laboratory at room temperature 25℃, sea level, change the throttle input adjustment, the motor temperature is 65% and the throttle runs for 10 minutes, for reference only.
M6208 310kv+21*6.3" Load performance parameters
M6208 310kv+21*6.3" Motor Propeller Pull Test Data

Voltage(V)

Propeller

Throttle(%)

Thrust(g)

Current(A)

Power Input(W)

Speed(RPM)

Efficiency(g/W)

Torque(N·m)

Power Output(W)

Temperature(℃)

23V (6S LiPo)

MP21*6.3"

33%

1038

3.8

87.7

2588

11.8

0.25

74.6

55°C

35%

1157

4.3

98.7

2714

11.7

0.28

83.9

37%

1273

4.8

111.3

2836

11.4

0.30

94.6

39%

1388

5.4

125.2

2955

11.1

0.33

106.4

42%

1560

6.4

147.9

3128

10.5

0.37

125.7

45%

1732

7.5

172.5

3295

10.0

0.41

146.7

48%

1906

8.6

198.8

3457

9.6

0.45

168.9

51%

2084

9.8

226.3

3613

9.2

0.50

192.4

54%

2265

11.1

255.1

3764

8.9

0.54

216.9

57%

2449

12.4

285.1

3909

8.6

0.58

242.3

60%

2638

13.7

316.3

4050

8.3

0.63

268.9

63%

2830

15.1

348.9

4186

8.1

0.67

296.6

66%

3026

16.6

383.1

4319

7.9

0.72

325.7

69%

3226

18.2

419.3

4450

7.7

0.76

356.4

72%

3428

19.9

457.9

4580

7.5

0.81

389.2

75%

3635

21.7

499.3

4711

7.3

0.86

424.4

78%

3845

23.6

544.1

4844

7.1

0.91

462.5

81%

4060

25.7

592.6

4981

6.9

0.96

503.7

84%

4282

28.0

645.3

5123

6.6

1.01

548.5

87%

4512

30.5

702.5

5270

6.4

1.07

597.1

90%

4754

33.1

764.0

5420

6.2

1.13

649.4

100%

5634

41.9

965.1

5837

5.8

1.34

820.4

The above data is measured by HobbyWing laboratory at room temperature 25℃, sea level, change the throttle input adjustment, the motor temperature is 65% and the throttle runs for 10 minutes, for reference only.
M6208 310kv+22*7.8" Load performance parameters
M6208 310kv+22*7.8" Motor Propeller Pull Test Data

Voltage(V)

Propeller

Throttle(%)

Thrust(g)

Current(A)

Power Input(W)

Speed(RPM)

Efficiency(g/W)

Torque(N·m)

Power Output(W)

Temperature(℃)

23V(6S LiPo)

22*7.8"

33%

1399

5.1

118.1

2465

11.8

0.37

100.4

83.0°C

35%

1528

5.8

133.0

2572

11.5

0.40

113.0

37%

1666

6.5

150.2

2682

11.1

0.44

127.6

39%

1809

7.4

169.5

2793

10.7

0.48

144.1

42%

2031

8.8

201.8

2957

10.1

0.54

171.5

45%

2259

10.3

237.3

3116

9.5

0.60

201.7

48%

2488

11.9

275.0

3268

9.0

0.66

233.8

51%

2716

13.6

314.3

3411

8.6

0.72

267.2

54%

2943

15.4

354.8

3546

8.3

0.78

301.6

57%

3167

17.2

396.2

3674

8.0

0.84

336.8

60%

3390

19.0

438.7

3795

7.7

0.89

372.9

63%

3613

20.9

482.4

3912

7.5

0.95

410.1

66%

3837

22.9

527.9

4026

7.3

1.01

448.7

69%

4064

25.0

575.8

4139

7.1

1.07

489.4

72%

4297

27.2

626.7

4252

6.9

1.13

532.7

75%

4537

29.6

681.5

4366

6.7

1.19

579.3

78%

4787

32.2

741.4

4484

6.5

1.26

630.2

81%

5049

35.0

807.2

4605

6.3

1.33

686.1

84%

5324

38.2

880.2

4732

6.0

1.40

748.2

87%

5614

41.7

961.3

4863

5.8

1.48

817.1

90%

5919

45.6

1051.2

4997

5.6

1.56

893.6

100%

6977

60.4

1390.7

5399

5.0

1.86

1182.1

The above data is measured by HobbyWing laboratory at room temperature 25℃, sea level, change the throttle input adjustment, the motor temperature is 65% and the throttle runs for 10 minutes, for reference only.
Support

Manuals & Documents

Disclaimer

The purpose of this website is only to introduce you to the basic situation of HOBBYWING company and product information. Unless otherwise stated, all information provided on this website should not be regarded as an offer or acceptance, and this website will not assume any binding obligations to you as a result of the provision of information. For all your requests, HOBBYWING reserves the full right to decide whether to commit or not.

This Website and its contents are provided for your convenience on an "as is" basis and your use of this Website is at your sole risk. HOBBYWING does not guarantee that this website will be uninterrupted or error-free, and reserves the right to amend this website or withdraw access to this Website at any time. We make no warranties, express or implied, as to the content, existence, accuracy or reliability of this Website, including, but not limited to, warranties of title, non-infringement or implied warranties of merchantability or fitness for a particular purpose or use.

HOBBYWING shall not be liable for any direct, indirect, incidental, special or consequential damages, loss of profits or business interruption caused by the use or inability to use the services provided by the Website, even if HOBBYWING has been advised of the possibility of similar losses. The exclusions and limitations of the warranty liability of HOBBYWING shall be effective to the extent permitted by applicable law.

HOBBYWING shall not be liable for any damage or loss to your computer system or any other software, hardware, IT system or property caused by viruses or other destructive programs caused by accessing, viewing and using this website or downloading any content from this Website (including but not limited to 2D model files, 3D model files).

HOBBYWING shall not be liable for any direct or indirect damage or loss caused by any third party using illegal means to access the website to obtain the relevant passwords, information and content.

If you or your company is located in the United States or Canada, you need to fill out this disclaimer confirmation letter online and submit it successfully before you can download the relevant materials you are interested in. The link address you fill in online is https://www.hobbywingdirect.com/pages/digital-file-release-form

If you do not agree with this disclaimer, please do not continue to this page. If you continue to access, browse and use this interface, you have read, understood and agreed to be bound by this statement and comply with all applicable laws and regulations.

HOBBYWING reserves the right to correct, modify and update this statement at any time.

Confirm >

FAQ
