M4006 UL
Buy
Industrial Multirotor Drone Motors UL Series 350KV
High Efficiency,
Long Endurance
  • The recommended
    pulling force is
    1Kg
  • Takeoff weight of
    quadrotor 4.0Kg
Excellent design
It is produced using industry-level motor technology,
which has higher requirements and stricter control on
incoming materials, process and assembly.

It adopts a new hollow shape design of the rotor
which is more recognizable.

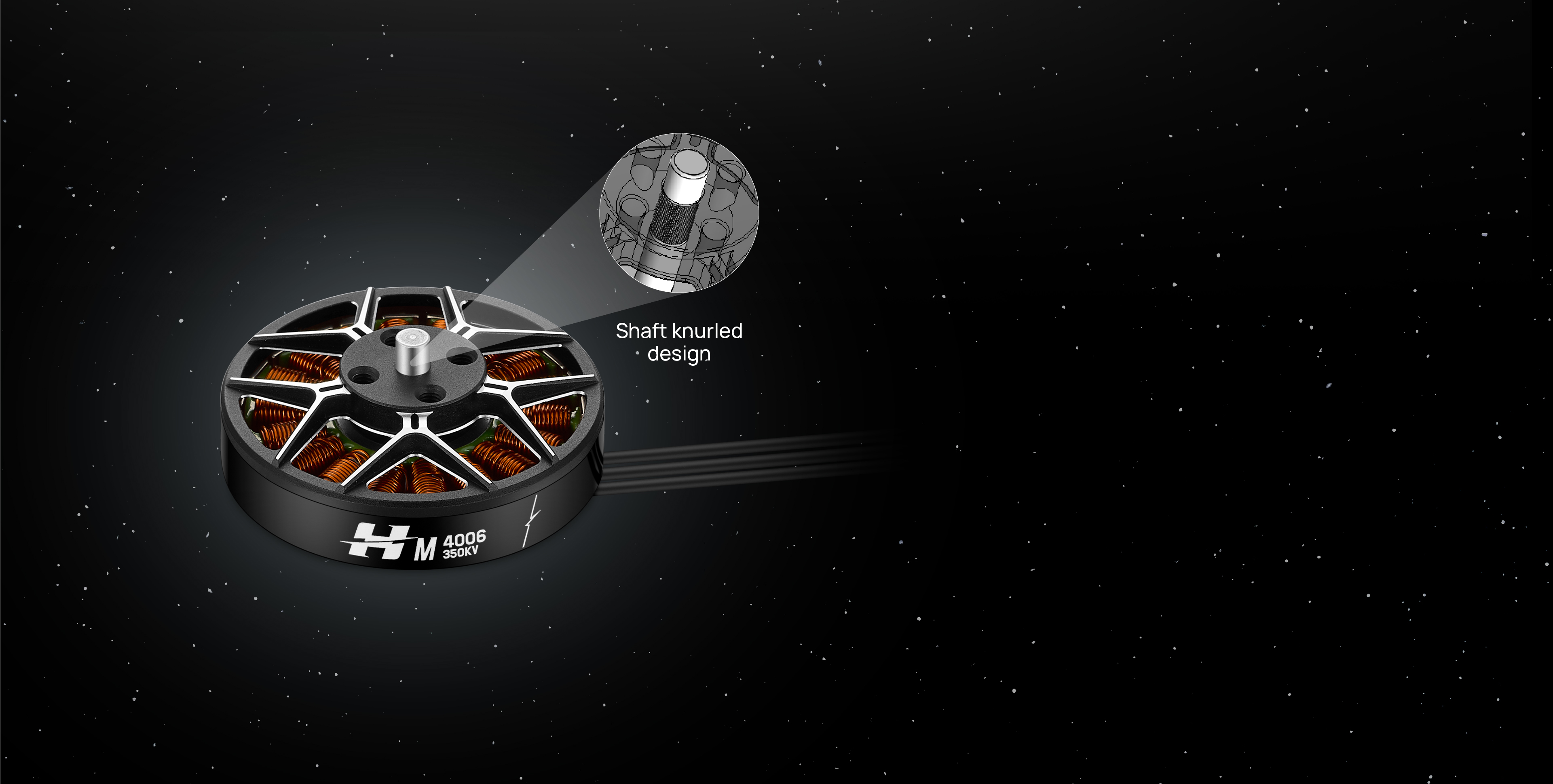

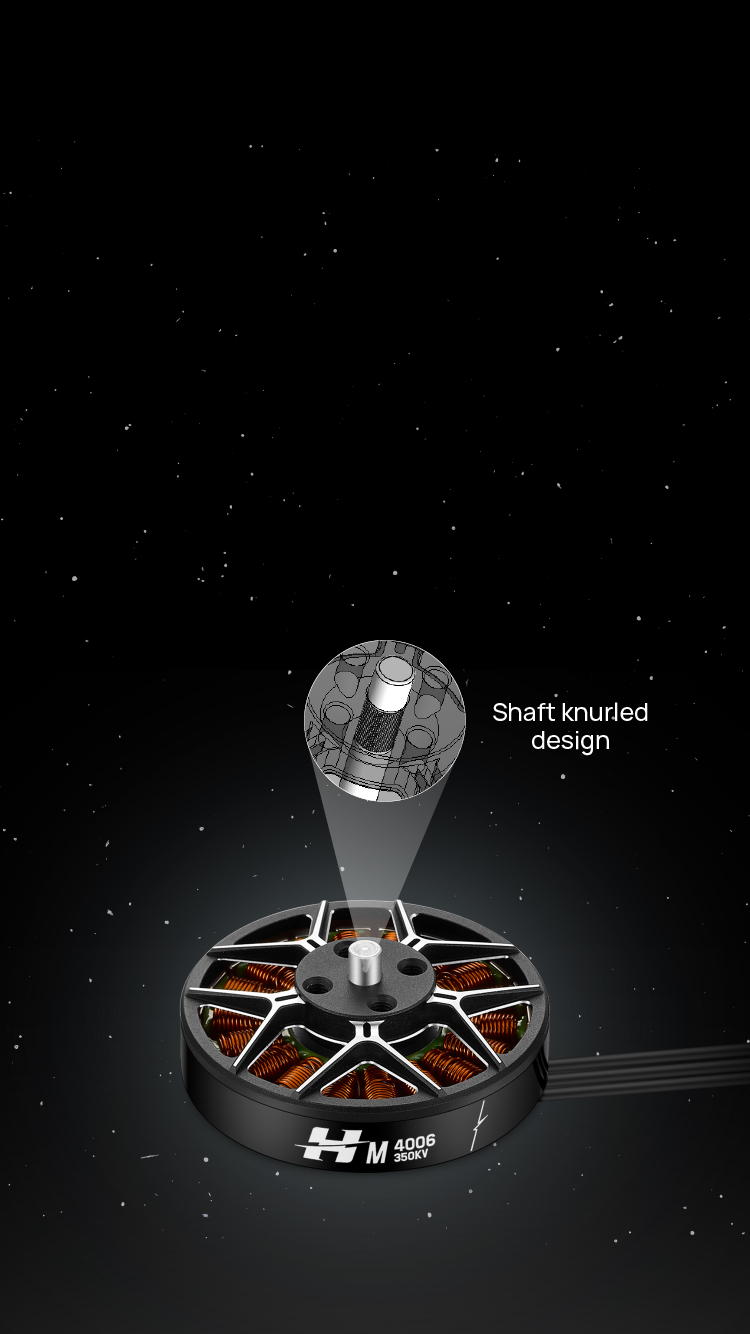

Shaft knurled design to avoid loosening.

The new magnetic circuit design optimizes the anti-emotive
force harmonics, so that its anti-emotive
force is higher sine and to better matched with the ESC.
Attention to details, stable and reliable!
Extreme weight reduction, integrated design of stator seat and back cover, reducing the amount of non-essential parts.

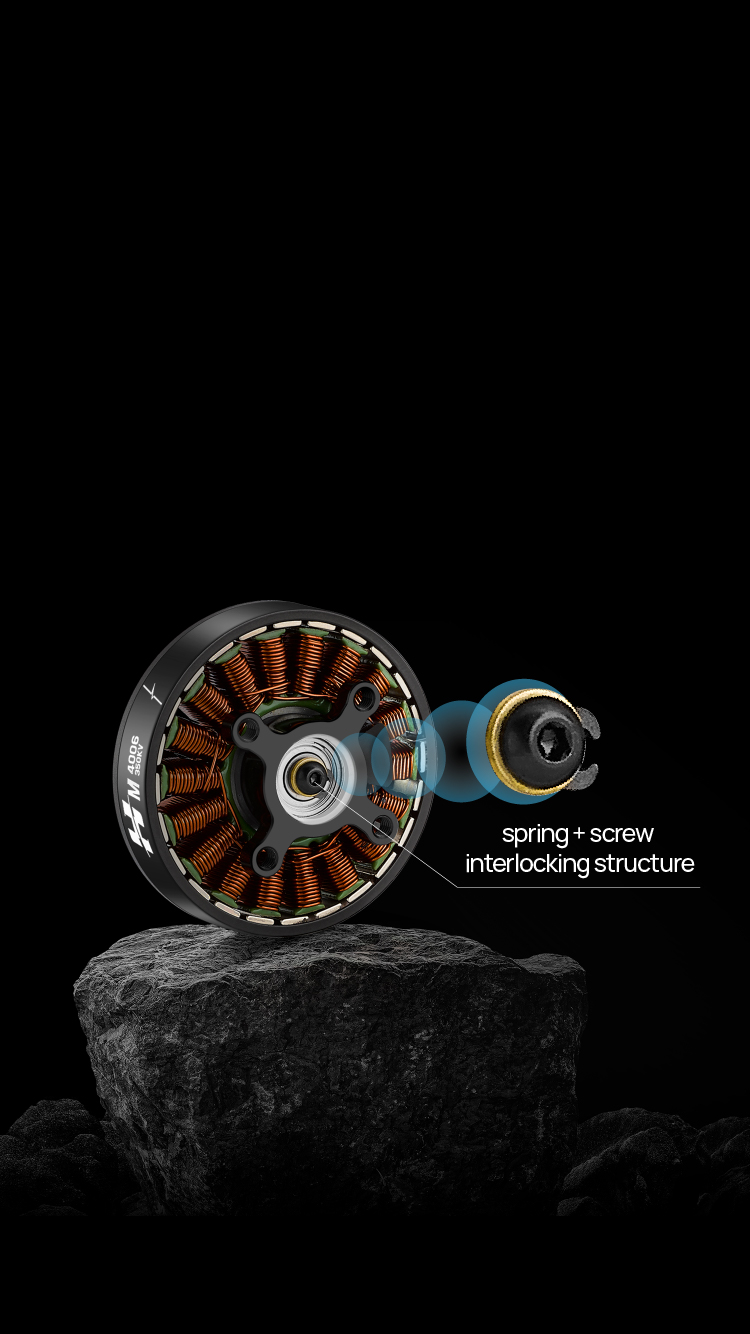

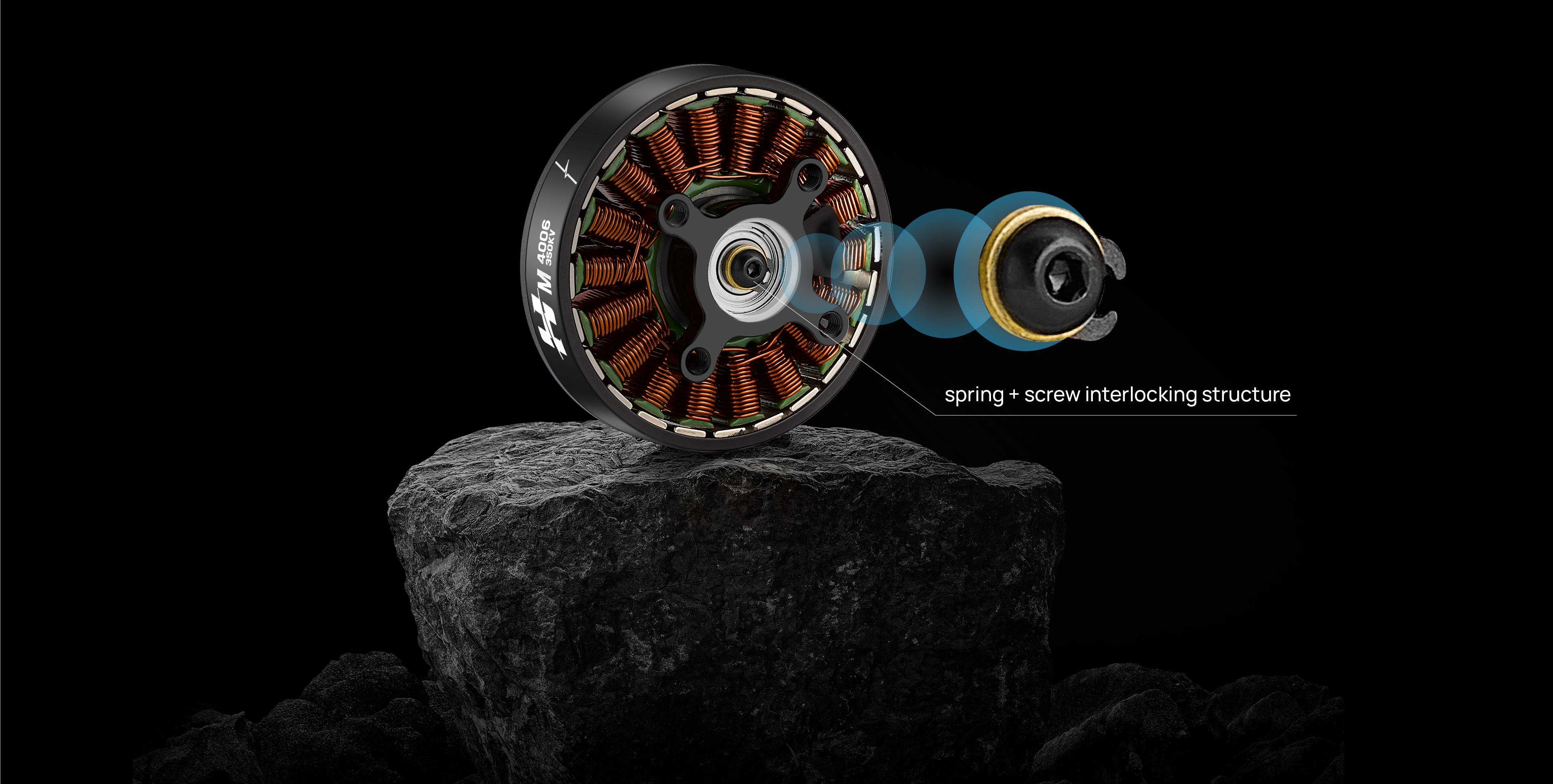

The tail of the spindle uses a spring + screw interlocking structure to enhance the reliability of the motor
and cooperate with high-quality anti-rust screws to ensure that the rotor is foolproof.
Adopts High Quality Materials

High-quality bearings

low friction torque,
extending the lifespan of the motor

Main shaft

High toughness carbide

High-performance iron core

0.2mm low-loss silicon steel
sheet punched

The outer rotor casing

made of 20# seamless steel tube
with nickel electrophoresis design,
which has excellent magnetic
permeability and is anti-corrosive.
Recommended
Combinations
  • Motor
    M4006 UL

    Battery
    6S LiPo
  • Propeller
    MP16x5.4"

    Thrust/rotor
    0.6~1.0kg
  • ESC
    XRotor Pro H40A 6S
    XRotor Pro H60A 6S
    Takeoff weight of quadrotor
    2.4~4.0kg
Thank you for your interest in HOBBYWING propulsion systems! For customized solutions,
please provide your contact information and technical requirements,
and we will get in touch with you within 24 hours.
captcha
By submitting this form, you agree to HOBBYWING's Privacy Policy
Thanks for reaching out!We have received your message and will get back to you shortly.
Best Regards,
HOBBYWING Team
M4006 UL CAD
Model
M4006 350KV UL
Specification
Motor Size Φ44.4*H19.3mm
Stator Size Φ39mm
Stator process High standard silicon steel sheet, rust proof,
180℃ high temperature resistance paint-coat
Enamelled wire 220℃
Magnet 180℃
Isolation test 500V AC high voltage resistance test
Protection level IPX5
Slot& Pole 18N 24P
Dynamic balance ≤5mg
Bearing Water proof bearing
Motor axle diameter Φ4mm
Props mounting dimensions 4×M3@D12
Motor mounting dimensions 4×M3@D25
KV 350
Battery(LiPo) LiPo-6S
No-load current 0.64A
Maximum current (Non-hermetic Ambient Temperature ≤ 25℃） 17.3A
Max power 358W
Max thrust 2.2kg
Resistance 209.7mΩ
Wire Size enamelled wire outlet
Wire length 60mm
Weight（With wire） 66.1g
Recommended Combinations
Motor M4006 UL
Propeller MP16x5.4"
ESC XRotor Pro-H40A-6S/XRotor Pro-H60A-6S
Battery 6S LiPo
Thrust/rotor 0.6~1.0kg
Takeoff weight of quadrotor 2.4~4.0kg
M4006 UL 350KV+MP 16x5.4" Load performance parameters
M4006 UL 350KV+MP 16x5.4" Motor Propeller Thrust Test Data

Voltage(V)

Propeller

Throttle(%)

Thrust(g)

Current(A)

Power(W)

Speed(RPM)

Efficiency(g/W)

Torque(N·m)

Temperature(℃)

23V (6S LiPo)

MP 16x5.4"

33%

347

1.0

23.2

2320

15.0

0.07

71.2°C

35%

374

1.1

25.9

2400

14.4

0.07

37%

410

1.3

29.5

2503

13.9

0.08

39%

482

1.5

33.8

2423

14.3

0.10

42%

557

1.8

41.1

2594

13.6

0.11

45%

639

2.1

49.4

2767

12.9

0.13

48%

724

2.6

59.9

3209

11.7

0.14

51%

793

3.1

70.7

3399

11.2

0.15

54%

885

3.6

82.5

3583

10.7

0.17

57%

976

4.1

95.1

3758

10.3

0.19

60%

1066

4.7

108.5

3926

9.8

0.20

63%

1154

5.3

122.6

4087

9.4

0.22

66%

1242

6.0

137.4

4241

9.0

0.24

69%

1329

6.6

152.9

4389

8.7

0.26

72%

1417

7.3

169.1

4532

8.4

0.27

75%

1506

8.1

186.2

4670

8.1

0.29

78%

1595

8.9

204.2

4803

7.8

0.31

81%

1687

9.7

223.2

4931

7.6

0.32

84%

1781

10.6

243.3

5053

7.3

0.34

87%

1876

11.5

264.3

5170

71

0.36

90%

1971

12.4

286.3

5283

6.9

0.37

100%

2251

15.6

357.8

5618

6.3

0.43
The above data is measured by HobbyWing laboratory at room temperature 25℃, sea level, change the throttle input adjustment, the motor temperature is 65% and the throttle runs for 10 minutes, for reference only.
