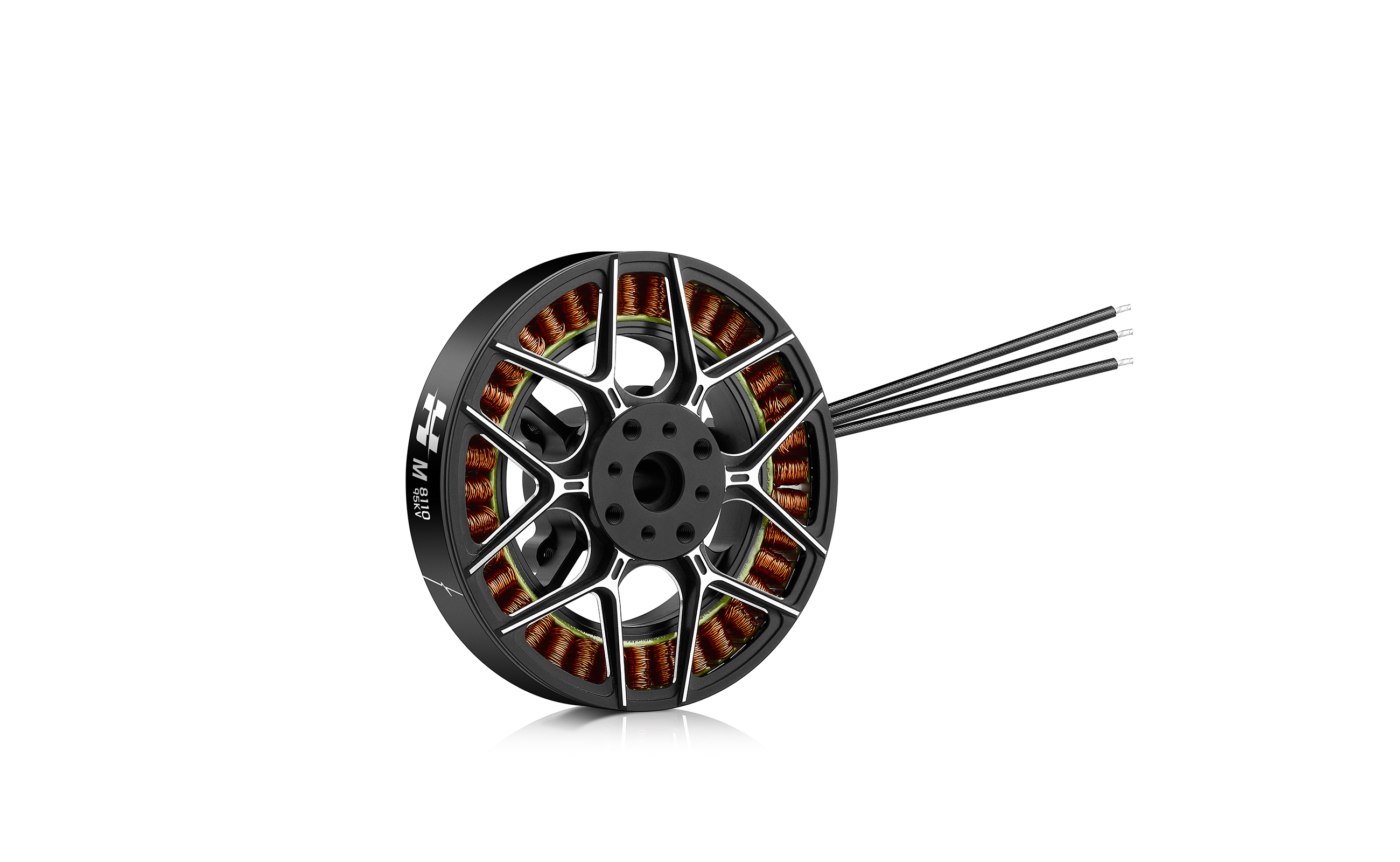

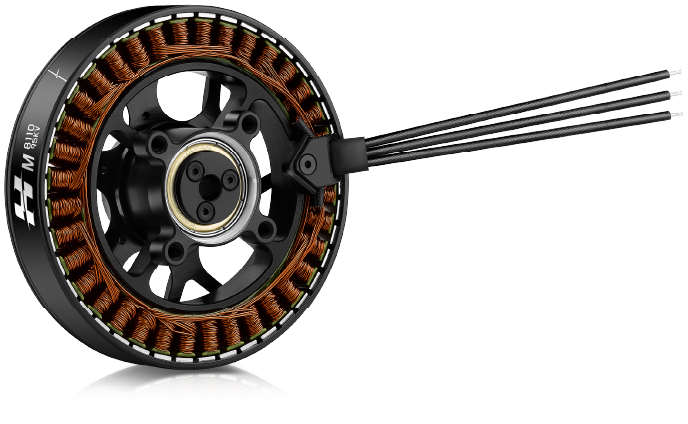

M8110 Light

Industrial Multirotor Drone Motor

Load Performance Parameters:

High Efficiency, Long Endurance

The recommended thrust is

3.5kg+
The efficiency is

12g/w+

The recommended
thrust is

3.5kg

Maximum takeoff weight

12kg

The efficiency is

11g/w

(12S 40Ah)
The takeoff weight

10kg
Flight Time

120minutes

Excellent Design,
New Technology

Industry-level motor technology

has higher speciﬁcations and requires high grade
raw materials, better tolerances, to provide
reliability and performance.

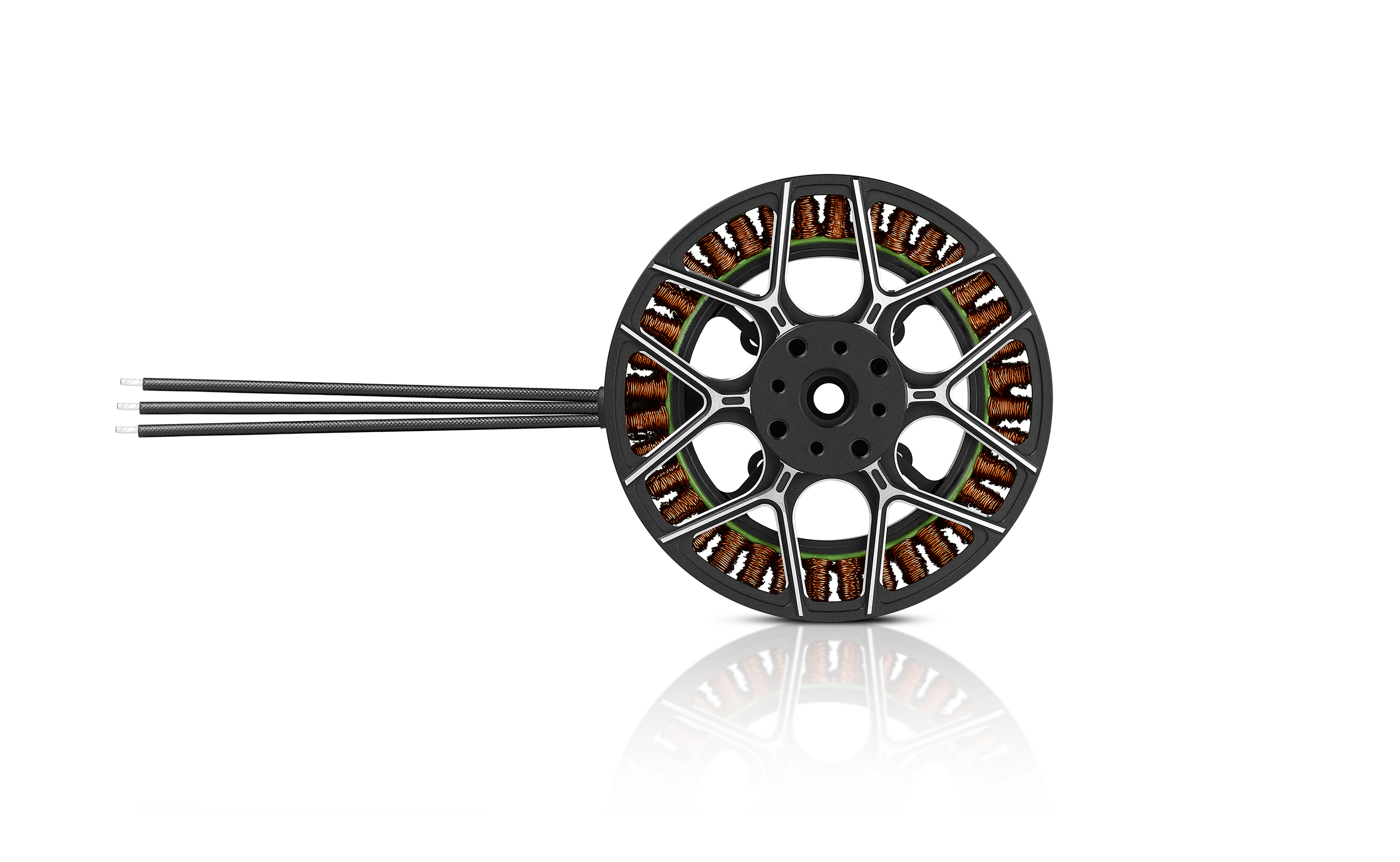

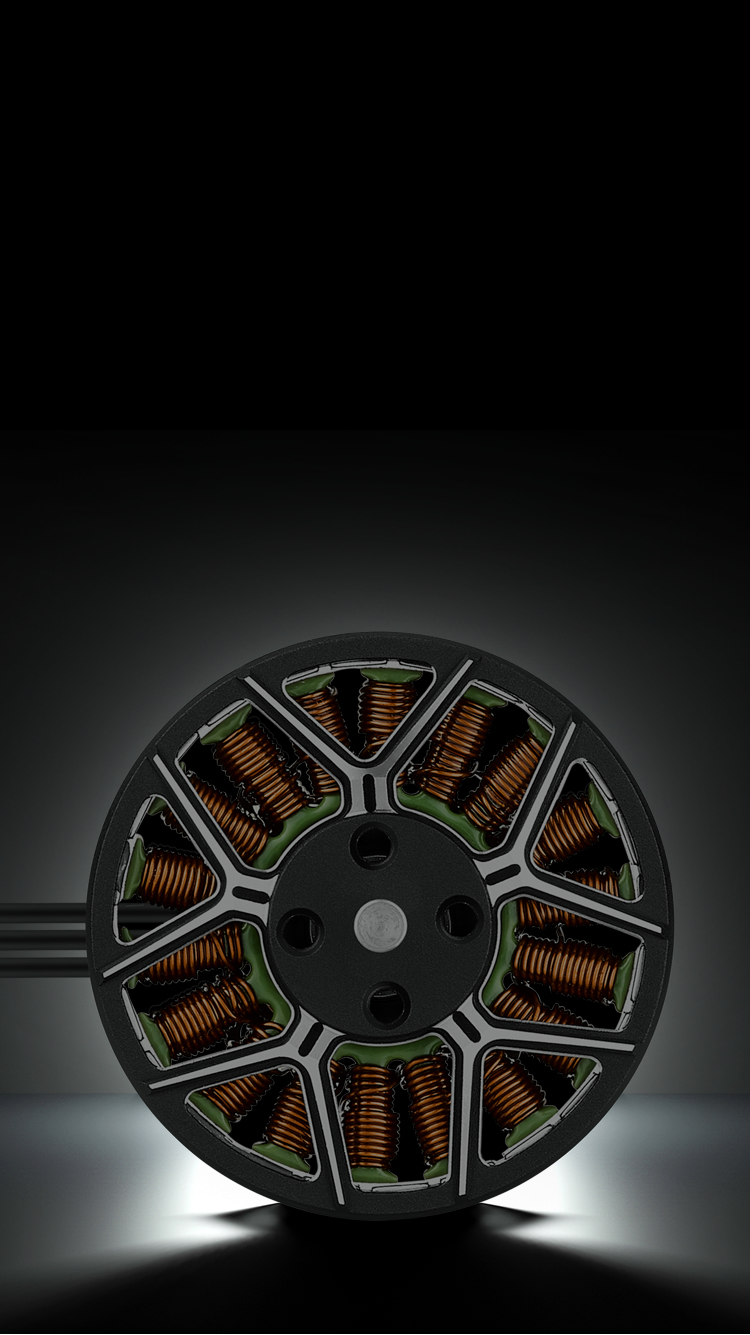

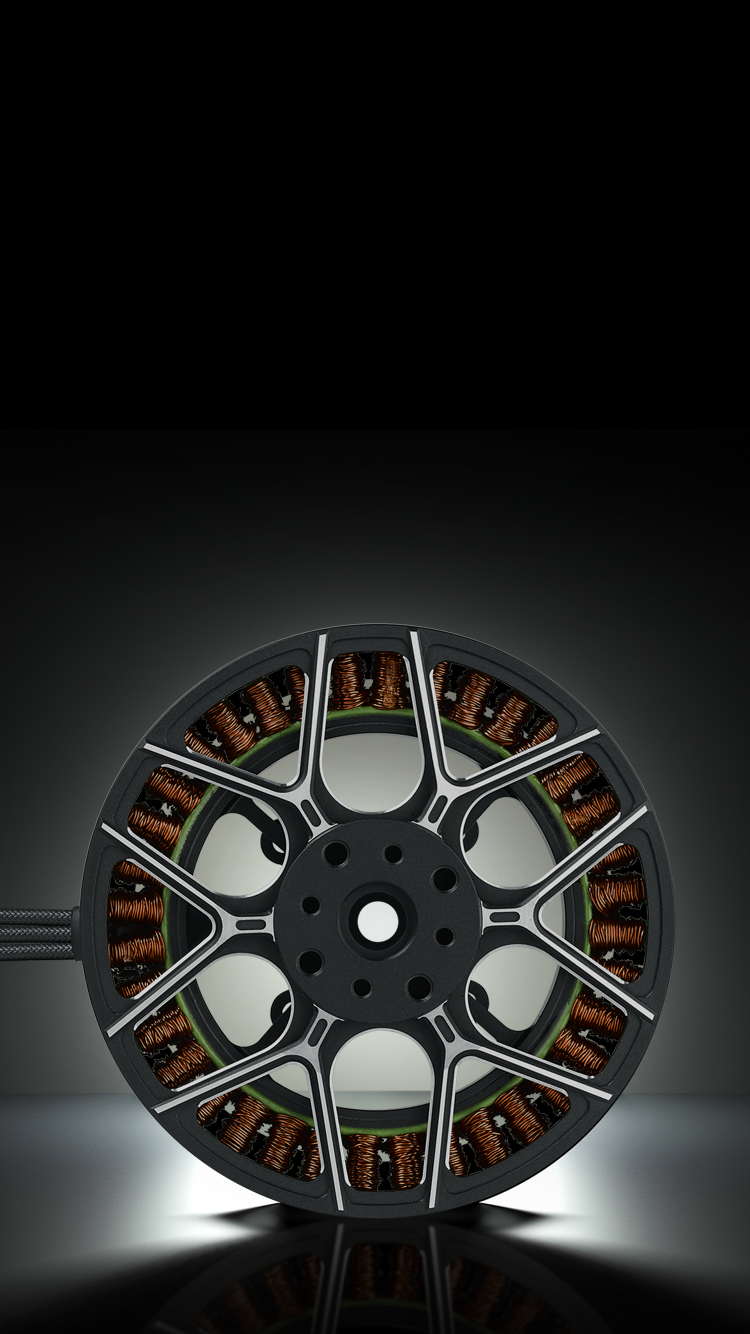

Brand new exterior design,

the hollow shape is more recognizable,
and the coexistence of grandeur
and sophistication.
The new magnetic circuit
design optimizes the
anti-emotive force harmonics,

that produce a higher sine wave and is better
matched with the ESC.

Industry-level motor technology

has higher requirements and stricter control on
incoming materials, process and assembly.
Brand new exterior design,

the hollow shape is more recognizable,
and the coexistence of grandeur
and sophistication.
The new magnetic circuit
design optimizes the
anti-emotive force harmonics,

so that its anti-emotive force is higher sine
and to better matched with the ESC.

Attention to Details,
Extremely Lightweight

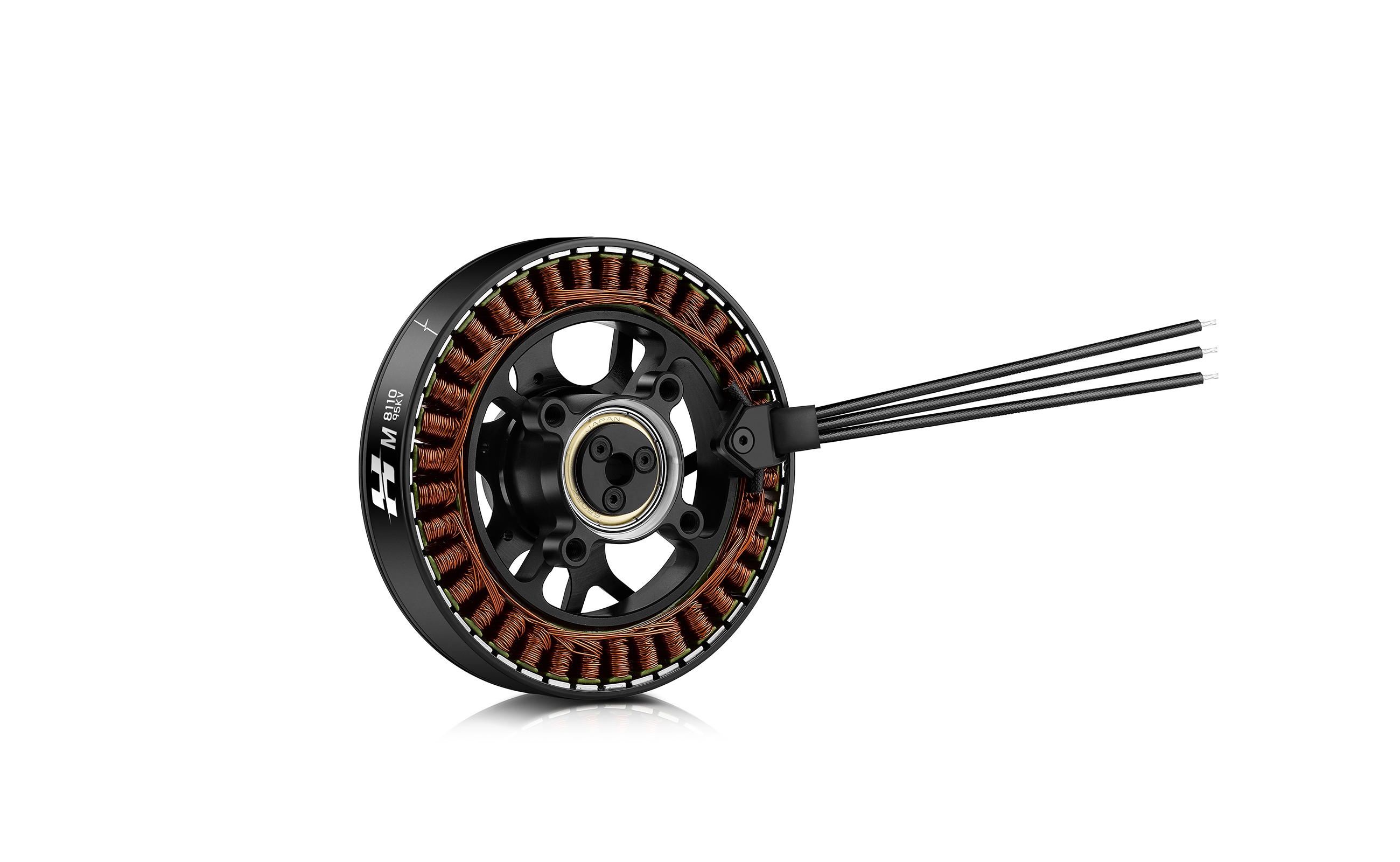

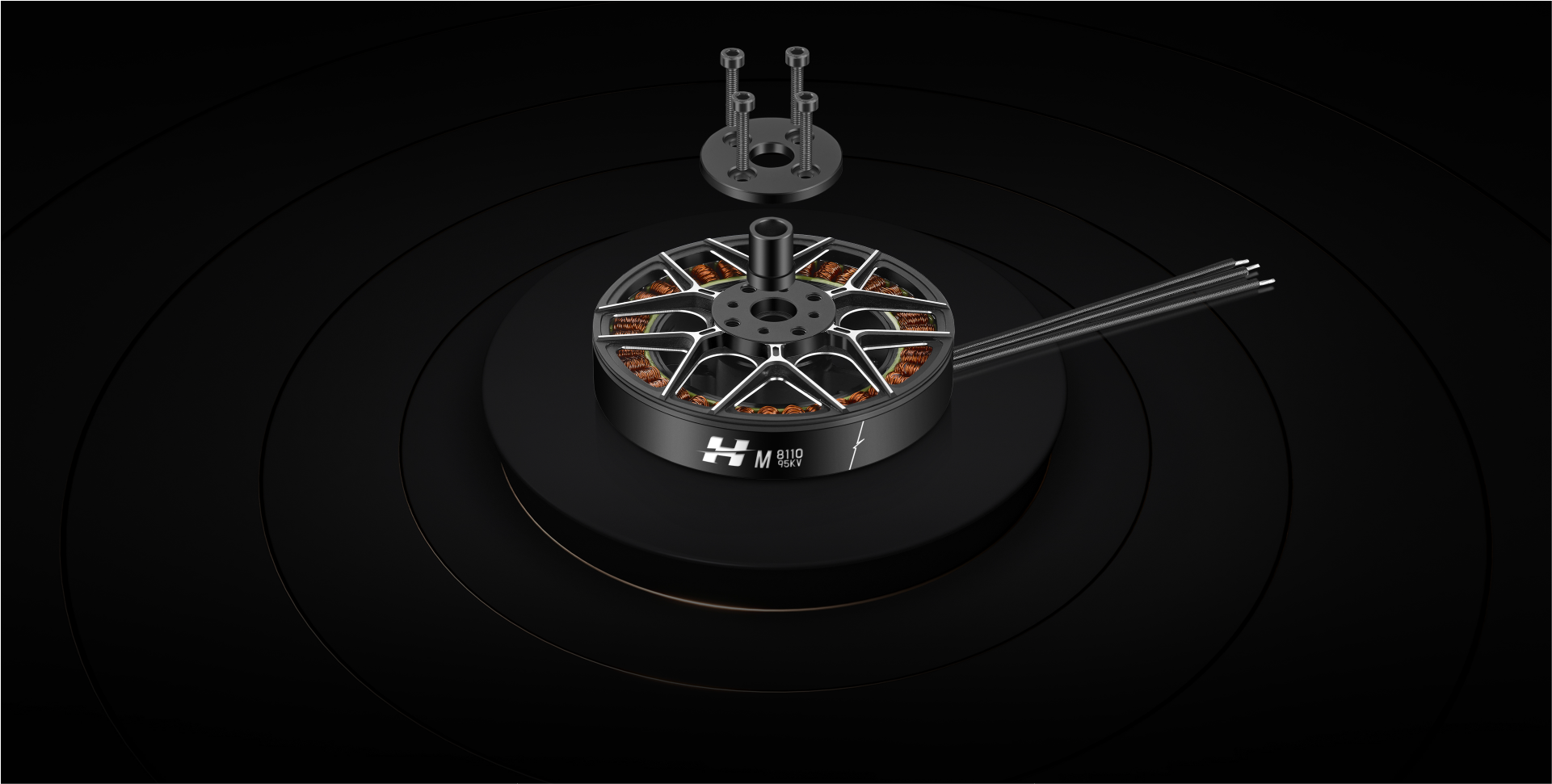

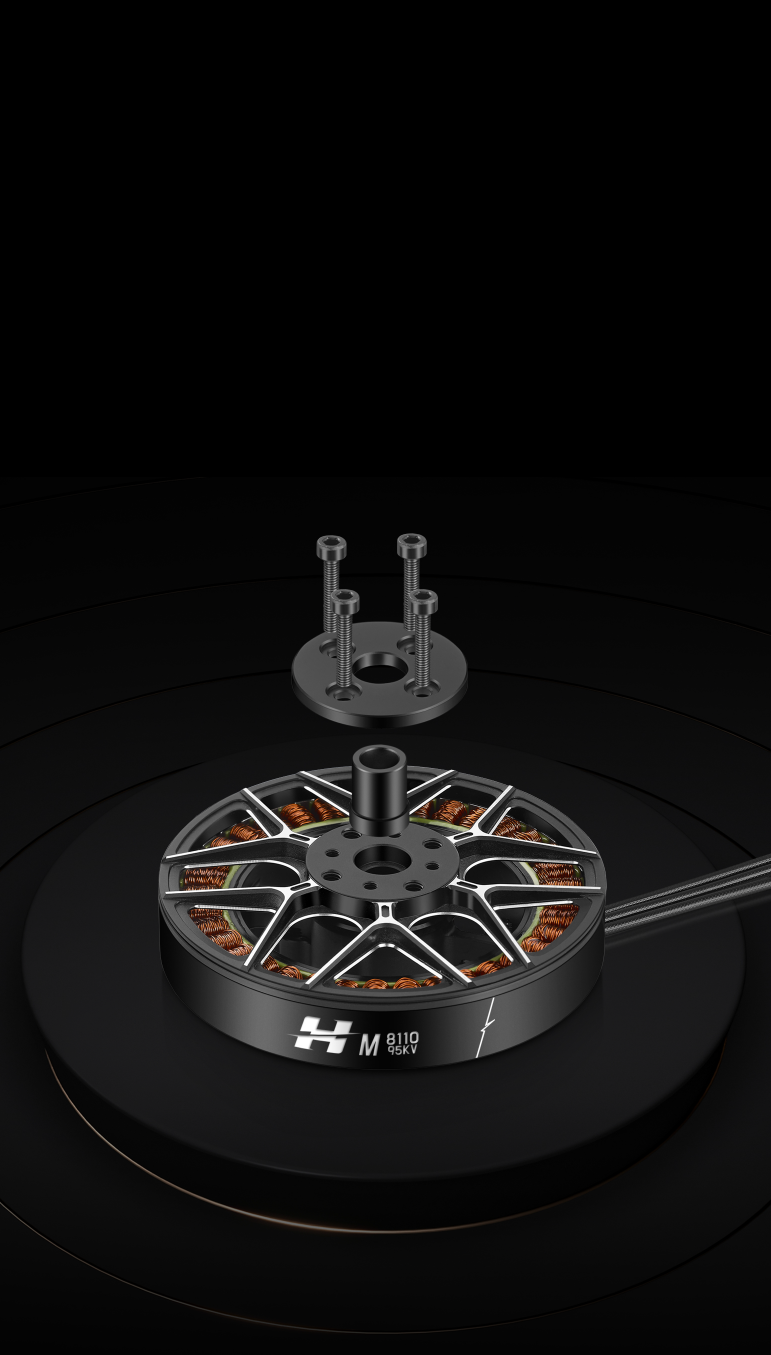

The integrated design of the bracket and the rotating shaft
can not only ensure the co-axiality of the stator and rotor,
but also reduce the number of parts and simplify the process.

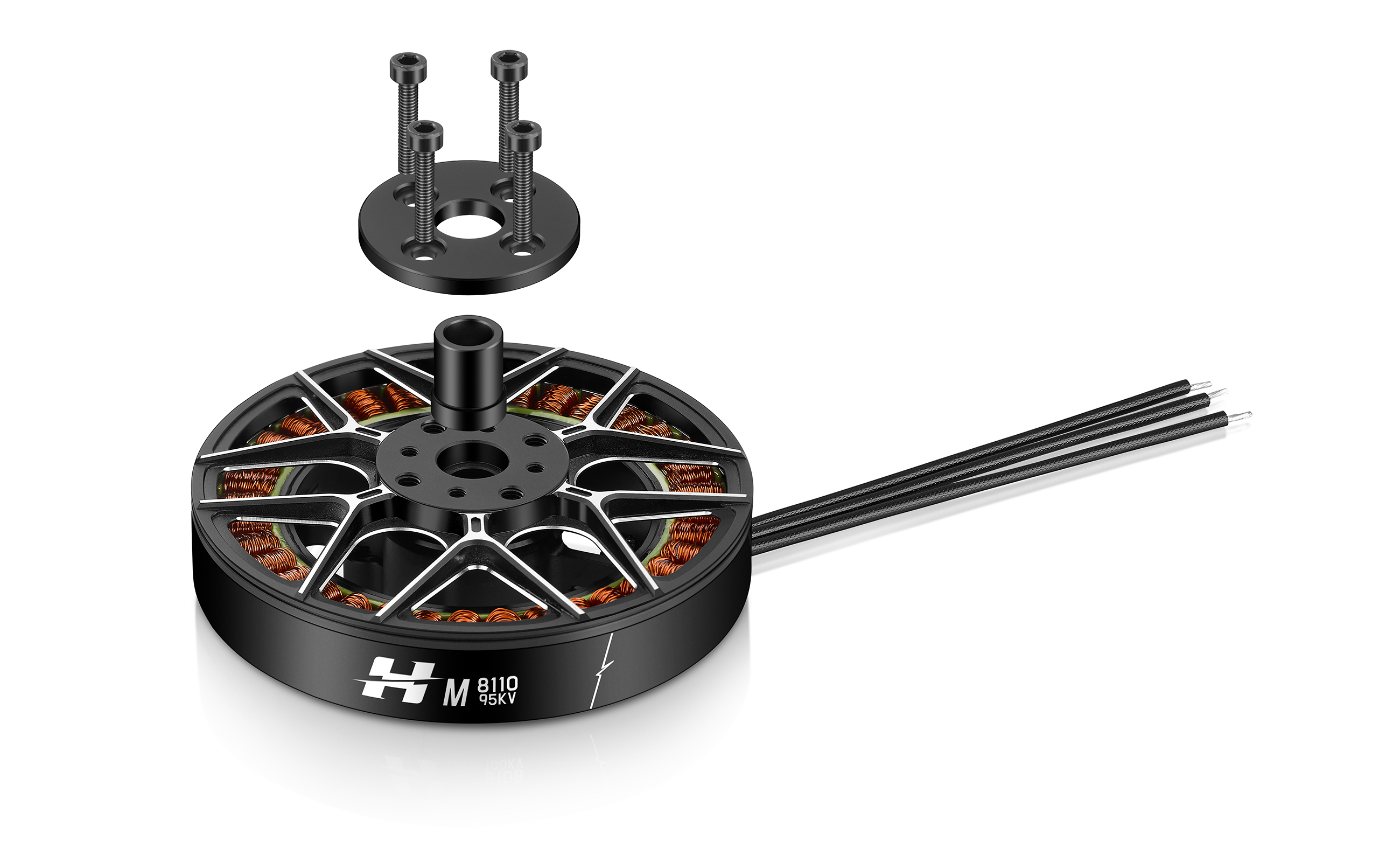

The tail of the main shaft uses three M2.5*8 and
washer locking designs to enhance motor reliability.

The integrated design of the bracket and the rotating shaft
can not only ensure the co-axiality of the stator and rotor,
but also reduce the number of parts and simplify the process.
The tail of the spindle shaft uses three M2.5*8 and
washer locking designs to enhance motor reliability.

Adopts High
Quality Materials,
Safe and Reliable

Made of solid materials to improve durability and provide
reliable guarantee for motor performance.

High-quality bearings

and low friction torque effectively
extend the lifespan of the motor.
High-strength aviation aluminum

7075
Precision CNC
machined rotor bracket

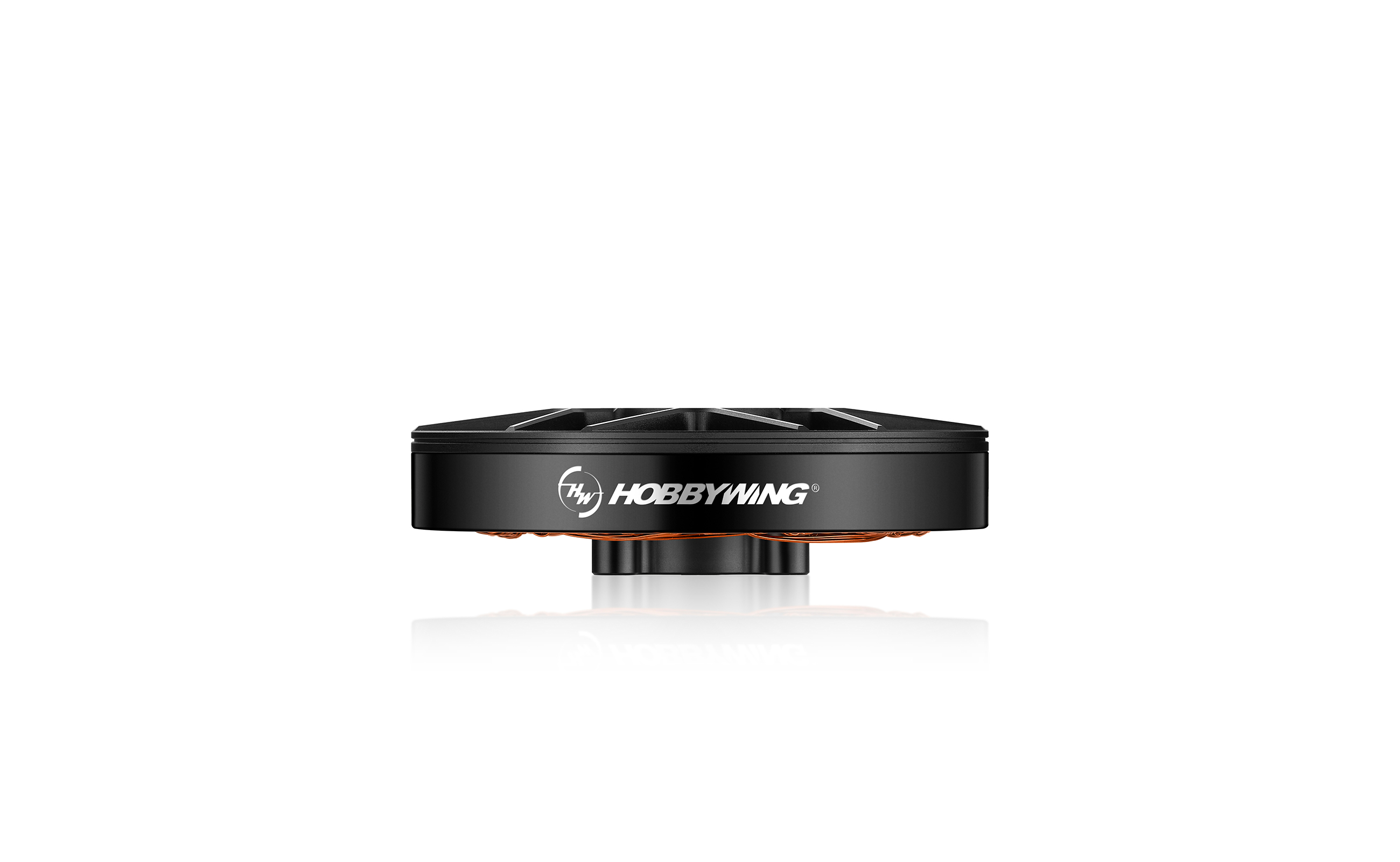

The outer rotor casing is made of

20# seamless steel rotor with nickel
electrophoresis design, which has excellent
magnetic permeability
and corrosion resistance.
16AWG

highly ﬂexible silicone wire,
low resistivity and good toughness
High-performance iron core punched from

0.2mmlow-loss silicon steel sheet

Recommended
Combinations

Motor
M8110 Light
Battery
12S LiPo
Propeller
MSC 29x9.5 / MSC 30x9.8 / MSC 32x10.5
Thrust/rotor
3.0~4.0kg
ESC
XRotor Pro H60A 14S
Takeoff weight of quadrotor
12.0~16.0kg

: Thank you for your interest in HOBBYWING propulsion systems! For customized solutions,
please provide your contact information and technical requirements,
and we will get in touch with you within 24 hours.

By submitting this form, you agree to HOBBYWING's Privacy Policy

Thanks for reaching out!We have received your message and will get back to you shortly.: Best Regards,
HOBBYWING Team

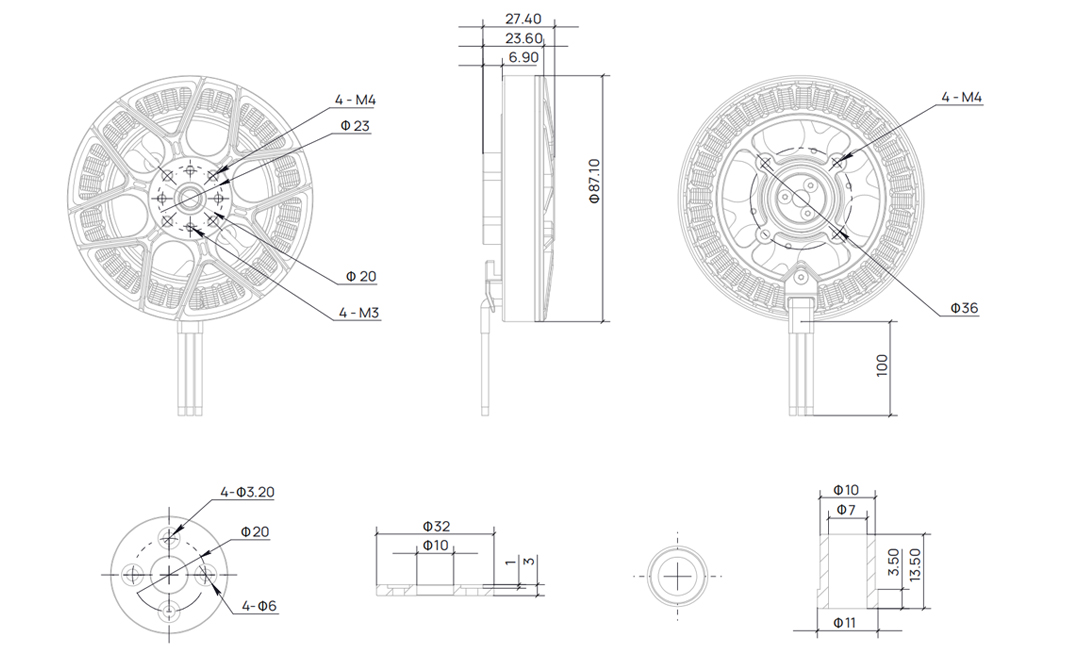

M8110 Light CAD

Model

M8110 Light 95KV

M8110 Light 110KV

Specification

Motor Size	Φ87.1*H27.4mm	Φ87.1*H27.4mm
Stator process	High standard silicon steel sheet, rust proof, 180℃ high temperature resistance paint-coat	High standard silicon steel sheet, rust proof, 180℃ high temperature resistance paint-coat
Enamelled wire	200℃	200℃
Magnet	180℃	180℃
Isolation test	500V AC high voltage resistance test	500V AC high voltage resistance test
Protection level	IPX5	IPX5
Slot& Pole	36N 42P	36N 42P
Dynamic balance	≤10mg	≤10mg
Bearing	Water proof bearing	Water proof bearing
Motor axle diameter	/	/
Props mounting dimensions	4×M3@D20mm+4×M4@D23mm	4×M3@D20mm+4×M4@D23mm
Motor mounting dimensions	4×M4@D36mm	4×M4@D36mm
KV	95	110
Battery(LiPo)	12SLiPo	12SLiPo
No-load current	1.1A	1.27A
Maximum current (Non-hermetic Ambient Temperature ≤ 25℃）	43.3A	39.2A
Max thrust	11.4kg	11.1kg
Resistance	132.9mΩ	112.3mΩ
Wire Size	16AWG	16AWG
Wire length	100mm	100mm
Weight（With wire）	300.5g	301.5g
Rated output power (Max continuous)	331.5W	331.5W

Recommended Combinations

Motor	M8110 Light 95KV	M8110 Light 110KV
Propeller	MSC 28x9.2 / MSC 29x9.5 / MSC 30x9.8 / MSC 32x10.5	MSC 28x9.2 / MSC 29x9.5 / MSC 30x9.8 / MSC 32x10.5
ESC	XRotor Pro-H60A-14S	XRotor Pro-H60A-14S
Battery	12S LiPo	12S LiPo
Thrust/rotor	3.0~4.0kg	3.0~4.0kg
Takeoff weight of quadrotor	12.0~16.0kg	12.0~16.0kg

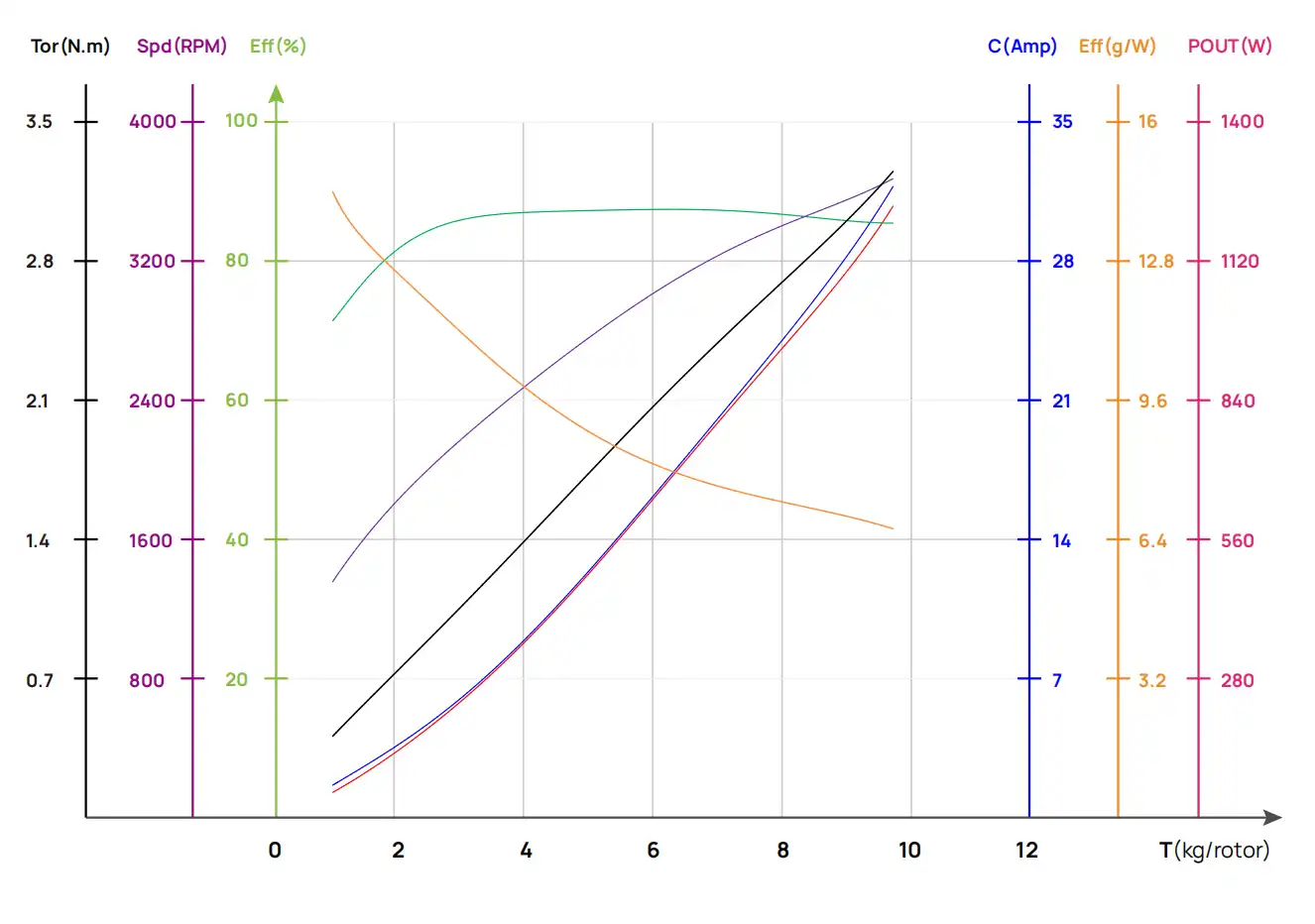

M8110 Light 95KV+MSC 29x9.5 Load Performance Parameters

M8110 Light 95KV+MSC 29x9.5Thrust Test Data

Voltage(V)	Propeller	Throttle(%)	Thrust(g)	Current(A)	Power Input(W)	Speed(RPM)	Efficiency(g/W)	Torque(N·m)	Power Output(W)	Temperature(℃)
46V (12S LiPo)	MSC 29x9.5	33%	1241	1.9	88.0	1367	14.1	0.43	62.3	65.1
		35%	1351	2.1	98.1	1428	13.8	0.47	70.7
		37%	1491	2.4	110.8	1501	13.5	0.52	81.7
		39%	1653	2.7	125.7	1581	13.2	0.57	95.1
		42%	1929	3.3	151.8	1707	12.7	0.67	119.0
		45%	2232	3.9	181.8	1833	12.3	0.77	147.1
		48%	2551	4.7	215.7	1955	11.8	0.87	178.4
		51%	2877	5.5	253.3	2071	11.4	0.98	212.7
		54%	3207	6.4	294.4	2182	10.9	1.09	249.6
		57%	3539	7.4	338.7	2289	10.4	1.21	288.9
		60%	3870	8.4	386.3	2392	10.0	1.32	330.5
		63%	4203	9.5	437.1	2492	9.6	1.44	374.7
		66%	4541	10.7	491.1	2591	9.2	1.55	421.6
		69%	4886	11.9	548.8	2689	8.9	1.67	471.5
		72%	5242	13.3	610.5	2787	8.6	1.80	524.9
		75%	5615	14.7	676.5	2885	8.3	1.93	582.2
		78%	6007	16.2	747.3	2983	8.0	2.06	643.4
		81%	6422	17.9	823.1	3079	7.8	2.20	708.6
		84%	6862	19.6	903.9	3173	7.6	2.34	777.5
		87%	7330	21.5	990.1	3261	7.4	2.49	849.6
		90%	7823	23.5	1082.3	3345	7.2	2.64	924.8
		100%	9515	31.3	1439.5	3616	6.6	3.20	1211.7

*The above data was measured by HOBBYWING Laboratory at room temperature 25°C, at sea level, with varying throttle input. The motor temperature is measured after running for 10 minutes at 65% throttle, for reference only.

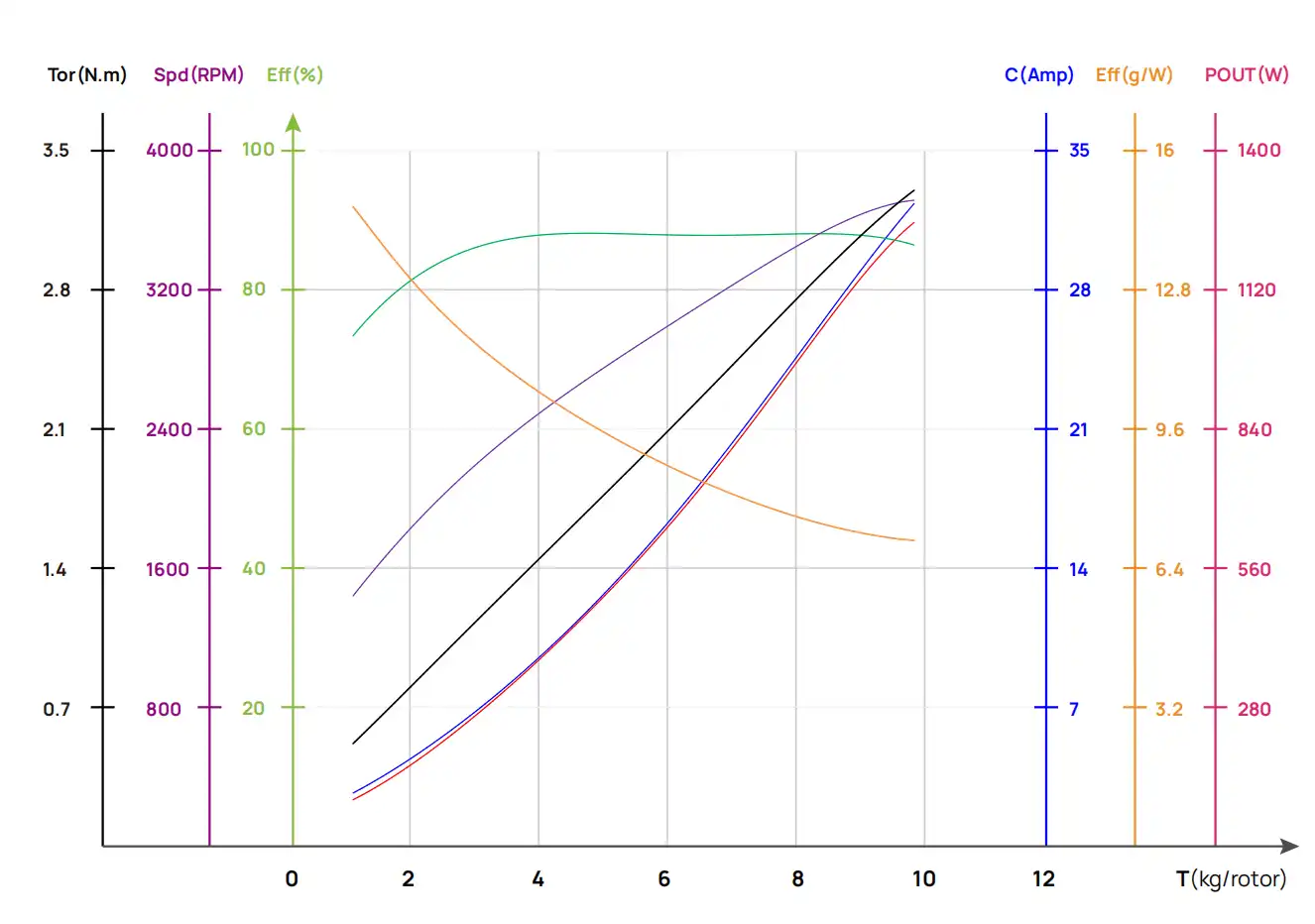

M8110 Light 95KV+MSC 30x9.8 Load Performance Parameters

M8110 Light 95KV+MSC 30x9.8 Thrust Test Data

Voltage(V)	Propeller	Throttle(%)	Thrust(g)	Current(A)	Power Input(W)	Speed(RPM)	Efficiency(g/W)	Torque(N·m)	Power Output(W)	Temperature(℃)
46V (12S LiPo)	MSC 30x9.8	33%	1281	1.9	89.6	1366	14.3	0.45	64.1	73.6
		35%	1421	2.2	101.3	1433	14.0	0.49	74.1
		37%	1575	2.5	114.8	1505	13.7	0.54	85.8
		39%	1743	2.8	130.1	1580	13.4	0.60	99.2
		42%	2015	3.4	156.5	1698	12.9	0.69	122.7
		45%	2311	4.1	186.9	1818	12.4	0.79	150.2
		48%	2626	4.8	221.2	1939	11.9	0.89	181.6
		51%	2956	5.6	259.3	2057	11.4	1.00	216.4
		54%	3298	6.5	301.1	2172	11.0	1.12	254.4
		57%	3650	7.5	346.4	2282	10.5	1.23	295.2
		60%	4008	8.6	395.1	2388	10.1	1.35	338.4
		63%	4371	9.7	447.0	2490	9.8	1.47	383.9
		66%	4736	10.9	502.2	2588	9.4	1.59	431.7
		69%	5105	12.2	560.7	2683	9.1	1.71	481.8
		72%	5477	13.5	622.6	2776	8.8	1.84	534.5
		75%	5853	14.9	688.3	2870	8.5	1.96	590.2
		78%	6237	16.5	758.3	2963	8.2	2.09	649.7
		81%	6631	18.1	833.2	3059	8.0	2.23	713.7
		84%	7040	19.8	913.9	3157	7.7	2.37	783.1
		87%	7472	21.8	1001.6	3259	7.5	2.52	859.1
		90%	7933	23.8	1097.4	3363	7.2	2.68	942.3
		100%	9708	31.6	1454.1	3628	6.7	3.22	1225.3

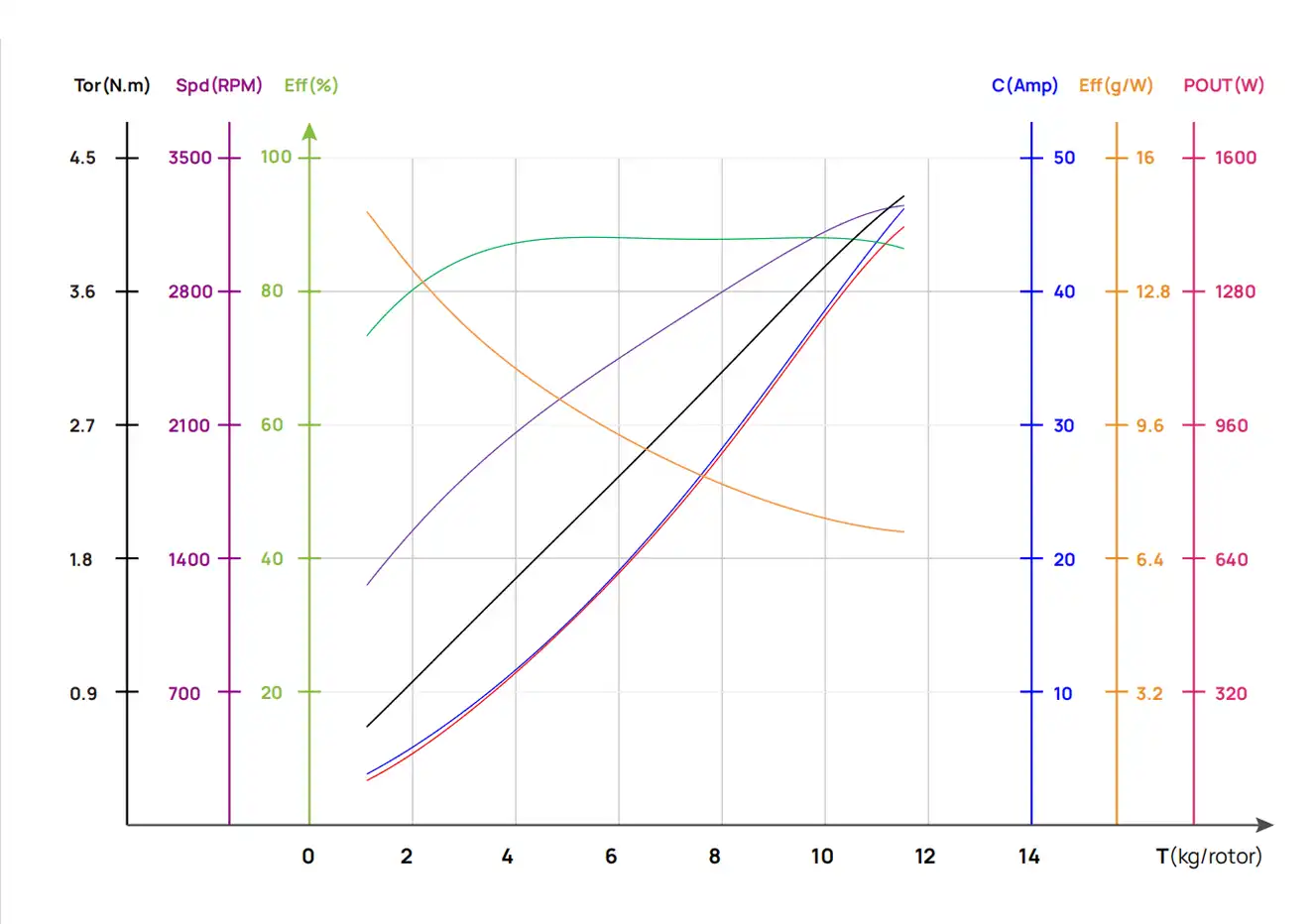

M8110 Light 95KV+MSC 32x10.5 Load Performance Parameters

M8110 Light 95KV+MSC 32x10.5 Thrust Test Data

Voltage(V)	Propeller	Throttle(%)	Thrust(g)	Current(A)	Power Input(W)	Speed(RPM)	Efficiency(g/W)	Torque(N·m)	Power Output(W)	Temperature(℃)
46V (12S LiPo)	MSC 32x10.5	33%	1654	2.5	116.5	1307	14.2	0.64	87.0	87.1
		35%	1812	2.8	130.3	1364	13.9	0.69	99.2
		37%	1996	3.2	147.2	1428	13.6	0.76	114.1
		39%	2202	3.6	167.3	1498	13.2	0.84	131.7
		42%	2545	4.4	203.0	1609	12.5	0.97	162.9
		45%	2918	5.3	245.1	1723	11.9	1.11	199.5
		48%	3313	6.4	293.1	1836	11.3	1.25	240.8
		51%	3722	7.5	346.3	1946	10.7	1.40	286.2
		54%	4141	8.8	404.2	2050	10.2	1.56	334.8
		57%	4562	10.1	466.2	2150	9.8	1.72	386.1
		60%	4985	11.6	531.9	2243	9.4	1.87	439.6
		63%	5406	13.1	601.2	2332	9.0	2.03	495.0
		66%	5825	14.6	674.0	2417	8.6	2.18	552.4
		69%	6243	16.3	750.4	2498	8.3	2.34	611.7
		72%	6661	18.0	830.9	2579	8.0	2.49	673.5
		75%	7082	19.9	916.2	2658	7.7	2.65	738.2
		78%	7510	21.9	1007.2	2738	7.5	2.81	806.7
		81%	7950	24.0	1105.4	2820	7.2	2.98	879.8
		84%	8408	26.3	1212.5	2904	6.9	3.15	958.7
		87%	8890	28.9	1330.5	2991	6.7	3.34	1044.4
		90%	9405	31.7	1461.9	3079	6.4	3.53	1137.6
		100%	11354	43.3	1992.2	3301	5.7	4.22	1458.6

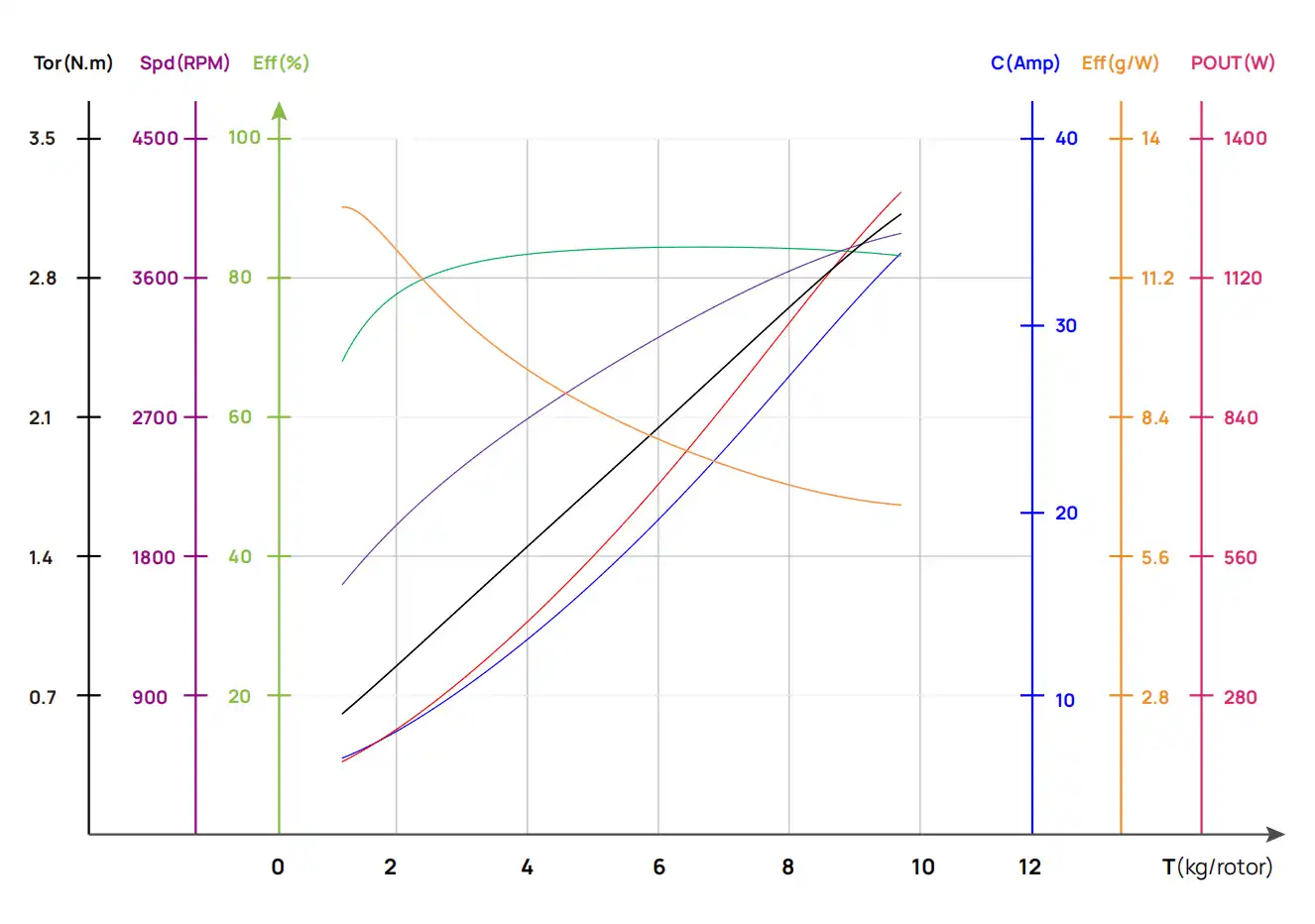

M8110 Light 110KV+MSC 28x9.2 Load Performance Parameters

M8110 Light 110KV+MSC 28x9.2 Thrust Test Data

Voltage(V)	Propeller	Throttle(%)	Thrust(g)	Current(A)	Power Input(W)	Speed(RPM)	Efficiency(g/W)	Torque(N·m)	Power Output(W)	Temperature(℃)
46V (12S LiPo)	MSC 28x9.2	33%	1284	2.2	99.4	1484	12.9	0.44	68.0	68.5
		35%	1404	2.4	109.1	1550	12.9	0.47	77.1
		37%	1553	2.6	121.8	1629	12.7	0.52	88.9
		39%	1725	3.0	137.6	1717	12.5	0.58	103.4
		42%	2015	3.6	166.5	1855	12.1	0.67	129.7
		45%	2332	4.4	201.2	1996	11.6	0.77	160.9
		48%	2665	5.2	240.6	2134	11.1	0.88	196.2
		51%	3007	6.2	283.8	2266	10.6	0.99	234.8
		54%	3353	7.2	330.1	2391	10.2	1.10	275.9
		57%	3699	8.2	379.0	2509	9.8	1.22	319.2
		60%	4045	9.3	430.1	2622	9.4	1.33	364.3
		63%	4392	10.5	483.5	2729	9.1	1.44	411.3
		66%	4740	11.7	539.5	2834	8.8	1.55	460.5
		69%	5094	13.0	598.7	2936	8.5	1.67	512.2
		72%	5457	14.4	661.8	3038	8.2	1.78	567.3
		75%	5833	15.8	729.9	3140	8.0	1.91	626.5
		78%	6228	17.5	804.2	3244	7.7	2.03	690.8
		81%	6645	19.2	885.7	3350	7.5	2.17	761.1
		84%	7090	21.2	975.7	3457	7.3	2.32	838.4
		87%	7565	23.3	1075.0	3566	7.0	2.47	923.2
		90%	8074	25.7	1183.8	3674	6.8	2.64	1015.2
		100%	9915	34.0	1565.5	3964	6.3	3.19	1323.9

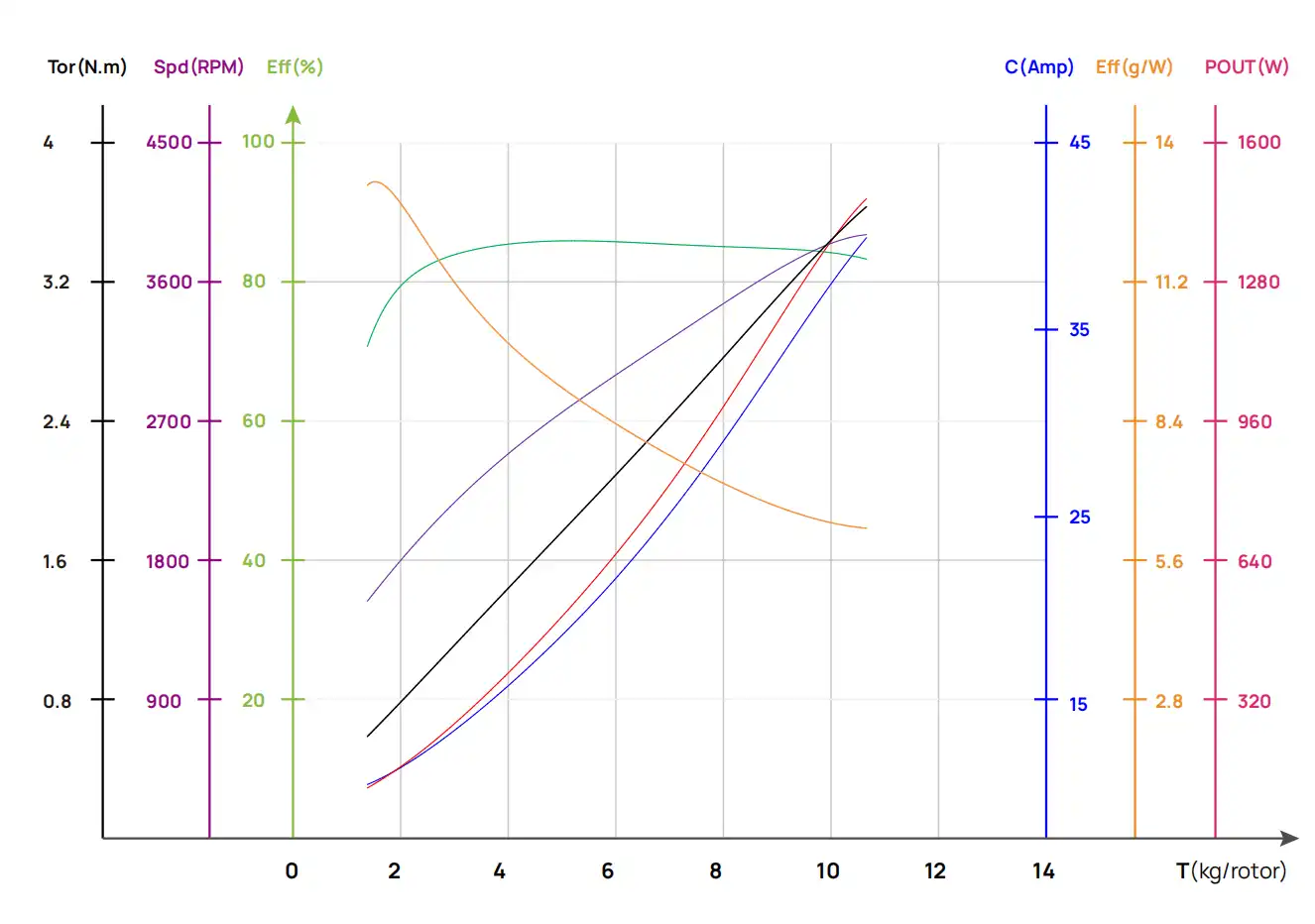

M8110 Light 110KV+MSC 29x9.5 Load Performance Parameters

M8110 Light 110KV+MSC 29x9.5 Thrust Test Data

Voltage(V)	Propeller	Throttle(%)	Thrust(g)	Current(A)	Power Input(W)	Speed(RPM)	Efficiency(g/W)	Torque(N·m)	Power Output(W)	Temperature(℃)
46V (12S LiPo)	MSC 29x9.5	33%	1420	2.4	108.5	1461	13.1	0.50	76.3	78.6
		35%	1581	2.6	120.5	1533	13.1	0.55	88.5
		37%	1761	2.9	135.5	1612	13.0	0.61	103.0
		39%	1957	3.3	153.5	1696	12.7	0.68	119.9
		42%	2276	4.0	186.1	1827	12.2	0.78	149.6
		45%	2619	4.9	224.8	1960	11.7	0.90	184.2
		48%	2980	5.8	268.9	2092	11.1	1.02	223.3
		51%	3353	6.9	317.7	2220	10.6	1.15	266.2
		54%	3735	8.0	370.3	2342	10.1	1.27	312.3
		57%	4122	9.3	426.3	2458	9.7	1.40	361.1
		60%	4511	10.5	485.2	2567	9.3	1.53	412.2
		63%	4902	11.9	547.2	2672	9.0	1.66	465.5
		66%	5294	13.3	612.2	2772	8.6	1.79	520.9
		69%	5687	14.8	680.8	2869	8.4	1.93	578.9
		72%	6084	16.4	753.4	2965	8.1	2.06	639.8
		75%	6487	18.0	831.0	3061	7.8	2.20	704.5
		78%	6898	19.9	914.5	3159	7.5	2.34	773.8
		81%	7323	21.8	1005.3	3260	7.3	2.49	849.0
		84%	7767	24.0	1104.7	3364	7.0	2.64	931.3
		87%	8235	26.4	1214.2	3474	6.8	2.81	1021.9
		90%	8735	29.0	1334.9	3586	6.5	2.99	1121.6
		100%	10624	38.5	1772.7	3870	6.0	3.60	1460.7

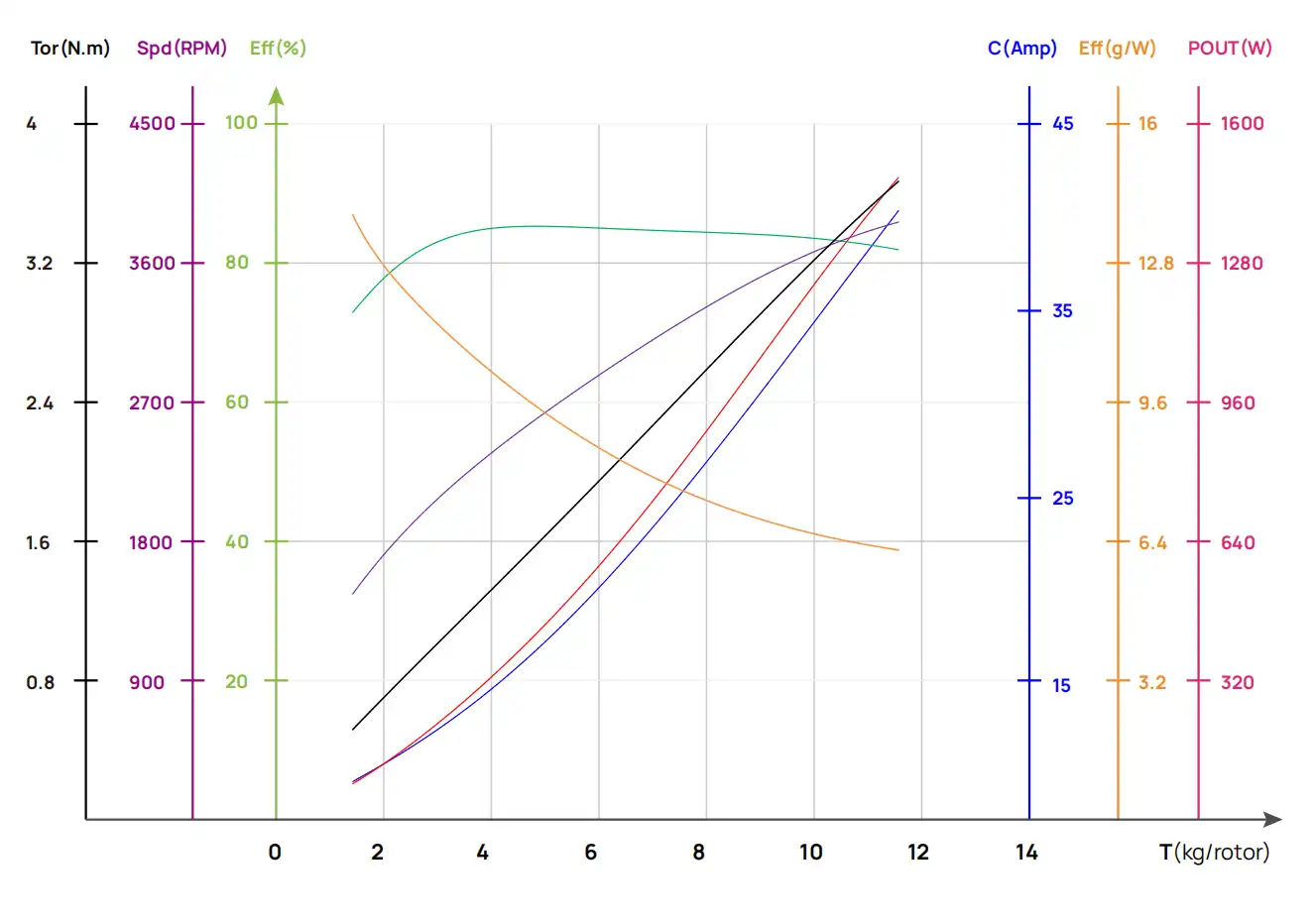

M8110 Light 110KV+MSC 30x9.8 Load Performance Parameters

M8110 Light 110KV+MSC 30x9.8 Thrust Test Data

Voltage(V)	Propeller	Throttle(%)	Thrust(g)	Current(A)	Power Input(W)	Speed(RPM)	Efficiency(g/W)	Torque(N·m)	Power Output(W)	Temperature(℃)
46V (12S LiPo)	MSC 30x9.8	33%	1468	2.3	106.8	1454	13.7	0.51	77.7	75.4
		35%	1614	2.6	120.5	1525	13.4	0.56	89.4
		37%	1787	3.0	137.2	1606	13.0	0.62	103.9
		39%	1984	3.4	156.6	1692	12.7	0.68	121.1
		42%	2313	4.1	190.4	1827	12.2	0.79	151.6
		45%	2672	5.0	229.2	1962	11.7	0.91	186.9
		48%	3051	5.9	273.0	2093	11.2	1.03	226.4
		51%	3441	7.0	321.2	2219	10.7	1.16	269.5
		54%	3837	8.1	373.6	2338	10.3	1.29	315.5
		57%	4236	9.3	429.9	2452	9.9	1.42	364.2
		60%	4634	10.6	489.8	2560	9.5	1.55	415.4
		63%	5031	12.0	553.1	2665	9.1	1.68	468.9
		66%	5427	13.5	620.0	2767	8.8	1.81	524.9
		69%	5825	15.0	690.5	2866	8.4	1.94	583.7
		72%	6228	16.6	765.2	2964	8.1	2.08	645.7
		75%	6639	18.3	844.7	3062	7.9	2.22	711.7
		78%	7065	20.2	929.8	3161	7.6	2.36	782.2
		81%	7509	22.2	1021.7	3260	7.3	2.51	858.2
		84%	7979	24.4	1121.6	3360	7.1	2.67	940.4
		87%	8480	26.7	1230.6	3461	6.9	2.84	1029.7
		90%	9019	29.3	1349.9	3561	6.7	3.02	1126.1
		100%	11051	39.2	1803.9	3843	6.1	3.65	1469.0

Support

Manuals & Documents

Disclaimer

The purpose of this website is only to introduce you to the basic situation of HOBBYWING company and product information. Unless otherwise stated, all information provided on this website should not be regarded as an offer or acceptance, and this website will not assume any binding obligations to you as a result of the provision of information. For all your requests, HOBBYWING reserves the full right to decide whether to commit or not.

This Website and its contents are provided for your convenience on an "as is" basis and your use of this Website is at your sole risk. HOBBYWING does not guarantee that this website will be uninterrupted or error-free, and reserves the right to amend this website or withdraw access to this Website at any time. We make no warranties, express or implied, as to the content, existence, accuracy or reliability of this Website, including, but not limited to, warranties of title, non-infringement or implied warranties of merchantability or fitness for a particular purpose or use.

HOBBYWING shall not be liable for any direct, indirect, incidental, special or consequential damages, loss of profits or business interruption caused by the use or inability to use the services provided by the Website, even if HOBBYWING has been advised of the possibility of similar losses. The exclusions and limitations of the warranty liability of HOBBYWING shall be effective to the extent permitted by applicable law.

HOBBYWING shall not be liable for any damage or loss to your computer system or any other software, hardware, IT system or property caused by viruses or other destructive programs caused by accessing, viewing and using this website or downloading any content from this Website (including but not limited to 2D model files, 3D model files).

HOBBYWING shall not be liable for any direct or indirect damage or loss caused by any third party using illegal means to access the website to obtain the relevant passwords, information and content.

If you or your company is located in the United States or Canada, you need to fill out this disclaimer confirmation letter online and submit it successfully before you can download the relevant materials you are interested in. The link address you fill in online is https://www.hobbywingdirect.com/pages/digital-file-release-form

If you do not agree with this disclaimer, please do not continue to this page. If you continue to access, browse and use this interface, you have read, understood and agreed to be bound by this statement and comply with all applicable laws and regulations.

HOBBYWING reserves the right to correct, modify and update this statement at any time.

Confirm >

M8110 Light Specification

M8110 Light Load Performance Parameters

M8110 Light 3D Model Drawing

M8110 Light CAD

Drone Propulsion Systems

MULTIROTOR

INTEGRATED PROPULSION SYSTEM

Innovation and Performance for a simplified assembly.

MOTOR

Endurance born from efficiency.

ESC

Accurate control, trusted performance.

PROPELLER

Superior efficiency, exceptional stability.

CENTRIFUGAL NOZZLE

Efficient atomizing, precise spraying.

WATER PUMP

Minimal maintenance, long service life.

ACCESSORIES

VTOL

PROPULSION SYSTEM

Innovation and Performance for a simplified assembly.

P Series

MOTOR

Superior performance for unmatched flights.

ESC

Precise control, maximum performance.

PROPELLER

Powerful burst, high intensity.

Carbon Fiber Propeller

FIXED WING

Fixed-Wing UAV Cruise Motor

Convenient, efficient and stable.

ESC

Accurate control, trusted performance.

PROPELLER

Carbon Plastic Propeller

Carbon Plastic Propeller

FPV

MOTOR

High efficiency, extended flight time.

ESC

Compact layout with beefy current handling.

FLIGHT CONTROLLER

Stripped-down and straightforward, built to last.

RC Aircraft Power Systems

Platinum

Professional Competition, Extreme Flight

ESC
MOTOR

FlyFun

High-end Product, Comprehensive Performance

SkyWalker

Entry Level, Budget-friendly Product

ESC
MOTOR

FPV Racing

Racing Flight, The Choice of Flying

Propeller

RTF

Motor

RC Power Systems

RC Cars Power System

XeRun

Professional Competition Level, Extreme Performance and Craftsmanship

EzRun

High-end Product, Balanced Performance

QuicRun

Budget-friendly, Cost-effective

RC Boat Power System

SeaKing V4

High-end Product, Comprehensive Performance

Seaking V2

High-end Product, Comprehensive Performance

SeaKing Pro

Built for Competition, Powerful Performance in Small Volumes

e-Vehicle Power Systems

Electric Motorcycle

Electric Motorcycle Controllers

Safe & Stable, High Efficiency & Easy Operation

Electric Skateboard

Skateboard Controller

Controlled and Silky Smooth Operation

Skateboard Motor

Robust Power System With a Single Step

Electric Scooter

Scooter Controller

Transporting Each Trip in a Safe Manner

e-Vehicle Accessories

Skateboard Accessories

Scooter Accessories

Service and Support

Product Selection

M8110 Light

Overview Specifications Download FAQ Accessories Detail Contact us Shop

Buy

M8110 Light

Industrial Multirotor Drone Motor

LOAD PERFORMANCE PARAMETERS:

High Efficiency,
Long Endurance

The recommended
thrust is

3.5kg+
The efficiency is

11g/w+

The recommended thrust is

3.5kg

Takeoff weight of quadrotor

11kg

The efficiency is

11g/w

(12S 40Ah)
The takeoff weight

10kg
Flight Time

120minutes

Excellent Design,
New Technology

Industry-level motor technology

has higher requirements and stricter control
on incoming materials, process and assembly.
Brand new exterior design,

optimized fan ports effectively
improve the protection level.
he new magnetic circuit design
optimizes the anti-emotive force harmonics,

so that its anti-emotive force is higher sine
and to better matched with the ESC.

Industry-level motor technology

has higher requirements and stricter control
on incoming materials, process and assembly.
Brand new exterior design,

the hollow shape is more recognizable,
and the coexistence of grandeur
and sophistication.
The new magnetic circuit
design optimizes the
anti-emotive force harmonics,

so that its anti-emotive force is higher sine
and to better matched with the ESC.

Attention to Details, Extremely Lightweight

Adopts a fully enclosed structure,
the protection level reaches IP54.
The integrated design of the bracket
and the rotating shaft can not only
ensure the co-axiality of the stator
and rotor, but also reduce the number
of parts and simplify the process.
The rotor bracket is equipped with a
high-efﬁciency centrifugal air-cooling
system, and the stator base has built-in
large-area heat sinks to effectively
improve heat dissipation capacity.

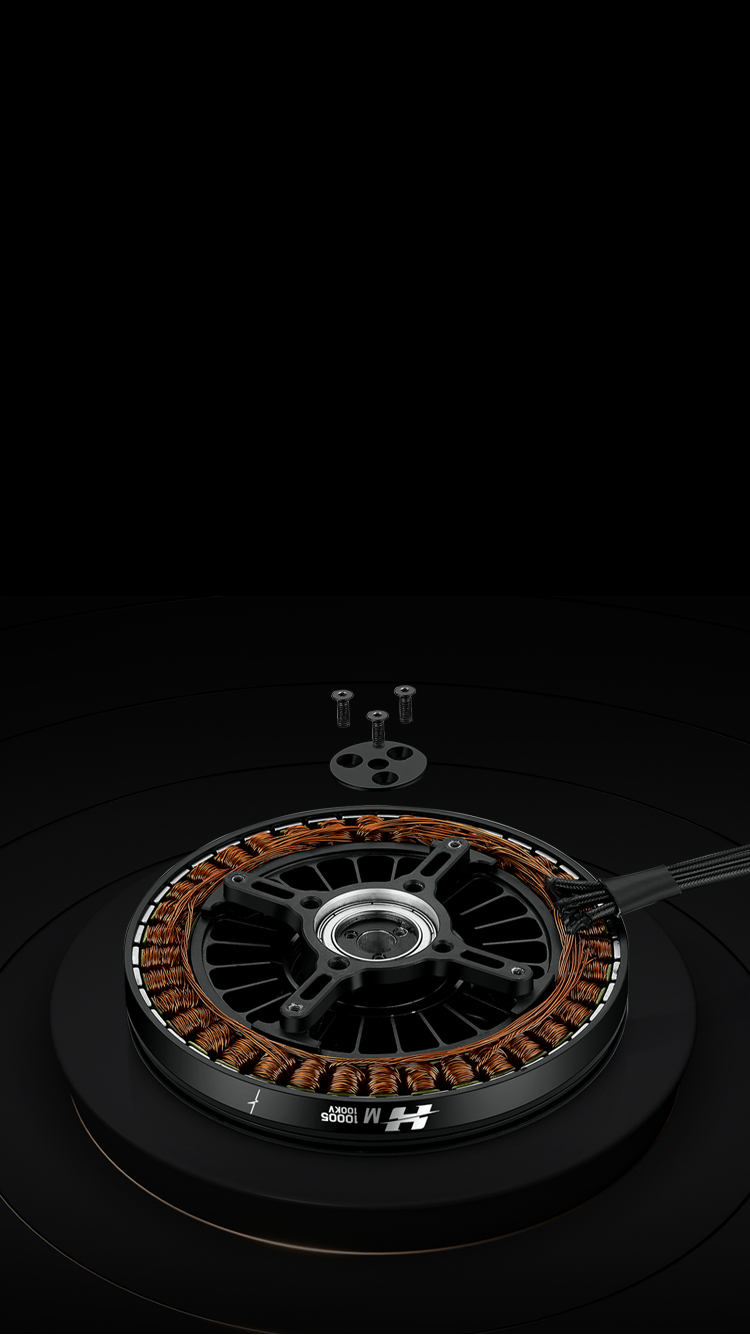

The tail of the spindle shaft uses three
M2.5*8 and washer locking designs to
enhance motor reliability.

The integrated design of the bracket and
the rotating shaft can not only ensure
the co-axiality of the stator and rotor,
but also reduce the number of parts
and simplify the process.
The tail of the spindle shaft uses three
M2.5*8 and washer locking designs to
enhance motor reliability.

Adopts High
Quality Materials,
Safe and Reliable

Made of solid materials to improve durability and
provide reliable guarantee for motor performance.

The outer rotor casing is made of 20# seamless steel tube with nickel electrophoresis design, which has excellent magnetic permeability and corrosion resistance.
High-quality bearings and low friction torque effectively extend the lifespan of the motor.
Precision CNC machined rotor bracket High-strength aviation aluminum 7075
16AWG highly ﬂexible silicone wire, low resistivity and good toughness
High-performance iron core punched from 0.2mm low-loss silicon steel sheet

Recommended
Combinations

Motor
M8110 Light
Battery
12S LiPo
Propeller
MSC 29x9.5
MSC 30x9.8
MSC 32x10.5
Takeoff weight/rotor
3.0~4.0kg
ESC
XRotor Pro-H60A-14S
Takeoff weight of quadrotor
12.0~16.0kg

: Thank you for your interest in HOBBYWING propulsion systems! For customized solutions, please provide your contact information and technical requirements, and we will get in touch with you within 24 hours.

By submitting this form, you agree to HOBBYWING's Privacy Policy

Thanks for reaching out!We have received your message and will get back to you shortly.: Best Regards,
HOBBYWING Team

M8110 Light CAD

Model

M8110 Light 95KV

M8110 Light 110KV

Specification

Motor Size	Φ87.1*H27.4mm	Φ87.1*H27.4mm
Stator process	High standard silicon steel sheet, rust proof, 180℃ high temperature resistance paint-coat	High standard silicon steel sheet, rust proof, 180℃ high temperature resistance paint-coat
Enamelled wire	200℃	200℃
Magnet	180℃	180℃
Isolation test	500V AC high voltage resistance test	500V AC high voltage resistance test
Protection level	IPX5	IPX5
Slot& Pole	36N 42P	36N 42P
Dynamic balance	≤10mg	≤10mg
Bearing	Water proof bearing	Water proof bearing
Motor axle diameter	/	/
Props mounting dimensions	4×M3@D20mm+4×M4@D23mm	4×M3@D20mm+4×M4@D23mm
Motor mounting dimensions	4×M4@D36mm	4×M4@D36mm
KV	95	110
Battery(LiPo)	12SLiPo	12SLiPo
No-load current	1.1A	1.27A
Maximum current (Non-hermetic Ambient Temperature ≤ 25℃）	43.3A	39.2A
Max thrust	11.4kg	11.1kg
Resistance	132.9mΩ	112.3mΩ
Wire Size	16AWG	16AWG
Wire length	100mm	100mm
Weight（With wire）	300.5g	301.5g
Rated output power (Max continuous)	331.5W	331.5W

Recommended Combinations

Motor	M8110 Light 95KV	M8110 Light 110KV
Propeller	MSC 28x9.2 / MSC 29x9.5 / MSC 30x9.8 / MSC 32x10.5	MSC 28x9.2 / MSC 29x9.5 / MSC 30x9.8 / MSC 32x10.5
ESC	XRotor Pro-H60A-14S	XRotor Pro-H60A-14S
Battery	12S LiPo	12S LiPo
Thrust/rotor	3.0~4.0kg	3.0~4.0kg
Takeoff weight of quadrotor	12.0~16.0kg	12.0~16.0kg

M8110 Light 95KV+MSC 29x9.5 Load Performance Parameters

M8110 Light 95KV+MSC 29x9.5Thrust Test Data

Voltage(V)	Propeller	Throttle(%)	Thrust(g)	Current(A)	Power Input(W)	Speed(RPM)	Efficiency(g/W)	Torque(N·m)	Power Output(W)	Temperature(℃)
46V (12S LiPo)	MSC 29x9.5	33%	1241	1.9	88.0	1367	14.1	0.43	62.3	65.1
		35%	1351	2.1	98.1	1428	13.8	0.47	70.7
		37%	1491	2.4	110.8	1501	13.5	0.52	81.7
		39%	1653	2.7	125.7	1581	13.2	0.57	95.1
		42%	1929	3.3	151.8	1707	12.7	0.67	119.0
		45%	2232	3.9	181.8	1833	12.3	0.77	147.1
		48%	2551	4.7	215.7	1955	11.8	0.87	178.4
		51%	2877	5.5	253.3	2071	11.4	0.98	212.7
		54%	3207	6.4	294.4	2182	10.9	1.09	249.6
		57%	3539	7.4	338.7	2289	10.4	1.21	288.9
		60%	3870	8.4	386.3	2392	10.0	1.32	330.5
		63%	4203	9.5	437.1	2492	9.6	1.44	374.7
		66%	4541	10.7	491.1	2591	9.2	1.55	421.6
		69%	4886	11.9	548.8	2689	8.9	1.67	471.5
		72%	5242	13.3	610.5	2787	8.6	1.80	524.9
		75%	5615	14.7	676.5	2885	8.3	1.93	582.2
		78%	6007	16.2	747.3	2983	8.0	2.06	643.4
		81%	6422	17.9	823.1	3079	7.8	2.20	708.6
		84%	6862	19.6	903.9	3173	7.6	2.34	777.5
		87%	7330	21.5	990.1	3261	7.4	2.49	849.6
		90%	7823	23.5	1082.3	3345	7.2	2.64	924.8
		100%	9515	31.3	1439.5	3616	6.6	3.20	1211.7

M8110 Light 95KV+MSC 30x9.8 Load Performance Parameters

M8110 Light 95KV+MSC 30x9.8 Thrust Test Data

Voltage(V)	Propeller	Throttle(%)	Thrust(g)	Current(A)	Power Input(W)	Speed(RPM)	Efficiency(g/W)	Torque(N·m)	Power Output(W)	Temperature(℃)
46V (12S LiPo)	MSC 30x9.8	33%	1281	1.9	89.6	1366	14.3	0.45	64.1	73.6
		35%	1421	2.2	101.3	1433	14.0	0.49	74.1
		37%	1575	2.5	114.8	1505	13.7	0.54	85.8
		39%	1743	2.8	130.1	1580	13.4	0.60	99.2
		42%	2015	3.4	156.5	1698	12.9	0.69	122.7
		45%	2311	4.1	186.9	1818	12.4	0.79	150.2
		48%	2626	4.8	221.2	1939	11.9	0.89	181.6
		51%	2956	5.6	259.3	2057	11.4	1.00	216.4
		54%	3298	6.5	301.1	2172	11.0	1.12	254.4
		57%	3650	7.5	346.4	2282	10.5	1.23	295.2
		60%	4008	8.6	395.1	2388	10.1	1.35	338.4
		63%	4371	9.7	447.0	2490	9.8	1.47	383.9
		66%	4736	10.9	502.2	2588	9.4	1.59	431.7
		69%	5105	12.2	560.7	2683	9.1	1.71	481.8
		72%	5477	13.5	622.6	2776	8.8	1.84	534.5
		75%	5853	14.9	688.3	2870	8.5	1.96	590.2
		78%	6237	16.5	758.3	2963	8.2	2.09	649.7
		81%	6631	18.1	833.2	3059	8.0	2.23	713.7
		84%	7040	19.8	913.9	3157	7.7	2.37	783.1
		87%	7472	21.8	1001.6	3259	7.5	2.52	859.1
		90%	7933	23.8	1097.4	3363	7.2	2.68	942.3
		100%	9708	31.6	1454.1	3628	6.7	3.22	1225.3

M8110 Light 95KV+MSC 32x10.5 Load Performance Parameters

M8110 Light 95KV+MSC 32x10.5 Thrust Test Data

Voltage(V)	Propeller	Throttle(%)	Thrust(g)	Current(A)	Power Input(W)	Speed(RPM)	Efficiency(g/W)	Torque(N·m)	Power Output(W)	Temperature(℃)
46V (12S LiPo)	MSC 32x10.5	33%	1654	2.5	116.5	1307	14.2	0.64	87.0	87.1
		35%	1812	2.8	130.3	1364	13.9	0.69	99.2
		37%	1996	3.2	147.2	1428	13.6	0.76	114.1
		39%	2202	3.6	167.3	1498	13.2	0.84	131.7
		42%	2545	4.4	203.0	1609	12.5	0.97	162.9
		45%	2918	5.3	245.1	1723	11.9	1.11	199.5
		48%	3313	6.4	293.1	1836	11.3	1.25	240.8
		51%	3722	7.5	346.3	1946	10.7	1.40	286.2
		54%	4141	8.8	404.2	2050	10.2	1.56	334.8
		57%	4562	10.1	466.2	2150	9.8	1.72	386.1
		60%	4985	11.6	531.9	2243	9.4	1.87	439.6
		63%	5406	13.1	601.2	2332	9.0	2.03	495.0
		66%	5825	14.6	674.0	2417	8.6	2.18	552.4
		69%	6243	16.3	750.4	2498	8.3	2.34	611.7
		72%	6661	18.0	830.9	2579	8.0	2.49	673.5
		75%	7082	19.9	916.2	2658	7.7	2.65	738.2
		78%	7510	21.9	1007.2	2738	7.5	2.81	806.7
		81%	7950	24.0	1105.4	2820	7.2	2.98	879.8
		84%	8408	26.3	1212.5	2904	6.9	3.15	958.7
		87%	8890	28.9	1330.5	2991	6.7	3.34	1044.4
		90%	9405	31.7	1461.9	3079	6.4	3.53	1137.6
		100%	11354	43.3	1992.2	3301	5.7	4.22	1458.6

M8110 Light 110KV+MSC 28x9.2 Load Performance Parameters

M8110 Light 110KV+MSC 28x9.2 Thrust Test Data

Voltage(V)	Propeller	Throttle(%)	Thrust(g)	Current(A)	Power Input(W)	Speed(RPM)	Efficiency(g/W)	Torque(N·m)	Power Output(W)	Temperature(℃)
46V (12S LiPo)	MSC 28x9.2	33%	1284	2.2	99.4	1484	12.9	0.44	68.0	68.5
		35%	1404	2.4	109.1	1550	12.9	0.47	77.1
		37%	1553	2.6	121.8	1629	12.7	0.52	88.9
		39%	1725	3.0	137.6	1717	12.5	0.58	103.4
		42%	2015	3.6	166.5	1855	12.1	0.67	129.7
		45%	2332	4.4	201.2	1996	11.6	0.77	160.9
		48%	2665	5.2	240.6	2134	11.1	0.88	196.2
		51%	3007	6.2	283.8	2266	10.6	0.99	234.8
		54%	3353	7.2	330.1	2391	10.2	1.10	275.9
		57%	3699	8.2	379.0	2509	9.8	1.22	319.2
		60%	4045	9.3	430.1	2622	9.4	1.33	364.3
		63%	4392	10.5	483.5	2729	9.1	1.44	411.3
		66%	4740	11.7	539.5	2834	8.8	1.55	460.5
		69%	5094	13.0	598.7	2936	8.5	1.67	512.2
		72%	5457	14.4	661.8	3038	8.2	1.78	567.3
		75%	5833	15.8	729.9	3140	8.0	1.91	626.5
		78%	6228	17.5	804.2	3244	7.7	2.03	690.8
		81%	6645	19.2	885.7	3350	7.5	2.17	761.1
		84%	7090	21.2	975.7	3457	7.3	2.32	838.4
		87%	7565	23.3	1075.0	3566	7.0	2.47	923.2
		90%	8074	25.7	1183.8	3674	6.8	2.64	1015.2
		100%	9915	34.0	1565.5	3964	6.3	3.19	1323.9

M8110 Light 110KV+MSC 29x9.5 Load Performance Parameters

M8110 Light 110KV+MSC 29x9.5 Thrust Test Data

Voltage(V)	Propeller	Throttle(%)	Thrust(g)	Current(A)	Power Input(W)	Speed(RPM)	Efficiency(g/W)	Torque(N·m)	Power Output(W)	Temperature(℃)
46V (12S LiPo)	MSC 29x9.5	33%	1420	2.4	108.5	1461	13.1	0.50	76.3	78.6
		35%	1581	2.6	120.5	1533	13.1	0.55	88.5
		37%	1761	2.9	135.5	1612	13.0	0.61	103.0
		39%	1957	3.3	153.5	1696	12.7	0.68	119.9
		42%	2276	4.0	186.1	1827	12.2	0.78	149.6
		45%	2619	4.9	224.8	1960	11.7	0.90	184.2
		48%	2980	5.8	268.9	2092	11.1	1.02	223.3
		51%	3353	6.9	317.7	2220	10.6	1.15	266.2
		54%	3735	8.0	370.3	2342	10.1	1.27	312.3
		57%	4122	9.3	426.3	2458	9.7	1.40	361.1
		60%	4511	10.5	485.2	2567	9.3	1.53	412.2
		63%	4902	11.9	547.2	2672	9.0	1.66	465.5
		66%	5294	13.3	612.2	2772	8.6	1.79	520.9
		69%	5687	14.8	680.8	2869	8.4	1.93	578.9
		72%	6084	16.4	753.4	2965	8.1	2.06	639.8
		75%	6487	18.0	831.0	3061	7.8	2.20	704.5
		78%	6898	19.9	914.5	3159	7.5	2.34	773.8
		81%	7323	21.8	1005.3	3260	7.3	2.49	849.0
		84%	7767	24.0	1104.7	3364	7.0	2.64	931.3
		87%	8235	26.4	1214.2	3474	6.8	2.81	1021.9
		90%	8735	29.0	1334.9	3586	6.5	2.99	1121.6
		100%	10624	38.5	1772.7	3870	6.0	3.60	1460.7

M8110 Light 110KV+MSC 30x9.8 Load Performance Parameters

M8110 Light 110KV+MSC 30x9.8 Thrust Test Data

Voltage(V)	Propeller	Throttle(%)	Thrust(g)	Current(A)	Power Input(W)	Speed(RPM)	Efficiency(g/W)	Torque(N·m)	Power Output(W)	Temperature(℃)
46V (12S LiPo)	MSC 30x9.8	33%	1468	2.3	106.8	1454	13.7	0.51	77.7	75.4
		35%	1614	2.6	120.5	1525	13.4	0.56	89.4
		37%	1787	3.0	137.2	1606	13.0	0.62	103.9
		39%	1984	3.4	156.6	1692	12.7	0.68	121.1
		42%	2313	4.1	190.4	1827	12.2	0.79	151.6
		45%	2672	5.0	229.2	1962	11.7	0.91	186.9
		48%	3051	5.9	273.0	2093	11.2	1.03	226.4
		51%	3441	7.0	321.2	2219	10.7	1.16	269.5
		54%	3837	8.1	373.6	2338	10.3	1.29	315.5
		57%	4236	9.3	429.9	2452	9.9	1.42	364.2
		60%	4634	10.6	489.8	2560	9.5	1.55	415.4
		63%	5031	12.0	553.1	2665	9.1	1.68	468.9
		66%	5427	13.5	620.0	2767	8.8	1.81	524.9
		69%	5825	15.0	690.5	2866	8.4	1.94	583.7
		72%	6228	16.6	765.2	2964	8.1	2.08	645.7
		75%	6639	18.3	844.7	3062	7.9	2.22	711.7
		78%	7065	20.2	929.8	3161	7.6	2.36	782.2
		81%	7509	22.2	1021.7	3260	7.3	2.51	858.2
		84%	7979	24.4	1121.6	3360	7.1	2.67	940.4
		87%	8480	26.7	1230.6	3461	6.9	2.84	1029.7
		90%	9019	29.3	1349.9	3561	6.7	3.02	1126.1
		100%	11051	39.2	1803.9	3843	6.1	3.65	1469.0

Support

Manuals & Documents

Disclaimer

HOBBYWING shall not be liable for any direct or indirect damage or loss caused by any third party using illegal means to access the website to obtain the relevant passwords, information and content.

HOBBYWING reserves the right to correct, modify and update this statement at any time.

Confirm >
