Platinum 2603 / 2604
PLATINUM 2603/2604
Lightweight for
Unmatched Performance
The weight of Platinum
2603 motor is less than
18g
The weight of Platinum
2604 is lower than
21.5g
  • With a lightweight size, the motor is perfectly suited for 80g-300g F3P indoor
  • aerobatic aircraft and lightweight aircraft with extremely strict weight requirements.
  • When used with the Platinum 18A V5 F3P ESC, it delivers precise, linear power
  • output, enabling the completion of various challenging maneuvers.
Platinum 18A V5 F3P
Platinum 2603/2604 Motor
Robust Power,
Worry-Free Flight

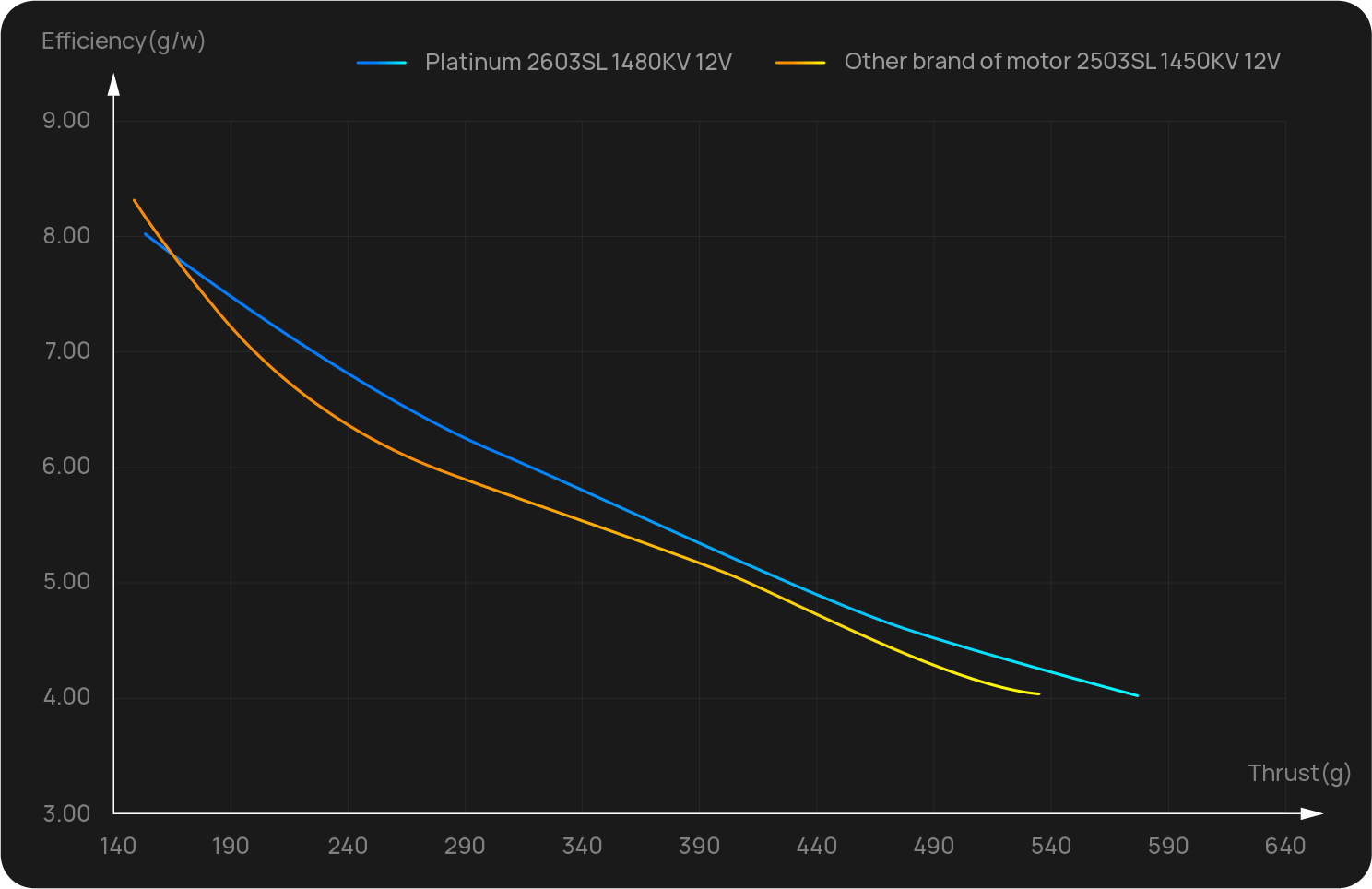

The motor’s efficiency and maximum thrust increase by
over 5%in the mid-to-rear load range
(compared to other brands with similar specifications).
This higher power output enables more effortless
flight and superior performance in competitions,
eliminating any power anxiety.
Stability for Better Flight
  • The rotor’s dynamic balance is lower than 5mg,
  • significantly reducing vibrations during operation and
  • delivering a smooth and stable flight experience.
  • This ensures the precise execution of every aerobatic maneuver.
Lightweight
Design for
Efficient Cooling
  • The rotor frame and stator base feature a
  • large hollow design. This reduced-weight
  • design ensures continuous and effective
  • heat dissipation during extended aggressive
  • flights while maintaining the optimal
  • operating temperature of the motor.
Lightweight Design
Weight Reduction Slot
Quick Assembly & Disassembly,
Versatility with Multiple Models
The rotor frame integrates a propeller installation structure,
ensuring fast and simplified propeller assembly and disassembly.
The motor fixed installation holes feature an elliptical
design, compatible with both 4-φ2.1@D32/D33
installation holes, meeting the installation needs of
most F3P aerobatic aircraft on the market.
Quality in Detail,
Excellence in Material
  • Made of top-brand high-performance 0.2mm thick cores, 220°C high-temperature
  • resistant enameled wire, and N52SH high-strength arc magnets,
  • the motor provides powerful torque and superior performance.

High-Performance 0.2mm Thick Cores

220°C High-Temperature
Resistant Enameled Wire

N52SH High-Strength
Arc Magnets

  • Multi-strand enameled wire winding
  • enhances slot filling rate, reducing
  • the motor operating temperature at
  • the same power output.
Product NamePlatiunm 2603SL 1480KV
  • Platiunm 2603SL 1480KV
  • Platiunm 2603SL 1800KV
  • Platiunm 2604SL 1500KV
  • Platiunm 2604SL 1900KV
Specification
  • Model
  • Motor size
  • Stator size
  • Stator process
  • Enamelled wire
  • Isolation test
  • Propeller
  • Slot & pole
  • Dynamic balance
  • Bearing
  • Motor axle diameter
  • Shaft material
  • Motor mounting dimensions
  • Platiunm 2603SL 1480KV
  • Φ30*H16.2mm
  • Φ26*H2.6mm
  • High standard silicon steel sheet
  • 220℃
  • 500V AC high voltage resistance test
  • UP8338
  • 12N14P
  • ≤5mg
  • 630ZZ
  • Ф5.5 x t2.4mm
  • Titanium alloy
  • 4×Φ2.1@D33
  • Platiunm 2603SL 1800KV
  • Φ30*H16.2mm
  • Φ26*H2.6mm
  • High standard silicon steel sheet
  • 220℃
  • 500V AC high voltage resistance test
  • UP8338
  • 12N14P
  • ≤5mg
  • 630ZZ
  • Ф5.5 x t2.4mm
  • Titanium alloy
  • 4×Φ2.1@D33
  • Platiunm 2604SL 1500KV
  • Φ30*H17.2mm
  • Φ26*H3.6mm
  • High standard silicon steel sheet
  • 220℃
  • 500V AC high voltage resistance test
  • TP8038
  • 12N14P
  • ≤5mg
  • 630ZZ
  • Ф5.5 x t2.4mm
  • Titanium alloy
  • 4×Φ2.1@D33
  • Platiunm 2604SL 1900KV
  • Φ30*H17.2mm
  • Φ26*H3.6mm
  • High standard silicon steel sheet
  • 220℃
  • 500V AC high voltage resistance test
  • TP8038
  • 12N14P
  • ≤5mg
  • 630ZZ
  • Ф5.5 x t2.4mm
  • Titanium alloy
  • 4×Φ2.1@D33
Specification
  • KV
  • Battery(LiPo)
  • No-load current
  • Maximum current (Non-hermetic Ambient Temperature ≤ 25℃)
  • Max power
  • Max thrust
  • Resistance
  • Wire Size
  • Wire length
  • Weight(With wire)
  • 1480
  • 3S Lipo
  • 0.5A/12V
  • 16A/34s
  • 187W/34s
  • 656g
  • 204mΩ
  • Enamelled Wire Outlet
  • 45mm
  • 18g
  • 1800
  • 2S Lipo
  • 0.5A/8V
  • 14A/42s
  • 114W/42s
  • 526g
  • 204mΩ
  • Enamelled Wire Outlet
  • 45mm
  • 18g
  • 1500
  • 3S Lipo
  • 0.6A/12V
  • 19A/10s
  • 229W/10s
  • 877g
  • 132mΩ
  • Enamelled Wire Outlet
  • 45mm
  • 21.5g
  • 1900
  • 2S Lipo
  • 0.7A/8V
  • 20A/11s
  • 159W/11s
  • 693g
  • 80mΩ
  • Enamelled Wire Outlet
  • 45mm
  • 21.5g
Recommended application combinations
  • Motor
  • Propeller
  • ESC
  • Battery
  • Platinum 2603SL 1480KV
  • UP8338,TP8038
  • Platinum 18A V5 F3P
  • 3S LiPo
  • Platinum 2603SL 1800KV
  • UP8338,TP8038
  • Platinum 18A V5 F3P
  • 2S LiPo
  • Platinum 2604SL 1500KV
  • UP8338,TP8038
  • Platinum 18A V5 F3P
  • 3S LiPo
  • Platinum 2604SL 1900KV
  • UP8338,TP8038
  • Platinum 18A V5 F3P
  • 2S LiPo
