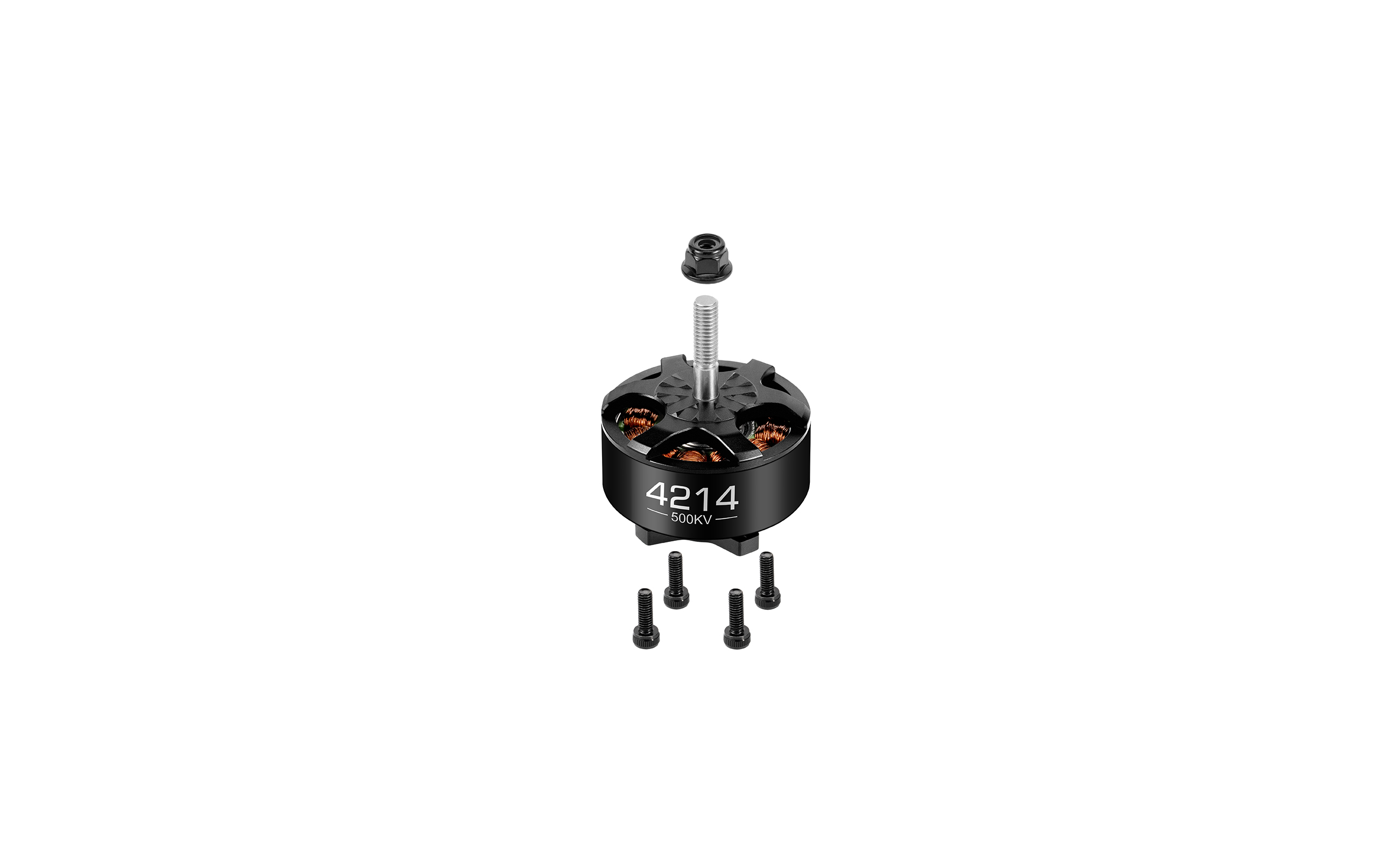

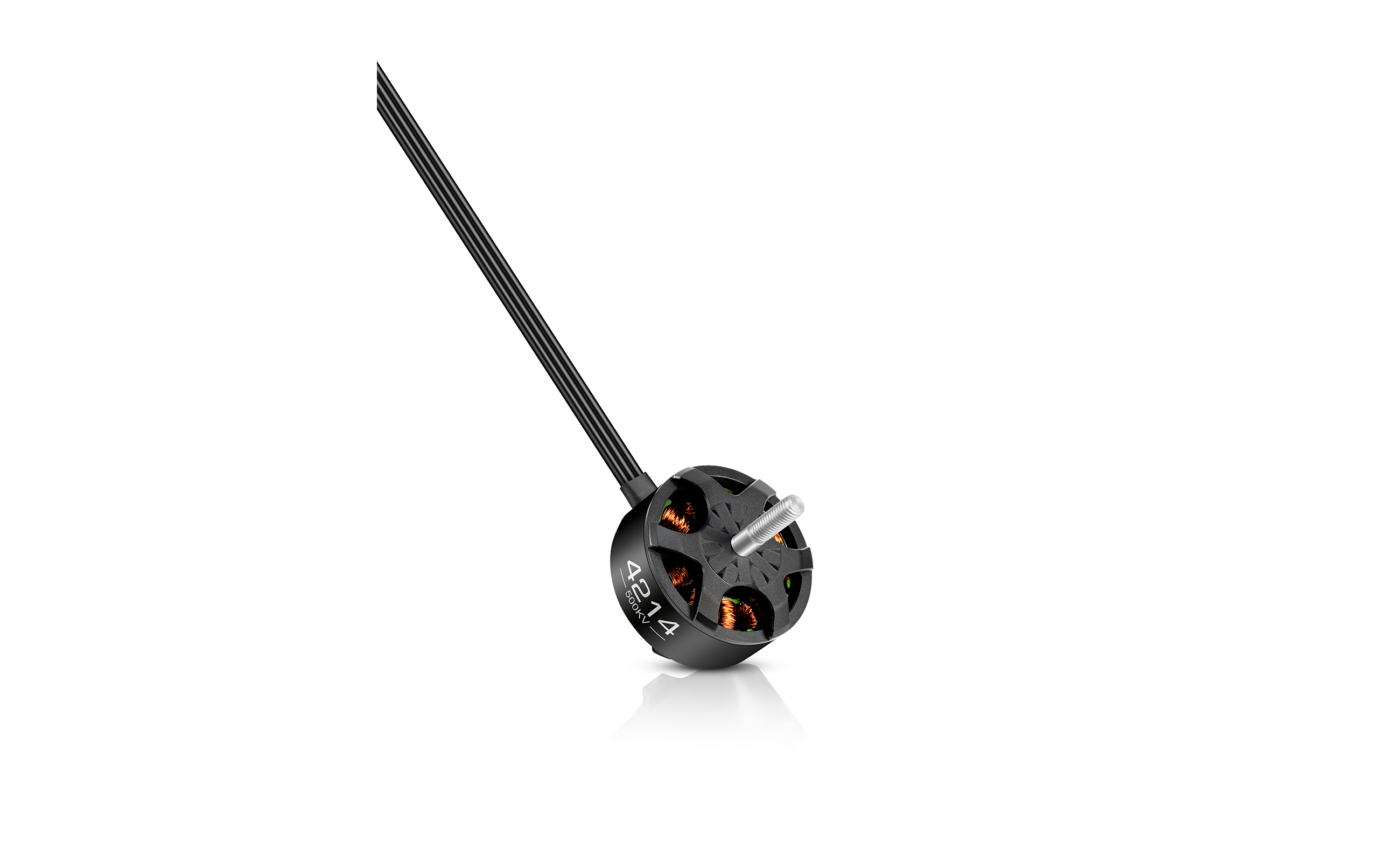

RTF 4214
FPV MOTOR
Excellent Heat Dissipation,
Lower Motor Temperatures
Lower Motor Temperatures
The motor's propeller mount
features a self-cooling design.
features a self-cooling design.
Rapidly dissipating coil heat
during flight.
Enables sustained
low-temperature operation.
during flight.
Enables sustained
low-temperature operation.
Boosting efficiency
and extending lifespan.
and extending lifespan.
Innovative Anti-Slip Tooth
Design on Propeller Mount
Design on Propeller Mount
The propeller mount incorporates an innovative anti-slip tooth structure,
effectively preventing propeller slippage and rotation loss, enhancing flight safety.
effectively preventing propeller slippage and rotation loss, enhancing flight safety.
Premium Materials
Exceptional Quality
Exceptional Quality
01
Utilizes high-performance 0.2mm thick stator core laminations paired with
220°C high-temperature enameled wire.
Meet the needs of users pursuing
extreme motor performance.
0.2mm
Core laminations
02
The multi-strand enameled wirewinding design enables lower motor
operating temperatures at identical
power output.
220°C
Enameled Wire
03
Strong arc-shaped magnets design significantly increases magnetic flux
density and magnetic field intensity,
delivering ample power and precise
attitude control throughout the flight.
Strong arc-shaped
magnets design
magnets design
-
-
Thank you for your interest in HOBBYWING propulsion systems! For customized solutions,
please provide your contact information and technical requirements,
and we will get in touch with you within 24 hours.
- Thanks for reaching out!We have received your message and will get back to you shortly.
- Best Regards,
HOBBYWING Team
Product NameRTF 4214
- RTF 4214 380KV
- RTF 4214 440KV
- RTF 4214 500KV
- RTF 4214 660KV
Specification
-
- Model
- Motor Size
- Slot& Pole
- Stator Size
- Bearing
- Stator process
- Motor axle diameter
- Enamelled wire
- Shaft Lenght
- Isolation test
- Motor mounting dimensions
-
- RTF 4214 380KV
- Φ50*H35.8mm
- 12N14P
- Φ42mm*14mm
- 626ZZ
- High standard silicon steel sheet, 180℃ high temperature resistance paint-coat
- Φ6mm
- 220℃ high temperature resistant, C class insulation
- 25mm
- 500V AC high voltage resistance test
- Φ30mm-4*M4
- RTF 4214 440KV
- Φ50*H35.8mm
- 12N14P
- Φ42mm*14mm
- 626ZZ
- High standard silicon steel sheet, 180℃ high temperature resistance paint-coat
- Φ6mm
- 220℃ high temperature resistant, C class insulation
- 25mm
- 500V AC high voltage resistance test
- Φ30mm-4*M4
- RTF 4214 500KV
- Φ50*H35.8mm
- 12N14P
- Φ42mm*14mm
- 626ZZ
- High standard silicon steel sheet, 180℃ high temperature resistance paint-coat
- Φ6mm
- 220℃ high temperature resistant, C class insulation
- 25mm
- 500V AC high voltage resistance test
- Φ30mm-4*M4
- RTF 4214 660KV
- Φ50*H35.8mm
- 12N14P
- Φ42mm*14mm
- 626ZZ
- High standard silicon steel sheet, 180℃ high temperature resistance paint-coat
- Φ6mm
- 220℃ high temperature resistant, C class insulation
- 25mm
- 500V AC high voltage resistance test
- Φ30mm-4*M4
Specification
-
- KV
- Battery(LiPo)
- No-load current
- Maximum current
(Non-hermetic Ambient Temperature ≤ 25℃） - Rated power output
- Max power
- Max thrust
- Resistance
- Wire Size
- Wire length
- Weight (With wire)
-
- 380
- LiPo-8S
- 1.9A
- 56A/27s
- 454W
- 1806W/27s
- 6.8kg
- 54mΩ
- 14AWG
- 500mm
- 245g
- 440
- LiPo-8S
- 2.5A
- 66A/39s
- 535W
- 2125W/39s
- 6.7kg
- 43mΩ
- 14AWG
- 500mm
- 248g
- 500
- LiPo-6S
- 2.5A
- 73A/27s
- 454W
- 1748W/27s
- 6.5kg
- 35.5mΩ
- 14AWG
- 500mm
- 245g
- 660
- LiPo-6S
- 4.3A
- 105A/31s
- 601W
- 2508W/31s
- 6.7kg
- 25mΩ
- 14AWG
- 500mm
- 246g
Recommended application combinations
-
- Motor
- Propeller
- ESC
- Battery
-
- RTF 4214 380KV
- HQ13x10x3;HQ15x7x3
- RTF 80A 4in1 8S Lite AT
RTF 100A 4in1 8S Lite AT - 8S LiPo
- RTF 4214 440KV
- HQ13x9x3
- RTF 80A 4in1 8S Lite AT
RTF 100A 4in1 8S Lite AT - 8S LiPo
- RTF 4214 500KV
- HQ13x9x3;HQ13x10x3;HQ15x7x3
- RTF 80A 4in1 8S Lite AT
RTF 100A 4in1 8S Lite AT - 6S LiPo
- RTF 4214 660KV
- HQ13x9x3
- RTF 100A 4in1 8S Lite AT
- 6S LiPo
