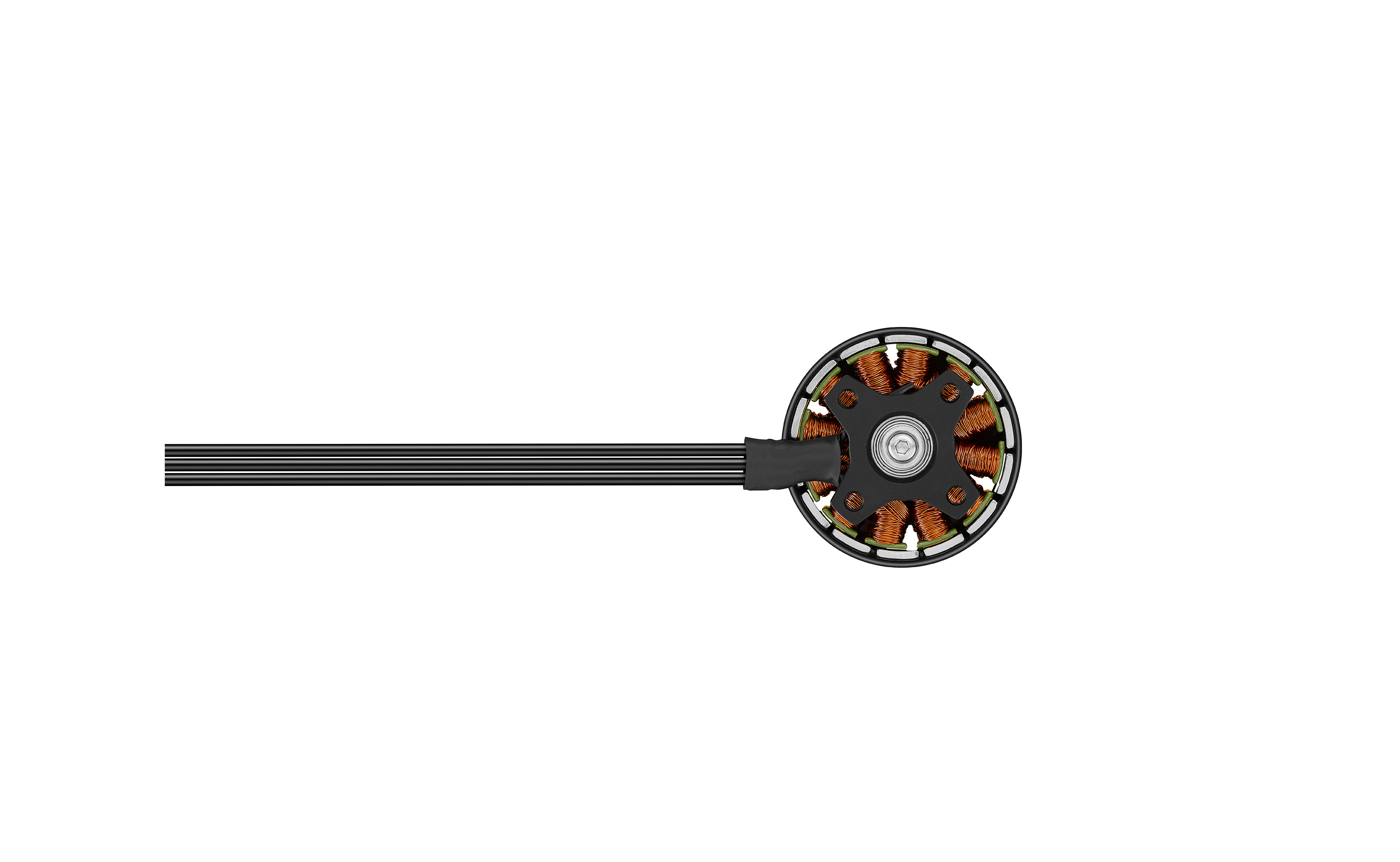

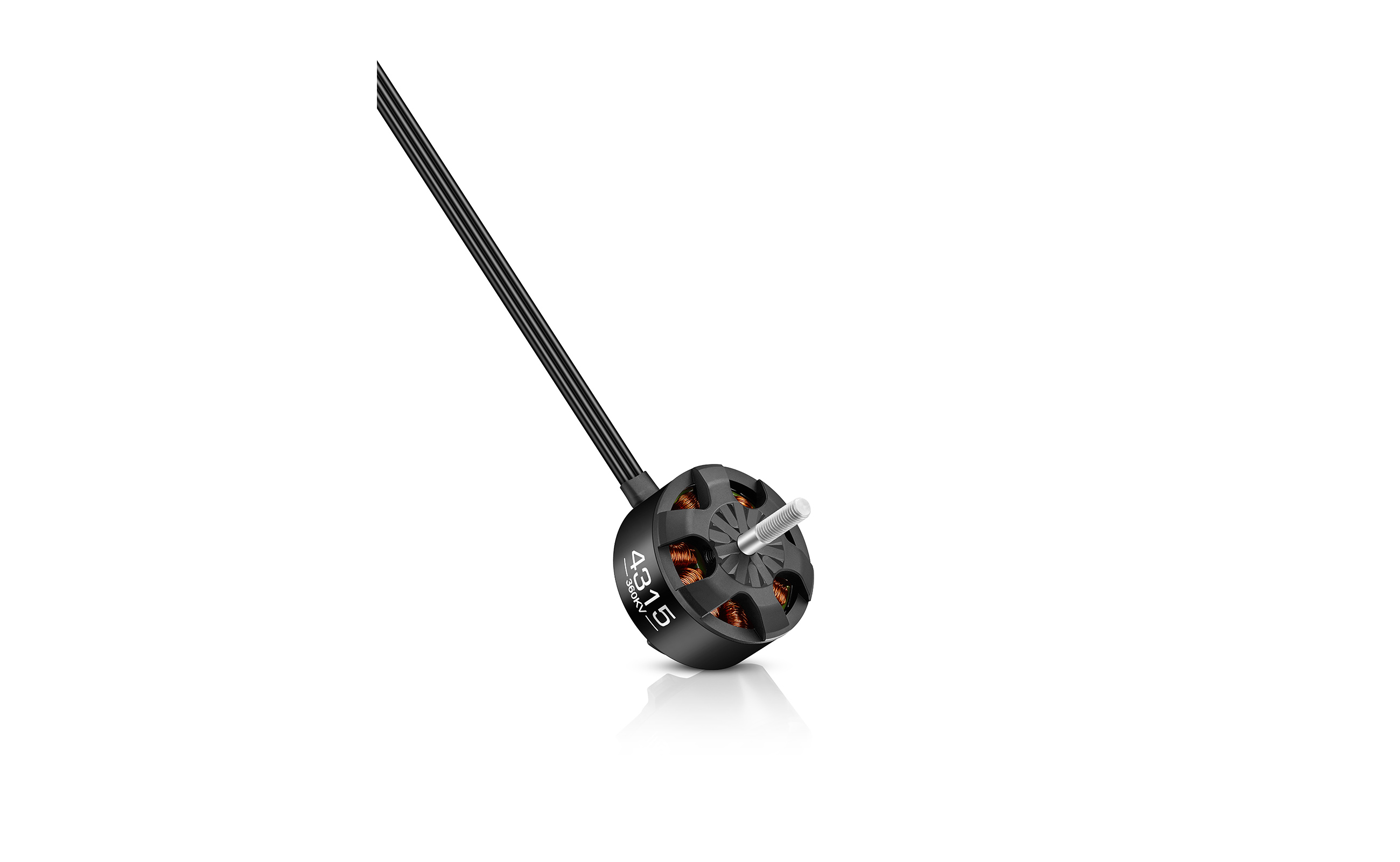

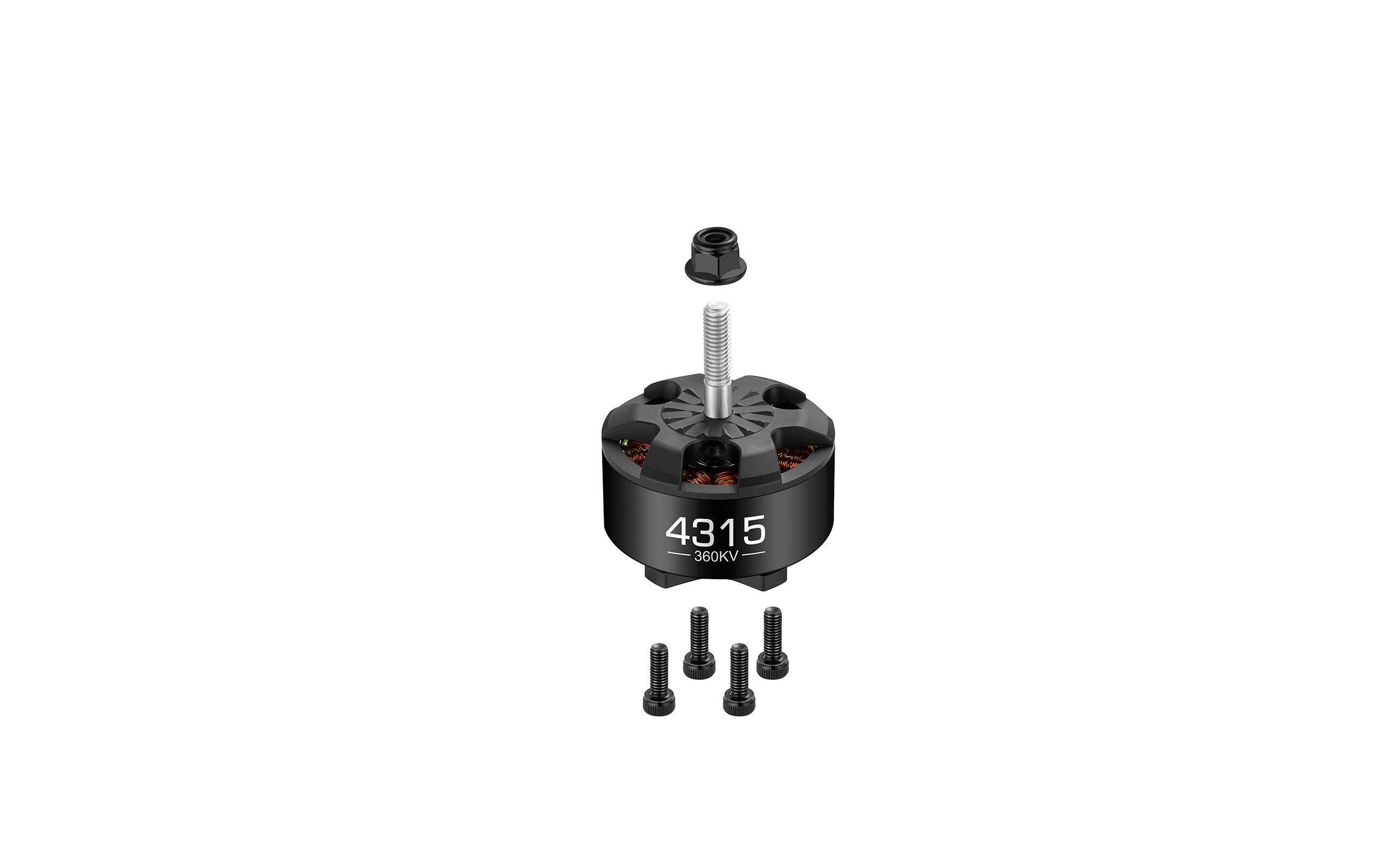

Product NameRTF 4315
  • RTF 4315 360KV
  • RTF 4315 520KV
Specification
  • Model
  • Motor Size
  • Slot& Pole
  • Stator Size
  • Bearing
  • Stator process
  • Motor axle diameter
  • Enamelled wire
  • Shaft Lenght
  • Isolation test
  • Motor mounting dimensions
  • RTF 4315 360KV
  • Φ50.8 *36.3mm
  • 12N14P
  • Φ43*15mm
  • MR126ZZ
  • High standard silicon steel sheet, 180℃ high temperature resistance paint-coat
  • Φ6mm
  • 220℃ high temperature resistant, C class insulation
  • 25mm
  • 500V AC high voltage resistance test
  • Φ30mm-4*M4
  • RTF 4315 520KV
  • Φ50.8 *36.3mm
  • 12N14P
  • Φ43*15mm
  • MR126ZZ
  • High standard silicon steel sheet, 180℃ high temperature resistance paint-coat
  • Φ6mm
  • 220℃ high temperature resistant, C class insulation
  • 25mm
  • 500V AC high voltage resistance test
  • Φ30mm-4*M4
Specification
  • KV
  • Battery(LiPo)
  • No-load current
  • Maximum current (Non-hermetic Ambient Temperature ≤ 25℃)
  • Rated power output
  • Max power
  • Max thrust
  • Resistance
  • Wire Size
  • Wire length
  • Weight(With wire)
  • 360
  • LiPo-8S
  • 1.8A
  • 56.8A/26s
  • 560W
  • 1813.5W/26s
  • 7.18kg
  • 57mΩ
  • 16AWG
  • 500mm
  • 250g
  • 520
  • LiPo-6S
  • 3.2A
  • 74A/61s
  • 620W
  • 1755W/61s
  • 5.3kg
  • 30mΩ
  • 14AWG
  • 500mm
  • 267g
Recommended Application Combinations
  • Propeller
  • ESC
  • HQ15x7x3
  • RTF 80A 4in1 8S Lite AT
  • HQ13x10x3
  • XRotor FPV 80A G2 4in1 ESC
    RTF 100A 4in1 8S Lite AT
