RTF 4720: FPV Drone Brushless Motors (360KV 8S)

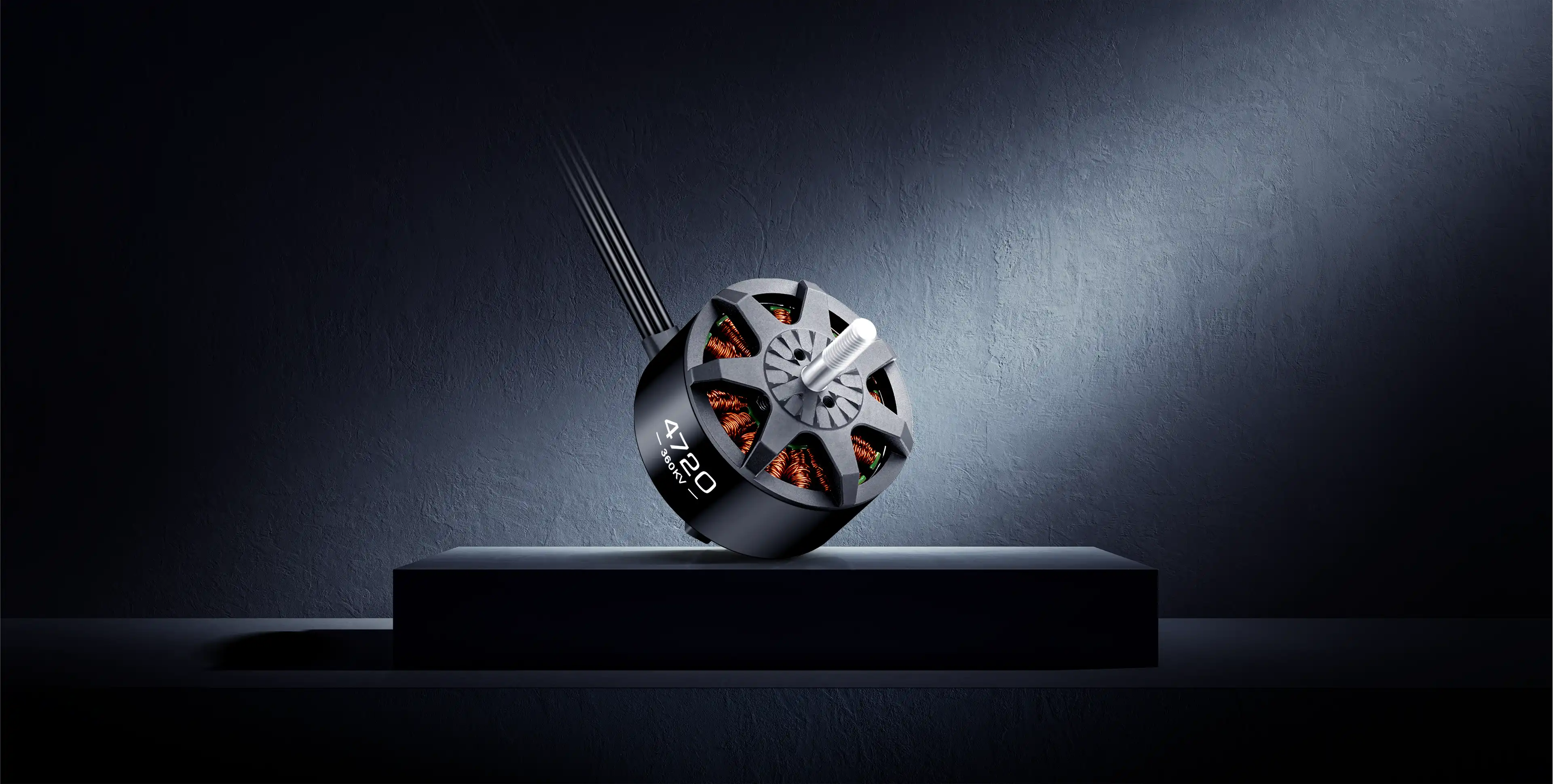

RTF 4720 FPV Drone Motor 360KV
RTF 4720
FPV MOTOR
Excellent Heat Dissipation,
Lower Motor Temperatures
The motor's propeller
mount features a
self-cooling design.
Rapidly dissipating coil heat
during flight. Enables sustained
low-temperature operation.
Boosting efficiency
and extending
lifespan.
hobbywing FPV Motor RTF 4720
Innovative Anti-Slip
Tooth Design on
Propeller Mount

The propeller mount incorporates an

innovative anti-slip tooth structure, effectively

preventing propeller slippage and rotation loss,

enhancing flight safety.

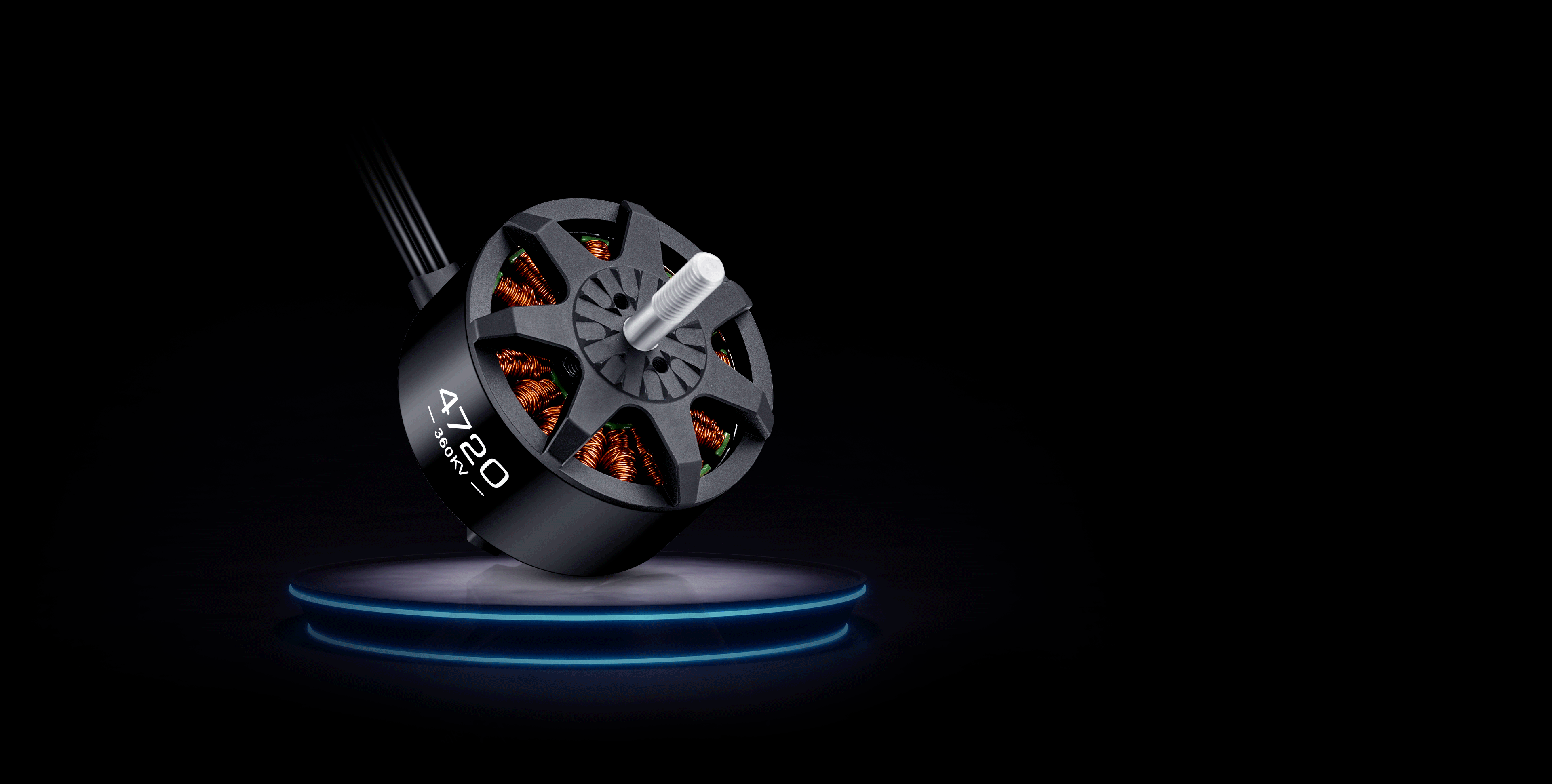

FPV Brushless Motor RTF 4720
Premium Materials,
Exceptional Quality

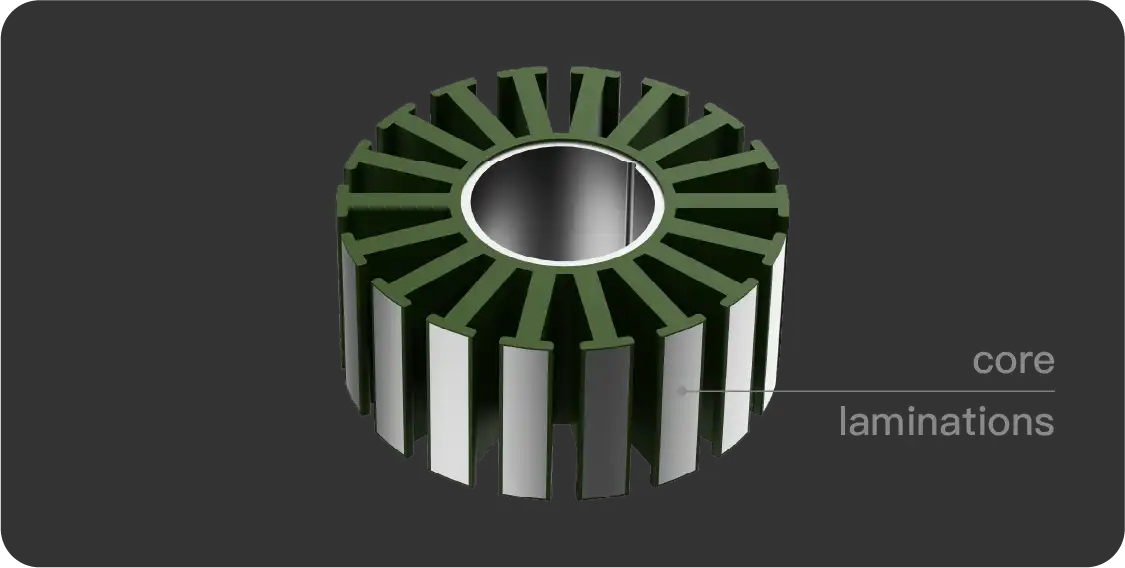

high performance drone motor core
Utilizes high-performance
0.2mm silicon steel
sheets paired with 220°C
high-temperature enameled wire.
Meet the needs of users pursuing
extreme motor performance.

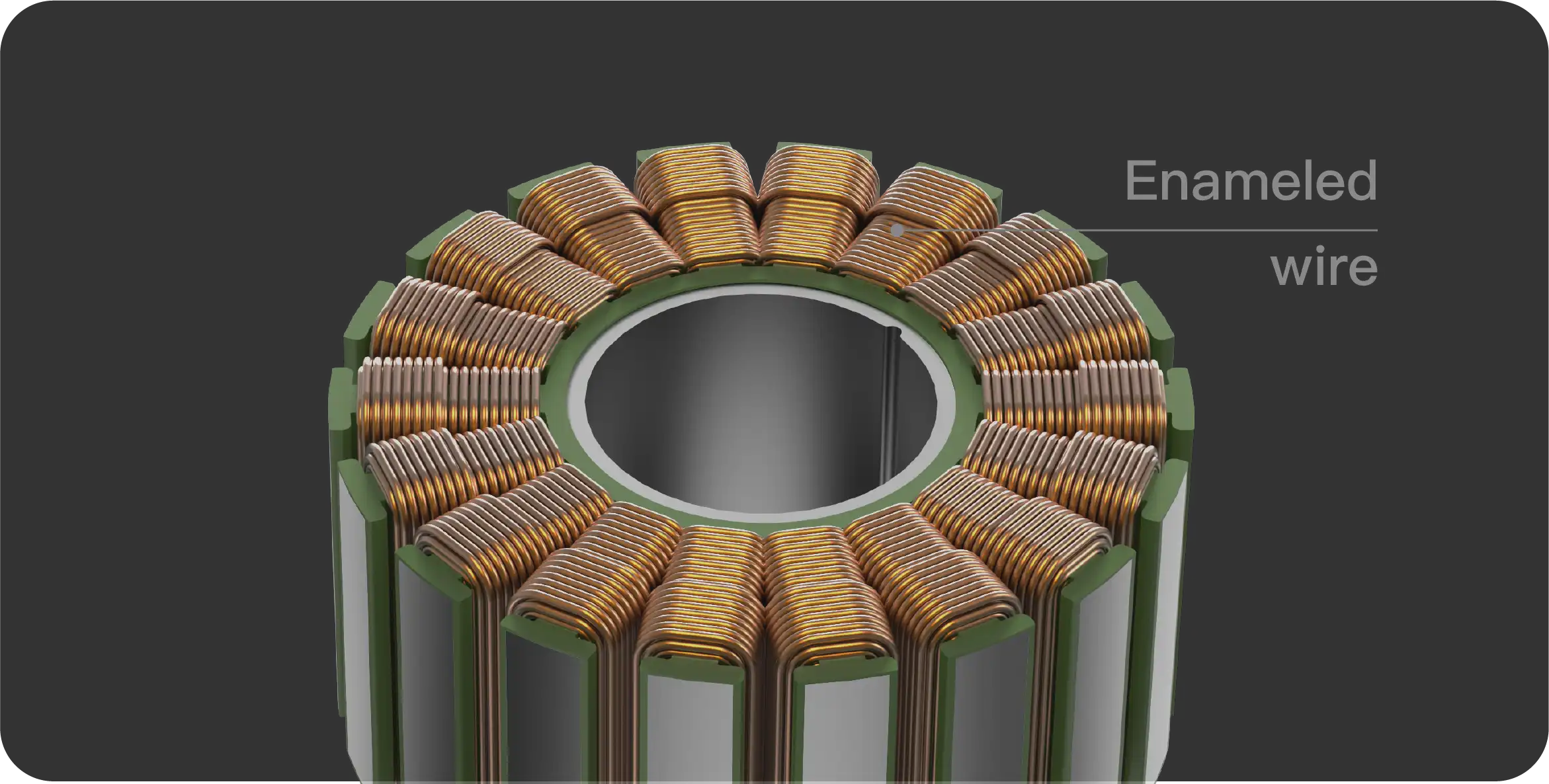

multi-strand enameled wire winding
The multi-strand enameled wire
winding design increases the
slot full rate by
approximately more than 5%,
enabling lower operating
temperatures at identical
power output.

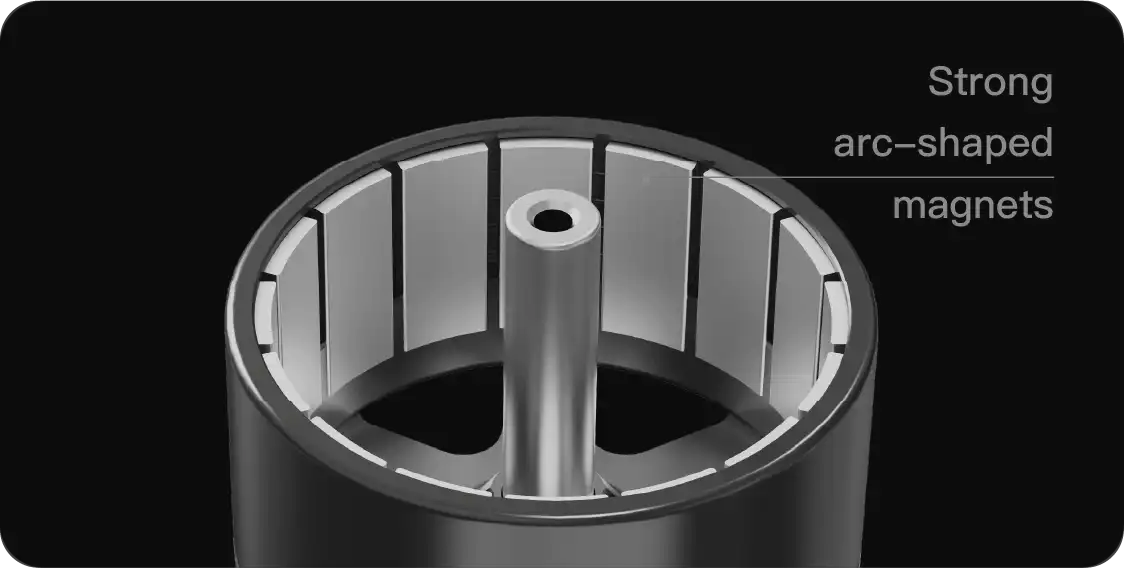

strong arc-shaped magnets
Strong arc-shaped magnets design
significantly increases magnetic
flux density and magnetic field
intensity, delivering ample power
and precise attitude control
throughout the flight.
Thank you for your interest in HOBBYWING propulsion systems! For customized solutions,
please provide your contact information and technical requirements,
and we will get in touch with you within 24 hours.
captcha
By submitting this form, you agree to HOBBYWING's Privacy Policy
Thanks for reaching out!We have received your message and will get back to you shortly.
Best Regards,
HOBBYWING Team
Product NameRTF 4720
  • RTF 4720 300KV
  • RTF 4720 360KV
Specification
  • Model
  • Motor Size
  • Slot& Pole
  • Stator Size
  • Bearing
  • Stator process
  • Motor axle diameter
  • Enamelled wire
  • Shaft Lenght
  • Fiber Screw Thread
  • Isolation test
  • Screw Diameter / Thread
  • RTF 4720 300KV
  • Φ55.3*45.6
  • 18N16P
  • Φ46.6*20
  • 688ZZ
  • High standard silicon steel sheet,180℃ high temperature resistance paint-coat
  • Φ6mm
  • 220℃ high temperature resistant, C class insulation
  • 22mm
  • Φ12mm*2-M3
  • 500V AC high voltage resistance test
  • Φ30mm-4*M4
  • RTF 4720 360KV
  • Φ55.3*45.6
  • 18N16P
  • Φ46.6*20
  • 688ZZ
  • High standard silicon steel sheet,180℃ high temperature resistance paint-coat
  • Φ6mm
  • 220℃ high temperature resistant, C class insulation
  • 22mm
  • Φ12mm*2-M3
  • 500V AC high voltage resistance test
  • Φ30mm-4*M4
Specification
  • KV
  • Battery(LiPo)
  • No-load current
  • Rated power output
  • Maximum current (Non-hermetic Ambient Temperature ≤ 25℃)
  • Max power
  • Max thrust
  • Resistance
  • Wire Size
  • Wire length
  • Weight(With wire)
  • 300
  • LiPo-12S
  • 2.66A/44.4V
  • 960W
  • 68A/9s
  • 2195W/9s
  • 8.2kg
  • 53.92mΩ
  • 14AWG
  • 500mm
  • 347g
  • 360
  • LiPo-8S
  • 3.6A/32V
  • 800W
  • 86A/45s
  • 2749W/45s
  • 8.7kg
  • 47mΩ
  • 14AWG
  • 500mm
  • 360g
Recommended application combinations
  • Propeller
  • ESC
  • HQ15x10x3;HQ16x8x3
  • SKYWALKER 160A HV 14S OPTO V2
  • HQ15x7x3;HQ15x10x3
  • RTF 100A 4in1 8S Lite AT
