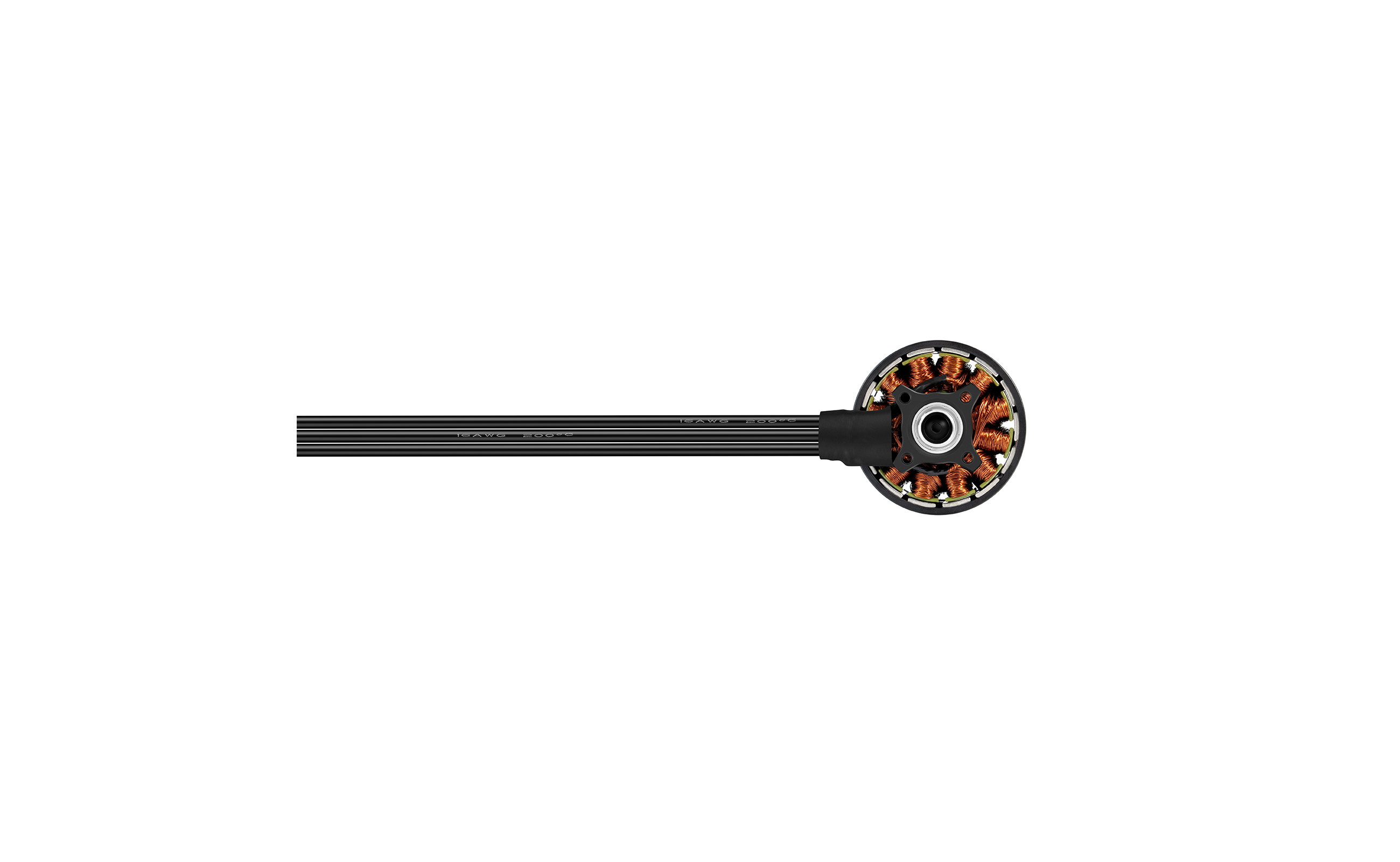

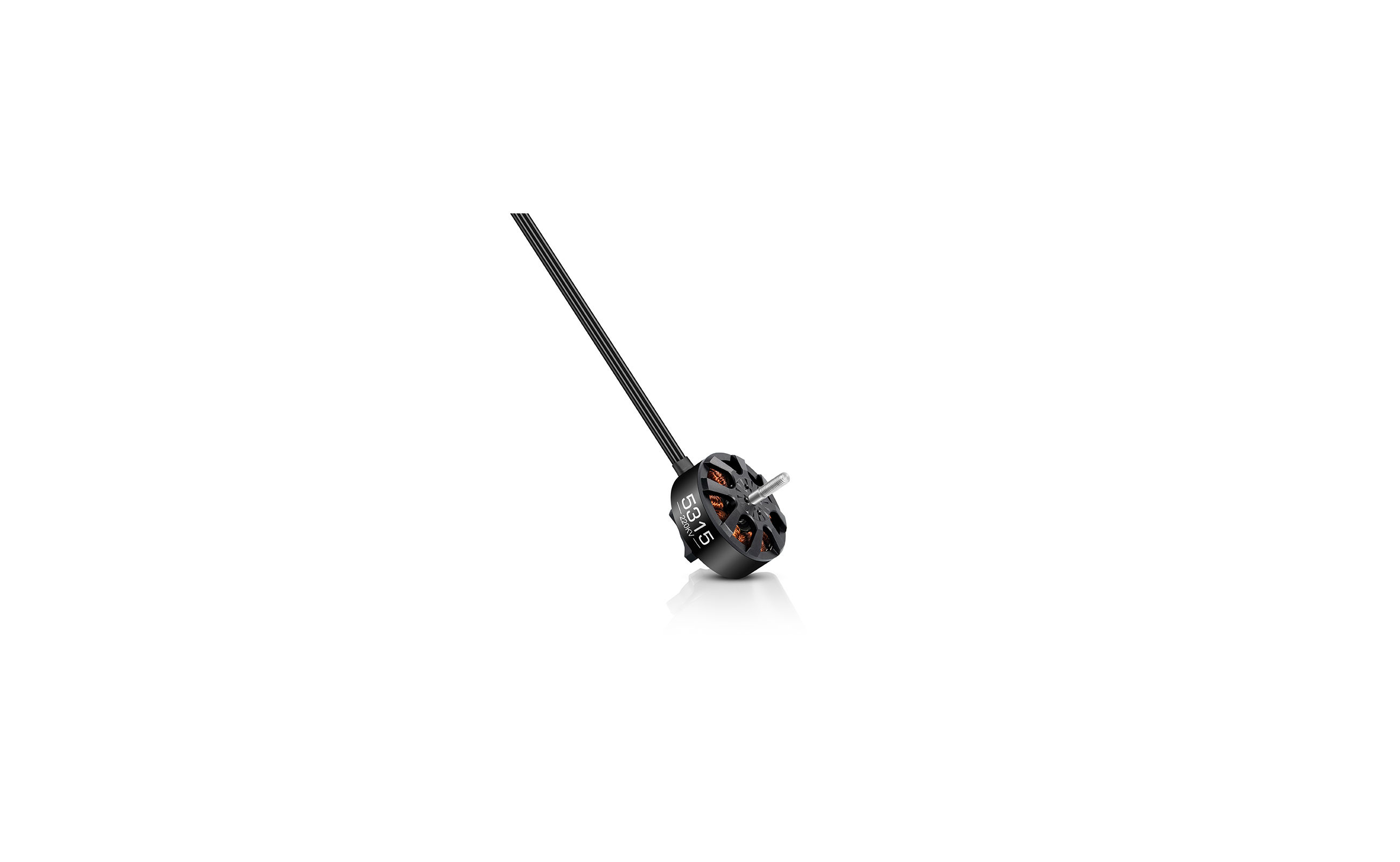

RTF 5315
FPV Motor
High Thrust,
Effortless Control
Effortless Control
Highly compatible with
15-17 inch
3-blade propellers
15-17 inch
3-blade propellers
A maximum single-axis
thrust of up to
9.9kg.
thrust of up to
9.9kg.
Excellent Heat Dissipation,
Lower Motor Temperatures
Lower Motor Temperatures
Excellent HeatDissipation
Lower MotorTemperatures
The motor's propeller mount
features a self-cooling design.
features a self-cooling design.
Rapidly dissipating coil heat during flight.
Enables sustained low-temperature operation.
Enables sustained low-temperature operation.
Boostingefficiency
and extending lifespan.
and extending lifespan.
Anti-Slip Tooth DesignInnovativeAnti-Slip Tooth
Design on Propeller Mount
Design on Propeller Mount
The propeller mount incorporates an innovative anti-slip tooth structure,
effectively preventing propeller slippage and rotation loss, enhancing flight safety.
Premium Materials,
Exceptional Quality
Exceptional Quality
PremiumMaterials
ExceptionalQuality
Corelaminations
EnameledWire
Magnets
Bearings

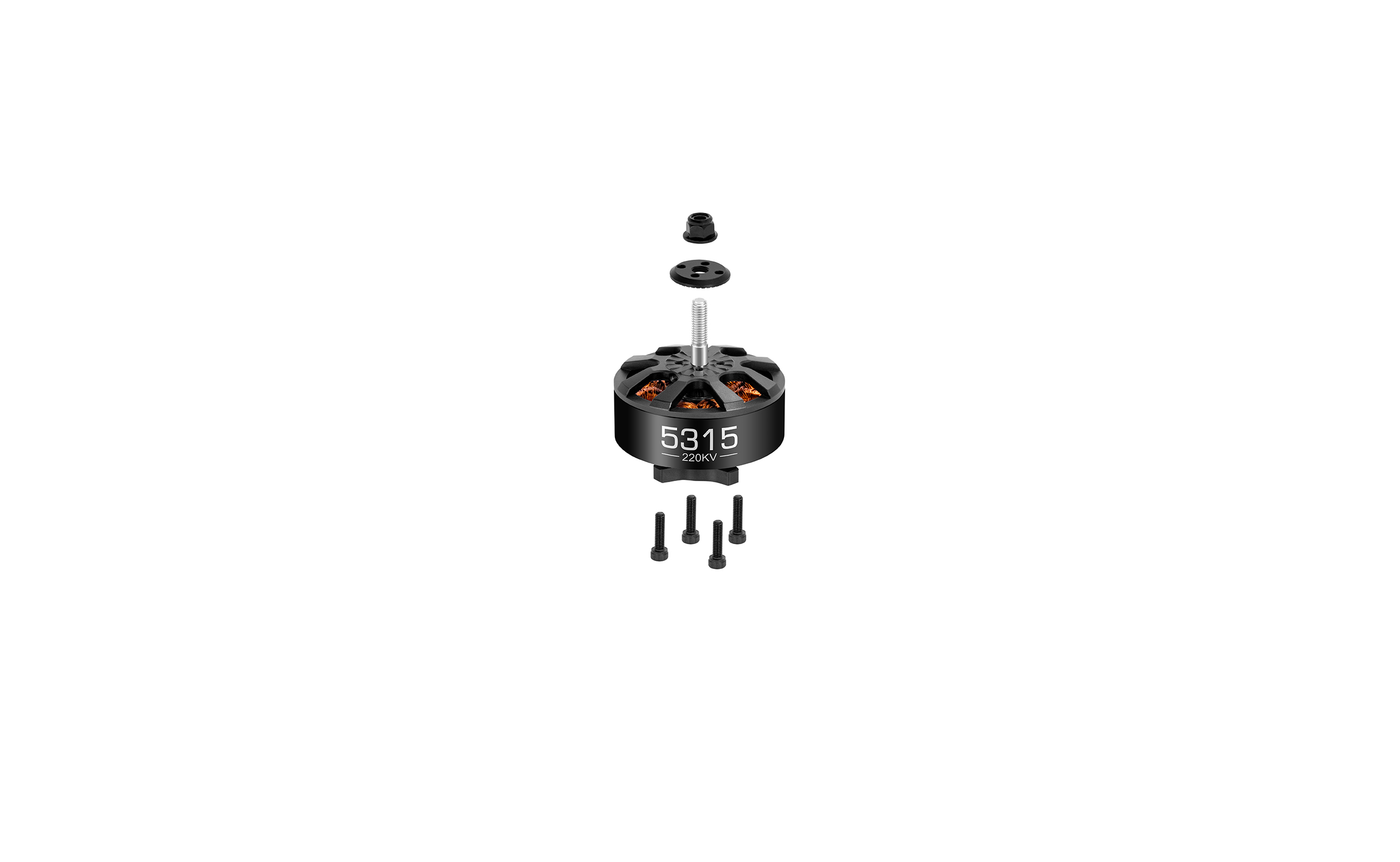

Multi-Layer Anti-Loosening
Design for Worry-Free Flight
Design for Worry-Free Flight
Rotor multiple anti-loosening design: Features copper washers, circlips,
and screw fastening to prevent rotor detachment, further enhancing motor reliability.
Multi-Layer Anti-LooseningCirclips
Screw
-
-
Thank you for your interest in HOBBYWING propulsion systems! For customized solutions,
please provide your contact information and technical requirements,
and we will get in touch with you within 24 hours.
- Thanks for reaching out!We have received your message and will get back to you shortly.
- Best Regards,
HOBBYWING Team
ModelRTF 5315
- 220KV
- 360KV
Specification Ⅰ
-
- Motor Size
- Stator Size
- Stator process
- Enamelled wire
- Isolation test
- Slot& Pole
- Bearing
- Motor axle diameter
- Props mounting dimensions
- Motor mounting dimensions
-
- Φ62.1*66.1
- Φ52.9*15
- High standard silicon steel sheet, rust proof, 180℃ high temperature resistance paint-coat
- 220℃ high temperature resistant, C class insulation
- 500V AC high voltage resistance test
- 12N14P
- 698ZZ,688ZZ
- Φ6mm
- Φ12mm-2*M3&Φ15mm-2*M3
- Φ30mm-4*M4
- Φ62.1*66.1
- Φ52.9*15
- High standard silicon steel sheet, rust proof, 180℃ high temperature resistance paint-coat
- 220℃ high temperature resistant, C class insulation
- 500V AC high voltage resistance test
- 12N14P
- 698ZZ,688ZZ
- Φ6mm
- Φ12mm-2*M3&Φ15mm-2*M3
- Φ30mm-4*M4
Specification Ⅱ
-
- KV
- Battery(LiPo)
- No-load current
- Maximum current (Non-hermetic Ambient Temperature ≤ 25℃）
- Rated power output
- Max power
- Max thrust
- Resistance
- Wire Size
- Wire length
- Weight(With wire)
-
- 220
- LiPo-12S
- 1.64A
- 74.9A/13s
- 1140W
- 3590W/13s
- 9.82kg
- 59mΩ
- 14AWG
- 620mm
- 400g
- 360
- LiPo-8S
- 2.8A
- 110A/25s
- 1200W
- 3520W/25s
- 9.9kg
- 31mΩ
- 14AWG
- 620mm
- 402g
Recommended application combinations
-
- Motor
- Propeller
- ESC
- Battery
-
- RTF 5315 220KV BLACK V1
- HQ15*7*3、HQ15*10*3、HQ16*8*3、HQ17*8*3
- RTF 100A 4in1 12S AT
- 12S LiPo
- RTF 5315 360KV BLACK V1
- HQ15*7*3、HQ15*10*3、HQ16*8*3、HQ17*8*3
- RTF 100A 4in1 8S Lite AT
- 8S LiPo
