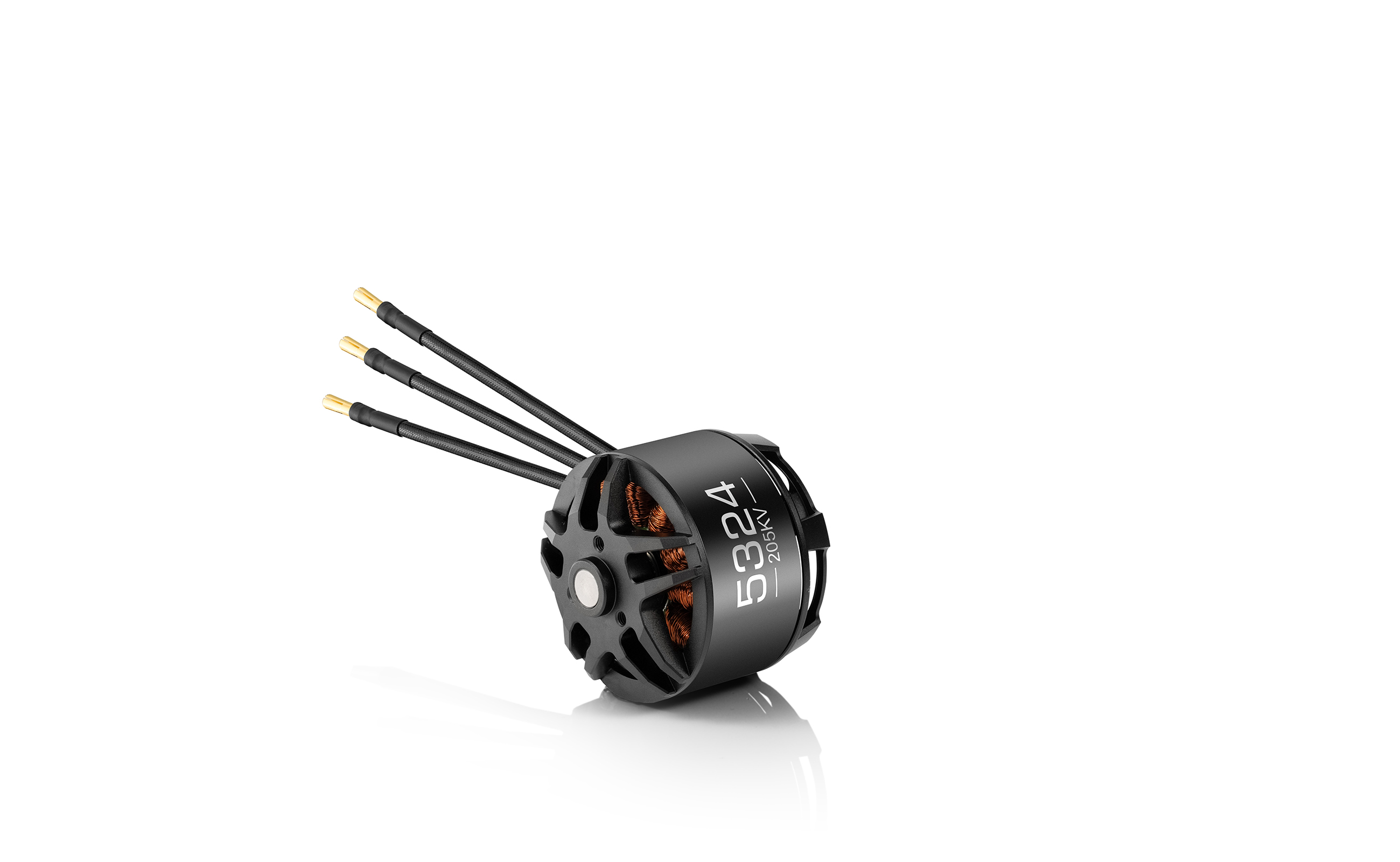

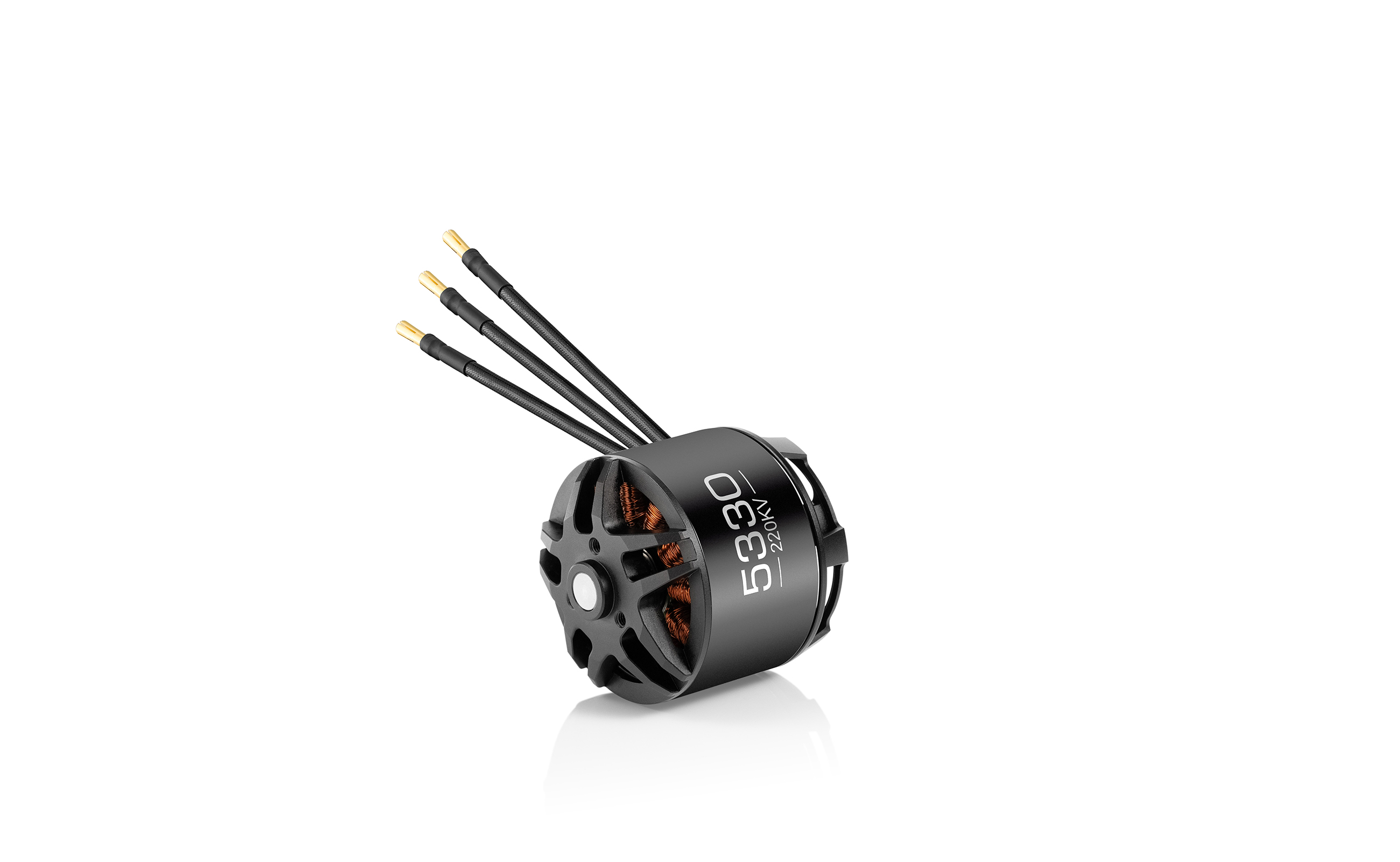

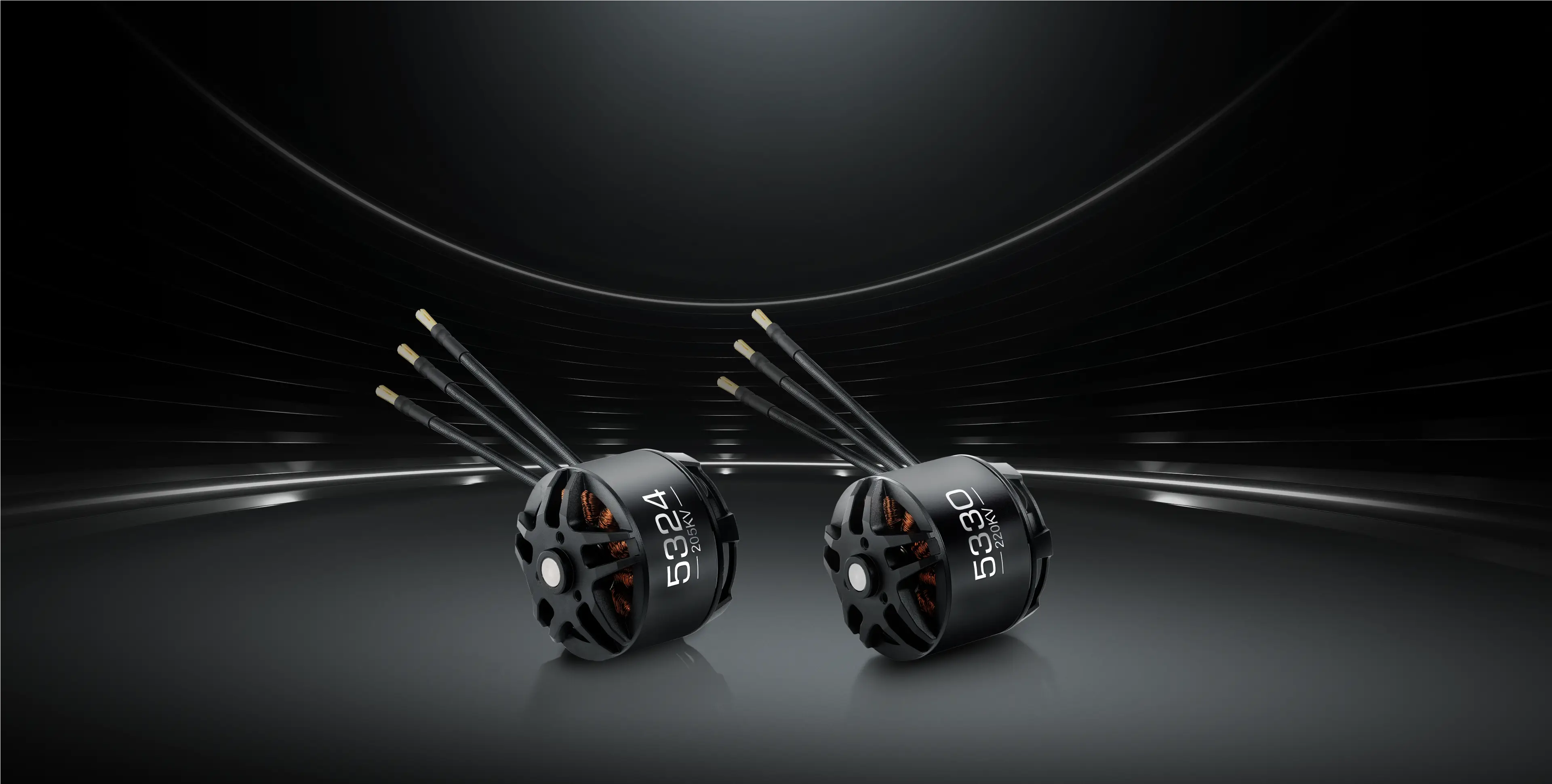

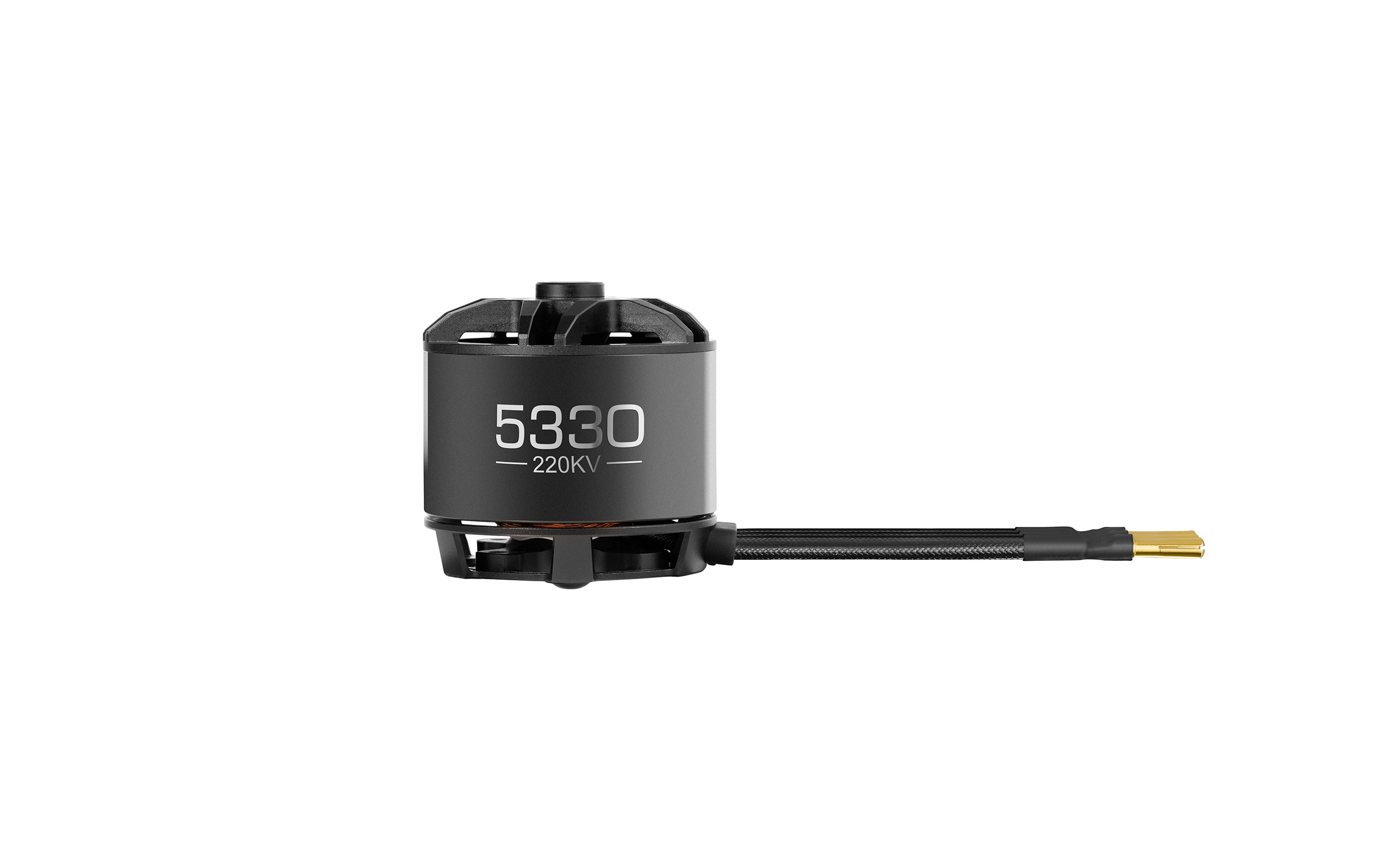

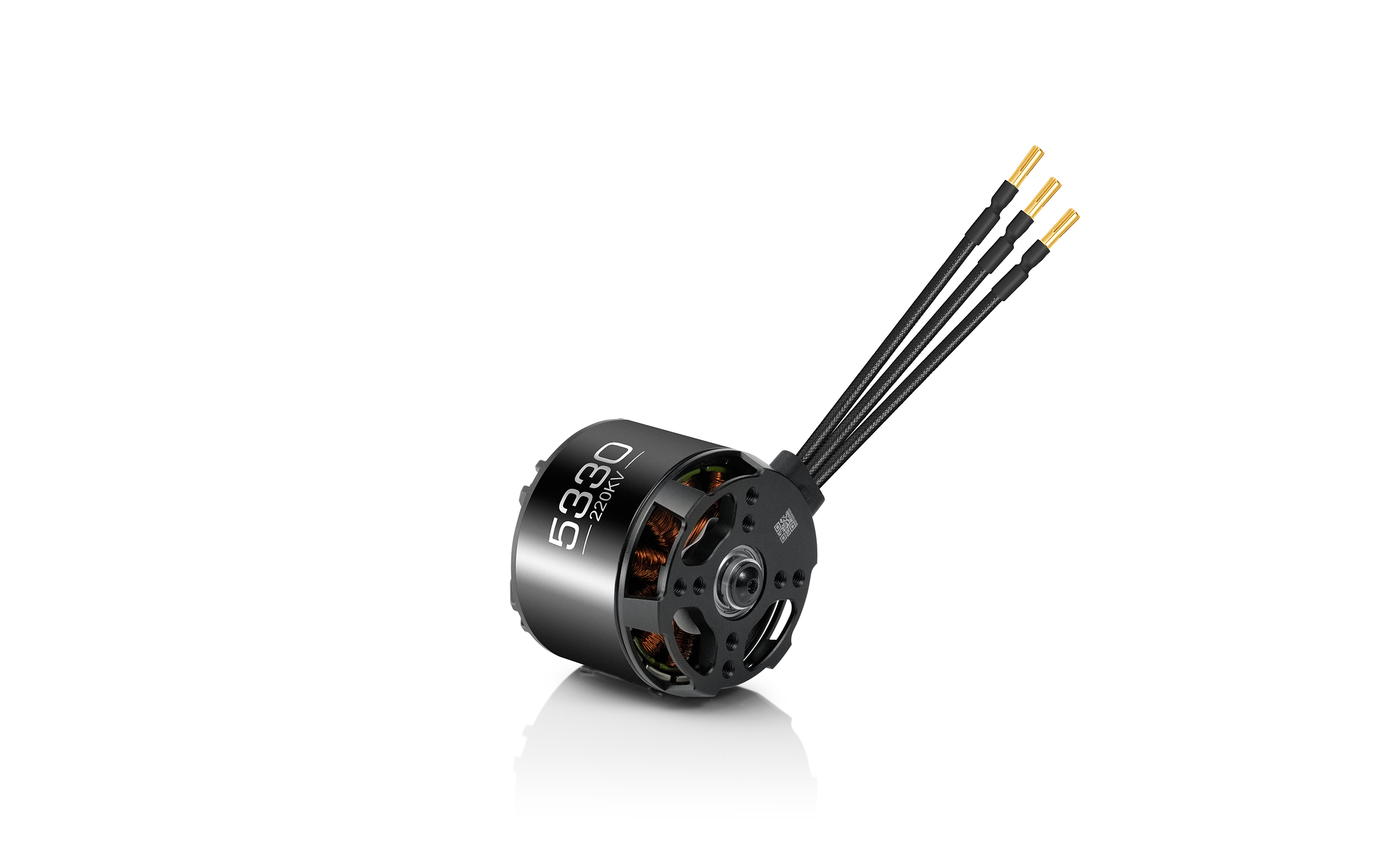

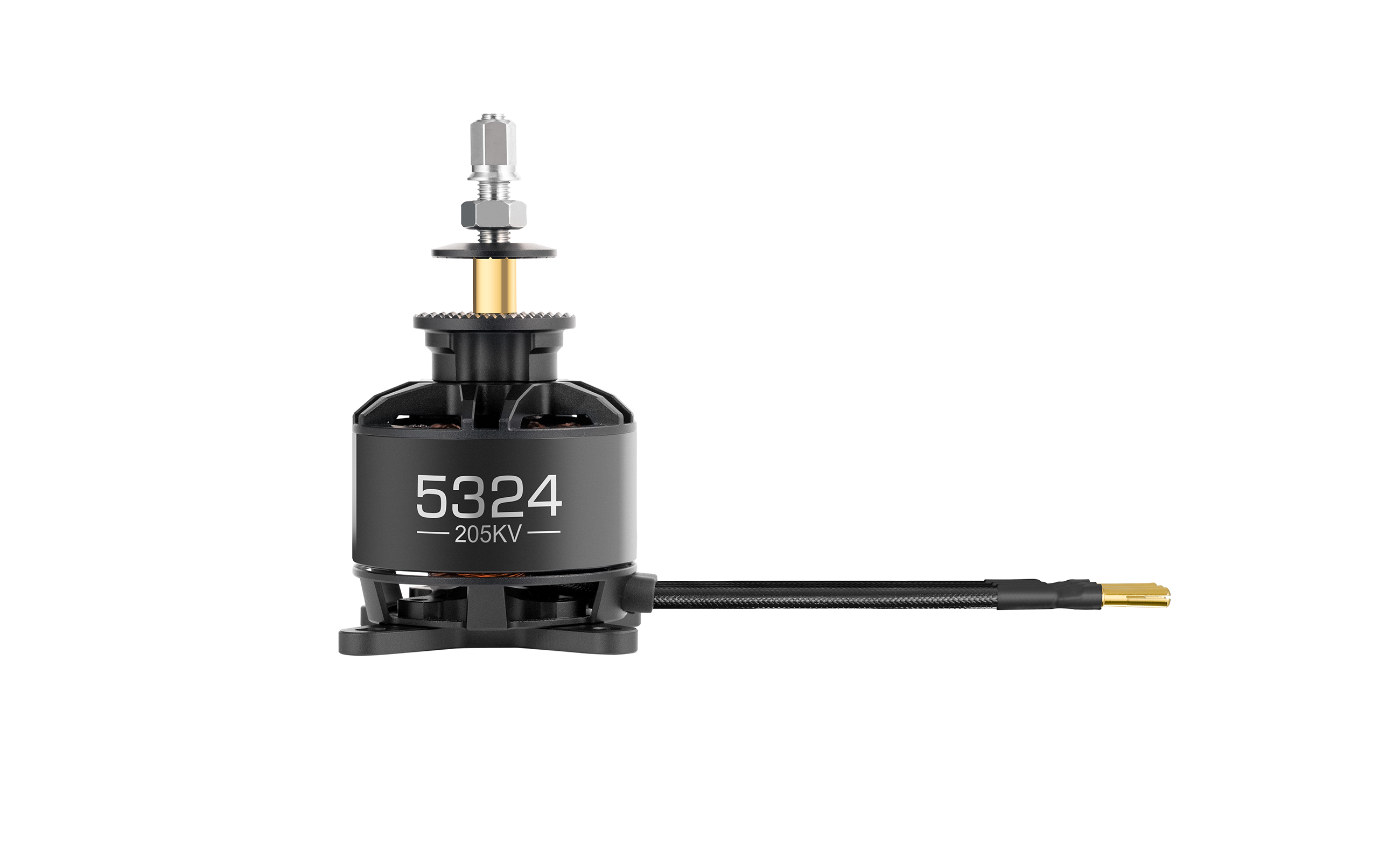

RTF 5324 5330

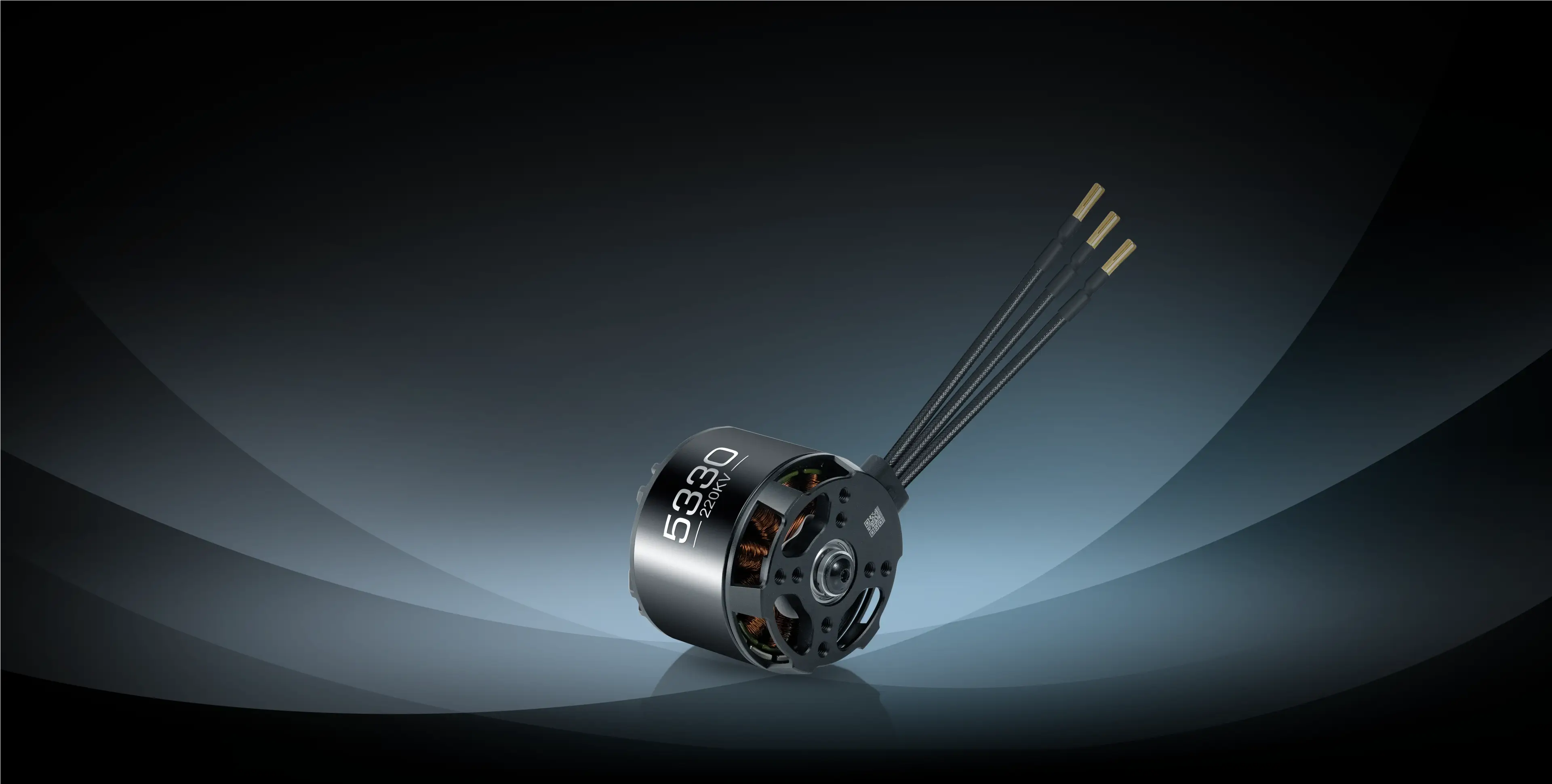

53 Series Fixed-Wing Motor
Outstanding Efficiency,
Powerful Load Performance
Powerful Load Performance

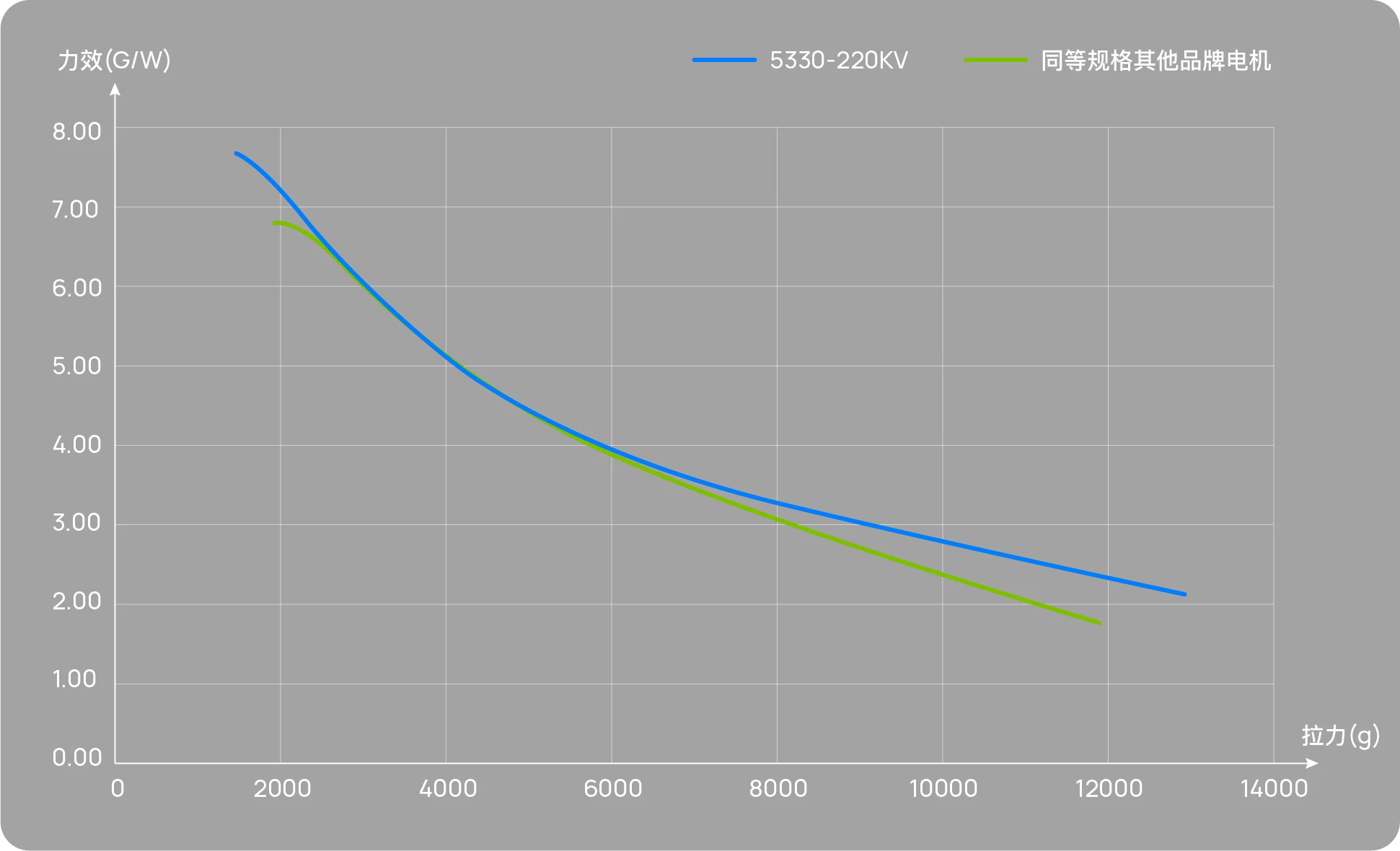

Taking the 5330-220KV as an example, compared with other motors of the same specification,
it delivers over 5%higher efficiency in the high-load operating range, ensuring more effortless
3D aerobatic flight.

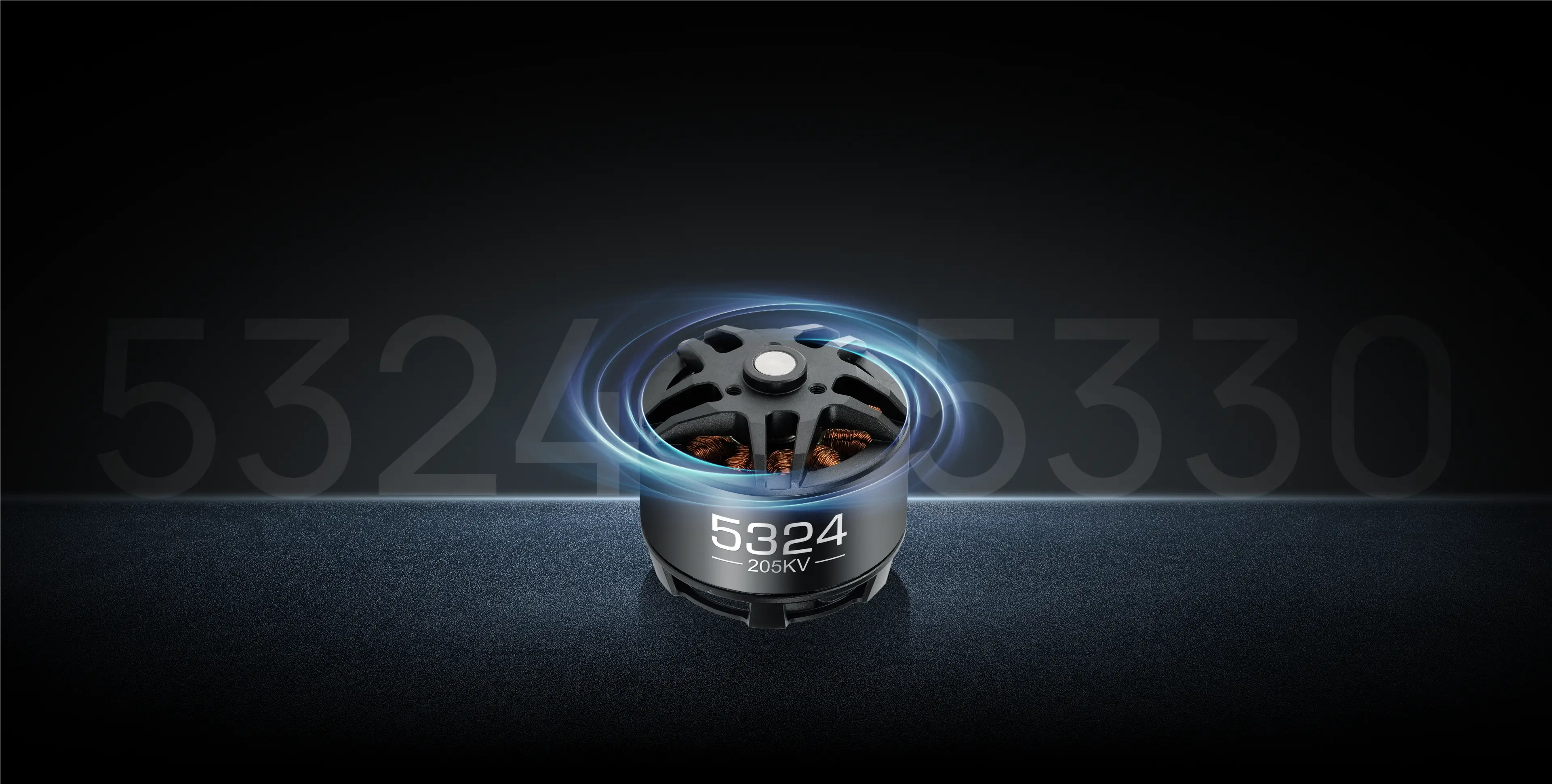

Efficient Heat Dissipation,
Sustained Output
Sustained Output
The rotor adopts a self-cooling structure that quickly dissipates heat generated by the
windings during operations. This effectively controls temperature rise, improves efficiency,
ensures continuous power output, and extends service life.
Multi-Layer
Anti-Loosening Design,
Enhanced Flight Safety
Anti-Loosening Design,
Enhanced Flight Safety

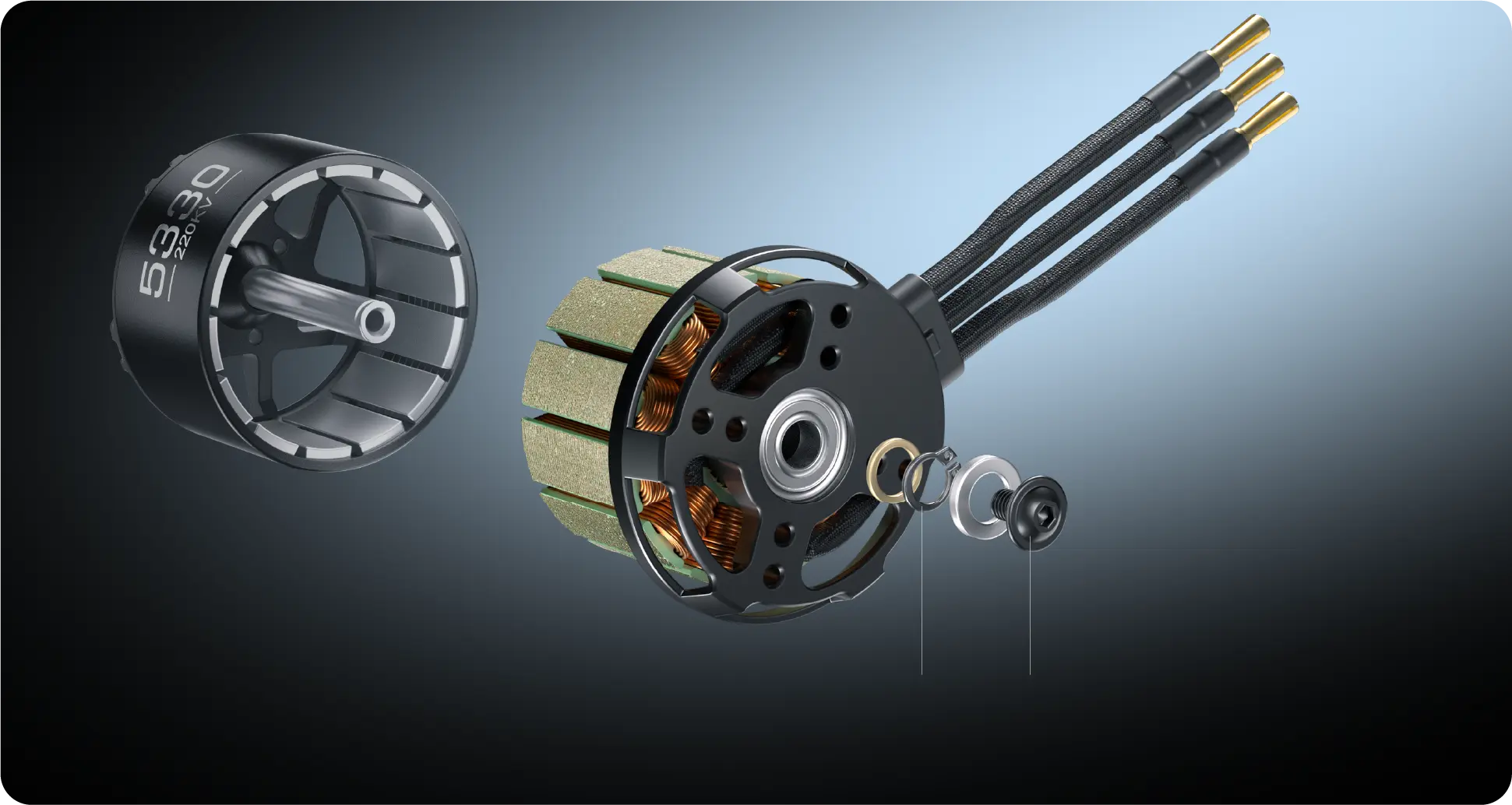

The rotor features multiple anti-loosening design
Copper pad circlip + bushing fixation are employed to prevent the motor rotor
from loosening and further improve the reliability of the motor.
Circlip
Bushing

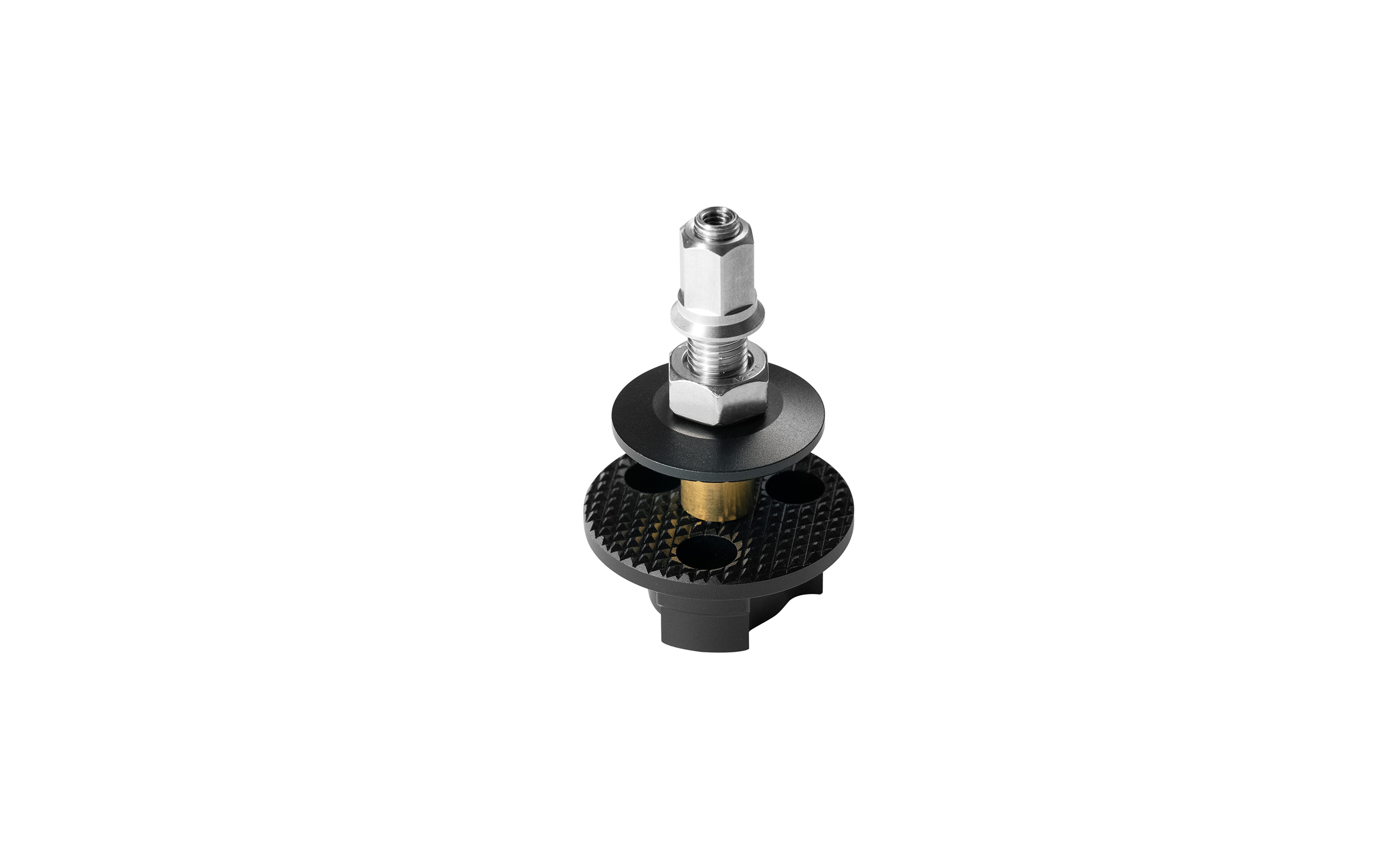

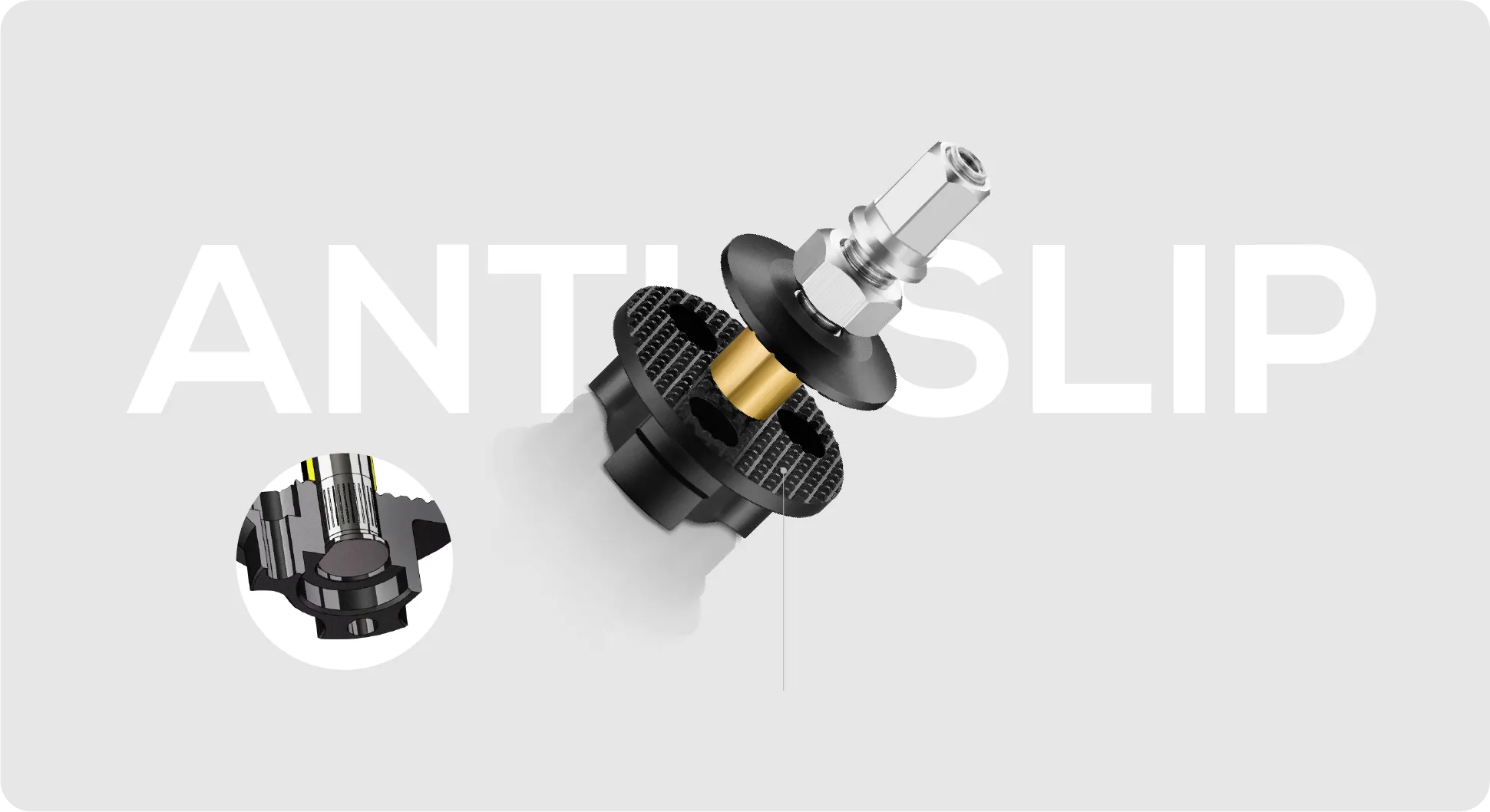

Anti-loosening propeller clamp design for safer flight
The diamond-shaped anti-slip structure of the propeller clamp seat prevents the propeller from slipping and idling
in the body. The stainless steel propeller clamp shalf has a new anti-rotational stop. The shalf and the propeller
clamp seat have an interference fit and are reinforced with glue to further improves on the durability and stability
of the entire propeller clamp body. Overall, providing users with a safer flying experience.
Anti-Rotational Stop
Diamond-shaped Anti-Slip
Propeller Clamp Seat
Propeller Clamp Seat
High-Standard
Dynamic Balance
Dynamic Balance
The rotor and the complete assembly are dynamically balanced separately,
ensuring lower vibration and smoother flight performance.
Precision Materials,
Long-Term Reliability
Long-Term Reliability

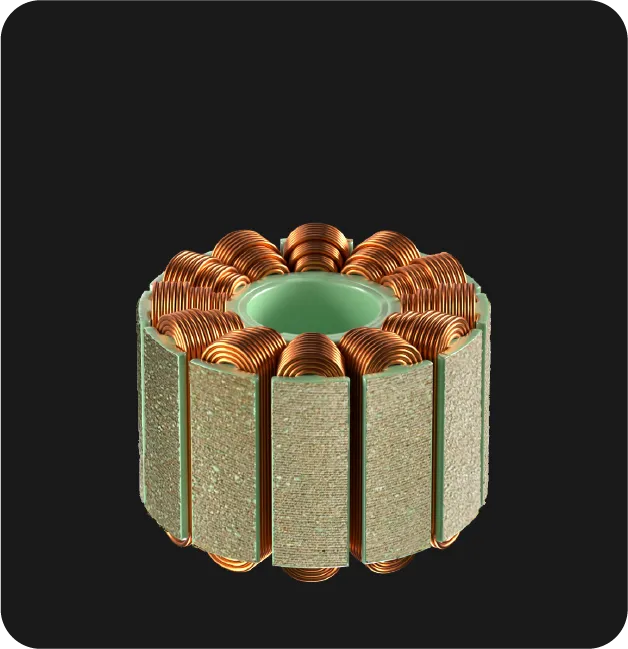

Adopts first-tier brand JNEH1200
iron core and 220℃
high-temperature resistant wire.
iron core and 220℃
high-temperature resistant wire.

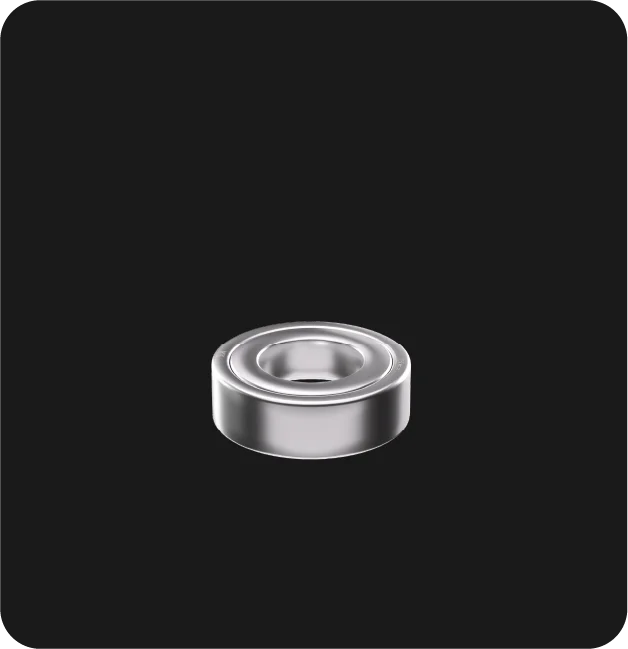

Uses international first-tier brand
bearings, adapts to various
complex scenarios.
bearings, adapts to various
complex scenarios.

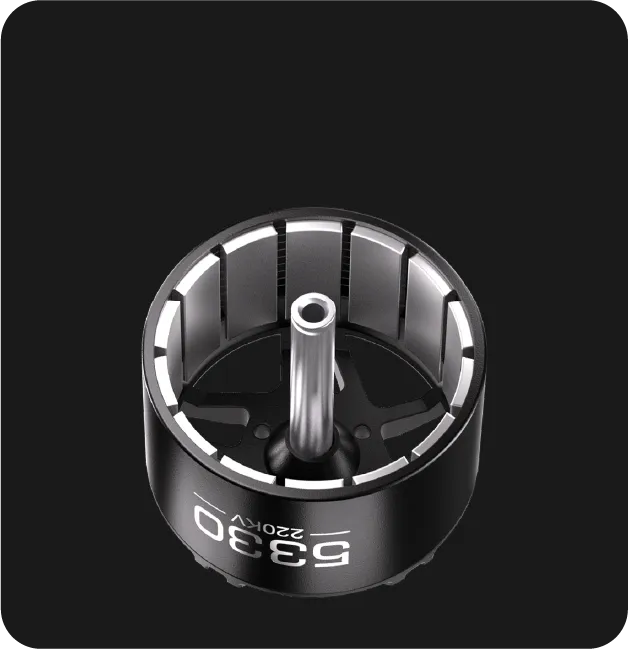

N52SH strong magnetic arc-shaped
magnetic tile design provides
powerful torque for the motor.
magnetic tile design provides
powerful torque for the motor.

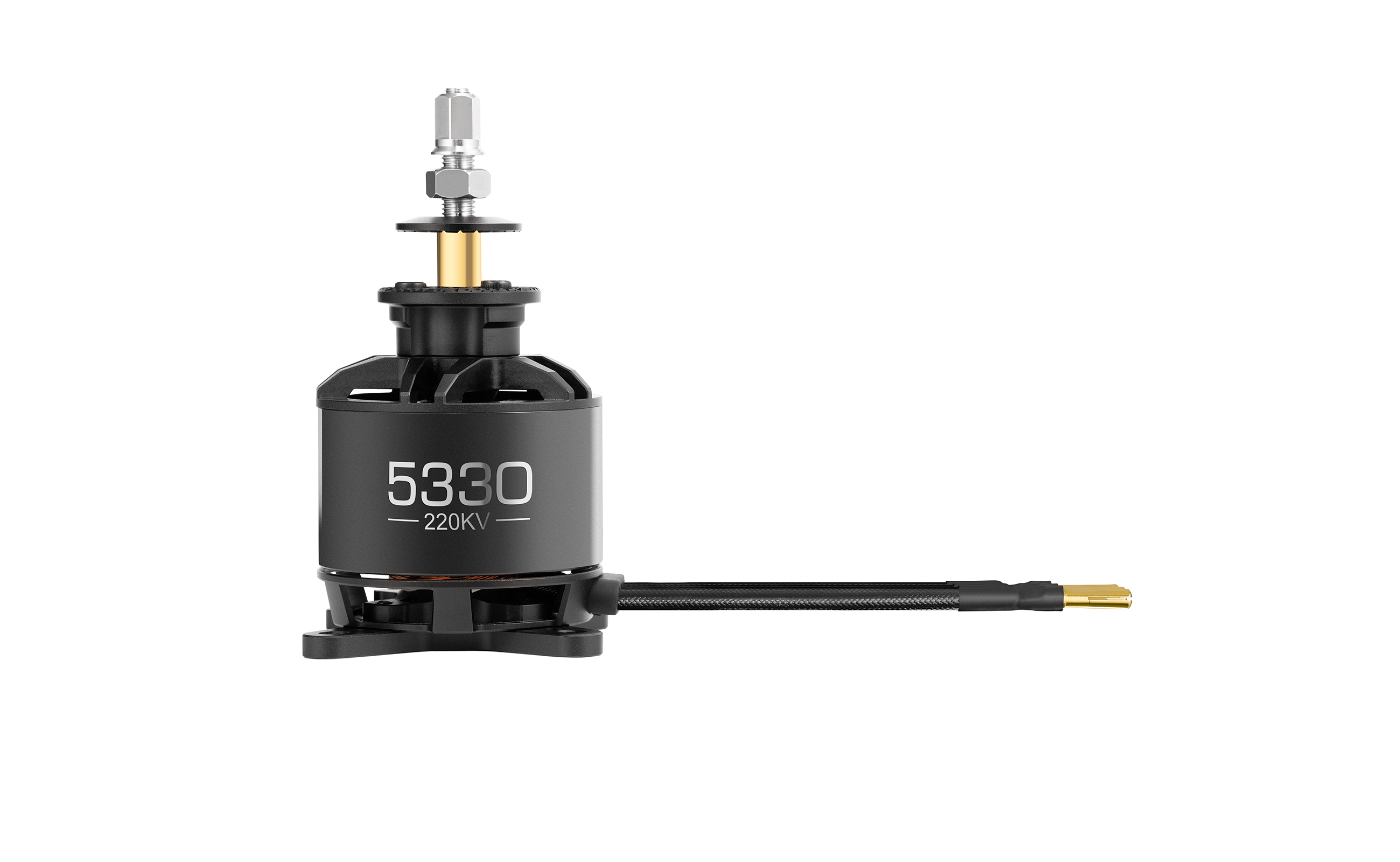

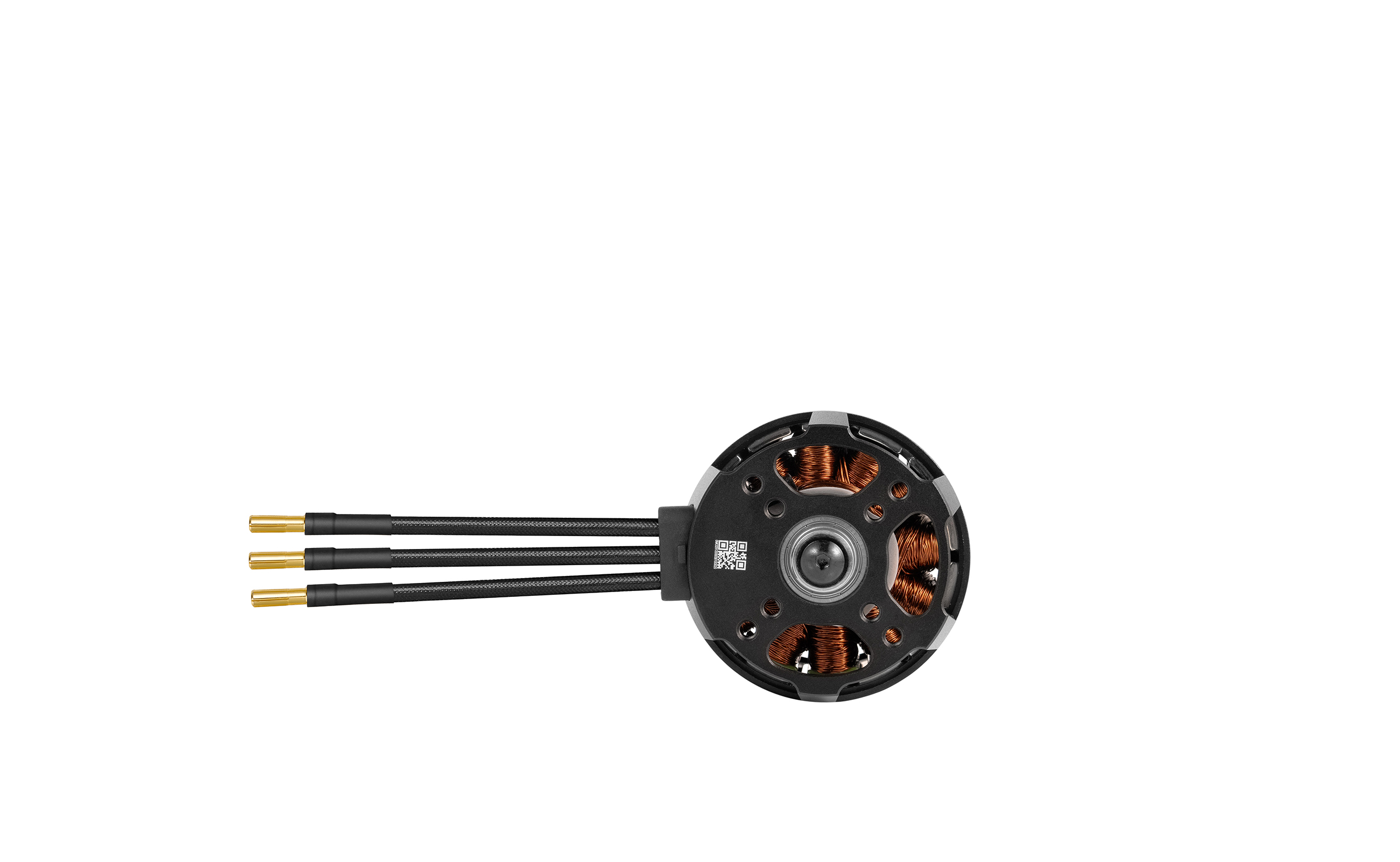

The motor's three-phase wire outlet is equipped with a
custom-made silicone rubber sheath, taking into account
both aesthetic appearance and insulation performance.
Yellow Wax custom-made silicone rubber sheath, taking into account
both aesthetic appearance and insulation performance.
Sleeve Cable
protection sleeve Insulating
washer
Product NameRTF 5324/5330
- RTF 5324 205KV
- RTF 5330 220KV
Specification
-
- Model
- Motor Size
- Slot& Pole
- Stator Size
- Bearing
- Stator process
- Motor axle diameter
- Enamelled wire
- Dimensions of mounting holes for paddle clips
- Isolation test
-
- RTF 5324 205KV BLACK V1
- Φ63*52.5mm
- 12N14P
- Φ53*24mm
- 698ZZ、1680KK
- High standard silicon steel sheet, 180℃ high temperature resistance paint-coat
- Φ30mm-4*M4,Φ44mm-4*M4
- 220℃ high temperature resistant, C class insulation
- Φ22mm-3*M4
- 500V AC high voltage resistance test
- RTF 5330 220KV BLACK V1
- Φ63*58.5mm
- 12N14P
- Φ53*30mm
- 698ZZ、1680KK
- High standard silicon steel sheet, 180℃ high temperature resistance paint-coat
- Φ30mm-4*M4,Φ44mm-4*M4
- 220℃ high temperature resistant, C class insulation
- Φ22mm-3*M4
- 500V AC high voltage resistance test
Specification
-
- KV
- Battery(LiPo)
- No-load current
- Maximum current (Non-hermetic Ambient Temperature ≤ 25℃）
- Rated power output
- Max power
- Max thrust
- Resistance
- Wire Size
- Wire length
- Weight（With wire）
-
- 205
- LiPo-12S
- 2.6A/48V
- 96A/47s
- 1587W
- 4608W/27s
- 10.9kg
- 32mΩ
- 漆包线直出线
- 120mm
- 545g
- 220
- LiPo-12S
- 3.0A/48V
- 126A/34s
- 1927W
- 6062W/34s
- 13kg
- 25mΩ
- 漆包线直出线
- 120mm
- 640g
Recommended Application Combinations
-
- Propeller
- ESC
-
- APC18x12E
- PLATINUM-HV-180A-SBEC-V5
- APC18x12E；APC19x12E
- PLATINUM-HV-180A-SBEC-V5
