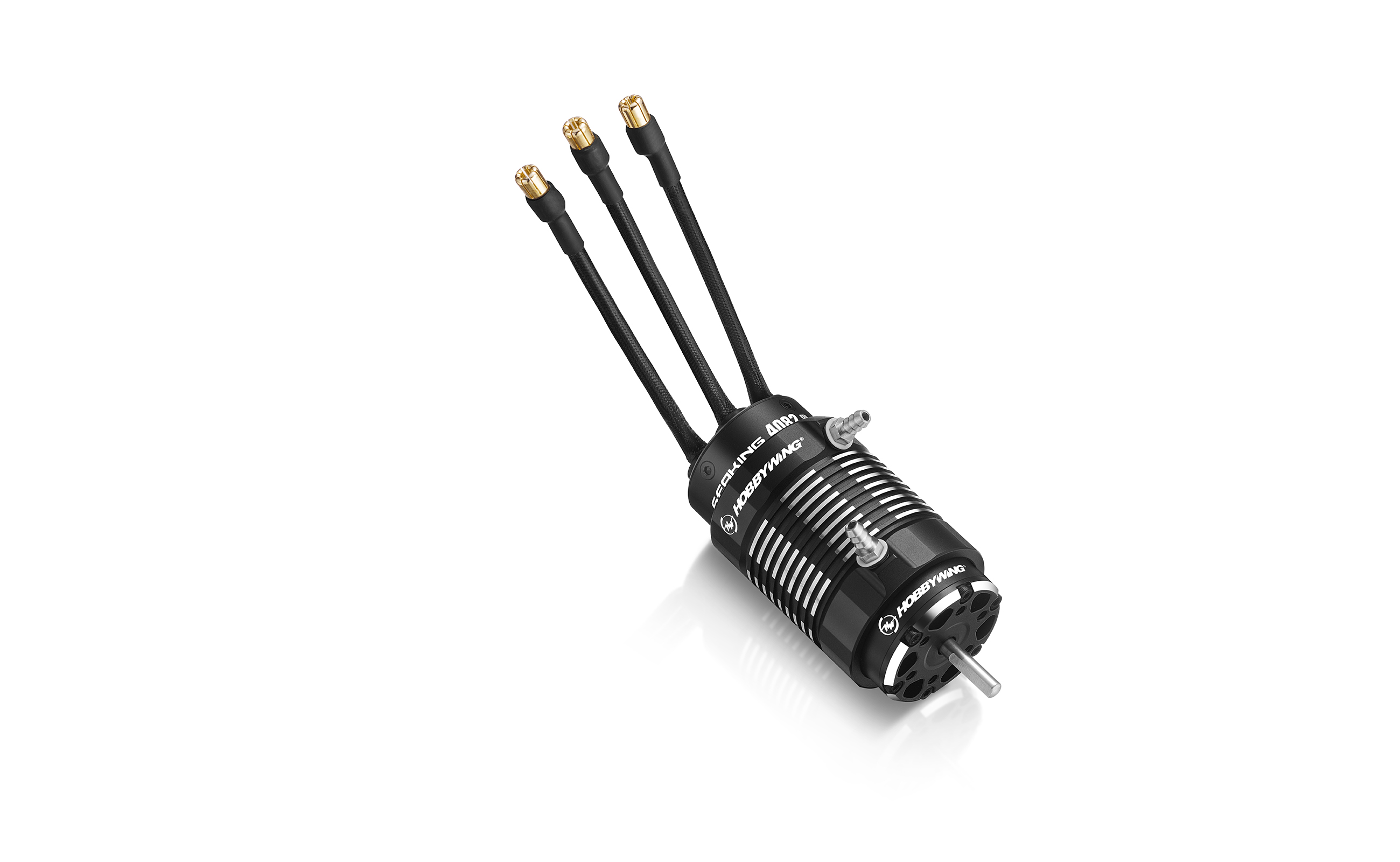

Seaking 4082 SL V2

Overview
Specifications
Support
Accessories
Detail

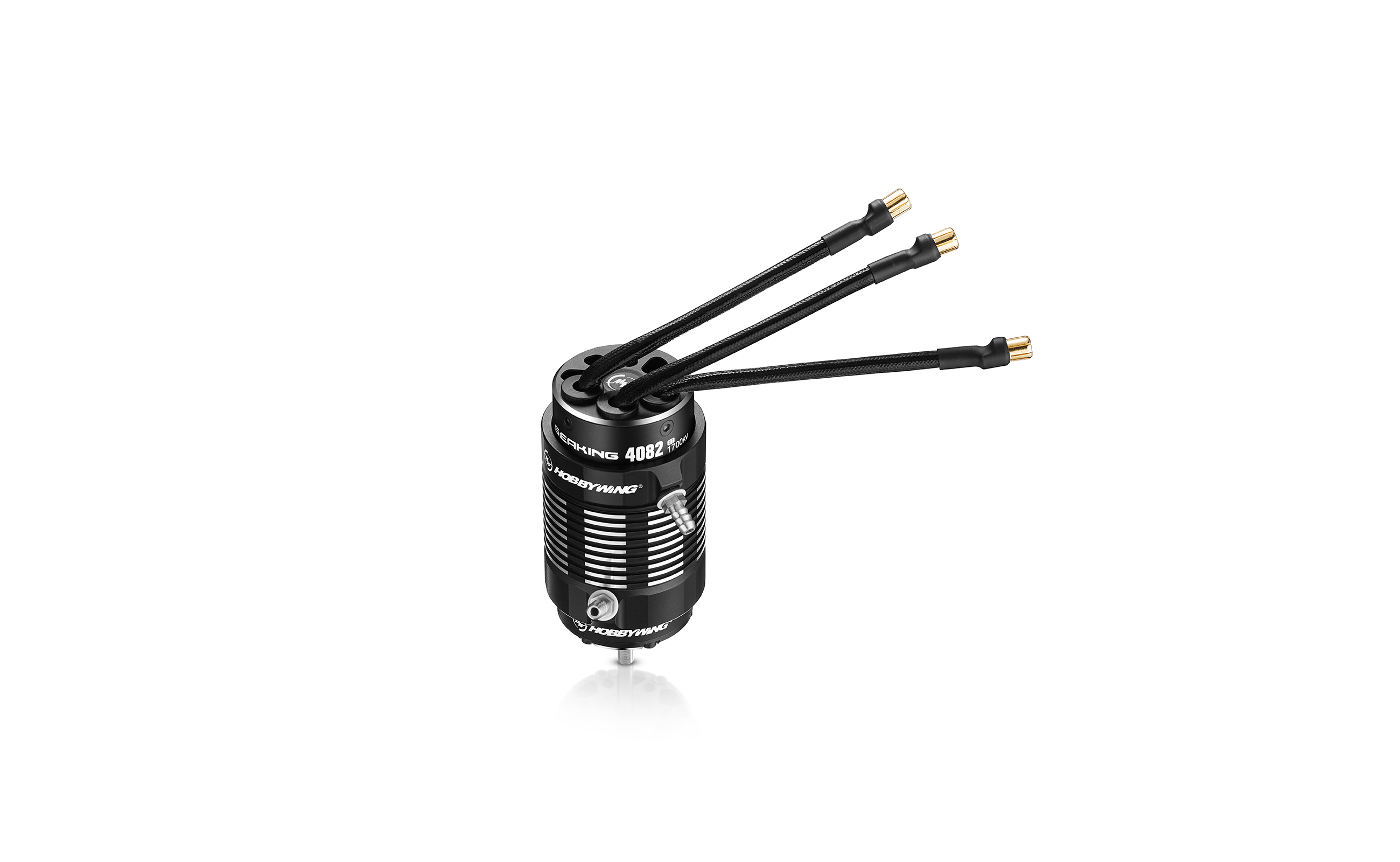

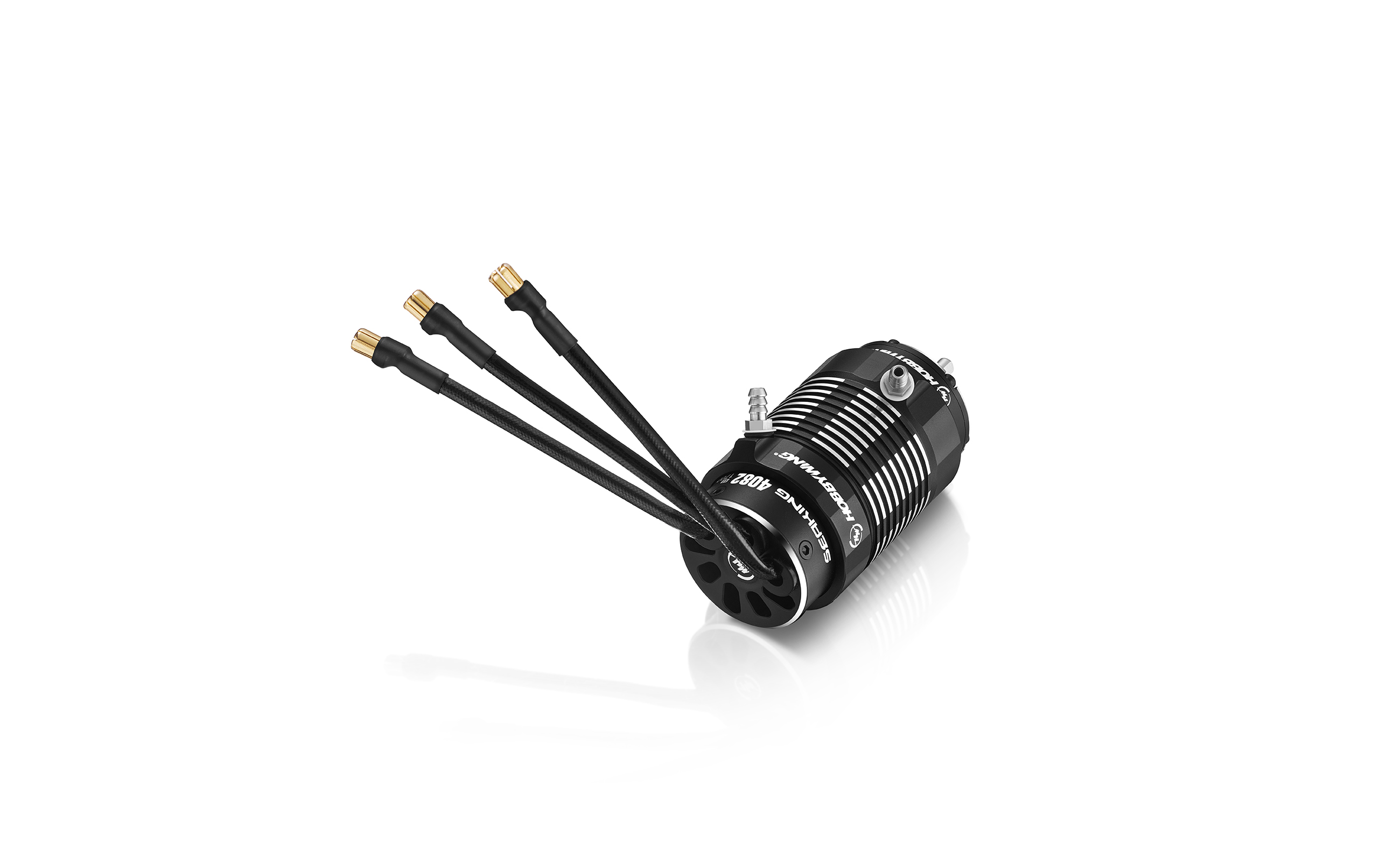

4082 SL V2

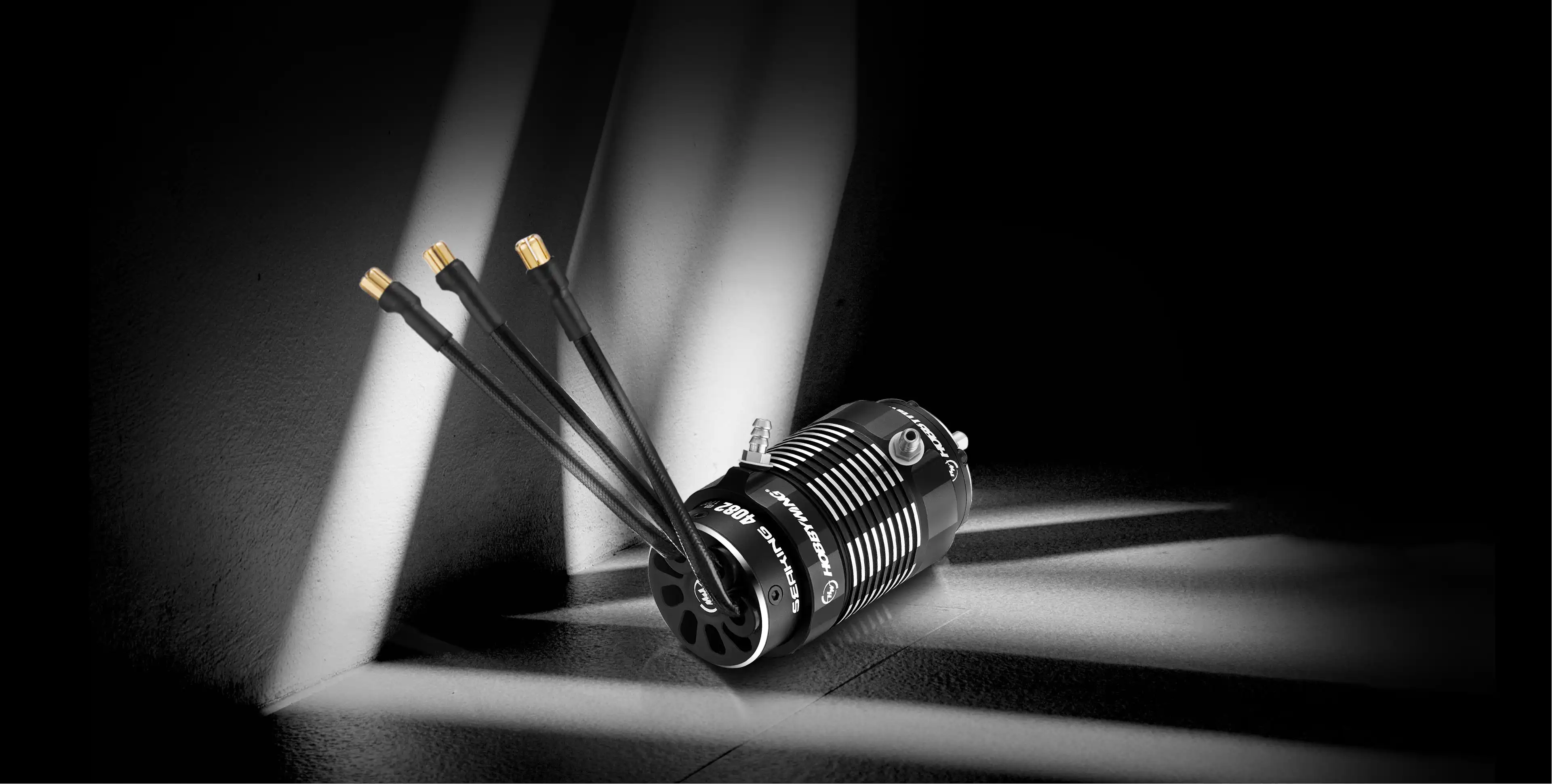

Engineered for Power
and Performance

The motor is designed
for high-performance
RC boat models.

Delivers high power
output with balanced
efficiency.

Designed for high load
extended operation.

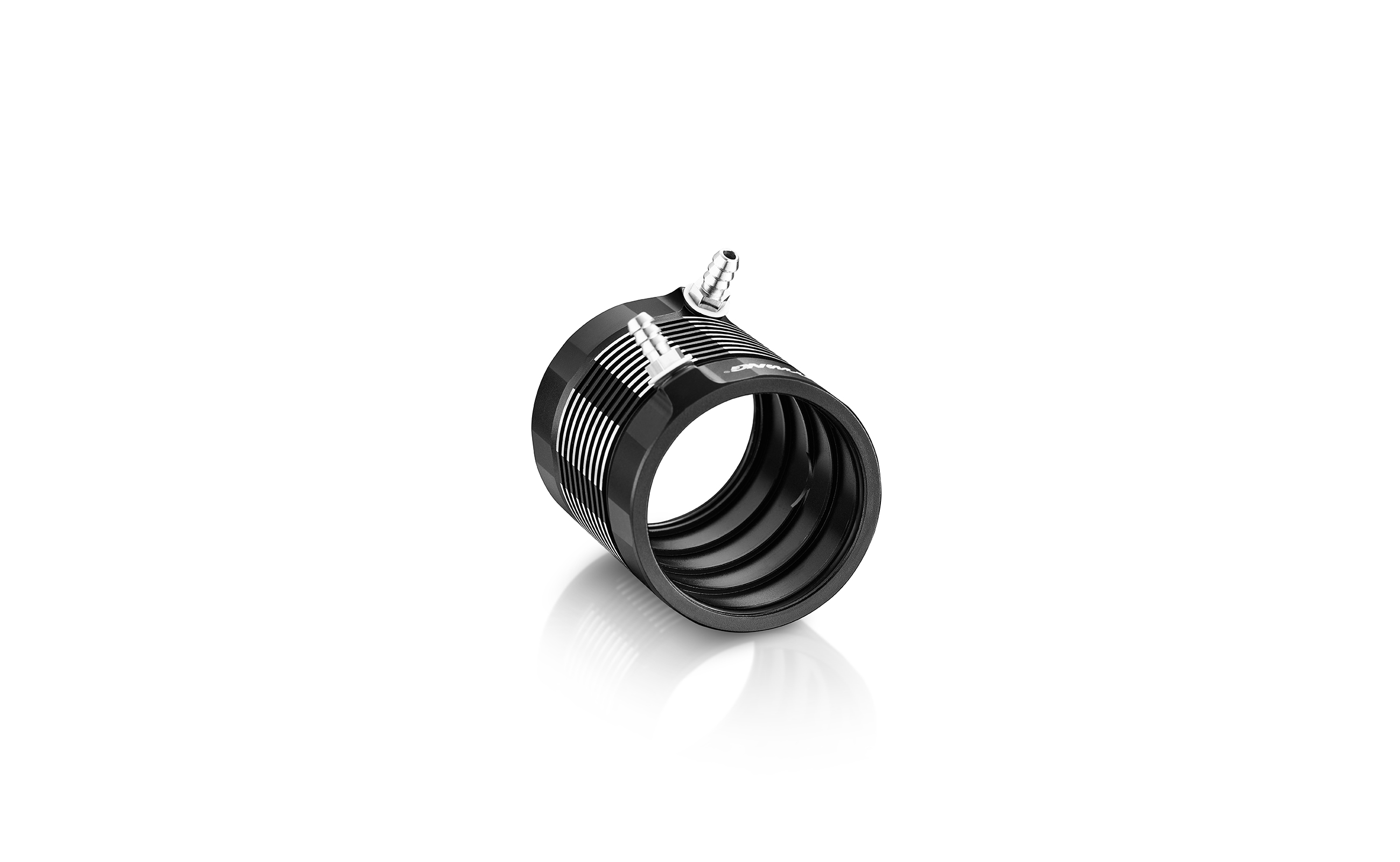

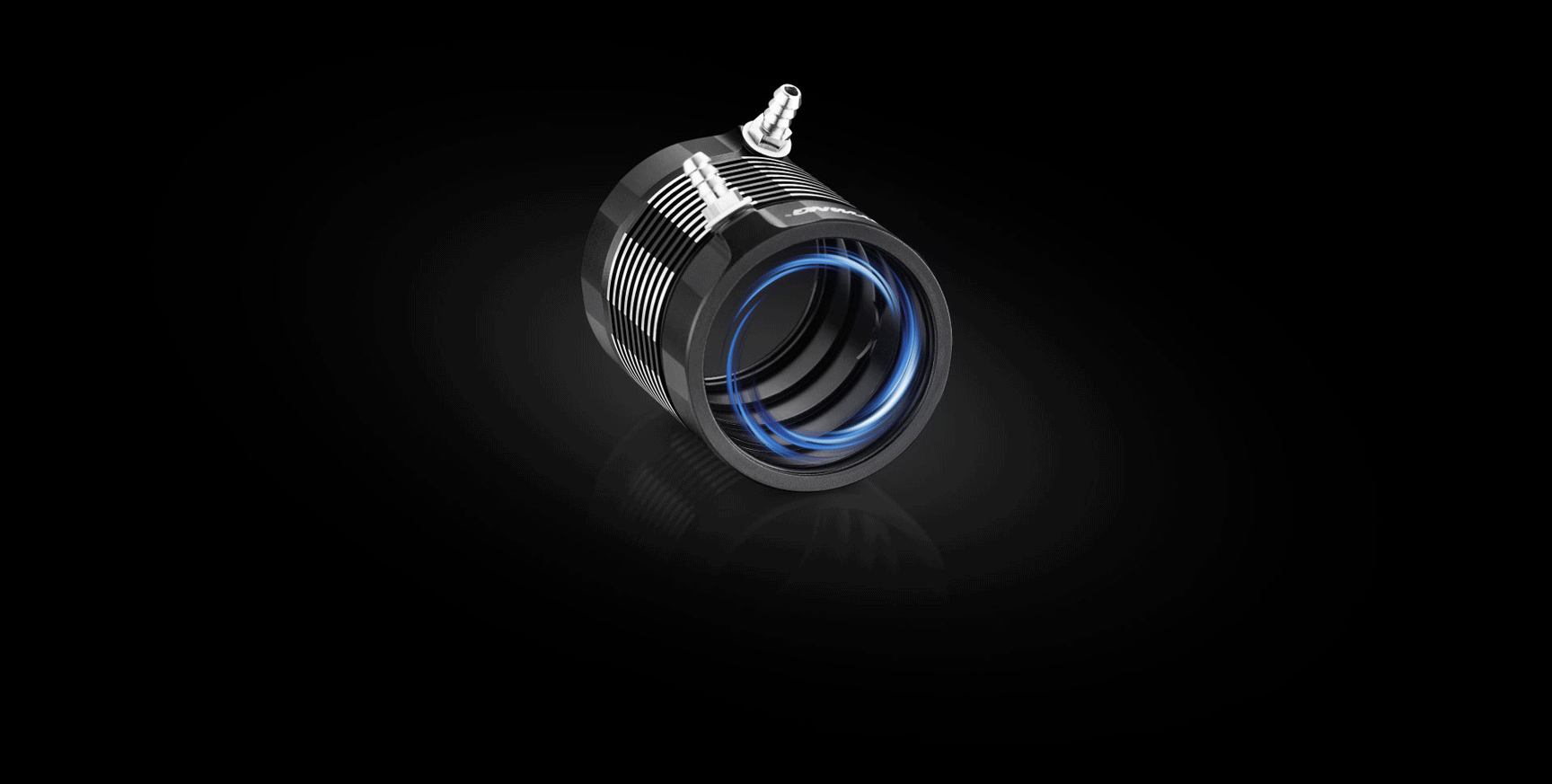

Efficient Heat Dissipation

The motor features a water cooling jacket with highly efficient internal circulation, as well as heat sink

external design for maximum heat transfer.

This helps the motor maintain higher levels of performance during extended runs.

External Cooling Fins

High-efficiency Internal
Circulation Design

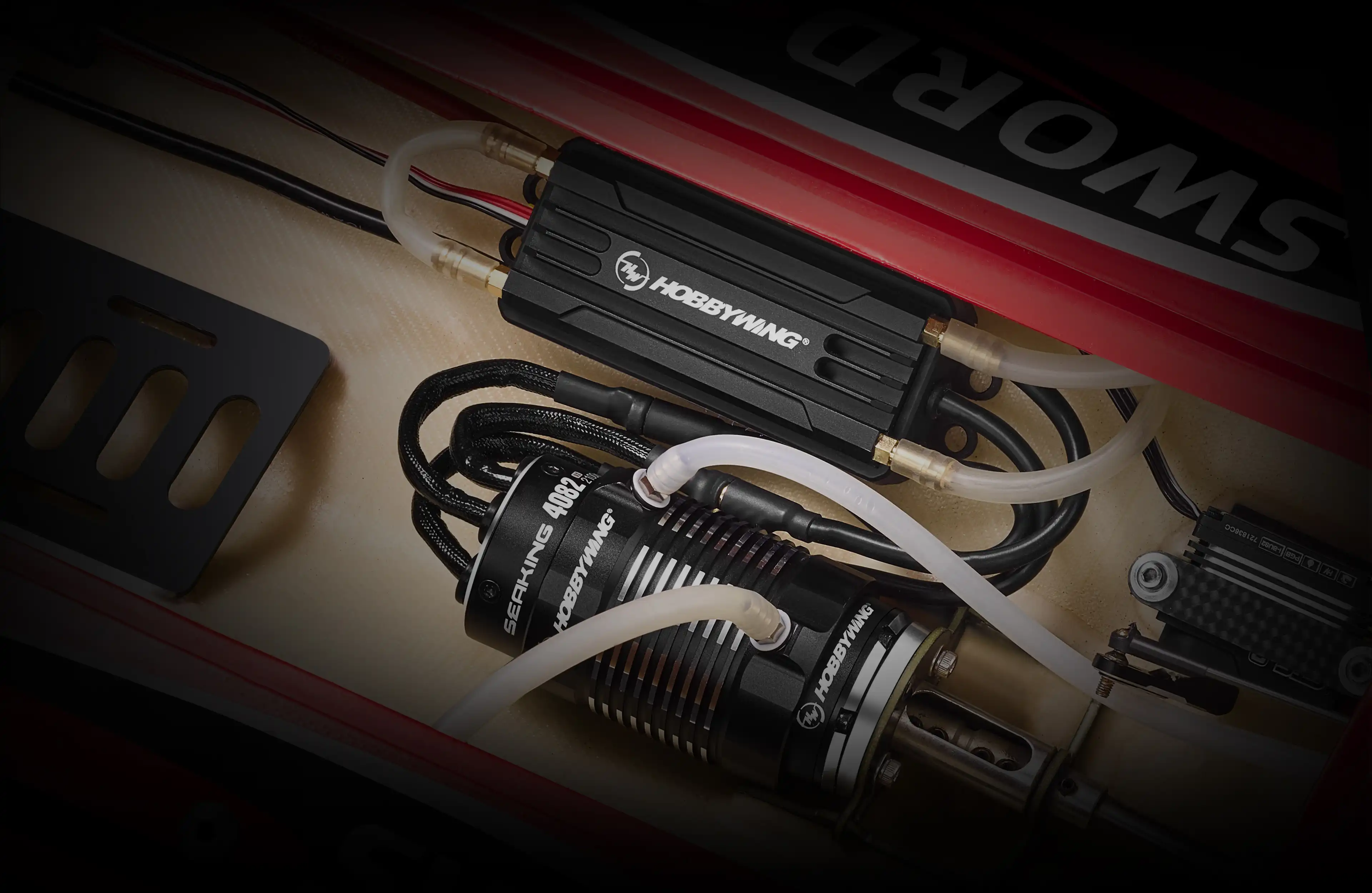

Perfectly Compatible with
SeaKing V4 Series of ESC

When paired with
SeaKing V4 series ESCs

the motor delivers
better compatibility

excellent control
performance

Designed for Performan
with Amazing Aesthetics

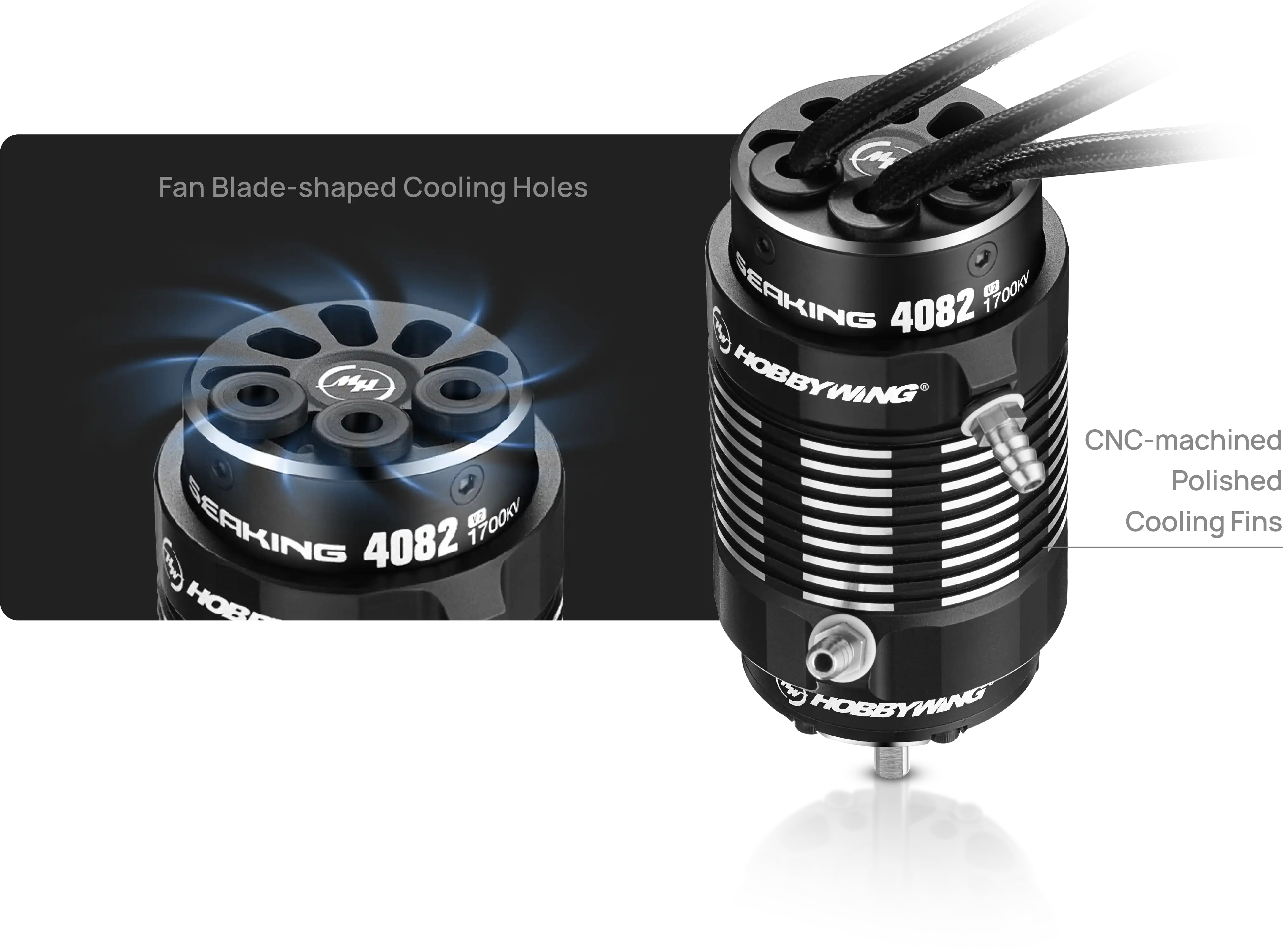

The motors case design feature specifically shaped cooling vents to promote additional cooling
The water cooling jacket is machined and polished to ensure maximum flow and heat transfer.

brushless RC motor with fan blade-shaped cooling holes

Two Options Available,
Flexible Configuration

Each motor has two optional KV values to adapt configuration
requirements for different propeller setups.

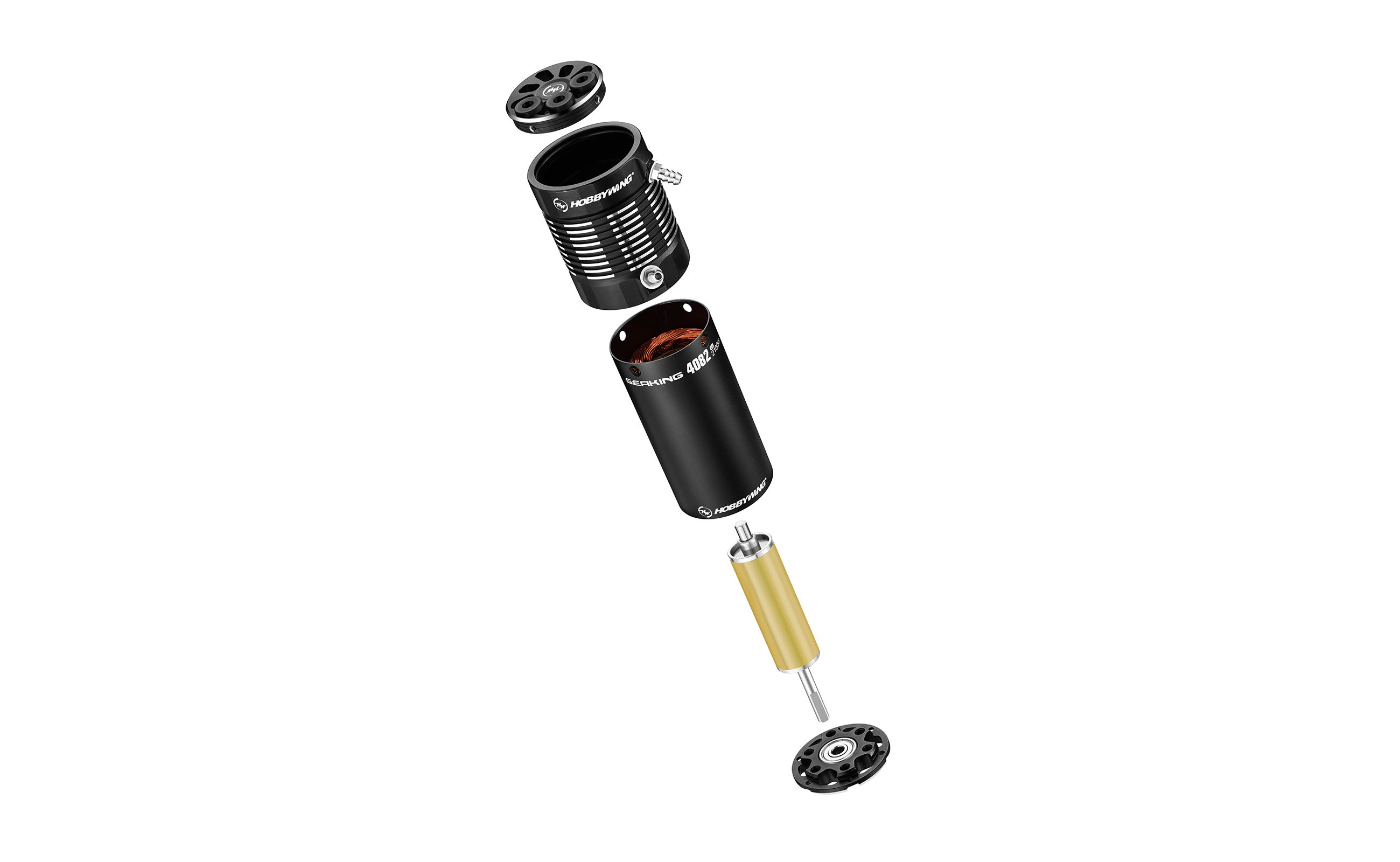

Premium Materials, Built to Last

Constructed with a high-hardness CNC aluminum housing, premium brand high-quality bearings, ultra-thin
silicon steel laminations, high-temperature oxygen-free copper wire, high-temperature explosion-proof
rotor, and high-toughness alloy output shaft. Every material is carefully selected to ensure the motor delivers long-lasting and stable performance.

High-hardness CNC
Aluminum Housing

Premium Brand
High-quality Bearings

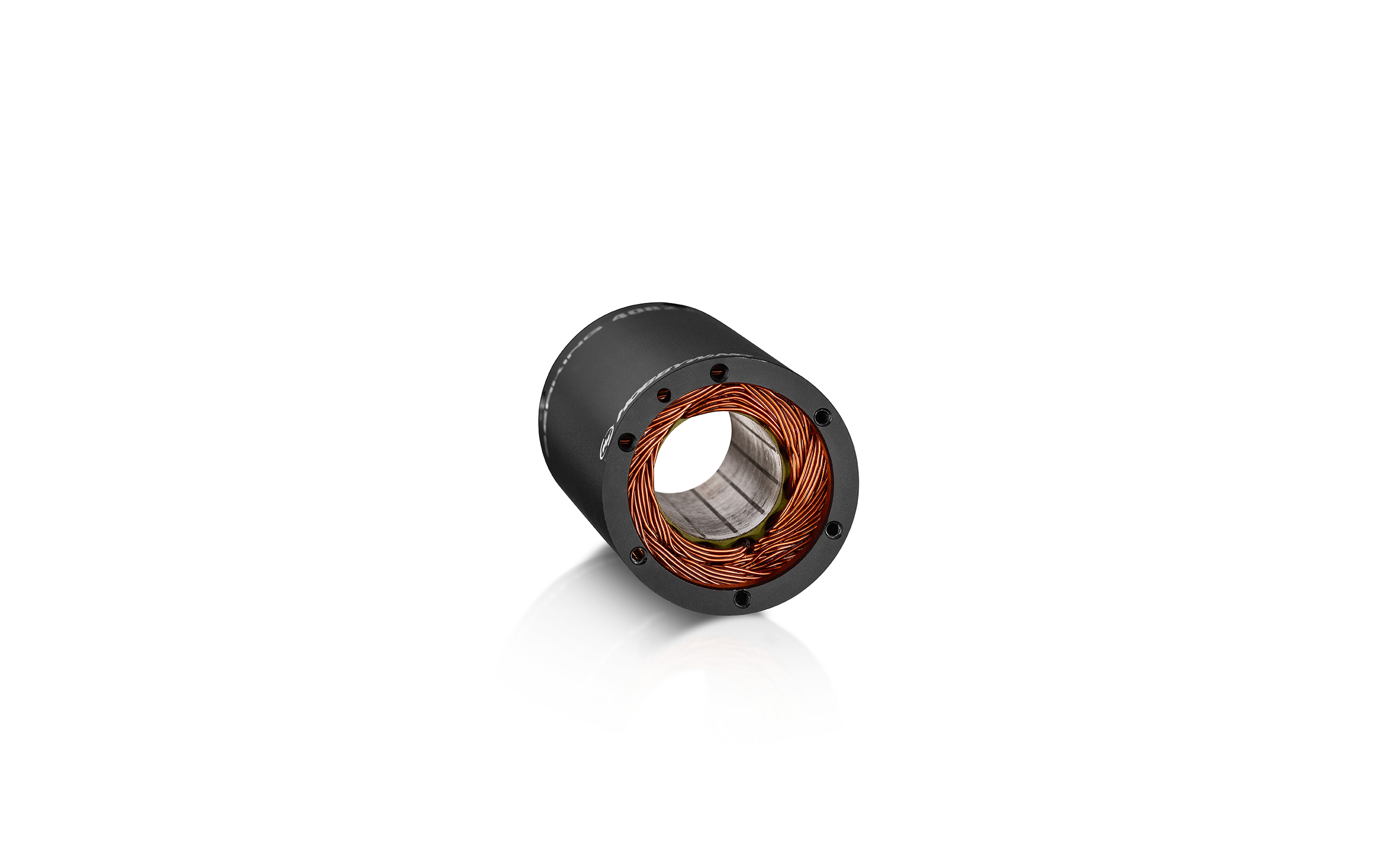

Ultra-thin Silicon
Steel Laminations

High-temperature
Oxygen-free Copper Wire

High-temperature
Explosion-proof Rotor

High-toughness
Alloy Output Shaft

High-hardness CNC
Aluminum Housing

Premium Brand
High-quality Bearings

Ultra-thin Silicon
Steel Laminations

High-temperature
Oxygen-free Copper Wire

High-temperature
Explosion-proof Rotor

High-toughness
Alloy Output Shaft

Product NameSeaking 4082 SL V2

Seaking 4082 SL 2100KV V2
Seaking 4082 SL 1700KV V2

Product Number

30419005

30419004

Type

Brushed/Brushless Sensored/Sensorless Pole

Specifications

KV Input Voltage No-load Current(A)

2100KV
3-6S
7.8A

1700KV
3-8S
5.6A

Size & Weight

O.D.(mm) Length (mm) Shaft Diameter (mm) Weight (g) Front Bearing(mm) Rear Bearing(mm)

40
82
5
490g
D16*D5*T5
D13*D5*T4

40
82
5
490g
D16*D5*T5
D13*D5*T4

Other Parameters

ESC Boat Applicable

Seaking 160A V4
Boat Length ≤120cm

Seaking 160A V4
Boat Length ≤120cm
