SkyWalker V2 Low Voltage Series

Overview
Specifications
Download
FAQ
Accessories
Detail
Contact us
Shop

Exceptional Quality with
tested Realiability

High-performance 32-bit ARM M0
processor running up to 96MHz ，
support maximum speed up to 300,000 RPM(2-pole motor).
High quality, and reliability makes
the SKYWALKER V2 series, the most cost effective option.

DEO Technology / Active Freewheeling

Flexibility
During flight
Lower ESC
temperatures
Longer
flight time

Our DEO technology (Driving Efficiency Optimization)
implemented within the ESC has multiple advantages.
Fast and smooth throttle response, better stability and flexibility during flight.
Higher driving efficiency, with longer flight times,
mean lower ESC temperatures,
while still maintaining reliable operation.

Reverse Brake

Our newest Reverse Brake and Linear Reverse Brake mode,
enable the user the experience to simulate the feeling of landing a real aircraft.
Normal Brake Mode and Brake Disabled mode are also available;
the brake amount is adjustable in normal brake mode.
(HOBBYWING's exclusive Patent )

Search Mode

With Search Mode enabled, users are now able find their missing aircraft.
This mode can also be used to prompt the user to disconnect
the battery of an ESC that has not been working for a set time to prevent the
battery from running out of power and being damaged.

Programmable Parameters

Programmable with the LED Program Box, or transmitter.
Users can easily program the SKYWALKER V2 to their preference.

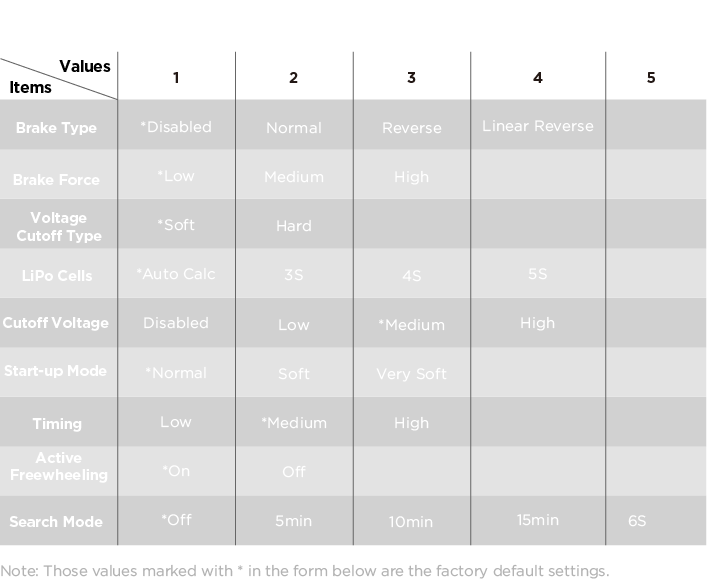

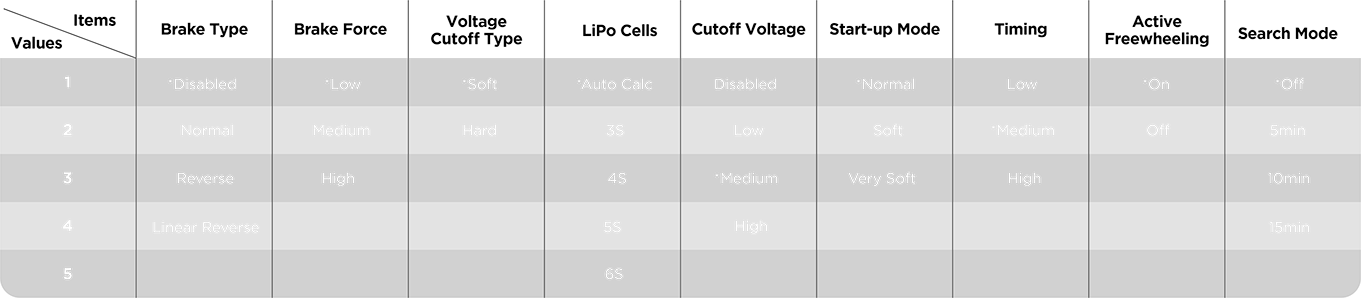

Programmable Items

Note: Those values marked with * in the form below are the factory default settings.

Multiple Protections

Multiple protection features include abnormal input voltage,
ESC thermal, throttle signal loss,
and low voltage cutoff effectively
prolongs the life of the ESC.

Abnormal
Input voltage
Low voltage
Cutoff
ESC
thermal
Throttle
Signal loss

Product Name
Product Number
Type	Brushed/Brushless High Voltage/Regular
Specifications	Cont./Peak Current Input BEC Output
Wires & Connectors	Input Wires Output Wires Input Connectors Output Connecotors
ESC Programing via	Transmitter LED Program Card LED Program Box LCD Program Box WiFi Module OTA Programmer Program Port
Firmware	Firmware Upgrade
Size & Weight	Size Weight

Product Name

Skywalker 100A V2

Skywalker 80A V2

Skywalker 60A V2

Skywalker 50A-6S V2

Skywalker 50A V2

Skywalker 40A V2

Skywalker 30A V2

Skywalker 20A V2

Skywalker 30A V2 Mini

Skywalker 20A V2 Mini

Skywalker 15A V2

Product Number

80060441

80060440

30216101

30216400

80060442

80060022

30205351

30205200

30205202

30205201

30205150

Type

Brushed/Brushless

High Voltage/Regular

BL

Regular

Specifications

Cont./Peak Current

Input

BEC Output

100A/120A

3-6S LiPo

Switch Mode:5V,7A

80A/100A

3-6S LiPo

Switch Mode:5V,7A

60A/80A

3-6S LiPo

Switch Mode:5V,7A

50A/70A

3-6S LiPo

Switch Mode:5V,6A

50A/70A

3-4S LiPo

Switch Mode:5V,5A

40A/60A

3-4S LiPo

Switch Mode:5V,5A

20A/40A

2-3S LiPo

Linear Mode:5V,3A

30A/50A

2-4S LiPo

Switch Mode:5V,3A

20A/40A

2-4S LiPo

Switch Mode:5V,2A

15A/30A

2-3S LiPo

Linear Mode:5V,2A

Wires & Connectors

Input Wires

Output Wires

Input Connectors

Output Connecotors

Red-10AWG-150mm*1

Black-10AWG-150mm*1

Black-12AWG-100mm*3

No

4.0 Gold Connectors (Female)

Red-12AWG-150mm*1

Black-12AWG-150mm*1

Black-14AWG-100mm*3

No

4.0 Gold Connectors (Female)

Red-12AWG-100mm*1

Black-12AWG-100mm*1

Black-14AWG-100MM*3

No

4.0 Gold Connectors (Female)

Red-14AWG-100mmx1

Black-14AWG-100mmx1

Black-14AWG-100mmx3

No

3.5 Gold Connectors (Female)

Red-14AWG-100mm*1

Black-14AWG-100mm*1

Black-16AWG-75mm*3

No

3.5 Gold Connectors (Female)

Red-16AWG-100mm*1

Black-16AWG-100mm*1

Black-18AWG-75mm*3

No

3.5Gold Connectors (Female)

Red-16AWG-150mm*1

Black-16AWG-150mm*1

Black-16AWG-100mm*3

No

3.5 Gold Connectors (Female)

Red-18AWG-150mm*1

Black-18AWG-150mm*1

Black-18AWG-100mm*3

No

2.0Gold Connectors (Female)

Red-18AWG-100mm*1

Black-18AWG-100mm*1

Black-20AWG-75mm*3

No

2.0 Gold Connectors (Female)

ESC Programing via

Transmitter

LED Program Card

LED Program Box

LCD Program Box

WiFi Module

OTA Programmer

Program Port

Supported

Not Supported

Supported

Not Supported

Not Supported

Not Supported

Program Wire Firmware

Supported

Not Supported

Supported

Not Supported

Not Supported

Not Supported

Program Wire

Firmware

Firmware Upgrade

Not Supported

Size & Weight

Size

Weight

85x36x9mm

92g

85x36x9mm

79g

73x30x12mm

68g

60x25x8mm

36g

60x25x8mm

33g

45x23x8mm

19g

44x18x10mm

23g

34x15x10mm

15g

38x17x5mm

10g

Support

Manuals & Documents

Disclaimer

The purpose of this website is only to introduce you to the basic situation of HOBBYWING company and product information. Unless otherwise stated, all information provided on this website should not be regarded as an offer or acceptance, and this website will not assume any binding obligations to you as a result of the provision of information. For all your requests, HOBBYWING reserves the full right to decide whether to commit or not.

This Website and its contents are provided for your convenience on an "as is" basis and your use of this Website is at your sole risk. HOBBYWING does not guarantee that this website will be uninterrupted or error-free, and reserves the right to amend this website or withdraw access to this Website at any time. We make no warranties, express or implied, as to the content, existence, accuracy or reliability of this Website, including, but not limited to, warranties of title, non-infringement or implied warranties of merchantability or fitness for a particular purpose or use.

HOBBYWING shall not be liable for any direct, indirect, incidental, special or consequential damages, loss of profits or business interruption caused by the use or inability to use the services provided by the Website, even if HOBBYWING has been advised of the possibility of similar losses. The exclusions and limitations of the warranty liability of HOBBYWING shall be effective to the extent permitted by applicable law.

HOBBYWING shall not be liable for any damage or loss to your computer system or any other software, hardware, IT system or property caused by viruses or other destructive programs caused by accessing, viewing and using this website or downloading any content from this Website (including but not limited to 2D model files, 3D model files).

HOBBYWING shall not be liable for any direct or indirect damage or loss caused by any third party using illegal means to access the website to obtain the relevant passwords, information and content.

If you or your company is located in the United States or Canada, you need to fill out this disclaimer confirmation letter online and submit it successfully before you can download the relevant materials you are interested in. The link address you fill in online is https://www.hobbywingdirect.com/pages/digital-file-release-form

If you do not agree with this disclaimer, please do not continue to this page. If you continue to access, browse and use this interface, you have read, understood and agreed to be bound by this statement and comply with all applicable laws and regulations.

HOBBYWING reserves the right to correct, modify and update this statement at any time.

Confirm >

Skywalker V2 Manuals

LED Program Box

Part Number : 30501003
Size : 88x58x14mm（LxWxH）

Hobbywing SkyWalker V2 Low Voltage Series
