Voltage(V) |
Propeller |
Throttle(%) |
Thrust(g) |
Current(A) |
Power Input(W) |
Speed(RPM) |
Efficiency(g/W) |
Torque(N·m) |
Power Output(W) |
Motor Temperature(℃) |
|---|---|---|---|---|---|---|---|---|---|---|
|
92V（24S LiPo） |
45x18 |
33% |
12997 |
15.6 |
1432.3 |
1606 |
9.1 |
6.63 |
1114.1 |
/ |
|
35% |
14335 |
17.6 |
1619.3 |
1684 |
8.9 |
7.29 |
1285.6 |
|||
|
37% |
15859 |
20.2 |
1855.5 |
1769 |
8.5 |
8.06 |
1492.6 |
|||
|
39% |
17520 |
23.2 |
2137.0 |
1858 |
8.2 |
8.90 |
1732.4 |
|||
|
42% |
20186 |
28.6 |
2631.4 |
1993 |
7.7 |
10.28 |
2145.0 |
|||
|
45% |
22981 |
34.7 |
3192.6 |
2126 |
7.2 |
11.73 |
2611.4 |
|||
|
48% |
25847 |
41.3 |
3801.5 |
2252 |
6.8 |
13.23 |
3118.6 |
|||
|
51% |
28756 |
48.3 |
4445.6 |
2373 |
6.5 |
14.74 |
3663.1 |
|||
|
54% |
31705 |
55.7 |
5120.7 |
2487 |
6.2 |
16.28 |
4238.8 |
|||
|
57% |
34711 |
63.4 |
5830.3 |
2596 |
6.0 |
17.84 |
4848.7 |
|||
|
60% |
37800 |
71.6 |
6584.4 |
2703 |
5.7 |
19.44 |
5501.3 |
|||
|
63% |
41007 |
80.5 |
7398.7 |
2808 |
5.5 |
21.10 |
6202.9 |
|||
|
66% |
44365 |
90.2 |
8293.9 |
2912 |
5.3 |
22.84 |
6963.2 |
|||
|
69% |
47900 |
101.1 |
9294.5 |
3018 |
5.2 |
24.68 |
7798.6 |
|||
|
72% |
51627 |
113.4 |
10426.8 |
3126 |
5.0 |
26.64 |
8718.6 |
|||
|
75% |
55539 |
127.4 |
11714.1 |
3235 |
4.7 |
28.72 |
9728.0 |
|||
|
78% |
59607 |
143.2 |
13169.6 |
3345 |
4.5 |
30.92 |
10829.1 |
|||
|
81% |
63767 |
160.7 |
14783.5 |
3455 |
4.3 |
33.20 |
12012.6 |
|||
|
84% |
67921 |
179.5 |
16509.8 |
3562 |
4.1 |
35.52 |
13247.6 |
|||
|
87% |
71924 |
198.5 |
18256.0 |
3661 |
3.9 |
37.76 |
14475.9 |
|||
|
90% |
75583 |
216.2 |
19885.6 |
3748 |
3.8 |
39.80 |
15620.9 |
|||
|
100% |
81662 |
244.9 |
22524.6 |
3878 |
3.6 |
43.09 |
17498.6 |
-
Drone Propulsion Systems
-
- INTEGRATED PROPULSION SYSTEM Innovation and Performance for a simplified assembly.
- X Series
- H Series
- P Series
-
-
-
- PROPELLER Superior efficiency, exceptional stability.
- Carbon Plastic Propeller
- Carbon Fiber Propeller
-
- CENTRIFUGAL NOZZLE Efficient atomizing, precise spraying.
- 9L
-
- WATER PUMP Minimal maintenance, long service life.
- 5L
- 8L
- 30L
-
- PROPULSION SYSTEM Innovation and Performance for a simplified assembly.
- P Series
-
-
-
- PROPELLER Powerful burst, high intensity.
- Carbon Fiber Propeller
-
- Fixed-Wing UAV Cruise Motor Convenient, efficient and stable.
- 62XX
- 72XX
- 80XX
- 100XX
-
-
- PROPELLER Carbon Plastic Propeller
- Carbon Plastic Propeller
-
-
RC Power Systems
- e-Vehicle Power Systems
- Service and Support
VTOL Rotor Propulsion

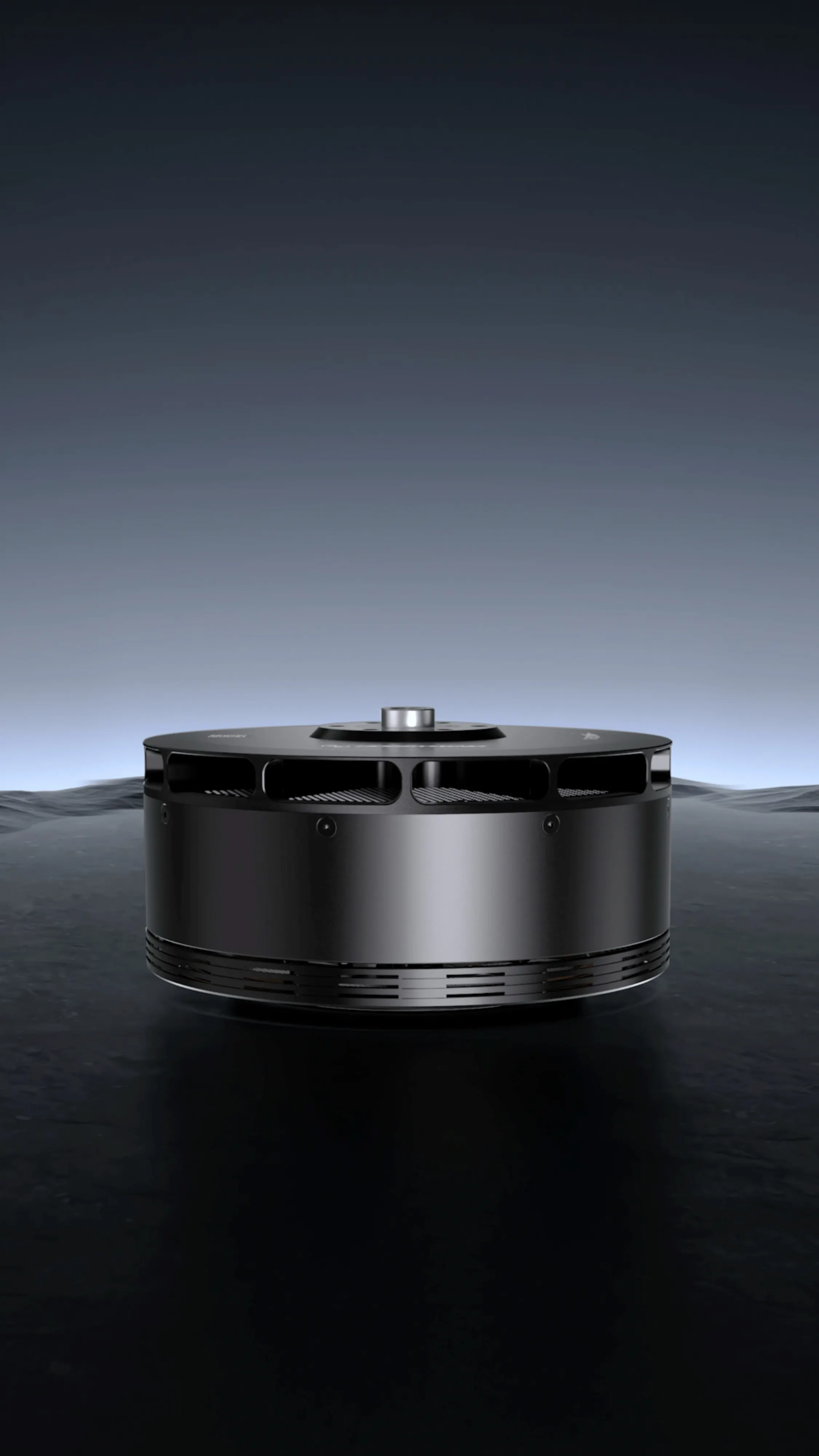

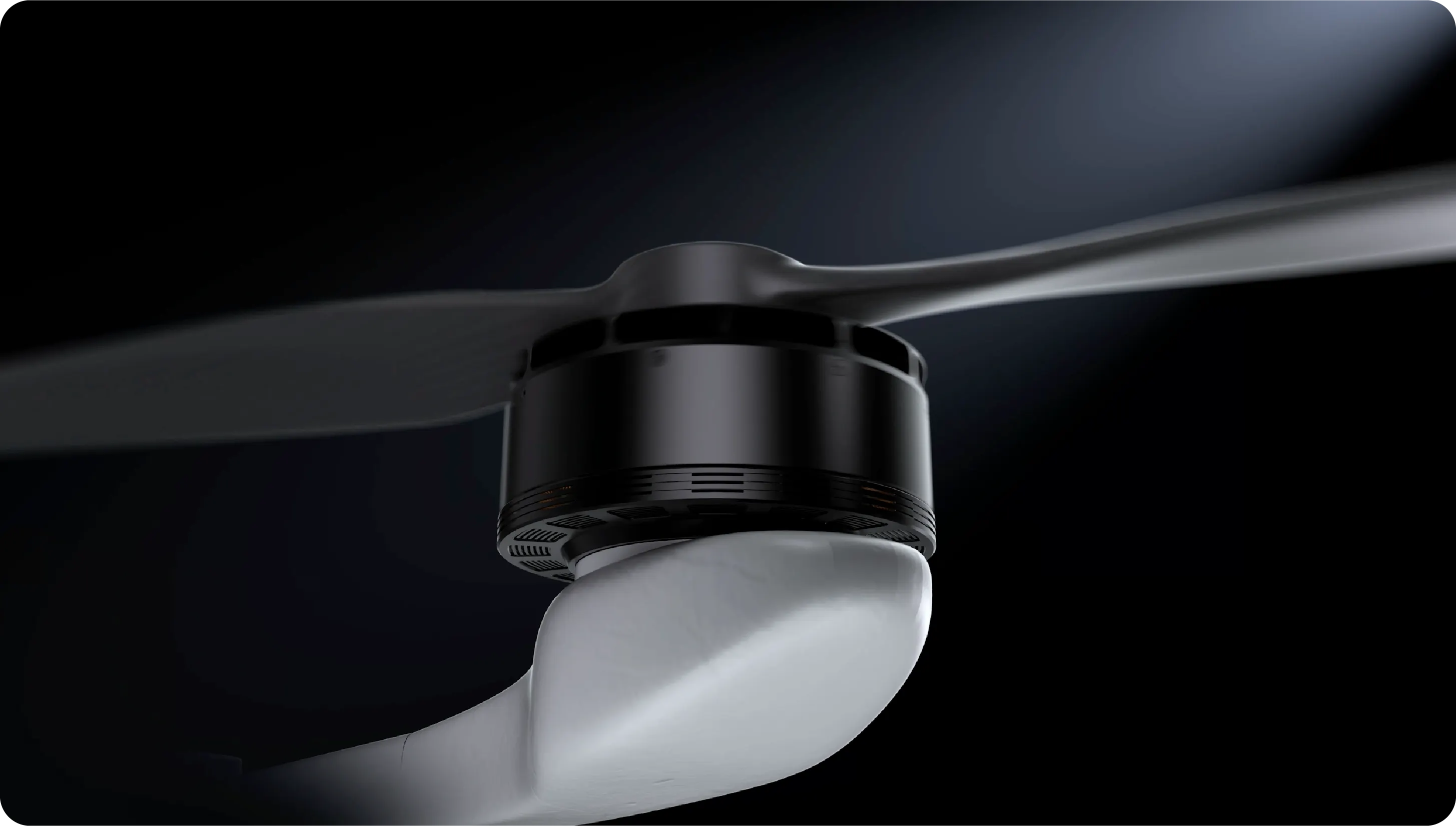

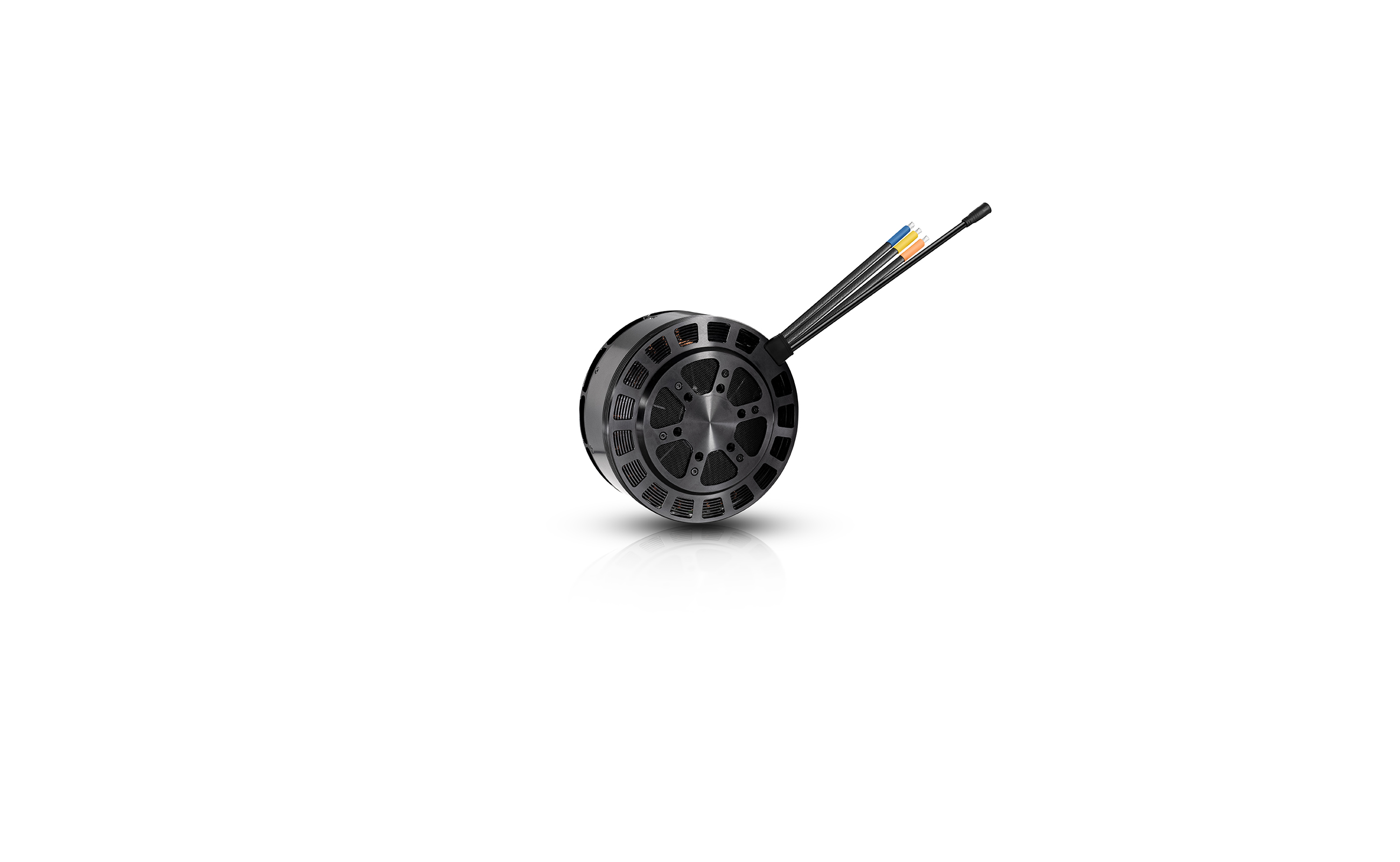

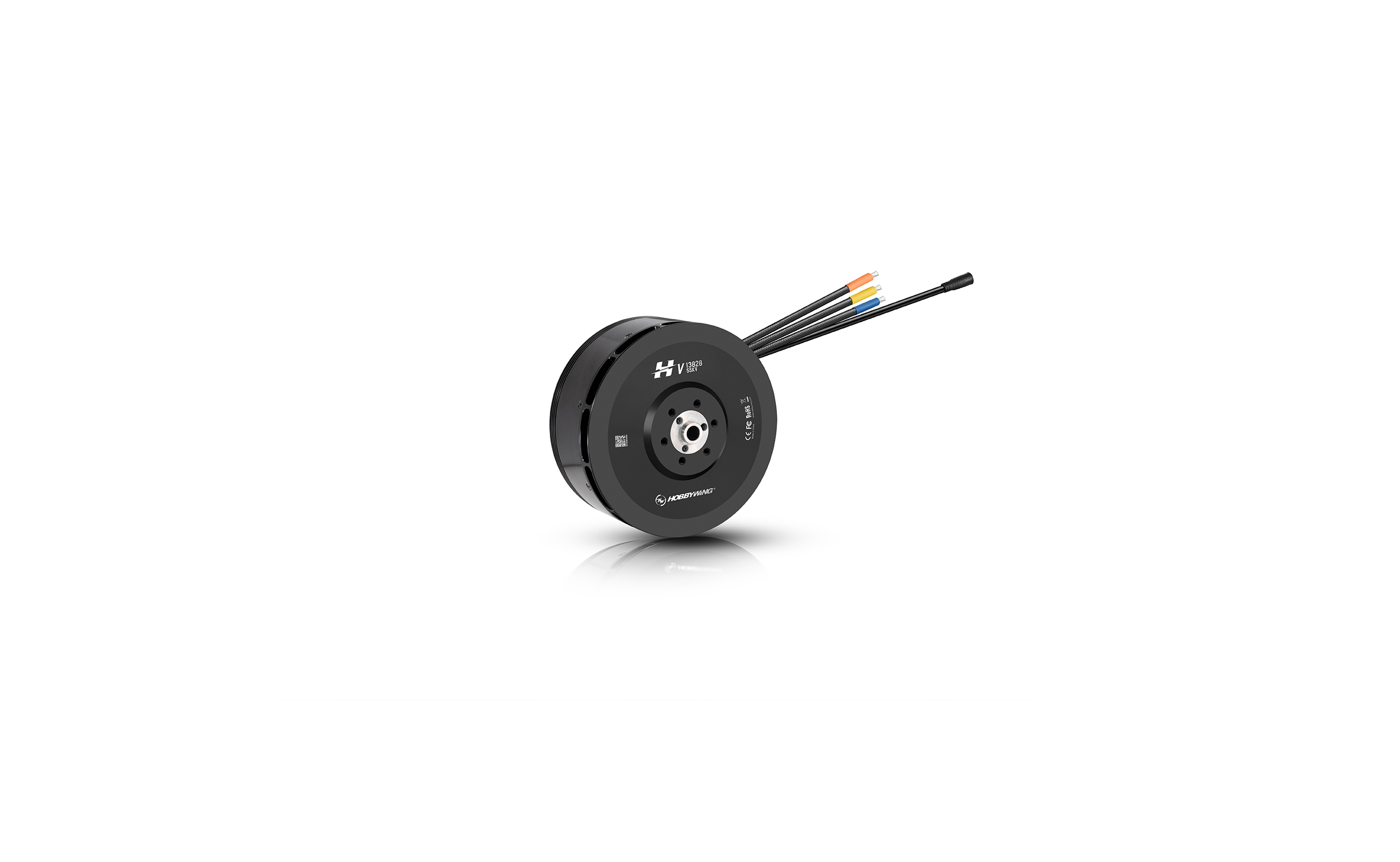

Engineered specifically for industrial-grade VTOLs, V13828 motor is
optimized for heavy lift, extended endurance, and all-flight-condition operational requirements,
delivering stable and reliable VTOL propulsion solution for maritime, powerline inspection,
telecommunications, emergency surveying, and other industrial scenarios.
Heavy Lift
ExtendedEndurance
All-Flight-ConditionOperation
Robust Power Output
V13828 is designed for a wide range of applications, including forest inspection,
coastal patrol, border surveillance, land surveying and mapping,
satellite communications, hydrological monitoring, emergency reconnaissance, and cargo delivery.
Combining lightweight construction with high-power propulsion output,
it provides reliable and well-balanced power support for a wide range of heavy-lift VTOL operations.
Flexible Configuration

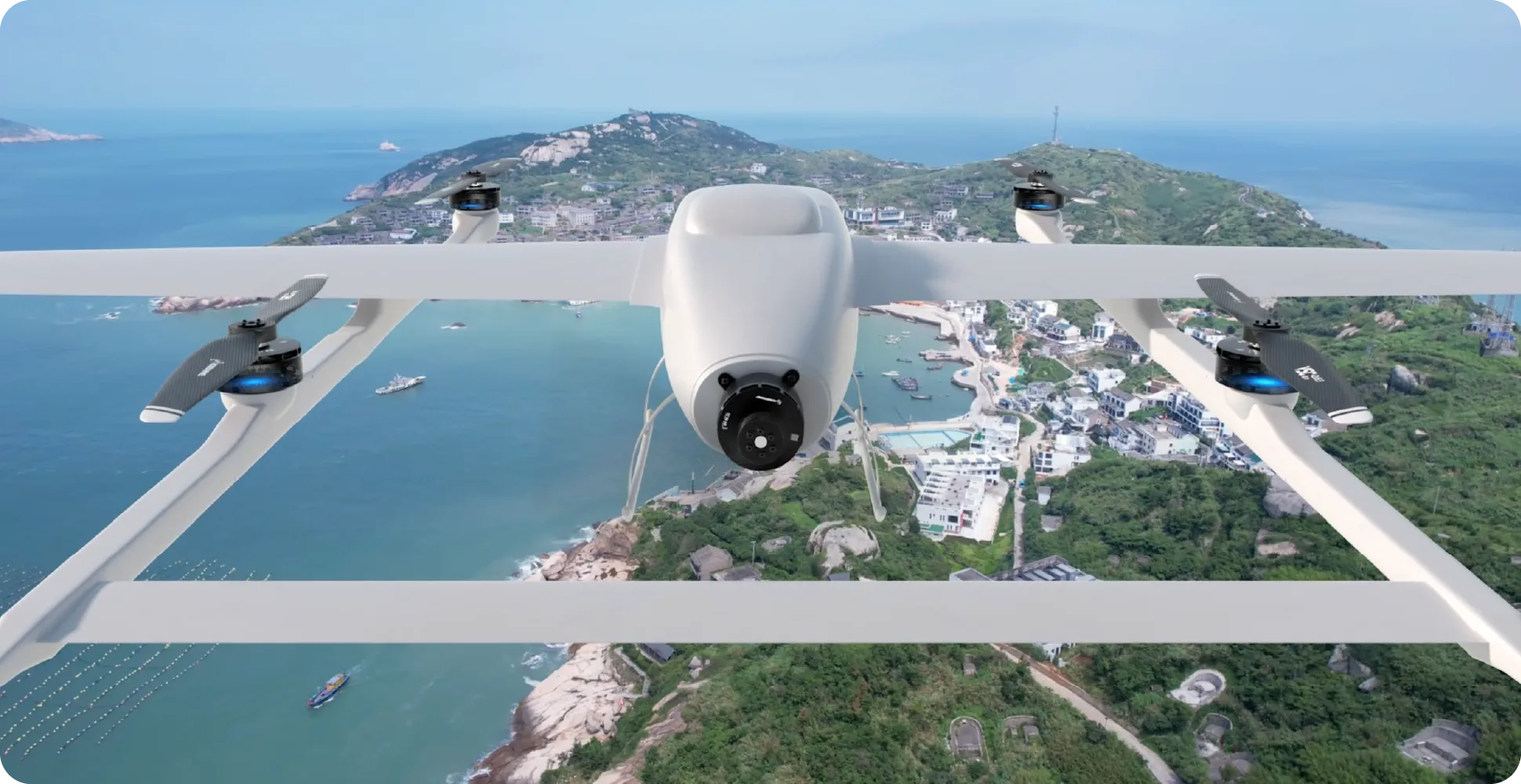

Equipped with Intelligent Propeller Control function (IPC),
V13828 features low power consumption and highly accurate propeller positioning.
Paired with HOBBYWING’s IPC ESC, propeller stop positions can be customized with precision and flexibility,
significantly reducing aerodynamic drag and energy consumption during cruise flight to extend flight endurance.
and Premium Quality

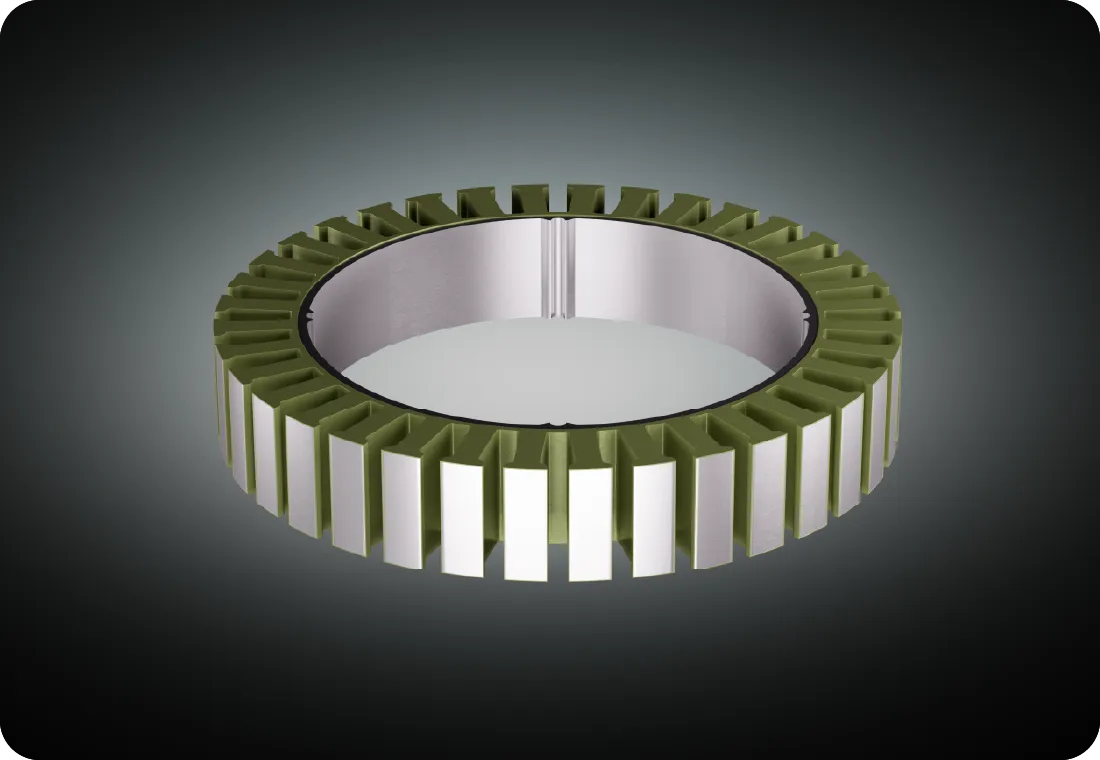

- 0.2mm low-loss
silicon steel sheet:The punched high-performance iron core
reduces energy loss and enhances motor
efficiency, balancing propulsion output

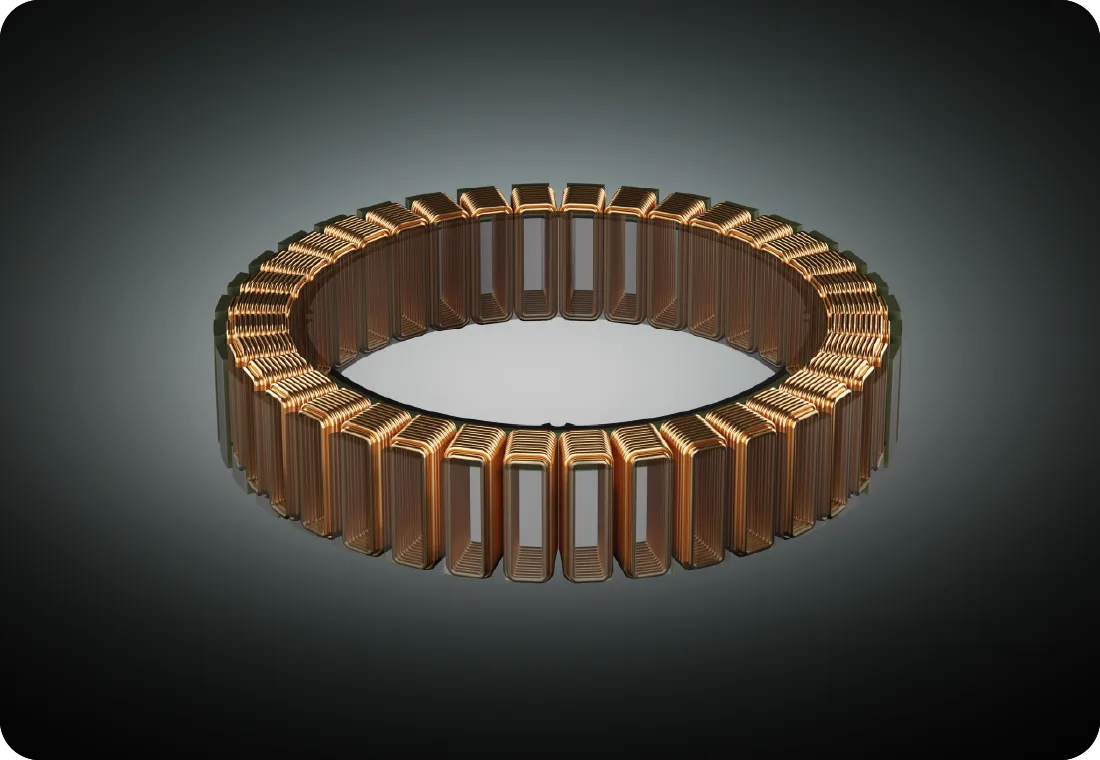

with extended endurance. - 220℃ high-temperature
resistant enameled wire: Resistant to high temperature and aging
under harsh climbing conditions,
maintaining stable performance during
prolonged high-load operations.
reduces energy loss and enhances motor
efficiency, balancing propulsion output
with extended endurance.
resistant enameled wire: Resistant to high temperature and aging
under harsh climbing conditions,
maintaining stable performance during
prolonged high-load operations.
Arc-shaped magnet structure: Enhances magnet efficiency, providing morestable torque output and stronger burst power
to meet the complex demands of VTOL.

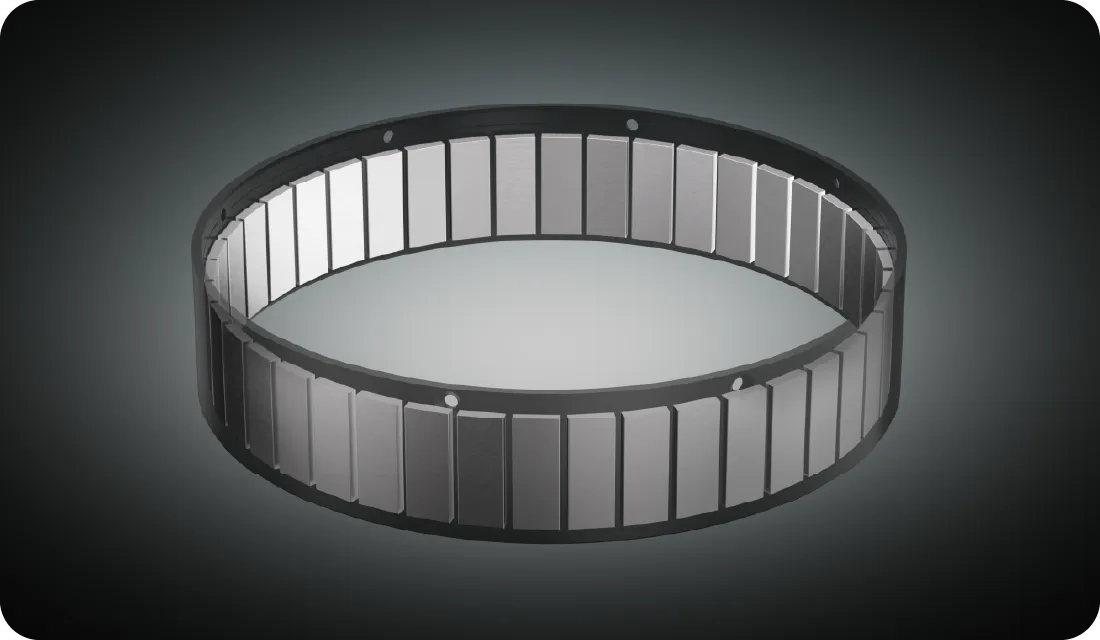

High-grade magnets: Delivers strong torque for the motor,ensuring sufficient and reliable propulsion for
heavy-lift climbing conditions.
Long-Term Reliability

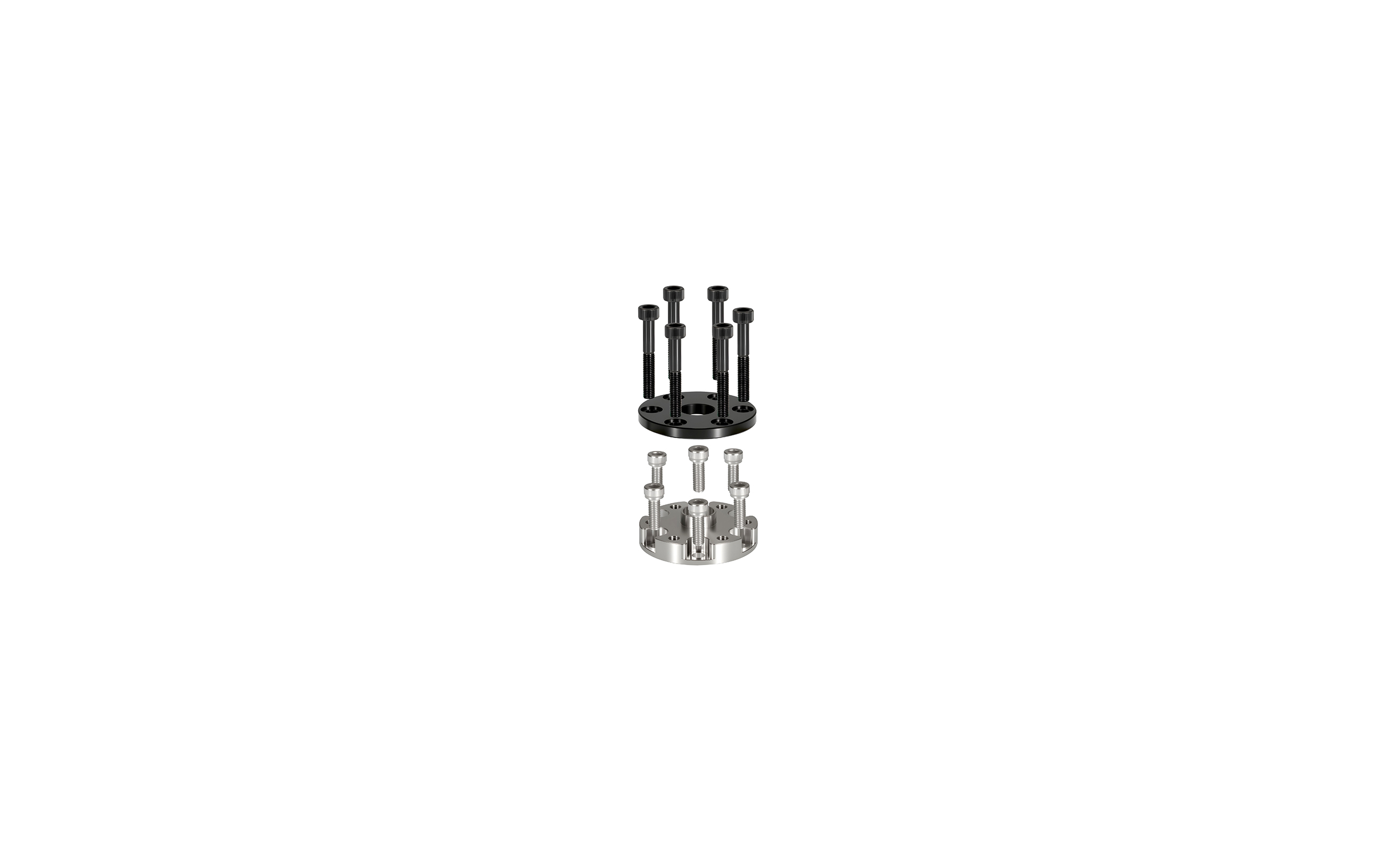

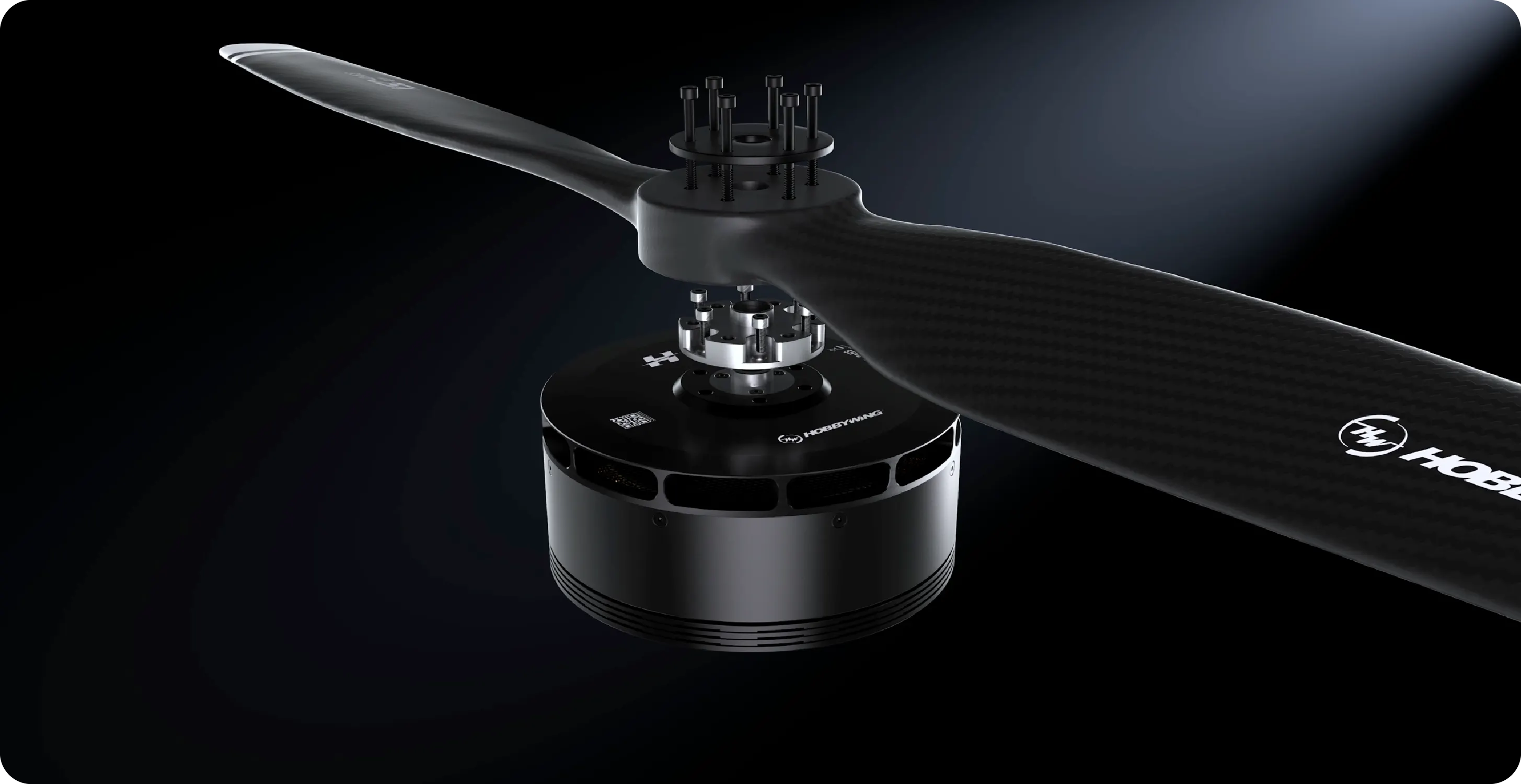

Standardized installation interfaces and dedicated propeller adapters
ensure compatibility with a wide range of conventional propellers,
meeting various payload capacities and configuration needs
while enabling convenient installation and customized configurations.

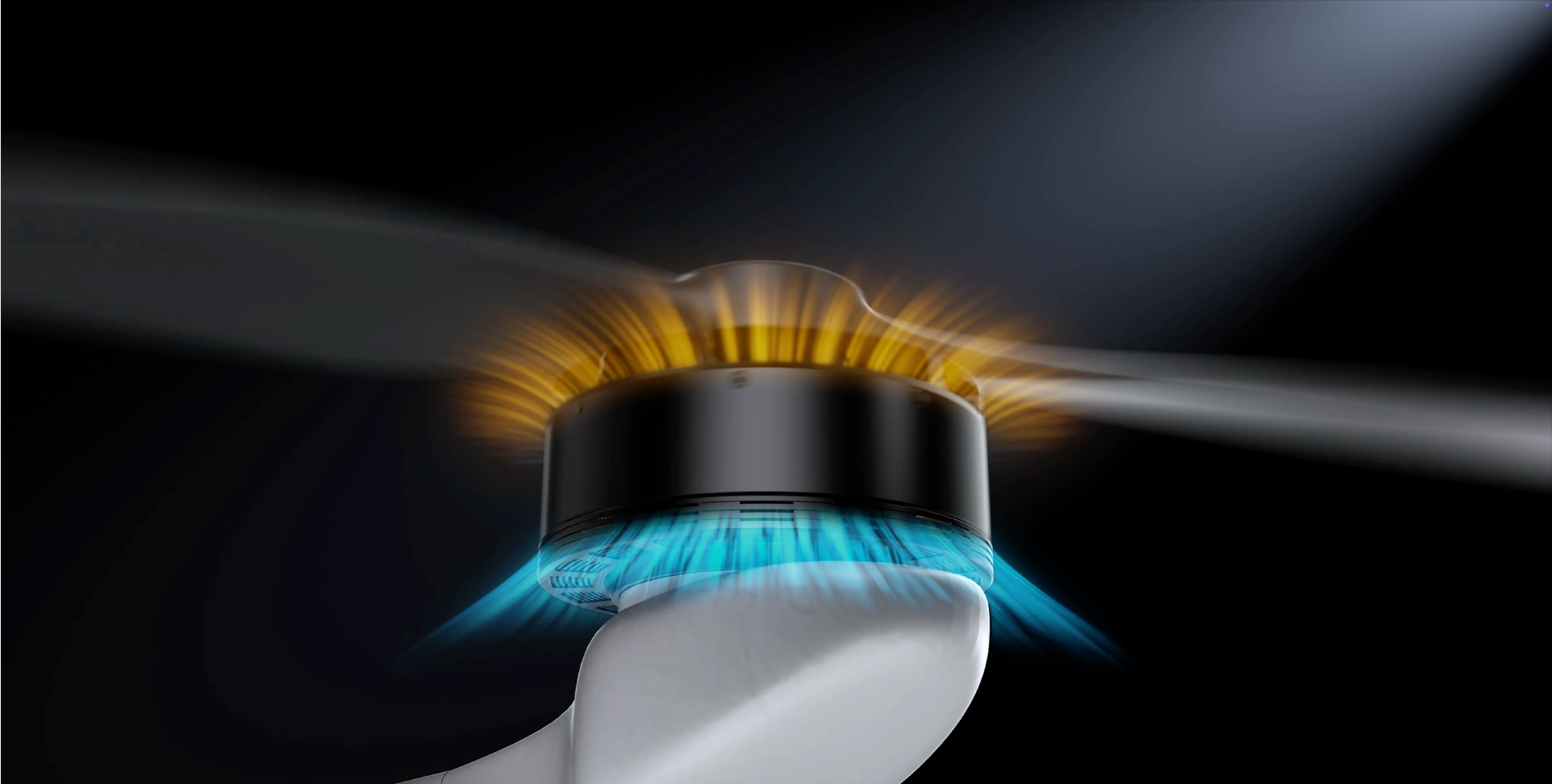

Dual-layer steel mesh protection (bracket + bottom cover), paired
with oversized air outlets and a high-efficiency centrifugal cooling
fan, delivers superior heat dissipation while effectively blocking
dust and grit. This robust design dramatically extends motor
service life under demanding conditions.
Under All Flight Conditions
V13828 motor undergoes stringent industry-standard testing, including drive compatibility,

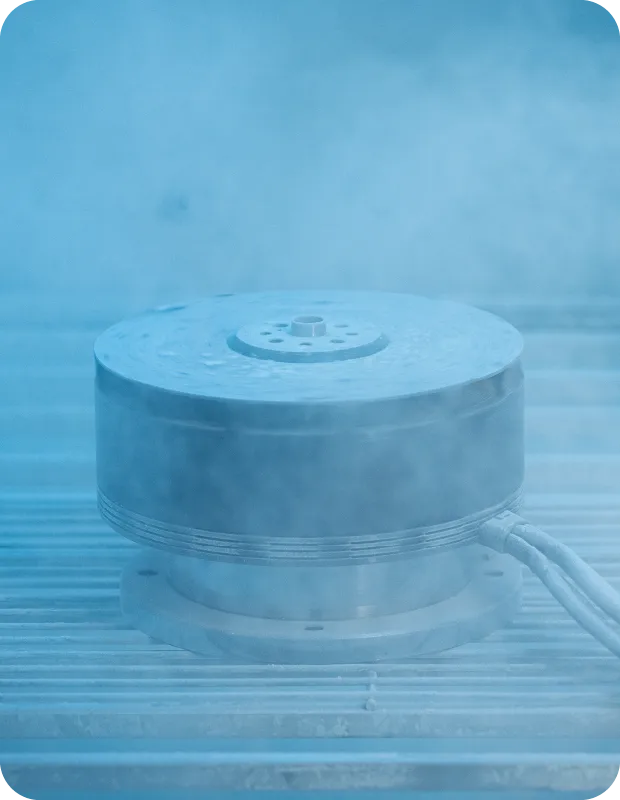

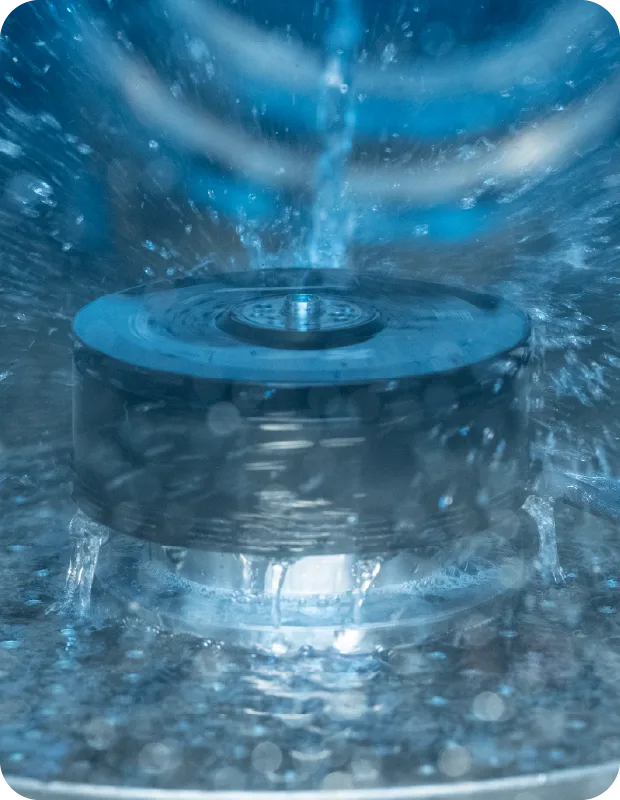

dustproof test, and waterproof test (IP45), extreme voltage and temperature resistance tests,
mechanical stress testing, temperature/humidity combined vibration tests,
and a 1000-hour laboratory fatigue life test,
ensuring long-term stable motor operation in complex environments.

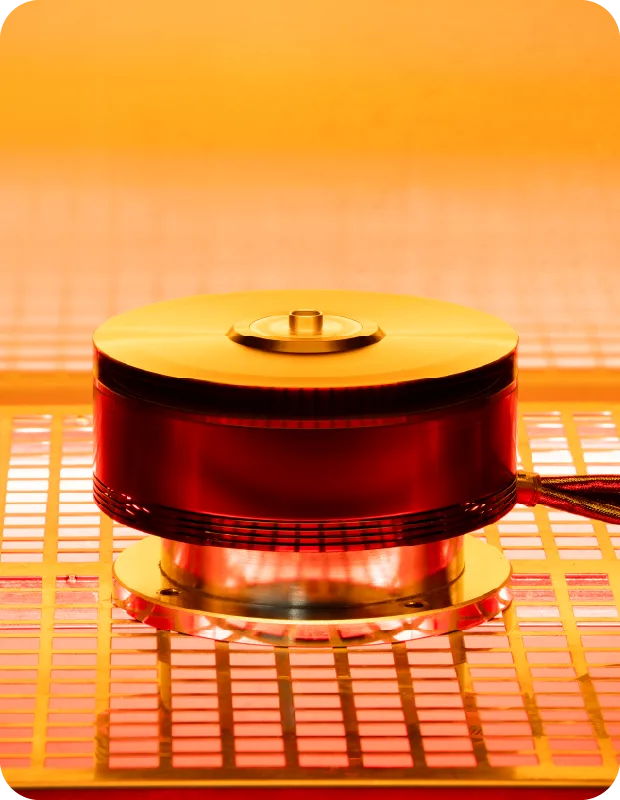

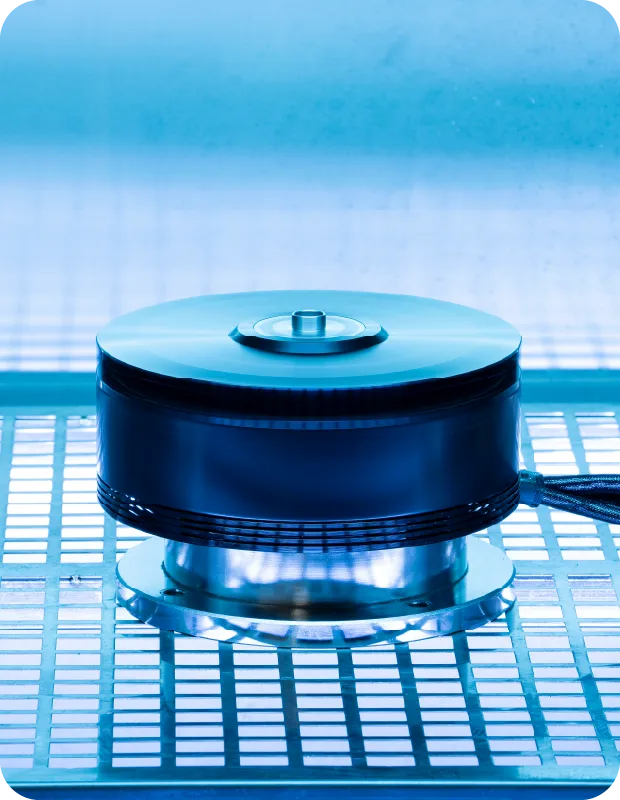

Operation Test
offering strong resistance against high salinity and humidity corrosion,
making it ideal for maritime inspection,
offshore wind farm operation and maintenance, marine search and rescue,
and other challenging scenarios while ensuring reliable long-term performance.
-
-
Thank you for your interest in HOBBYWING propulsion systems! For customized solutions,
please provide your contact information and technical requirements,
and we will get in touch with you within 24 hours.
- Thanks for reaching out!We have received your message and will get back to you shortly.
- Best Regards,
HOBBYWING Team
-
- Model
- Protection level
- Motor size
- Slot & Pole
- Stator size
- Dynamic balance
- Stator process
- Bearing
- Enamelled wire
- Motor axle diameter
- Magnet
- Props mounting dimensions
- Isolation test
- Motor mounting dimensions
- Rated output power (Max continuous)
-

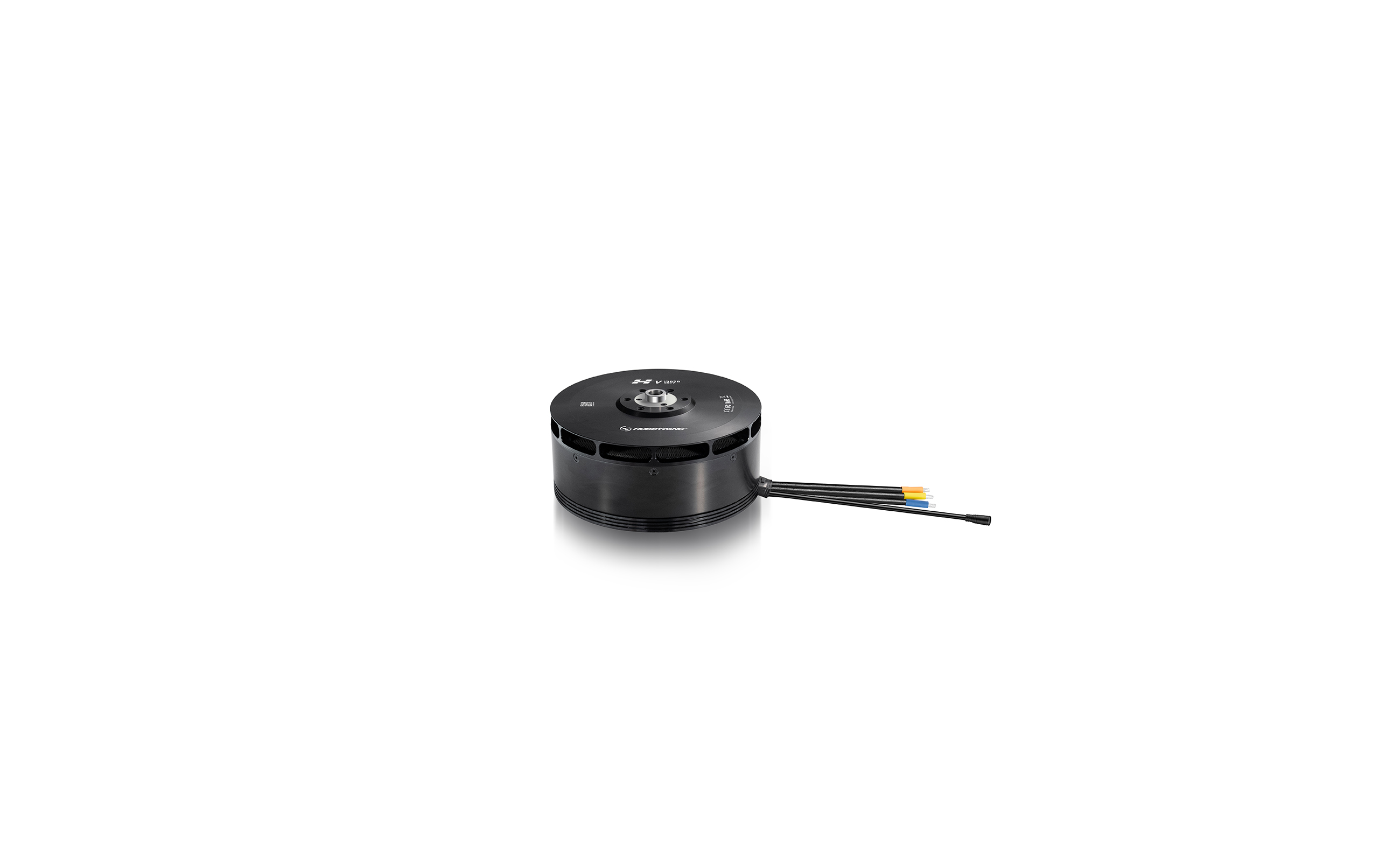

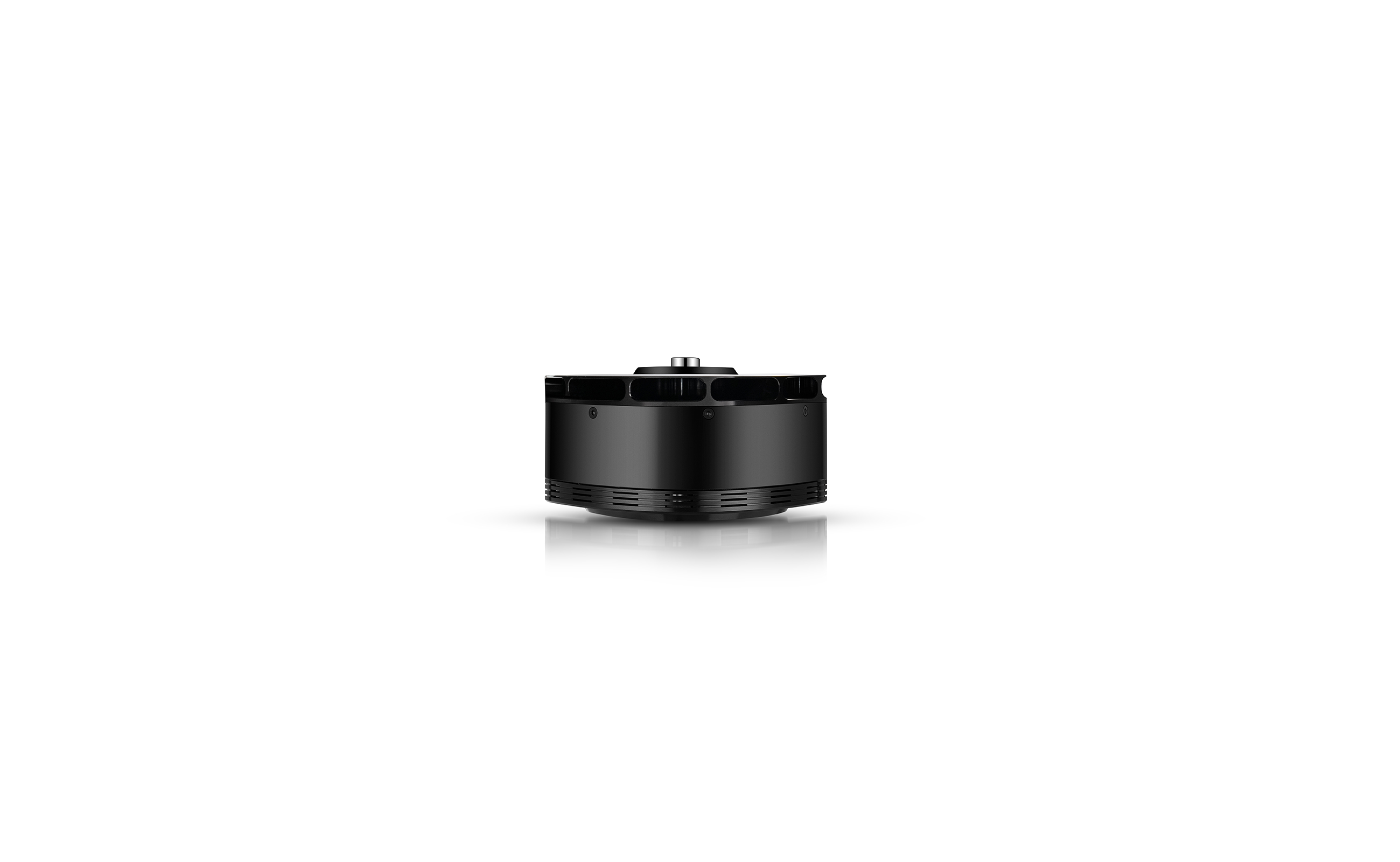

- V13828-55KV
- IP45
- Φ147.9*H71.8 mm
- 36N42P
- Φ138*H28 mm
- ≤70 mg
- High standard silicon steel sheet, rust proof,
180℃ high temperature resistance paint-coat - Water proof bearing
- 220℃
- Φ15 mm
- 140 ℃
- 6×M5@D40 mm
- 1000V AC high voltage resistance test
- 6×M6@D50 mm
- 5960 W
-
- KV
- Battery (LiPo)
- No-load current
- Maximum current (Non-hermetic Ambient Temperature ≤ 25℃)
- Rated thrust
- Max thrust
- Resistance
- Wire size
- Three-phase wires length
- Magnetic encoder cable length
- Weight (With cable)
-
- 55 KV
- LiPo-24S (92V)
- ≤11.1 A (92V)
- 245 A
- 35~40 kg (92V@45x18)
- 81.6 kg (92V@45x18)
- 13.65~14.50 mΩ
- enameled wire direct lead-out
- 150±10 mm
- 175±10 mm
- 2465 g
-
- Motor
- Propeller
- ESC
- Battery
- Takeoff weight / rotor
- Takeoff weight of quadrotor
-
- V13828-55KV
- 45x18

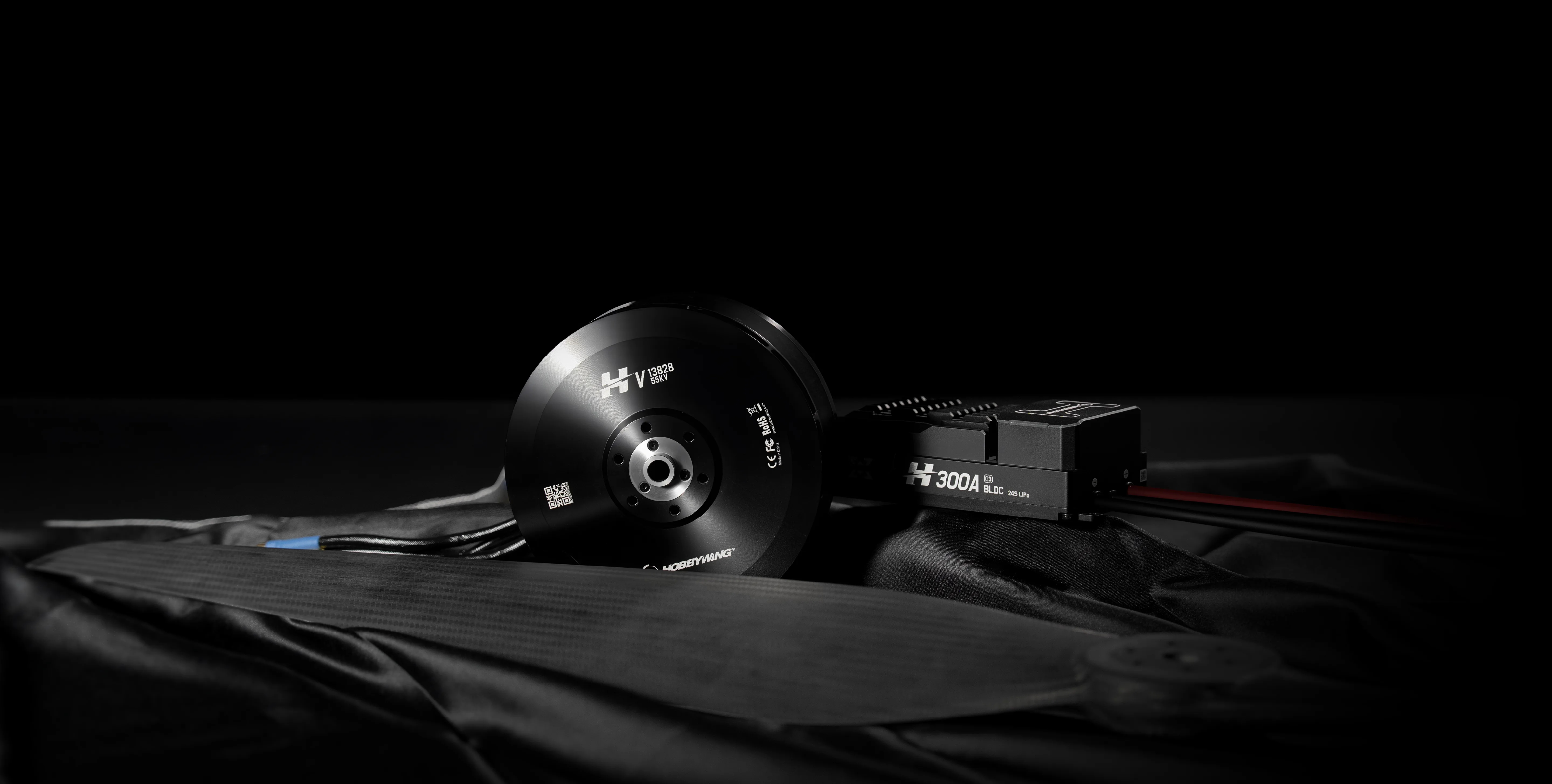

- XRotor Pro H300A 24S BLDC IPC G3,
XRotor Pro H300A 24S FOC G2 - 24S LiPo
- 35~40 kg
- 140~160 kg
Support
Manuals & Documents
Disclaimer
The purpose of this website is only to introduce you to the basic situation of HOBBYWING company and product information. Unless otherwise stated, all information provided on this website should not be regarded as an offer or acceptance, and this website will not assume any binding obligations to you as a result of the provision of information. For all your requests, HOBBYWING reserves the full right to decide whether to commit or not.
This Website and its contents are provided for your convenience on an "as is" basis and your use of this Website is at your sole risk. HOBBYWING does not guarantee that this website will be uninterrupted or error-free, and reserves the right to amend this website or withdraw access to this Website at any time. We make no warranties, express or implied, as to the content, existence, accuracy or reliability of this Website, including, but not limited to, warranties of title, non-infringement or implied warranties of merchantability or fitness for a particular purpose or use.
HOBBYWING shall not be liable for any direct, indirect, incidental, special or consequential damages, loss of profits or business interruption caused by the use or inability to use the services provided by the Website, even if HOBBYWING has been advised of the possibility of similar losses. The exclusions and limitations of the warranty liability of HOBBYWING shall be effective to the extent permitted by applicable law.
HOBBYWING shall not be liable for any damage or loss to your computer system or any other software, hardware, IT system or property caused by viruses or other destructive programs caused by accessing, viewing and using this website or downloading any content from this Website (including but not limited to 2D model files, 3D model files).
HOBBYWING shall not be liable for any direct or indirect damage or loss caused by any third party using illegal means to access the website to obtain the relevant passwords, information and content.
If you or your company is located in the United States or Canada, you need to fill out this disclaimer confirmation letter online and submit it successfully before you can download the relevant materials you are interested in. The link address you fill in online is https://www.hobbywingdirect.com/pages/digital-file-release-form
If you do not agree with this disclaimer, please do not continue to this page. If you continue to access, browse and use this interface, you have read, understood and agreed to be bound by this statement and comply with all applicable laws and regulations.
HOBBYWING reserves the right to correct, modify and update this statement at any time.
VTOL Rotor Propulsion
Engineered specifically for industrial-grade VTOLs, V13828 motor is
optimized for heavy lift, extended endurance, and all-flight-condition operational requirements,
delivering stable and reliable VTOL propulsion solution for maritime, powerline inspection,
telecommunications, emergency surveying, and other industrial scenarios.
Heavy LiftExtendedEndurance
All-Flight-ConditionOperation
Robust Power Output
V13828 is designed for a wide range of applications, including forest inspection,
coastal patrol, border surveillance, land surveying and mapping,
satellite communications, hydrological monitoring, emergency reconnaissance, and cargo delivery.
Combining lightweight construction with high-power propulsion output,
it provides reliable and well-balanced power support for a wide range of heavy-lift VTOL operations.
Flexible Configuration
Equipped with Intelligent Propeller Control function (IPC),
V13828 features low power consumption and highly accurate propeller positioning.
Paired with HOBBYWING’s IPC ESC, propeller stop positions can be customized with precision and flexibility,
significantly reducing aerodynamic drag and energy consumption during cruise flight to extend flight endurance.
and Premium Quality
- 0.2mm low-loss
silicon steel sheet:The punched high-performance iron core
reduces energy loss and enhances motor
efficiency, balancing propulsion output
with extended endurance. - 220℃ high-temperature
resistant enameled wire: Resistant to high temperature and aging
under harsh climbing conditions,
maintaining stable performance during
prolonged high-load operations.
reduces energy loss and enhances motor
efficiency, balancing propulsion output
with extended endurance.
resistant enameled wire: Resistant to high temperature and aging
under harsh climbing conditions,
maintaining stable performance during
prolonged high-load operations.
Arc-shaped magnet structure: Enhances magnet efficiency, providing morestable torque output and stronger burst power
to meet the complex demands of VTOL.
High-grade magnets: Delivers strong torque for the motor,ensuring sufficient and reliable propulsion for
heavy-lift climbing conditions.
Long-Term Reliability
Standardized installation interfaces and dedicated propeller adapters
ensure compatibility with a wide range of conventional propellers,
meeting various payload capacities and configuration needs
while enabling convenient installation and customized configurations.
Dual-layer steel mesh protection (bracket + bottom cover), paired
with oversized air outlets and a high-efficiency centrifugal cooling
fan, delivers superior heat dissipation while effectively blocking
dust and grit. This robust design dramatically extends motor
service life under demanding conditions.
Under All Flight Conditions
V13828 motor undergoes stringent industry-standard testing, including drive compatibility,
dustproof test, and waterproof test (IP45), extreme voltage and temperature resistance tests,
mechanical stress testing, temperature/humidity combined vibration tests,
and a 1000-hour laboratory fatigue life test,
ensuring long-term stable motor operation in complex environments.
Operation Test
offering strong resistance against high salinity and humidity corrosion,
making it ideal for maritime inspection,
offshore wind farm operation and maintenance, marine search and rescue,
and other challenging scenarios while ensuring reliable long-term performance.
-
- Thank you for your interest in HOBBYWING propulsion systems! For customized solutions, please provide your contact information and technical requirements, and we will get in touch with you within 24 hours.
- Thanks for reaching out!We have received your message and will get back to you shortly.
- Best Regards,
HOBBYWING Team
-
- Model
- Protection level
- Motor size
- Slot & Pole
- Stator size
- Dynamic balance
- Stator process
- Bearing
- Enamelled wire
- Motor axle diameter
- Magnet
- Props mounting dimensions
- Isolation test
- Motor mounting dimensions
- Rated output power (Max continuous)
-

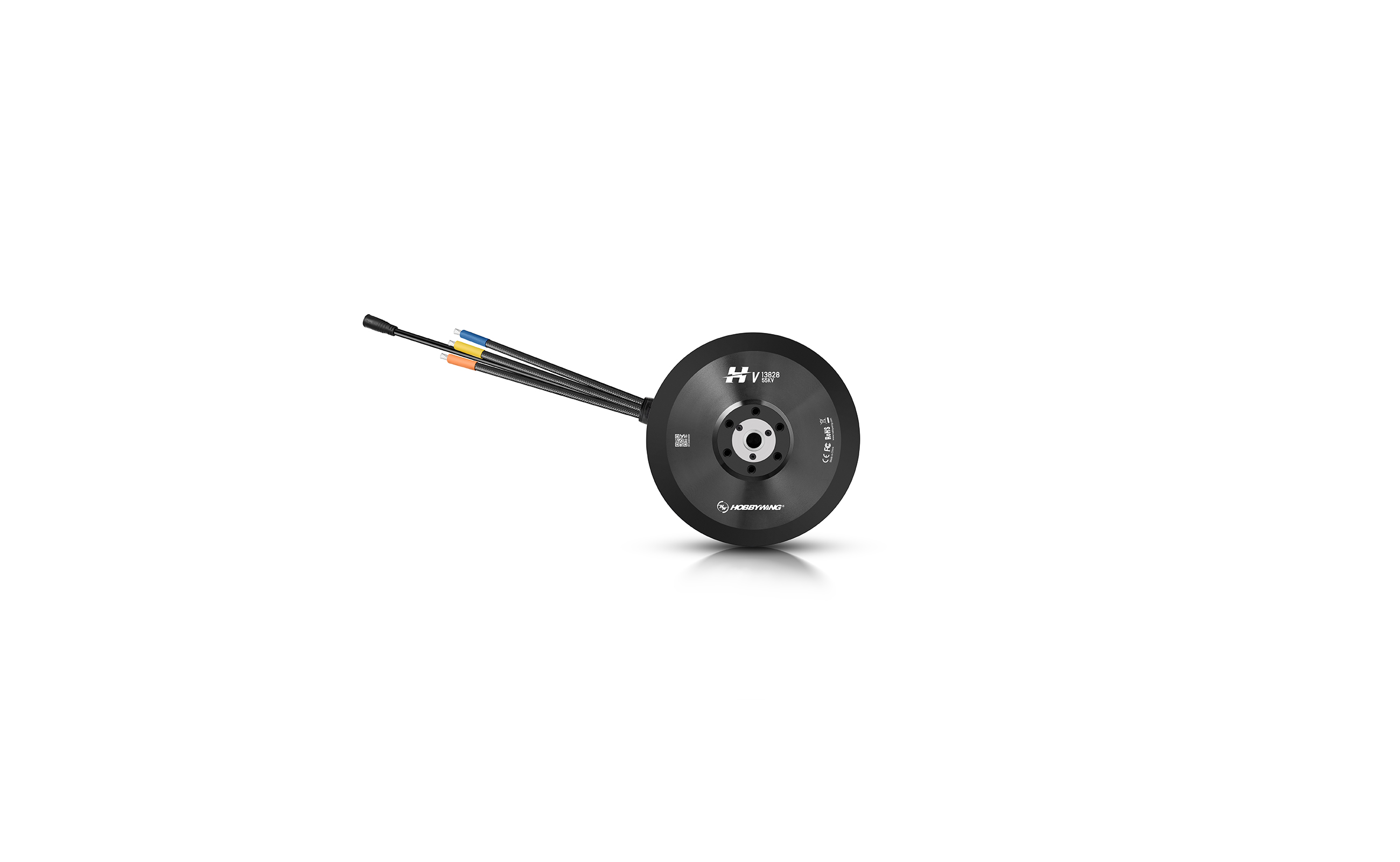

- V13828-55KV
- IP45
- Φ147.9*H71.8 mm
- 36N42P
- Φ138*H28 mm
- ≤70 mg
- High standard silicon steel sheet, rust proof,
180℃ high temperature resistance paint-coat - Water proof bearing
- 220℃
- Φ15 mm
- 140 ℃
- 6×M5@D40 mm
- 1000V AC high voltage resistance test
- 6×M6@D50 mm
- 5960 W
-
- KV
- Battery (LiPo)
- No-load current
- Maximum current (Non-hermetic Ambient Temperature ≤ 25℃)
- Rated thrust
- Max thrust
- Resistance
- Wire size
- Three-phase wires length
- Magnetic encoder cable length
- Weight (With cable)
-
- 55 KV
- LiPo-24S (92V)
- ≤11.1 A (92V)
- 245 A
- 35~40 kg (92V@45x18)
- 81.6 kg (92V@45x18)
- 13.65~14.50 mΩ
- enameled wire direct lead-out
- 150±10 mm
- 175±10 mm
- 2465 g
-
- Motor
- Propeller
- ESC
- Battery
- Takeoff weight / rotor
- Takeoff weight of quadrotor
-
- V13828-55KV
- 45x18
- XRotor Pro H300A 24S BLDC IPC G3,
XRotor Pro H300A 24S FOC G2 - 24S LiPo
- 35~40 kg
- 140~160 kg
|
Voltage(V) |
Propeller |
Throttle(%) |
Thrust(g) |
Current(A) |
Power Input(W) |
Speed(RPM) |
Efficiency(g/W) |
Torque(N·m) |
Power Output(W) |
Motor Temperature(℃) |
|---|---|---|---|---|---|---|---|---|---|---|
|
92V（24S LiPo） |
45x18 |
33% |
12997 |
15.6 |
1432.3 |
1606 |
9.1 |
6.63 |
1114.1 |
/ |
|
35% |
14335 |
17.6 |
1619.3 |
1684 |
8.9 |
7.29 |
1285.6 |
|||
|
37% |
15859 |
20.2 |
1855.5 |
1769 |
8.5 |
8.06 |
1492.6 |
|||
|
39% |
17520 |
23.2 |
2137.0 |
1858 |
8.2 |
8.90 |
1732.4 |
|||
|
42% |
20186 |
28.6 |
2631.4 |
1993 |
7.7 |
10.28 |
2145.0 |
|||
|
45% |
22981 |
34.7 |
3192.6 |
2126 |
7.2 |
11.73 |
2611.4 |
|||
|
48% |
25847 |
41.3 |
3801.5 |
2252 |
6.8 |
13.23 |
3118.6 |
|||
|
51% |
28756 |
48.3 |
4445.6 |
2373 |
6.5 |
14.74 |
3663.1 |
|||
|
54% |
31705 |
55.7 |
5120.7 |
2487 |
6.2 |
16.28 |
4238.8 |
|||
|
57% |
34711 |
63.4 |
5830.3 |
2596 |
6.0 |
17.84 |
4848.7 |
|||
|
60% |
37800 |
71.6 |
6584.4 |
2703 |
5.7 |
19.44 |
5501.3 |
|||
|
63% |
41007 |
80.5 |
7398.7 |
2808 |
5.5 |
21.10 |
6202.9 |
|||
|
66% |
44365 |
90.2 |
8293.9 |
2912 |
5.3 |
22.84 |
6963.2 |
|||
|
69% |
47900 |
101.1 |
9294.5 |
3018 |
5.2 |
24.68 |
7798.6 |
|||
|
72% |
51627 |
113.4 |
10426.8 |
3126 |
5.0 |
26.64 |
8718.6 |
|||
|
75% |
55539 |
127.4 |
11714.1 |
3235 |
4.7 |
28.72 |
9728.0 |
|||
|
78% |
59607 |
143.2 |
13169.6 |
3345 |
4.5 |
30.92 |
10829.1 |
|||
|
81% |
63767 |
160.7 |
14783.5 |
3455 |
4.3 |
33.20 |
12012.6 |
|||
|
84% |
67921 |
179.5 |
16509.8 |
3562 |
4.1 |
35.52 |
13247.6 |
|||
|
87% |
71924 |
198.5 |
18256.0 |
3661 |
3.9 |
37.76 |
14475.9 |
|||
|
90% |
75583 |
216.2 |
19885.6 |
3748 |
3.8 |
39.80 |
15620.9 |
|||
|
100% |
81662 |
244.9 |
22524.6 |
3878 |
3.6 |
43.09 |
17498.6 |
Support
Manuals & Documents
Disclaimer
The purpose of this website is only to introduce you to the basic situation of HOBBYWING company and product information. Unless otherwise stated, all information provided on this website should not be regarded as an offer or acceptance, and this website will not assume any binding obligations to you as a result of the provision of information. For all your requests, HOBBYWING reserves the full right to decide whether to commit or not.
This Website and its contents are provided for your convenience on an "as is" basis and your use of this Website is at your sole risk. HOBBYWING does not guarantee that this website will be uninterrupted or error-free, and reserves the right to amend this website or withdraw access to this Website at any time. We make no warranties, express or implied, as to the content, existence, accuracy or reliability of this Website, including, but not limited to, warranties of title, non-infringement or implied warranties of merchantability or fitness for a particular purpose or use.
HOBBYWING shall not be liable for any direct, indirect, incidental, special or consequential damages, loss of profits or business interruption caused by the use or inability to use the services provided by the Website, even if HOBBYWING has been advised of the possibility of similar losses. The exclusions and limitations of the warranty liability of HOBBYWING shall be effective to the extent permitted by applicable law.
HOBBYWING shall not be liable for any damage or loss to your computer system or any other software, hardware, IT system or property caused by viruses or other destructive programs caused by accessing, viewing and using this website or downloading any content from this Website (including but not limited to 2D model files, 3D model files).
HOBBYWING shall not be liable for any direct or indirect damage or loss caused by any third party using illegal means to access the website to obtain the relevant passwords, information and content.
If you or your company is located in the United States or Canada, you need to fill out this disclaimer confirmation letter online and submit it successfully before you can download the relevant materials you are interested in. The link address you fill in online is https://www.hobbywingdirect.com/pages/digital-file-release-form
If you do not agree with this disclaimer, please do not continue to this page. If you continue to access, browse and use this interface, you have read, understood and agreed to be bound by this statement and comply with all applicable laws and regulations.
HOBBYWING reserves the right to correct, modify and update this statement at any time.
