XeRun AXE 5IVE R3
FOC Sensored Brushless Crawler ESC
High-Power 8S ESC for
Large-Scale Crawlers
Large-Scale Crawlers
Supports up to
8S LiPo
Maximum continuous
output current up to
output current up to
220 A
It easily meets the needs of
1/6 & 1/5
scale crawling applications
Dual Auxiliary Channels for
Real-Time Tuning
Real-Time Tuning
Connect the white and yellow signal wires to available receiver channels to adjust ESC
settings such as drag brake force directly from the transmitter while driving.
WHITESIGNAL WIRES
AUX3 CH Function 1
YELLOWSIGNAL WIRES
AUX4 CH Function 2
Built-In
Ultra-High-Voltage BEC
Ultra-High-Voltage BEC
Output voltage supports
6-14V
Supports fine adjustment in precise
0.1V increments
Maximum output current is up to
35A
The industry-leading BEC provides ample power for standard, high-voltage and ultra-high-voltage servos, as well as accessories such as lighting systems and winches.
Important: Most receivers are rated for a maximum input voltage of 9V or less. Before setting the BEC output above 8.4V, always confirm that your receiver supports the selected voltage. Excessive voltage may damage the receiver.
FOC Sensored Technology for
Smooth Powerful and
Nearly Silent Performance
Smooth Powerful and
Nearly Silent Performance
FOC technology delivers exceptional low-speed torque for demanding crawling applications.
Even at extremely low speeds, power delivery remains smooth and precise, while operating
noise is significantly reduced compared with conventional drive systems. The result is greater
control and a quieter, more immersive crawling experience.
Intelligent Torque Control
When the car is going uphill
The ESC automatically increases torque to overcome resistance and maintain momentum.
When descending
It reduces torque and regulates the vehicle’s speed for greater stability and control.Smart Cooling,
Quieter Operation
Quieter Operation
The cooling fan remains off at low ESC temperatures and automatically switches on
when the preset temperature is reached. This intelligent system reduces noise and
power consumption while maintaining an optimal operating temperature.
Note: The automatic fan function can be disabled.
IP67-Rated Protection
The ESC is IP67 rated for excellent water and dust resistance, delivering reliable performance across
demanding outdoor environments, varied terrain and changing weather conditions.
Note: Under normal operating conditions, the IP67 rating provides protection against splashes, temporary water exposure and dust.
Protection may diminish over time due to wear and ageing. Prolonged submersion may damage the product and should be avoided.
Protection may diminish over time due to wear and ageing. Prolonged submersion may damage the product and should be avoided.
Built-In Bluetooth with
Direct App Connectivity
Direct App Connectivity
The ESC features built-in Bluetooth, allowing it to connect directly to the HW Link app without any additional devices.
Adjust settings, view operating data and update the firmware quickly and conveniently from your smartphone.

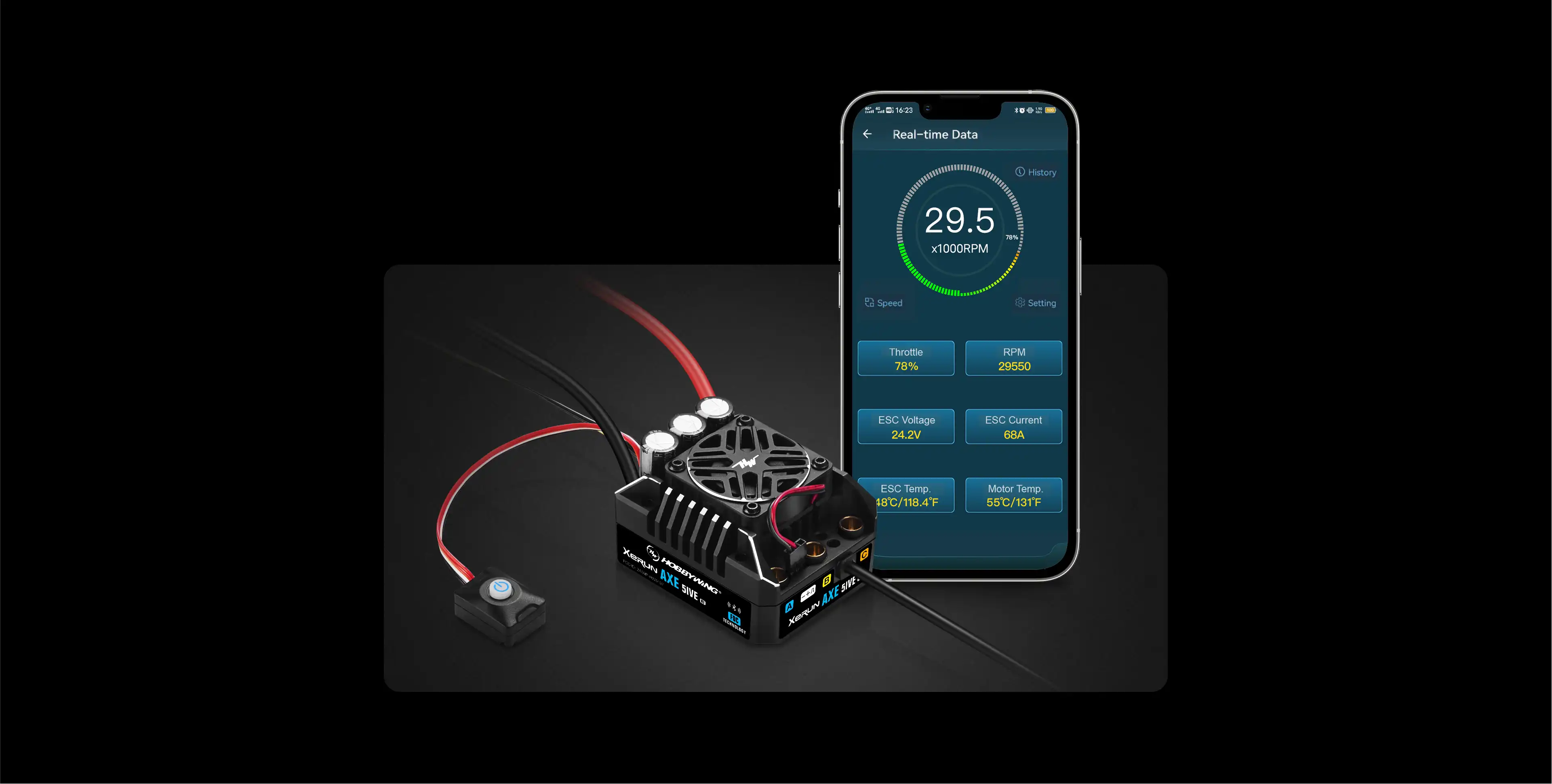

Real-Time Performance
Monitoring
Monitoring
Connect the ESC to the HW Link app to view key operating data in
real time, including throttle input, voltage, current, temperature
and motor speed, giving you a clear overview of the power system’s
status at a glance.
Note: The effective Bluetooth range is approximately 5 metres.
Four Versatile Driving Modes
Choose from four driving modes to suit a wide range of applications:
01Forward/
Reverse
Reverse
02Forward/Reverse
with Brake
with Brake
03Hybrid Mode
04Forward with
Brake
Brake
Supports Real-time Telemetry
and ESC Tuning with Flysky NB4
Series Remote Control
and ESC Tuning with Flysky NB4
Series Remote Control
It supports the FlySky NB4 series remote control, enabling real-time monitoring of key data such as battery
voltage, motor RPM, operating current, and ESC/motor temperatures. It also allows for real-time adjustment of
ESC parameters directly from the remote control making tuning more intuitive and convenient.
Note: This feature requires a firmware update for the FlySky remote control. The actual support date is subject to the FlySky firmware release schedule.
Extensive Tuning Options
With 22 adjustable parameters and up to 24° of Turbo timing, the ESC can be precisely
configured for different vehicles, terrain and driving preferences. When conditions allow,
Turbo timing unleashes maximum motor speed at full throttle.
Running Mode
Neutral Range
RPM/Throttle Matching
Initial Throttle Force
LiPo Cells
Coast
Cutoff Voltage
RPM Decrease Rate
Ultra HV BEC
Max. Reverse Force
BEC Voltage
Max. Brake Force
BEC Voltage-U
Drag Brake Force
Smart Fan
Smart Drag Brake Rate
Motor Rotation
Drag Brake Rate
Max. Forward Force
Turbo Timing
Punch
Turbo Delay
Compatible with the AXE 4274 R3 Motor
It offers greater flexibility for different vehicle platforms and power requirements.
The ESC not only supports the AXE 4987 R3S motor.
Also compatible with the AXE 4274 R3 motor
Note: The AXE 4274 R3 supports up to 3-6S LiPo only.
Product NameXeRun AXE 5IVE R3
Product Number
-
-
- 3011400
Type
-
- Scale
- Brushed/Brushless
- Sensored/Sensorless
- Waterproof
-
- 1/5th,1/6th
- Brushless
- Sensored
- Waterproof
Specifications
-
- Cont./Peak Current
- Input Voltage
- BEC Output
-
- 220A/900A
- 3-8S LiPo
- 6V-14V,15A
Wires & Connectors
-
- Input Wires
- Output Wires
- Input Connectors
- Output Connectors
-
- Red-10AWG-300mm*1 Black-10AWG-300mm*1
- /
- /
- 6.5mm Connectors (Female)
Fan
-
- Type
- Size
- Voltage Range
- Powered by
-
- Framed
- 40x40x10mm
- 6-8.4V
- Powered by BEC
ESC Programing via
-
- SET Button on ESC
- LED Program Box
- LCD G2 Program Box(STOPPED)
- LCD PRO
- OTA Programmer
- Program Port
-
- Not Supported
- Not Supported
- Not Supported
- Not Supported
- Not Supported
- Built-in Bluetooth
Data Recording
-
- Extreme value
- Real-time Data
- Historical data (Graph)
- External OTA Historical Data(Graph)
-
- Not Supported
- Supported
- Supported
- Not Supported
Firmware
-
- Firmware Upgrade
-
- Supported
Size & Weight
-
- Size
- Weight
-
- 70.2*56.3*45.5mm
- 308.2g( Included wires)
Applications
-
- Motors
- Vehicles
- KV Rating/T Count
-
- Only the XERUN AXE 4987 R3S and AXE 4274 R3 Series
- 1/5th,1/6th Rock Crawler
- XERUN AXE 4987 R3S
