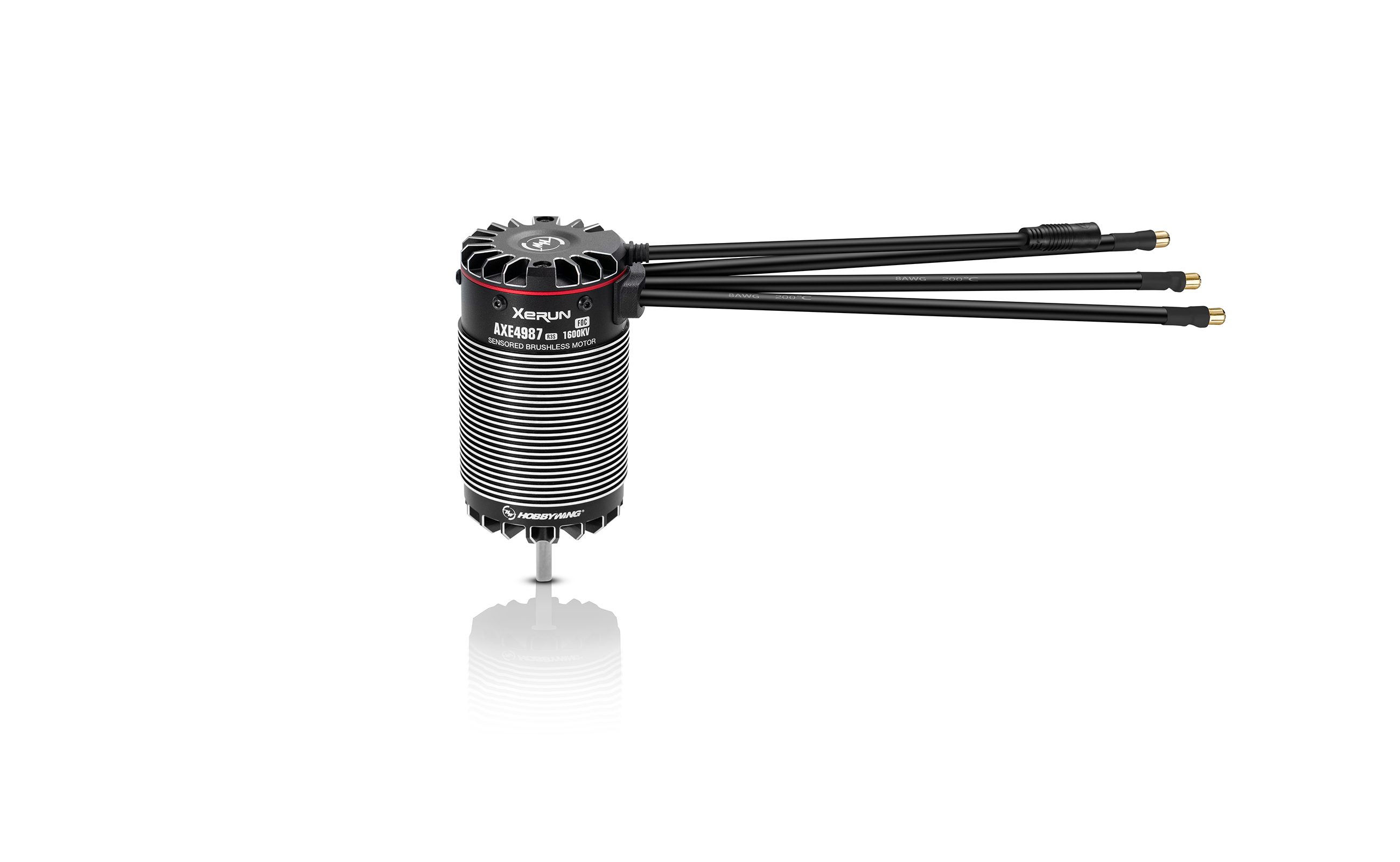

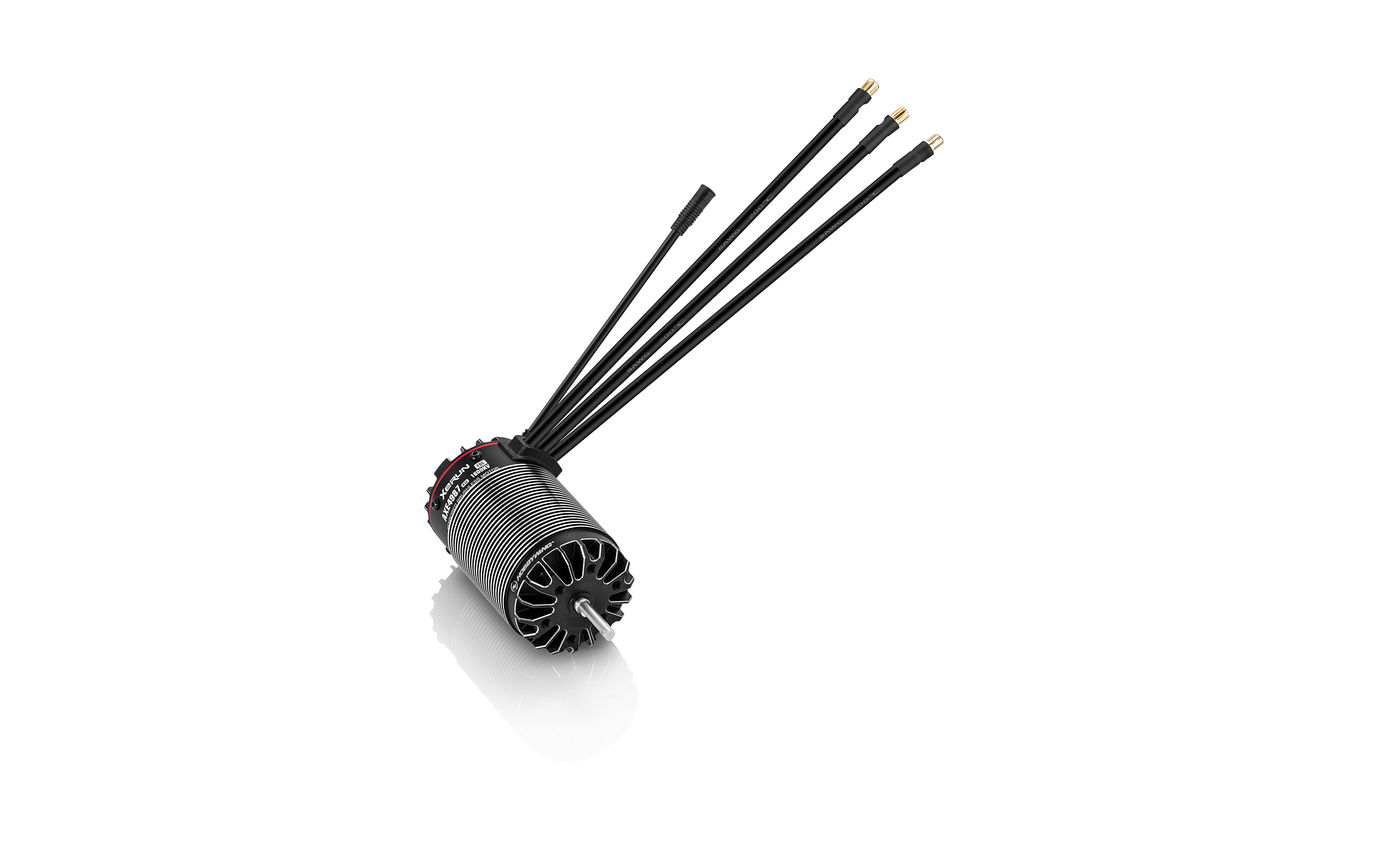

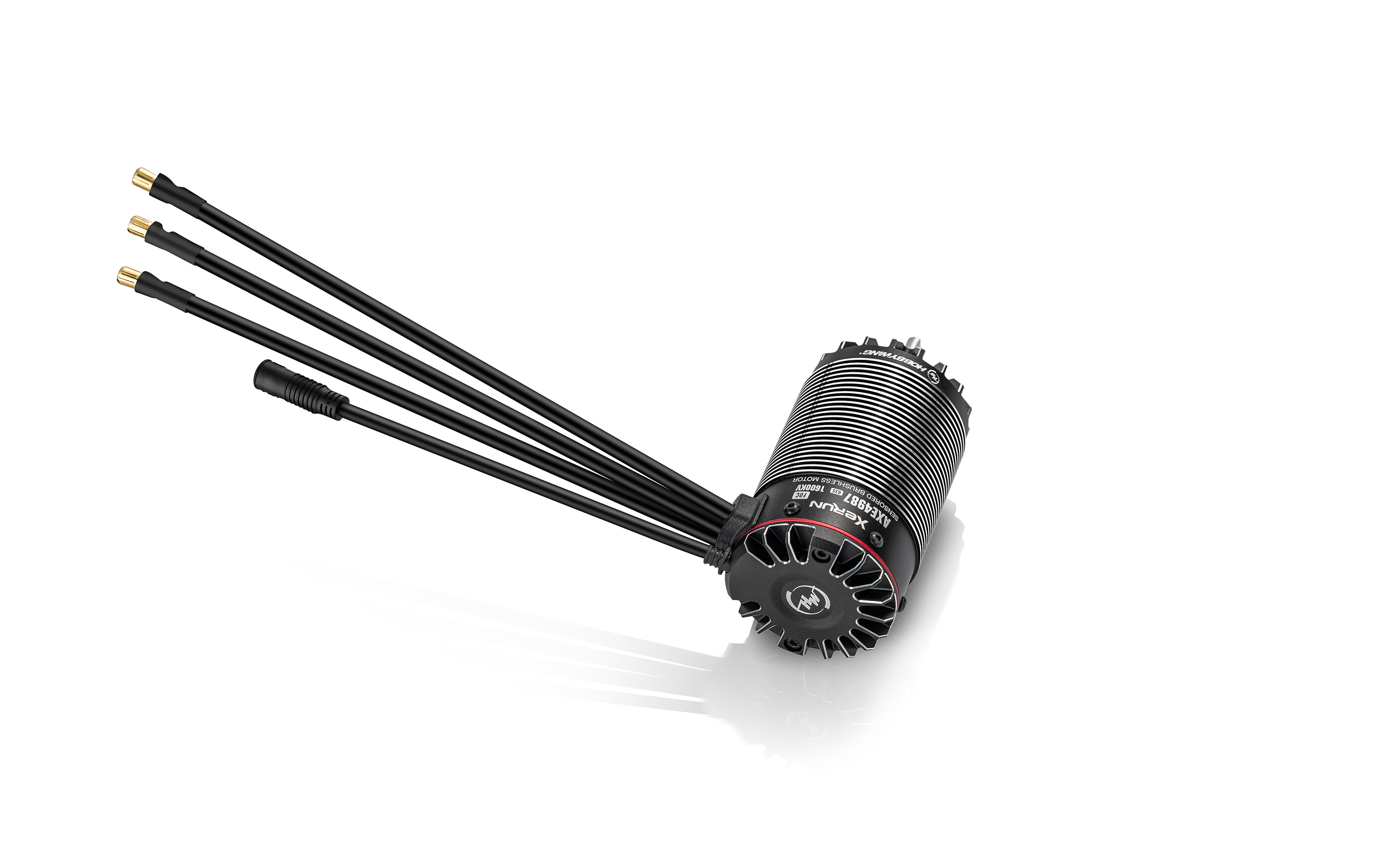

XeRun AXE 4987 SD R3S
Sensored FOC Brushless Crawler Motor
High-Power Motor for
Large Scale Crawler
Large Scale Crawler
Designed specifically for 1/5 and 1/6 crawlers, the XeRun AXE 4987 R3S delivers unparalleled torque,
ultra smooth low speed control, and amazing drivability. Zero cogging and powerful response allow
even the most demanding large scale builds to tackle the toughest terrain.
More Power
in the Perfect Size
in the Perfect Size
Featuring a 49.5mm diameter and an 87mm can length, the AXE 4987 is 3mm shorter than 4990 motors from other manufacturers in the industry, yet produces approximately 8% more power. The result is stronger acceleration, greater efficiency, and improved overall performance.
Diameter
49.5mm
Length
87mm
Compared to motors in the
same class,
the power
output is increased by
same class,
the power
output is increased by
8%
Perfectly Matched with the
XeRun AXE Plus R3 ESC
XeRun AXE Plus R3 ESC
When paired with the XeRun AXE Plus R3 ESC, the AXE 4987 R3S motor delivers incredibly smooth
low-speed operation and tremendous low-end torque, providing a level of control and driving feel that
far exceeds conventional sensored power system.
Note: The XeRun AXE Plus R3 ESC requires firmware upgrade to version V1.1.3.
Incredibly SmoothLow-speed Operation
TremendousLow-end Torque
Ready to Take on Any Trail Condition
Rated at IP66, you can rest assured that your rig will survive even the messiest of trails.
Rain, Snow, Mud, Sand or water, the AXE R3S will take it.
Note: The IP66 rating protects against splashes, water exposure, and dust under normal use but is not permanent. Protective performance may decline over time due to aging.
Do not submerge the product for extended periods, as this may cause damage.
Do not submerge the product for extended periods, as this may cause damage.

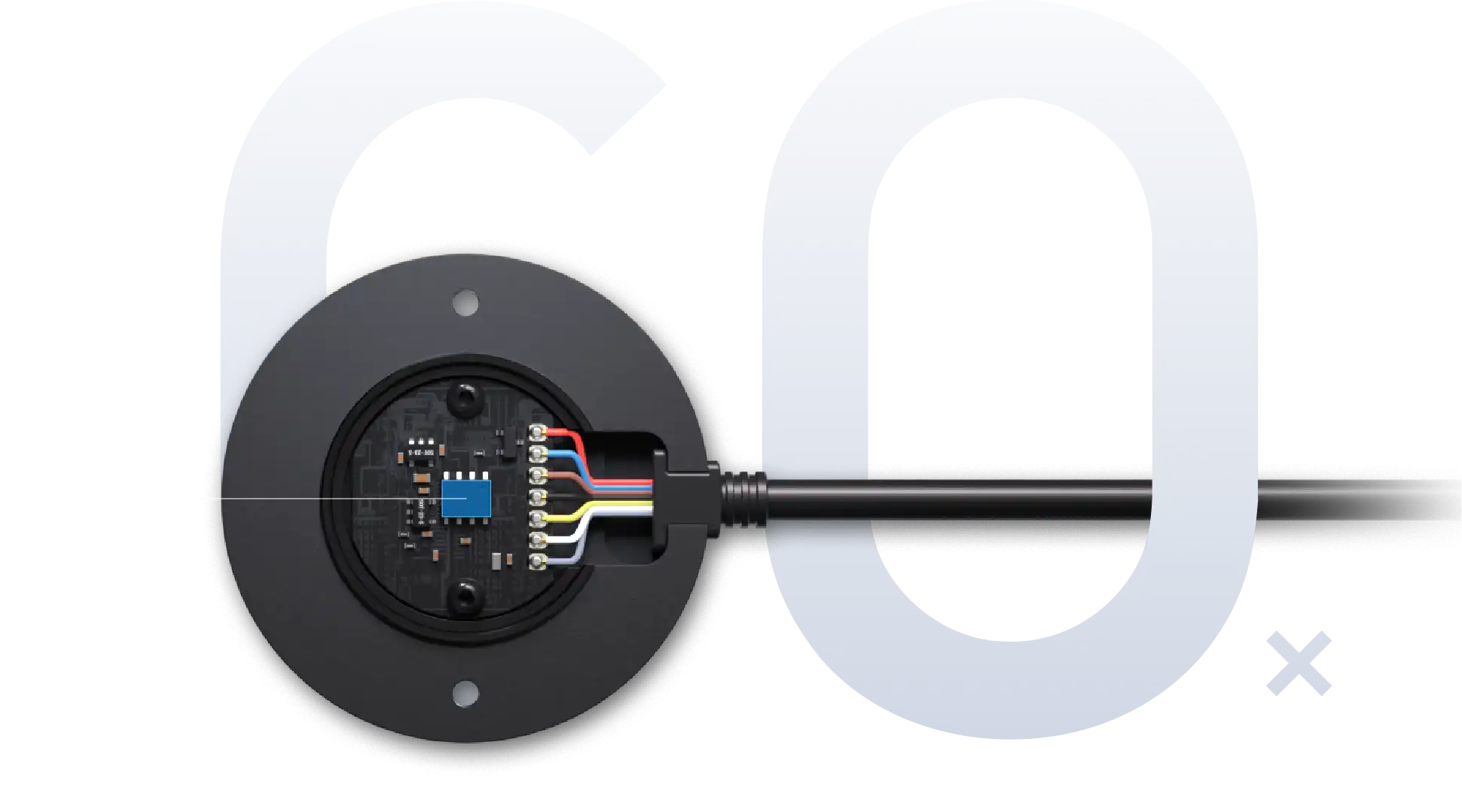

Built-in High-precision Magnetic Encoder
Featuring a built-in magnetic encoder sensor, the motor delivers 60 times higher position accuracy than conventional
Hall sensors used in standard sensored brushless motors. With excellent three-phase signal consistency, it
continuously provides clean and precise rotor position feedback for enhanced control and performance.
Encoder Sensor

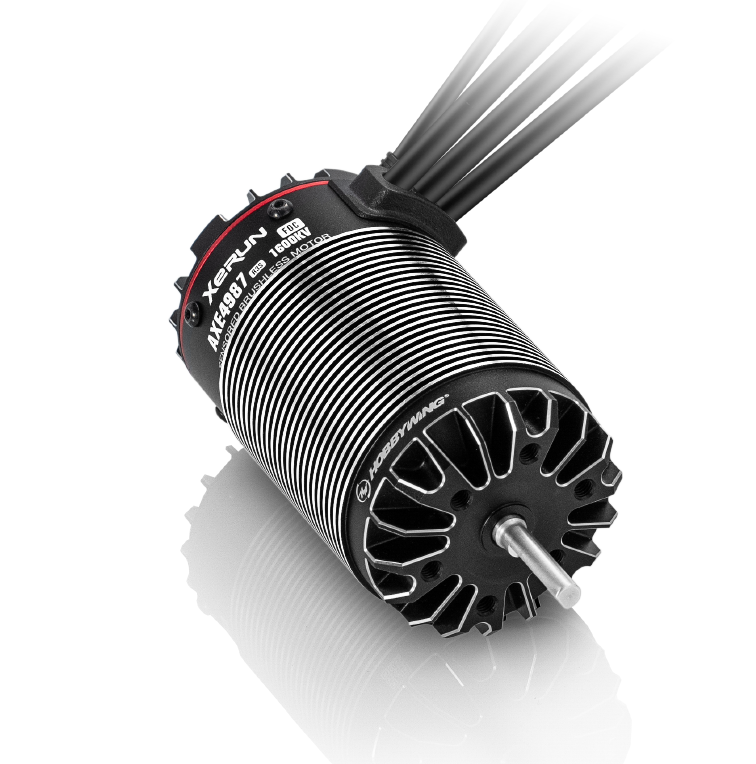

Premium Materials
Using the best parts, makes for the best motor that will deliver consistent and long lasting performance.
A High-hardness
CNC Aluminum Housing
Top-tier
Bearings
Premium Ultra-thin
Silicon Steel Laminations
200℃ High-temperature
Resistant
Resistant
Enameled Wire
A High-toughness Alloy
Output Shaft
ModelXeRun AXE4987 R3S
PN
-
-
- 30401402
Type
-
- Scale
- Brushed/Brushless
- Sensored/Sensorless
- Pole Count
-
- 1/5th,1/6th
- BL
- SD
- 4
Relevant Parameters
-
- KV Rating
- LiPo Cells
- No-load Current(A)
-
- 1600KV
- 3-8S LiPo
- 12.1A
Size & Weight
-
- O.D.(mm)
- Length (mm)
- Shaft Diameter (mm)
- Connectors
- Wires
- Weight (g)
-
- 49.5
- 87
- 5
- 6.5mm (male)
- Black-10AWG-300MM*3
- 660g
Other Parameters
-
- ESC
- Application
- Vehicles
-
- XERUN AXE PIUS R3
- 1/5,1/6 Scale Crawlers
- CROSSRC 1/6 EMO XX2
CROSSRC 1/6 EMO XX
AXIAL 1/6 SCX6
