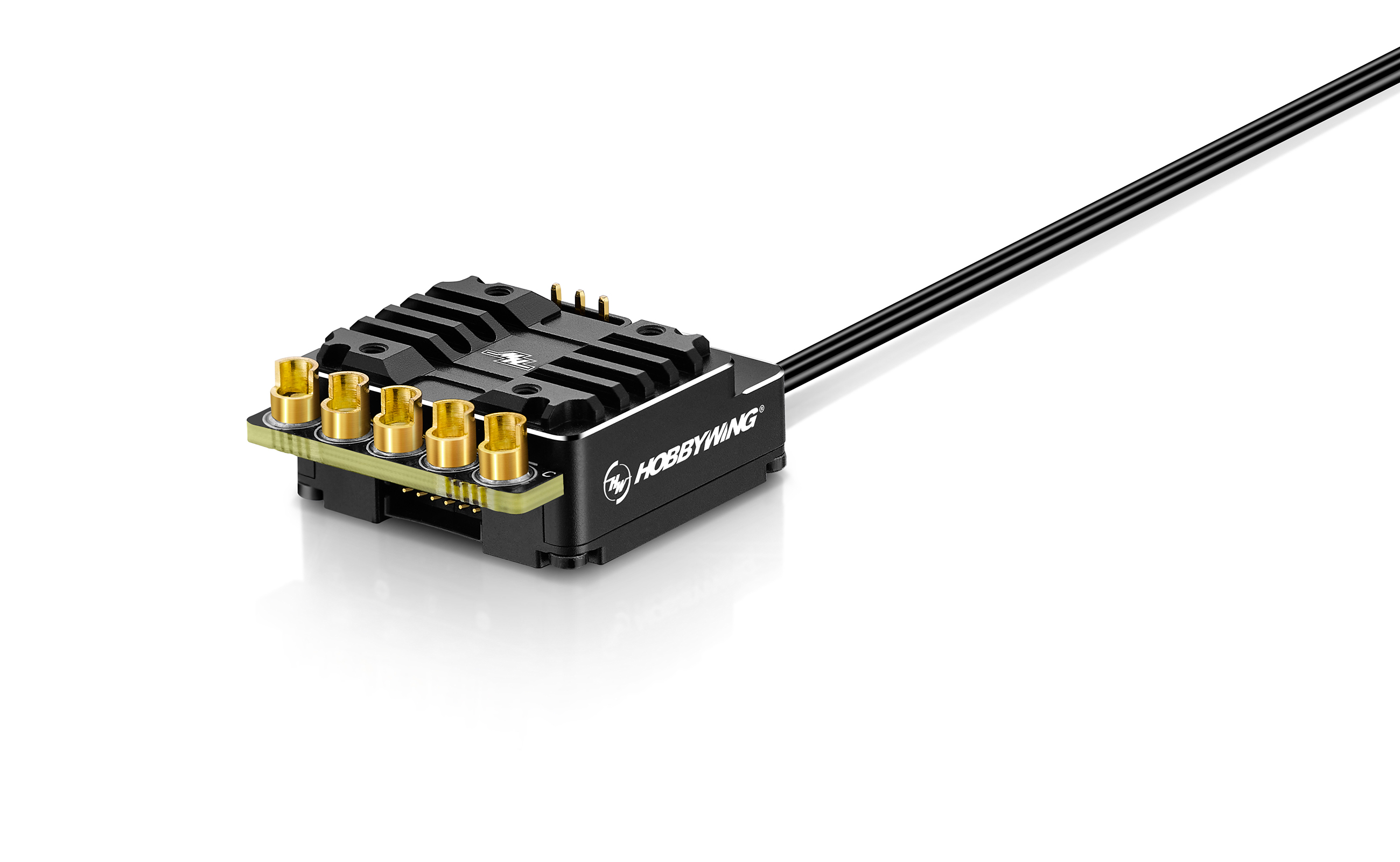

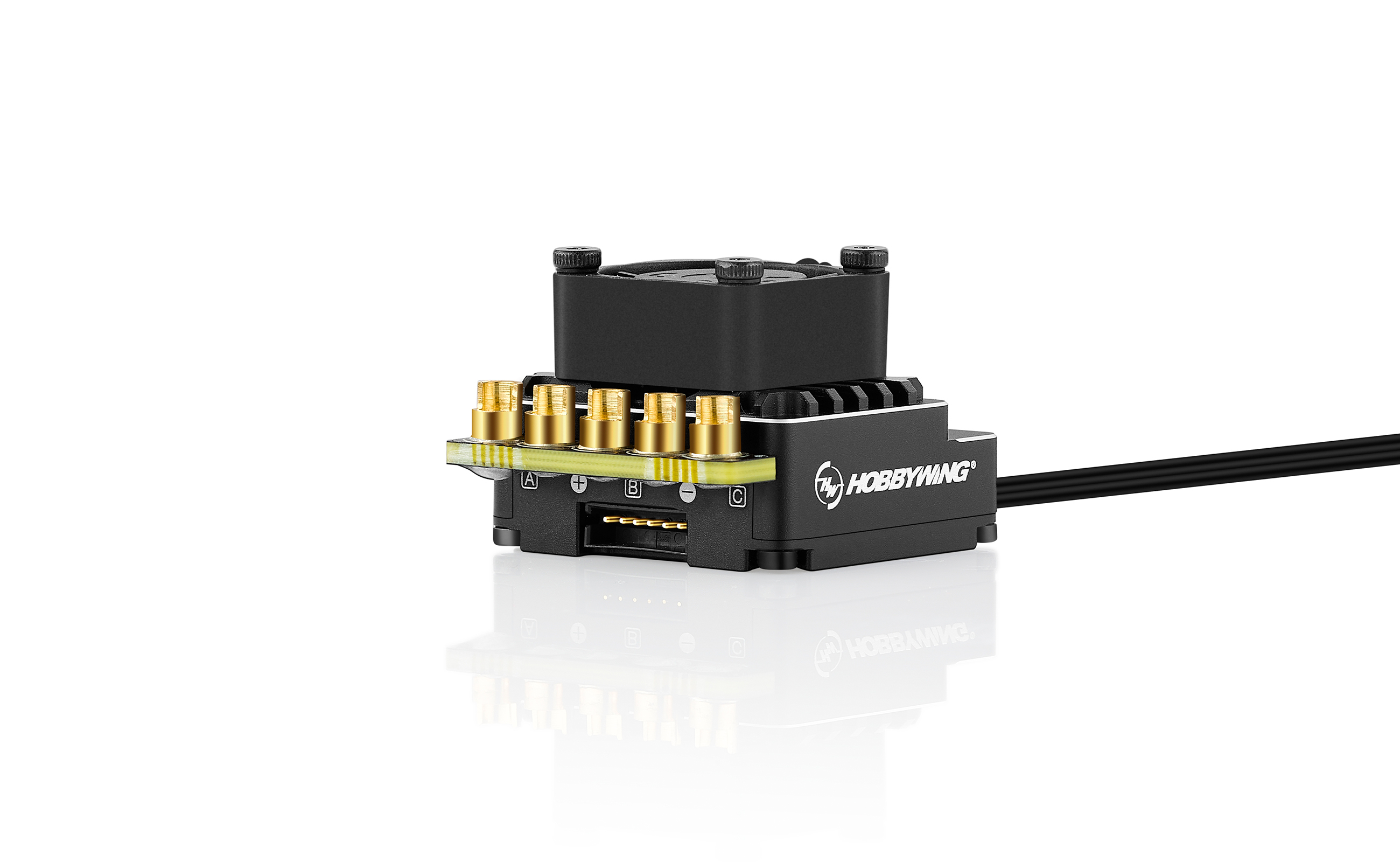

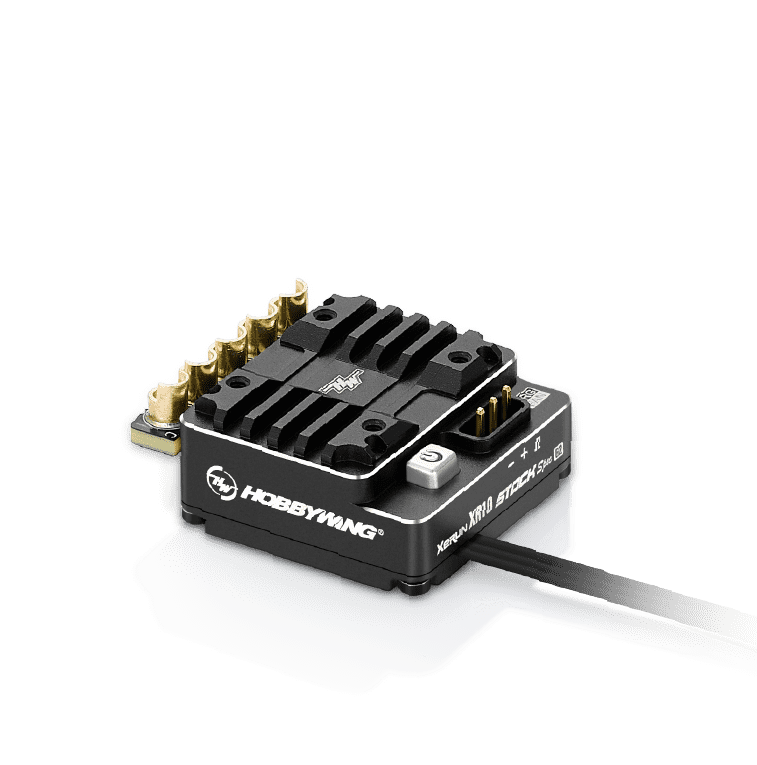

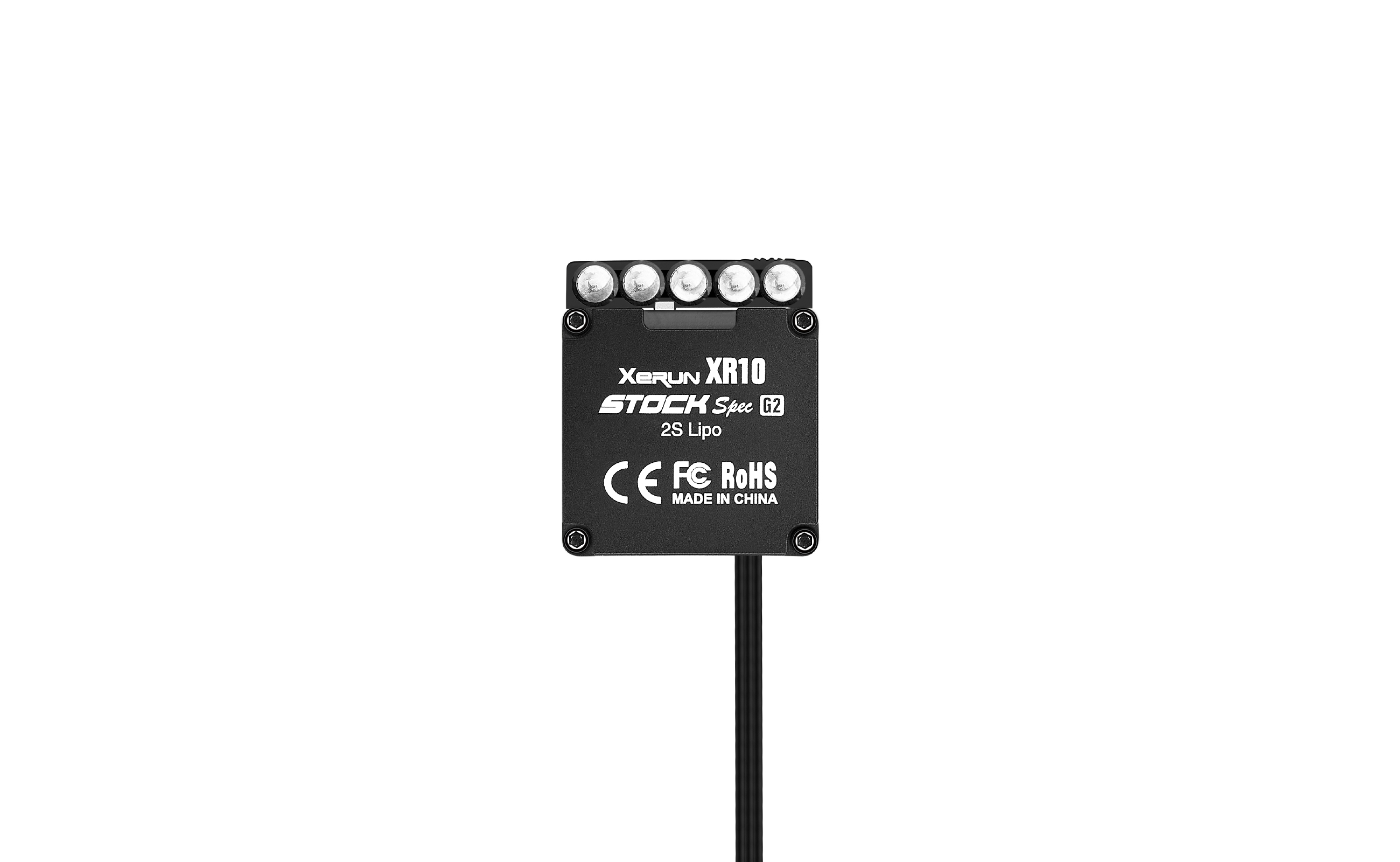

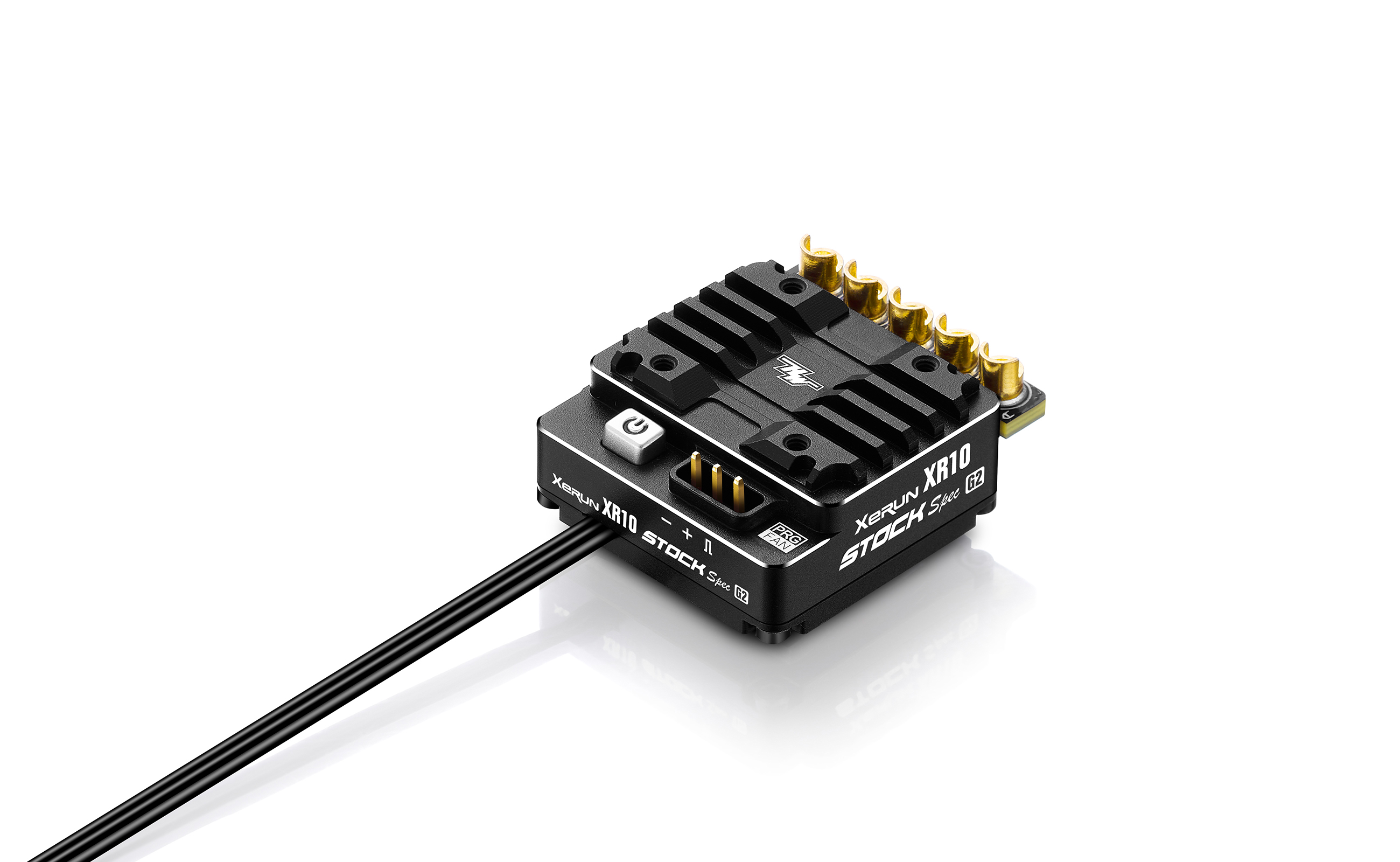

XeRun XR10 Stock Spec G2
Built in reverse voltage protection
Something that any electronic speed control faces
is the possibility of being connected backwards.
The new XR10 Stock Spec G2 features
HOBBYWING's proven polarity protection protection.
Higher power,
lower temperature

The new Stock Spec G2 has increased maximum
current rating of 100 amps.
This is 20 amps more than the previous Stock Spec.

Testing has shown as much as 30°C
lower temps under the same loads.

The stability and reliability of
the ESC has been further strengthened.

Built-in BEC supporting
high-voltage servos

  • The BEC's continuous output
    current has been upgraded from
    3A to 5A.

  • The maximum current is
    upgraded from
    6A to 10A.

  • the output voltage is now
    adjustable from
    6V/7.4V.

Hobbyist will be able to use high-voltage and powerful
servos available on the market with greater control.
Optimized cable outlet
for convenient wiring
The ESC input and output wires has been
optimized to ensure ease of different wiring
needed for both on-road and off-road vehicles.

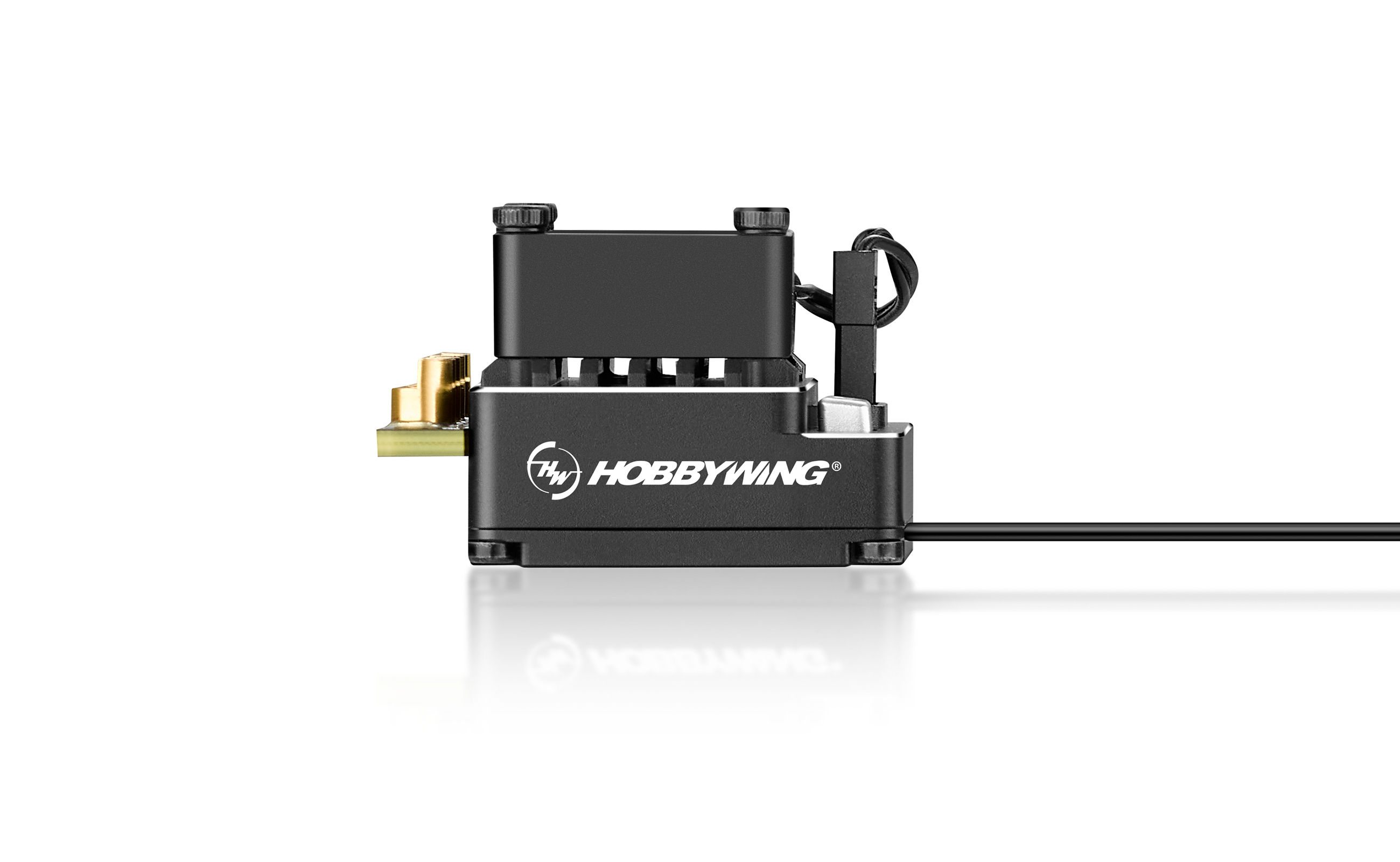

Low center of gravity,
easy to balance
The center of gravity of the ESC has been
lowered by 14.3%
to further enhance the balance adjustment of the chassis.
Real-time data acquisition,
easy analysis
After the ESC is connected to the OTA Bluetooth module,
connect to the ESC through the HW Link mobile app
and turn on the real-time data recording function.
Throttle, voltage, current, temperature, motor RPM,
and more, can be viewed in real time.
In addition, OTA can record the above data using HW Link.
Easy to implement data analysis functions.
  Note:
Due to the Bluetooth transmission distance,
the effective distance is about 5m!
Multi-level throttle and
brake curvature,
freely adjustable

  It supports


a wide range (-10~10) of throttle and brake curvature adjustment.
From an aggressive to mild throttle can be set,
and fined tuned with the throttle curve.
Similarly, the brake curve can be adjusted to meet the needs of the track.
Drag brake frequency is
independently adjustable.
The drag brake frequency can now be set
independent from the standard brake frequency.
The user will be able to adjust
the drag brake and brake functions accurately
RPM limit function
  Supports   79Settings
(10000-88000RPM) RPM limit value selection.
It can be programmed through the LCD programming box or OTA module.
It is simple and convenient to meet the speed limit
requirements of various competitions in the world.
Dual firmware,
multiple applications
The ESC comes equipped with built-in Blinky Stock firmware.
It is suitable for Blinky Stock competition.
The Boost firmware can be flashed for non-Blinky competition or drift applications.
Product Name
XeRun XR10 STOCK SPEC G2
Product Number
  30112402
Type
Scale 1/10th
Brushed/Brushless BL
Sensored/Sensorless SD
Waterproof No
Specifications
Cont./Peak Current 100A/500A
Input Voltage 2S Lipo
BEC BEC Output Switch Mode 6V/7.4V @5A
Wires & Connectors
Input Wires Black-13AWG-200MMmm*2
Output Wires Black-13AWG-200MMmm*3
Input Connectors No
Output Connectors No

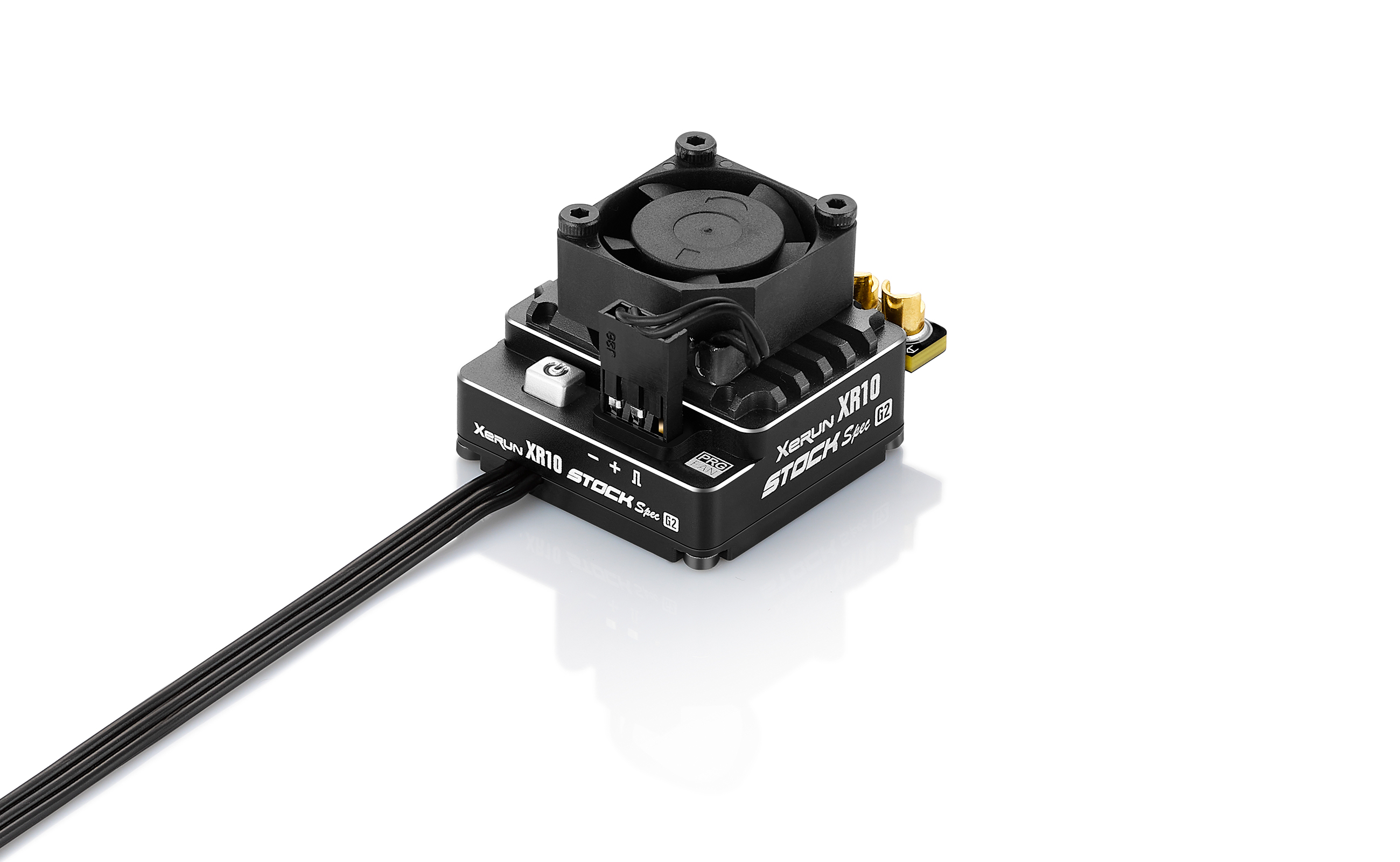

Fan
Size 20*20*8mm
Voltage Range 5-7.4V
Powered by BEC
ESC Programing via
SET Button on ESC Not Supported
LED Program Box Not Supported
LCD G2 Program Box Supported
LCD PRO Supported
OTA Programmer Supported
Program Port Separate Program Port
Data Recording
Extreme value Supported
Real-time Data Supported
Historical data (Graph) Supported
Firmware
Firmware Upgrade Supported
Size & Weight
Size 34.8*30*13.8mm
Weight 63g(w/Wires)
Applications
Motors 3650 size motors
Vehicles Stock Class of 1/10th Touring Car and Buggy Racing, 1/10th Drift
KV Rating/T Count ≥10.5T
Support

Manuals & Documents

Manuals

Software Download

FAQ

OTA Programmer

OTA Programmer

Product Number: 30850400
Working Voltage: 5-12.6V
Supported Bluetooh Version: ≥ 4.0
Effective Range: 0-5m (Open Field)
Applications: work on the XzRun series,
EzRun series of car ESCs, and the Platinum
series of aircraft ESCs, and
Seaking Prp series of boat ESCs.

+
LCD Program Box Pro

NEW

LCD Program Box Pro

Product Number: 30502002
Input Voltage: DC 5V~12.6V
Application: brushless ESC
Weight: 85g
Display:LCD

+
