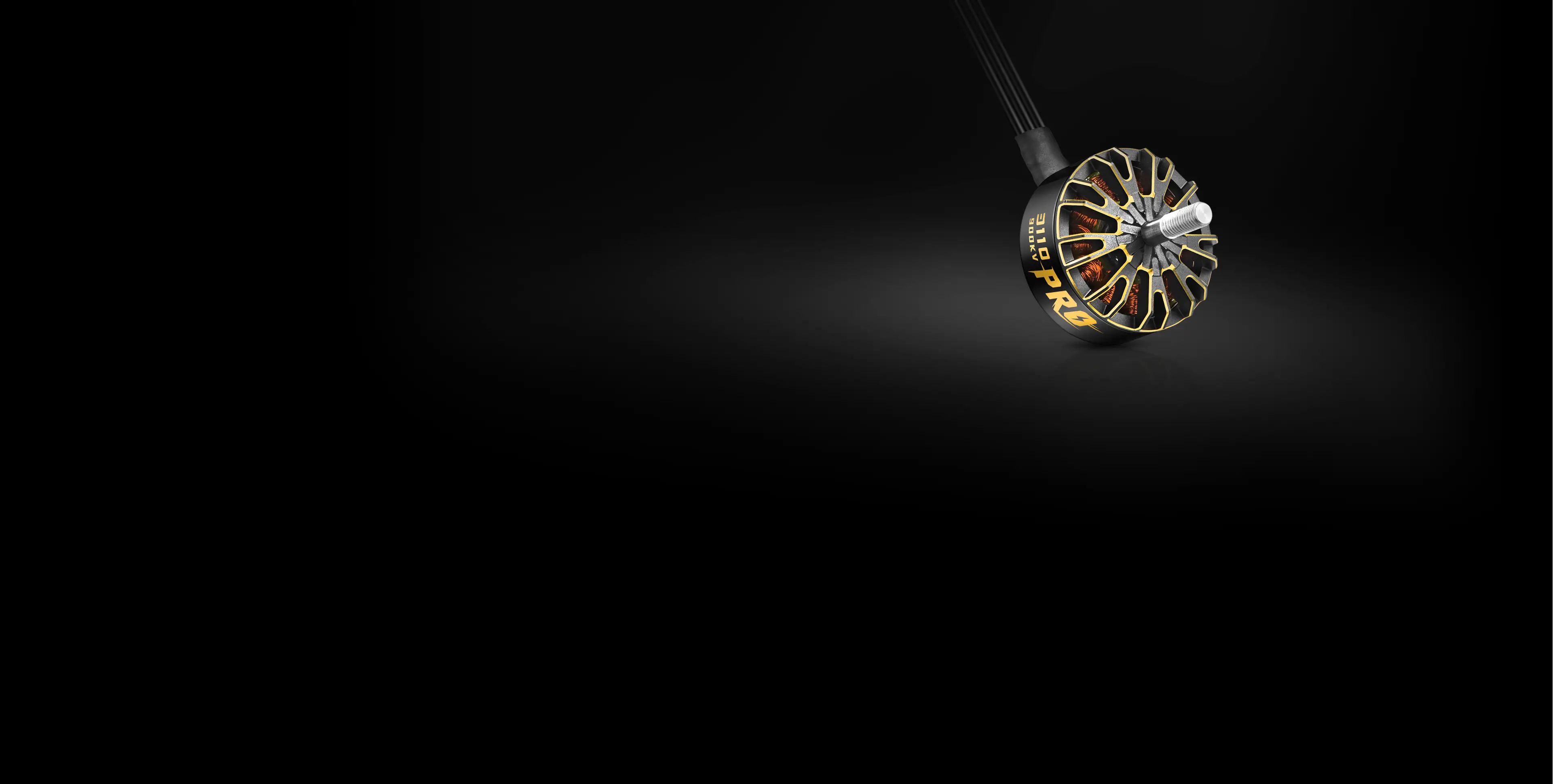

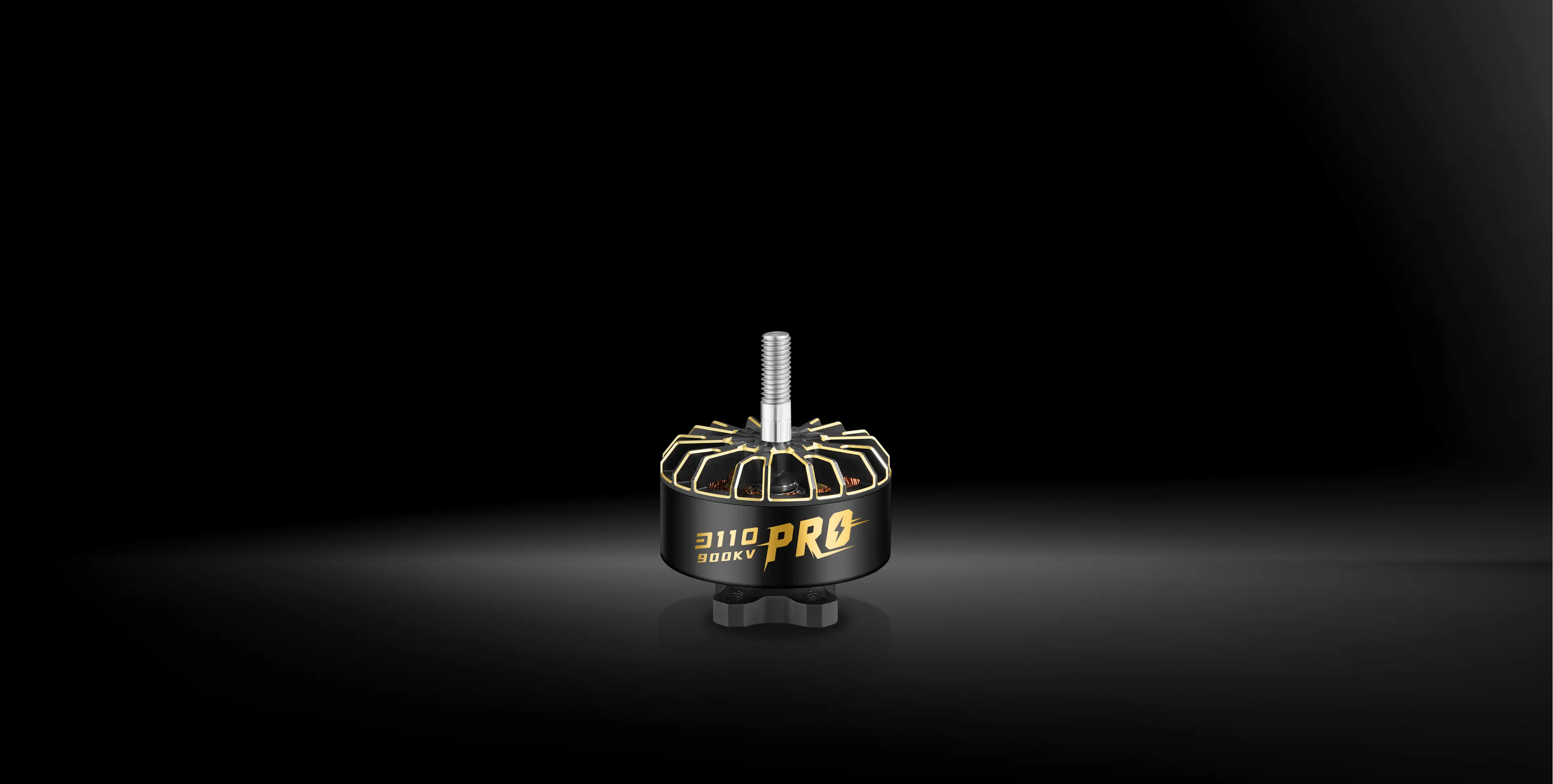

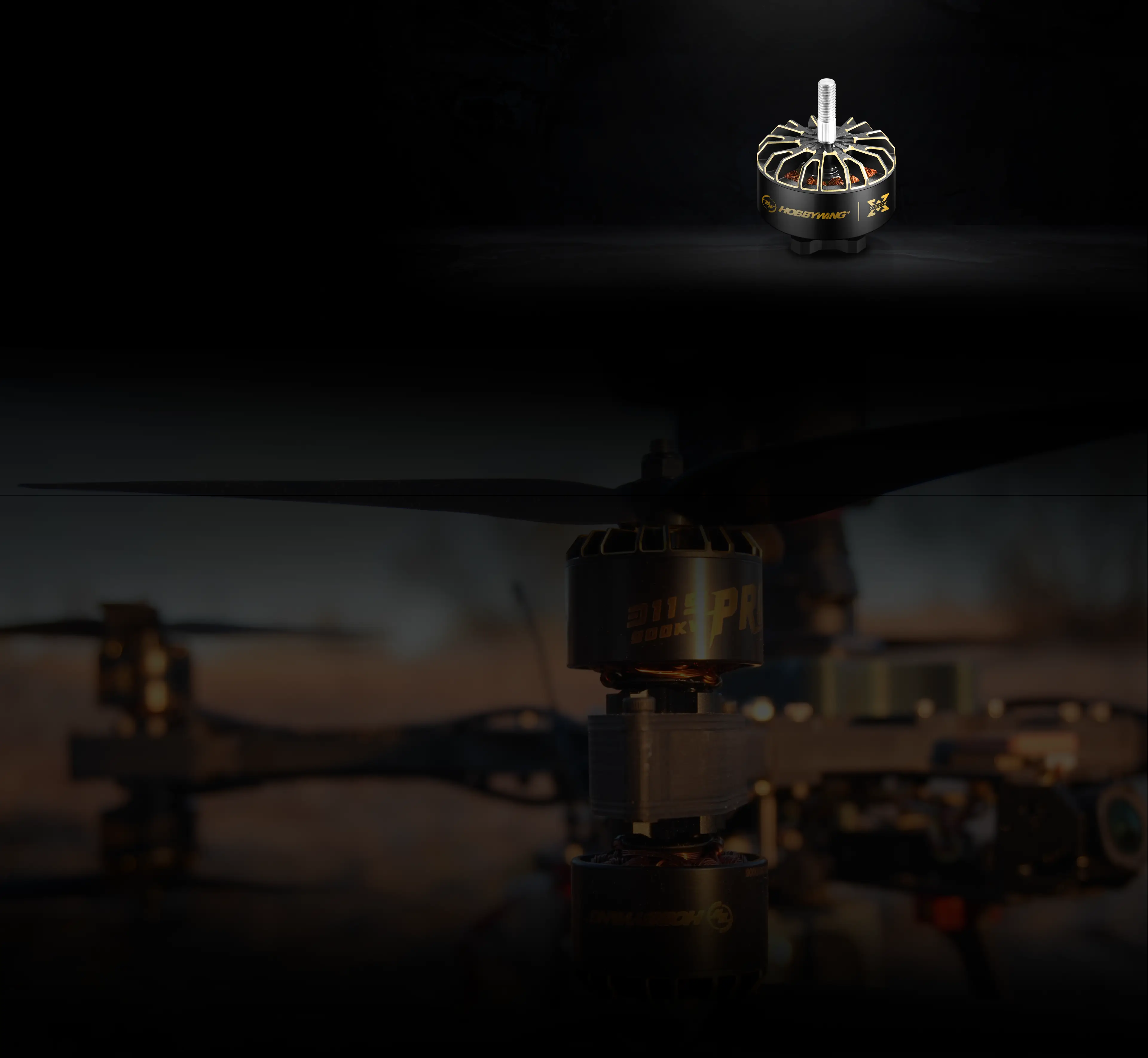

XRotor 3110 Pro
Built for Cinematic Aerial Photography
and Competition Applications
Higher Payload Capacity,
Longer Flight Endurance
and Competition Applications
Higher Payload Capacity, Longer Flight Endurance
High Efficiency, Unlocking
Extended Flight Potential
Extended Flight Potential
High Efficiency,
Unlocking
Extended Flight
Potential
Unlocking
Extended Flight
Potential
Featuring fully hand-wound windings with a high slot fill rate, 0.1mm low-loss stator core
laminations, and strong arc-shaped magnets, the motor delivers higher efficiency,
providing enhanced endurance for long-duration and complex filming missions.
Featuring fully hand-wound windings with a high
slot fill rate, 0.1mm low-loss stator core
laminations, and strong arc-shaped magnets, the
motor delivers higher efficiency, providing
enhanced endurance for long-duration and
complex filming missions.
Taking the 3115-900KV paired with a 10×5×3 propeller
as an example, compared with motors of the same
specifications from other brands:
as an example, compared with motors of the same
specifications from other brands:
Taking the 3115-900KV paired with a 10×5×3 propeller
as an example, compared with motors of the same
specifications from other brands:
as an example, compared with motors of the same
specifications from other brands:
Higher EfficiencyResistance
reduced by
reduced by
25%

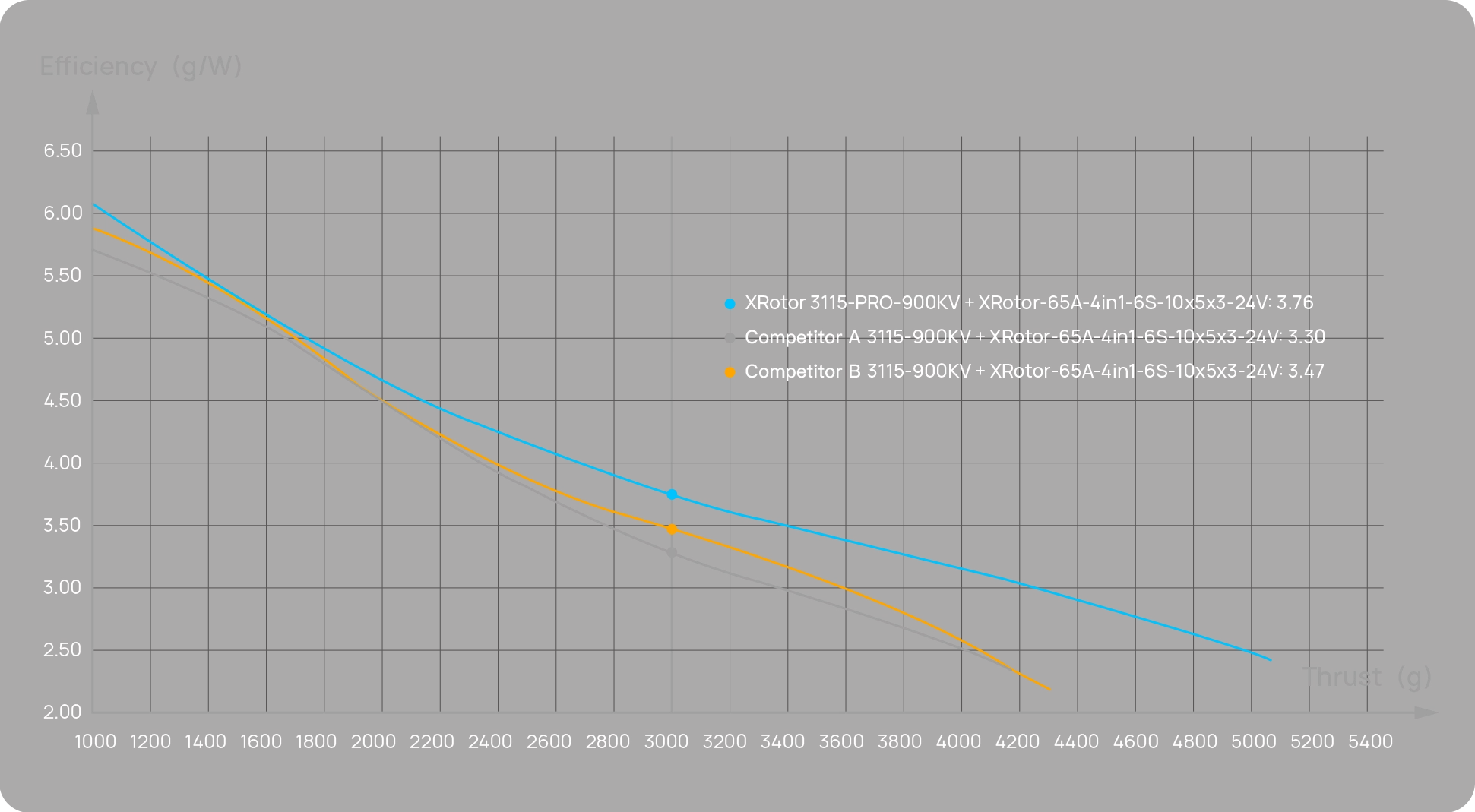

Efficiency at 3kg thrust
point enhanced by
point enhanced by
8%

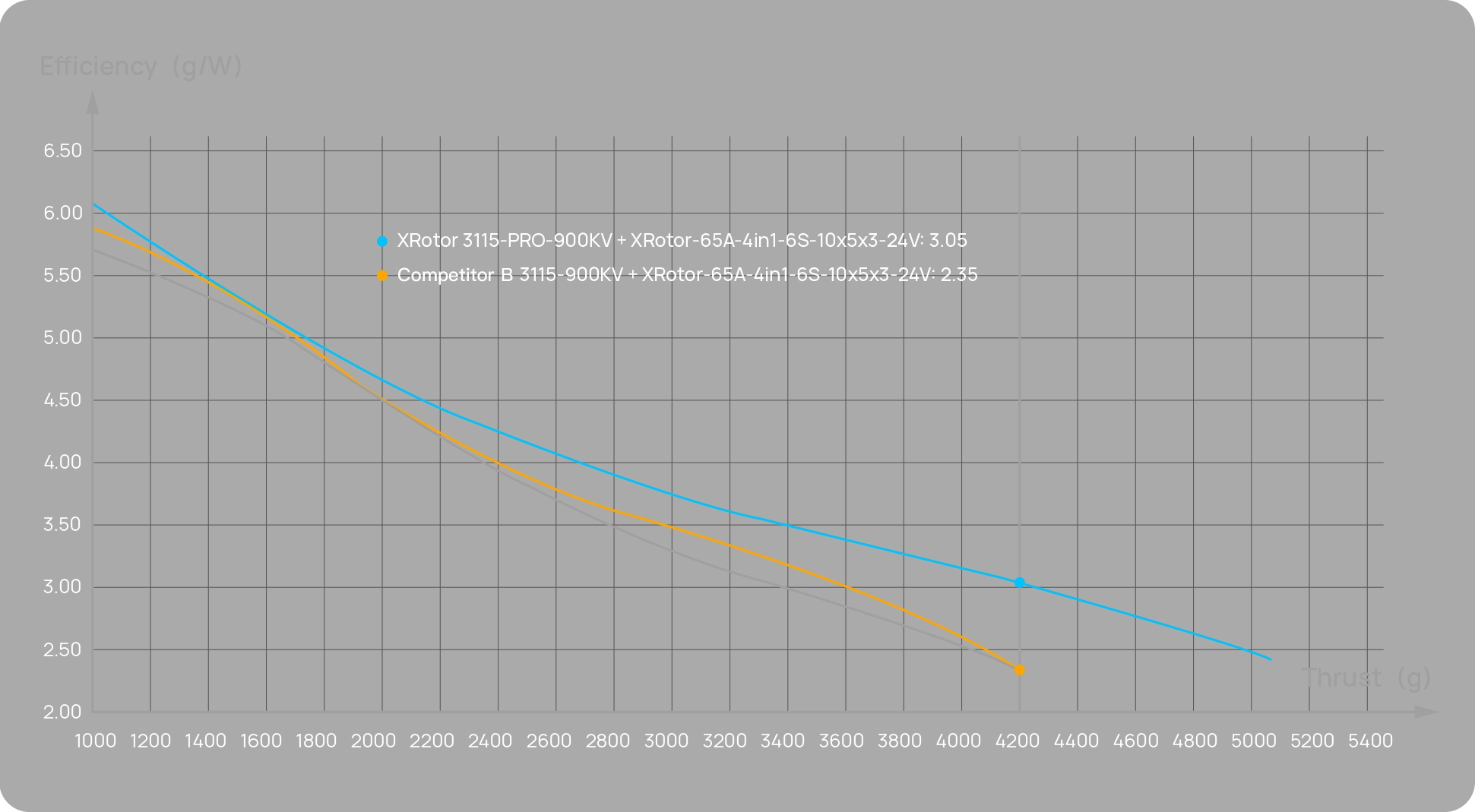

Efficiency at 4.2kg thrust
point improved by
point improved by
29%
Resistance
reduced by
reduced by
25%
Efficiency at
3kg thrust point
enhanced by
3kg thrust point
enhanced by
8%
Efficiency at
4.2kg thrust point
improved by
4.2kg thrust point
improved by
29%
*Note:Test data is obtained from HOBBYWING’s self-developed testing platform. Test results may vary slightly due to differences among sample batches.
Powerful Thrust, Meeting
Higher Payload Demands
Higher Payload Demands
Powerful Thrust, Meeting
Higher Payload Demands
Higher Payload Demands

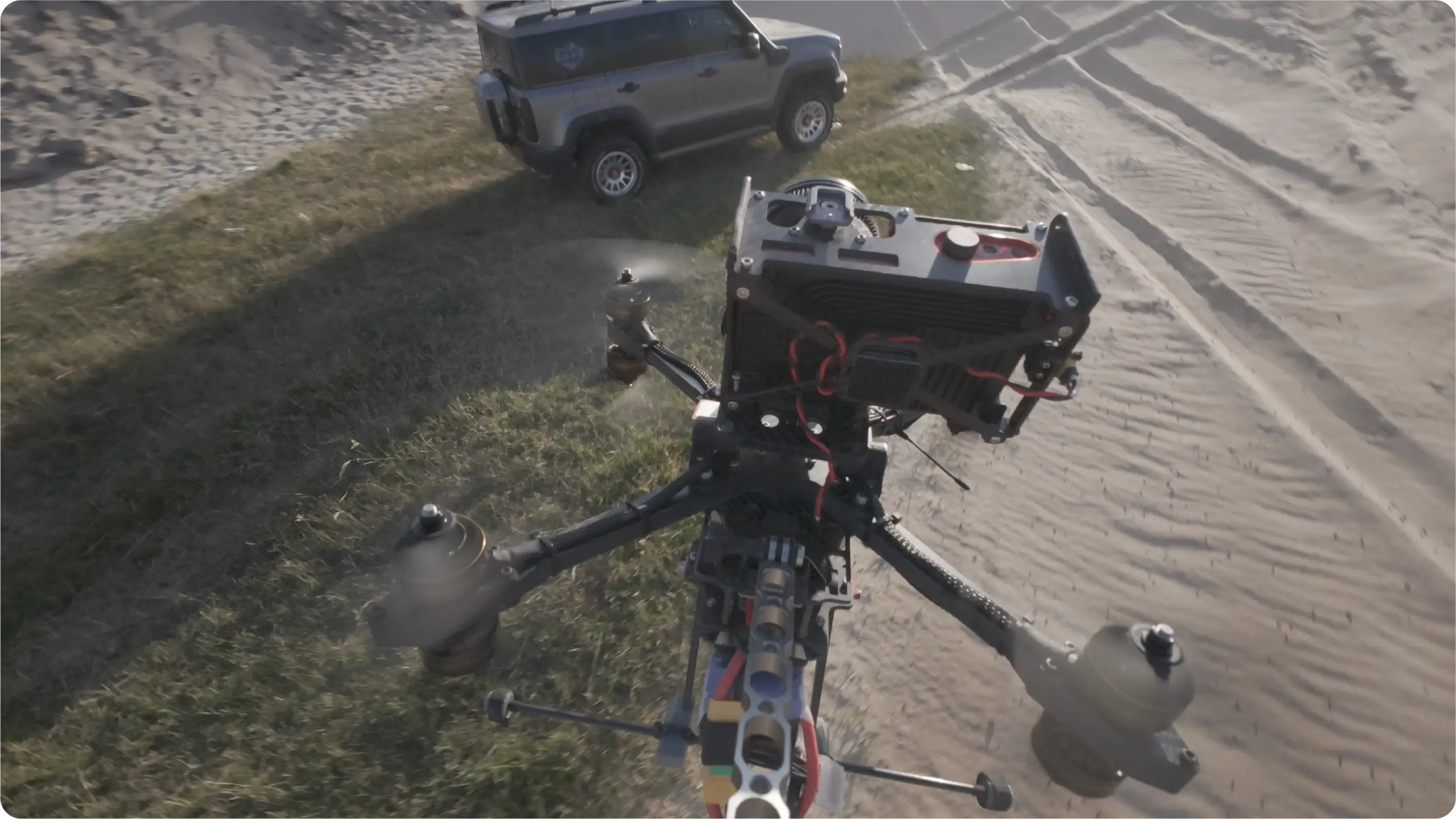

Delivering stronger power output, the motor maintains ample power reserve and flight stability
whether carrying large imaging equipment or performing high-speed chase shots. It also meets
the high thrust capacity requirements of industrial heavy-load applications and FPV racing competitions.
Delivering stronger power output, the motor
maintains ample power reserve and flight
stability whether carrying large imaging
equipment or performing high-speed chase
shots. It also meets the high thrust capacity
requirements of industrial heavy-load
applications and FPV racing competitions.
Powerful Thrust
3115-900KV paired with 10×5×3 propeller:Maximum single-axis
thrust reaches
thrust reaches
5.08kg
An increase of more than 21%+
compared with motors of the same
specifications from other brands
compared with motors of the same
specifications from other brands
Paired with HOBBYWING’s self-developed 10×5×3 carbon fiber propeller
Maximum thrust can be further increased to
5.25kg
3115-900KV paired with 10×5×3 propeller:Maximum
single-axis
thrust reaches
single-axis
thrust reaches
5.08kg
An increase of more than 21%+
compared with motors of the
same specifications from
other brands
compared with motors of the
same specifications from
other brands
Paired with HOBBYWING’s self-developed 10×5×3 carbon fiber propeller
Maximum thrust can be further increased to
5.25kg
High Thrust-to-Weight Ratio,
High Power Density
High Power Density
High Thrust-to-
Weight Ratio,
High Power Density
Weight Ratio,
High Power Density
The newly designed high-power-density platform achieves a better balance
between lightweight design and power output, combining agile control with robust
power performance. It provides ample power reserves for complex flight scenarios
such as dynamic tracking shots and high-speed maneuvers.
The newly designed high-power-density
platform achieves a better balance between
lightweight design and power output,
combining agile control with robust power
performance. It provides ample power reserves
for complex flight scenarios such as dynamic
tracking shots and high-speed maneuvers.
Compared to motors of the same specifications
from other brands, the 3115-900KV paired
with a 10×5×3 propeller delivers:
from other brands, the 3115-900KV paired
with a 10×5×3 propeller delivers:
Compared to motors of the same specifications
from other brands, the 3115-900KV paired
with a 10×5×3 propeller delivers:
from other brands, the 3115-900KV paired
with a 10×5×3 propeller delivers:
High Power DensityThrust-to-weight
ratio increased by
ratio increased by
7%
Peak thrust
enhanced by
enhanced by
21%
Peak power density
improved by
improved by
18%
| Motor Model | XRotor 3115 PRO-900KV | Leading Brand Competitor 1：3115-900KV |
Leading Brand Competitor 2：3115-900KV |
|---|---|---|---|
| Test ESC | XRotor-65A-4in1 | XRotor-65A-4in1 | XRotor-65A-4in1 |
| Test Propeller | 10x5x3 | 10x5x3 | 10x5x3 |
| Test Voltage (V) | 24 | 24 | 24 |
| Weight/(g) | 129.2 | 121 | 114.1 |
| Thrust-to-Weight Ratio | 39.37 | 34.37 | 36.77 |
| Peak Thrust (kg) | 5.09 | 4.16 | 4.2 |
| Peak Power Density(kW/kg) (Output Power) |
10.29 | 8.22 | 8.69 |
| 3kg Point System Efficiency (g/W) | 3.75 | 3.31 | 3.46 |
| Peak Thrust Temperature (Coil 200℃) / Safe Time (s) |
16 | 6 | 11 |

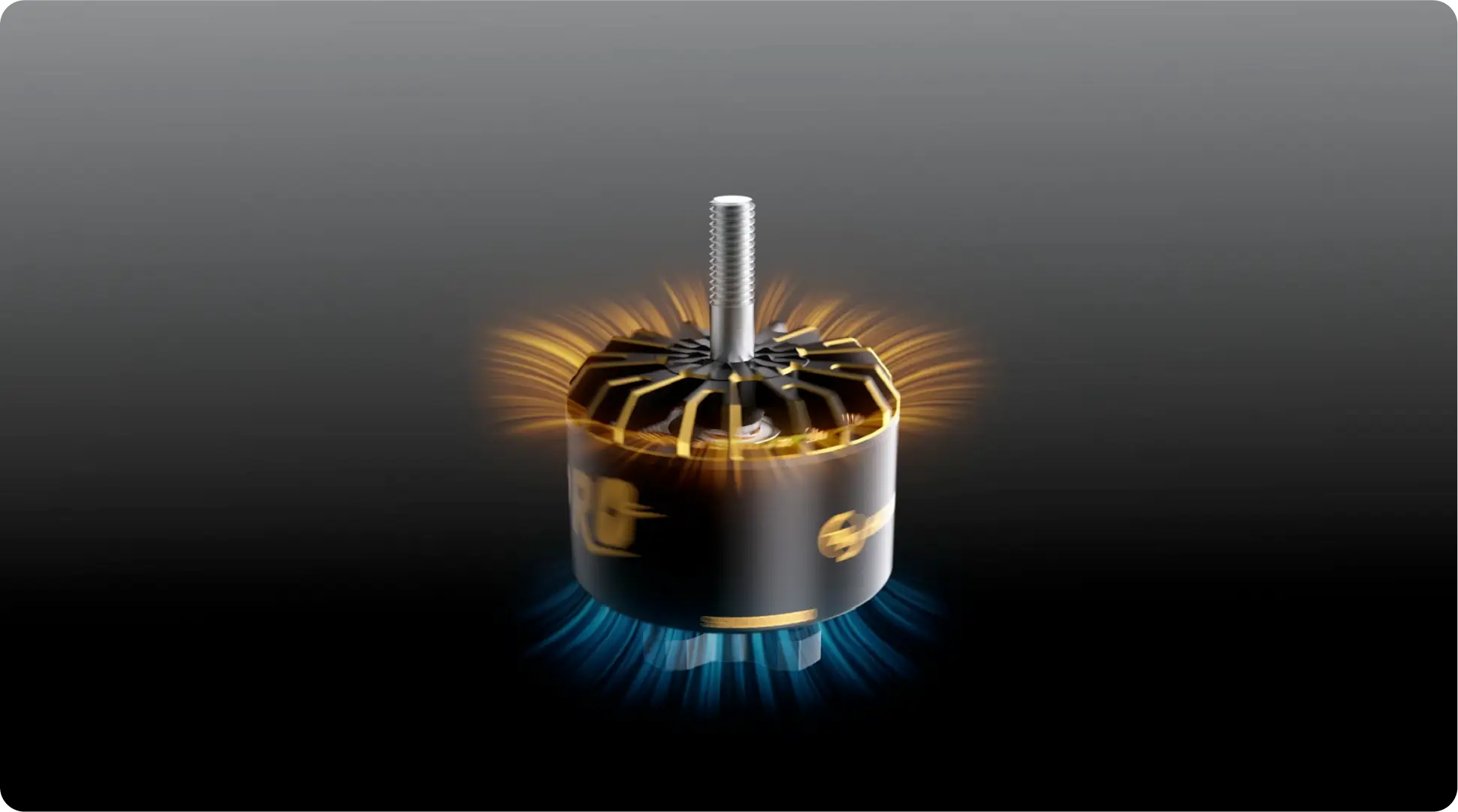

Efficient CoolingEfficient Cooling, Stable Continuous Output
Efficient Cooling,
Stable Continuous Output
Stable Continuous Output
The motor’s propeller mount adopts a high-density self-cooling fin structure,
rapidly dissipating internal coil heat during flight and effectively reducing operating temperature rise.
It maintains an ideal operating temperature under heavy-load and continuous-flight conditions,
extending continuous operation time while improving motor reliability and durability.
The motor’s propeller mount adopts a
high-density self-cooling fin structure, rapidly
dissipating internal coil heat during flight and
effectively reducing operating temperature
rise. It maintains an ideal operating
temperature under heavy-load and
continuous-flight conditions, extending
continuous operation time while improving
motor reliability and durability.

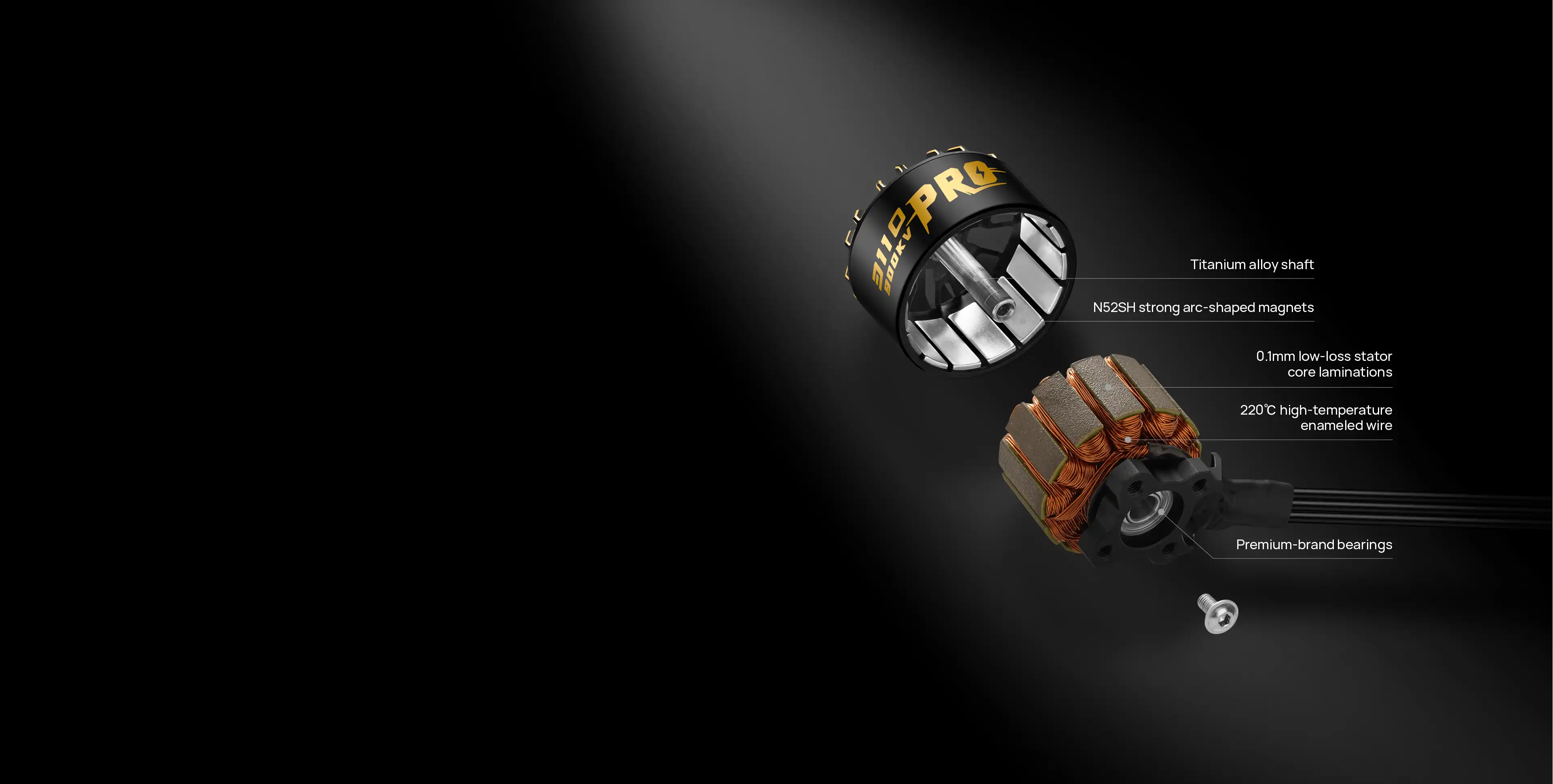

Premium MaterialsRefined Design,
Premium Materials,
Creating a Reliable
Power Core
Premium Materials,
Creating a Reliable
Power Core
Use high-performance 0.1mm low-loss stator core laminations from a
leading brand to reduce iron loss and improve conversion efficiency.
leading brand to reduce iron loss and improve conversion efficiency.
Titanium alloy shaft design balances lightweight construction and structural strength.
220℃ high-temperature enameled wire meets application demands
under high-load and high-temperature conditions.
under high-load and high-temperature conditions.
N52SH strong arc-shaped magnets deliver powerful torque output.
Premium-brand bearings ensure motor durability and stable high-speed operation.
Use high-performance 0.1mm low-loss stator
core laminations from a leading brand to reduce
iron loss and improve conversion efficiency.
core laminations from a leading brand to reduce
iron loss and improve conversion efficiency.
Titanium alloy shaft design balances lightweight
construction and structural strength.
construction and structural strength.
220℃ high-temperature enameled wire meets
application demands under high-load and
high-temperature conditions.
application demands under high-load and
high-temperature conditions.
N52SH strong arc-shaped magnets deliver
powerful torque output.
powerful torque output.
Premium-brand bearings ensure motor
durability and stable high-speed operation.
durability and stable high-speed operation.
ModelXRotor 3110 PRO
- 900KV
- 1250KV
Specification
-
- Model
- Motor size
- Stator size
- Stator process
- Enamelled wire
- Isolation test
- Slot& Pole
- Bearing
- Motor axle diameter
- Shaft Lenght
- Motor mounting dimensions
-
- XRotor 3110 PRO-900KV
- Φ37.2*H29.2mm
- Φ31*15mm
- High standard silicon steel sheet, 180℃ high temperature resistance paint-coat
- 220℃ high temperature resistant, C class insulation
- 500V AC high voltage resistance test
- 12N14P
- 1150ZZ
- Φ5mm
- 17mm
- Φ19mm-4*M3
- XRotor 3110 PRO-1250KV
- Φ37.2*H29.2mm
- Φ31*15mm
- High standard silicon steel sheet, 180℃ high temperature resistance paint-coat
- 220℃ high temperature resistant, C class insulation
- 500V AC high voltage resistance test
- 12N14P
- 1150ZZ
- Φ5mm
- 17mm
- Φ19mm-4*M3
Specification
-
- KV
- Battery(LiPo)
- No-load current
- Maximum current (Non-hermetic Ambient Temperature ≤ 25℃）
- Rated power output
- Max power
- Max thrust
- Resistance
- Wire size
- Wire length
- Weight（With wire）
-
- 900
- LiPo-6S
- 1.78A/24V
- 70.4A/8s
- 280W
- 1686W/8s
- 3.87kg
- 45mΩ
- 18AWG
- 250mm
- 100g
- 1250
- LiPo-6S
- 3.55A/24V
- 82A/16s
- 380W
- 1969W/16s
- 4.25kg
- 29mΩ
- 16AWG
- 250mm
- 100g
Recommended Props/ESCs
-
- Motor
- Propeller
- ESC
- Battery
-
- XRotor 3110 PRO 900KV
- HQ8X4.5X3 HQ9x4x3 HQ9x5x3
- XRotor FPV G2 65A 4in1 ESC
- 6S LiPo
- XRotor 3110 PRO 1250KV
- HQ7X4X3 HQ8x4x3
- XRotor FPV G2 65A 4in1 ESC
- 6S LiPo
Support
Manuals & Documents
Disclaimer
The purpose of this website is only to introduce you to the basic situation of HOBBYWING company and product information. Unless otherwise stated, all information provided on this website should not be regarded as an offer or acceptance, and this website will not assume any binding obligations to you as a result of the provision of information. For all your requests, HOBBYWING reserves the full right to decide whether to commit or not.
This Website and its contents are provided for your convenience on an "as is" basis and your use of this Website is at your sole risk. HOBBYWING does not guarantee that this website will be uninterrupted or error-free, and reserves the right to amend this website or withdraw access to this Website at any time. We make no warranties, express or implied, as to the content, existence, accuracy or reliability of this Website, including, but not limited to, warranties of title, non-infringement or implied warranties of merchantability or fitness for a particular purpose or use.
HOBBYWING shall not be liable for any direct, indirect, incidental, special or consequential damages, loss of profits or business interruption caused by the use or inability to use the services provided by the Website, even if HOBBYWING has been advised of the possibility of similar losses. The exclusions and limitations of the warranty liability of HOBBYWING shall be effective to the extent permitted by applicable law.
HOBBYWING shall not be liable for any damage or loss to your computer system or any other software, hardware, IT system or property caused by viruses or other destructive programs caused by accessing, viewing and using this website or downloading any content from this Website (including but not limited to 2D model files, 3D model files).
HOBBYWING shall not be liable for any direct or indirect damage or loss caused by any third party using illegal means to access the website to obtain the relevant passwords, information and content.
If you or your company is located in the United States or Canada, you need to fill out this disclaimer confirmation letter online and submit it successfully before you can download the relevant materials you are interested in. The link address you fill in online is https://www.hobbywingdirect.com/pages/digital-file-release-form
If you do not agree with this disclaimer, please do not continue to this page. If you continue to access, browse and use this interface, you have read, understood and agreed to be bound by this statement and comply with all applicable laws and regulations.
HOBBYWING reserves the right to correct, modify and update this statement at any time.
Confirm >
XRotor 3110 PRO
XRotor 3110 Pro
Built for Cinematic Aerial Photography
and Competition Applications Higher Payload Capacity,
Longer Flight Endurance
and Competition Applications
Higher Payload Capacity, Longer Flight Endurance
High Efficiency, Unlocking
Extended Flight Potential
Extended Flight Potential
High Efficiency,
Unlocking
Extended Flight
Potential
Unlocking
Extended Flight
Potential
Featuring fully hand-wound windings with a high slot fill rate, 0.1mm low-loss stator core
laminations, and strong arc-shaped magnets, the motor delivers higher efficiency,
providing enhanced endurance for long-duration and complex filming missions.
Featuring fully hand-wound windings with a high
slot fill rate, 0.1mm low-loss stator core
laminations, and strong arc-shaped magnets, the
motor delivers higher efficiency, providing
enhanced endurance for long-duration and
complex filming missions.
Taking the 3115-900KV paired with a 10×5×3 propeller
as an example, compared with motors of the same
specifications from other brands:
as an example, compared with motors of the same
specifications from other brands:
Taking the 3115-900KV paired with a 10×5×3 propeller
as an example, compared with motors of the same
specifications from other brands:
as an example, compared with motors of the same
specifications from other brands:
Higher EfficiencyResistance
reduced by
reduced by
25%
Efficiency at 3kg thrust
point enhanced by
point enhanced by
8%
Efficiency at 4.2kg thrust
point improved by
point improved by
29%
Resistance
reduced by
reduced by
25%
Efficiency at
3kg thrust point
enhanced by
3kg thrust point
enhanced by
8%
Efficiency at
4.2kg thrust point
improved by
4.2kg thrust point
improved by
29%
*Note:Test data is obtained from HOBBYWING’s self-developed testing platform. Test results may vary slightly due to differences among sample batches.
Powerful Thrust, Meeting
Higher Payload Demands
Higher Payload Demands
Powerful Thrust, Meeting
Higher Payload Demands
Higher Payload Demands
Delivering stronger power output, the motor maintains ample power reserve and flight stability
whether carrying large imaging equipment or performing high-speed chase shots. It also meets
the high thrust capacity requirements of industrial heavy-load applications and FPV racing competitions.
Delivering stronger power output, the motor
maintains ample power reserve and flight
stability whether carrying large imaging
equipment or performing high-speed chase
shots. It also meets the high thrust capacity
requirements of industrial heavy-load
applications and FPV racing competitions.
Powerful Thrust
3115-900KV paired with 10×5×3 propeller:Maximum single-axis
thrust reaches
thrust reaches
5.08kg
An increase of more than 21%+
compared with motors of the same
specifications from other brands
compared with motors of the same
specifications from other brands
Paired with HOBBYWING’s self-developed 10×5×3 carbon fiber propeller
Maximum thrust can be further increased to
5.25kg
3115-900KV paired with 10×5×3 propeller:Maximum
single-axis
thrust reaches
single-axis
thrust reaches
5.08kg
An increase of more than 21%+
compared with motors of the
same specifications from
other brands
compared with motors of the
same specifications from
other brands
Paired with HOBBYWING’s self-developed 10×5×3 carbon fiber propeller
Maximum thrust can be further increased to
5.25kg
High Thrust-to-Weight Ratio,
High Power Density
High Power Density
High Thrust-to-
Weight Ratio,
High Power Density
Weight Ratio,
High Power Density
The newly designed high-power-density platform achieves a better balance
between lightweight design and power output, combining agile control with robust
power performance. It provides ample power reserves for complex flight scenarios
such as dynamic tracking shots and high-speed maneuvers.
The newly designed high-power-density
platform achieves a better balance between
lightweight design and power output,
combining agile control with robust power
performance. It provides ample power reserves
for complex flight scenarios such as dynamic
tracking shots and high-speed maneuvers.
Compared to motors of the same specifications
from other brands, the 3115-900KV paired
with a 10×5×3 propeller delivers:
from other brands, the 3115-900KV paired
with a 10×5×3 propeller delivers:
Compared to motors of the same specifications
from other brands, the 3115-900KV paired
with a 10×5×3 propeller delivers:
from other brands, the 3115-900KV paired
with a 10×5×3 propeller delivers:
High Power DensityThrust-to-weight
ratio increased by
ratio increased by
7%
Peak thrust
enhanced by
enhanced by
21%
Peak power density
improved by
improved by
18%
| Motor Model | XRotor 3115 PRO-900KV | Leading Brand Competitor 1：3115-900KV |
Leading Brand Competitor 2：3115-900KV |
|---|---|---|---|
| Test ESC | XRotor-65A-4in1 | XRotor-65A-4in1 | XRotor-65A-4in1 |
| Test Propeller | 10x5x3 | 10x5x3 | 10x5x3 |
| Test Voltage (V) | 24 | 24 | 24 |
| Weight/(g) | 129.2 | 121 | 114.1 |
| Thrust-to-Weight Ratio | 39.37 | 34.37 | 36.77 |
| Peak Thrust (kg) | 5.09 | 4.16 | 4.2 |
| Peak Power Density(kW/kg) (Output Power) |
10.29 | 8.22 | 8.69 |
| 3kg Point System Efficiency (g/W) | 3.75 | 3.31 | 3.46 |
| Peak Thrust Temperature (Coil 200℃) / Safe Time (s) |
16 | 6 | 11 |
Efficient CoolingEfficient Cooling, Stable Continuous Output
Efficient Cooling,
Stable Continuous Output
Stable Continuous Output
The motor’s propeller mount adopts a high-density self-cooling fin structure,
rapidly dissipating internal coil heat during flight and effectively reducing operating temperature rise.
It maintains an ideal operating temperature under heavy-load and continuous-flight conditions,
extending continuous operation time while improving motor reliability and durability.
The motor’s propeller mount adopts a
high-density self-cooling fin structure, rapidly
dissipating internal coil heat during flight and
effectively reducing operating temperature
rise. It maintains an ideal operating
temperature under heavy-load and
continuous-flight conditions, extending
continuous operation time while improving
motor reliability and durability.
Premium MaterialsRefined Design,
Premium Materials,
Creating a Reliable
Power Core
Premium Materials,
Creating a Reliable
Power Core
Use high-performance 0.1mm low-loss stator core laminations from a
leading brand to reduce iron loss and improve conversion efficiency.
leading brand to reduce iron loss and improve conversion efficiency.
Titanium alloy shaft design balances lightweight construction and structural strength.
220℃ high-temperature enameled wire meets application demands
under high-load and high-temperature conditions.
under high-load and high-temperature conditions.
N52SH strong arc-shaped magnets deliver powerful torque output.
Premium-brand bearings ensure motor durability and stable high-speed operation.
Use high-performance 0.1mm low-loss stator
core laminations from a leading brand to reduce
iron loss and improve conversion efficiency.
core laminations from a leading brand to reduce
iron loss and improve conversion efficiency.
Titanium alloy shaft design balances lightweight
construction and structural strength.
construction and structural strength.
220℃ high-temperature enameled wire meets
application demands under high-load and
high-temperature conditions.
application demands under high-load and
high-temperature conditions.
N52SH strong arc-shaped magnets deliver
powerful torque output.
powerful torque output.
Premium-brand bearings ensure motor
durability and stable high-speed operation.
durability and stable high-speed operation.
ModelXRotor 3110 PRO
- 900KV
- 1250KV
Specification
-
- Model
- Motor size
- Stator size
- Stator process
- Enamelled wire
- Isolation test
- Slot& Pole
- Bearing
- Motor axle diameter
- Shaft Lenght
- Motor mounting dimensions
-
- XRotor 3110 PRO-900KV
- Φ37.2*H29.2mm
- Φ31*15mm
- High standard silicon steel sheet, 180℃ high temperature resistance paint-coat
- 220℃ high temperature resistant, C class insulation
- 500V AC high voltage resistance test
- 12N14P
- 1150ZZ
- Φ5mm
- 17mm
- Φ19mm-4*M3
- XRotor 3110 PRO-1250KV
- Φ37.2*H29.2mm
- Φ31*15mm
- High standard silicon steel sheet, 180℃ high temperature resistance paint-coat
- 220℃ high temperature resistant, C class insulation
- 500V AC high voltage resistance test
- 12N14P
- 1150ZZ
- Φ5mm
- 17mm
- Φ19mm-4*M3
Specification
-
- KV
- Battery(LiPo)
- No-load current
- Maximum current (Non-hermetic Ambient Temperature ≤ 25℃）
- Rated power output
- Max power
- Max thrust
- Resistance
- Wire size
- Wire length
- Weight（With wire）
-
- 900
- LiPo-6S
- 1.78A/24V
- 70.4A/8s
- 280W
- 1686W/8s
- 3.87kg
- 45mΩ
- 18AWG
- 250mm
- 100g
- 1250
- LiPo-6S
- 3.55A/24V
- 82A/16s
- 380W
- 1969W/16s
- 4.25kg
- 29mΩ
- 16AWG
- 250mm
- 100g
Recommended Props/ESCs
-
- Motor
- Propeller
- ESC
- Battery
-
- XRotor 3110 PRO 900KV
- HQ8X4.5X3 HQ9x4x3 HQ9x5x3
- XRotor FPV G2 65A 4in1 ESC
- 6S LiPo
- XRotor 3110 PRO 1250KV
- HQ7X4X3 HQ8x4x3
- XRotor FPV G2 65A 4in1 ESC
- 6S LiPo
Support
Manuals & Documents
Disclaimer
The purpose of this website is only to introduce you to the basic situation of HOBBYWING company and product information. Unless otherwise stated, all information provided on this website should not be regarded as an offer or acceptance, and this website will not assume any binding obligations to you as a result of the provision of information. For all your requests, HOBBYWING reserves the full right to decide whether to commit or not.
This Website and its contents are provided for your convenience on an "as is" basis and your use of this Website is at your sole risk. HOBBYWING does not guarantee that this website will be uninterrupted or error-free, and reserves the right to amend this website or withdraw access to this Website at any time. We make no warranties, express or implied, as to the content, existence, accuracy or reliability of this Website, including, but not limited to, warranties of title, non-infringement or implied warranties of merchantability or fitness for a particular purpose or use.
HOBBYWING shall not be liable for any direct, indirect, incidental, special or consequential damages, loss of profits or business interruption caused by the use or inability to use the services provided by the Website, even if HOBBYWING has been advised of the possibility of similar losses. The exclusions and limitations of the warranty liability of HOBBYWING shall be effective to the extent permitted by applicable law.
HOBBYWING shall not be liable for any damage or loss to your computer system or any other software, hardware, IT system or property caused by viruses or other destructive programs caused by accessing, viewing and using this website or downloading any content from this Website (including but not limited to 2D model files, 3D model files).
HOBBYWING shall not be liable for any direct or indirect damage or loss caused by any third party using illegal means to access the website to obtain the relevant passwords, information and content.
If you or your company is located in the United States or Canada, you need to fill out this disclaimer confirmation letter online and submit it successfully before you can download the relevant materials you are interested in. The link address you fill in online is https://www.hobbywingdirect.com/pages/digital-file-release-form
If you do not agree with this disclaimer, please do not continue to this page. If you continue to access, browse and use this interface, you have read, understood and agreed to be bound by this statement and comply with all applicable laws and regulations.
HOBBYWING reserves the right to correct, modify and update this statement at any time.
Confirm >
