XRotor FPV G2 65A 4in1 ESC - FPV Drone Competition ESC

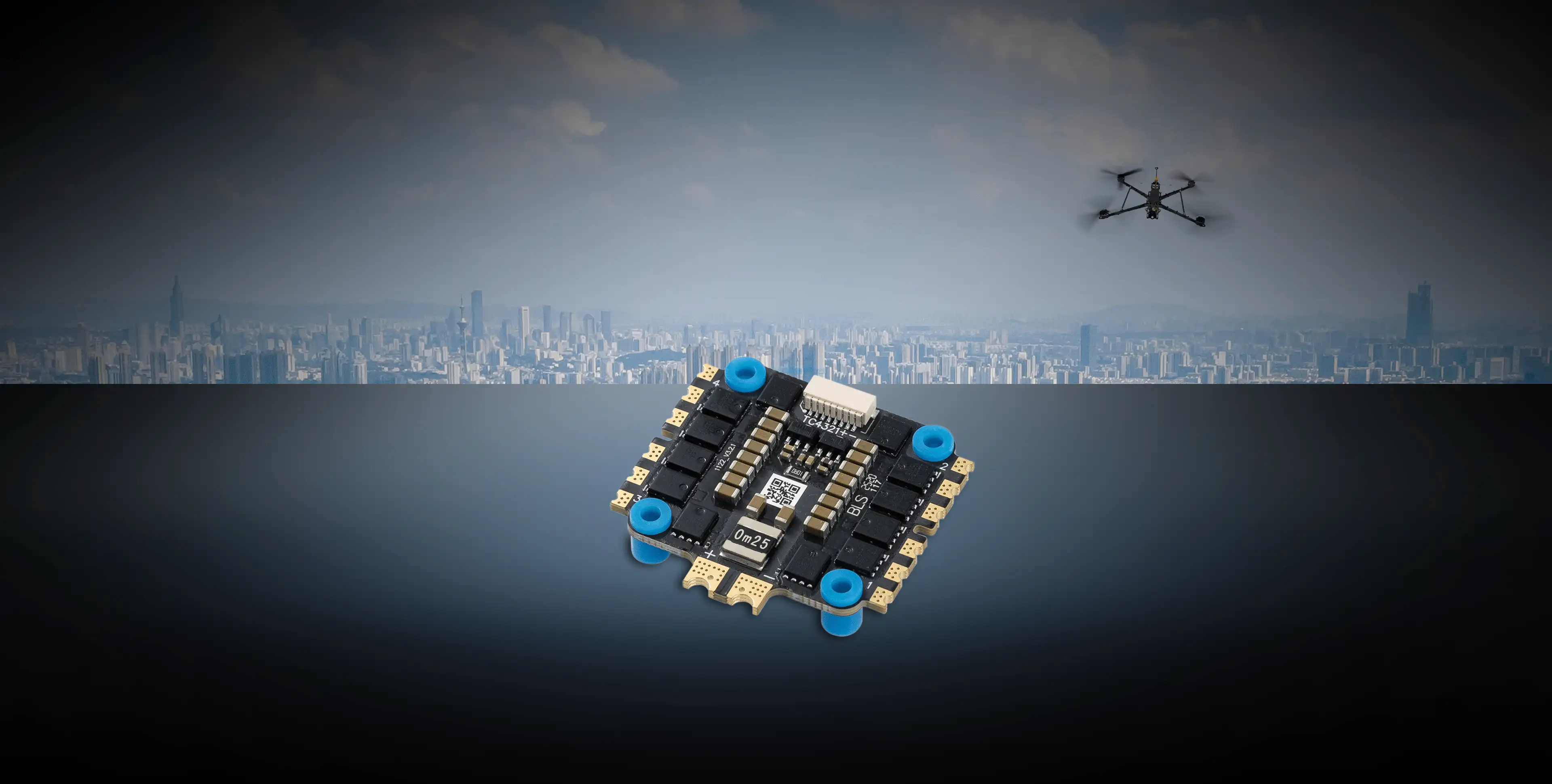

XRotor 65A 4in1 6S Lite BLS V2 RTF FPV ESC
RTF 65A 4in1 6S Lite BLS V2
FPV Drone Brushless ESC
Compact & High Current Capability

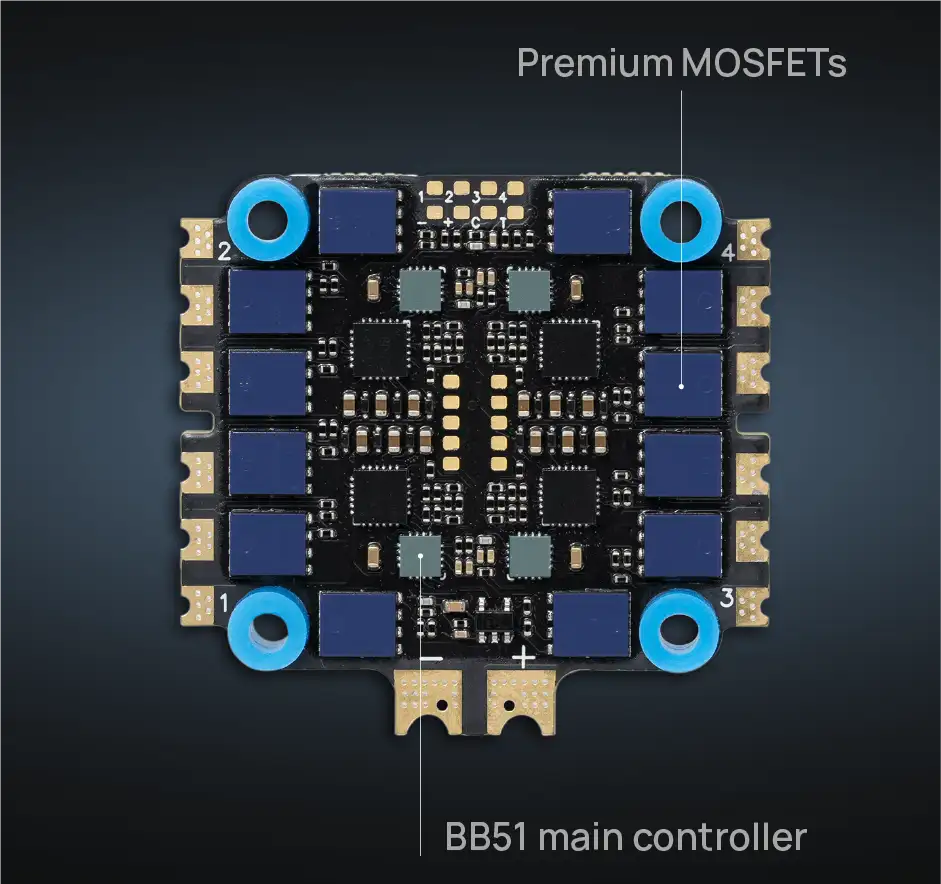

FPV 4in1 Brushless ESC
Featuring a BB51 main controller and premium
MOSFETs, this electronic speed controller (ESC)
supports freely flashing BLS or Bluejay firmware.

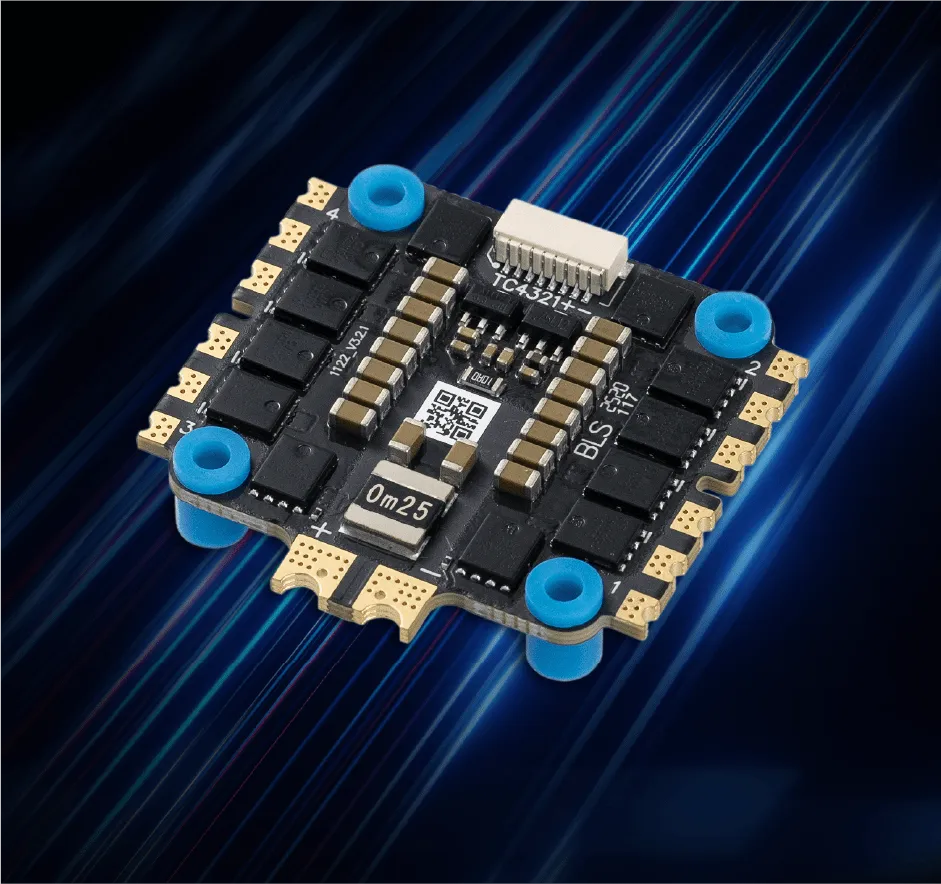

XRotor 65A 4in1 FPV Drone ESC
Its compact form factor, enables a burst current of
up to 80A and a continuous current of 65A per
channel, all while delivering exceptional motor driving performance.

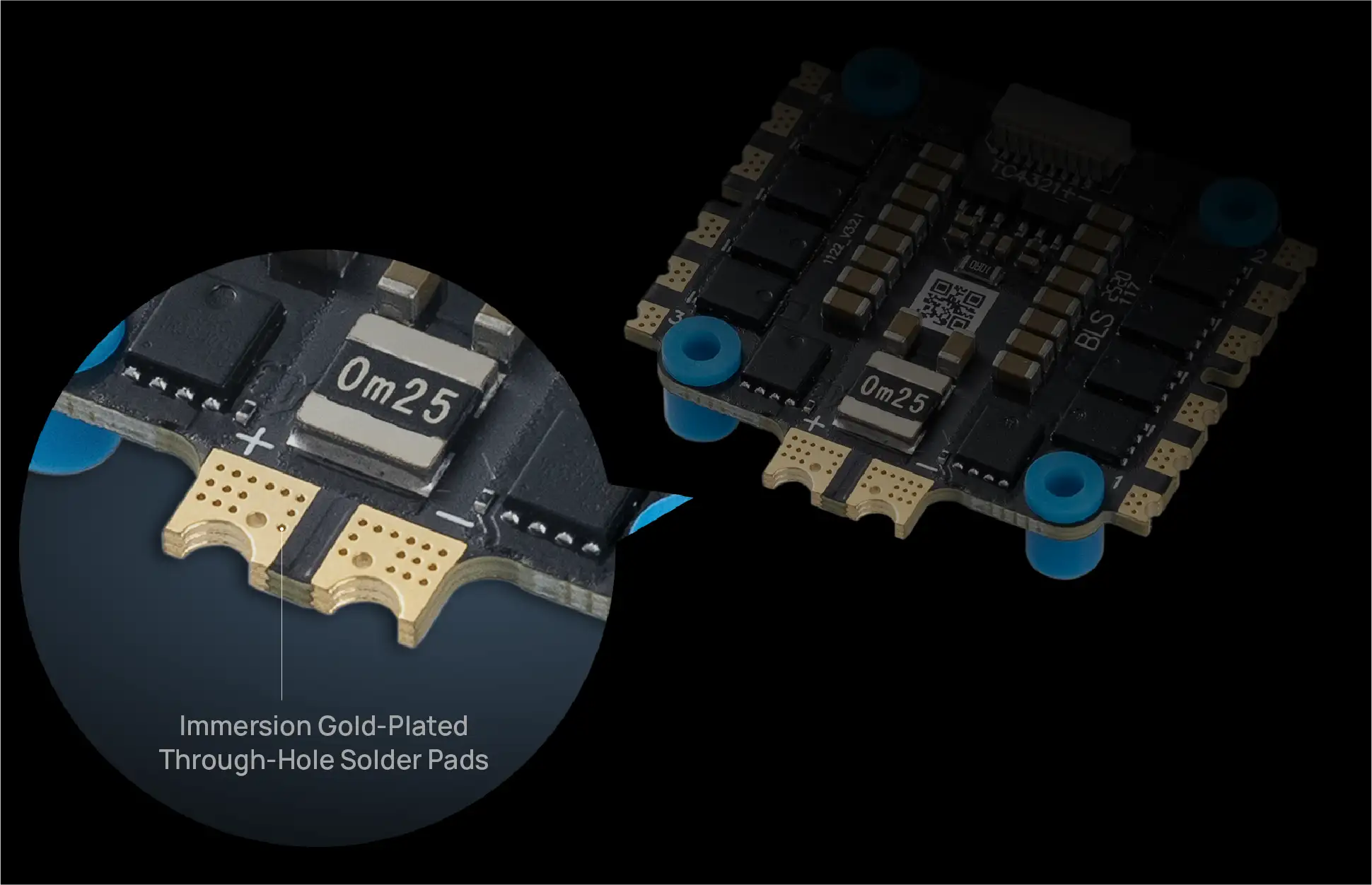

Immersion Gold-Plated
Through-Hole Solder Pads
The solder pads feature an immersion gold, through-hole design, which provides a larger surface area.
This significantly boosts current-carrying capacity and ensures robust, reliable solder joints.
Gold-filled through-hole

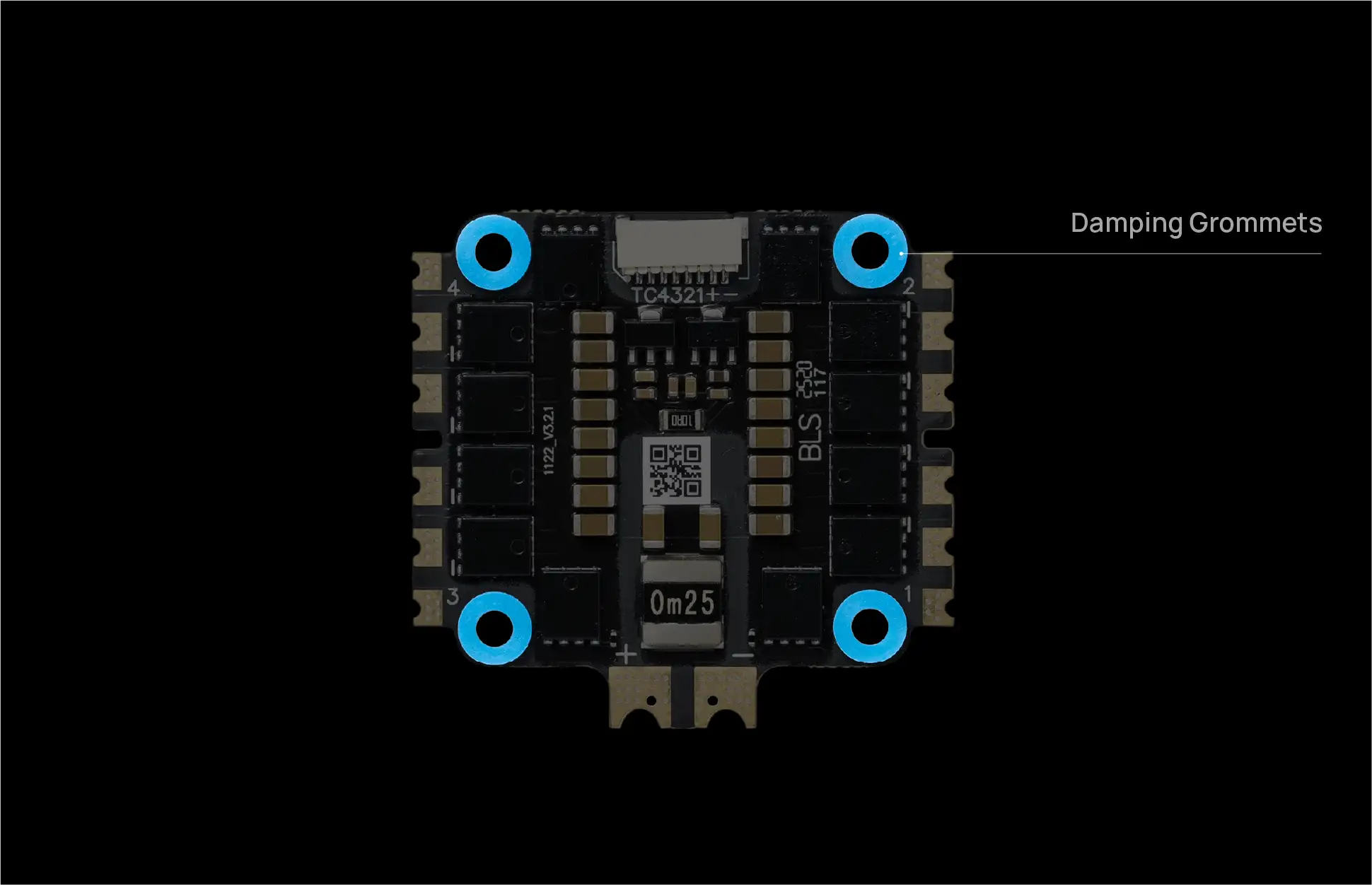

Reduced Vibration &
Extended Lifespan

The connection points between the ESC and the frame are fitted with damping grommets.

These effectively reduce vibrations transmitted from the frame during flight, mitigating

long-term vibration damage to components and extending the overall lifespan of the unit.

Damping Balls
BLS/Bluejay Dual
Firmware Support

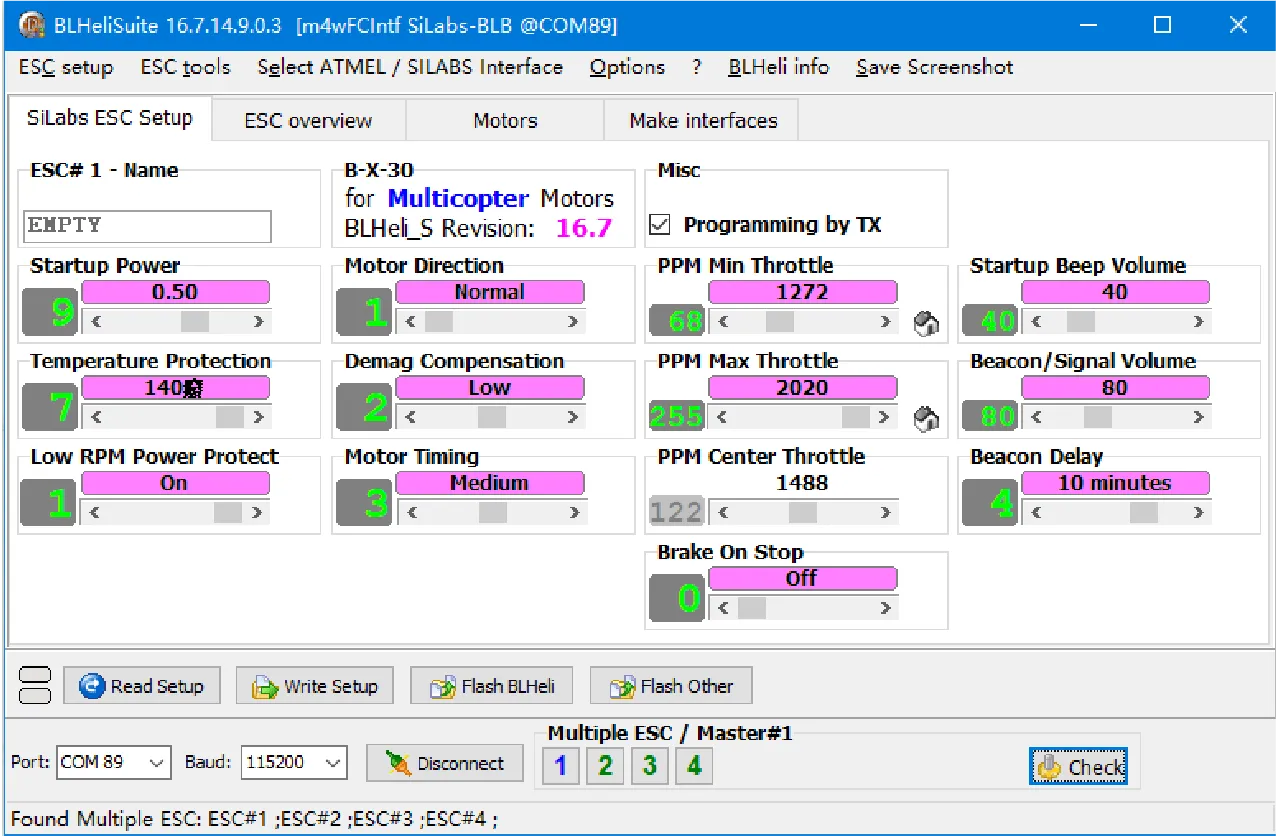

The ESC supports both BLS and Bluejay firmware, enabling free flashing
and switching to meet diverse user needs.

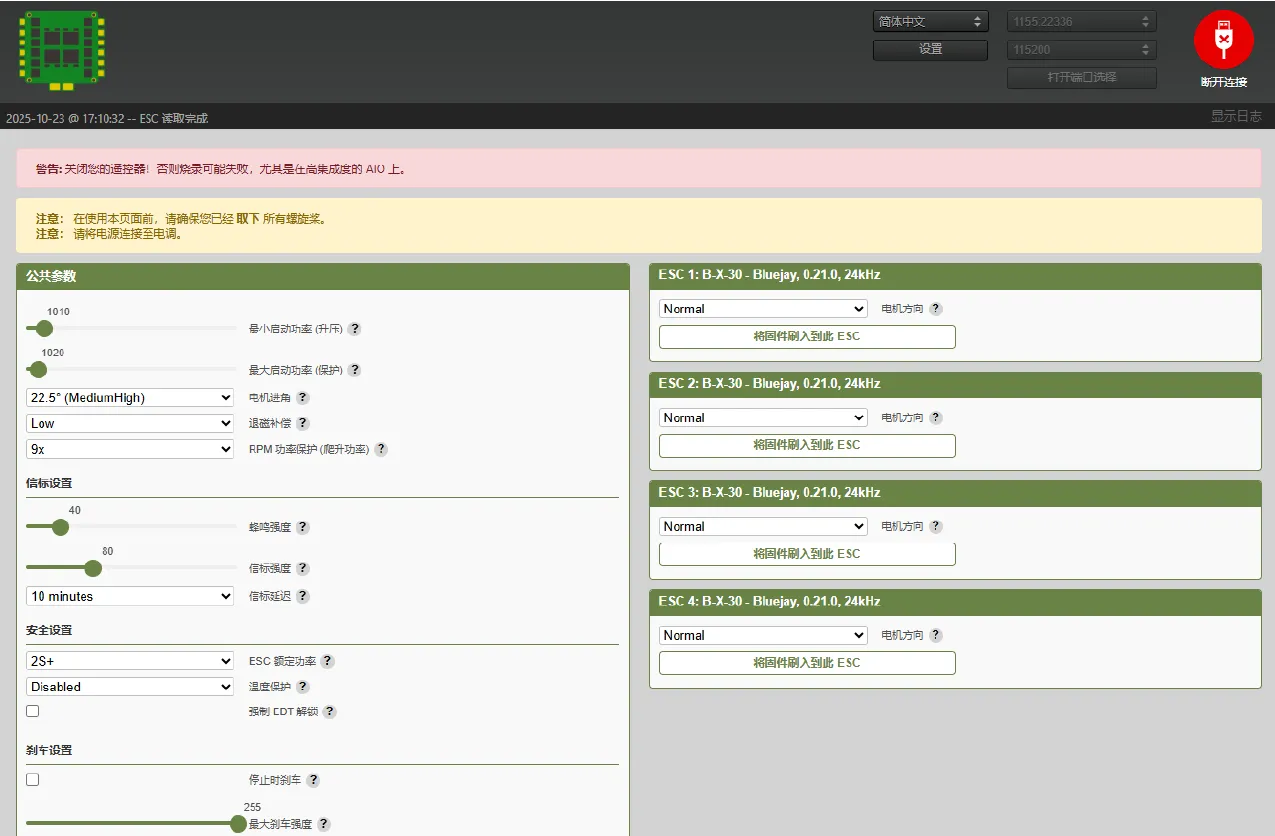

Supports BLS/Bluejay dual firmware switching Supports firmware switching
Supports BLS/Bluejay dual firmware switching Supports firmware switching
Bidirectional DShot &
RPM Filtering

Full support for bidirectional DShot and RPM filtering is included.

Activating the RPM filter helps to reduce motor heat, improve

attitude stability, and increase overall flight efficiency.

Bidirectional DShot
RPM Filtering
* With bidirectional DShot enabled, RPM filtering can be configured on the flight controller’s
PID tuning page to precisely suppress motor vibrations and reduce motor heating.
FPV Drone with Hobbywing ESC
High-Frequency,
Low-ESR Capacitor Included

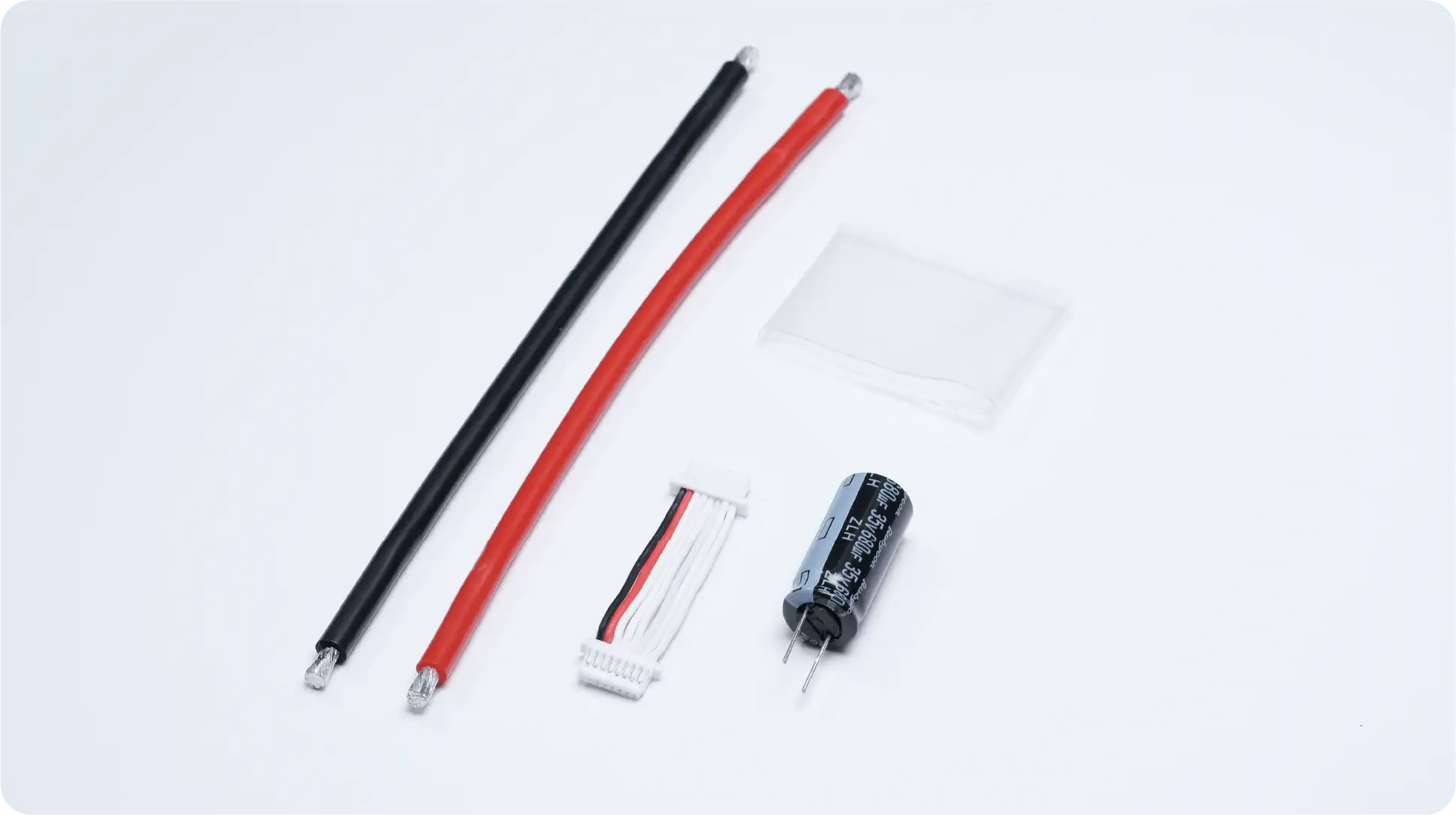

A high-frequency, low-ESR capacitor is included in the package. When soldered to the

power leads, it effectively mitigates ripple and voltage spikes from the power supply,

ensuring cleaner power delivery to the ESC.

High-frequency low-impedance capacitor
Thank you for your interest in HOBBYWING propulsion systems! For customized solutions,
please provide your contact information and technical requirements,
and we will get in touch with you within 24 hours.
captcha
By submitting this form, you agree to HOBBYWING's Privacy Policy
Thanks for reaching out!We have received your message and will get back to you shortly.
Best Regards,
HOBBYWING Team
Product NameRTF 65A 4in1 6S Lite BLS V2
Specifications
  • Cont./Peak Current
  • Input Voltage
  • 65Ax4/80Ax4
  • 4-6S LiPo
Wires & Connectors
  • Input Wires
  • Output Wires
  • Input Connectors
  • ESC signal interface
  • Red-12AWG-130MMx1,Black-12AWG-130MMx1
  • No wires but solder tabs
  • No
  • 8Pin-SH1.0
Size & Weight
  • Size
  • Weight
  • 44x44x5.86mm
  • 15g
Features
  • Firmware
  • ESC Programming
  • Web Parameter Adjustment
  • Throttle signal supported
  • Bidirectional DShot supported
  • Motor Rotation
  • Driving Frequency Setting
  • Bluejay/BLHeli-S
  • Supported
  • https://esc-configurator.com/
  • Subject to the flashed firmware
  • Bluejay firmware is supported
  • Supported
  • bluejay FW supported 24,48,96kHz
Applications
  • Applications
  • 130-300mm wheelbase FPV
