XRotor Flight Controller F7 | FC for FPV & Racing Drones

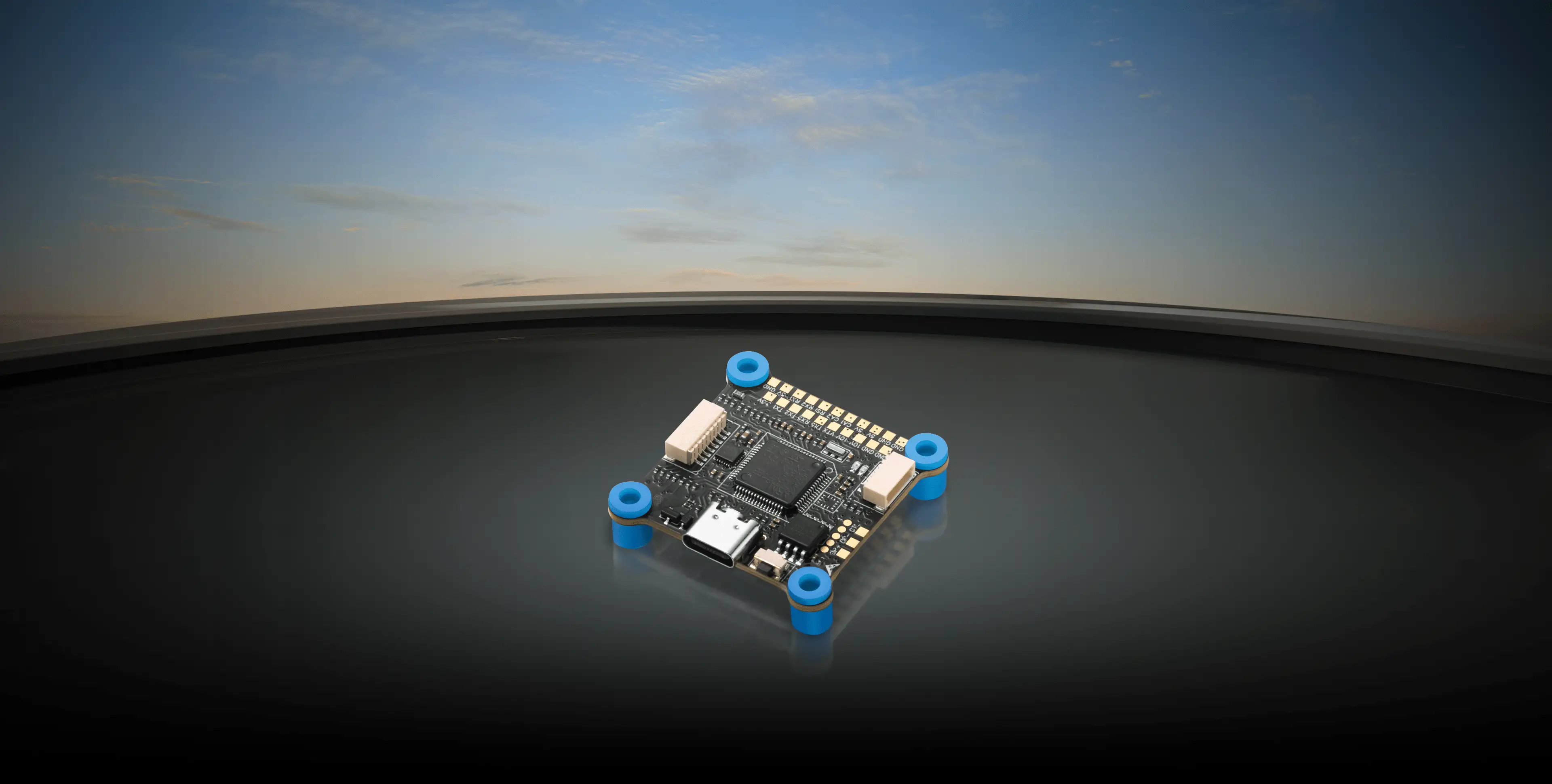

XRotor F7 FC 8S Lite RTF FPV Drone Flight Controller
RTF F7 FC 8S Lite
FPV Drone Flight Controller
Abundant Interfaces &
Stable Circuitry

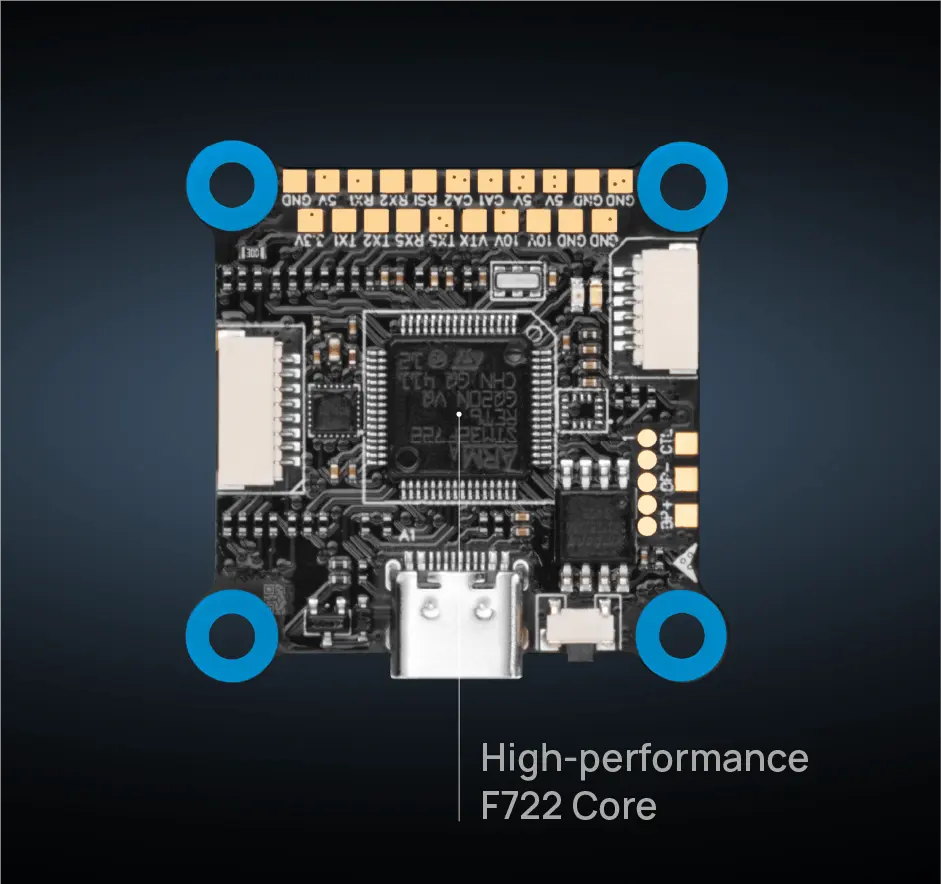

Built around the high-performance F722 core, this flight controller
supports 6 UART serial ports connecting a wide range of peripherals.
It provides a stable peripheral circuit, ensuring seamless and close
cooperation between the gyroscope and the main processor.

Hobbywing F7 Flight Controller with F722 Core
Abundant Interfaces

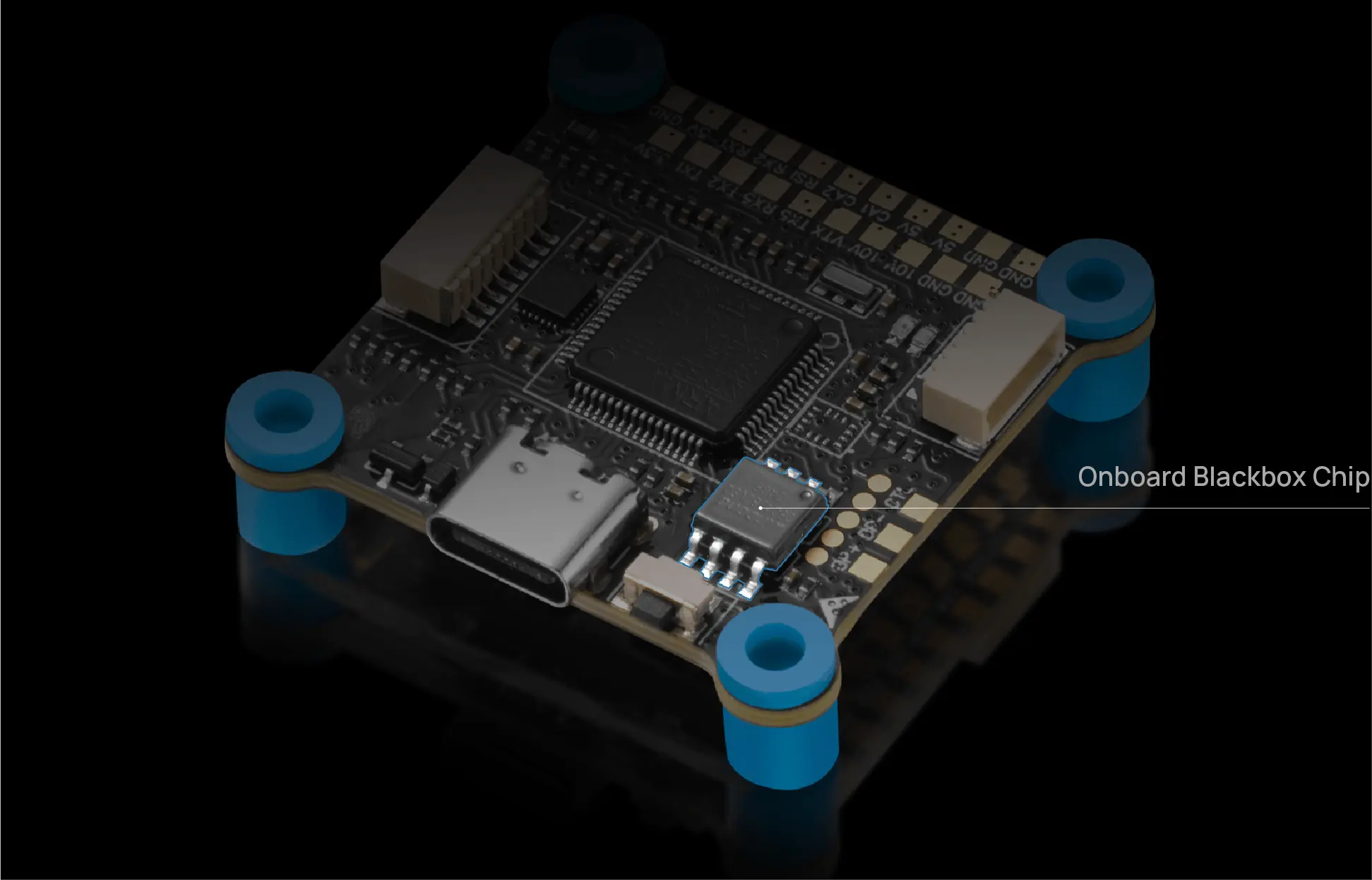

Onboard Blackbox Chip

The flight controller is equipped with a 16MB onboard blackbox flash

memory chip. This allows for detailed flight data logging, making PID and

filter tuning more convenient and reliable.

Onboard Blackbox Chip

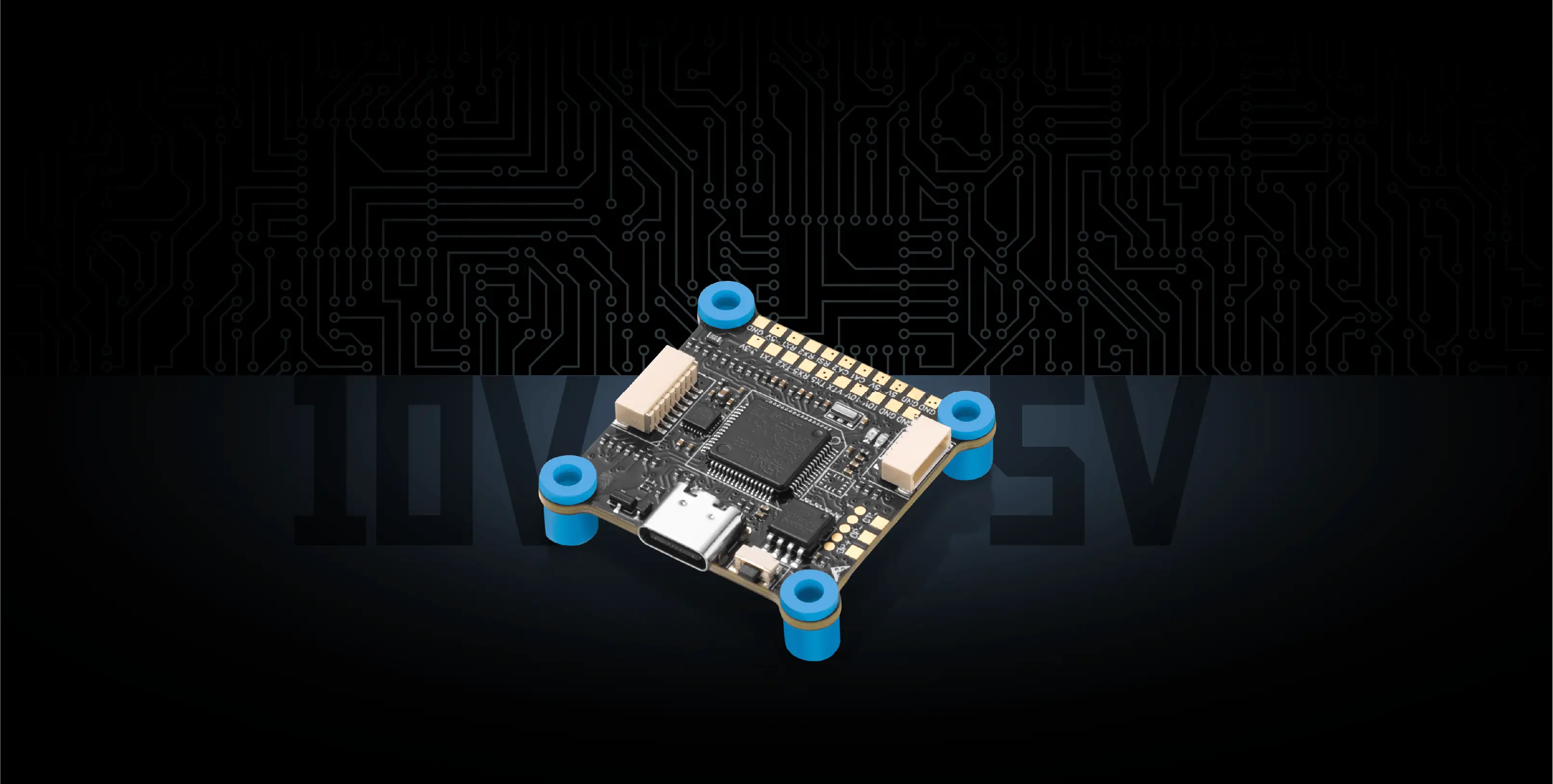

Powerful BEC Capabilities

The onboard battery eliminator circuit (BEC) offers dual voltage outputs of

10V and 5V, providing stable power for peripherals such as GPS, receivers,

and VTX modules. High-power VTX modules can be powered directly from the

battery input (BAT).

FPV Flight Controller with Powerful BEC Capabilities

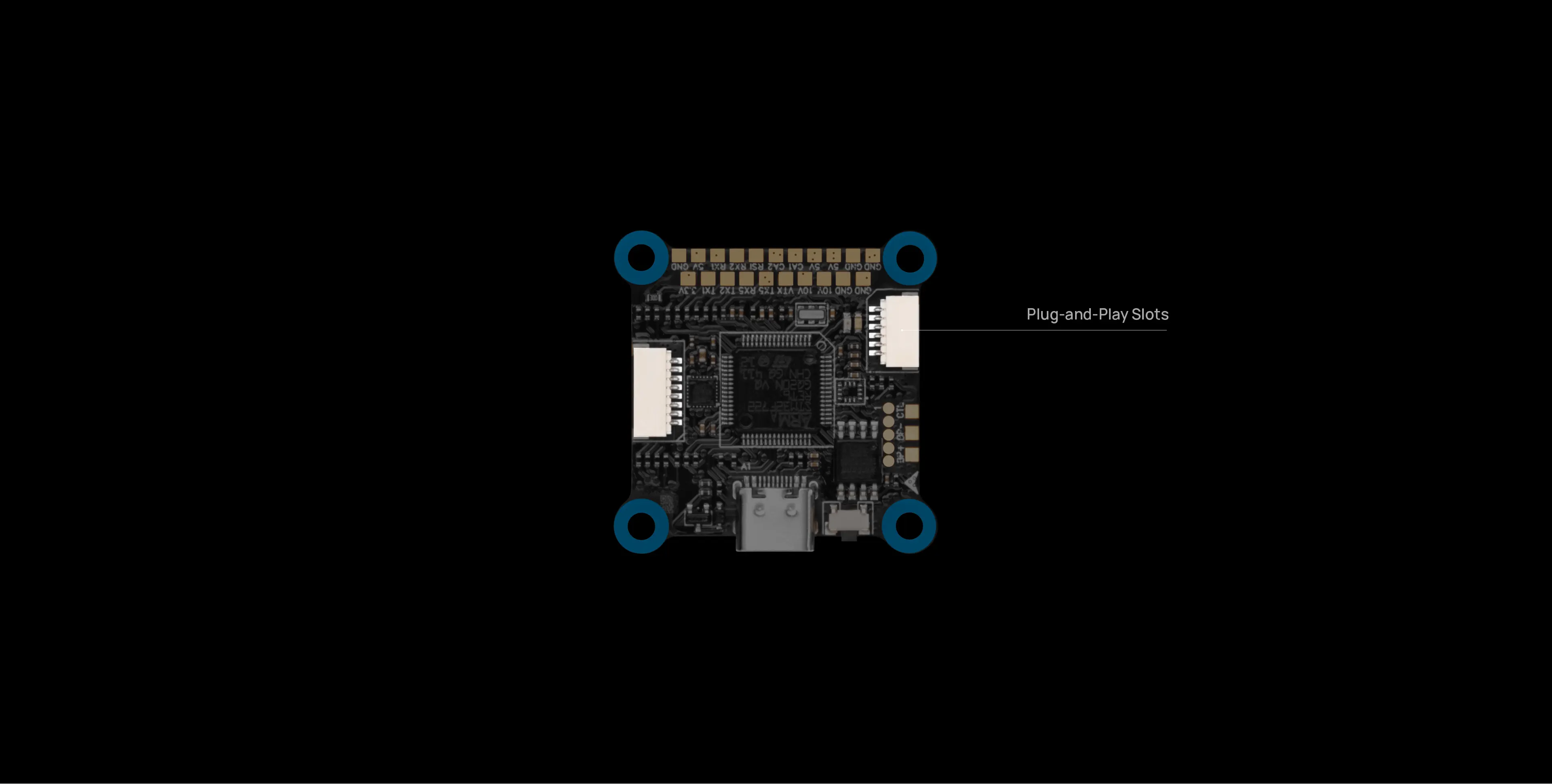

Plug-and-Play Slots
Designed for convenience, it offers plug-and-play compatibility with digital VTX modules,
including seamless integration with DJI, Walksnail, and HDZero systems.
Plug-and-Play Slots
DJI
WALKSNAIL
HDEZERO

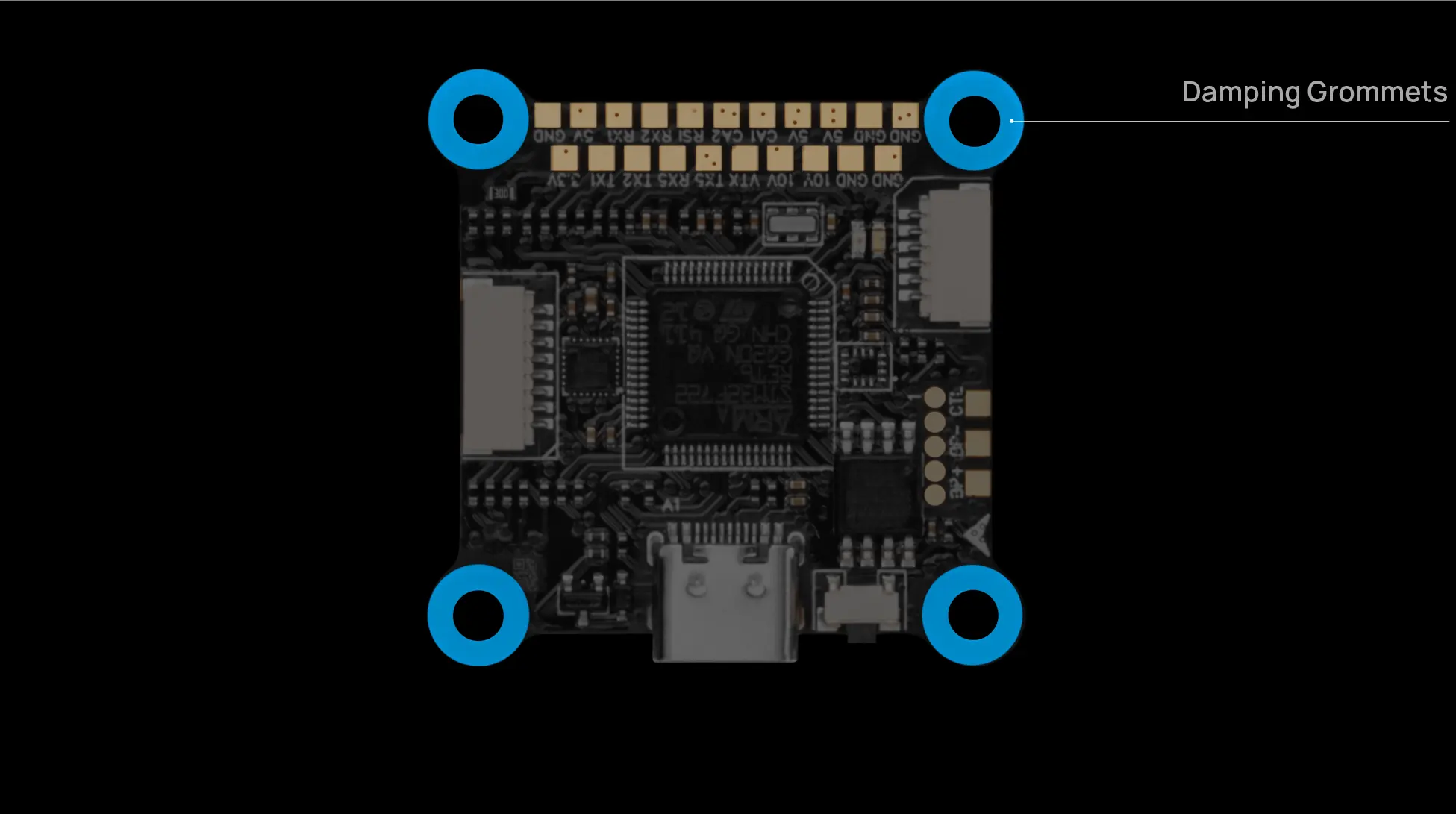

Damping Grommets Equipped
Equipped with damping grommets, the flight controller effectively isolates high-frequency vibrations.
This not only protects sensitive components but also improves the performance of software filters.
XRotor F7 Drone Flight Controller Damping Grommets
Built-in High-Precision Barometer

Featuring a genuine, high-precision barometer from Goertek with a typical accuracy of ±0.3 hPa.

It is strategically placed on the underside of the flight controller (FC) to minimize interference

from airflow turbulence, yielding superior altitude data accuracy.

Hobbywing Fpv Drone Flight Controller
Thank you for your interest in HOBBYWING propulsion systems! For customized solutions,
please provide your contact information and technical requirements,
and we will get in touch with you within 24 hours.
captcha
By submitting this form, you agree to HOBBYWING's Privacy Policy
Thanks for reaching out!We have received your message and will get back to you shortly.
Best Regards,
HOBBYWING Team

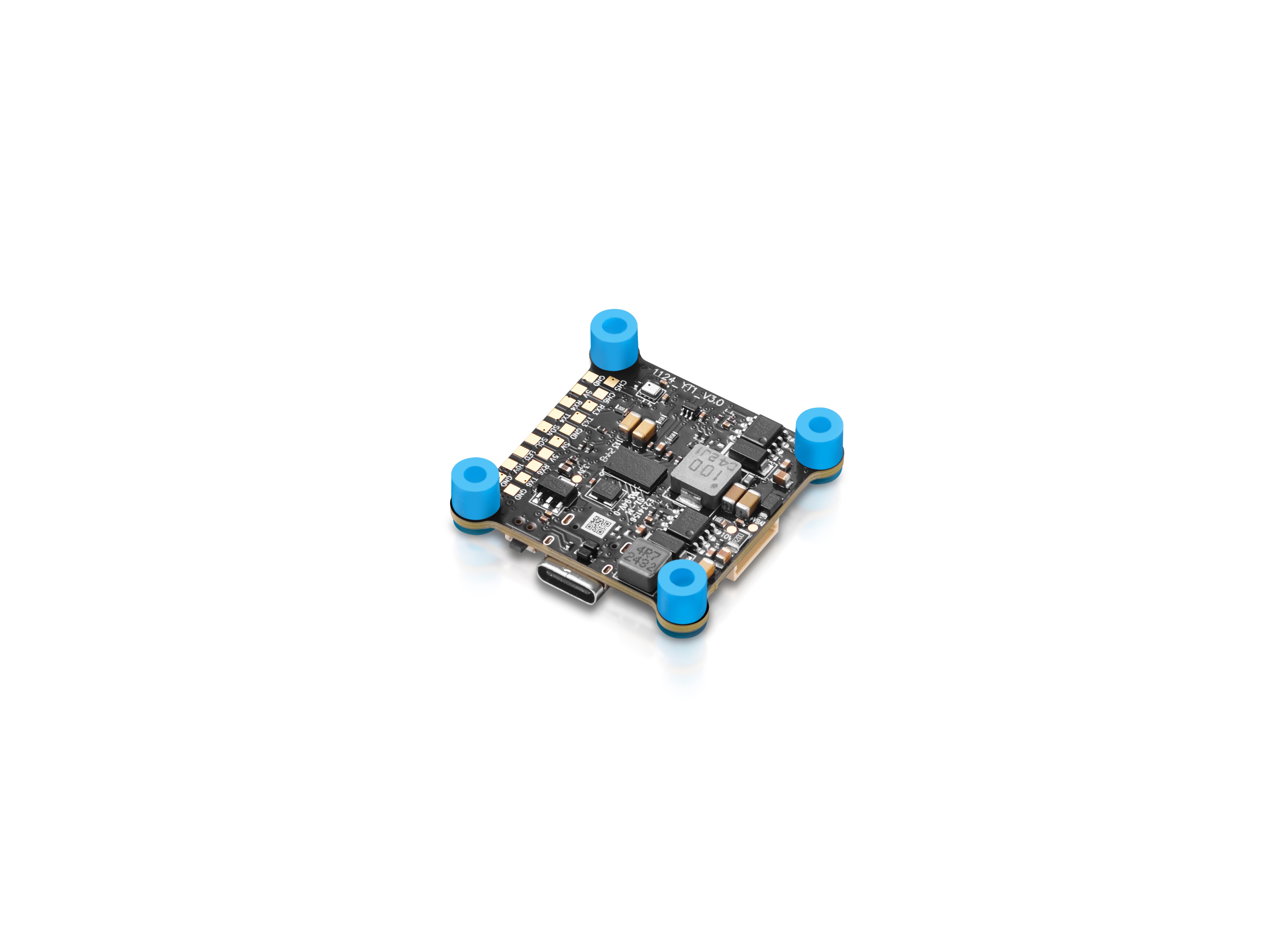

Product Name RTF F7 FC 8S Lite
Specifications
  • Betaflight target
  • Supported VTX protocol
  • Motor signal output
  • BlackBox size
  • OSD chip
  • Board chip
  • Gyro chip
  • Gyro LDO supported
  • Main MCU
  • LED control
  • Beeper supported
  • UARTS
  • BEC
  • Size
  • Install holes
  • Weight
  • HOBBYWING_XROTORF7CONV
  • Smart audio & Tramp
  • Default 4 road,additional 2 road(ch5.ch6)
  • 16Mb
  • AT7456E
  • Install High-Precision Barometer
  • ICM-42688
  • None
  • STM32F722
  • Yes
  • Yes
  • 6
  • 5V 3A & 10V 3A
  • 35x35x7.7mm
  • 30.5x30.5mm(φM4)
  • 10g
