HOBBYWING Coaxial Propulsion with 3° Tilt Angle: Enabling Efficient Long-Range, Heavy Payload Drone Delivery
Source : HOBBYWINGDate : 1st Jan 2026
In today’s rapidly advancing drone technology landscape, heavy-lift UAVs are playing an increasingly vital role across industries such as cargo delivery, logistics, surveying, and emergency rescue. HOBBYWING H13MD and H15MD coaxial propulsion systems, featuring a 3° tilt angle design, optimize flight performance while maintaining mechanical simplicity, enhancing efficiency, stability, and maneuverability.
Improved Forward Flight Efficiency, Extended Flight Range

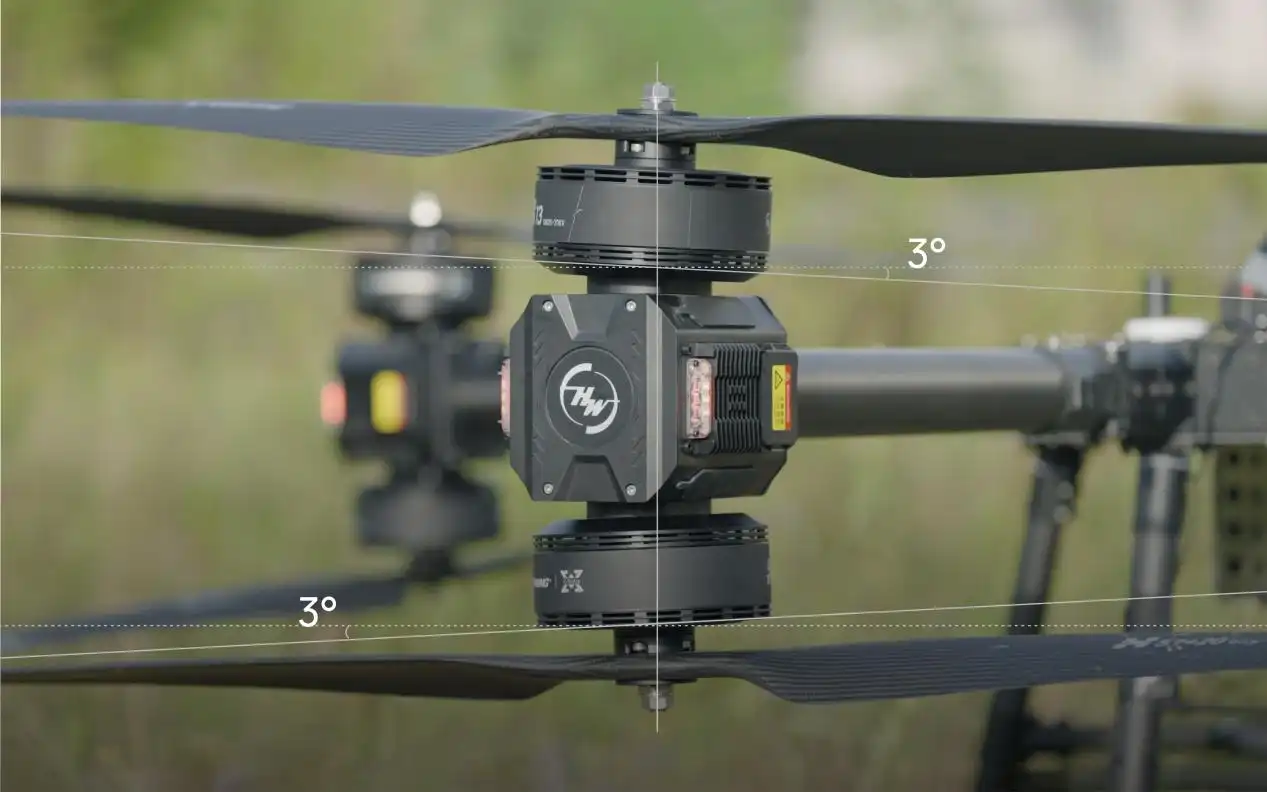

Multirotors with a no-tilt design require significant pitch during forward flight, which increases frontal area, induced drag, and energy consumption. The coaxial propulsion system’s 3° tilt angle reduces the pitch by about 3°, lowering both frontal area and pressure drag by more than 10%, resulting in more efficient forward flight and extended endurance.
Enhancing Heading Control Efficiency and Disturbance Resistance
The H13MD and H15MD coaxial propulsion systems feature a 3° tilt design, significantly improving the drone's flight attitude control. The tilt generates a continuous, subtle lateral thrust. By adjusting the magnitude of lateral forces on each side, torque is directly produced to control heading. Response time and power requirements are both greatly reduced compared to a fully differential, no-tilt system, greatly enhancing control efficiency.
Simultaneously, the continuous, subtle lateral thrust also creates a natural damping effect, similar to “aerodynamic elastic stabilization,” which allows for faster absorption of disturbance energy, reducing attitude fluctuations and accelerating convergence.
Thus, coaxial propulsion systems with tilt angle are particularly optimized for applications where high payload capacity, long-range efficiency, and superior flight stability are essential. This includes urban air freight, mountainous industrial logistics, and emergency response deployment tasks.
Use Case: 100kg Payload & 10km Long-Distance Transport

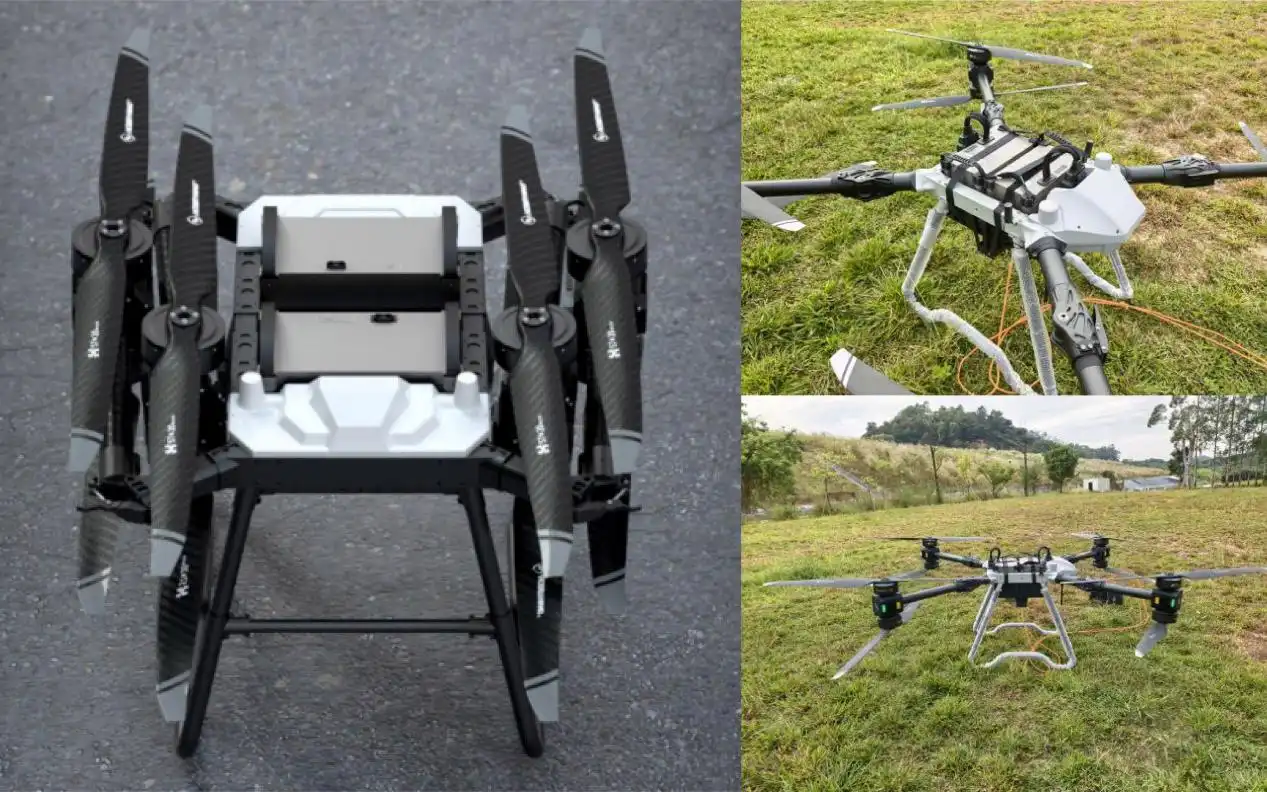

Sanmu Aviation's S100 drone, designed for 10km long-distance transport. Powered by HOBBYWING H13MD coaxial integrated propulsion system, this UAV achieves exceptional payload capacity. It supports quick folding for efficient deployment and is capable of handling various tasks, including mountainous crane transport, logistics, and agricultural & forestry operations.

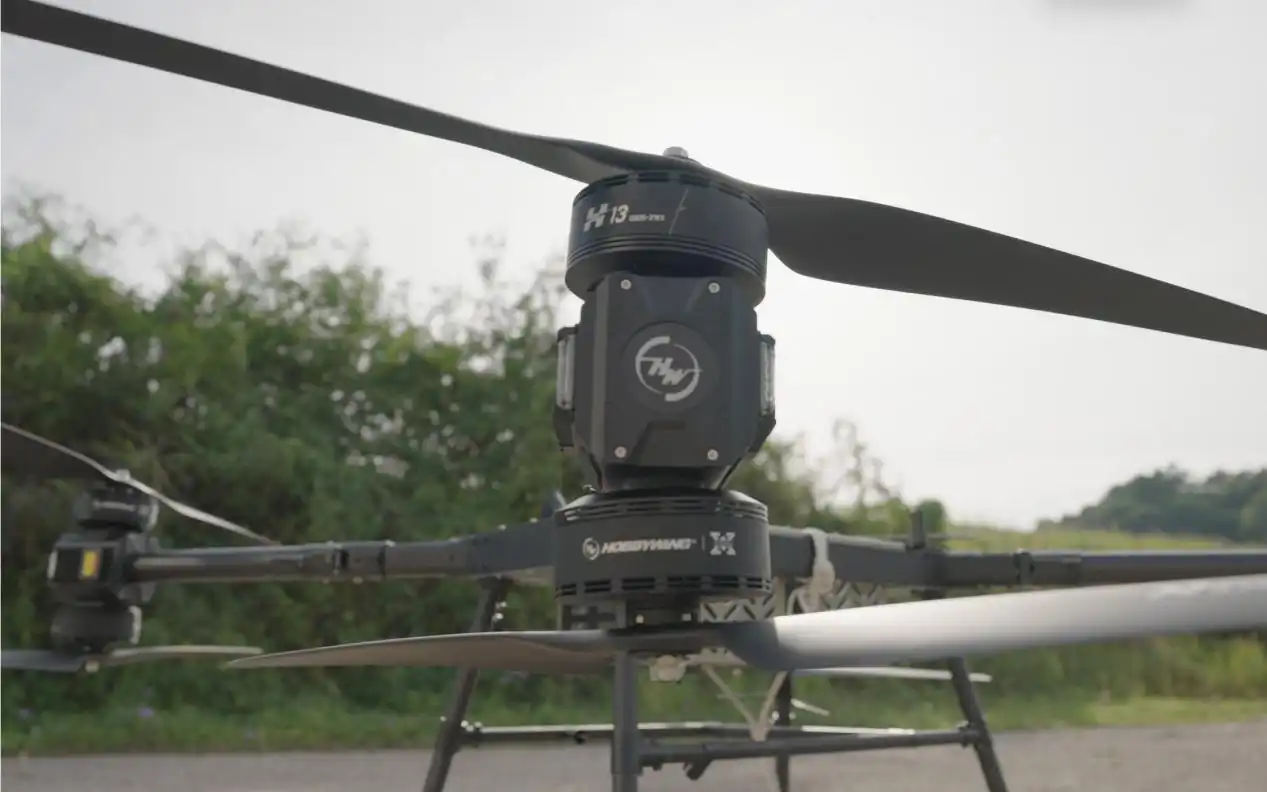

The H13MD propulsion system features a 3° tilt angle, significantly enhancing UAV cruising efficiency. This allows the S100 heavy-duty drone to achieve longer flight time and range with the same battery capacity, greatly expanding mission coverage and operational capability. Additionally, hover accuracy and low-speed stability are improved, with better disturbance resistance in crosswinds and gusty conditions, ensuring the safe and efficient execution of critical tasks such as cargo lifting, logistics, firefighting, and emergency rescue operations.
