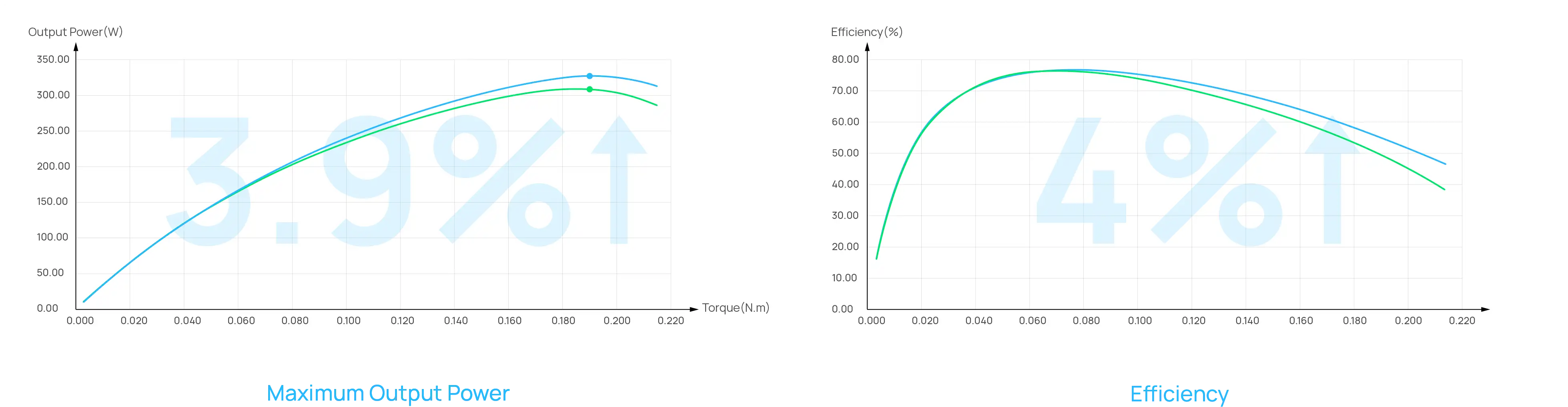

The XeRun V10 G5 RC motor is developed on an all-new performance platform, designed for 1/10th and 1/12th Stock racing. It delivers comprehensive upgrades in power output and efficiency performance. Compared to the V10 G4R 13.5T RC car motor, it achieves a 3.9% increase in maximum output power and over 4% improvement in heavy-load efficiency, providing racing vehicles with a high-performance power core that gives them a competitive edge.

Comprehensive Optimization, Doubled Performance

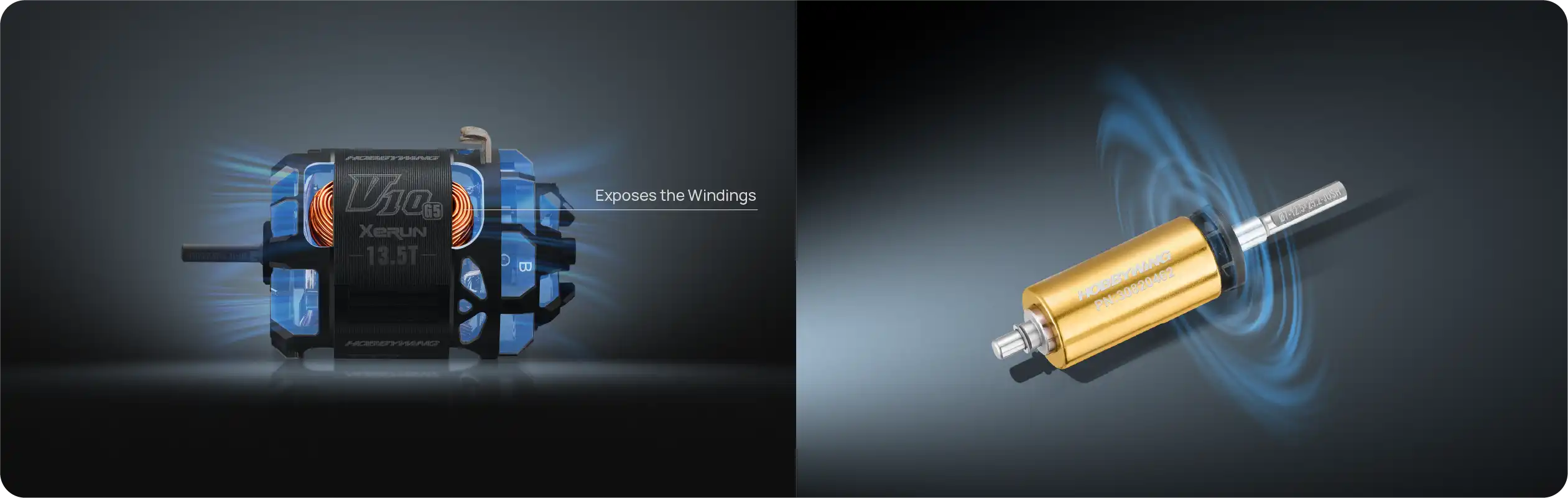

1.Heat dissipation performance
The V10 G5 introduces an upgraded cooling system designed for high-intensity racing conditions. Exposed windings allow direct airflow and faster heat dissipation for the motor.Its cooling port area increased by over 15% compared to the V10 G4R RC motor. The rotor integrates a dedicated cooling structure to further enhance thermal performance
Warning: The rotor cooling system is protected by patent. Any unauthorized copying is prohibited.

2.Lightweight Design & Improved Balance
The new-generation G5 RC car motor is 13g lighter than the G4R motor, delivering greater speed and agility. Its center of gravity has shifted 1.4mm toward the output shaft, facilitating frame tuning.

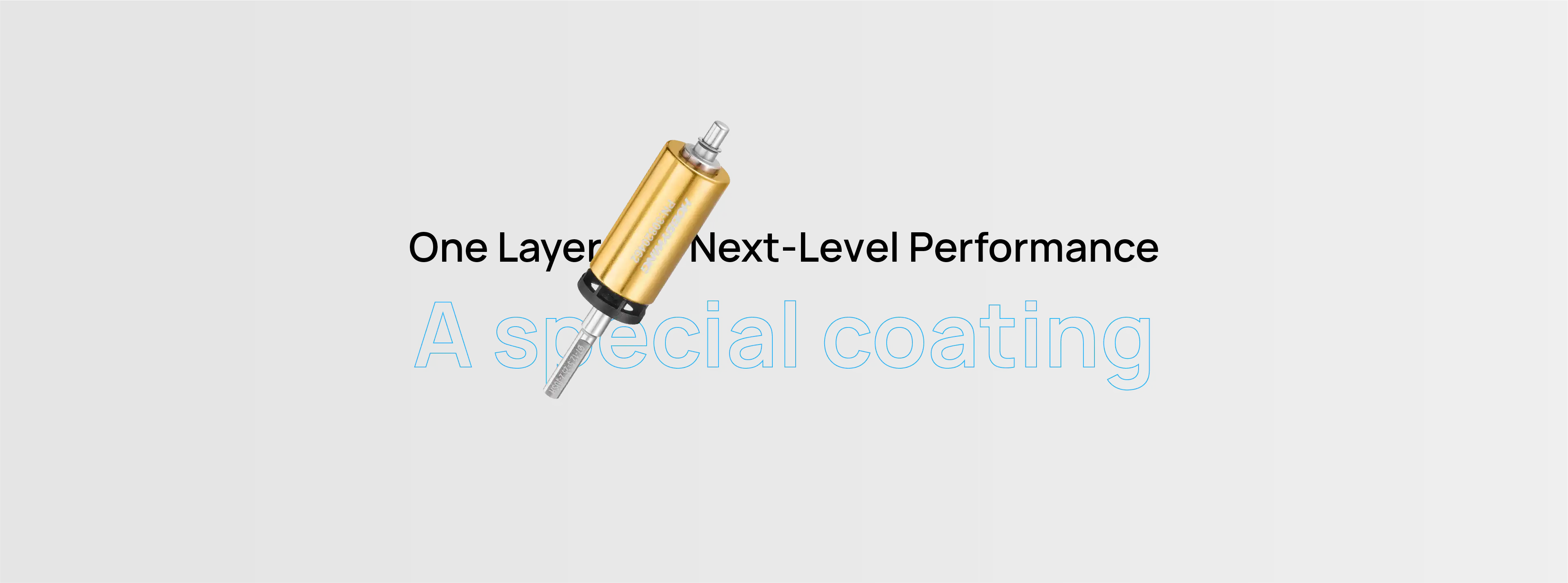

3.Upgraded Rotor Design
The rotor surface undergoes a special coating that not only provides rust protection but also enhances magnetic permeability, further improving the motor's load capacity and power output.

4.Adjustable Hall Timing Accuracy
By adjusting the Hall structure components, the Hall ABC angle tolerance can be reduced from a maximum of 4° to within 1°, and with professional calibration, it can be further refined to within 0.2°. This achieves ultimate optimization of three-phase consistency within the motor, enabling smoother, more efficient, and precise power delivery.
Note: The timing tolerance are based on results displayed by the HOBBYWING Tunalyzer.

5.Adjustable Hall Sensing Distance
Rotor and sensor spacing is now easily adjustable. Three settings allow racers the ability to fine tune the response and feel of the power delivery.
Warning: Ensure proper clearance between the Hall sensor and rotor ring during adjustment to prevent component damage.

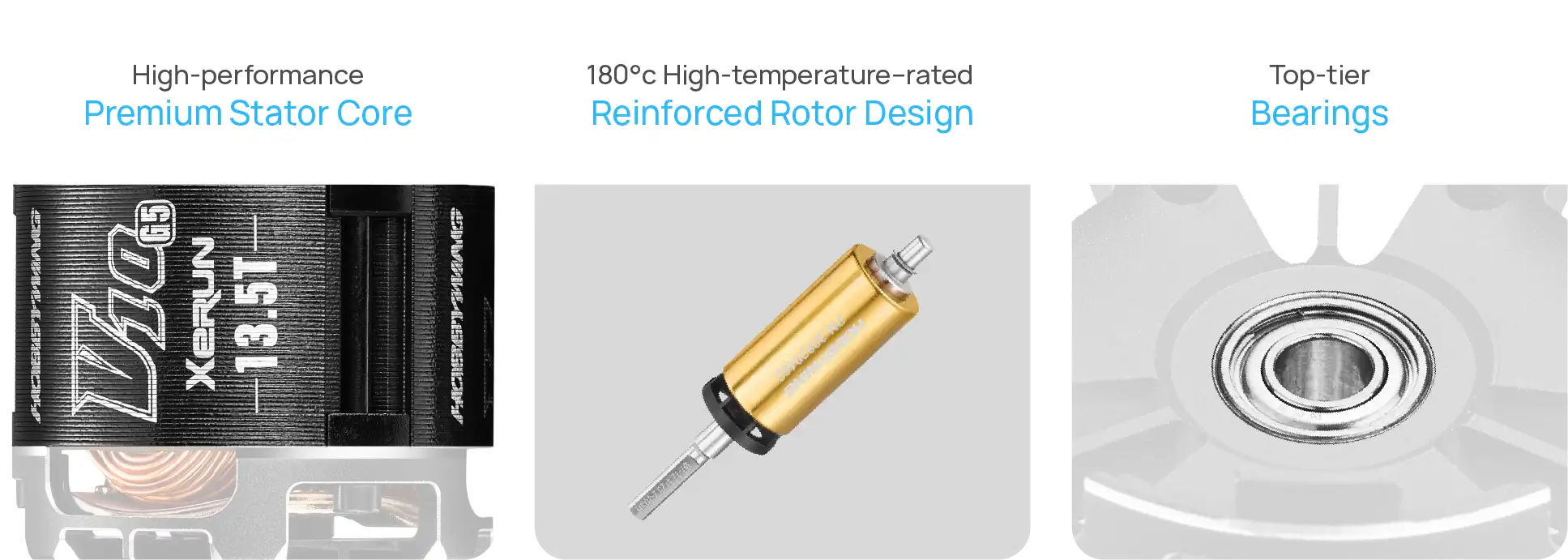

Built with Superior Materials

The model car motor features modular design allowing for quick and simple motor cleaning to allow racers to keep their motors performing at their best.
