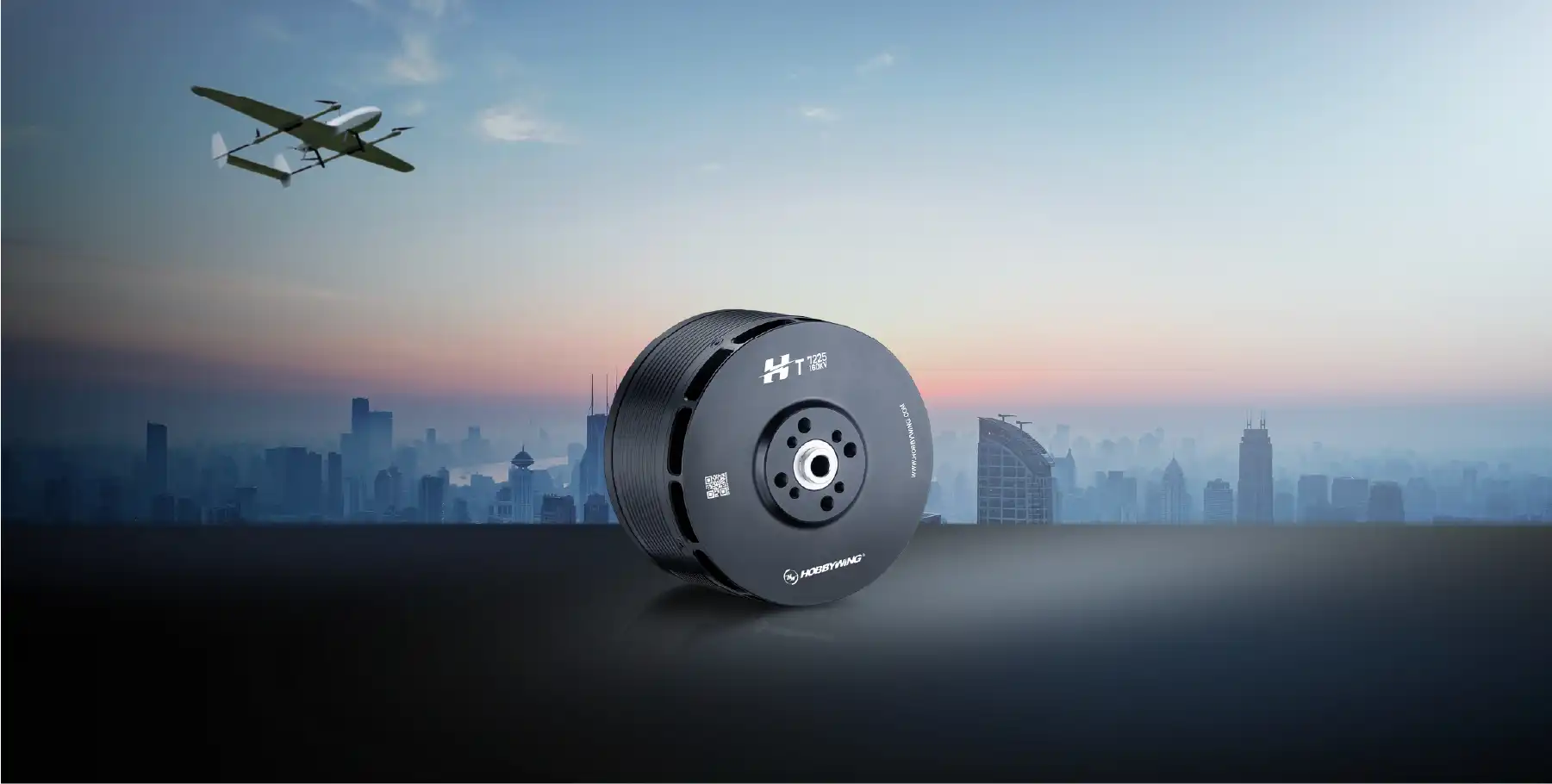

HOBBYWING T7225 fixed-wing drone motor is the ideal choice for electric fixed-wing UAVs, combining powerful thrust with outstanding reliability. Available in 160KV and 190KV versions, this drone motor serves as an ideal electric alternative to traditional 40CC gasoline engines.

Exceptional Power, Efficient Heat Dissipation

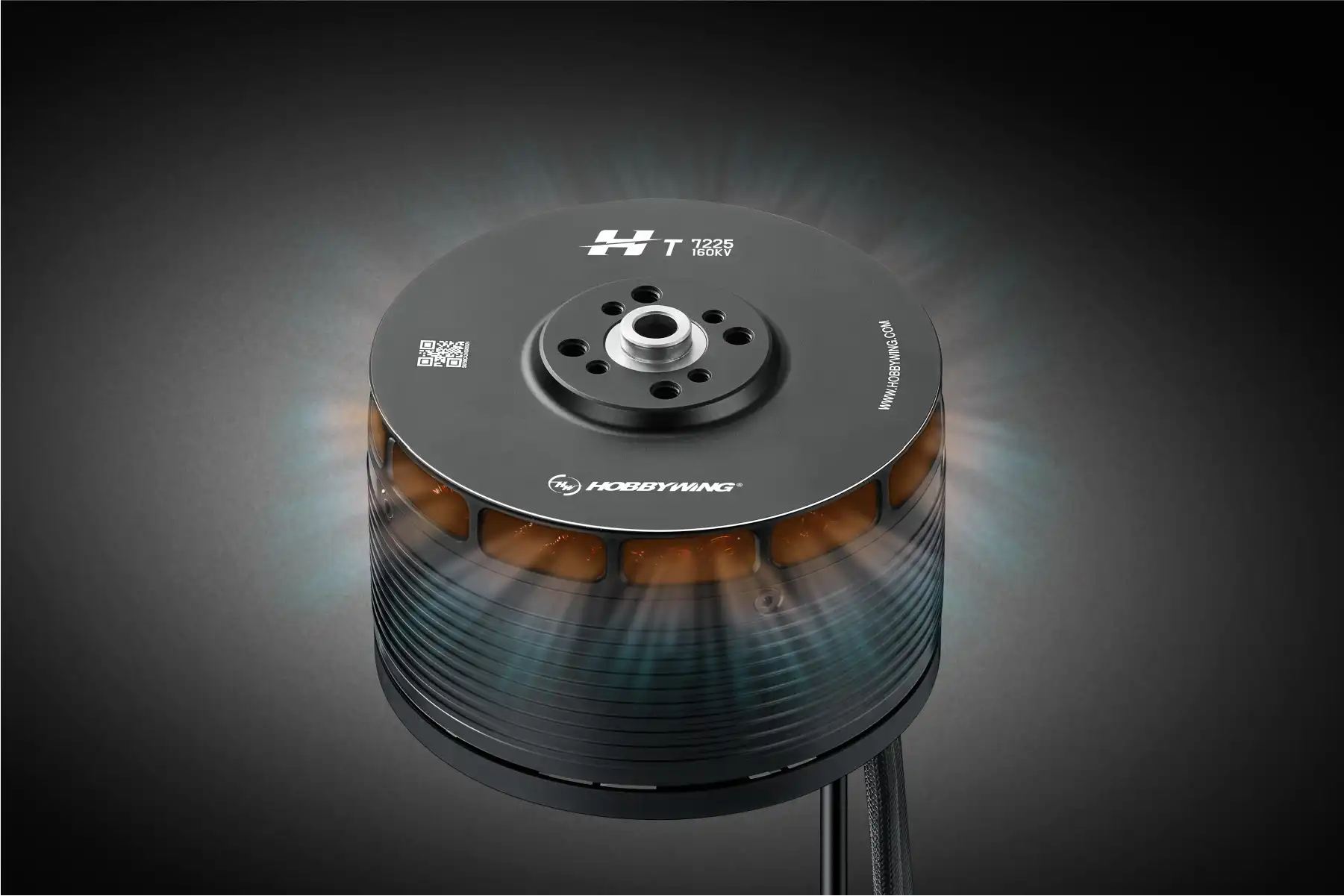

The rotor bracket of Hobbywing T7225 fixed-wing drone motor features a rectangular exhaust outlet design that effectively reduces airflow resistance and turbulence, improving heat exhaust efficiency and increasing overall heat dissipation efficiency by 20%, thus maintaining stable operation during extended, high-load flights.

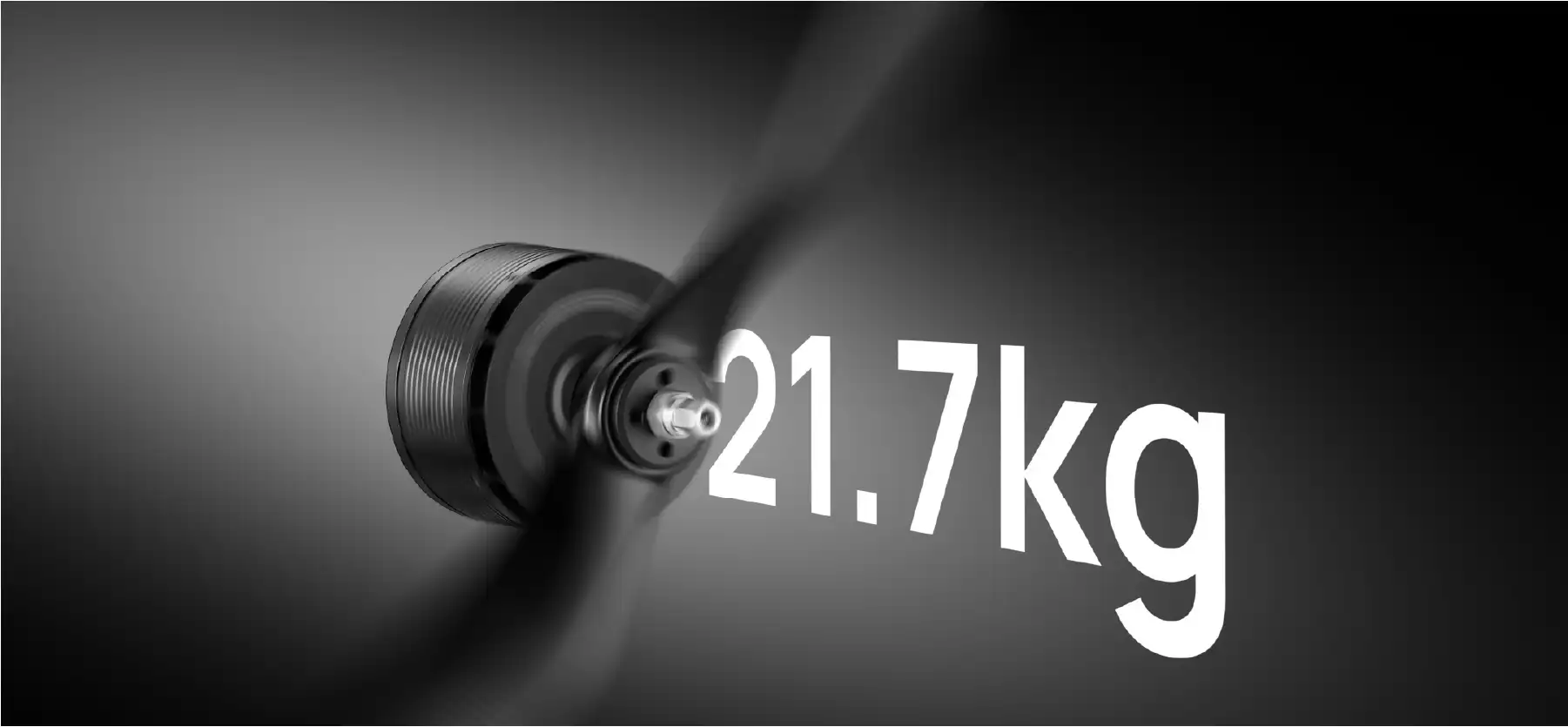

When paired with 24-inch propellers, this electric fixed-wing uav motor delivers a maximum thrust of 21.7kg thrust 48V, providing independent performance to handle unexpected flight conditions with ease.

Compared to other motors of the same specification, the HOBBYWING T7225 drone motor offers 5% higher thrust and 30% longer continuous load endurance, reinforcing its position as the ideal propulsion solution for industrial UAVs.

Responsive Power

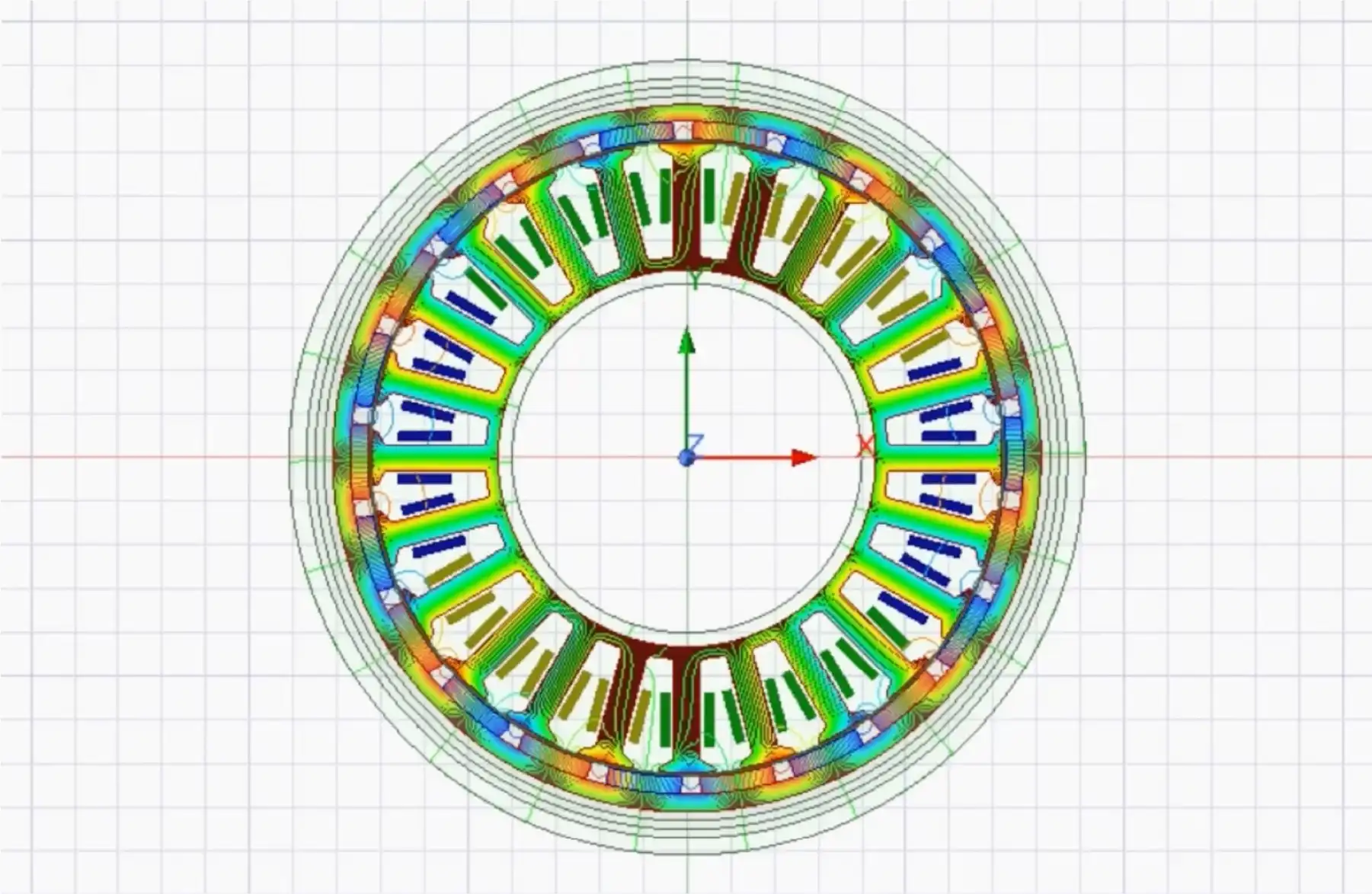

Featuring an Innovative magnetic circuit design, the T7225 fixed-wing drone motor optimally matches drive parameter requirements, thereby enabling a more rapid response of the propulsion system.

Patented Propeller Adapter Design for Enhanced Safety and Versatility

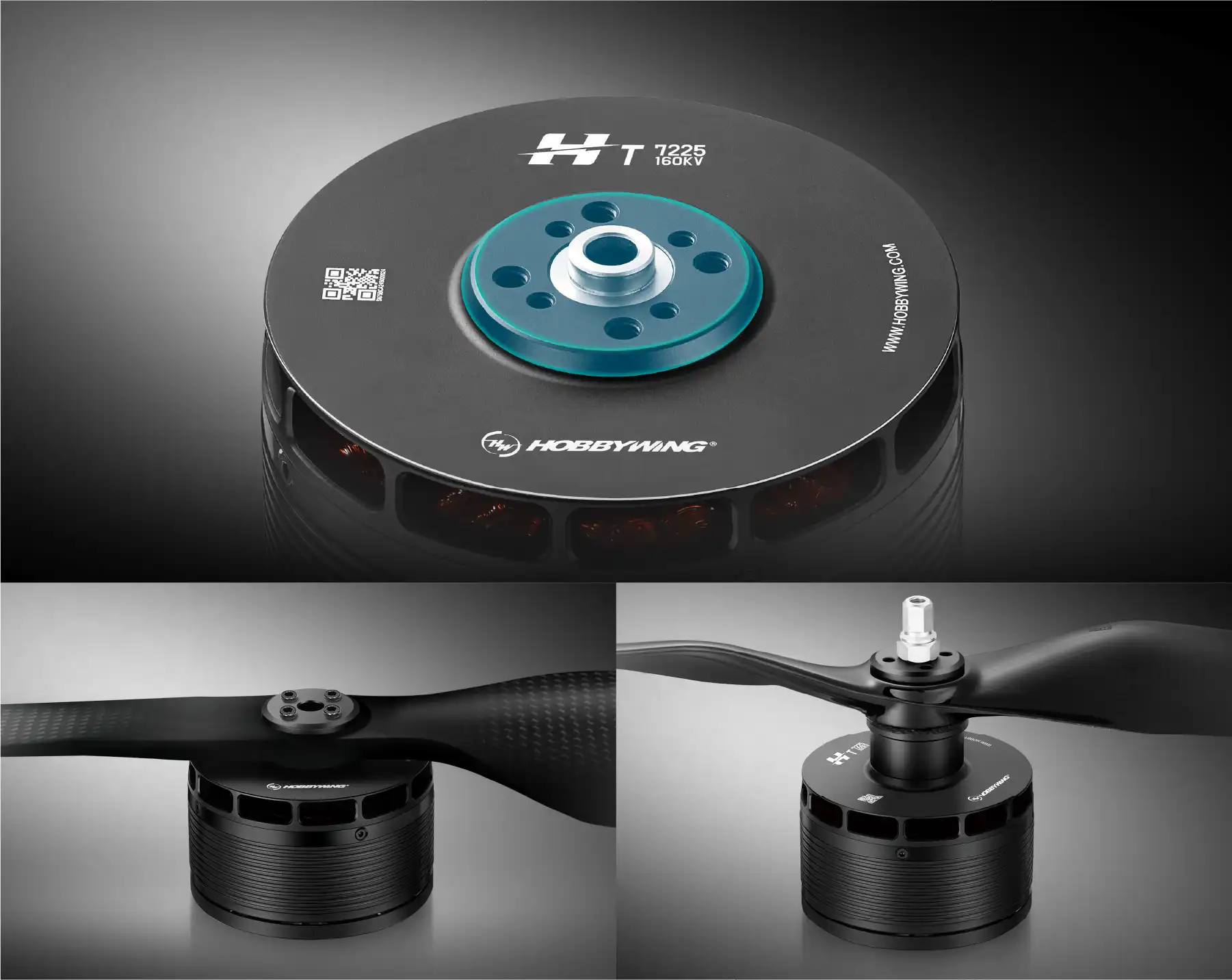

Safety meets innovation with the T7225 uav motor’s anti-loosening propeller adapter structure (Patent No.: 202311210278.7), which effectively prevents propeller detachment caused by nut loosening, significantly improving flight safety. The detachable propeller adapter base of HOBBYWING T7225 motor features integrated anti-slip, anti-rotation, and interlocking mechanisms.

The T7225 fixed-wing UAV cruise motor’s rotor bracket adopts a boss design that prevents interference with the edge structure of propeller roots, accommodating both folding and non-folding propellers, adapts to versatile UAV applications demands high efficiency.

Premium Materials, Robust Construction

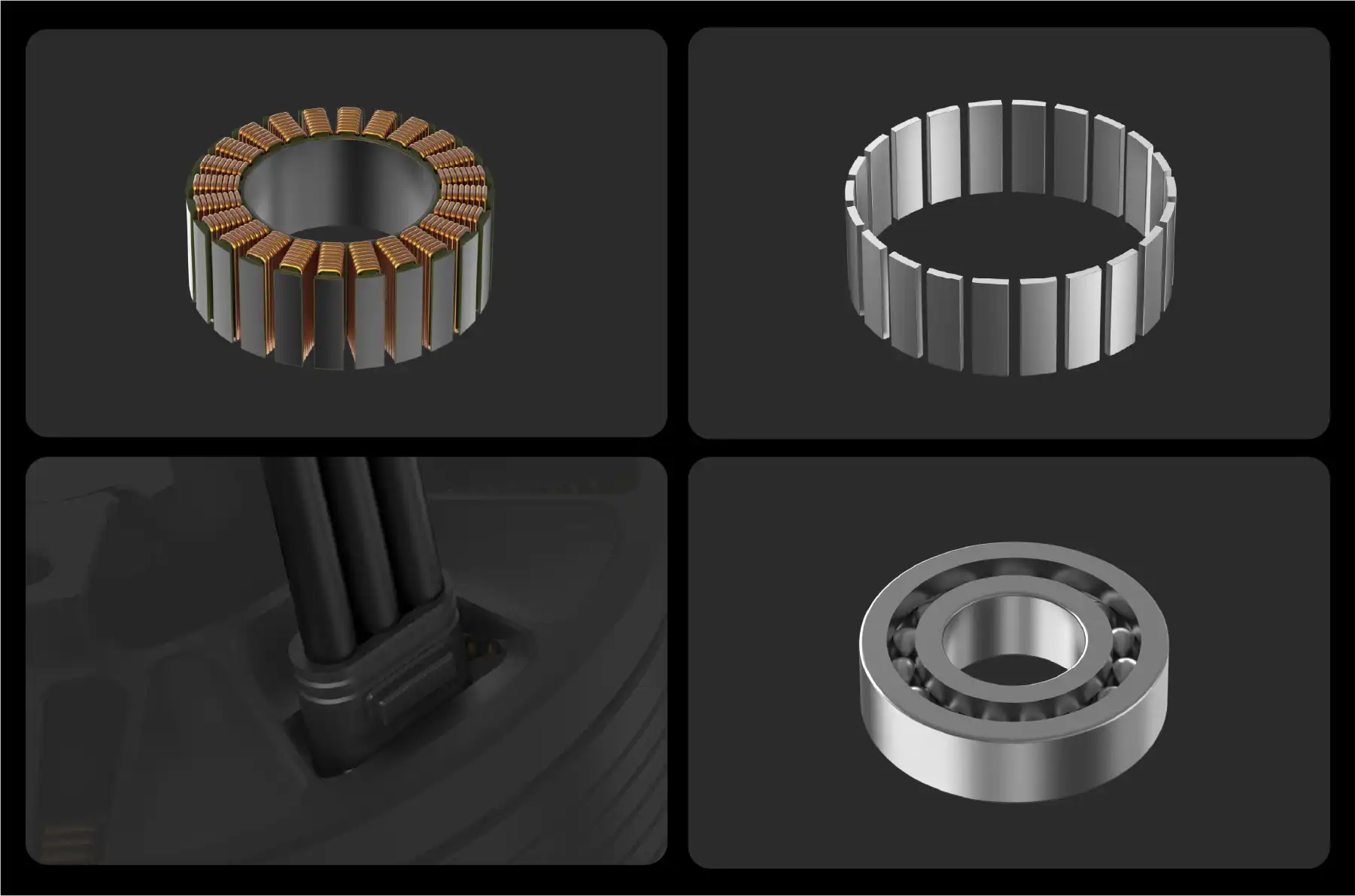

HOBBYWING T7225 electric fixed-wing drone motor uses premium 0.2mm low-loss silicon steel sheets, 220°C high-temperature wires, and high-grade arc magnets to deliver superior magnetic energy and torque output.

Equipped with top-tier international bearings, it offers low-friction torque and extended service life, meeting the demanding requirements of professional fixed-wing UAV propulsion systems.

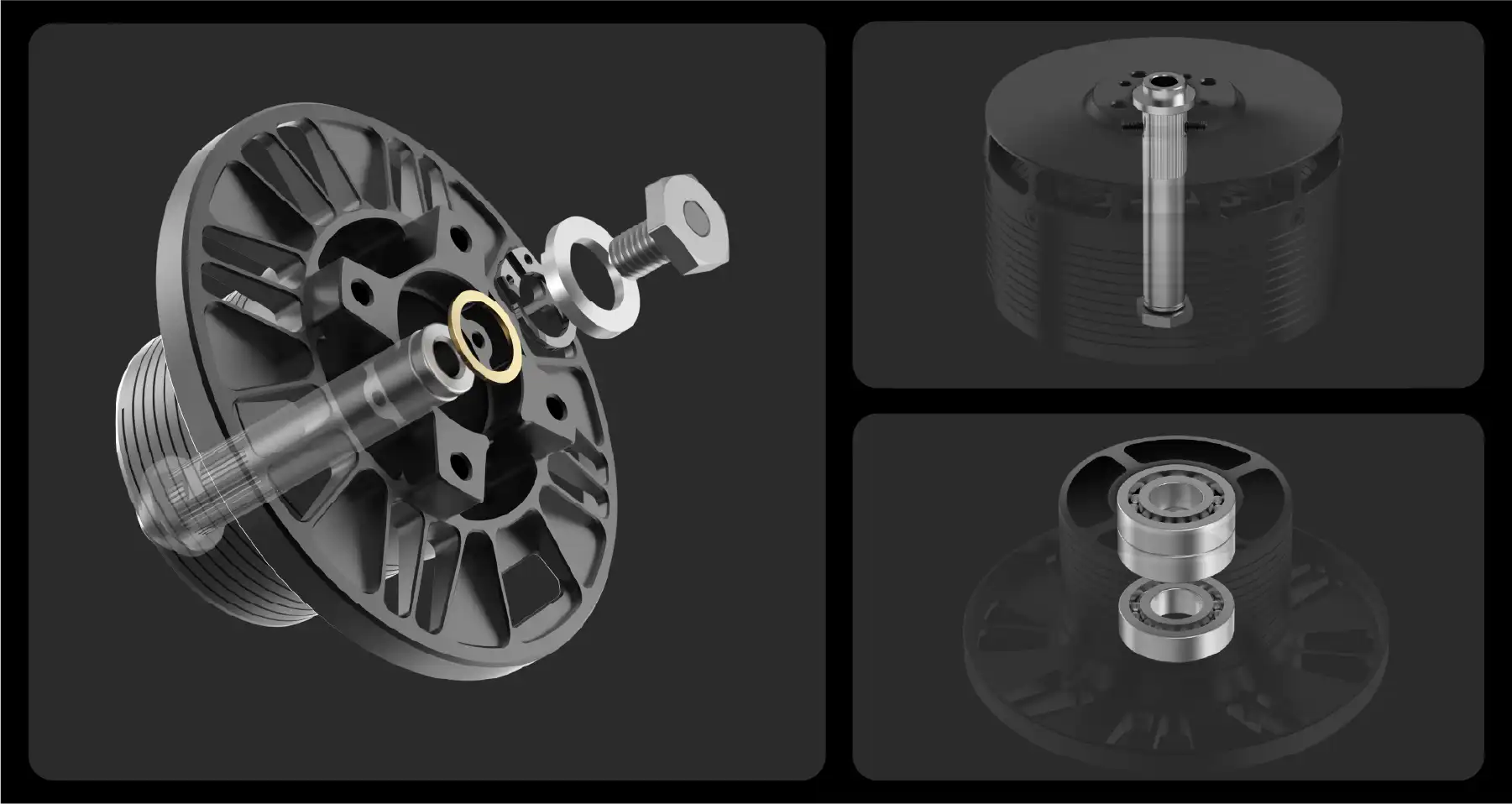

Multiple anti-loosening designs are integrated into the rotor shaft, including knurled shaft-to-bracket interface with side set screw locking for enhanced security. The triple-bearing system greatly improves dynamic balance, impact resistance, and overall durability — ensuring long-term reliability for fixed-wing UAV operations.

Rigorous Testing, Proven Reliability

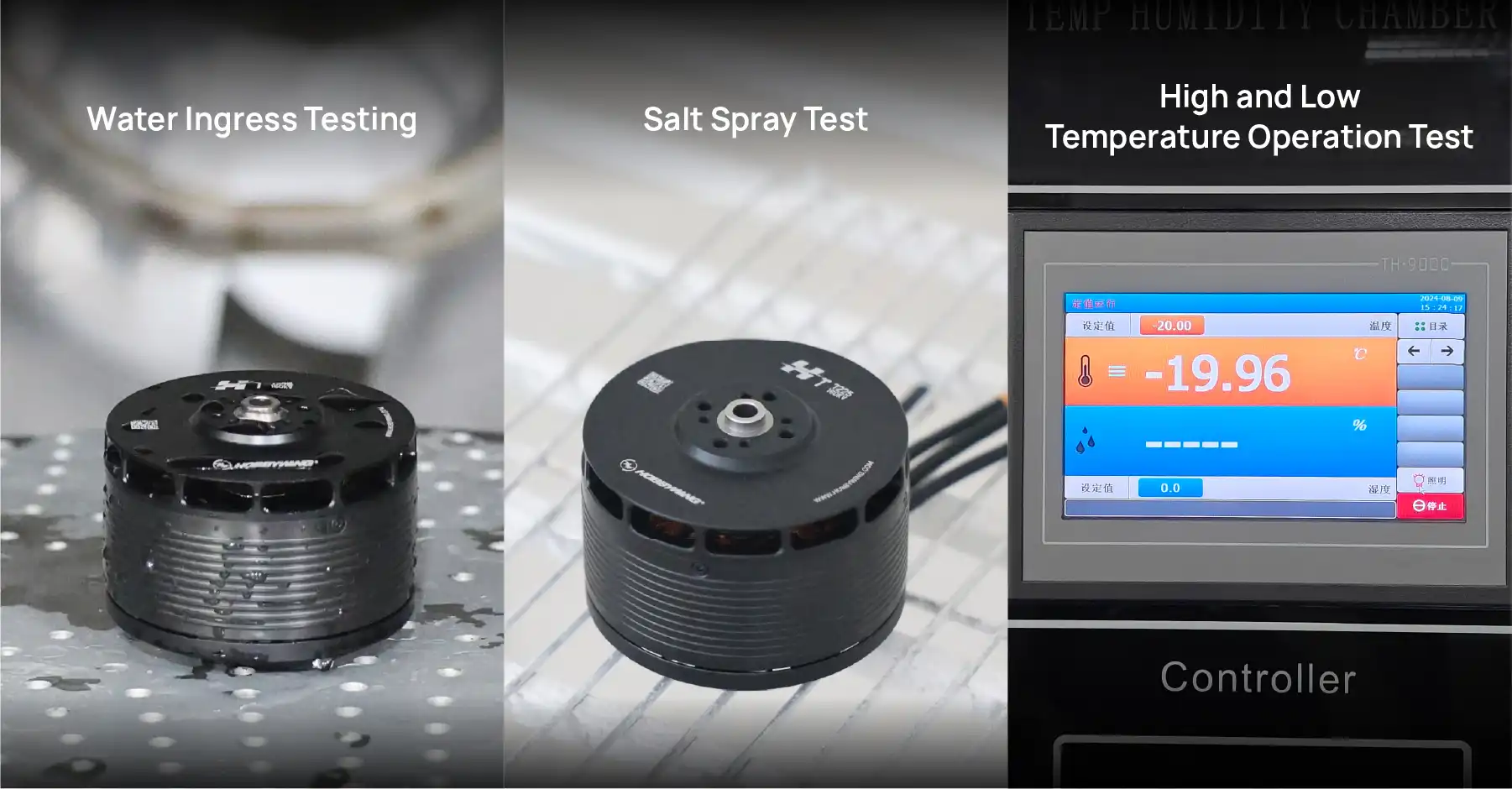

Hobbywing T7225 pusher motor for fixed-wing UAV drones has passed extensive industry-standard reliability tests, including Drive Performance Validation (DPV), Water Ingress Testing, Salt Spray Test, Mechanical Stress Testing, and Tri-Comprehensive (Temperature, Humidity, Vibration)  Test, plus 1,000-hour laboratory fatigue life validation, ensuring sustained performance in in complex and harsh UAV operating environments.

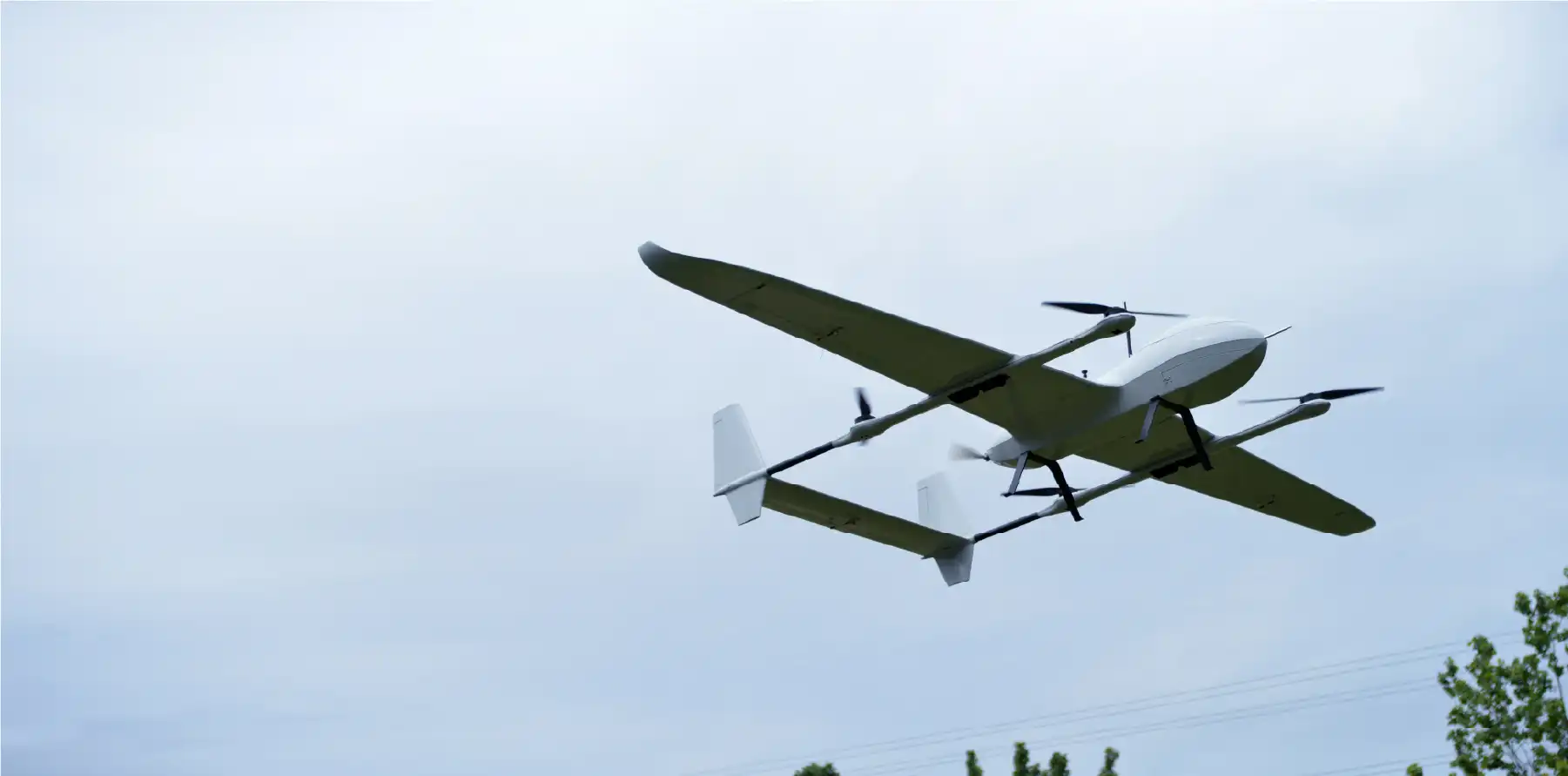

With its professional structural design and highly-reliable performance, the HOBBYWING T7225 motor empowers electric fixed-wing UAVs to achieve higher propulsion efficiency and longer flight endurance for industrial and commercial drone operations.

Recommended Configuration

· Takeoff Weight of Single Motor: 30-35kg
· Recommended ESC XRotor Pro H200A 14S BLDC ESC
· Propeller: 22x12" / 24x12"
· Battery: 12S LiPo
