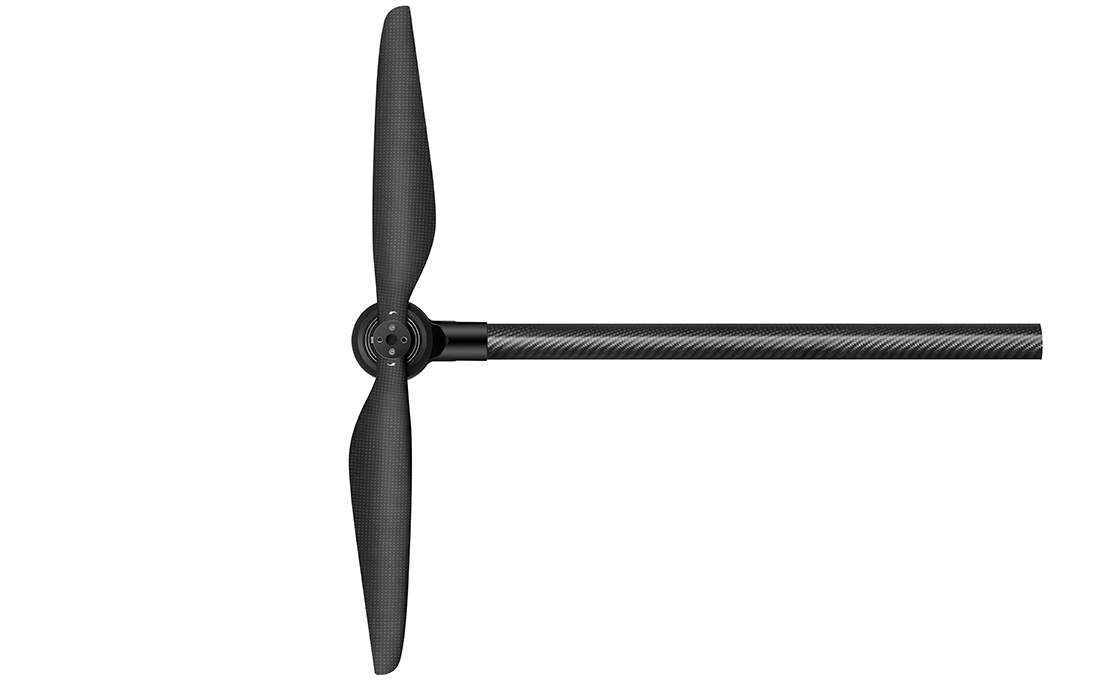

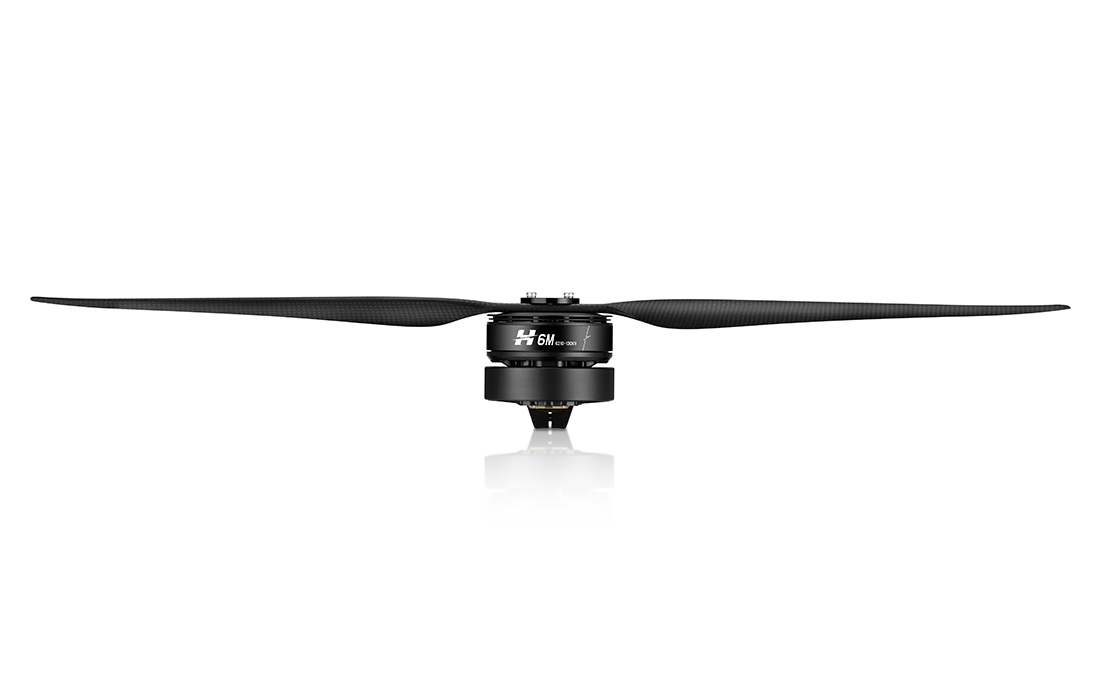

H6M

Reliable and efficient,
the H series solves the one-stop power
problem of the multi-rotor platform
effectively. It is designed for the
application of high-end industrial drones.

Reliable and efficient,
the H series solves the one-stop power problem of
the multi-rotor platform effectively and is meant for
the application of high-end industrial drones.

The power system is designed for multiple industrial uses.
Aerial Photography, Surveying and mapping,
inspections, aerial monitoring, and public safety.

The power system is designed for
multiple industrial uses.
Aerial Photography, Surveying and
mapping, inspections, aerial monitoring,
and public safety.

H6M
2.5kg/Rotor,the efficiency
can reach to9.3g/w
H8M
3kg/Rotor,the efficiency
can reach to11.5g/w
Integrated ESC and Motor Units are more
convenient, efficient, and stable.
Motor
ESC(FOC)
Easier Installation with the integrated ESC and Motor.
Smooth drive and efficient flight with
our self-developed sine wave (FOC) ESC.
Dual throttle control, increasing flight assurance
CAN throttle redundant design improves real-time performance and
anti-electromagnetic interference capability to handle throttle abnormalities.
To ensure flight safety at all times.
PWM throttle and CAN throttle can be
seamlessly switched in 16milliseconds or less.
PWM throttle and CAN throttle can be
seamlessly switched in 16milliseconds or less.
Switching time≤16milliseconds
PWM
CAN
Real-time data storage to monitor function, and correct any issues
The CAN bus communication method has a fault storage function.
It transmits and records the operating status of the entire power system in real time.
It automatically stores and transmits data when the power system fails.
Additionally, the fault code can be read through the DATA LINK to diagnose and correct the problems.
All-new design
The built-in centrifugal fan + cascading air
outlet design allows the rotor
to take away heat without hindrance.
The heat dissipation
efficiency is
increased by 20%
The temperature is
15-20°C cooler
The rotor adopts a new
CD pattern design,
which is highly recognizable
The built-in centrifugal fan + cascading air
outlet design allows the rotor
to take away heat without hindrance.
The heat dissipation
efficiency is
increased by 20%
The temperature is
15-20°C cooler
The rotor adopts a new CD pattern design,
which is highly recognizable

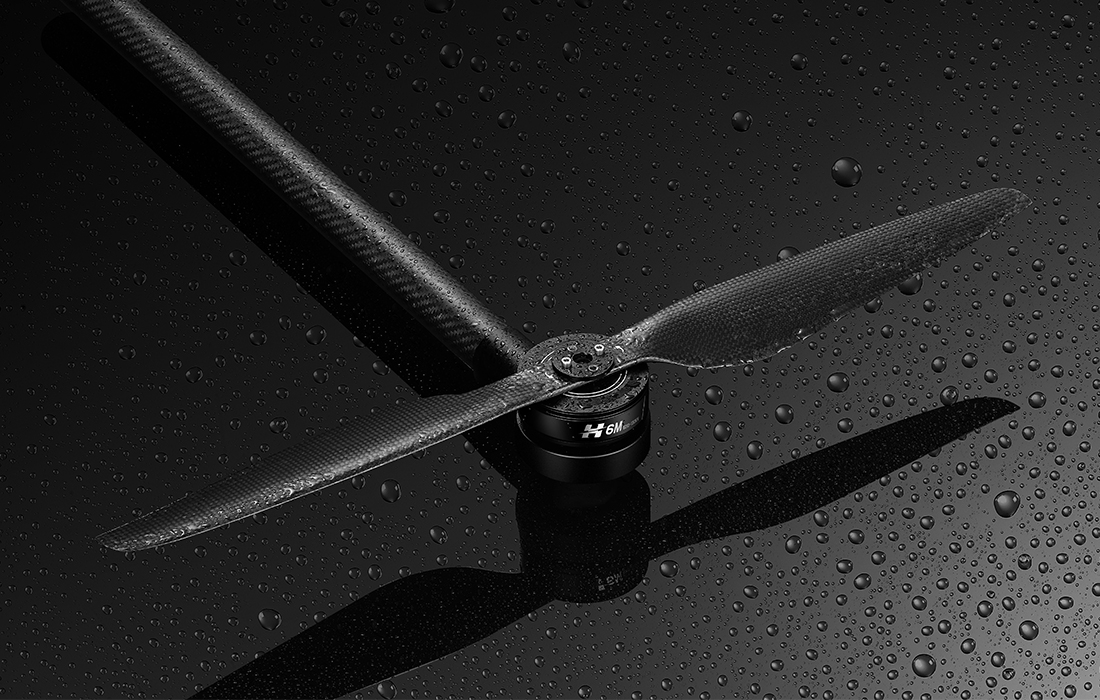

IPX5
Both waterproof and dustproof, rain or shine,
The waterproof protection level reaches IPX5.
Premium materials,
and well developed technology
Using H+ high temperature resistant
enameled wire,
the temperature resistance
exceeds 200℃
Using H+ high temperature resistant
enameled wire, the temperature resistance exceeds 200℃
The product has passed
the extreme environment
operation test of -20-60℃
high and low temperature
The product has passed the extreme
environment operation test of -20-60℃
high and low temperature
Imported waterproof
Ball bearings
Imported waterproof Ball bearings
High-performance
High-temperature-
Resistant arc-shaped
Thick magnets
High-performance
High-temperature-Resistant arc-shaped Thick magnets
Extreme optimization of the Motor magnetic circuit, Precise tolerance control, And the highest performance Will be enhanced by more Than 10%.
Techenical Parameters
Under the environment of sea level altitude, the data above is measured in room temperature of 25°C. The throttle input is able to adjust the tension, and the motor temperature is the temperature of the rated throttle running for 10 minutes.
Under the environment of sea level altitude, the data above is measured in room temperature of 25°C. The throttle input is able to adjust the tension, and the motor temperature is the temperature of the rated throttle running for 10 minutes.
Under the environment of sea level altitude, the data above is measured in room temperature of 25°C. The throttle input is able to adjust the tension, and the motor temperature is the temperature of the rated throttle running for 10 minutes.
Size
Thank you for your interest in HOBBYWING propulsion systems! For customized solutions,
please provide your contact information and technical requirements,
and we will get in touch with you within 24 hours.
captcha
By submitting this form, you agree to HOBBYWING's Privacy Policy
Thanks for reaching out!We have received your message and will get back to you shortly.
Best Regards,
HOBBYWING Team
H6M CAD
H8M CAD
Product Name
H6M H8M
Specifications
Max Thrust 6.5kg 7.5kg
Recommended Battery 12S 12S
Thrust/rotor 2-2.5kg/Rotor 2.5-3.5kg/Rotor
Total Weight(without propellers) 418g 498g
Powertrain Arm Tube Outer Diameter φ30mm φ30mm
Operating Temperature -20℃~50℃ -20℃~50℃
Ingress Protection IP45 IP45
Rated power input 268W 260W
Rated power output 236W 229W
Motor
Stator Size Φ62*10 mm Φ81*8 mm
KV 130KV 85KV
Motor Size Φ67.7 * 33.1mm Φ87*34.7 mm
ESC
ESC 60A-FOC 60A-FOC
PWM Input Signal Level 3.3V/5V 3.3V/5V
Throttle Pulse Width 1100-1940μs 1100-1940μs
Signal frequency 50-500Hz 50-500Hz
Max Allowable Voltage 63V 63V
Continuous Current( Non-hermetic Ambient Temperature ≤60℃) 20A 20A
Maximum Current( Non-hermetic Ambient Temperature ≤60℃) 60A 60A
Communication Port CAN CAN
Firmware Upgrade Support Support
Digital Communication Throttle CAN CAN
Propeller(Inch)
Diameter X Thread Pitch 22*7.8" 30*9.8"
Total weight( inc. adapter) 36g 71g

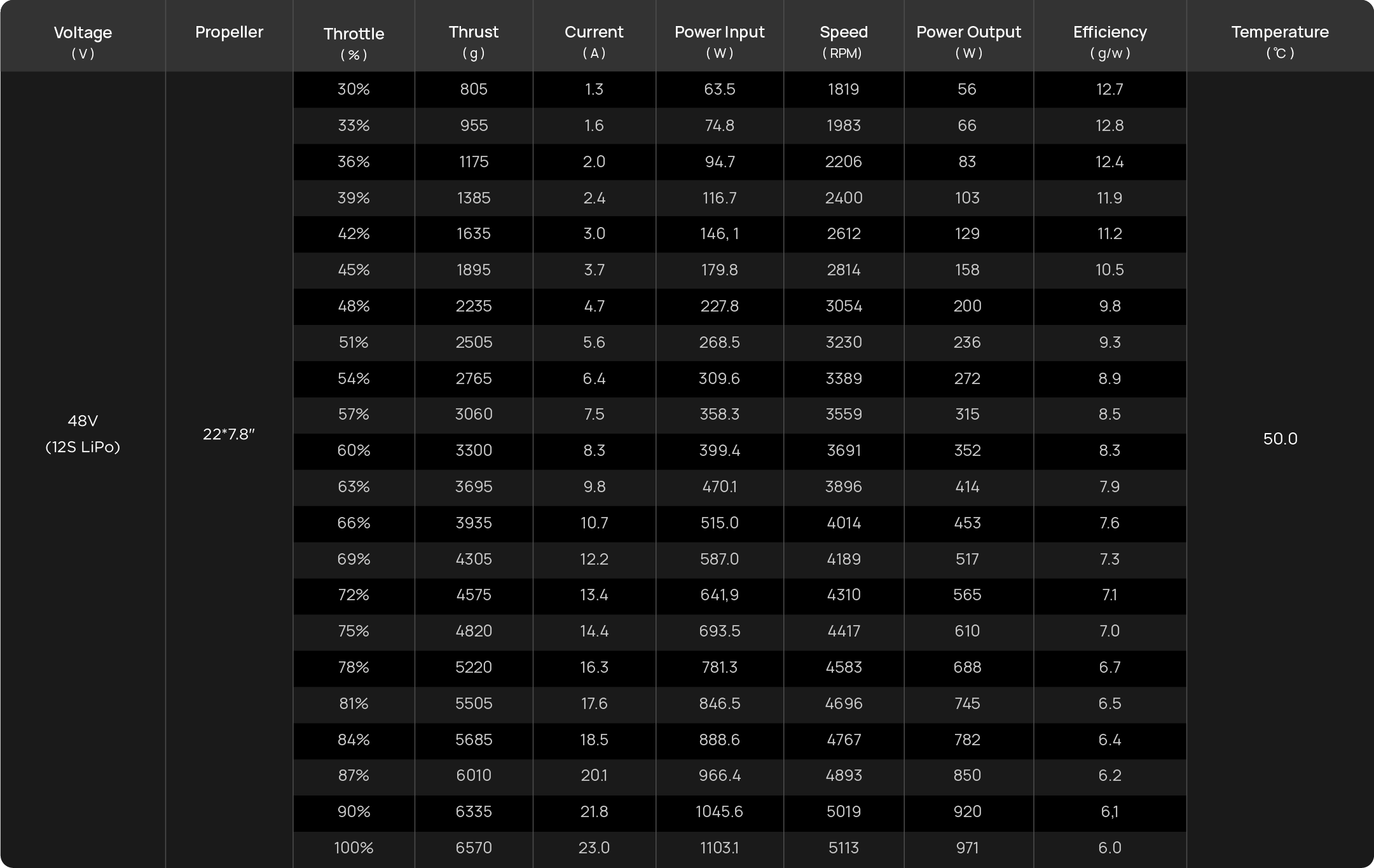

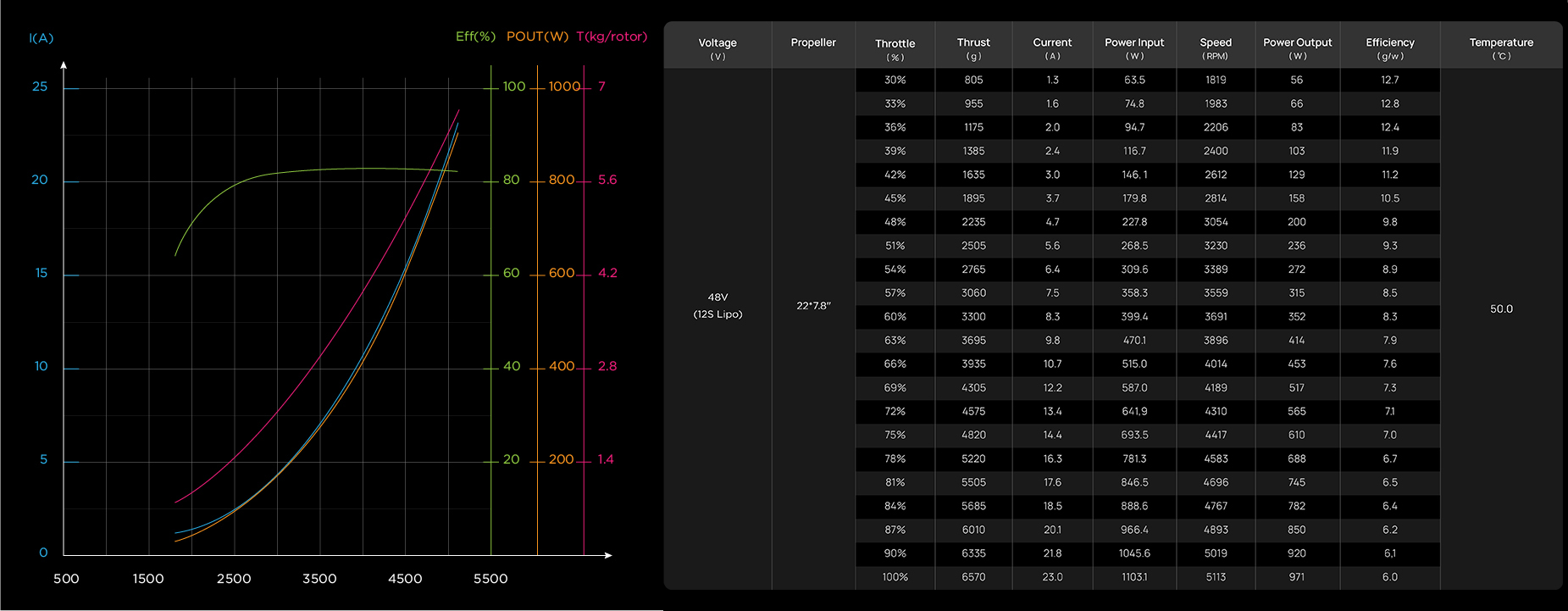

H6M Load performance parameters
H6M Technical Parameters

Voltage(V)

Propeller(Inch)

Throttle(%)

Thrust(g)

Current(A)

Power Input(W)

RPM

Power Output(W)

Efficiency(g/W)

Temperature(℃)

48V
(12S LIPO)

22*7.8"

30%

805

1.3

63.5

1819

56

12.7

50.0

33%

955

1.6

74.8

1983

66

12.8

36%

1175

2.0

94.7

2206

83

12.4

39%

1385

2.4

116.7

2400

103

11.9

42%

1635

3.0

146.1

2612

129

11.2

45%

1895

3.7

179.8

2814

158

10.5

48%

2235

4.7

227.8

3054

200

9.8

51%

2505

5.6

268.5

3230

236

9.3

54%

2765

6.4

309.6

3389

272

8.9

57%

3060

7.5

358.3

3559

315

8.5

60%

3300

8.3

399.4

3691

352

8.3

63%

3695

9.8

470.1

3896

414

7.9

66%

3935

10.7

515.0

4014

453

7.6

69%

4305

12.2

587.0

4189

517

7.3

72%

4575

13.4

641.9

4310

565

7.1

75%

4820

14.4

693.5

4417

610

7.0

78%

5220

16.3

781.3

4583

688

6.7

81%

5505

17.6

846.5

4696

745

6.5

84%

5685

18.5

888.6

4767

782

6.4

87%

6010

20.1

966.4

4893

850

6.2

90%

6335

21.8

1045.6

5019

920

6.1

100%

6570

23.0

1103.1

5113

971

6.0

Under the environment of sea level altitude, the data above is measured in room temperature of 25°C. The throttle input is able to adjust the tension, and the motor temperature is the temperature of the rated throttle running for 10 minutes.

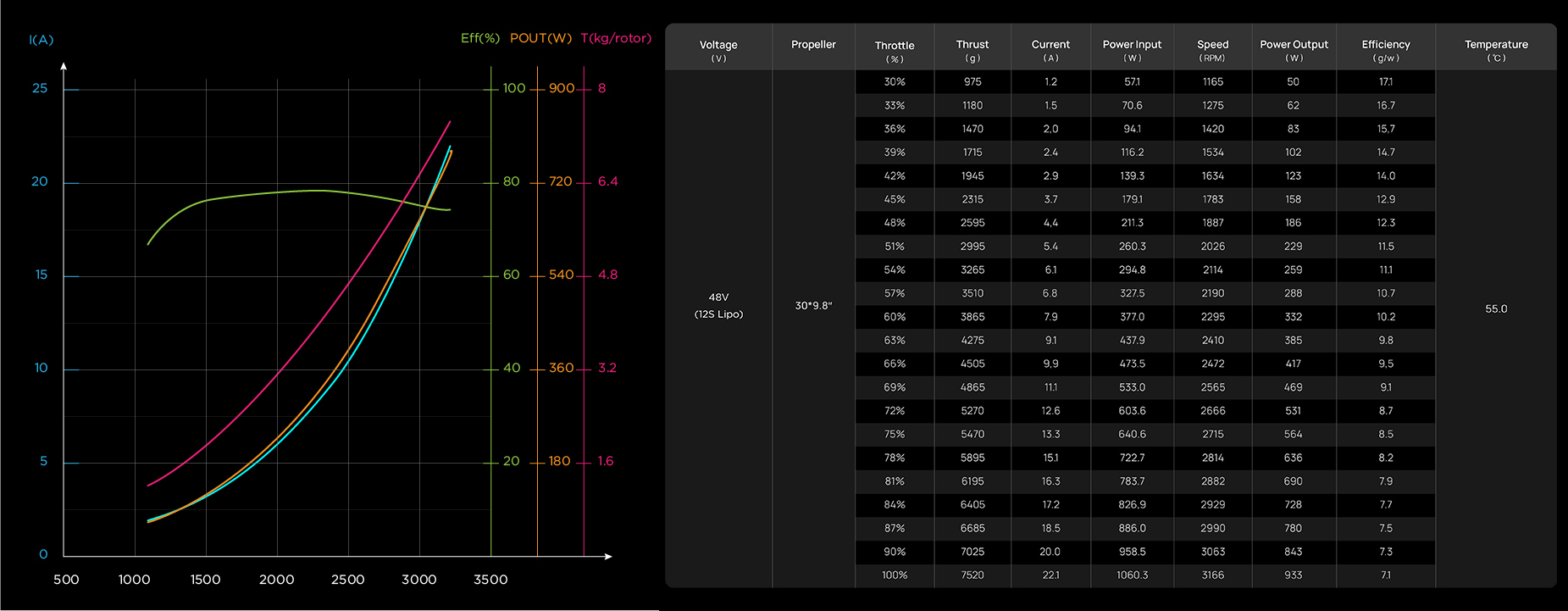

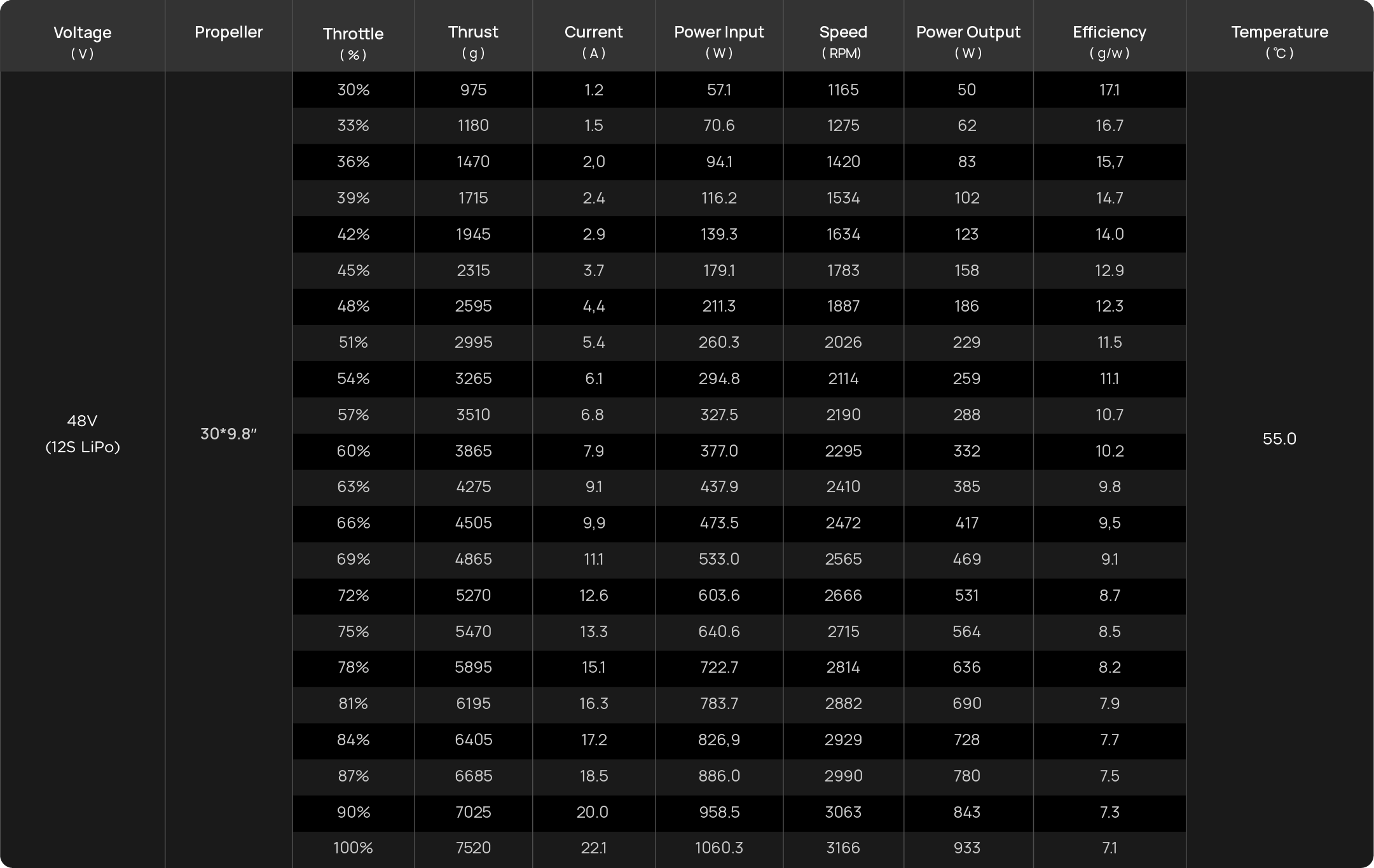

H8M Load performance parameters
H8M Technical Parameters

Voltage(V)

Propeller(Inch)

Throttle(%)

Thrust(g)

Current(A)

Power Input(W)

RPM

Power Output(W)

Efficiency(g/W)

Temperature(℃)

48V (12S LIPO)

30*9.8"

30%

975

1.2

57.1

1165

50

17.1

55.0

33%

1180

1.5

70.6

1275

62

16.7

36%

1470

2.0

94.1

1420

83

15.7

39%

1715

2.4

116.2

1534

102

14.7

42%

1945

2.9

139.3

1634

123

14.0

45%

2315

3.7

179.1

1783

158

12.9

48%

2595

4.4

211.3

1887

186

12.3

51%

2995

5.4

260.3

2026

229

11.5

54%

3265

6.1

294.8

2114

259

11.1

57%

3510

6.8

327.5

2190

288

10.7

60%

3865

7.9

377.0

2295

332

10.2

63%

4275

9.1

437.9

2410

385

9.8

66%

4505

9.9

473.5

2472

417

9.5

69%

4865

11.1

533.0

2565

469

9.1

72%

5270

12.6

603.6

2666

531

8.7

75%

5470

13.3

640.6

2715

564

8.5

78%

5895

15.1

722.7

2814

636

8.2

81%

6195

16.3

783.7

2882

690

7.9

84%

6405

17.2

826.9

2929

728

7.7

87%

6685

18.5

886.0

2990

780

7.5

90%

7025

20.0

958.5

3063

843

7.3

100%

7520

22.1

1060.3

3166

933

7.1

Under the environment of sea level altitude, the data above is measured in room temperature of 25°C. The throttle input is able to adjust the tension, and the motor temperature is the temperature of the rated throttle running for 10 minutes.
Support

Manuals & Documents

Disclaimer

The purpose of this website is only to introduce you to the basic situation of HOBBYWING company and product information. Unless otherwise stated, all information provided on this website should not be regarded as an offer or acceptance, and this website will not assume any binding obligations to you as a result of the provision of information. For all your requests, HOBBYWING reserves the full right to decide whether to commit or not.

This Website and its contents are provided for your convenience on an "as is" basis and your use of this Website is at your sole risk. HOBBYWING does not guarantee that this website will be uninterrupted or error-free, and reserves the right to amend this website or withdraw access to this Website at any time. We make no warranties, express or implied, as to the content, existence, accuracy or reliability of this Website, including, but not limited to, warranties of title, non-infringement or implied warranties of merchantability or fitness for a particular purpose or use.

HOBBYWING shall not be liable for any direct, indirect, incidental, special or consequential damages, loss of profits or business interruption caused by the use or inability to use the services provided by the Website, even if HOBBYWING has been advised of the possibility of similar losses. The exclusions and limitations of the warranty liability of HOBBYWING shall be effective to the extent permitted by applicable law.

HOBBYWING shall not be liable for any damage or loss to your computer system or any other software, hardware, IT system or property caused by viruses or other destructive programs caused by accessing, viewing and using this website or downloading any content from this Website (including but not limited to 2D model files, 3D model files).

HOBBYWING shall not be liable for any direct or indirect damage or loss caused by any third party using illegal means to access the website to obtain the relevant passwords, information and content.

If you or your company is located in the United States or Canada, you need to fill out this disclaimer confirmation letter online and submit it successfully before you can download the relevant materials you are interested in. The link address you fill in online is https://www.hobbywingdirect.com/pages/digital-file-release-form

If you do not agree with this disclaimer, please do not continue to this page. If you continue to access, browse and use this interface, you have read, understood and agreed to be bound by this statement and comply with all applicable laws and regulations.

HOBBYWING reserves the right to correct, modify and update this statement at any time.

Confirm >

FAQ

H6M&H8M

Reliable and efficient,
the H series solves the one-stop power
problem of the multi-rotor platform
effectively. It is designed for the
application of high-end industrial drones.

Reliable and efficient,
the H series solves the one-stop power problem of
the multi-rotor platform effectively and is meant for
the application of high-end industrial drones.

The power system is designed for multiple industrial uses.
Aerial Photography, Surveying and mapping,
inspections, aerial monitoring, and public safety.

The power system is designed for
multiple industrial uses.
Aerial Photography, Surveying and
mapping, inspections, aerial monitoring,
and public safety.

Recommend
2.5kg/Rotor,the efficiency
can reach to9.3g/w
2.5kg/Rotor,the efficiency
can reach to9.3g/w
H8M
3kg/Rotor,the efficiency
can reach to11.5g/w
Integrated ESC and Motor Units are more
convenient, efficient, and stable.
Integrated ESC and Motor Units are
more convenient, efficient, and stable.
Motor
ESC(FOC)
Easier Installation with the integrated ESC and Motor.
Smooth drive and efficient flight with
our self-developed sine wave (FOC) ESC.
Easier Installation with the
integrated ESC and Motor.
Smooth drive and efficient flight with
our self-developed sine wave (FOC) ESC.
Dual throttle control, increasing flight assurance
Dual throttle control,
increasing flight assurance
CAN throttle redundant design improves real-time performance and
anti-electromagnetic interference capability to handle throttle abnormalities.
To ensure flight safety at all times.
CAN throttle redundant design improves real-time performance and
anti-electromagnetic interference capability to handle throttle abnormalities.
To ensure flight safety at all times.
PWM throttle and CAN throttle can be
seamlessly switched in 16milliseconds or less.
WM throttle and CAN throttle can be
seamlessly switched in 16milliseconds or less.
Switching time≤16milliseconds
Switching time
16milliseconds
PWM
CAN
Real-time data storage to monitor function, and correct any issues
The CAN bus communication method has a fault storage function.
It transmits and records the operating status of the entire power system in real time.
It automatically stores and transmits data when the power system fails.
Additionally, the fault code can be read through the DATA LINK to diagnose and correct the problems.
All-new design
The built-in centrifugal fan + cascading air
outlet design allows the rotor
to take away heat without hindrance.
The heat dissipation
efficiency is
increased by 20%
The temperature is
15-20°C cooler
The rotor adopts a new
CD pattern design,
which is highly recognizable
The built-in centrifugal fan + cascading air
outlet design allows the rotor
to take away heat without hindrance.
The heat dissipation
efficiency is
increased by 20%
The temperature is
15-20°C cooler
The rotor adopts a new CD pattern design,
which is highly recognizable
IPX5
Both waterproof and dustproof, rain or shine,
The waterproof protection level reaches IPX5.
Premium materials,
and well developed technology
Using H+ high temperature resistant
enameled wire,
the temperature resistance
exceeds 200℃
Using H+ high temperature resistant
enameled wire, the temperature resistance exceeds 200℃
The product has passed
the extreme environment
operation test of -20-60℃
high and low temperature
The product has passed the extreme
environment operation test of -20-60℃
high and low temperature
Imported waterproof
Ball bearings
Imported waterproof Ball bearings
High-performance
High-temperature-
Resistant arc-shaped
Thick magnets
High-performance
High-temperature-Resistant arc-shaped Thick magnets
Extreme optimization of the Motor magnetic circuit, Precise tolerance control, And the highest performance Will be enhanced by more Than 10%.
Techenical Parameters
Under the environment of sea level altitude, the data above is measured in room temperature of 25°C. The throttle input is able to adjust the tension, and the motor temperature is the temperature of the rated throttle running for 10 minutes.
Under the environment of sea level altitude, the data above is measured in room temperature of 25°C. The throttle input is able to adjust the tension, and the motor temperature is the temperature of the rated throttle running for 10 minutes.
Under the environment of sea level altitude, the data above is measured in room temperature of 25°C. The throttle input is able to adjust the tension, and the motor temperature is the temperature of the rated throttle running for 10 minutes.
Size
Thank you for your interest in HOBBYWING propulsion systems! For customized solutions, please provide your contact information and technical requirements, and we will get in touch with you within 24 hours.
captcha
By submitting this form, you agree to HOBBYWING's Privacy Policy
Thanks for reaching out!We have received your message and will get back to you shortly.
Best Regards,
HOBBYWING Team
H6M CAD
H8M CAD
Product Name
H6M H8M
Specifications
Max Thrust 6.5kg 7.5kg
Recommended Battery 12S 12S
Thrust/rotor 2-2.5kg/Rotor 2.5-3.5kg/Rotor
Total Weight(without propellers) 418g 498g
Powertrain Arm Tube Outer Diameter φ30mm φ30mm
Operating Temperature -20℃~50℃ -20℃~50℃
Ingress Protection IP45 IP45
Rated power input 268W 260W
Rated power output 236W 229W
Motor
Stator Size Φ62*10 mm Φ81*8 mm
KV 130KV 85KV
Motor Size Φ67.7 * 33.1mm Φ87*34.7 mm
ESC
ESC 60A-FOC 60A-FOC
PWM Input Signal Level 3.3V/5V 3.3V/5V
Throttle Pulse Width 1100-1940μs 1100-1940μs
Signal frequency 50-500Hz 50-500Hz
Max Allowable Voltage 63V 63V
Continuous Current( Non-hermetic Ambient Temperature ≤60℃) 20A 20A
Maximum Current( Non-hermetic Ambient Temperature ≤60℃) 60A 60A
Communication Port CAN CAN
Firmware Upgrade Support Support
Digital Communication Throttle CAN CAN
Propeller(Inch)
Diameter X Thread Pitch 22*7.8" 30*9.8"
Total weight( inc. adapter) 36g 71g
H6M Load performance parameters
H6M Technical Parameters

Voltage(V)

Propeller(Inch)

Throttle(%)

Thrust(g)

Current(A)

Power Input(W)

RPM

Power Output(W)

Efficiency(g/W)

Temperature(℃)

48V
(12S LIPO)

22*7.8"

30%

805

1.3

63.5

1819

56

12.7

50.0

33%

955

1.6

74.8

1983

66

12.8

36%

1175

2.0

94.7

2206

83

12.4

39%

1385

2.4

116.7

2400

103

11.9

42%

1635

3.0

146.1

2612

129

11.2

45%

1895

3.7

179.8

2814

158

10.5

48%

2235

4.7

227.8

3054

200

9.8

51%

2505

5.6

268.5

3230

236

9.3

54%

2765

6.4

309.6

3389

272

8.9

57%

3060

7.5

358.3

3559

315

8.5

60%

3300

8.3

399.4

3691

352

8.3

63%

3695

9.8

470.1

3896

414

7.9

66%

3935

10.7

515.0

4014

453

7.6

69%

4305

12.2

587.0

4189

517

7.3

72%

4575

13.4

641.9

4310

565

7.1

75%

4820

14.4

693.5

4417

610

7.0

78%

5220

16.3

781.3

4583

688

6.7

81%

5505

17.6

846.5

4696

745

6.5

84%

5685

18.5

888.6

4767

782

6.4

87%

6010

20.1

966.4

4893

850

6.2

90%

6335

21.8

1045.6

5019

920

6.1

100%

6570

23.0

1103.1

5113

971

6.0

Under the environment of sea level altitude, the data above is measured in room temperature of 25°C. The throttle input is able to adjust the tension, and the motor temperature is the temperature of the rated throttle running for 10 minutes.
H8M Load performance parameters
H8M Technical Parameters

Voltage(V)

Propeller(Inch)

Throttle(%)

Thrust(g)

Current(A)

Power Input(W)

RPM

Power Output(W)

Efficiency(g/W)

Temperature(℃)

48V (12S LIPO)

30*9.8"

30%

975

1.2

57.1

1165

50

17.1

55.0

33%

1180

1.5

70.6

1275

62

16.7

36%

1470

2.0

94.1

1420

83

15.7

39%

1715

2.4

116.2

1534

102

14.7

42%

1945

2.9

139.3

1634

123

14.0

45%

2315

3.7

179.1

1783

158

12.9

48%

2595

4.4

211.3

1887

186

12.3

51%

2995

5.4

260.3

2026

229

11.5

54%

3265

6.1

294.8

2114

259

11.1

57%

3510

6.8

327.5

2190

288

10.7

60%

3865

7.9

377.0

2295

332

10.2

63%

4275

9.1

437.9

2410

385

9.8

66%

4505

9.9

473.5

2472

417

9.5

69%

4865

11.1

533.0

2565

469

9.1

72%

5270

12.6

603.6

2666

531

8.7

75%

5470

13.3

640.6

2715

564

8.5

78%

5895

15.1

722.7

2814

636

8.2

81%

6195

16.3

783.7

2882

690

7.9

84%

6405

17.2

826.9

2929

728

7.7

87%

6685

18.5

886.0

2990

780

7.5

90%

7025

20.0

958.5

3063

843

7.3

100%

7520

22.1

1060.3

3166

933

7.1

Under the environment of sea level altitude, the data above is measured in room temperature of 25°C. The throttle input is able to adjust the tension, and the motor temperature is the temperature of the rated throttle running for 10 minutes.
Support

Manuals & Documents

Disclaimer

The purpose of this website is only to introduce you to the basic situation of HOBBYWING company and product information. Unless otherwise stated, all information provided on this website should not be regarded as an offer or acceptance, and this website will not assume any binding obligations to you as a result of the provision of information. For all your requests, HOBBYWING reserves the full right to decide whether to commit or not.

This Website and its contents are provided for your convenience on an "as is" basis and your use of this Website is at your sole risk. HOBBYWING does not guarantee that this website will be uninterrupted or error-free, and reserves the right to amend this website or withdraw access to this Website at any time. We make no warranties, express or implied, as to the content, existence, accuracy or reliability of this Website, including, but not limited to, warranties of title, non-infringement or implied warranties of merchantability or fitness for a particular purpose or use.

HOBBYWING shall not be liable for any direct, indirect, incidental, special or consequential damages, loss of profits or business interruption caused by the use or inability to use the services provided by the Website, even if HOBBYWING has been advised of the possibility of similar losses. The exclusions and limitations of the warranty liability of HOBBYWING shall be effective to the extent permitted by applicable law.

HOBBYWING shall not be liable for any damage or loss to your computer system or any other software, hardware, IT system or property caused by viruses or other destructive programs caused by accessing, viewing and using this website or downloading any content from this Website (including but not limited to 2D model files, 3D model files).

HOBBYWING shall not be liable for any direct or indirect damage or loss caused by any third party using illegal means to access the website to obtain the relevant passwords, information and content.

If you or your company is located in the United States or Canada, you need to fill out this disclaimer confirmation letter online and submit it successfully before you can download the relevant materials you are interested in. The link address you fill in online is https://www.hobbywingdirect.com/pages/digital-file-release-form

If you do not agree with this disclaimer, please do not continue to this page. If you continue to access, browse and use this interface, you have read, understood and agreed to be bound by this statement and comply with all applicable laws and regulations.

HOBBYWING reserves the right to correct, modify and update this statement at any time.

Confirm >

FAQ
