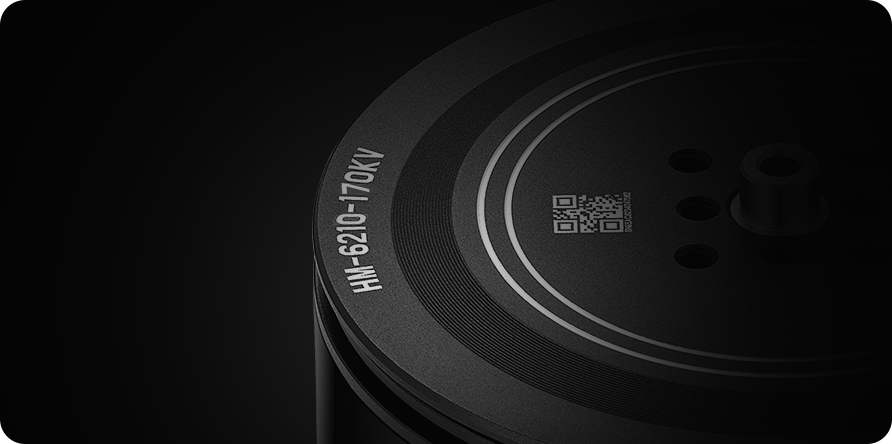

M6210 HighProt - 170/320KV Multirotor Drone Motors 12/6S
Buy
M6210 HighProt
Specially designed for multi-rotor drones.
High efficiency, strong protection, and high reliability.
M6210 HighProt
11kg
They are suitable for UAVs (quadrotor)
with a take-off weight of 11kg.
M6210 HighProt motor uses two different core stack thicknesses in order to meet different
payload application requirements.
An Abundance of Drone Applications
Brand-new Magnetic Circuit Design
Optimises the electromotive force harmonics. It creates a sinusoidal motion to perfectly matched with the ESC.
High Quality Materials and
Strong Protective Capabilities
The bracket and bottom cover of the motor are designed with a semi-enclosed structure with dust-proof grilles.
Regardless of how the motor is being installed,it can effectively resist dust and sand.
Excellent nickel-plating
electrophoresis
treatment process
for the casing.

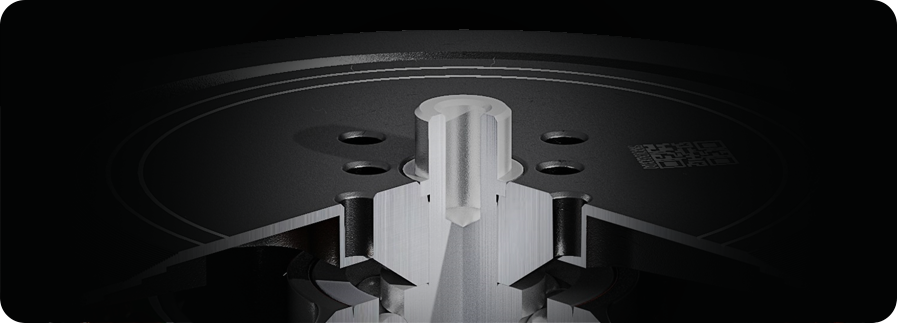

High toughness
carbide main shaft.

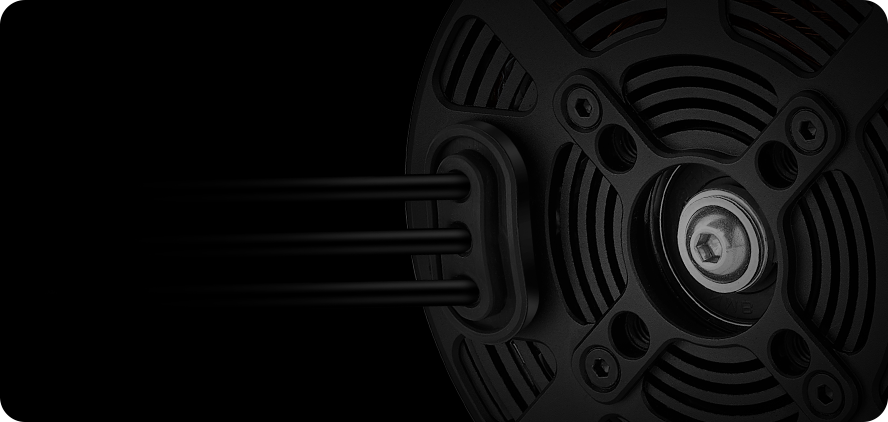

The back cover and the stator
base are designed separately,
and the outlet position is protected
by a rubber wire buckle to facilitate
waterproofing with the holes
in the motor base.

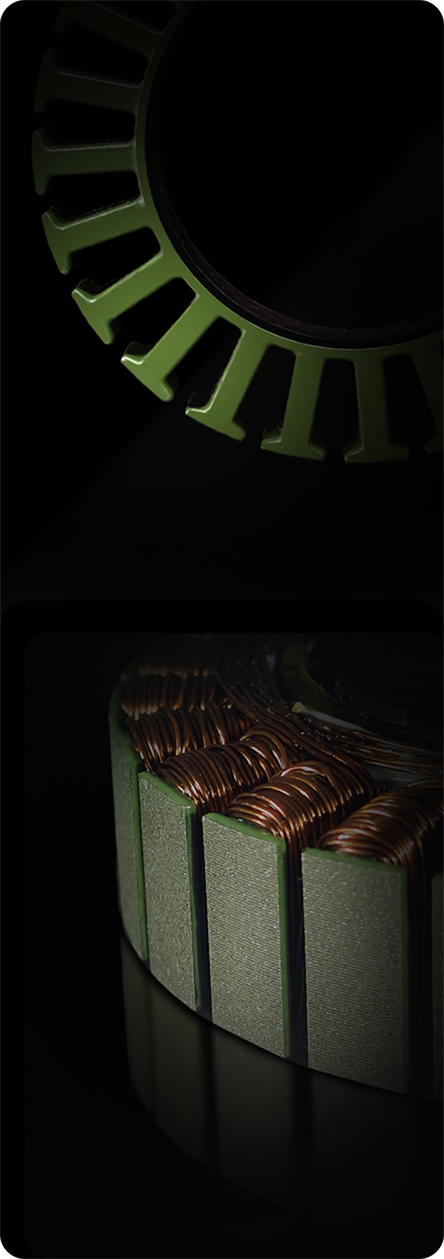

High-performance
iron core made from
low-loss silicon
steel sheets from
top-tier brands.
Silicon steel sheets
adopt new anti-rust and
anti-corrosion
treatment technology.
The motor is certified by NSS48.

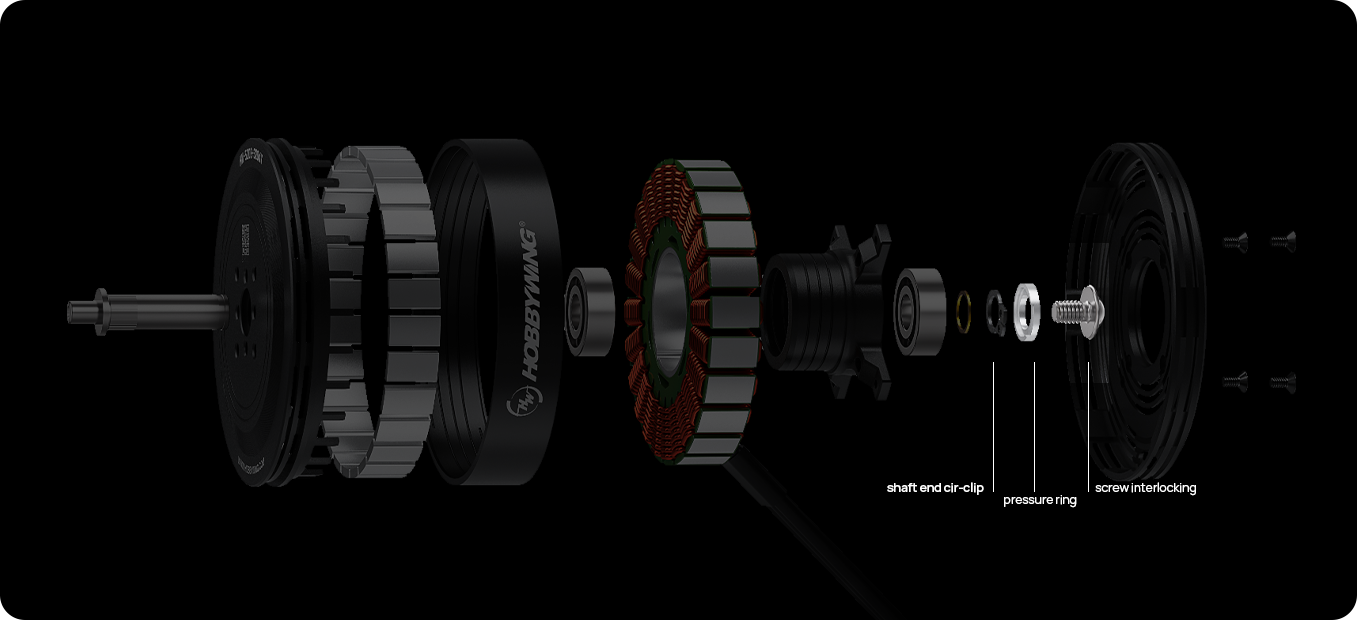

The motor adopts a motor shaft end cir-clip + pressure ring + screw interlocking
structure to ensure safety and to prevent it from falling off.
Recommended Combinations
  • Motor
    M6210 HighProt-170KV
    M6210 HighProt-320KV

    Battery
    12S LiPo
    6S LiPo
  • Propeller
    MSC 21x6.3
    MSC 22x7.8
    MPF 22x7.0
    Thrust/rotor
    2.2~2.7kg
  • ESC
    XRotor Pro H60A 14S
    XRotor Pro H60A 6S

    Takeoff weight of quadrotor
    9.0~11.0kg

Thank you for your interest in HOBBYWING propulsion systems! For customized solutions,
please provide your contact information and technical requirements,
and we will get in touch with you within 24 hours.
captcha
By submitting this form, you agree to HOBBYWING's Privacy Policy
Thanks for reaching out!We have received your message and will get back to you shortly.
Best Regards,
HOBBYWING Team
M6210 HighProt CAD
Model
M6210 HighProt
Specification
KV 170 320
Motor Size Φ68.7*H30.2mm Φ68.7*H30.2mm
Stator process High standard silicon steel sheet, rust proof, 180℃ high temperature resistance paint-coat High standard silicon steel sheet, rust proof, 180℃ high temperature resistance paint-coat
Enamelled wire 200℃ 200℃
Magnet 150℃ 150℃
Isolation test 500V AC high voltage resistance test 500V AC high voltage resistance test
Protection level IP45 IP45
Slot& Pole 24N28P 24N28P
Dynamic balance ≤8mg ≤8mg
Bearing Water proof bearing Water proof bearing
Motor axle diameter Φ6mm Φ6mm
Props mounting dimensions 4×M3@D12mm，4×M3@D18mm 4×M3@D12mm，4×M3@D18mm
Motor mounting dimensions 4×M4@D25mm 4×M4@D25mm
Rated output power (Max continuous) 306W 306W
Specification
Battery(LiPo) 12S LiPo 6S LiPo
No-load current 1.31A 1.97A
Maximum current (Non-hermeticAmbient Temperature ≤ 25℃） 42.9A 55.2A
Max thrust 9.1kg 7.1kg
Resistance 98.6mΩ 33.65mΩ
Wire Size 16AWG 16AWG
Wire length 150mm 150mm
Weight（With wire） 231g 239g
Recommended application combinations
Propeller MSC 21x6.3 / MSC 22x7.8 / MFP 22x7.0 MSC 21x6.3 / MSC 22x7.8 / MFP 22x7.0
ESC XRotor Pro H60A 14S XRotor Pro H60A 6S
Battery 12S LiPo 6S LiPo
Thrust/rotor 2.2~2.7kg 2.2~2.7kg
Takeoff weight of quadrotor 9.0~11.0kg 9.0~11.0kg
M6210 170KV+MSC 21x6.3 Load Performance Parameters
M6210 170KV+MSC 21x6.3 Thrust Test Data

Voltage(V)

Propeller

Throttle(%)

Thrust(g)

Current(A)

Power(W)

Speed(RPM)

Efficiency(g/W)

Torque(N·m)

Power Output(W)

Temperature(℃)

46V (12S LiPo)

MSC 21x6.3

33%

1104

2.0

92.3

2572

12.0

0.26

69.6

46.7

35%

1235

2.3

106.6

2721

11.6

0.29

82.2

37%

1381

2.7

123.4

2877

11.2

0.32

97.0

39%

1537

3.1

142.2

3035

10.8

0.36

113.7

42%

1786

3.8

173.9

3268

10.3

0.42

142.0

45%

2044

4.5

208.9

3489

9.8

0.47

173.3

48%

2307

5.4

246.8

3698

9.3

0.53

207.1

51%

2572

6.2

287.1

3896

9.0

0.60

242.9

54%

2840

7.2

330.0

4084

8.6

0.66

280.8

57%

3111

8.2

375.6

4267

8.3

0.72

321.1

60%

3389

9.2

424.3

4446

8.0

0.78

364.1

63%

3677

10.4

477.0

4625

7.7

0.85

410.5

66%

3977

11.6

534.3

4806

7.4

0.92

461.0

69%

4293

13.0

597.0

4989

7.2

0.99

516.3

72%

4625

14.5

665.8

5176

6.9

1.06

576.9

75%

4974

16.1

740.9

5364

6.7

1.14

642.9

78%

5337

17.9

822.3

5550

6.5

1.23

714.2

81%

5709

19.8

909.3

5733

6.3

1.32

789.5

84%

6082

21.7

1000.0

5906

6.1

1.40

867.3

87%

6444

23.7

1091.6

6069

5.9

1.49

944.7

90%

6778

25.6

1179.5

6215

5.7

1.56

1018.1

100%

7383

29.3

1346.5

6487

5.5

1.70

1156.1
*The above data was measured by HOBBYWING Laboratory at room temperature 25°C, at sea level, with varying throttle input. The motor temperature is measured after running for 10 minutes at 65% throttle, for reference only.
M6210 170KV+MSC 22x7.8 Load Performance Parameters
M6210 170KV+MSC 22x7.8 Thrust Test Data

Voltage(V)

Propeller

Throttle(%)

Thrust(g)

Current(A)

Power(W)

Speed(RPM)

Efficiency(g/W)

Torque(N·m)

Power Output(W)

Temperature(℃)

46V (12S LiPo)

MSC 22x7.8

33%

1525

3.0

136.5

2513

11.2

0.42

110.4

55.6

35%

1719

3.4

158.5

2659

10.8

0.47

130.4

37%

1920

4.0

184.0

2806

10.4

0.52

152.8

39%

2128

4.6

212.5

2952

10.0

0.57

177.4

42%

2447

5.7

260.3

3165

9.4

0.66

218.1

45%

2770

6.8

312.7

3369

8.9

0.74

262.4

48%

3097

8.0

368.9

3563

8.4

0.83

309.9

51%

3425

9.3

428.3

3747

8.0

0.92

360.1

54%

3757

10.7

490.9

3922

7.7

1.01

413.1

57%

4094

12.1

557.1

4090

7.3

1.09

468.9

60%

4439

13.6

627.8

4253

7.1

1.19

527.9

63%

4795

15.3

703.9

4413

6.8

1.28

590.8

66%

5164

17.1

786.8

4572

6.6

1.37

658.2

69%

5548

19.1

877.6

4731

6.3

1.47

730.6

72%

5948

21.2

977.7

4891

6.1

1.58

808.7

75%

6361

23.6

1087.7

5052

5.8

1.69

892.6

78%

6784

26.2

1207.8

5212

5.6

1.80

982.2

81%

7213

29.0

1336.7

5369

5.4

1.91

1076.4

84%

7637

31.9

1471.0

5519

5.2

2.03

1172.9

87%

8045

34.9

1605.3

5656

5.0

2.14

1268.1

90%

8421

37.6

1732.0

5774

4.9

2.24

1356.7

100%

9137

42.9

1973.1

5962

4.6

2.44

1522.7
*The above data was measured by HOBBYWING Laboratory at room temperature 25°C, at sea level, with varying throttle input. The motor temperature is measured after running for 10 minutes at 65% throttle, for reference only.
M6210 320KV+MSC 21x6.3 Load Performance Parameters
M6210 320KV+MSC 21x6.3 Thrust Test Data

Voltage(V)

Propeller

Throttle(%)

Thrust(g)

Current(A)

Power(W)

Speed(RPM)

Efficiency(g/W)

Torque(N·m)

Power Output(W)

Temperature(℃)

23V (6S LiPo)

MSC 21x6.3

33%

842

2.9

66.5

2234

12.7

0.21

49.0

49.1

35%

944

3.3

75.9

2356

12.4

0.23

57.5

37%

1056

3.8

86.9

2486

12.1

0.26

67.4

39%

1174

4.3

99.4

2618

11.8

0.29

78.6

42%

1363

5.2

120.8

2817

11.3

0.33

97.7

45%

1560

6.3

144.9

3012

10.8

0.38

119.0

48%

1764

7.4

171.2

3199

10.3

0.42

142.3

51%

1971

8.6

199.5

3377

9.9

0.47

167.4

54%

2182

10.0

229.7

3548

9.5

0.52

194.2

57%

2398

11.4

261.8

3711

9.2

0.57

222.6

60%

2618

12.8

296.0

3869

8.8

0.62

252.8

63%

2844

14.4

332.5

4024

8.6

0.68

285.1

66%

3077

16.1

371.8

4177

8.3

0.73

319.7

69%

3318

18.0

414.1

4331

8.0

0.79

357.0

72%

3568

19.9

459.9

4486

7.8

0.85

397.3

75%

3826

22.1

509.3

4643

7.5

0.91

440.8

78%

4091

24.4

562.4

4803

7.3

0.97

487.5

81%

4360

26.8

618.8

4964

7.0

1.03

537.0

84%

4629

29.4

677.5

5121

6.8

1.10

588.5

87%

4893

32.0

736.9

5270

6.6

1.16

640.2

90%

5143

34.5

794.6

5404

6.5

1.22

690.0

100%

5717

40.3

928.7

5662

6.2

1.35

800.7
*The above data was measured by HOBBYWING Laboratory at room temperature 25°C, at sea level, with varying throttle input. The motor temperature is measured after running for 10 minutes at 65% throttle, for reference only.
M6210 320KV+MSC 22x7.8 Load Performance Parameters
M6210 320KV+MSC 22x7.8 Thrust Test Data

Voltage(V)

Propeller

Throttle(%)

Thrust(g)

Current(A)

Power(W)

Speed(RPM)

Efficiency(g/W)

Torque(N·m)

Power Output(W)

Temperature(℃)

23V (6S LiPo)

MSC 22x7.8

33%

1094

3.7

86.1

2142

12.7

0.30

66.7

62.0

35%

1218

4.3

98.3

2253

12.4

0.33

77.6

37%

1359

4.9

113.2

2373

12.0

0.36

90.6

39%

1512

5.7

130.5

2498

11.6

0.40

105.7

42%

1757

7.0

160.6

2687

10.9

0.47

131.9

45%

2015

8.4

194.8

2874

10.3

0.54

161.5

48%

2280

10.1

232.3

3053

9.8

0.61

193.8

51%

2549

11.8

272.5

3223

9.4

0.68

228.3

54%

2819

13.7

315.0

3384

9.0

0.75

264.7

57%

3091

15.6

359.7

3538

8.6

0.82

302.7

60%

3367

17.7

407.0

3687

8.3

0.89

342.6

63%

3646

19.8

457.0

3831

8.0

0.96

384.6

66%

3932

22.2

510.6

3973

7.7

1.03

429.1

69%

4226

24.7

568.1

4115

7.4

1.11

476.8

72%

4530

27.4

630.4

4256

7.2

1.18

528.0

75%

4843

30.3

697.8

4397

6.9

1.27

583.1

78%

5165

33.4

770.4

4538

6.7

1.35

642.4

81%

5492

36.8

847.9

4677

6.5

1.44

705.2

84%

5821

40.3

928.9

4811

6.3

1.53

770.6

87%

6143

43.9

1011.1

4935

6.1

1.62

836.4

90%

6448

47.4

1090.9

5047

5.9

1.70

899.4

100%

7124

55.2

1270.0

5261

5.6

1.88

1035.0
*The above data was measured by HOBBYWING Laboratory at room temperature 25°C, at sea level, with varying throttle input. The motor temperature is measured after running for 10 minutes at 65% throttle, for reference only.
Support

Manuals & Documents

Disclaimer

The purpose of this website is only to introduce you to the basic situation of HOBBYWING company and product information. Unless otherwise stated, all information provided on this website should not be regarded as an offer or acceptance, and this website will not assume any binding obligations to you as a result of the provision of information. For all your requests, HOBBYWING reserves the full right to decide whether to commit or not.

This Website and its contents are provided for your convenience on an "as is" basis and your use of this Website is at your sole risk. HOBBYWING does not guarantee that this website will be uninterrupted or error-free, and reserves the right to amend this website or withdraw access to this Website at any time. We make no warranties, express or implied, as to the content, existence, accuracy or reliability of this Website, including, but not limited to, warranties of title, non-infringement or implied warranties of merchantability or fitness for a particular purpose or use.

HOBBYWING shall not be liable for any direct, indirect, incidental, special or consequential damages, loss of profits or business interruption caused by the use or inability to use the services provided by the Website, even if HOBBYWING has been advised of the possibility of similar losses. The exclusions and limitations of the warranty liability of HOBBYWING shall be effective to the extent permitted by applicable law.

HOBBYWING shall not be liable for any damage or loss to your computer system or any other software, hardware, IT system or property caused by viruses or other destructive programs caused by accessing, viewing and using this website or downloading any content from this Website (including but not limited to 2D model files, 3D model files).

HOBBYWING shall not be liable for any direct or indirect damage or loss caused by any third party using illegal means to access the website to obtain the relevant passwords, information and content.

If you or your company is located in the United States or Canada, you need to fill out this disclaimer confirmation letter online and submit it successfully before you can download the relevant materials you are interested in. The link address you fill in online is https://www.hobbywingdirect.com/pages/digital-file-release-form

If you do not agree with this disclaimer, please do not continue to this page. If you continue to access, browse and use this interface, you have read, understood and agreed to be bound by this statement and comply with all applicable laws and regulations.

HOBBYWING reserves the right to correct, modify and update this statement at any time.

Confirm >
M6210 HighProt Specification
M6210 HighProt Load Performance Parameters
M6210 HighProt 3D Model Drawing
M6210 HighProt CAD

FAQ

Hobbywing M6210 HighProt
Hobbywing M6210 HighProt
Hobbywing M6210 HighProt
Hobbywing M6210 HighProt
Hobbywing M6210 HighProt
Hobbywing M6210 HighProt
Hobbywing M6210 HighProt
Hobbywing M6210 HighProt
Hobbywing M6210 HighProt
Hobbywing M6210 HighProt

Products Center

Service and Support

News Center

About

Global Partners

Welcome to Brushless
System Trends
Privacy Policy | 粤ICP备14009225号  |   ©2026 HOBBYWING Technology CO., LTD.. All rights reserved
M6210 HighProt
Overview Specifications Download FAQ Accessories Detail Contact us Shop
Buy



Thank you for your interest in HOBBYWING propulsion systems! For customized solutions, please provide your contact information and technical requirements, and we will get in touch with you within 24 hours.
captcha
By submitting this form, you agree to HOBBYWING's Privacy Policy
Thanks for reaching out!We have received your message and will get back to you shortly.
Best Regards,
HOBBYWING Team
M6210 HighProt CAD
Model
M6210 HighProt
Specification
KV 170 320
Motor Size Φ68.7*H30.2mm Φ68.7*H30.2mm
Stator process High standard silicon steel sheet, rust proof, 180℃ high temperature resistance paint-coat High standard silicon steel sheet, rust proof, 180℃ high temperature resistance paint-coat
Enamelled wire 200℃ 200℃
Magnet 150℃ 150℃
Isolation test 500V AC high voltage resistance test 500V AC high voltage resistance test
Protection level IP45 IP45
Slot& Pole 24N28P 24N28P
Dynamic balance ≤8mg ≤8mg
Bearing Water proof bearing Water proof bearing
Motor axle diameter Φ6mm Φ6mm
Props mounting dimensions 4×M3@D12mm，4×M3@D18mm 4×M3@D12mm，4×M3@D18mm
Motor mounting dimensions 4×M4@D25mm 4×M4@D25mm
Rated output power (Max continuous) 306W 306W
Specification
Battery(LiPo) 12S LiPo 6S LiPo
No-load current 1.31A 1.97A
Maximum current (Non-hermeticAmbient Temperature ≤ 25℃） 42.9A 55.2A
Max thrust 9.1kg 7.1kg
Resistance 98.6mΩ 33.65mΩ
Wire Size 16AWG 16AWG
Wire length 150mm 150mm
Weight（With wire） 231g 239g
Recommended application combinations
Propeller MSC 21x6.3 / MSC 22x7.8 / MFP 22x7.0 MSC 21x6.3 / MSC 22x7.8 / MFP 22x7.0
ESC XRotor Pro H60A 14S XRotor Pro H60A 6S
Battery 12S LiPo 6S LiPo
Thrust/rotor 2.2~2.7kg 2.2~2.7kg
Takeoff weight of quadrotor 9.0~11.0kg 9.0~11.0kg
M6210 170KV+MSC 21x6.3 Load Performance Parameters
M6210 170KV+MSC 21x6.3 Thrust Test Data

Voltage(V)

Propeller

Throttle(%)

Thrust(g)

Current(A)

Power(W)

Speed(RPM)

Efficiency(g/W)

Torque(N·m)

Power Output(W)

Temperature(℃)

46V (12S LiPo)

MSC 21x6.3

33%

1104

2.0

92.3

2572

12.0

0.26

69.6

46.7

35%

1235

2.3

106.6

2721

11.6

0.29

82.2

37%

1381

2.7

123.4

2877

11.2

0.32

97.0

39%

1537

3.1

142.2

3035

10.8

0.36

113.7

42%

1786

3.8

173.9

3268

10.3

0.42

142.0

45%

2044

4.5

208.9

3489

9.8

0.47

173.3

48%

2307

5.4

246.8

3698

9.3

0.53

207.1

51%

2572

6.2

287.1

3896

9.0

0.60

242.9

54%

2840

7.2

330.0

4084

8.6

0.66

280.8

57%

3111

8.2

375.6

4267

8.3

0.72

321.1

60%

3389

9.2

424.3

4446

8.0

0.78

364.1

63%

3677

10.4

477.0

4625

7.7

0.85

410.5

66%

3977

11.6

534.3

4806

7.4

0.92

461.0

69%

4293

13.0

597.0

4989

7.2

0.99

516.3

72%

4625

14.5

665.8

5176

6.9

1.06

576.9

75%

4974

16.1

740.9

5364

6.7

1.14

642.9

78%

5337

17.9

822.3

5550

6.5

1.23

714.2

81%

5709

19.8

909.3

5733

6.3

1.32

789.5

84%

6082

21.7

1000.0

5906

6.1

1.40

867.3

87%

6444

23.7

1091.6

6069

5.9

1.49

944.7

90%

6778

25.6

1179.5

6215

5.7

1.56

1018.1

100%

7383

29.3

1346.5

6487

5.5

1.70

1156.1
*The above data was measured by HOBBYWING Laboratory at room temperature 25°C, at sea level, with varying throttle input. The motor temperature is measured after running for 10 minutes at 65% throttle, for reference only.
M6210 170KV+MSC 22x7.8 Load Performance Parameters
M6210 170KV+MSC 22x7.8 Thrust Test Data

Voltage(V)

Propeller

Throttle(%)

Thrust(g)

Current(A)

Power(W)

Speed(RPM)

Efficiency(g/W)

Torque(N·m)

Power Output(W)

Temperature(℃)

46V (12S LiPo)

MSC 22x7.8

33%

1525

3.0

136.5

2513

11.2

0.42

110.4

55.6

35%

1719

3.4

158.5

2659

10.8

0.47

130.4

37%

1920

4.0

184.0

2806

10.4

0.52

152.8

39%

2128

4.6

212.5

2952

10.0

0.57

177.4

42%

2447

5.7

260.3

3165

9.4

0.66

218.1

45%

2770

6.8

312.7

3369

8.9

0.74

262.4

48%

3097

8.0

368.9

3563

8.4

0.83

309.9

51%

3425

9.3

428.3

3747

8.0

0.92

360.1

54%

3757

10.7

490.9

3922

7.7

1.01

413.1

57%

4094

12.1

557.1

4090

7.3

1.09

468.9

60%

4439

13.6

627.8

4253

7.1

1.19

527.9

63%

4795

15.3

703.9

4413

6.8

1.28

590.8

66%

5164

17.1

786.8

4572

6.6

1.37

658.2

69%

5548

19.1

877.6

4731

6.3

1.47

730.6

72%

5948

21.2

977.7

4891

6.1

1.58

808.7

75%

6361

23.6

1087.7

5052

5.8

1.69

892.6

78%

6784

26.2

1207.8

5212

5.6

1.80

982.2

81%

7213

29.0

1336.7

5369

5.4

1.91

1076.4

84%

7637

31.9

1471.0

5519

5.2

2.03

1172.9

87%

8045

34.9

1605.3

5656

5.0

2.14

1268.1

90%

8421

37.6

1732.0

5774

4.9

2.24

1356.7

100%

9137

42.9

1973.1

5962

4.6

2.44

1522.7
*The above data was measured by HOBBYWING Laboratory at room temperature 25°C, at sea level, with varying throttle input. The motor temperature is measured after running for 10 minutes at 65% throttle, for reference only.
M6210 320KV+MSC 21x6.3 Load Performance Parameters
M6210 320KV+MSC 21x6.3 Thrust Test Data

Voltage(V)

Propeller

Throttle(%)

Thrust(g)

Current(A)

Power(W)

Speed(RPM)

Efficiency(g/W)

Torque(N·m)

Power Output(W)

Temperature(℃)

23V (6S LiPo)

MSC 21x6.3

33%

842

2.9

66.5

2234

12.7

0.21

49.0

49.1

35%

944

3.3

75.9

2356

12.4

0.23

57.5

37%

1056

3.8

86.9

2486

12.1

0.26

67.4

39%

1174

4.3

99.4

2618

11.8

0.29

78.6

42%

1363

5.2

120.8

2817

11.3

0.33

97.7

45%

1560

6.3

144.9

3012

10.8

0.38

119.0

48%

1764

7.4

171.2

3199

10.3

0.42

142.3

51%

1971

8.6

199.5

3377

9.9

0.47

167.4

54%

2182

10.0

229.7

3548

9.5

0.52

194.2

57%

2398

11.4

261.8

3711

9.2

0.57

222.6

60%

2618

12.8

296.0

3869

8.8

0.62

252.8

63%

2844

14.4

332.5

4024

8.6

0.68

285.1

66%

3077

16.1

371.8

4177

8.3

0.73

319.7

69%

3318

18.0

414.1

4331

8.0

0.79

357.0

72%

3568

19.9

459.9

4486

7.8

0.85

397.3

75%

3826

22.1

509.3

4643

7.5

0.91

440.8

78%

4091

24.4

562.4

4803

7.3

0.97

487.5

81%

4360

26.8

618.8

4964

7.0

1.03

537.0

84%

4629

29.4

677.5

5121

6.8

1.10

588.5

87%

4893

32.0

736.9

5270

6.6

1.16

640.2

90%

5143

34.5

794.6

5404

6.5

1.22

690.0

100%

5717

40.3

928.7

5662

6.2

1.35

800.7
*The above data was measured by HOBBYWING Laboratory at room temperature 25°C, at sea level, with varying throttle input. The motor temperature is measured after running for 10 minutes at 65% throttle, for reference only.
M6210 320KV+MSC 22x7.8 Load Performance Parameters
M6210 320KV+MSC 22x7.8 Thrust Test Data

Voltage(V)

Propeller

Throttle(%)

Thrust(g)

Current(A)

Power(W)

Speed(RPM)

Efficiency(g/W)

Torque(N·m)

Power Output(W)

Temperature(℃)

23V (6S LiPo)

MSC 22x7.8

33%

1094

3.7

86.1

2142

12.7

0.30

66.7

62.0

35%

1218

4.3

98.3

2253

12.4

0.33

77.6

37%

1359

4.9

113.2

2373

12.0

0.36

90.6

39%

1512

5.7

130.5

2498

11.6

0.40

105.7

42%

1757

7.0

160.6

2687

10.9

0.47

131.9

45%

2015

8.4

194.8

2874

10.3

0.54

161.5

48%

2280

10.1

232.3

3053

9.8

0.61

193.8

51%

2549

11.8

272.5

3223

9.4

0.68

228.3

54%

2819

13.7

315.0

3384

9.0

0.75

264.7

57%

3091

15.6

359.7

3538

8.6

0.82

302.7

60%

3367

17.7

407.0

3687

8.3

0.89

342.6

63%

3646

19.8

457.0

3831

8.0

0.96

384.6

66%

3932

22.2

510.6

3973

7.7

1.03

429.1

69%

4226

24.7

568.1

4115

7.4

1.11

476.8

72%

4530

27.4

630.4

4256

7.2

1.18

528.0

75%

4843

30.3

697.8

4397

6.9

1.27

583.1

78%

5165

33.4

770.4

4538

6.7

1.35

642.4

81%

5492

36.8

847.9

4677

6.5

1.44

705.2

84%

5821

40.3

928.9

4811

6.3

1.53

770.6

87%

6143

43.9

1011.1

4935

6.1

1.62

836.4

90%

6448

47.4

1090.9

5047

5.9

1.70

899.4

100%

7124

55.2

1270.0

5261

5.6

1.88

1035.0
*The above data was measured by HOBBYWING Laboratory at room temperature 25°C, at sea level, with varying throttle input. The motor temperature is measured after running for 10 minutes at 65% throttle, for reference only.
Support

Manuals & Documents

Disclaimer

The purpose of this website is only to introduce you to the basic situation of HOBBYWING company and product information. Unless otherwise stated, all information provided on this website should not be regarded as an offer or acceptance, and this website will not assume any binding obligations to you as a result of the provision of information. For all your requests, HOBBYWING reserves the full right to decide whether to commit or not.

This Website and its contents are provided for your convenience on an "as is" basis and your use of this Website is at your sole risk. HOBBYWING does not guarantee that this website will be uninterrupted or error-free, and reserves the right to amend this website or withdraw access to this Website at any time. We make no warranties, express or implied, as to the content, existence, accuracy or reliability of this Website, including, but not limited to, warranties of title, non-infringement or implied warranties of merchantability or fitness for a particular purpose or use.

HOBBYWING shall not be liable for any direct, indirect, incidental, special or consequential damages, loss of profits or business interruption caused by the use or inability to use the services provided by the Website, even if HOBBYWING has been advised of the possibility of similar losses. The exclusions and limitations of the warranty liability of HOBBYWING shall be effective to the extent permitted by applicable law.

HOBBYWING shall not be liable for any damage or loss to your computer system or any other software, hardware, IT system or property caused by viruses or other destructive programs caused by accessing, viewing and using this website or downloading any content from this Website (including but not limited to 2D model files, 3D model files).

HOBBYWING shall not be liable for any direct or indirect damage or loss caused by any third party using illegal means to access the website to obtain the relevant passwords, information and content.

If you or your company is located in the United States or Canada, you need to fill out this disclaimer confirmation letter online and submit it successfully before you can download the relevant materials you are interested in. The link address you fill in online is https://www.hobbywingdirect.com/pages/digital-file-release-form

If you do not agree with this disclaimer, please do not continue to this page. If you continue to access, browse and use this interface, you have read, understood and agreed to be bound by this statement and comply with all applicable laws and regulations.

HOBBYWING reserves the right to correct, modify and update this statement at any time.

Confirm >
M6210 HighProt Specification
M6210 HighProt Load Performance Parameters
M6210 HighProt 3D Model Drawing
M6210 HighProt CAD

FAQ
Top

Products Center

Service and Support

News Center

About

Global Partners

Welcome to Brushless
System Trends
Privacy Policy | 粤ICP备14009225号  |   ©2026 HOBBYWING Technology CO., LTD.. All rights reserved
