M8108 HP

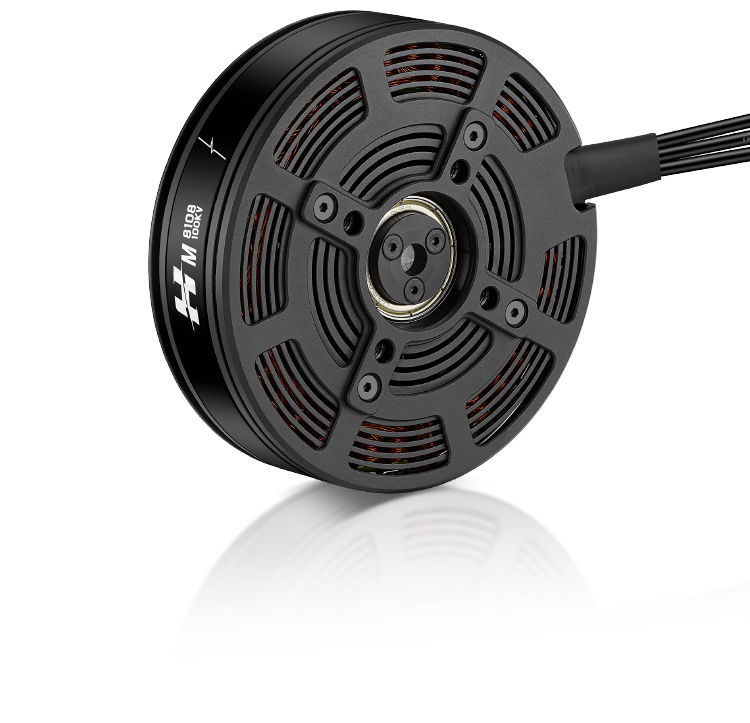

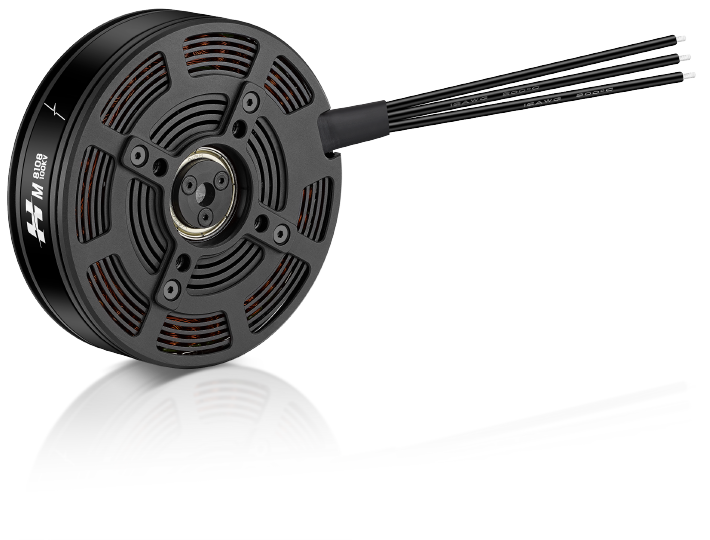

Industrial Multirotor Drone Motor
Load Performance Parameters:
M8108 HP
High Efficiency, Long Endurance
  • The recommended thrust is
    3.5kg+
  • The efficiency is
    11g/W+
The recommended
thrust is
3.5kg
The maximum takeoff weight is
12kg
The efficiency is
11g/W
  • (12S 36Ah)
  • The takeoff weight
    10kg
  • The endurance
    120 minutes
Excellent Design,
New Technology
  • Industry-level motor technology
    Has higher specifications and requires high grade
    raw materials, better tolerances, to provide
    reliability and performance.
  • Brand-new housing and base design
    The optimized fan ports effectively
    improve the protection level.
  • The new magnetic circuit
    design optimizes the
    back-EMF harmonics
    Produces a higher sine wave and is better
    matched with the ESC.
  • Industry-level motor technology
    Has higher specifications and requires high grade
    raw materials, better tolerances, to provide
    reliability and performance.
  • Brand-new housing and base design
    The optimized fan ports effectively
    improve the protection level.
  • The new magnetic circuit
    design optimizes the
    back-EMF harmonics
    Produces a higher sine wave and is better
    matched with the ESC.
Attention to Details,
Extremely Lightweight
  • Adopts a fully enclosed structure,
    the protection level reaches IP45
  • The integrated design of the bracket and the rotating shaft
    can not only ensure the co-axiality of the stator and rotor,
    but also reduce the number of parts and simplify the process.

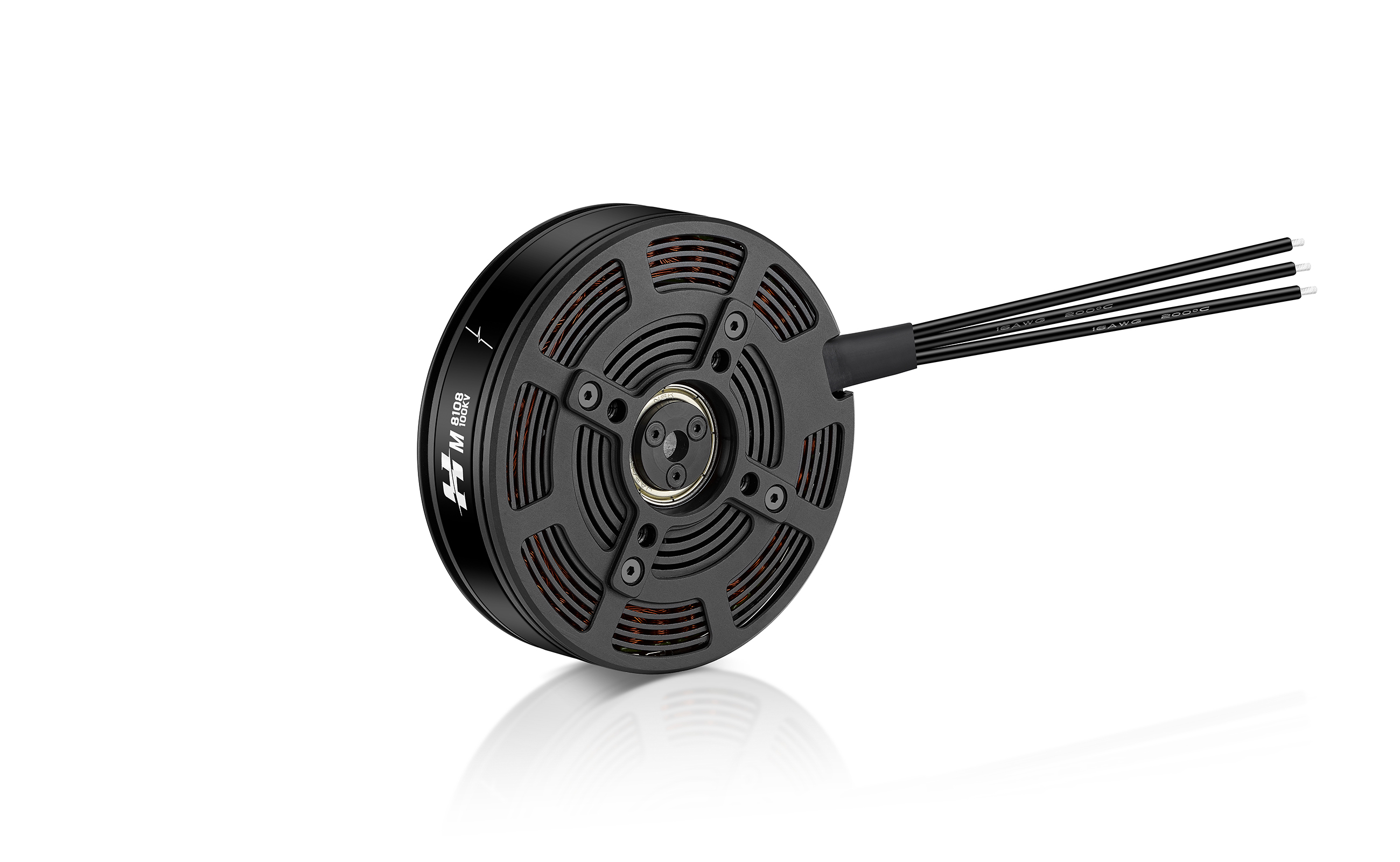

  • The rotor bracket is equipped with a high-efficiency
    centrifugal air-cooling system,
    and the stator base has built-in large-area heat sinks
    to effectively improve heat dissipation ability.

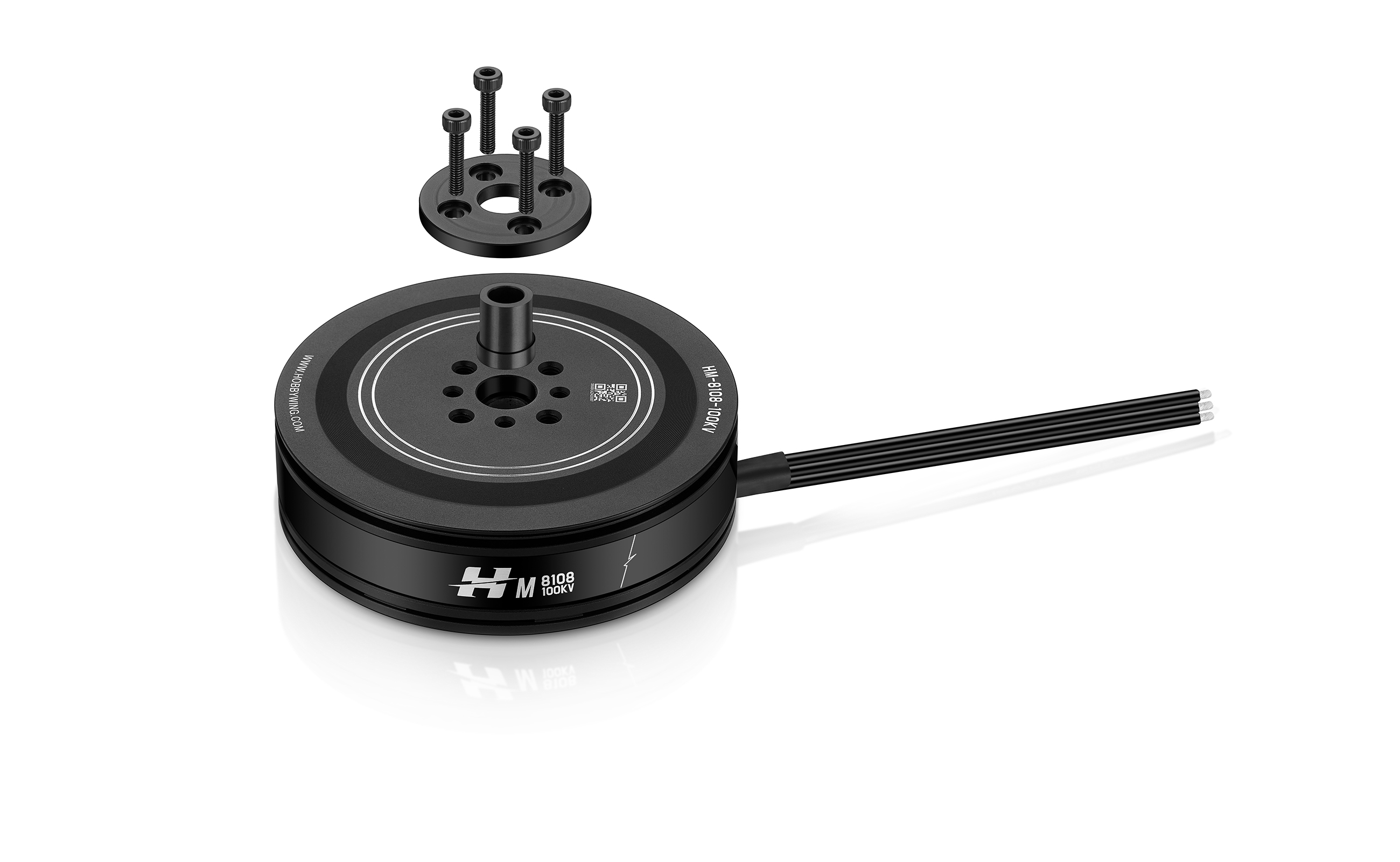

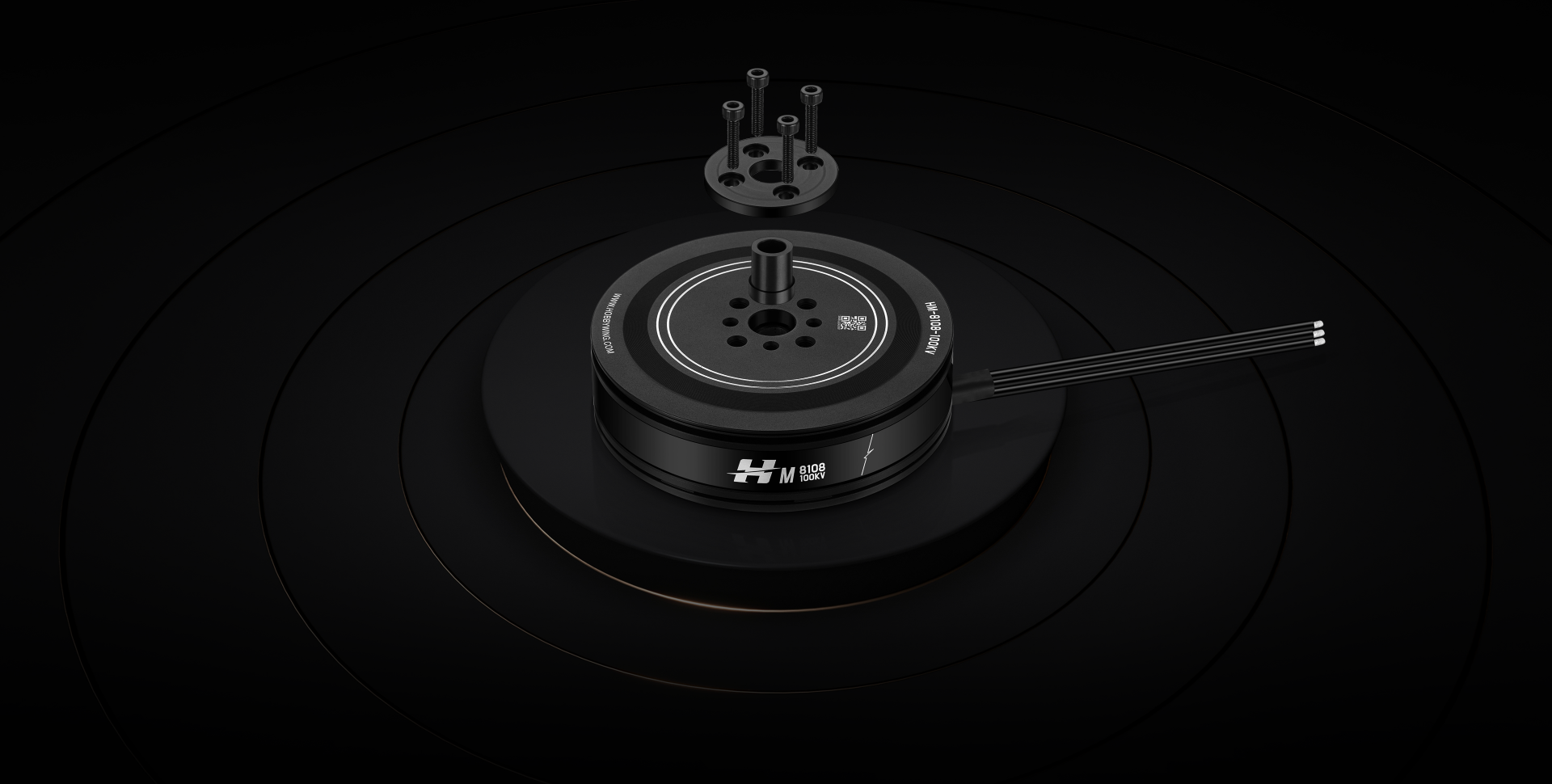

  • The tail of the main shaft uses three M2.5*8 and
    washer locking designs to enhance motor reliability.
  • The integrated design of the bracket and the rotating shaft
    can not only ensure the co-axiality of the stator and rotor,
    but also reduce the number of parts and simplify the process.
  • The tail of the spindle shaft uses three M2.5*8 and
    washer locking designs to enhance motor reliability.
Adopts High
Quality Materials,
Safe and Reliable
Made of premium materials to improve durability and provide
reliable guarantee for motor performance.
  • High-quality bearings
    and low friction torque effectively
    extend the lifespan of the motor
  • High-strength aviation aluminum
    7075-T651
  • PrecisionCNC
    machined rotor bracket
  • The outer rotor casing is made of
    20# seamless steel rotor with nickel
    electrophoresis design, which has excellent magnetic conductivity
    and corrosion resistance.
  • 16AWG
    highly flexible silicone wire,
    low resistivity and good toughness
  • High-performance iron core punched from
    0.2mm low-loss silicon steel sheet
Recommended Application
Combinations
  • Motor
    M8108 HP
    Battery
    12S LiPo
  • Propeller
    GP28×9.2"/GP29×9.5"/ML30x9.8"
    Thrust/rotor
    2.5~3.5kg
  • ESC
    XRotor Pro-H60A-14S
    Takeoff weight of quadrotor
    10.0~14.0kg
Thank you for your interest in HOBBYWING propulsion systems! For customized solutions,
please provide your contact information and technical requirements,
and we will get in touch with you within 24 hours.
captcha
By submitting this form, you agree to HOBBYWING's Privacy Policy
Thanks for reaching out!We have received your message and will get back to you shortly.
Best Regards,
HOBBYWING Team
M8108 HP CAD
Model
M8108 85KV HP M8108 100KV HP
Specification
Motor Size Φ87.1*H26.9mm Φ87.1*H26.9mm
Stator Size Φ81.0mm Φ81.0mm
Stator process High standard silicon steel sheet, rust proof,
180℃ high temperature resistance paint-coat		 High standard silicon steel sheet, rust proof,
180℃ high temperature resistance paint-coat
Enamelled wire 220℃ 220℃
Magnet 180℃ 180℃
Isolation test 500V AC high voltage resistance test 500V AC high voltage resistance test
Protection level IP45 IP45
Slot& Pole 36N42P 36N42P
Dynamic balance ≤10mg ≤10mg
Bearing Water proof bearing Water proof bearing
Motor axle diameter shaft sleeve Φ10mm shaft sleeve Φ10mm
Props mounting dimensions 4×M4@D23+4×M3@D20 4×M4@D23+4×M3@D20
Motor mounting dimensions 4×M4@D36 4×M4@D36
KV 85 100
Battery(LiPo) 12S LiPo 12S LiPo
No-load current 0.67A 1.11A
Maximum current
(Non-hermetic Ambient Temperature ≤ 25℃）		 27.2A 34.3A
Max power 950W 1572W
Max thrust 7.2kg 9.3kg
Resistance 241.2mΩ 163.3mΩ
Wire Size 16AWG 16AWG
Wire length 100mm 100mm
Weight（With wire） 270g 271g
Rated power input 280W 280W
Rated power output 238W 238W
Recommended Application Combinations
Motor M8108 HP 85KV M8108 HP 100KV
Propeller GP28×9.2"/GP29×9.5"/ML30x9.8" GP28×9.2"/GP29×9.5"/ML30x9.8"
ESC XRotor Pro-H60A-14S XRotor Pro-H60A-14S
Battery 12S LiPo 12S LiPo
Thrust/rotor 2.5~3.5kg 2.5~3.5kg
Takeoff weight of quadrotor 10.0~14.0kg 10.0~14.0kg

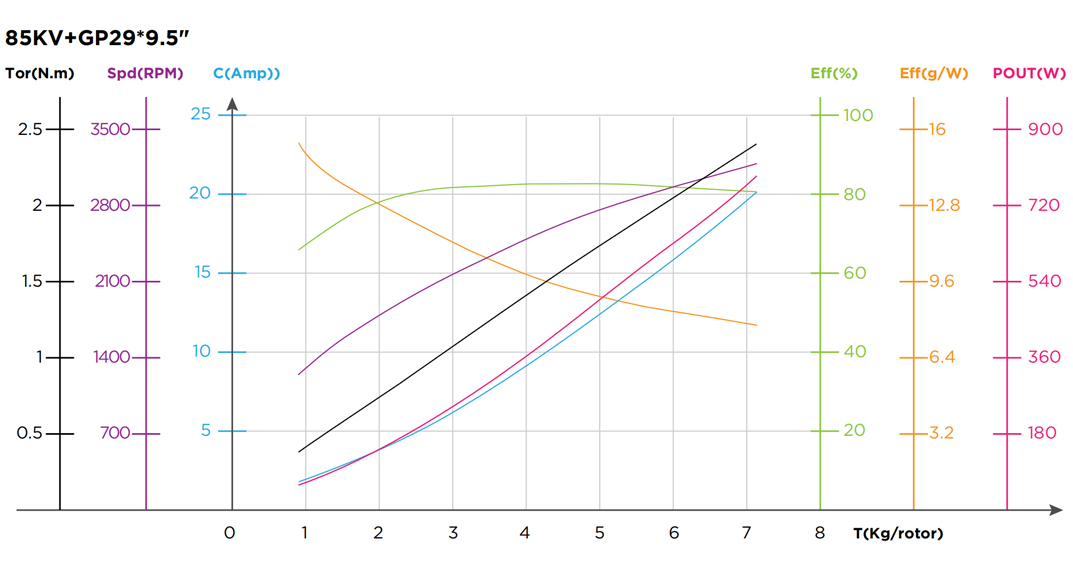

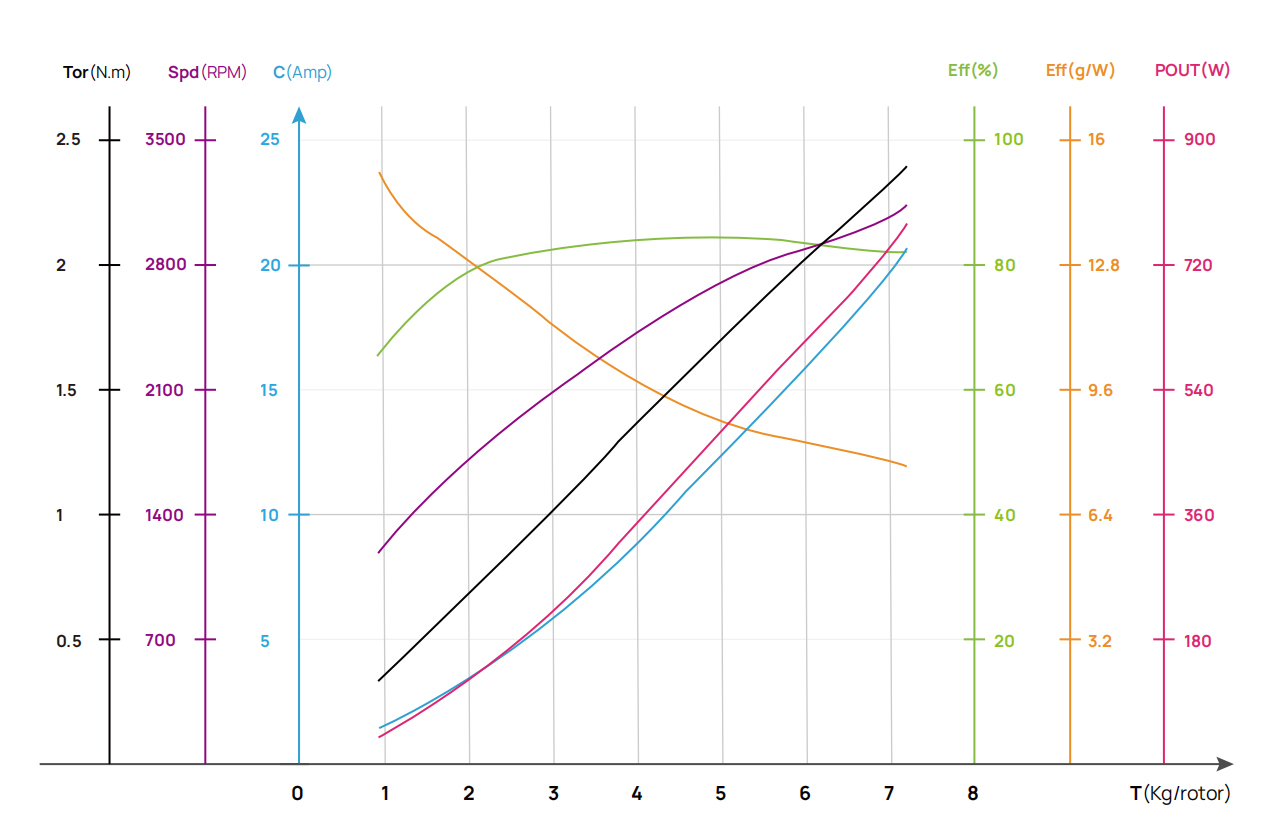

M8108 HP 85KV+GP29*9.5" Load performance parameters
M8108 HP 85KV+GP29*9.5" Motor Propeller Pull Test Data

Voltage(V)

Propeller

Throttle(%)

Thrust(g)

Current(A)

Power(W)

Speed(RPM)

Efficiency(g/W)

Torque(N·m)

Temperature(℃)

46V (12S LiPo)

GP29*9.5"

33%

951

1.4

63.0

1191

15.1

0.34

62.0°C

35%

1033

1.5

70.2

1243

14.7

0.37

37%

1136

1.7

79.1

1305

14.4

0.40

39%

1254

1.9

89.4

1372

14.0

0.44

42%

1455

2.3

107.0

1478

13.6

0.51

45%

1676

2.8

127.1

1585

13.2

0.59

48%

1909

3.2

149.3

1690

12.8

0.66

51%

2150

3.8

173.6

1791

12.4

0.74

54%

2396

4.3

200.1

1887

12.0

0.83

57%

2644

5.0

228.6

1981

11.6

0.91

60%

2895

5.6

259.4

2071

11.2

0.99

63%

3148

6.3

292.4

2160

10.8

1.08

66%

3405

7.1

327.7

2247

10.4

1.17

69%

3669

7.9

365.7

2333

10.0

1.26

72%

3941

8.8

406.4

2419

9.7

1.35

75%

4223

9.8

450.3

2504

9.4

1.45

78%

4519

10.8

497.4

2589

9.1

1.55

81%

4830

11.9

548.0

2671

8.8

1.65

84%

5157

13.1

602.2

2752

8.6

1.76

87%

5501

14.3

660.0

2828

8.3

1.87

90%

5862

15.7

721.4

2900

8.1

1.98

100%

7085

20.5

945.5

3134

7.5

2.36
The above data is measured by HobbyWing laboratory at room temperature 25℃, sea level, change the throttle input adjustment, the motor temperature is 65% and the throttle runs for 10 minutes, for reference only.

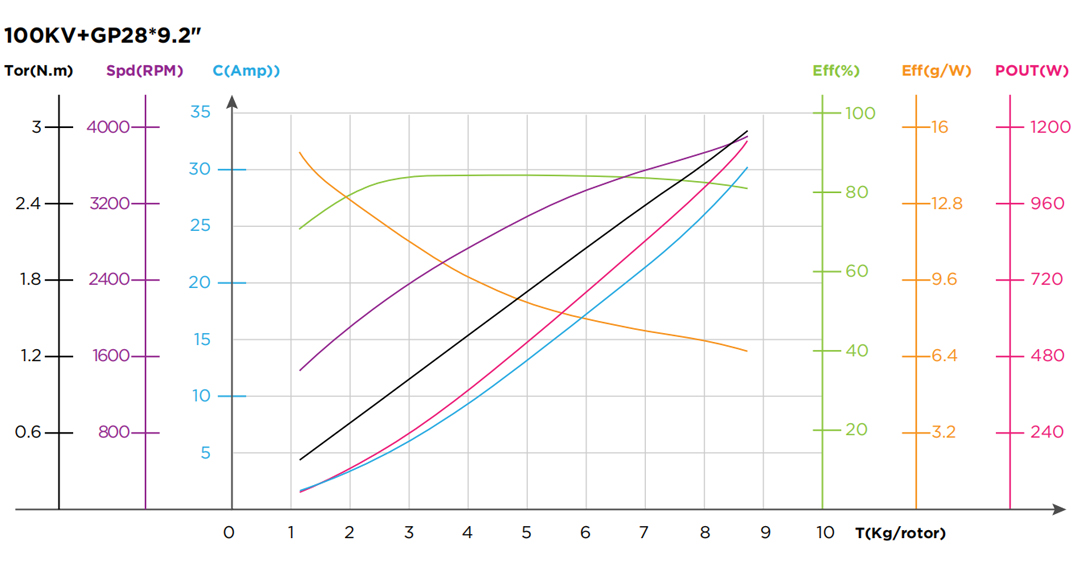

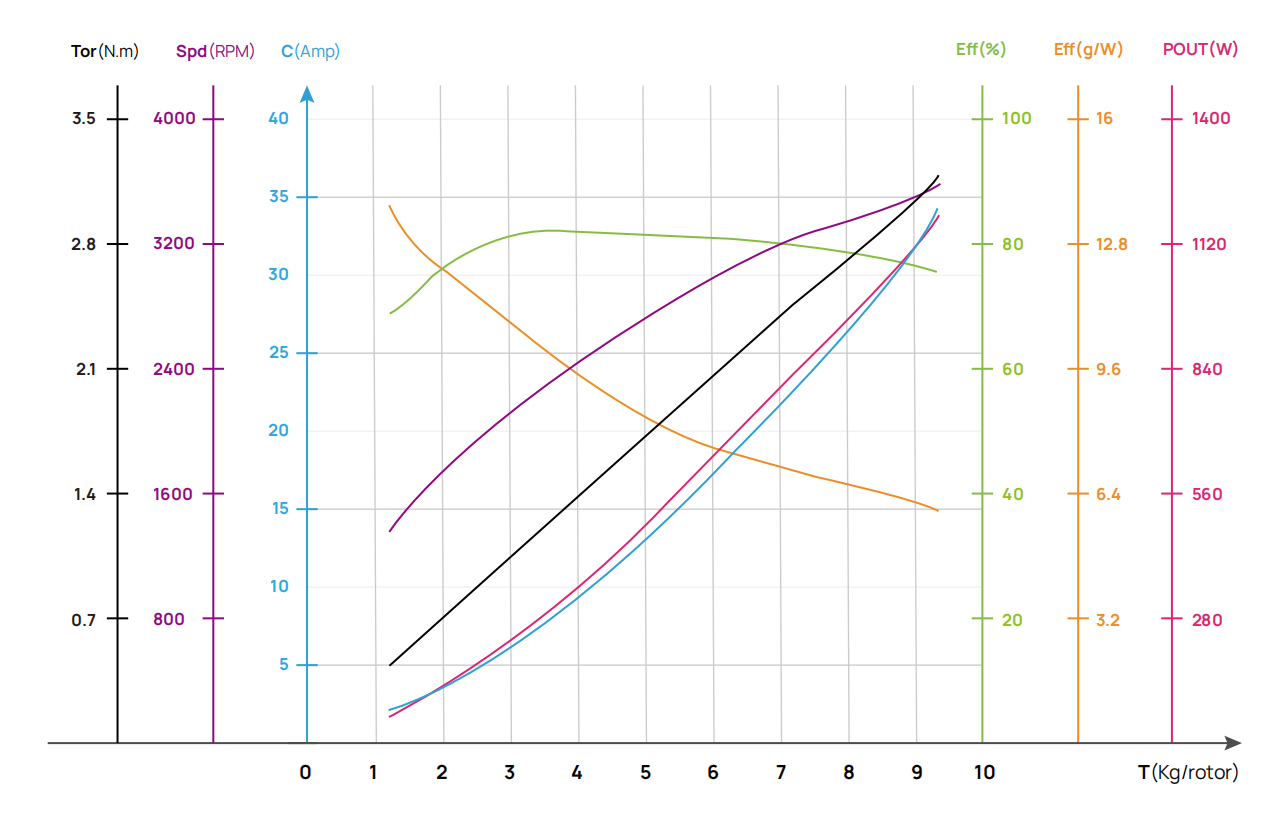

M8108 HP 100KV+GP28*9.2" Load performance parameters
M8108 HP 100KV+GP28*9.2" Motor Propeller Pull Test Data

Voltage(V)

Propeller

Throttle(%)

Thrust(g)

Current(A)

Power(W)

Speed(RPM)

Efficiency(g/W)

Torque(N·m)

Temperature(℃)

46V (12S LiPo)

GP28*9.2"

33%

1133

1.7

80.0

1398

14.2

0.38

70°C

35%

1232

1.9

89.1

1457

13.8

0.41

37%

1367

2.2

101.4

1532

13.5

0.46

39%

1527

2.5

116.2

1617

13.1

0.51

42%

1799

3.1

142.4

1753

12.6

0.60

45%

2093

3.7

172.4

1888

12.1

0.69

48%

2394

4.5

205.8

2019

11.6

0.79

51%

2695

5.3

241.9

2141

11.1

0.89

54%

2990

6.1

280.4

2257

10.7

0.98

57%

3280

7.0

320.9

2365

10.2

1.08

60%

3565

7.9

363.4

2469

9.8

1.17

63%

3852

8.9

408.5

2570

9.4

1.27

66%

4145

9.9

456.7

2669

9.1

1.36

69%

4450

11.1

509.0

2769

8.7

1.46

72%

4776

12.3

566.4

2869

8.4

1.57

75%

5126

13.7

629.6

2971

8.1

1.68

78%

5506

15.2

699.1

3073

7.9

1.8

81%

5917

16.8

774.9

3173

7.6

1.94

84%

6357

18.6

856.9

3268

7.4

2.08

87%

6822

20.5

944.7

3356

7.2

2.22

90%

7302

22.5

1038.5

3438

7.0

2.37

100%

8711

29.9

1375.9

3721

6.3

2.83
The above data is measured by HobbyWing laboratory at room temperature 25℃, sea level, change the throttle input adjustment, the motor temperature is 65% and the throttle runs for 10 minutes, for reference only.
Support

Manuals & Documents

Disclaimer

The purpose of this website is only to introduce you to the basic situation of HOBBYWING company and product information. Unless otherwise stated, all information provided on this website should not be regarded as an offer or acceptance, and this website will not assume any binding obligations to you as a result of the provision of information. For all your requests, HOBBYWING reserves the full right to decide whether to commit or not.

This Website and its contents are provided for your convenience on an "as is" basis and your use of this Website is at your sole risk. HOBBYWING does not guarantee that this website will be uninterrupted or error-free, and reserves the right to amend this website or withdraw access to this Website at any time. We make no warranties, express or implied, as to the content, existence, accuracy or reliability of this Website, including, but not limited to, warranties of title, non-infringement or implied warranties of merchantability or fitness for a particular purpose or use.

HOBBYWING shall not be liable for any direct, indirect, incidental, special or consequential damages, loss of profits or business interruption caused by the use or inability to use the services provided by the Website, even if HOBBYWING has been advised of the possibility of similar losses. The exclusions and limitations of the warranty liability of HOBBYWING shall be effective to the extent permitted by applicable law.

HOBBYWING shall not be liable for any damage or loss to your computer system or any other software, hardware, IT system or property caused by viruses or other destructive programs caused by accessing, viewing and using this website or downloading any content from this Website (including but not limited to 2D model files, 3D model files).

HOBBYWING shall not be liable for any direct or indirect damage or loss caused by any third party using illegal means to access the website to obtain the relevant passwords, information and content.

If you or your company is located in the United States or Canada, you need to fill out this disclaimer confirmation letter online and submit it successfully before you can download the relevant materials you are interested in. The link address you fill in online is https://www.hobbywingdirect.com/pages/digital-file-release-form

If you do not agree with this disclaimer, please do not continue to this page. If you continue to access, browse and use this interface, you have read, understood and agreed to be bound by this statement and comply with all applicable laws and regulations.

HOBBYWING reserves the right to correct, modify and update this statement at any time.

Confirm >
M8108 HP Specification
M8108 HP Load performance parameters
M8108 HP CAD
M8108 HP 3D Model Drawing

FAQ

Hobbywing M8108 HP
Hobbywing M8108 HP
Hobbywing M8108 HP
Hobbywing M8108 HP
Hobbywing M8108 HP
Hobbywing M8108 HP
Hobbywing M8108 HP
Hobbywing M8108 HP
Hobbywing M8108 HP
Hobbywing M8108 HP

Products Center

Service and Support

News Center

About

Global Partners

Welcome to Brushless
System Trends

Privacy Policy 粤ICP备14009225号-1  |  ©2025 Hobbywing Technology CO., LTD.. All rights reserved
M8108 HP
Overview Specifications Support Accessories Detail Contact us Shop
Buy
M8108 HP
Industrial Multirotor Drone Motor
LOAD PERFORMANCE PARAMETERS:
High efficiency increases
battery lifespan
  • The recommended
    pulling force is
    3.5kg+
  • The force efficiency is
    11g/W+
The recommended pulling force is
3.5kg
Takeoff weight of quadrotor
12kg
The force efficiency is
11g/W
  • (12S 36Ah)
  • The whole machine
    10kg
  • The endurance
    120 minutes
Excellent design,
new technology
  • Industry-level motor technology
    Has higher requirements and stricter control
    on incoming materials, process and assembly.
  • Brand-new housing and base design
    The optimized fan ports effectively
    improve the protection level.
  • The new magnetic circuit
    design optimizes the
    back-EMF harmonics
    Produces a higher sine wave and is better
    matched with the ESC.
  • Industry-level motor technology
    Has higher requirements and stricter control
    on incoming materials, process and assembly.
  • Brand-new housing and base design
    The optimized fan ports effectively
    improve the protection level.
  • The new magnetic circuit
    design optimizes the
    back-EMF harmonics
    Produces a higher sine wave and is better
    matched with the ESC.
Attention to details, extremely lightweight
  • Adopts a fully enclosed structure,
    the protection level reaches IP45.
  • The integrated design of the bracket
    and the rotating shaft can not only
    ensure the co-axiality of the stator
    and rotor, but also reduce the number
    of parts and simplify the process.
  • The rotor bracket is equipped with a
    high-efficiency centrifugal air-cooling
    system, and the stator base has built-in
    large-area heat sinks to effectively
    improve heat dissipation capacity.
  • The tail of the spindle shaft uses three
    M2.5*8 and washer locking designs to
    enhance motor reliability.
  • The integrated design of the bracket and
    the rotating shaft can not only ensure
    the co-axiality of the stator and rotor,
    but also reduce the number of parts
    and simplify the process.
  • The tail of the spindle shaft uses three
    M2.5*8 and washer locking designs to
    enhance motor reliability.
Adopts high
quality materials,
safe and reliable
Made of solid materials to improve durability and
provide reliable guarantee for motor performance.
  • The outer rotor casing is made of 20#seamless steel tube with nickel electrophoresis design, which has excellent magnetic permeability and corrosion resistance.
  • High-quality bearingsand low friction torque effectively extend the lifespan of the motor
  • precision CNCmachined rotor bracket High-strength aviation aluminum7075-T651
  • 16AWGhighly flexible silicone wire, low resistivity and good toughness
  • High-performance iron core punched from0.2mm low-loss silicon steel sheet
Thank you for your interest in HOBBYWING propulsion systems! For customized solutions, please provide your contact information and technical requirements, and we will get in touch with you within 24 hours.
captcha
By submitting this form, you agree to HOBBYWING's Privacy Policy
Thanks for reaching out!We have received your message and will get back to you shortly.
Best Regards,
HOBBYWING Team
M8108 HP CAD
Model
M8108 85KV HP M8108 100KV HP
Specification
Motor Size Φ87.1*H26.9mm Φ87.1*H26.9mm
Stator Size Φ81.0mm Φ81.0mm
Stator process High standard silicon steel sheet, rust proof,
180℃ high temperature resistance paint-coat		 High standard silicon steel sheet, rust proof,
180℃ high temperature resistance paint-coat
Enamelled wire 220℃ 220℃
Magnet 180℃ 180℃
Isolation test 500V AC high voltage resistance test 500V AC high voltage resistance test
Protection level IP45 IP45
Slot& Pole 36N42P 36N42P
Dynamic balance ≤10mg ≤10mg
Bearing Water proof bearing Water proof bearing
Motor axle diameter shaft sleeve Φ10mm shaft sleeve Φ10mm
Props mounting dimensions 4×M4@D23+4×M3@D20 4×M4@D23+4×M3@D20
Motor mounting dimensions 4×M4@D36 4×M4@D36
KV 85 100
Battery(LiPo) 12S LiPo 12S LiPo
No-load current 0.67A 1.11A
Maximum current
(Non-hermetic Ambient Temperature ≤ 25℃）		 27.2A 34.3A
Max power 950W 1572W
Max thrust 7.2kg 9.3kg
Resistance 241.2mΩ 163.3mΩ
Wire Size 16AWG 16AWG
Wire length 100mm 100mm
Weight（With wire） 270g 271g
Rated power input 280W 280W
Rated power output 238W 238W
Recommended Application Combinations
Motor M8108 HP 85KV M8108 HP 100KV
Propeller GP28×9.2"/GP29×9.5"/ML30x9.8" GP28×9.2"/GP29×9.5"/ML30x9.8"
ESC XRotor Pro-H60A-14S XRotor Pro-H60A-14S
Battery 12S LiPo 12S LiPo
Thrust/rotor 2.5~3.5kg 2.5~3.5kg
Takeoff weight of quadrotor 10.0~14.0kg 10.0~14.0kg
M8108 HP 85KV+GP29*9.5" Load performance parameters
M8108 HP 85KV+GP29*9.5" Motor Propeller Pull Test Data

Voltage(V)

Propeller

Throttle(%)

Thrust(g)

Current(A)

Power(W)

Speed(RPM)

Efficiency(g/W)

Torque(N·m)

Temperature(℃)

46V (12S LiPo)

GP29*9.5"

33%

951

1.4

63.0

1191

15.1

0.34

62.0°C

35%

1033

1.5

70.2

1243

14.7

0.37

37%

1136

1.7

79.1

1305

14.4

0.40

39%

1254

1.9

89.4

1372

14.0

0.44

42%

1455

2.3

107.0

1478

13.6

0.51

45%

1676

2.8

127.1

1585

13.2

0.59

48%

1909

3.2

149.3

1690

12.8

0.66

51%

2150

3.8

173.6

1791

12.4

0.74

54%

2396

4.3

200.1

1887

12.0

0.83

57%

2644

5.0

228.6

1981

11.6

0.91

60%

2895

5.6

259.4

2071

11.2

0.99

63%

3148

6.3

292.4

2160

10.8

1.08

66%

3405

7.1

327.7

2247

10.4

1.17

69%

3669

7.9

365.7

2333

10.0

1.26

72%

3941

8.8

406.4

2419

9.7

1.35

75%

4223

9.8

450.3

2504

9.4

1.45

78%

4519

10.8

497.4

2589

9.1

1.55

81%

4830

11.9

548.0

2671

8.8

1.65

84%

5157

13.1

602.2

2752

8.6

1.76

87%

5501

14.3

660.0

2828

8.3

1.87

90%

5862

15.7

721.4

2900

8.1

1.98

100%

7085

20.5

945.5

3134

7.5

2.36
The above data is measured by HobbyWing laboratory at room temperature 25℃, sea level, change the throttle input adjustment, the motor temperature is 65% and the throttle runs for 10 minutes, for reference only.
M8108 HP 100KV+GP28*9.2" Load performance parameters
M8108 HP 100KV+GP28*9.2" Motor Propeller Pull Test Data

Voltage(V)

Propeller

Throttle(%)

Thrust(g)

Current(A)

Power(W)

Speed(RPM)

Efficiency(g/W)

Torque(N·m)

Temperature(℃)

46V (12S LiPo)

GP28*9.2"

33%

1133

1.7

80.0

1398

14.2

0.38

70°C

35%

1232

1.9

89.1

1457

13.8

0.41

37%

1367

2.2

101.4

1532

13.5

0.46

39%

1527

2.5

116.2

1617

13.1

0.51

42%

1799

3.1

142.4

1753

12.6

0.60

45%

2093

3.7

172.4

1888

12.1

0.69

48%

2394

4.5

205.8

2019

11.6

0.79

51%

2695

5.3

241.9

2141

11.1

0.89

54%

2990

6.1

280.4

2257

10.7

0.98

57%

3280

7.0

320.9

2365

10.2

1.08

60%

3565

7.9

363.4

2469

9.8

1.17

63%

3852

8.9

408.5

2570

9.4

1.27

66%

4145

9.9

456.7

2669

9.1

1.36

69%

4450

11.1

509.0

2769

8.7

1.46

72%

4776

12.3

566.4

2869

8.4

1.57

75%

5126

13.7

629.6

2971

8.1

1.68

78%

5506

15.2

699.1

3073

7.9

1.8

81%

5917

16.8

774.9

3173

7.6

1.94

84%

6357

18.6

856.9

3268

7.4

2.08

87%

6822

20.5

944.7

3356

7.2

2.22

90%

7302

22.5

1038.5

3438

7.0

2.37

100%

8711

29.9

1375.9

3721

6.3

2.83
The above data is measured by HobbyWing laboratory at room temperature 25℃, sea level, change the throttle input adjustment, the motor temperature is 65% and the throttle runs for 10 minutes, for reference only.
Support

Manuals & Documents

Disclaimer

The purpose of this website is only to introduce you to the basic situation of HOBBYWING company and product information. Unless otherwise stated, all information provided on this website should not be regarded as an offer or acceptance, and this website will not assume any binding obligations to you as a result of the provision of information. For all your requests, HOBBYWING reserves the full right to decide whether to commit or not.

This Website and its contents are provided for your convenience on an "as is" basis and your use of this Website is at your sole risk. HOBBYWING does not guarantee that this website will be uninterrupted or error-free, and reserves the right to amend this website or withdraw access to this Website at any time. We make no warranties, express or implied, as to the content, existence, accuracy or reliability of this Website, including, but not limited to, warranties of title, non-infringement or implied warranties of merchantability or fitness for a particular purpose or use.

HOBBYWING shall not be liable for any direct, indirect, incidental, special or consequential damages, loss of profits or business interruption caused by the use or inability to use the services provided by the Website, even if HOBBYWING has been advised of the possibility of similar losses. The exclusions and limitations of the warranty liability of HOBBYWING shall be effective to the extent permitted by applicable law.

HOBBYWING shall not be liable for any damage or loss to your computer system or any other software, hardware, IT system or property caused by viruses or other destructive programs caused by accessing, viewing and using this website or downloading any content from this Website (including but not limited to 2D model files, 3D model files).

HOBBYWING shall not be liable for any direct or indirect damage or loss caused by any third party using illegal means to access the website to obtain the relevant passwords, information and content.

If you or your company is located in the United States or Canada, you need to fill out this disclaimer confirmation letter online and submit it successfully before you can download the relevant materials you are interested in. The link address you fill in online is https://www.hobbywingdirect.com/pages/digital-file-release-form

If you do not agree with this disclaimer, please do not continue to this page. If you continue to access, browse and use this interface, you have read, understood and agreed to be bound by this statement and comply with all applicable laws and regulations.

HOBBYWING reserves the right to correct, modify and update this statement at any time.

Confirm >
M8108 HP Specification
M8108 HP Load performance parameters
M8108 HP CAD
M8108 HP 3D Model Drawing

FAQ
Top

Products Center

Service and Support

News Center

About

Global Partners

Welcome to Brushless
System Trends

Privacy Policy | 粤ICP备14009225号-1  |  ©2025 Hobbywing Technology CO., LTD.. All rights reserved
