RTF 4315: FPV Drone Brushless Motors (360KV 8S)

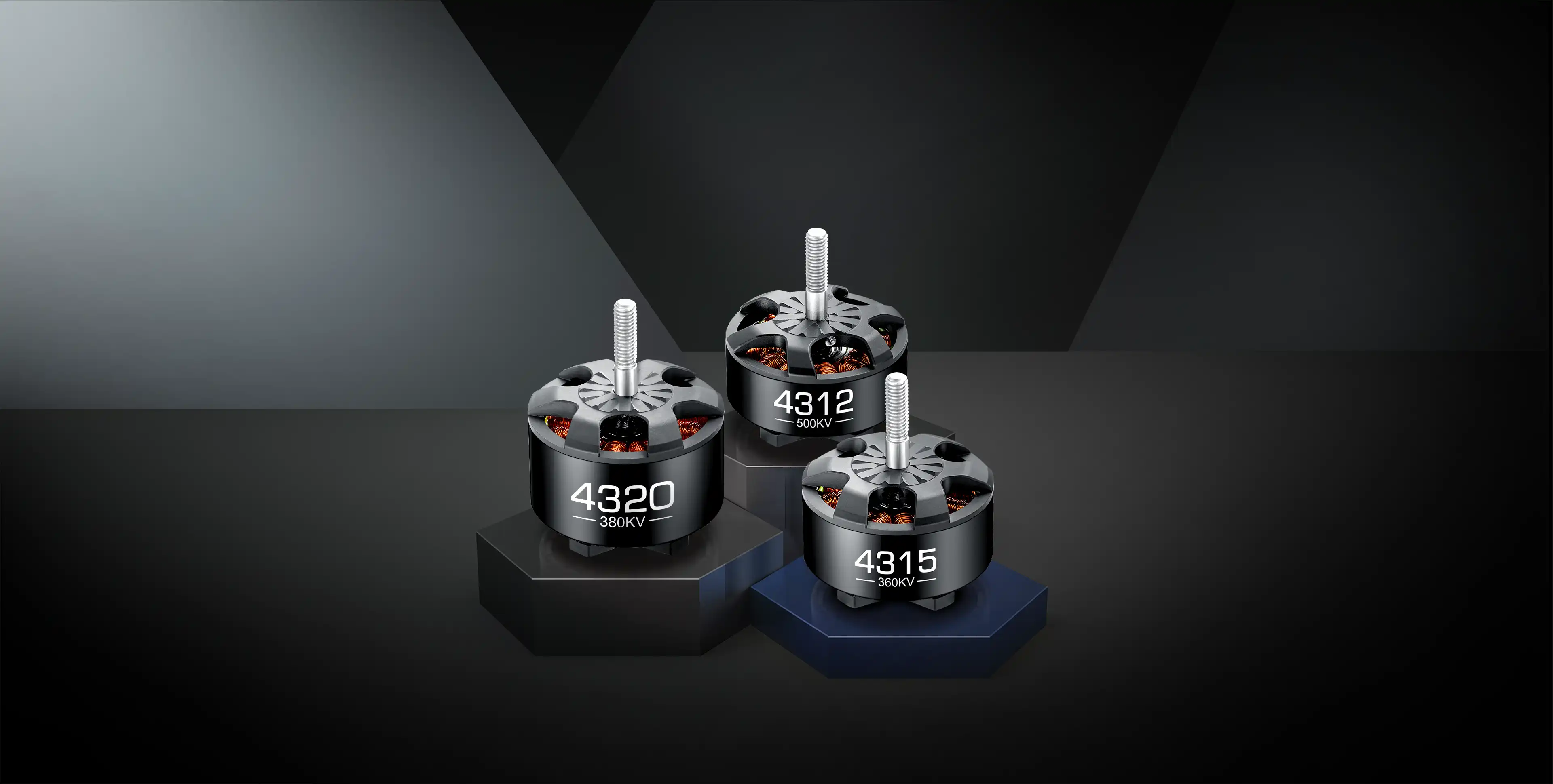

FPV Motor RTF 4312 4315 4320
RTF 4312 4315 4320
FPV MOTOR
High Efficiency and
Strong Performance
Under the same current, the outstanding magnetic performance enables the motor to
output higher
torque and power
provide stronger
performance
and overall efficiency is
significantly improved

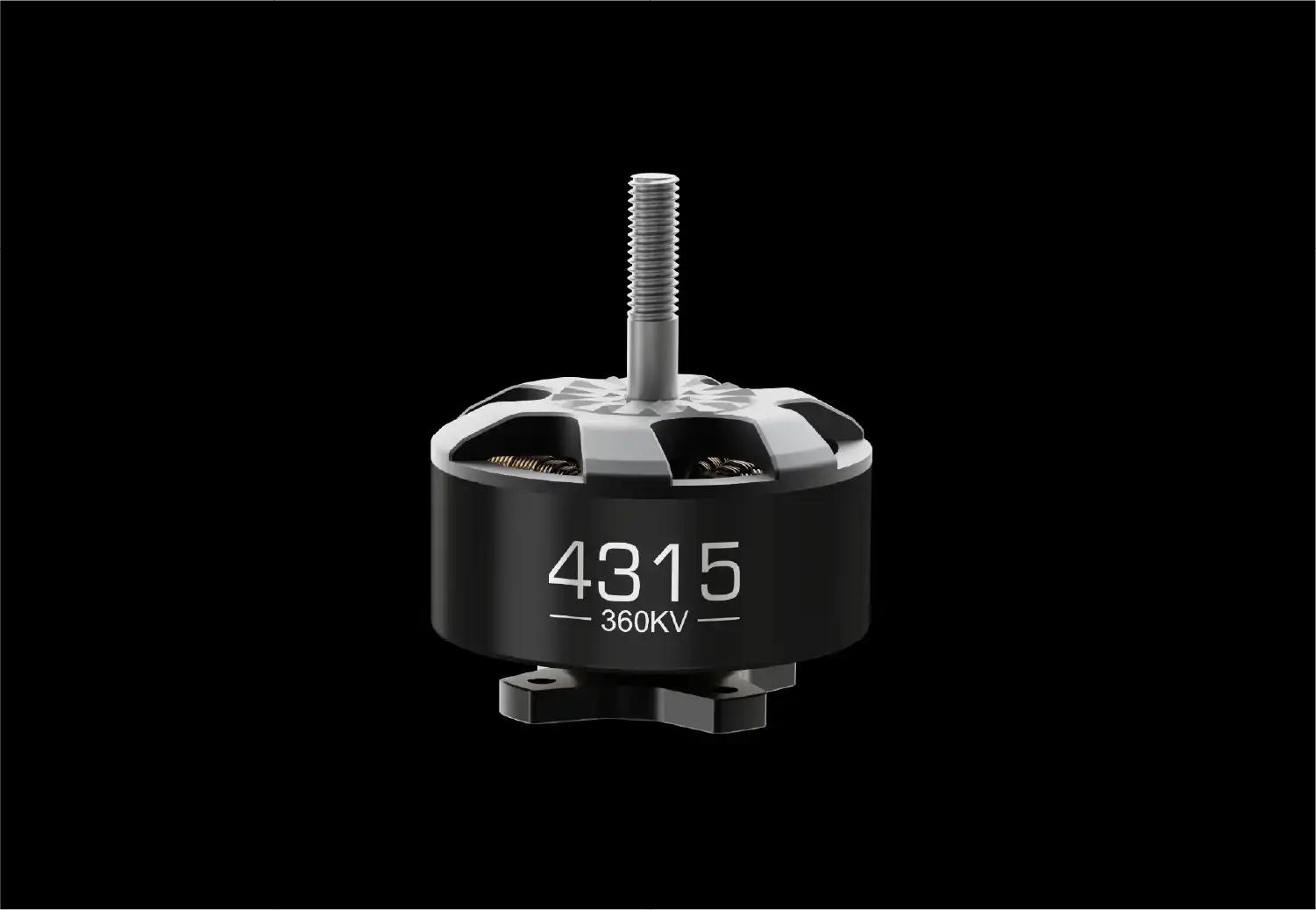

FPV Drone Motor RTF 4315
Excellent Heat Dissipation,
Lower Motor Temperatures
The motor's propeller mount features a self-cooling design
Rapidly dissipating coil heat during flight. Enables sustained low-temperature operation.
Boosting efficiency
and extending lifespan.

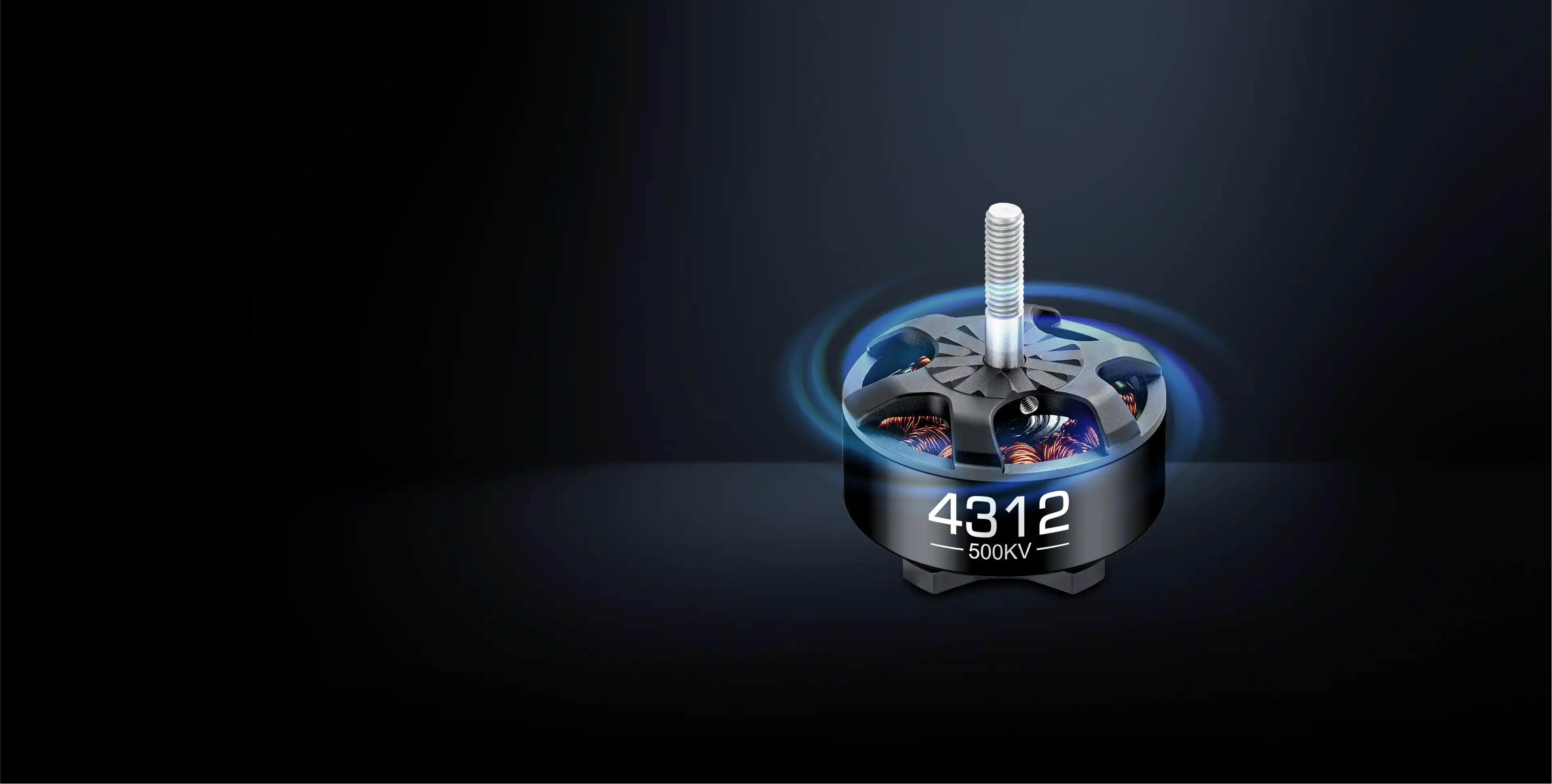

500kv FPV Motor RTF 4312 4315 4320
Innovative Anti-Slip Tooth
Design on Propeller Mount

The propeller mount incorporates an innovative anti-slip tooth structure, effectively preventing propeller

slippage and rotation loss, enhancing flight safety.

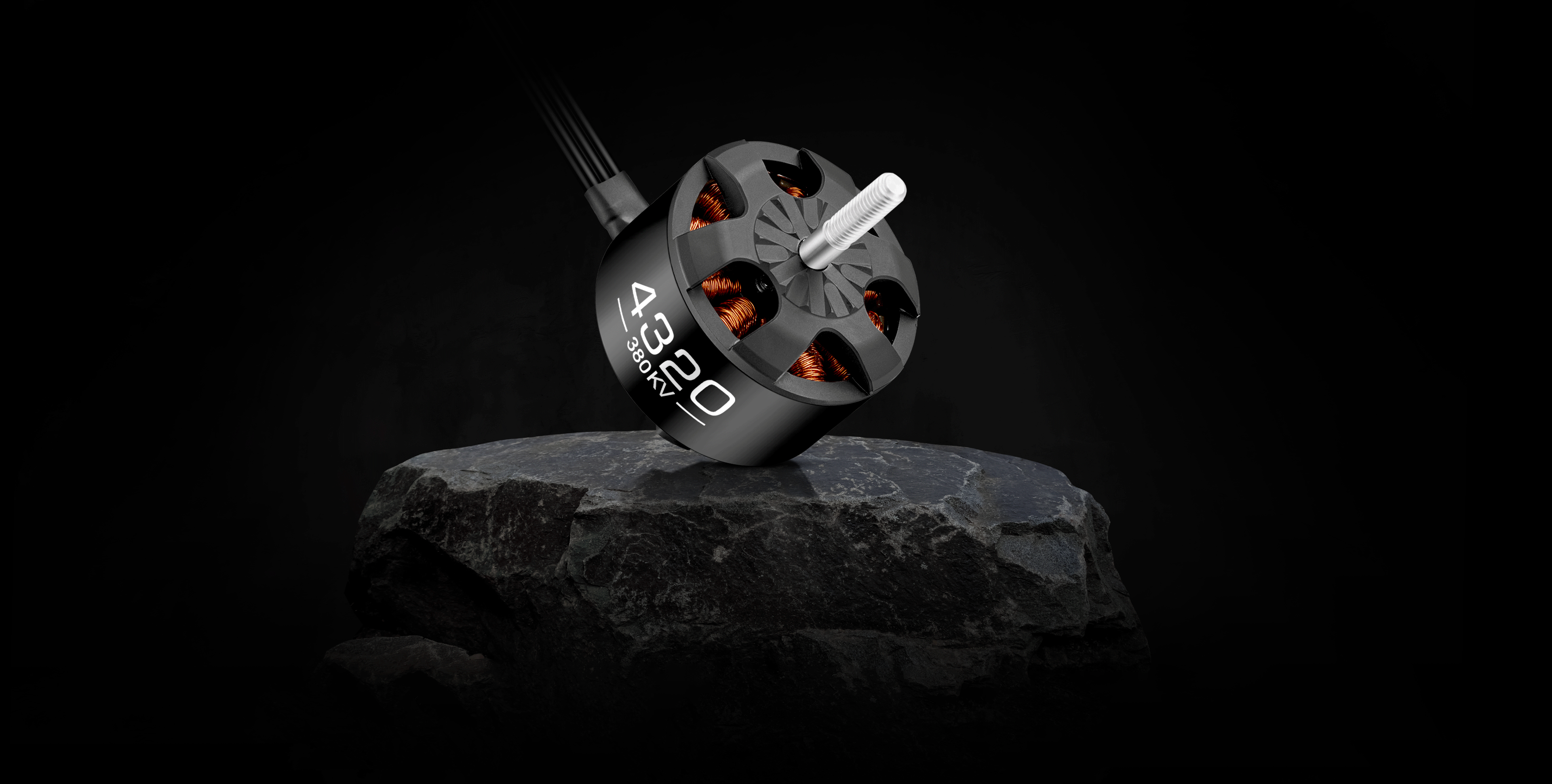

hobbywing RTF 4320 FPV drone motor
Premium Materials,
Exceptional Quality

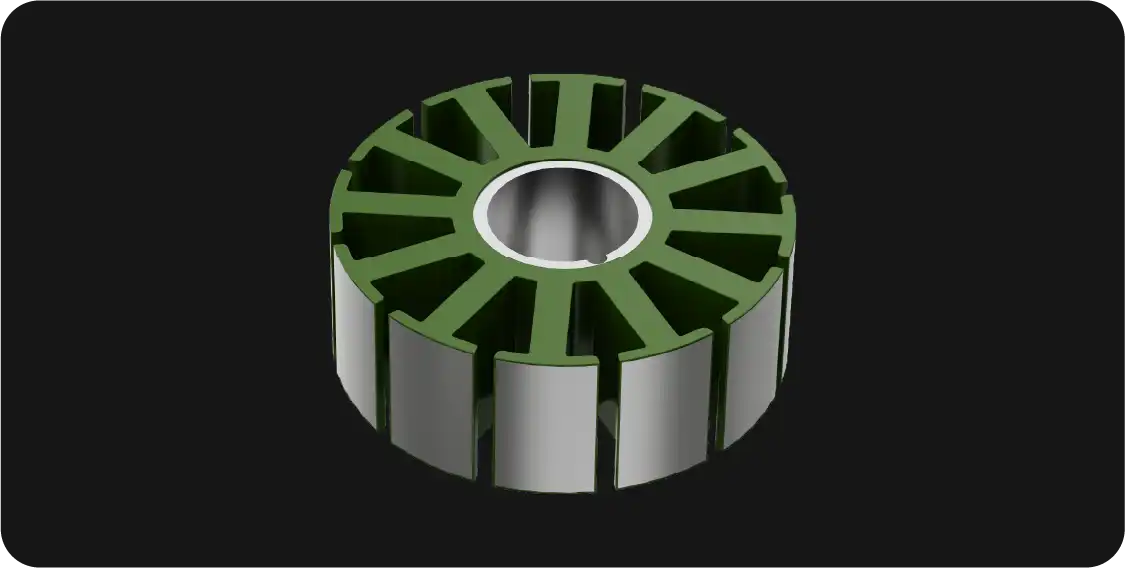

high performance 0.2mm motor core
Utilizes high-performance
0.2mm thick stator core
laminations paired with 220°C
high-temperature enameled wire.
Meet the needs of users pursuing
extreme motor performance.

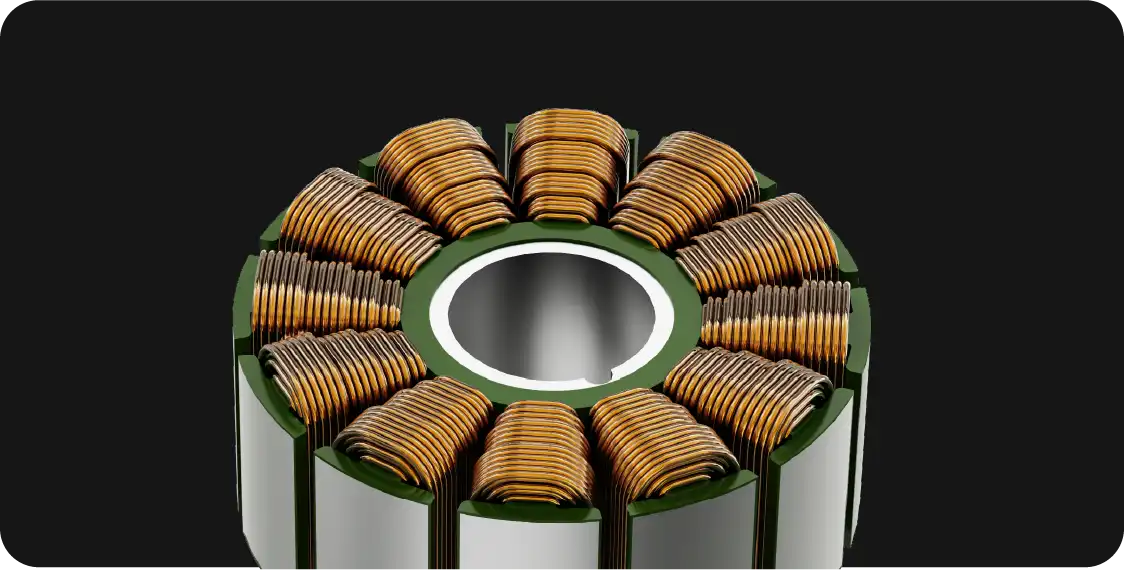

The multi-strand enameled wire
winding design increases the
slot full rate by
approximately more than 5%,
enabling lower operating
temperatures at identical
power output.
multi-strand enameled wire winding

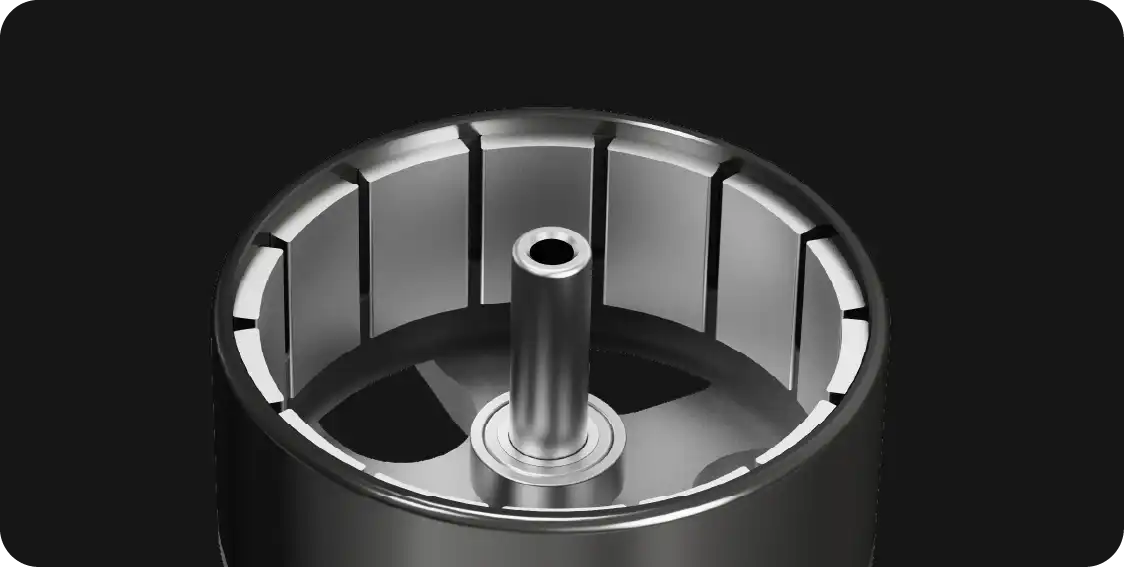

strong arc-shaped magnets design
Strong arc-shaped magnets design
significantly increases magnetic
flux density and magnetic field
intensity, delivering ample power
and precise attitude control
throughout the flight.
Thank you for your interest in HOBBYWING propulsion systems! For customized solutions,
please provide your contact information and technical requirements,
and we will get in touch with you within 24 hours.
captcha
By submitting this form, you agree to HOBBYWING's Privacy Policy
Thanks for reaching out!We have received your message and will get back to you shortly.
Best Regards,
HOBBYWING Team
Product NameRTF 4312/4315/4320
  • RTF 4312 380KV
  • RTF 4312 500KV
  • RTF 4315 360KV
  • RTF 4315 520KV
  • RTF 4320 380KV
Specification
  • Model
  • Motor Size
  • Slot& Pole
  • Stator Size
  • Bearing
  • Stator process
  • Motor axle diameter
  • Enamelled wire
  • Shaft Lenght
  • Isolation test
  • Motor mounting dimensions
  • RTF 4312 380KV
  • Φ50 *33.3mm
  • 12N14P
  • Φ43*12mm
  • MR126ZZ
  • High standard silicon steel sheet, 180℃ high temperature resistance paint-coat
  • Φ6mm
  • 220℃ high temperature resistant, C class insulation
  • 25mm
  • 500V AC high voltage resistance test
  • Φ30mm-4*M4
  • RTF 4312 500KV
  • Φ50 *33.3mm
  • 12N14P
  • Φ43*12mm
  • MR126ZZ
  • High standard silicon steel sheet, 180℃ high temperature resistance paint-coat
  • Φ6mm
  • 220℃ high temperature resistant, C class insulation
  • 25mm
  • 500V AC high voltage resistance test
  • Φ30mm-4*M4
  • RTF 4315 360KV
  • Φ50.8 *36.3mm
  • 12N14P
  • Φ43*15mm
  • MR126ZZ
  • High standard silicon steel sheet, 180℃ high temperature resistance paint-coat
  • Φ6mm
  • 220℃ high temperature resistant, C class insulation
  • 25mm
  • 500V AC high voltage resistance test
  • Φ30mm-4*M4
  • RTF 4315 520KV
  • Φ50.8 *36.3mm
  • 12N14P
  • Φ43*15mm
  • MR126ZZ
  • High standard silicon steel sheet, 180℃ high temperature resistance paint-coat
  • Φ6mm
  • 220℃ high temperature resistant, C class insulation
  • 25mm
  • 500V AC high voltage resistance test
  • Φ30mm-4*M4
  • RTF 4320 380KV
  • Φ50.8*41.3mm
  • 12N14P
  • Φ43*20mm
  • MR126ZZ
  • High standard silicon steel sheet, 180℃ high temperature resistance paint-coat
  • Φ6mm
  • 220℃ high temperature resistant, C class insulation
  • 25mm
  • 500V AC high voltage resistance test
  • Φ30mm-4*M4
Specification
  • KV
  • Battery(LiPo)
  • No-load current
  • Maximum current (Non-hermetic Ambient Temperature ≤ 25℃)
  • Rated power output
  • Max power
  • Max thrust
  • Resistance
  • Wire Size
  • Wire length
  • Weight(With wire)
  • 380
  • LiPo-8S
  • 1.7A
  • 51.5A/29s
  • 510W
  • 1645W/29s
  • 5.4kg
  • 63mΩ
  • 16AWG
  • 500mm
  • 210g
  • 500
  • LiPo-6S
  • 2.3A
  • 65.1A/35s
  • 540W
  • 1558W/35s
  • 5.1kg
  • 42mΩ
  • 16AWG
  • 500mm
  • 210g
  • 360
  • LiPo-8S
  • 1.8A
  • 56.8A/26s
  • 560W
  • 1813.5W/26s
  • 7.18kg
  • 57mΩ
  • 16AWG
  • 500mm
  • 250g
  • 520
  • LiPo-6S
  • 3.2A
  • 74A/61s
  • 620W
  • 1755W/61s
  • 5.3kg
  • 30mΩ
  • 14AWG
  • 500mm
  • 267g
  • 380
  • LiPo-8S
  • 2.2A
  • 89A/22s
  • 831W
  • 2843W/22s
  • 8.7kg
  • 33mΩ
  • 14AWG
  • 500mm
  • 320g
Recommended Application Combinations
  • Propeller
  • ESC
  • HQ13x9x3
  • RTF 80A 4in1 8S Lite AT
  • HQ13x9x3
  • RTF 80A 4in1 8S Lite AT
  • HQ15x7x3
  • RTF 80A 4in1 8S Lite AT
  • HQ13x10x3
  • XRotor FPV 80A G2 4in1 ESC
    RTF 100A 4in1 8S Lite AT
  • HQ15x10x3
  • RTF 80A 4in1 8S Lite AT
