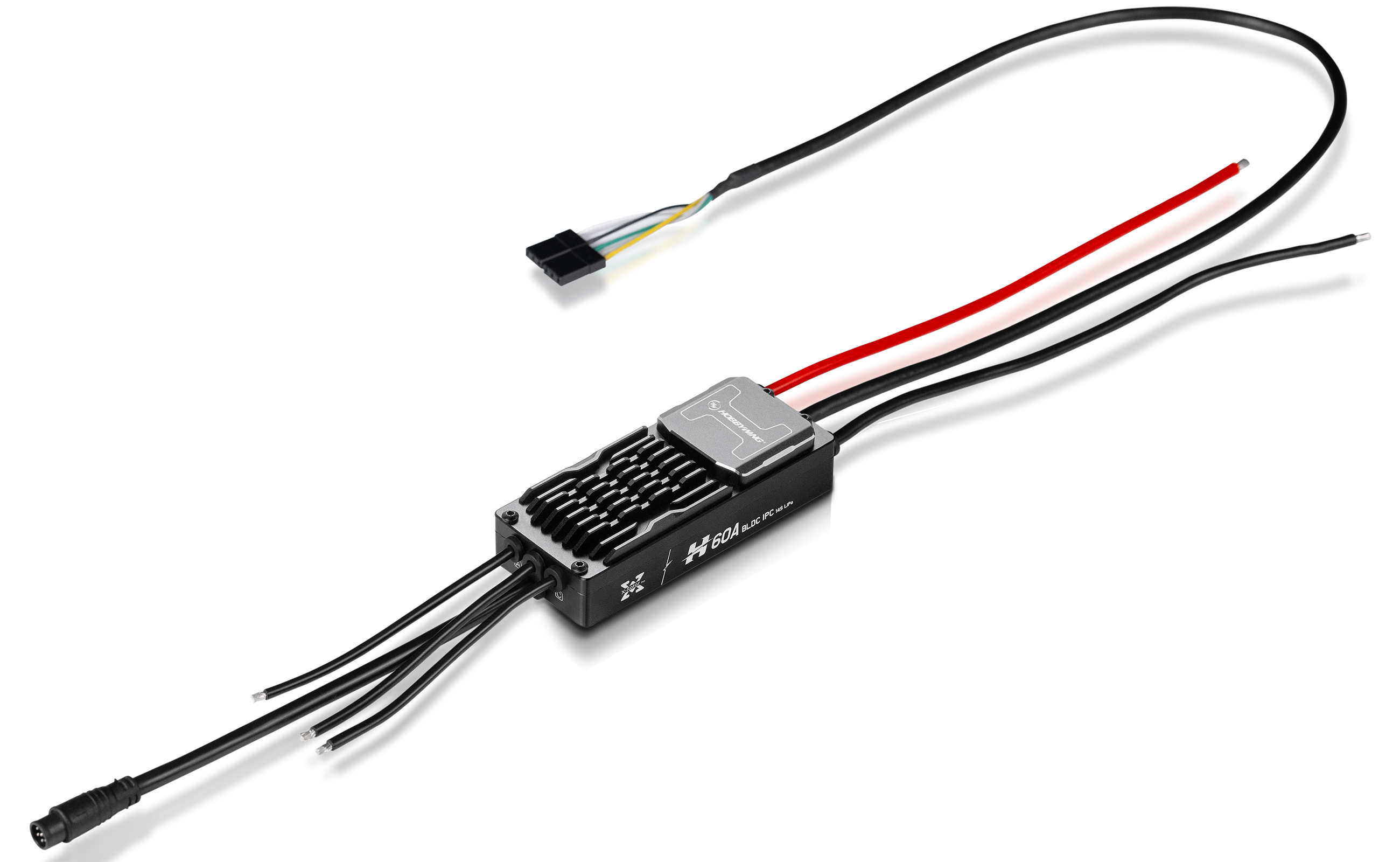

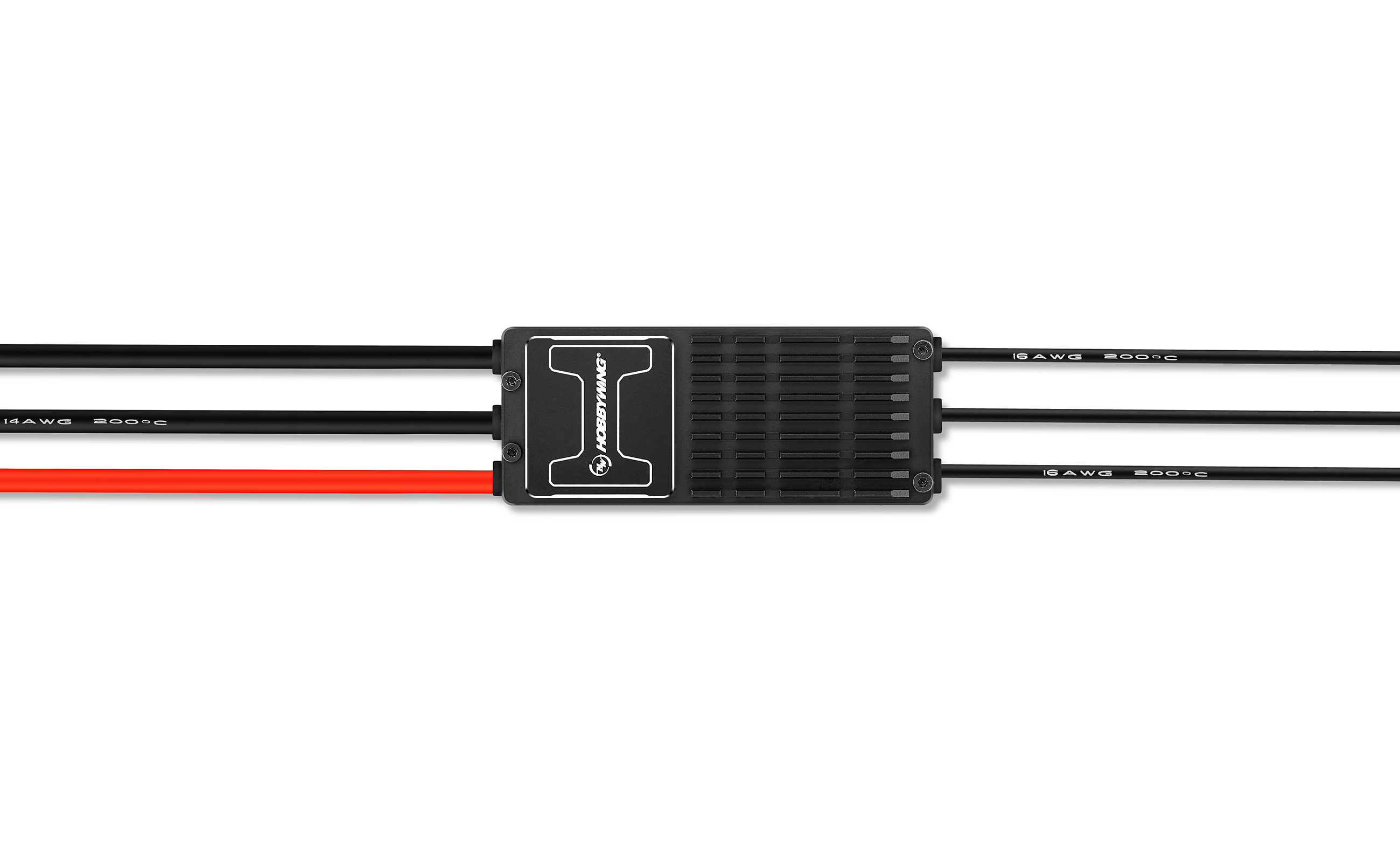

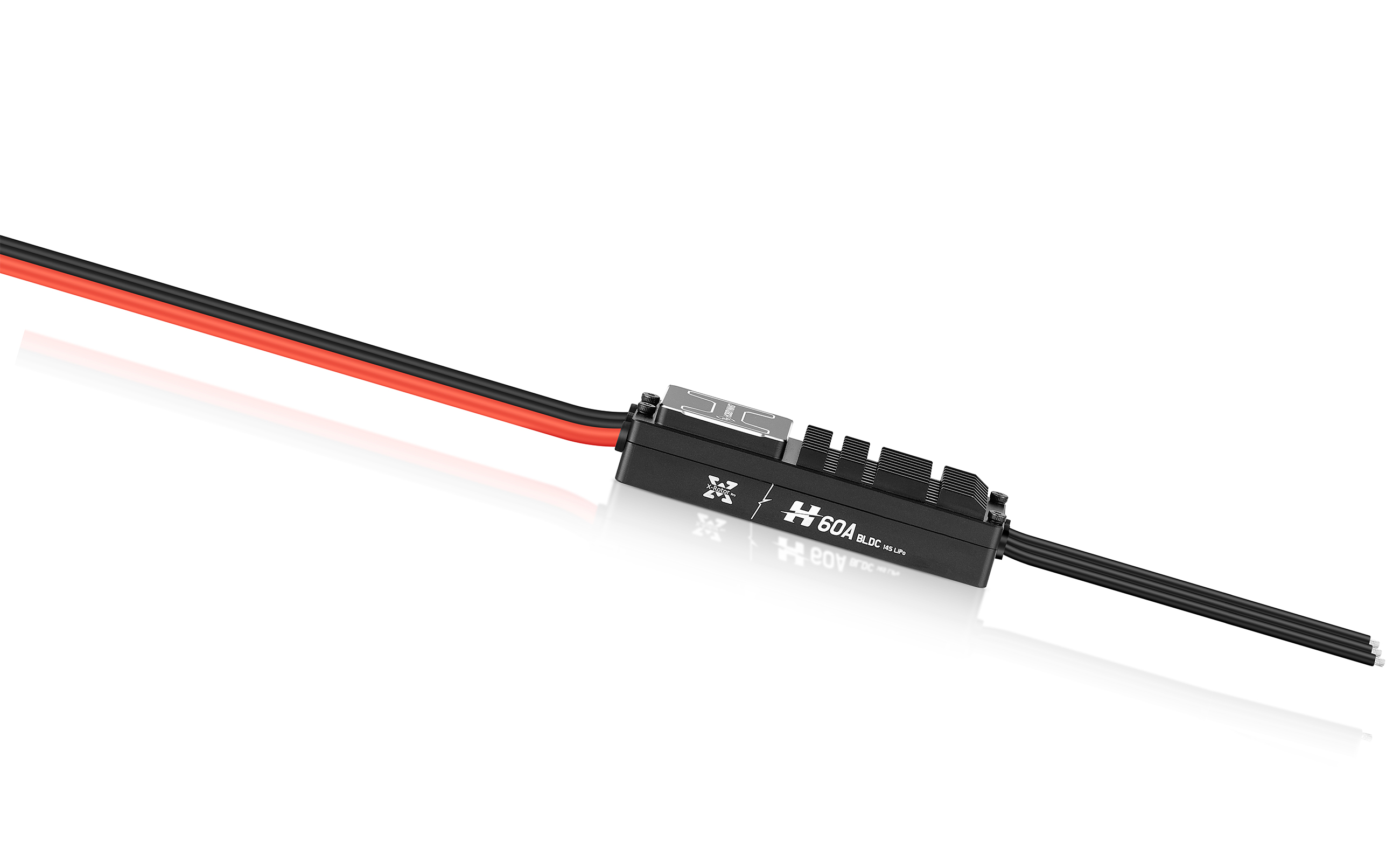

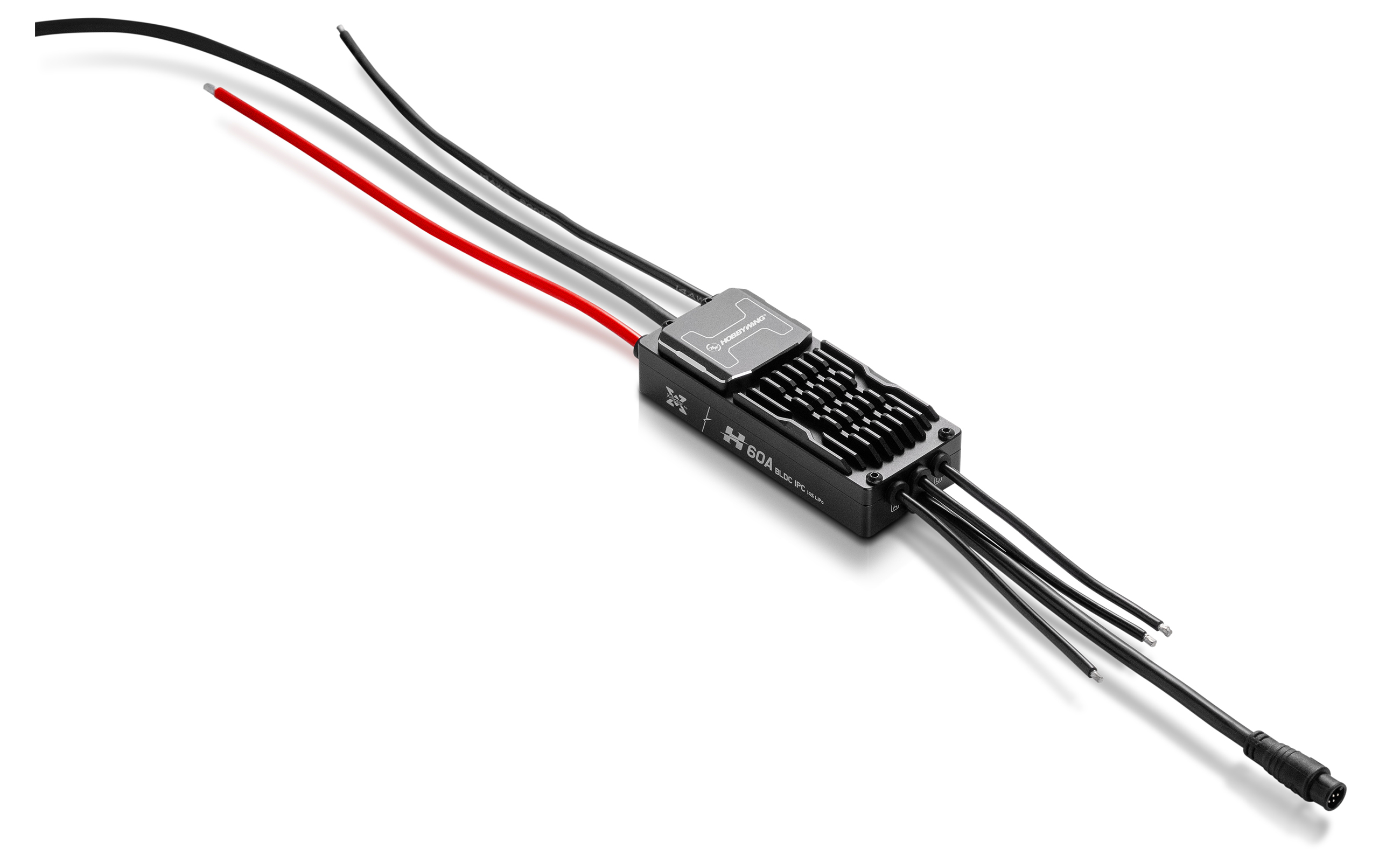

XRotor Pro H60A 14S BLDC - Drone ESC (6-24S)
XRotor PRO H60A 14S BLDC
BLDC, Compatible With More Motors
Intelligent timing and DEO, protocols upgraded for high KV UAV motors.
Better compatibility and stability in driving. Higher drive efficiency and braking performance.
CAN 2.0 Communication Technology
The working status of the ESC can be remotely monitored in real-time through the flight controller,
and the propulsion system data can be accurately diagnosed and analyzed.
New Generation
Black Box Feature
Millisecond-level data recording. Fast data & fault analyzing.
Built-in high-speed ROM. 1~20 hours of operating data & fault code storage.

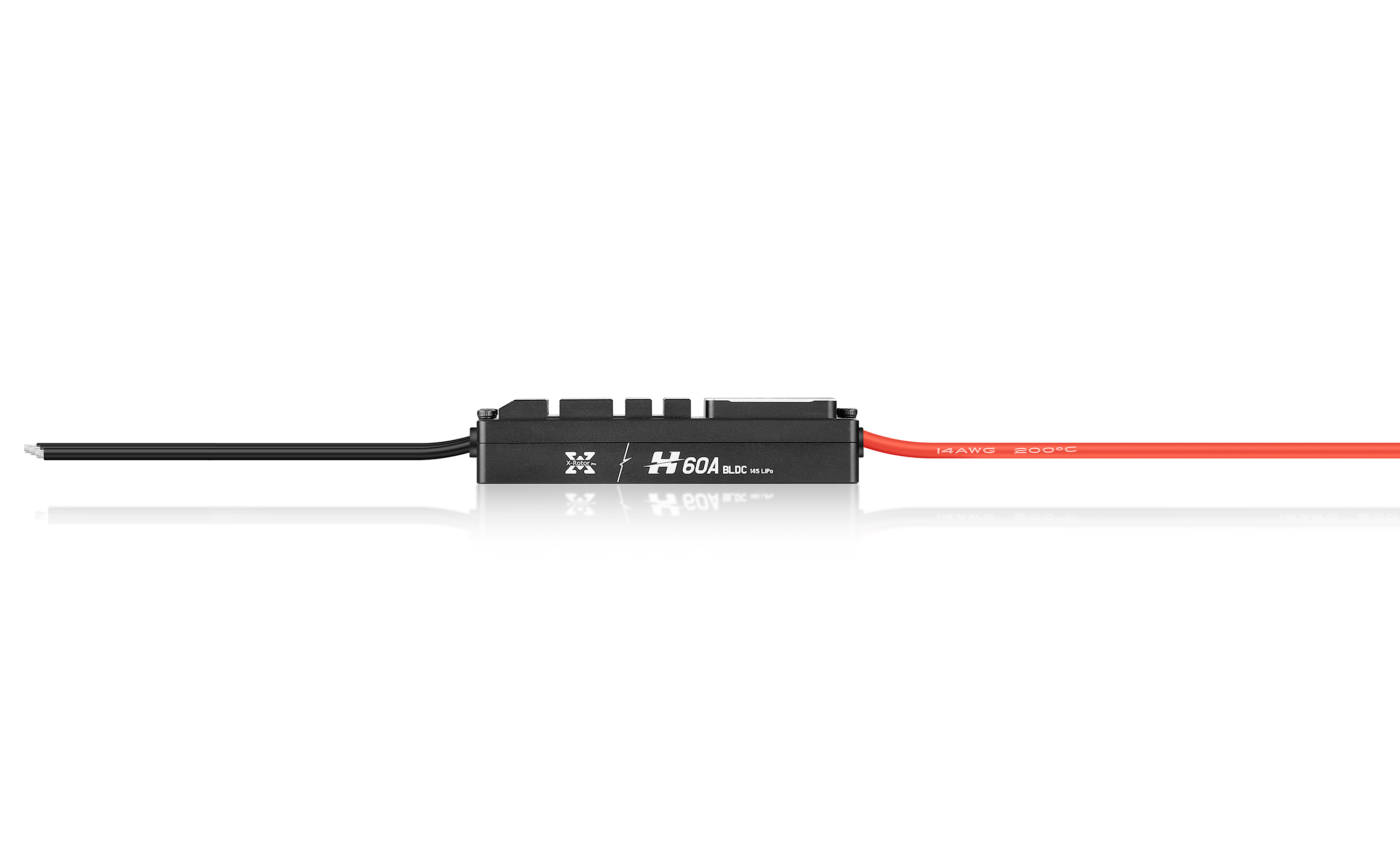

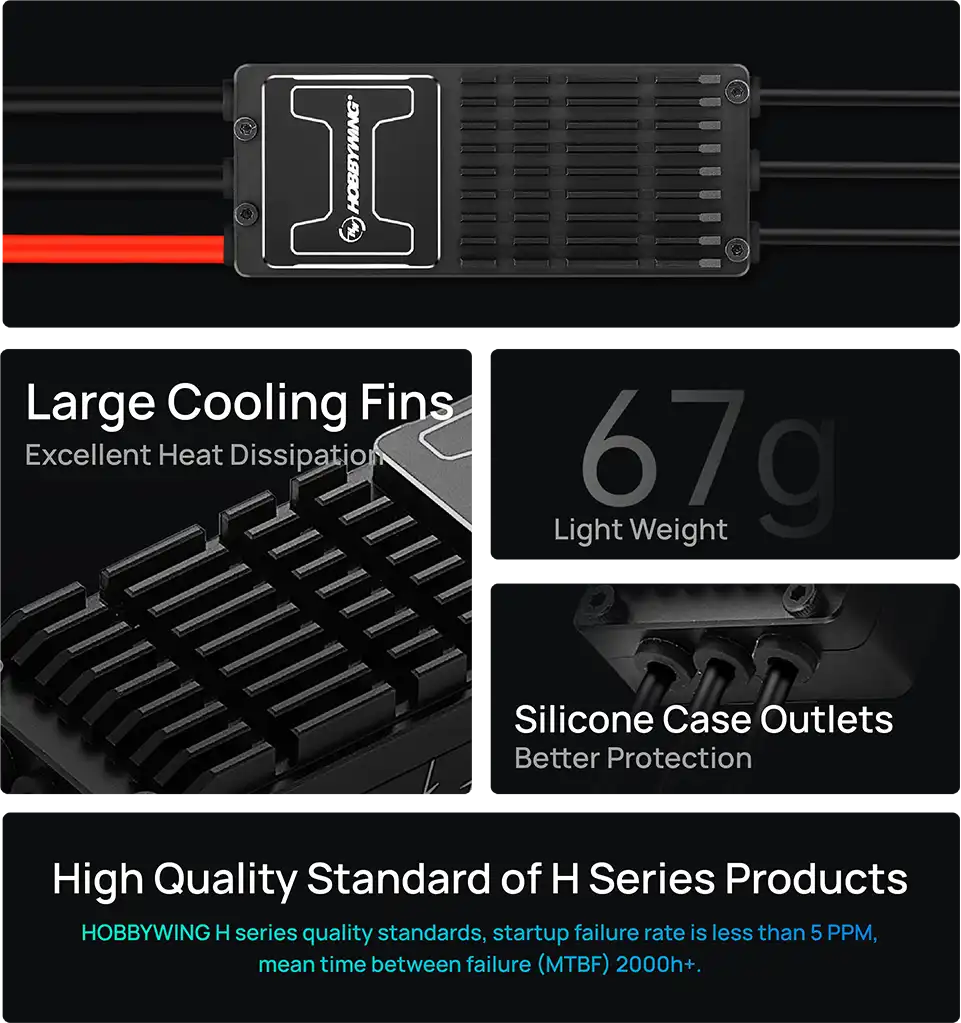

New Appearance

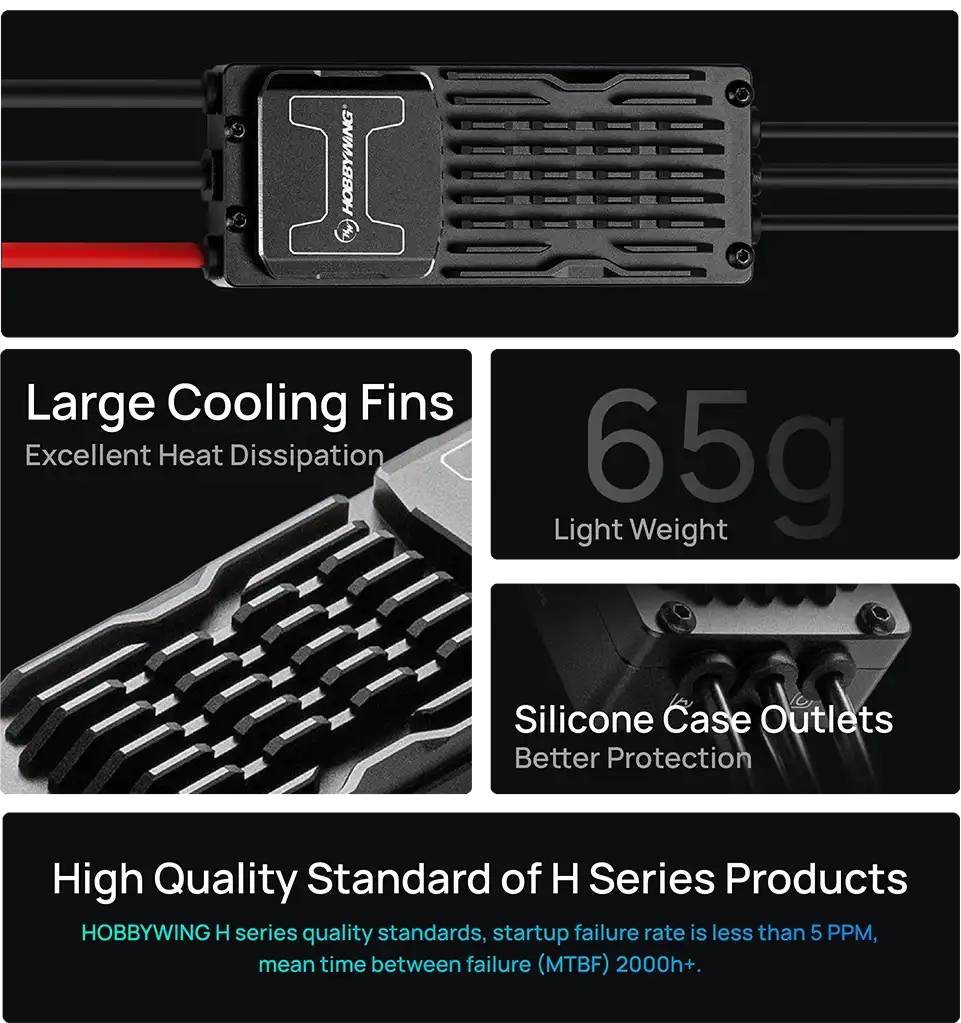

Superior Heat Dissipation
BLDC
BLDC IPC

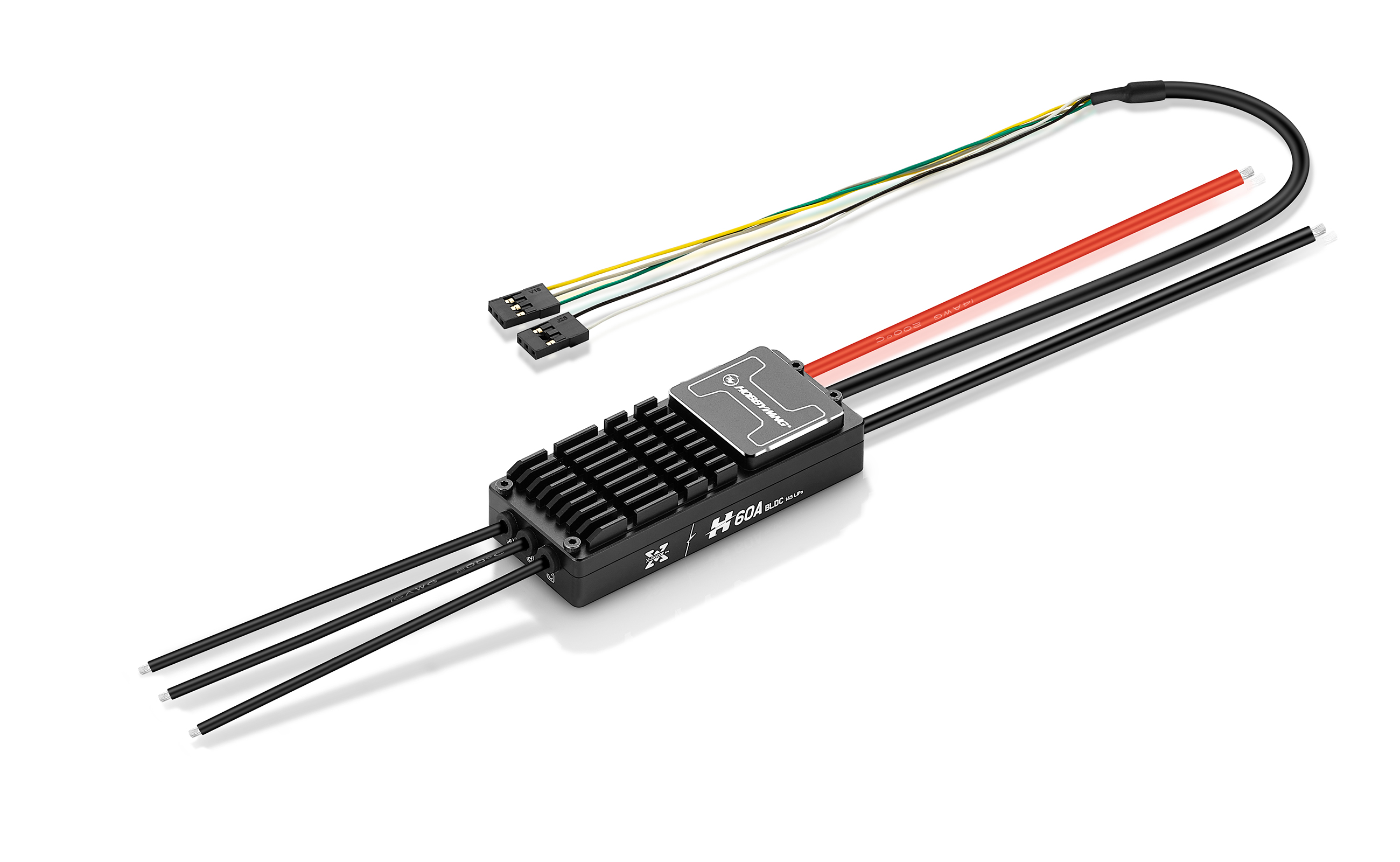

XRotor Pro H60A 14S BLDC

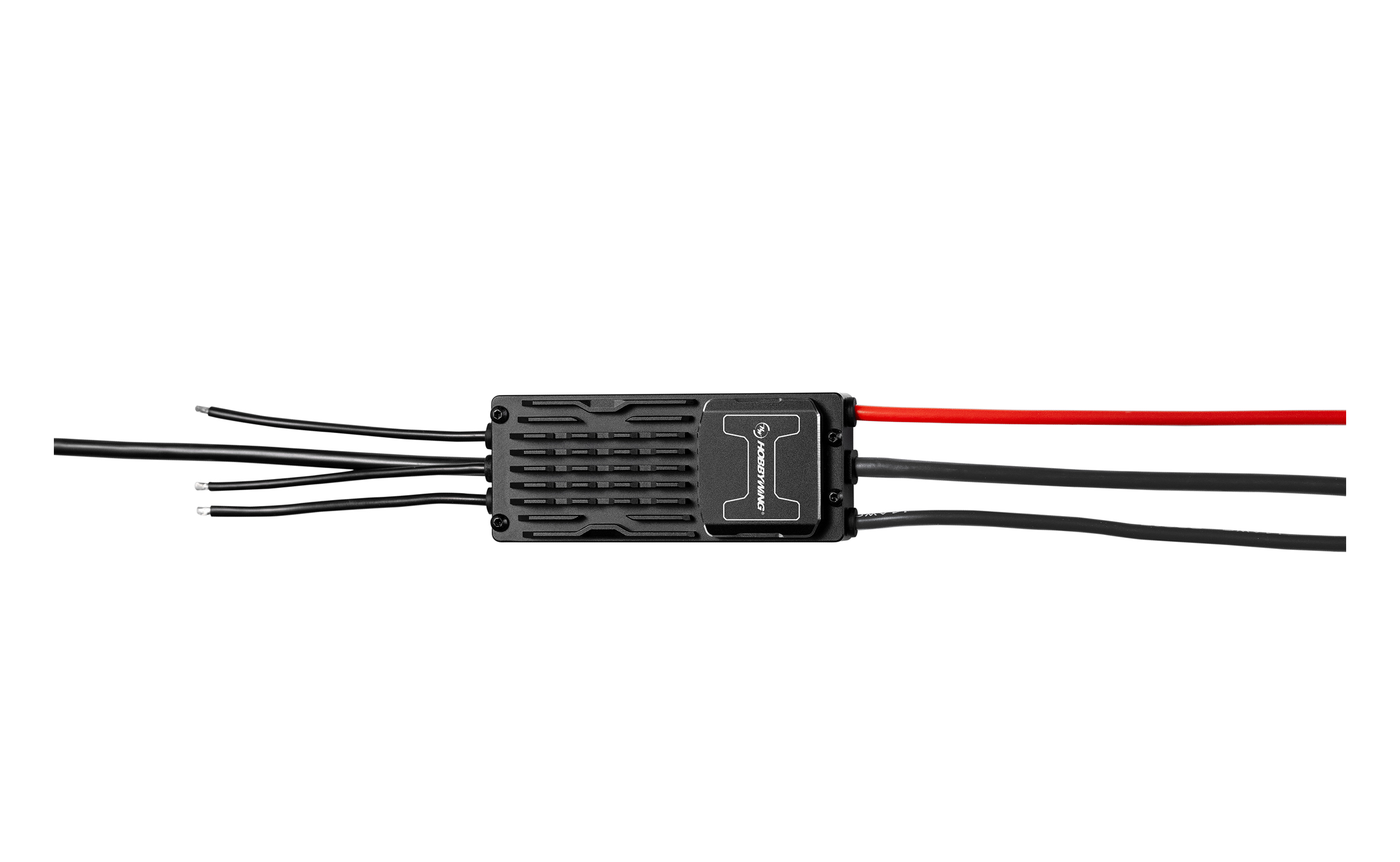

XRotor Pro H60A 14S BLDC IPC
Intelligent
Propeller Control
(H60A-BLDC-IPC)
Special design for VTOL and drone dock applications.

Compatible with different motors and propellers, open
parameter settings.

Adjust parameters such as propeller positioning maximum
current according to the needs, effectively prevent motor
overheating.
Using shielded signal cable. Strong anti-interference and high reliability.
Thank you for your interest in HOBBYWING propulsion systems! For customized solutions,
please provide your contact information and technical requirements,
and we will get in touch with you within 24 hours.
captcha
By submitting this form, you agree to HOBBYWING's Privacy Policy
Thanks for reaching out!We have received your message and will get back to you shortly.
Best Regards,
HOBBYWING Team

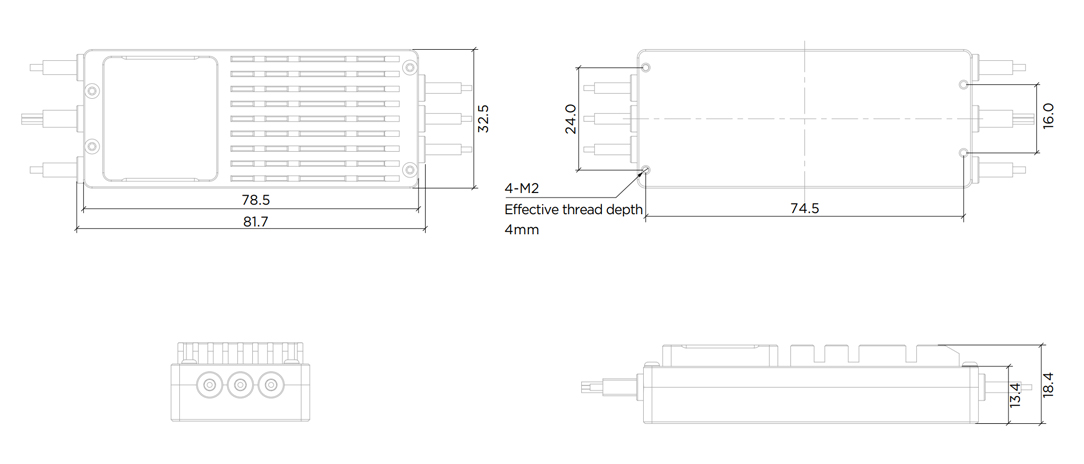

XRotor Pro H60A 14S BLDC CAD

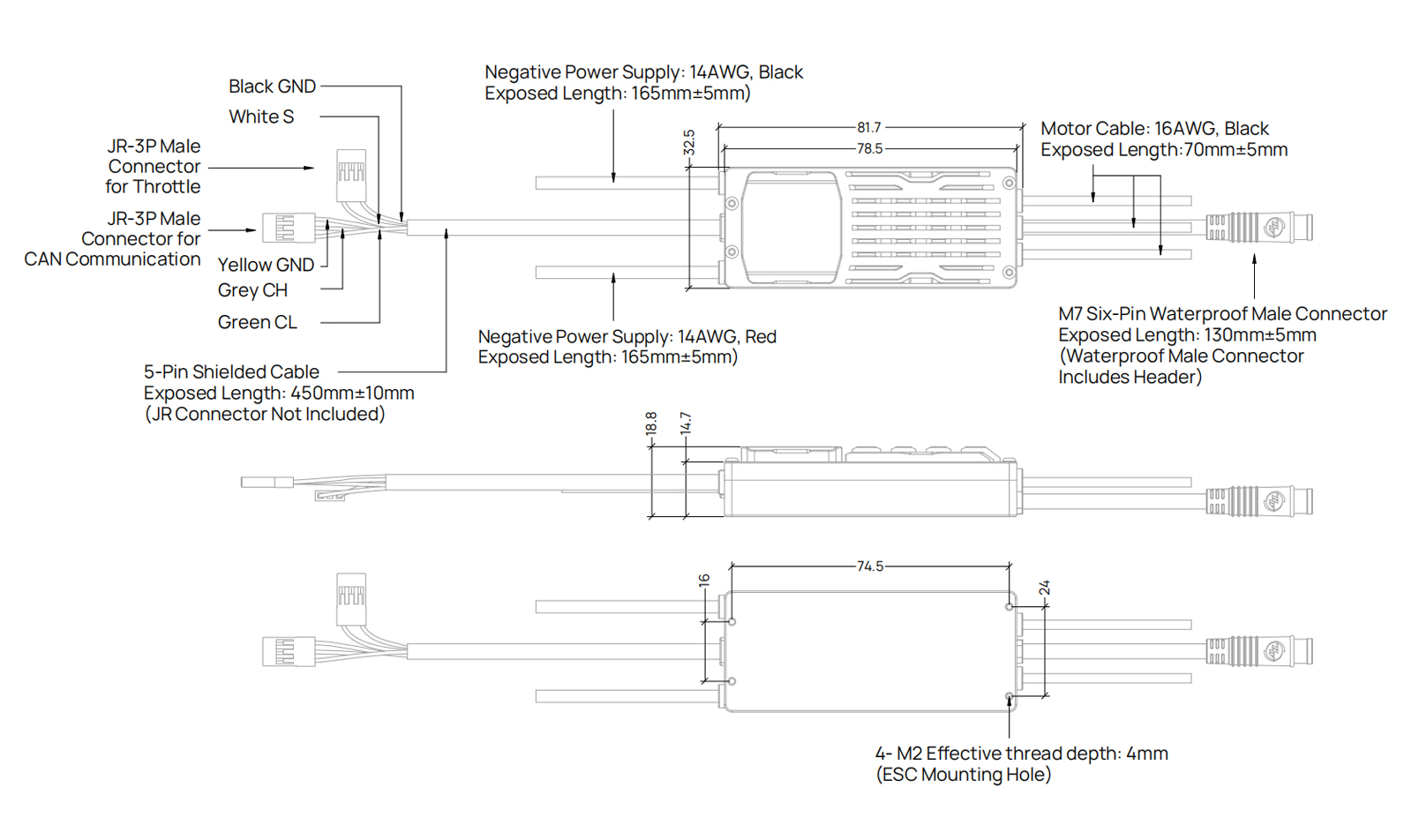

XRotor Pro H60A 14S BLDC IPC CAD
Product NameXRotor Pro H60A
  • 14S BLDC
  • 14S BLDC IPC
Specifications
  • Input Voltage
  • Continuous Current
  • Peak Current
  • Operating Temperature
  • Communication Protocol
  • lsolation Mode
  • Firmware Update
  • Digital Throttle
  • PWM Input Signal Level
  • Throttle Signal Frequency
  • Operating Pulse Width
  • Throttle Travel Calibration
  • Digital Throttle
  • Propeller Positioning
  • Fault Storage
  • Ingress Protection Rating
  • Weight( without wire)
  • Size
  • Cables
  • 6-14S(18-63V)
  • 25A(Good heat dissipation)
  • 60A(3S)
  • -40℃~65℃
  • CAN(Custom Serial port)
  • Both the throttle and communication are non-isolated.
  • Support
  • Support(CAN)
  • 5V/3.3V
  • 50-500Hz
  • 1100-1940μs
  • Pulse does not require calibration, and the range can be modified by software.
  • Support(CAN+PWM)
  • No
  • 1-20 hours of operating data& fault code storage
  • IP55 (Custom IP67)
  • 67g
  • 78.5x32.5x18.4mm
  • Input: silicone cable-14AWG-180mm
    Output: silicone cable-16AWG-80mm
    Signal: shielded cable-5-core-450mm- 2xJR-3P male
  • 6-14S(18-63V)
  • 30A(Good heat dissipation)
  • 60A(3 seconds)
  • -40℃~65℃
  • CAN( serial port customizable)
  • Both the throttle and communication are non-isolated.
  • Supported
  • Supported (CAN)
  • 5V/3.3V
  • 50-500Hz
  • 1100-1940μs
  • Pulse does not require calibration, and the range can be modified by software.
  • Supported (CAN and PWM)
  • Supported
  • 1-20 hours real-time data and fault data, real-time up to ms level
  • IP55(Custom IP67)
  • 65g
  • 78.5x32.5x18.8mm
  • Input: Silicone cable-14AWG-165mm *2
    Output: Silicone cable-16AWG-70mm *3
    Signal: Shielded cable - 5pin - 450mm * 1, JR-3Pin male connector *2
