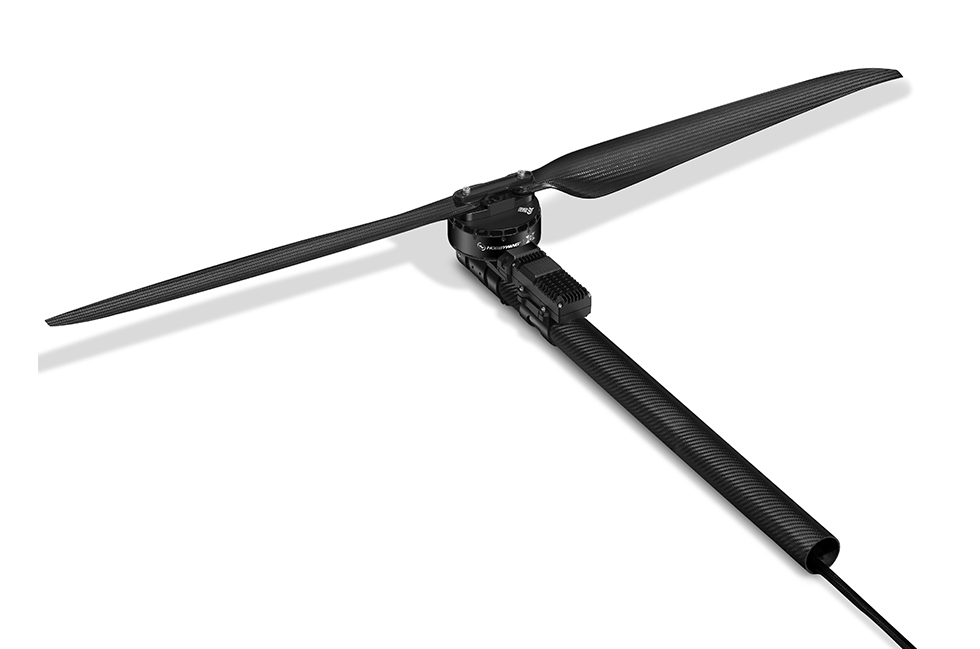

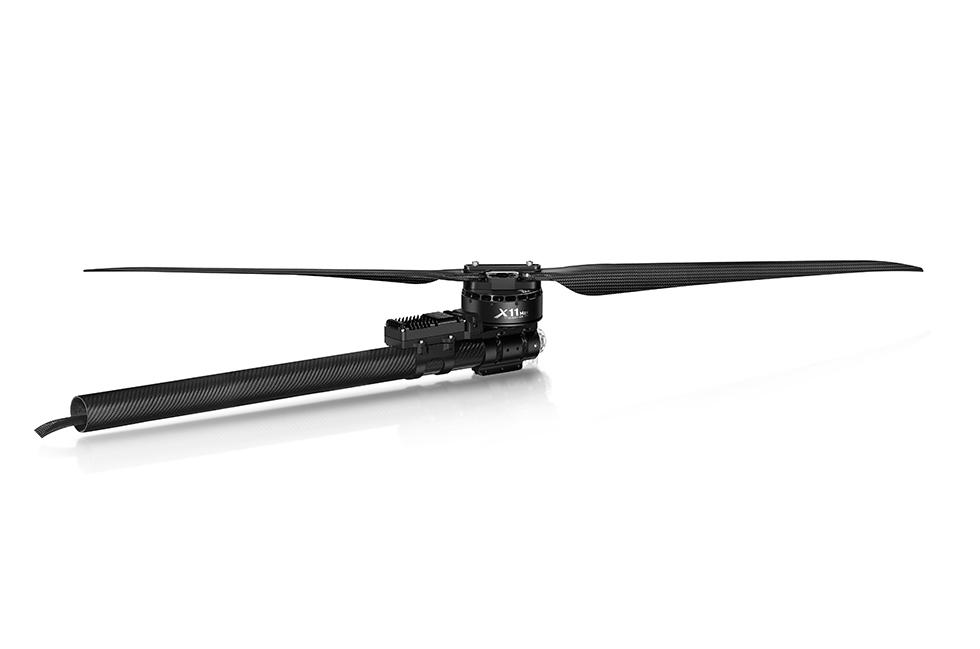

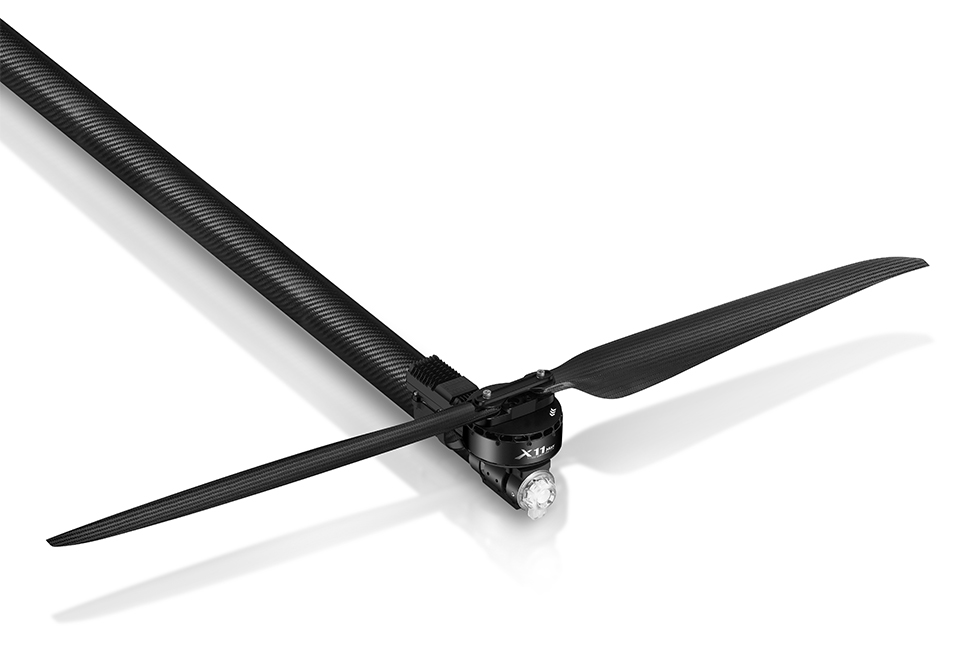

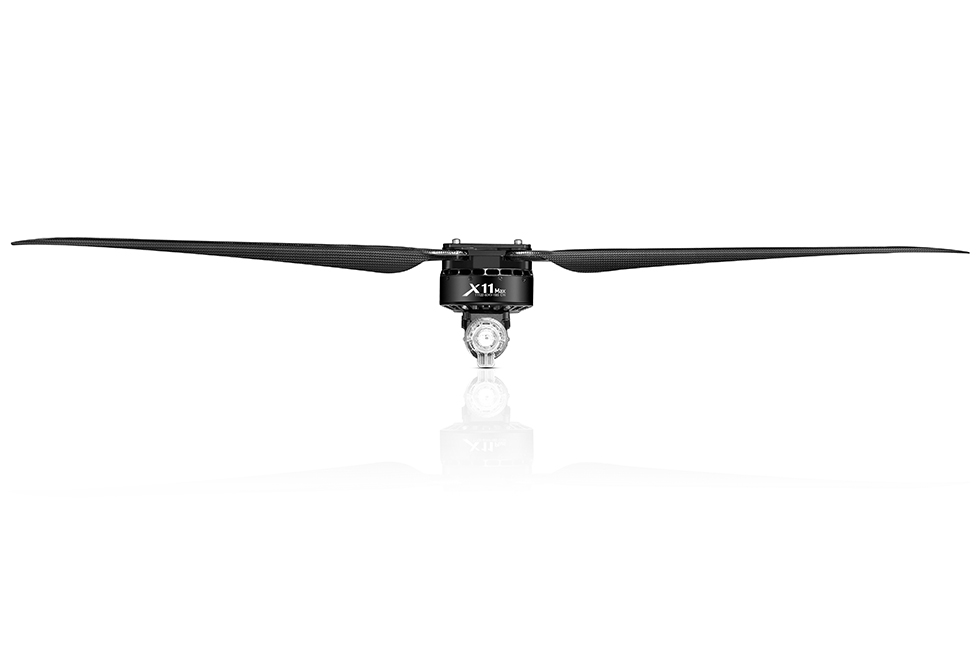

XRotor X11 Max
More thrust & prolonged battery life
  • 48-inch
    Carbon propellers

  • 48kg
    Maximum thrust

  • 7.8g/W
    20kg/rotor with a Thrust/ input-power

*The data was tested at sea level.
This product is designed for agricultural drones. For industrial and manned drone applications, please purchase our dedicated propulsion systems. The final interpretation right is held by Shenzhen HOBBYWING Technology Co., Ltd.
X11-MAX New Enhancement
20kg/rotor with a thrust efficiency of 7.8g/w, ease of achieving a longer battery life ,
and able to satisfy two spraying sorties (40L agricultural drones)
  • maximum thrust

  • carbon propellers

  • digital throttle signal

  • vector control

  • ingress protection

  • fault storage

  • good heat dissipation

  • multiple protection

  • data communication

  • upgradable

Better thrust system
48" Carbon Propellers, FOC vector control, bigger motor, a good choice for plant protection drones.

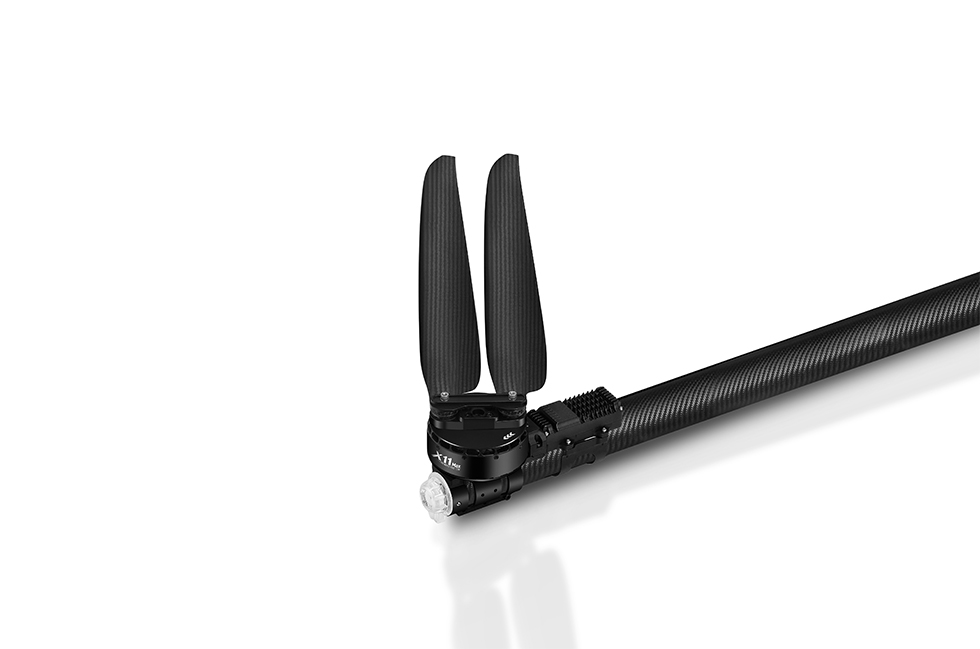

  • 48" Carbon Propellers

    High-performance carbon fiber foldable propellers, higher strength, lighter weight, higher paddle efficiency, and better balance to provide for an excellent match of heavy-duty plant protection drones.

  • FOC

    Precise and linear throttle control, efficiency increased by 10% (compared to the square wave control with the same power), and a reduction in the overall temperature by 10°C.

  • 44kg thrust

    20kg/rotor with a thrust effect of 7.8g/W, ease of achieving a longer battery life , and able to satisfy two spraying sorties (40L plant protection machine)

Dual throttle signal & CAN+PWM
PWM analog signal + CAN digital signal , precise throttle control, more
stable flight. Even in the state of single GPS without RTK, "fixed" flight.
Fault storage
Built-in fault storage function. Use the DATALINK data box to download and view,
and convert the fault into data, which helps the UAV to
quickly locate problems and analyze faults.
FOC
Precise and linear throttle control, efficiency increased by 10%
(compared to the square wave control with the same power),
and a reduction in the overall temperature by 10°C.
Super protection & no
fear of wind, sand
and rain
The ESC adopts a fully sealed flip-chip design. Some parts are IPX7 protected,
to effectively resist the corrosion of pesticides, dust, sand and other
foreign objects. It can be cleaned and replaced immediately with ease.
Multiple Protection Mechanisms
Throttle signal loss protection, over-current protection, stall protection,
voltage protection, etc., to ensure flight safety.
* Hobbywing CAN protocol has successfully communicated with some flight controller.
For the closed source flight controller, contact the manufacturer for instructions.
For the open source Ardupilot flight controller, refer
https://ardupilot.org/copter/docs/common-hobbywing-dronecan-esc.html
Thank you for your interest in HOBBYWING propulsion systems! For customized solutions,
please provide your contact information and technical requirements,
and we will get in touch with you within 24 hours.
captcha
By submitting this form, you agree to HOBBYWING's Privacy Policy
Thanks for reaching out!We have received your message and will get back to you shortly.
Best Regards,
HOBBYWING Team
XRotor X11 Max CAD
Product Name
XRotor X11 MAX
Specifications
Max Thrust 44kg/rotor(70V, Sea Level)
Recommended Takeoff Weight 20-22kg/Axis (70V, Sea Level)
Recommended Battery 18S(LiPo)
Operating Temperature -20~50℃
Total Weight 2800g
Ingress Protection IPX6
Rated power input 3100W
Rated power output 2670W
Motor
KV Rating 60rpm/V
Stator Size 111*22mm
Powertrain Arm Tube Outer Diameter 50mm
Bearing Bearings imported from Japan
ESC
Recommended LiPo Battery 18S(LiPo)
PWM Input Signal Level 3.3V/5V
Throttle Signal Frequency 50-500Hz
Operating Pulse Width 1050-1950us(Fixed or cannot be Programmed)
Max. Input Voltage 78.3V
Max. Input Current (Short duration) 150A(With/ Good Heat Dissipation)
BEC No
Propeller
Diameter×Pitch 48*17.5
XRotor X11 Max Techenical Parameters

Voltage(V)

Propeller(Inch)

Throttle(%)

Thrust(g)

Current(A)

Power Input(W)

Speed(RPM)

Efficiency(g/W)

Torque(N·m)

Power Output(W)

Temperature(℃)

70V(18S LiPo)

48*17.5"

33%

7475

9.0

622.6

1273

12.0

4.16

555.3

/

35%

8415

10.6

732.4

1348

11.5

4.62

652.1

37%

9405

12.4

856.5

1424

11.0

5.11

761.1

39%

10350

14.2

982.4

1493

10.5

5.58

871.5

42%

11830

17.2

1192.7

1595

9.9

6.32

1055.4

45%

13305

20.5

1416.7

1691

9.4

7.06

1250.9

48%

14975

24.4

1686.0

1792

8.9

7.91

1485.0

51%

16750

28.8

1988.8

1893

8.4

8.81

1746.8

54%

18580

33.5

2317.8

1989

8.0

9.74

2029.0

57%

20345

38.3

2650.8

2077

7.7

10.63

2311.9

60%

21920

42.8

2961.2

2151

7.4

11.42

2573.0

63%

24020

49.1

3395.2

2244

7.1

12.48

2933.3

66%

25765

54.6

3774.7

2318

6.8

13.36

3243.7

69%

27780

61.3

4236.3

2400

6.6

14.39

3615.2

72%

29930

68.8

4759.7

2484

6.3

15.48

4027.7

75%

31800

75.9

5243.8

2555

6.1

16.45

4400.5

78%

33630

83.1

5746.7

2623

5.9

17.40

4777.7

81%

35500

91.1

6293.1

2690

5.6

18.37

5175.1

84%

37405

99.7

6887.2

2756

5.4

19.37

5590.0

87%

39395

109.3

7551.6

2823

5.2

20.40

6030.4

90%

41710

121.4

8386.0

2895

5.0

21.58

6543.0

100%

44890

139.7

9648.5

2983

4.7

23.11

7219.5

The above data is measured by changing the throttle input to adjust the tension under the environment of 25°C and sea level.
