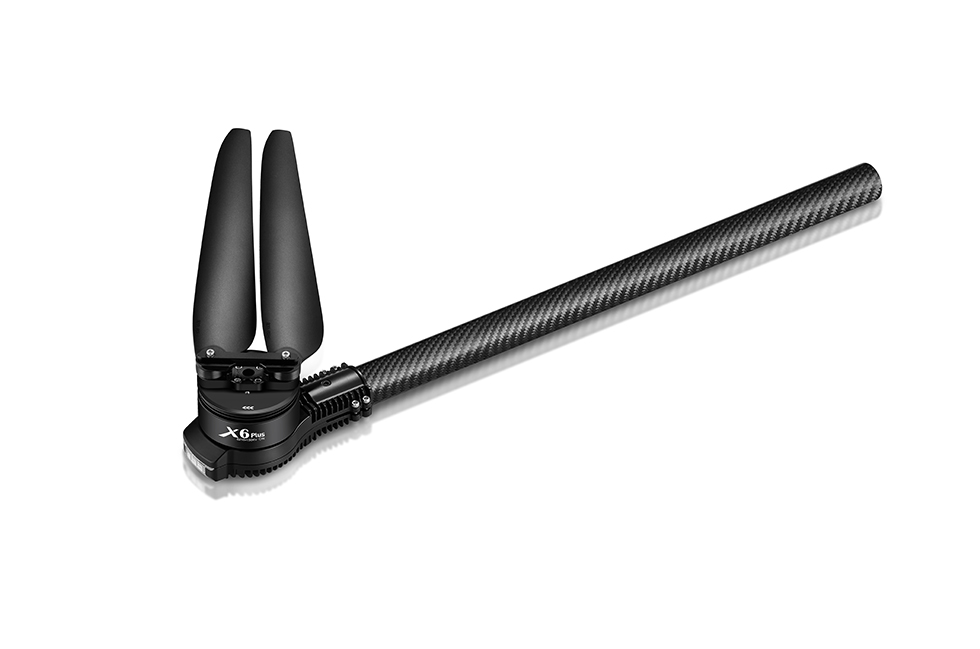

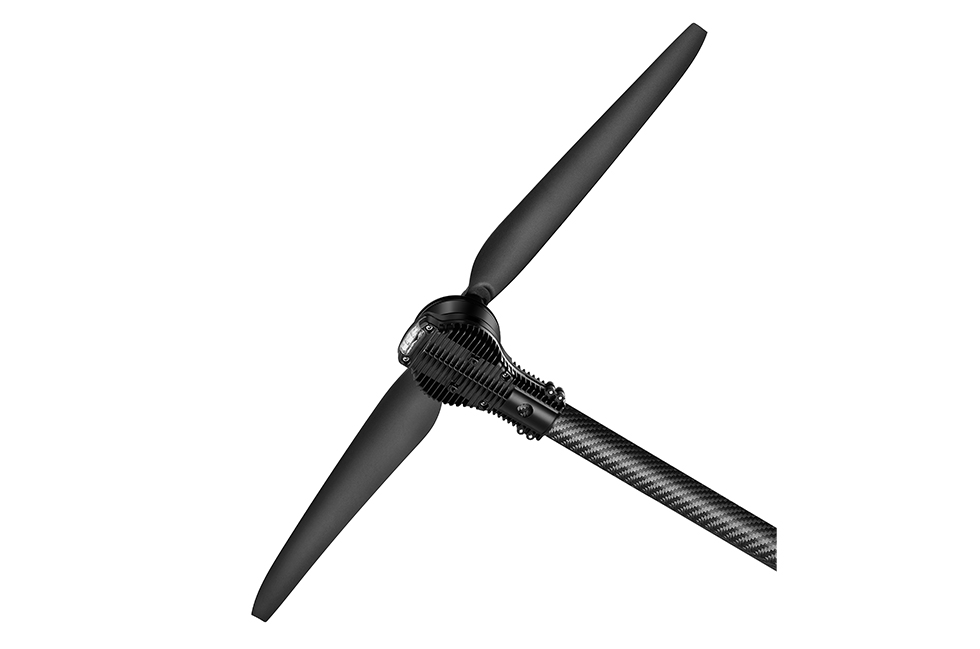

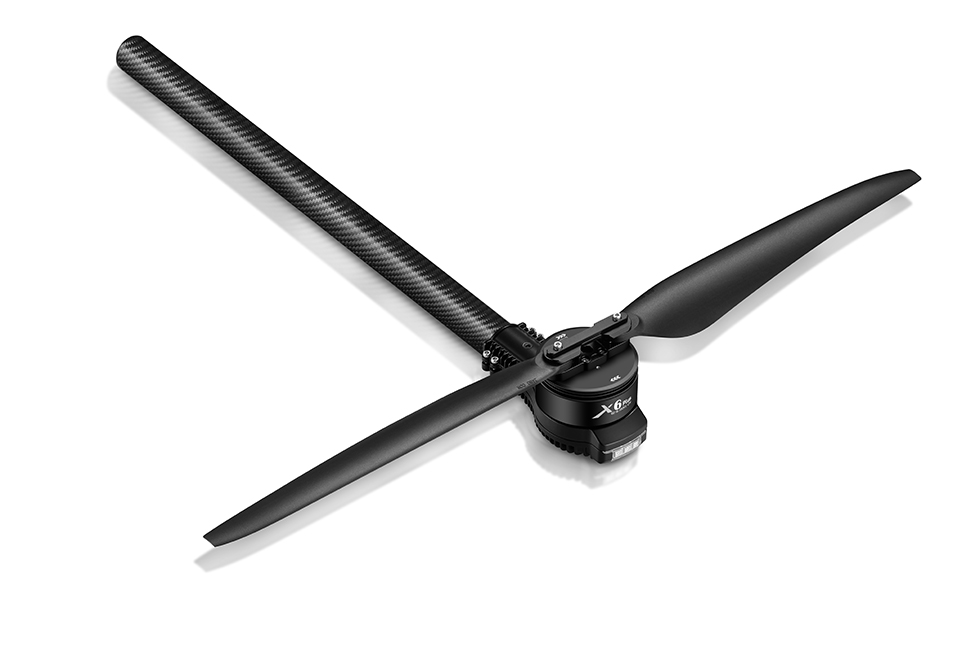

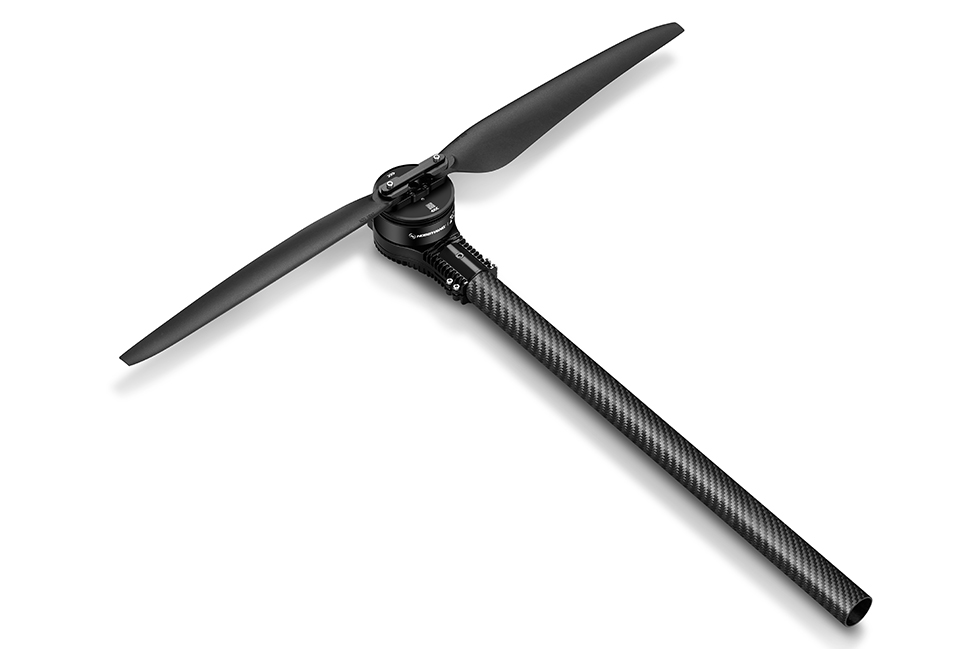

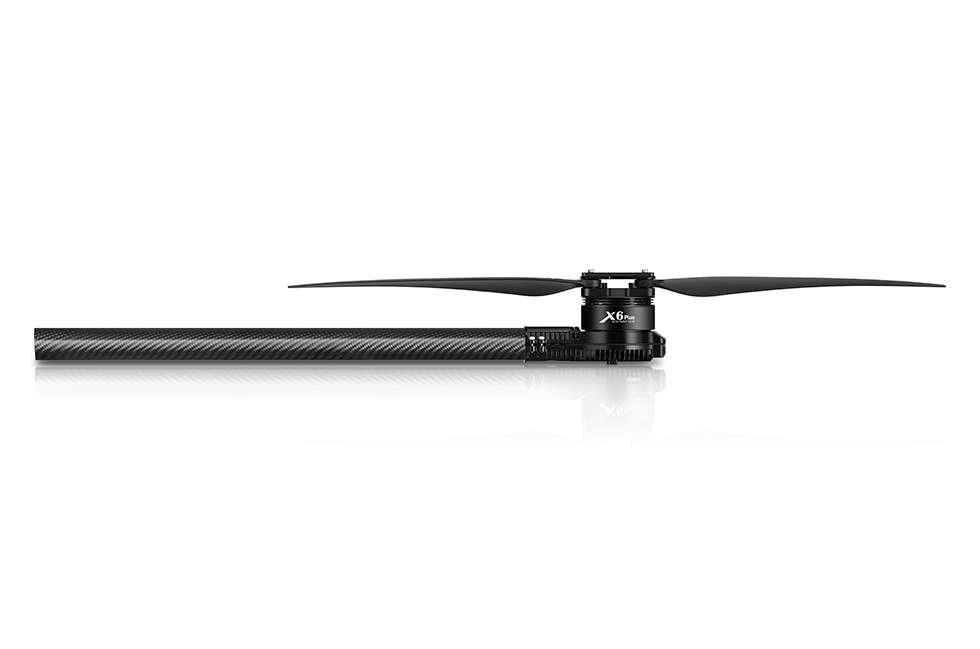

XRotor X6 Plus
Prolonged
flight time
8% increased in efficiency,
increased in battery lifespan
Stability
in flying
Double throttle signal,
flying more stability
More thrust & Higher efficiency
More thrust & Higher efficiency
Based on the X6, the thrust has improved. Compared with the same type of drone, it has more power redundancy
and easier flight. Equipped with 2480 carbon-plastic propellers, recommend take-off weight 3.5-5.5kg/rotor.
Comparing it with the X6, the system power efficiency has increased by 8% to prolong the flight time
under the same working conditions.
Good heat dissipation
The heat dissipation structure of the motor has been upgraded to bring more powerful active heat dissipation.
Under the same working conditions, the heat dissipation effect is better than the X6.
Dual throttle signal & CAN+PWM
PWM analog signal + CAN digital signal , precise throttle control, more stable flight.
Even in the state of single GPS without RTK, "fixed" flight.
FOC
Precise and linear throttle control, efficiency increased by 10%
(compared to the square wave control with the same power),
and a reduction in the overall temperature by 10°C.
Fault storage
Built-in fault storage function. Use the DATALINK data box
to download and view, and convert the fault into data, which
helps the UAV to quickly locate problems and analyze faults.

IPX6 Protection

The ESC is fully sealed and protected, further improving
anti-corrosion and anti-rust level of the motor

Multiple Protection Mechanisms

Throttle signal loss protection, over-current protection, stall protection,
voltage protection, etc., to ensure flight safety.

Communication & Upgrade
The default CAN communication (serial port is optional), real-time transmission of power system working condition data,
real-time detection of system working status, making flight more at ease. Use the Hobbywing
DATALINK Data box to upgrade the ESC firmware online, and also support remote upgrade
through the flight controller, synchronization of Hobbywing’s latest technology .
* Hobbywing CAN protocol has successfully communicated with some flight controller.
For the closed source flight controller, contact the manufacturer for instructions.
For the open source Ardupilot flight controller, refer
https://ardupilot.org/copter/docs/common-hobbywing-dronecan-esc.html
XRotor X6 PLUS CAD
Product Name
XRotor X6 PLUS
Specifications
Max Thrust 11.8kg/Axis (46V, Sea Level)
Thrust/rotor 3.5-5.5kg/Axis (46V, Sea Level)
Recommended Battery 12-14S(LiPo)
Operating Temperature -20~50℃
Total Weight 790g
Ingress Protection IPX6
Motor
KV Rating 150rpm/V
Stator Size 62*18mm
Powertrain Arm Tube Outer Diameter 30mm
Bearing Waterproof
ESC
Recommended LiPo Battery 12-14S(LiPo)
PWM Input Signal Level 3.3V/5V
Throttle Signal Frequency 50-500Hz
Operating Pulse Width 1050-1950us(Fixed or cannot be Programmed)
Max. Input Voltage 61V
Max. Input Current (Short duration) 80A (Non-hermetic Ambient Temperature 60°C)
BEC No
Propeller
Diameter×Pitch 24*8.0
XRotor X6 PLUS Technical Parameters

Voltage(V)

Propeller(Inch)

Throttle(%)

Thrust(g)

Current(A)

Power(W)

Speed(RPM)

Efficiency(g/W)

46V (12S LiPo)

HW 24*8.0 Inch Foldable Propeller

40%

2416

4.6

212.2

2455

11.3

42%

2732

5.5

253.5

2605

10.6

44%

3058

6.4

296.6

2754

10.3

46%

3377

7.4

343.8

2900

9.7

48%

3746

8.7

401.8

3047

9.2

50%

4106

9.9

460.2

3184

8.9

52%

4419

11.2

519.9

3325

8.4

54%

4822

12.5

580.2

3456

8.3

56%

5209

14.1

653.4

3589

8.0

58%

5476

15.6

724.6

3716

7.6

60%

5947

17.3

800.2

3841

7.4

62%

6370

19.1

886.2

3959

7.2

64%

6709

20.7

958.4

4080

7.0

66%

7086

22.6

1048.2

4194

6.7

68%

7501

24.9

1153.8

4307

6.5

70%

7779

26.6

1230.2

4415

6.3

72%

8238

28.8

1332.1

4519

6.2

74%

8654

31.0

1435.8

4627

6.0

76%

9016

32.7

1514.0

4723

5.9

78%

9294

35.1

1626.5

4821

5.7

80%

9782

37.6

1742.3

4912

5.6

90%

10731

43.6

2005.6

5142

5.3

100%

11822

51.8

2398.6

5442

4.9

The above data is measured by changing the throttle input to adjust the tension under the environment of 25°C and sea level.
