XRotor X8

Integrated powertrain, ready to use

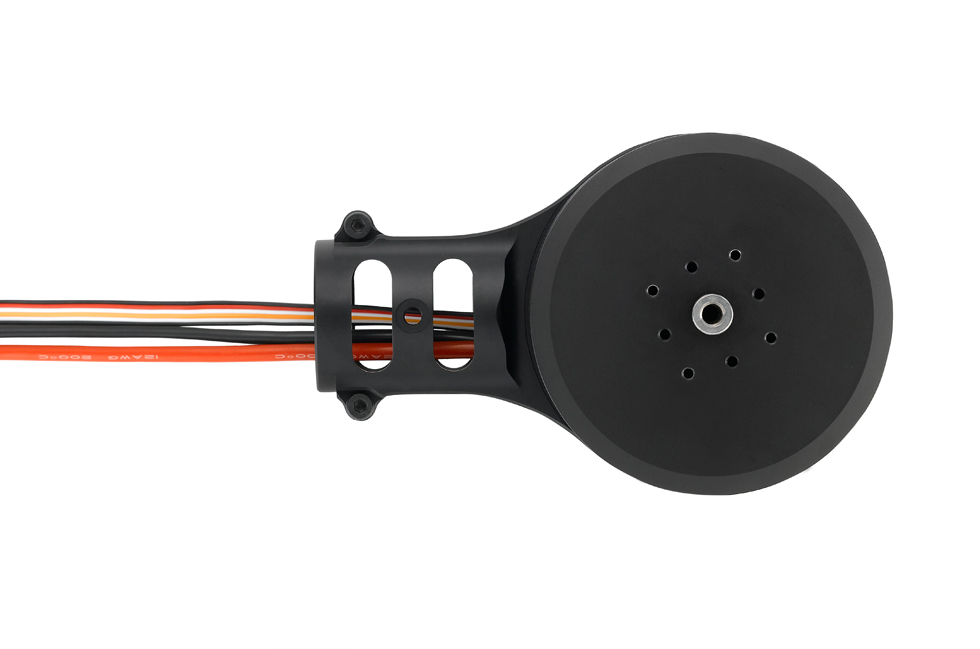

Integrated powertrain solution with integrated motor, ESC, blade
and motor holder helps for easy installation and usage. A tube
diameter converter (φ40mm) can be purchased separately.

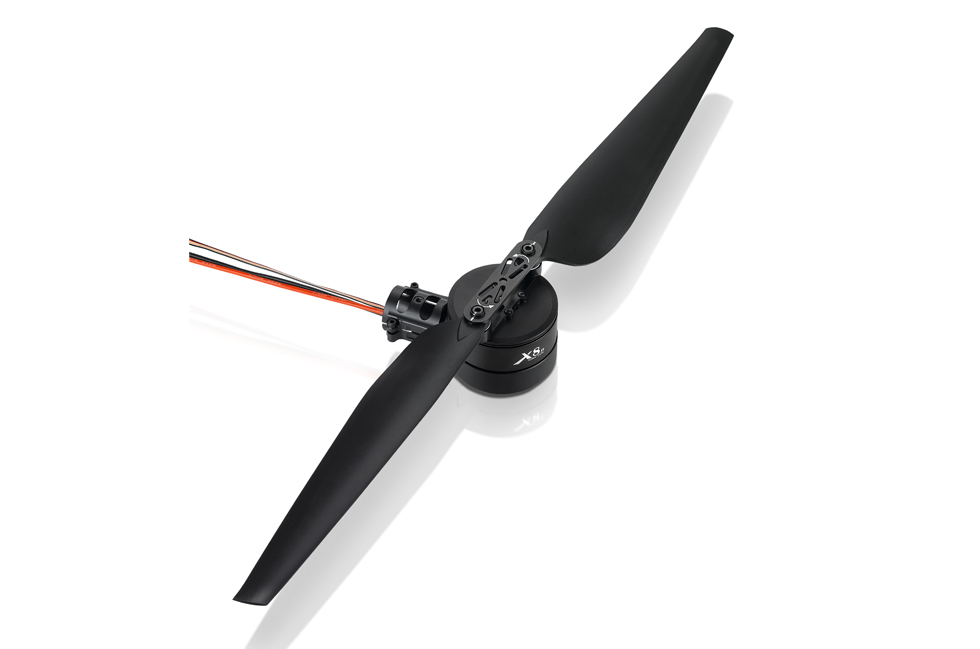

The standard 30-inch folding propeller is suitable for
5-7kg single-axis load, and up to 15kg thrust force.

The power of integration

The optimization of the PMSM algorithm Based on FOC
Creates the perfect power system

PMSM has a larger power density. lower noise, smaller in size and smaller moment of inertia
and pulsation compared to BLDC. The advantages of small moment and high control accuracy
are based on the PMSM optimization calculation of FOC (Field Oriented Control) method for
the ESC, motor and propeller for a strict and perfect match. This results in the motor
and the propeller to be more balanced, and a power system with high stability, reliability and efficiency.

Smarter and more compatible

Intelligent multiple redundant protection, real-time output of operating data

The X8 power system is equipped with several protection functions such as: Power-on self-test, Power-on voltage abnormal protection,Current protection and Stall protection.It is able to output an operating status data to the flight controller in real time including; input throttle amount, response throttle volume motor speed, bus voltage, bus current, phase current, capacitor temperature and MOS tube temperature, etc. This allows the flight controller to grasp the electronics in real-time during operation to improve the flight performance and efficiency. It improves the overall system reliability.
Note: Using the Hobbywing Data Link data acquisition memory (Note: need to be purchased separately) can simultaneously collect the real-time operation data of the 8-channel power system, and pass it to the flight controller through the bus interface to form a closed-loop control system.

Intelligent multiple redundant protection,
real-time output of operating data

Self-checking

Over-load
Protection

Start-up
Protection

Overcurent
protection

Super protection, easy to cope with the harsh environment of plant protection

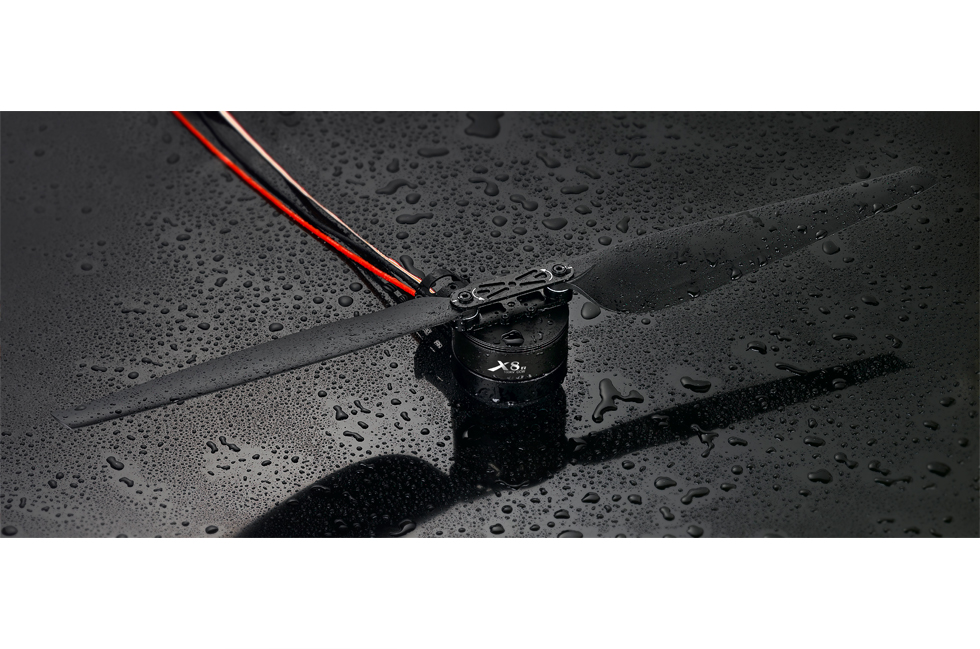

The X8 powertrain is IPX6 waterproofing rated and has drainage channels for liquids and debris.
Note: Patented design. Rinse with water directly after usage without any problem. It is able to
cope working in harsh environment such as in the rain, pesticide salt spray, high temperature, sand, and dust.

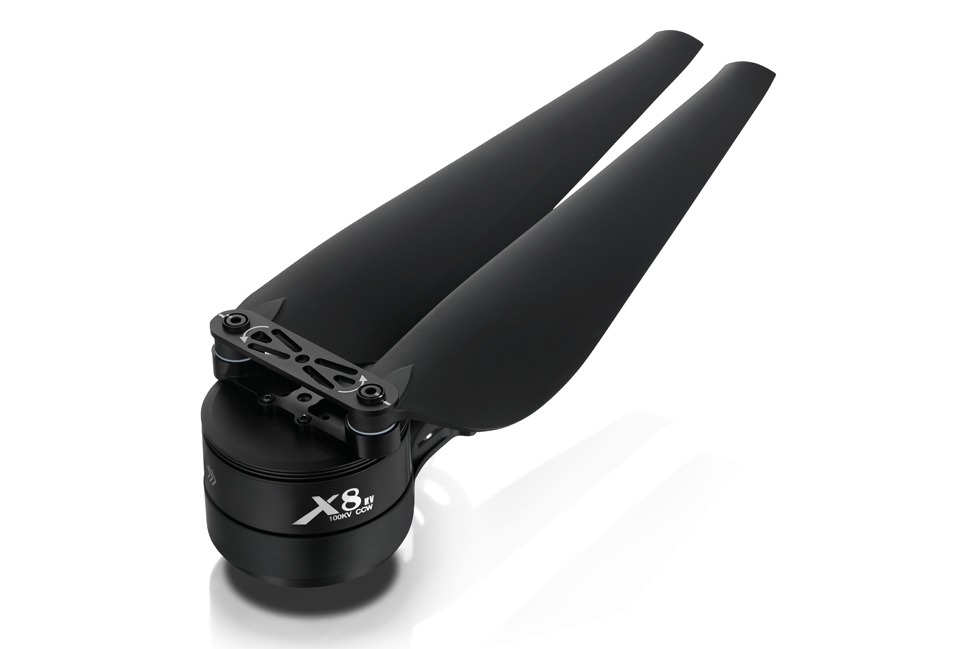

High lift, high efficiency propeller

The 3011 propeller is injected molded form high-strength special carbon fiber reinforced nylon composite material.
It is strong and has a lightweight paddle body to provide good consistency and superior
dynamic balance characteristics. The aerodynamic shape optimized by experts, together
with the electromagnetic design of the motor optimized for the propeller, and the
efficient FOC (field-oriented control, commonly known as sine wave drive) algorithm,
makes the entire power system advantages in lift and force efficiency.

Thermal optimization

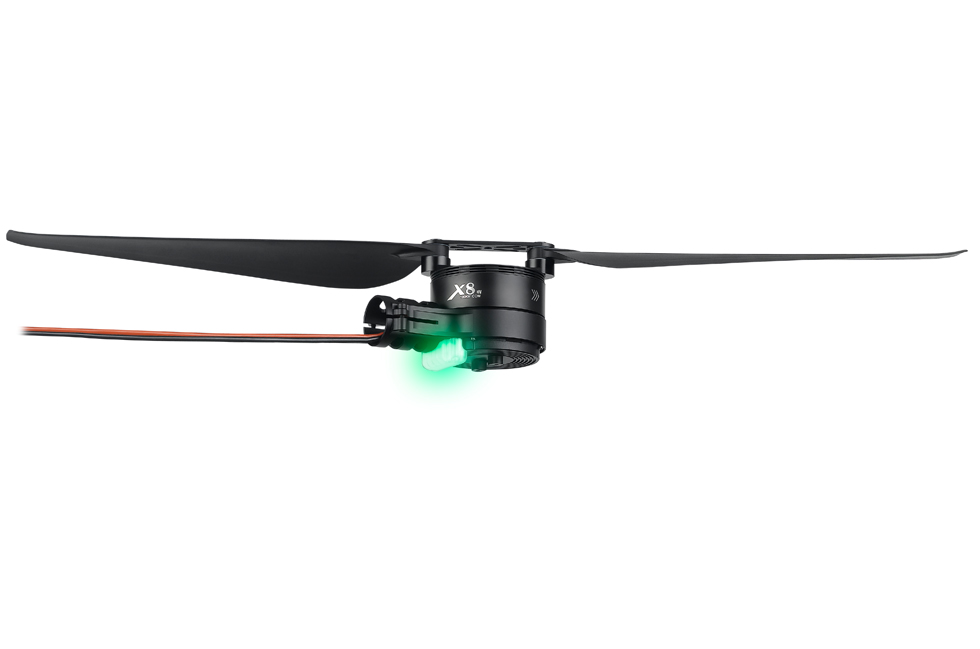

High-brightness LED display light, at a glance

The X8 integrated power system comes with a ultra-bright LED display light.
The user can set the light color or turn off the display light.
The display light can prompt the working status information
of the power system, issue an early warning signal when it
is abnormal, and improve the safety factor of the system.

High-brightness
LED display light

Highlight LED display light

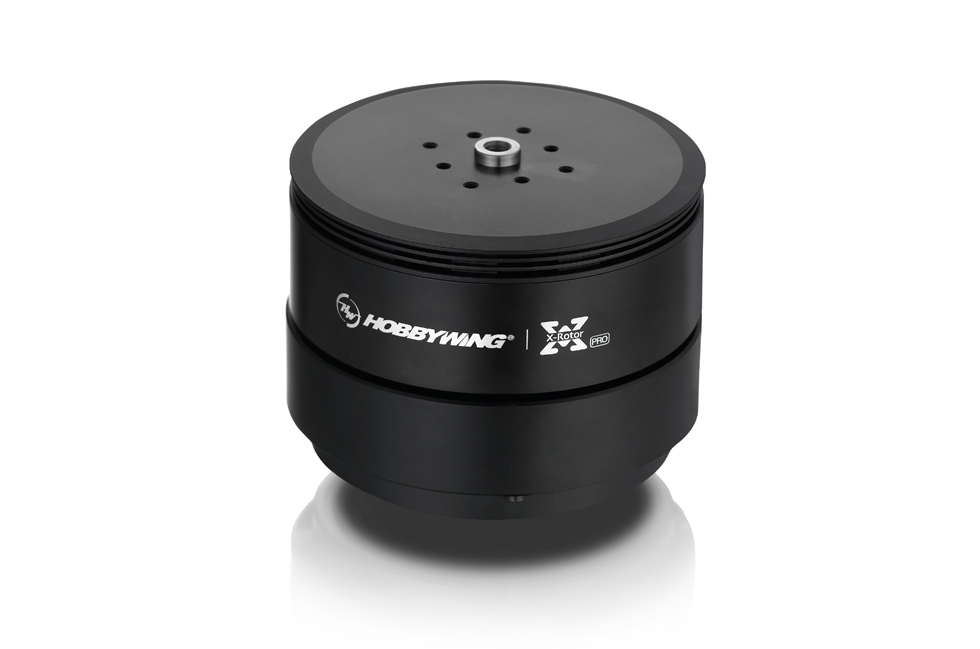

Robust and reliable, extremely impact resistant

The use of high-strength aluminum alloy material precision processing optimizes
structural design and strengthens the protection of the motor components.
The motor will be extremely strong, and anti-fall impact ability reduces
the probability of any failure due to the impact of the fall. The deformation
structure and cannot be used. Internal reinforced beam structure; Three
interlocking structures; Super impact resistance

Robust and reliable,
extremely impact resistant

Internal reinforced beam structure

Triple interlock structure

Super impact resistance

Modular design, easy maintenance

Modular design, when the power system is damaged, customers can quickly replace the integrated system (ESC + motor),
paddle blade (single piece or pair), paddle clip. The maintenance time is shortened and it improves work efficiency.

Support system upgrades

Hobbywing allows you to update your ESC to the latest firmware and synchronize it using a computer via the Hobbywing
DataLink software (Note: need to be purchased separately) at all times. Excellent heat dissipation conditions are required

Thank you for your interest in HOBBYWING propulsion systems! For customized solutions,
please provide your contact information and technical requirements,
and we will get in touch with you within 24 hours.
captcha
By submitting this form, you agree to HOBBYWING's Privacy Policy
Thanks for reaching out!We have received your message and will get back to you shortly.
Best Regards,
HOBBYWING Team

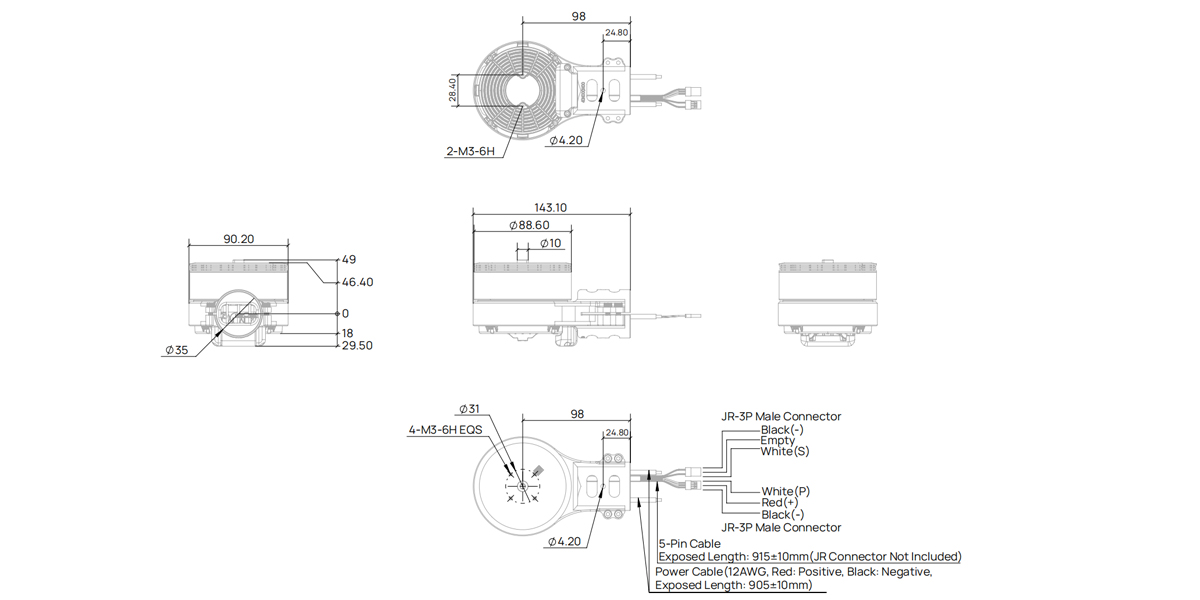

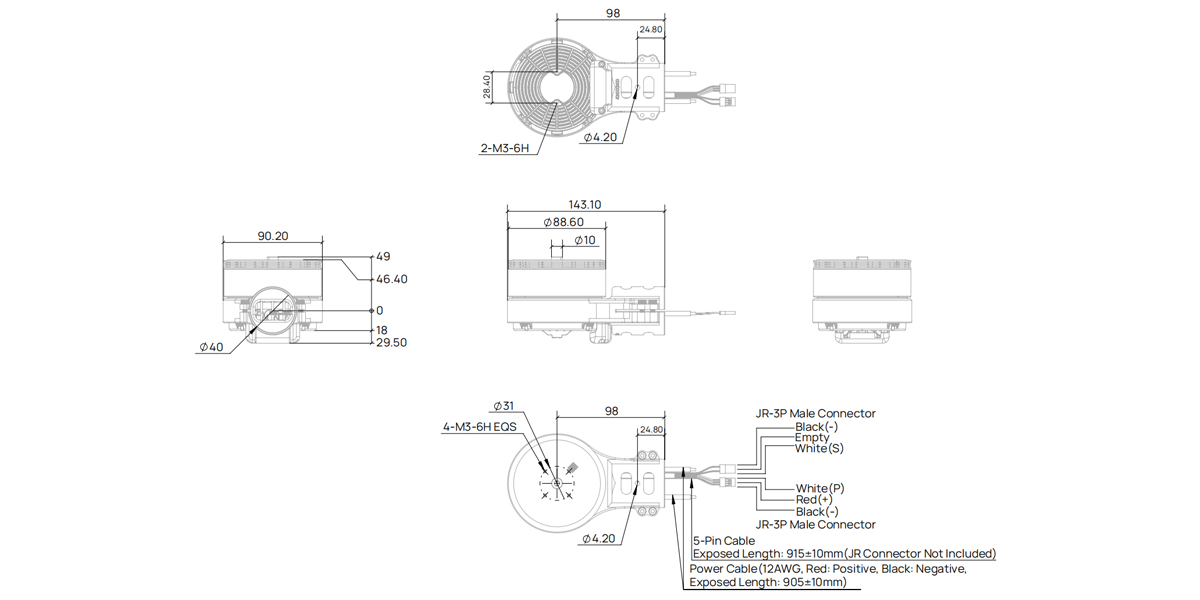

XRotor X8 CAD
Product Name
XRotor X8
Specifications
Max thrust 15kg
Recommended takeoff weight per axis 5-7kg
Efficiency of recommended takeoff weight 8.7-6.9g/W
Input voltage 18-54V
Rated voltage 12S-46V
Lithium compatible 12S(LiPo)
Tube outer diameter 35/40mm
Weight(with cable and Props) 1150g
Cable specification Power cord:12AWG*905±10mm Signal line:915±10mm
Operating temperature -20~50℃
Ingress Protection IPX6
Rated power input 950W
Rated power output 810W
Size 143.1*90.2*78.5mm
Pinout Black White-PWM、GND,Black Red White-GND、5V、P
ESC
Model XRotor 80A-FOC
Communication protocol UART
Peak current (30 seconds) 80A(30s)
Continuous current 20A
Throttle travel calibration Nonsupport
Double throttle signal Nonsupport
Operating pulse width 1100-1940μs
BEC No
Motor
Model 8120-100KV
Slot& Pole 36N40P
Motor diameter Φ88.6mm
Propeller
Model 30*11"
Total Weight 191±5g
Material of Props Carbon fiber reinforced plastics
Sigal Weight 51±5g
*The weight of the products may vary between different batches. The actual product shall prevail.
X8-3011Load performance parameters
X8-3011 Motor Propeller Pull Test Data

Voltage(V)

Propeller

Throttle(%)

Thrust(g)

Current(A)

Power Input(W)

Speed(RPM)

Efficiency(g/W)

Torque(N·m)

Power Output(W)

Temperature(℃)

46V(12S LiPo)

30*11"

33%

1629

2.7

123.6

1332

13.2

0.61

85.2

/

37%

2009

3.4

156.2

1469

12.9

0.74

113.7

39%

2468

4.3

200.0

1623

12.3

0.90

152.3

42%

2982

5.5

254.0

1780

11.7

1.07

200.2

48%

3535

6.9

317.5

1935

11.1

1.27

256.7

51%

4467

9.5

435.7

2168

10.3

1.59

361.7

54%

5008

11.1

510.3

2291

9.8

1.78

427.6

57%

5480

12.6

578.5

2392

9.5

1.95

487.9

60%

5973

14.2

653.1

2493

9.1

2.12

553.4

63%

6490

16.0

734.7

2593

8.8

2.30

625.0

66%

7032

17.9

824.3

2695

8.5

2.49

703.2

69%

7957

21.4

986.2

2895

8.1

2.82

843.9

72%

8447

23.4

1076.6

2943

7.8

2.99

922.1

75%

9473

27.7

1277.1

3111

7.4

3.36

1094.9

78%

10007

30.1

1387.0

3195

7.2

3.55

1189.3

81%

10958

34.6

1592.7

3339

6.9

3.90

1364.9

84%

12042

40.0

1840.4

3494

6.5

4.30

1574.2

87%

12436

42.0

1933.4

3548

6.4

4.45

1652.1

90%

13522

47.7

2195.1

3688

6.2

4.84

1868.0

100%

14715

54.0

2485.2

3828

5.9

5.24

2100.3

The above data is measured by HobbyWing laboratory at room temperature 25℃, sea level, change the throttle input adjustment.
