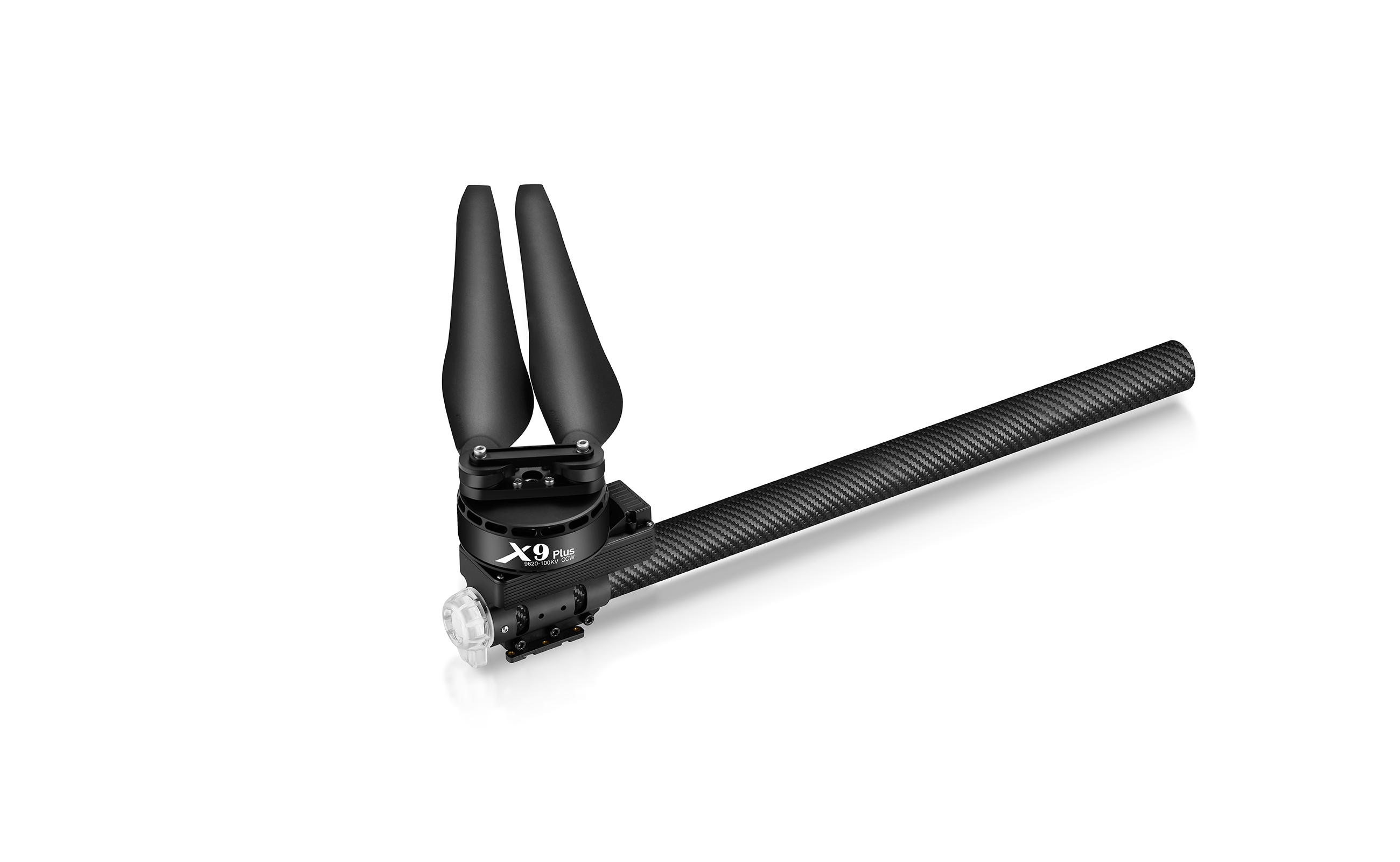

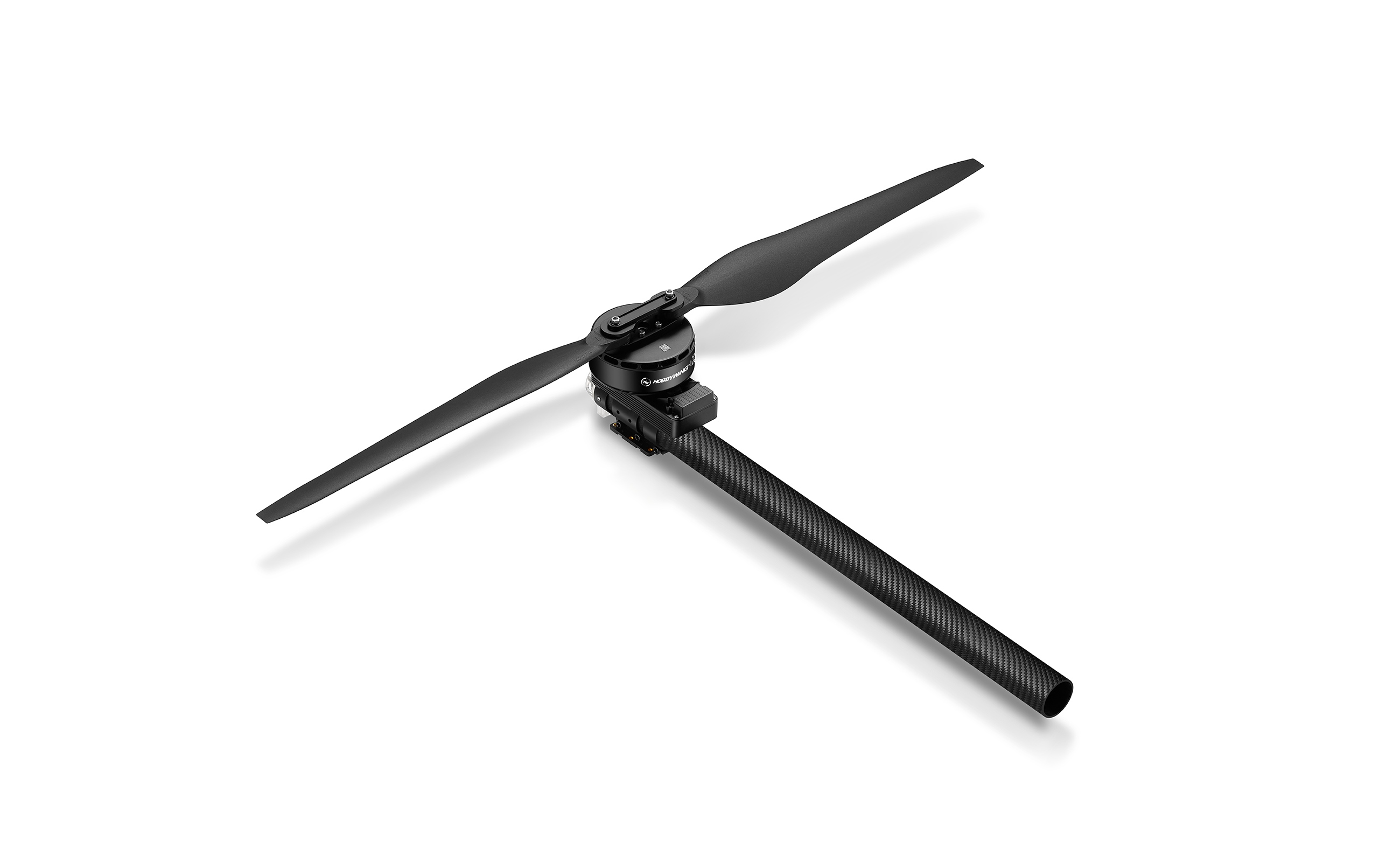

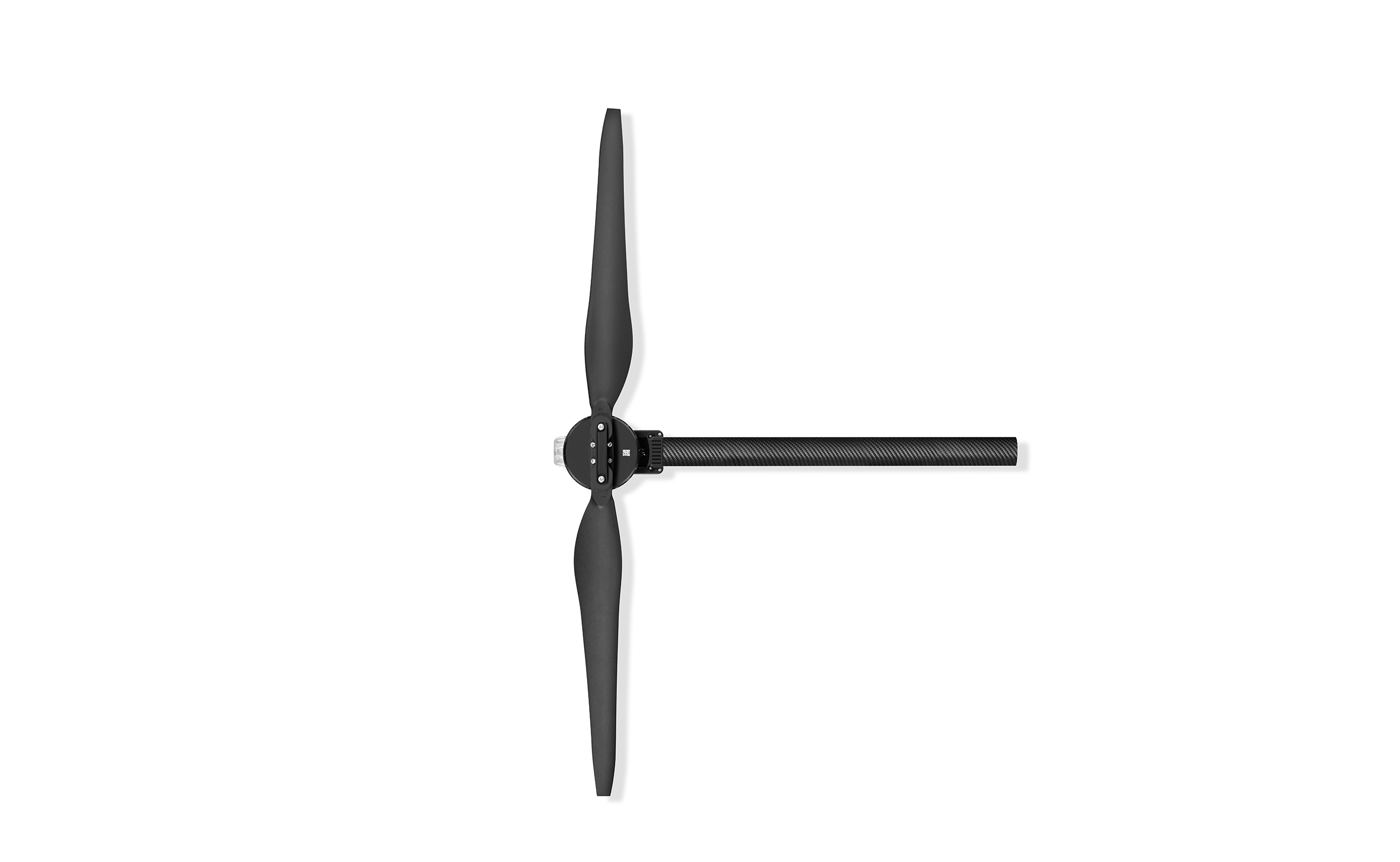

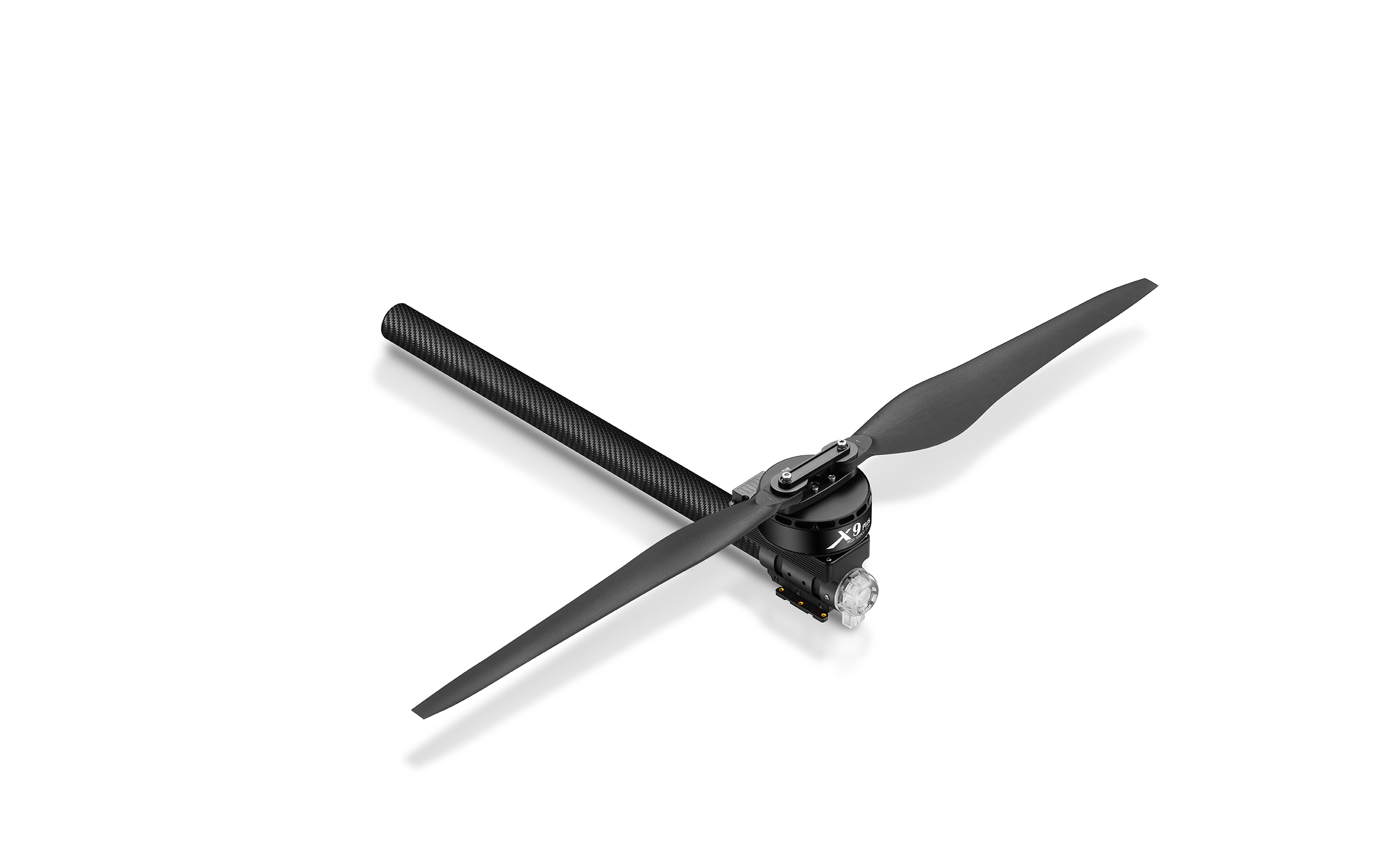

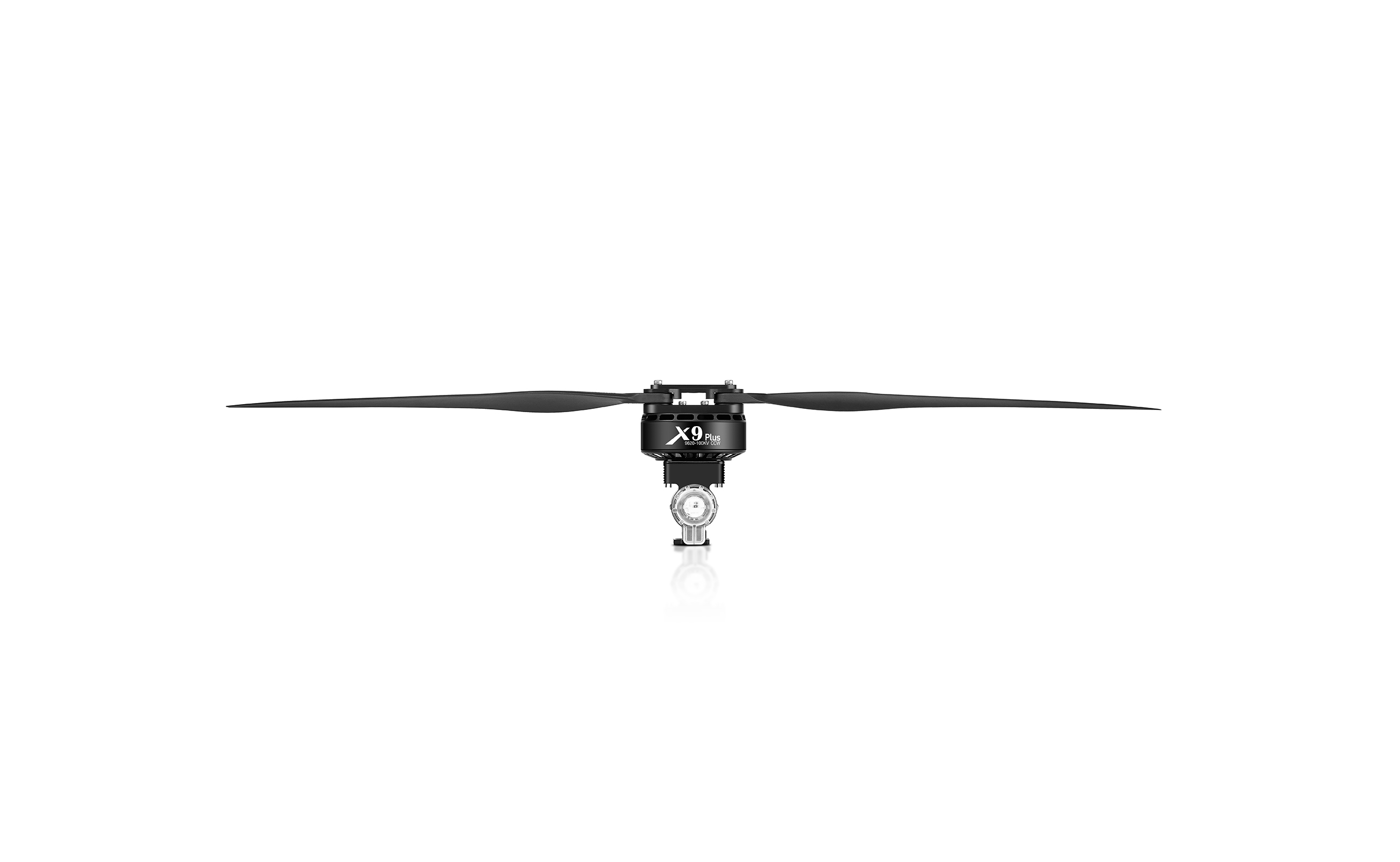

XRotor X9 Plus
27
Recommended
4-axis
KG
20L aircraft
Power and efficiency double breakthrough
The new X9plus power system has greatly improved in strength and efficiency. It uses a load of up to 13kg/axis,
with a maximum pulling force of 26.5kg for 36-inch composite aviation folding blades.
It is recommended to use 11-13kg single-axis load for better efficiency in the
range of 11-12kg. The motor adopts the 9 series large load motor from Hobbywing.
The electromagnetic design and system optimization of the single-axis load(13kg)
at fixed point strengthens the algorithm of the FOC application.
Tube-on-one
structural design
The X9-Plus is three-dimensional and
designed with an integrated motor
and ESC as one.
The installation of the lightweight structure
is convenient and can be matched
40mm
Circular diameter carbon fiber tube
Protection class IPX6
The X9-Plus is equipped with an overall waterproofing protection
of IPX6 rating. It guarantees excellent waterproofing and dustproofing
protection. The X9-Plus is anti-corrosive and is fully sealed to cope
with harsh environment and climates around the world.
Rapid cooling, collision-proof
structure design
The motor torque efficiency improves tremendously under high-power
load usage.The rotor widens the air duct from the fan and reduces the
current and heat underthe same tensile composite; The anti-impact design
of the tail end of the motorseat absorbs the impact to protect the motor and
ESC and reduces the damage caused by a crash or faulty components.
Navigation lights
More power failures are added into the system in order to find the fault.
The flashing display of the flight lights will indicate the issue and users
are able to troubleshoot them in QuickTime.
Multiple protection functions
The X9-Plus power system is equipped with several protection functions such as:
Power-on self-test, Power-on voltage abnormal protection, Current protection
and Stall protection.It is able to output an operating status data to theflight controller in
real time including; input throttle amount, responsethrottle volume motor speed, bus voltage,
bus current, phase current,capacitor temperature and MOSFET temperature, etc.
This allows the flightcontroller to grasp the electronics in real-time during operation to
improve the flight performance and efficiency. It improves the overall
system reliability.

Note: Using the Hobbywing DataLink data acquisitionmemory (Note: need to be
purchased separately) cansimultaneously collect the real-time operation data
of the 8-channel power system, and pass it to theflight controller through the bus interface to
form a closed-loop control system.
Support system upgrades
Hobbywing allows you to update your ESC to the latest
firmware and synchronize it using a
computer via the Hobbywing Data Link software at all times.
Thank you for your interest in HOBBYWING propulsion systems! For customized solutions,
please provide your contact information and technical requirements,
and we will get in touch with you within 24 hours.
captcha
By submitting this form, you agree to HOBBYWING's Privacy Policy
Thanks for reaching out!We have received your message and will get back to you shortly.
Best Regards,
HOBBYWING Team

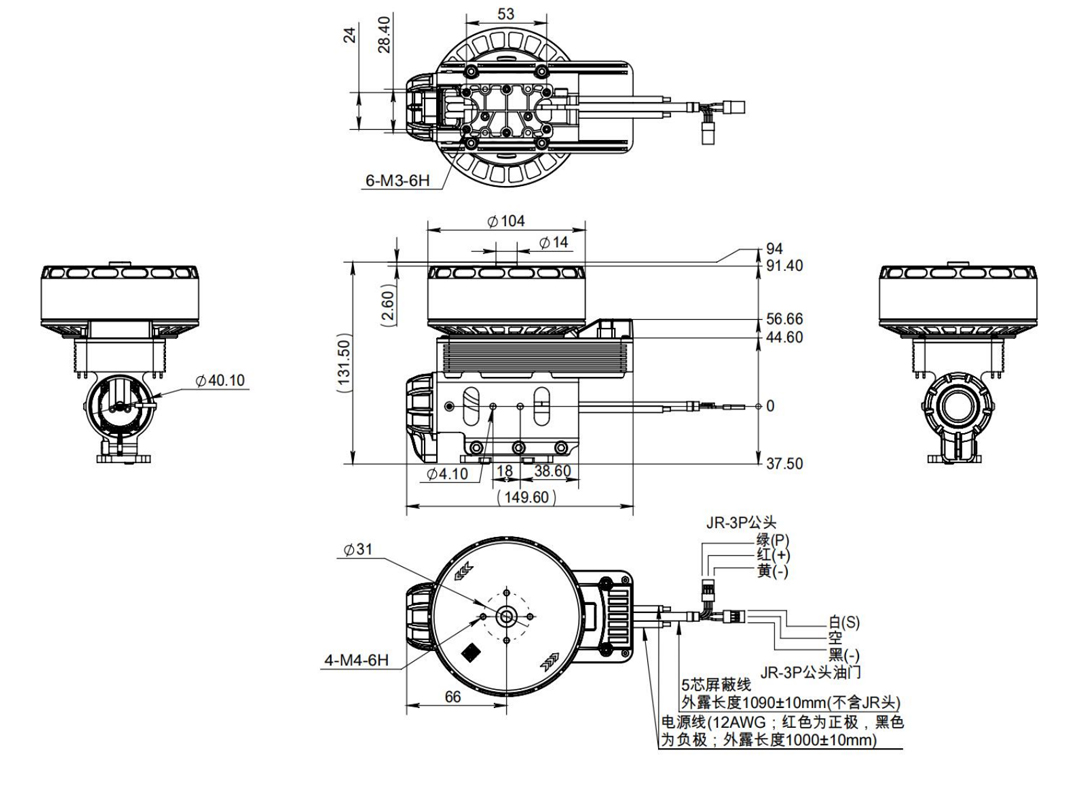

XRotor X9 PLUS CAD
Product Name
XRotor X9 Plus
Specifications
Max thrust 27kg
Recommended takeoff weight per axis 11-13kg
Efficiency of recommended takeoff weight 8.1-7.4g/W
Input voltage 18-65V
Rated voltage 12S-46V/ 14S-54V
Lithium compatible 12S/14S(LiPo)
Tube outer diameter 40mm
Weight(with cable and Props) 1760g
Cable specification Power cord:12AWG*1000±10mm Signal line:1090±20mm
Operating temperature -20~50℃
Ingress Protection Key parts IPx6
Rated power input 2000W
Rated power output 1700W
Size 149.6*104*130.5mm
Pinout Black White-PWM, GND,Black Red White-GND, 5V, P
ESC
Model XRotor 150A-FOC
Communication protocol UART
Peak current (3 seconds) 150A(3s)
Continuous current 40A
Throttle travel calibration Nonsupport
Double throttle signa Nonsupport
Operating pulse width 1050-1950μs
BEC No
Motor
Model 9620-100KV/td>
Slot& Pole 36N40P
Motor diameter 104±0.1mm
Propeller
Model MP36*19.0"
Total weight 242±5g
Material of Props Carbon fiber reinforced plastics
Sigle weight 75.5±5g

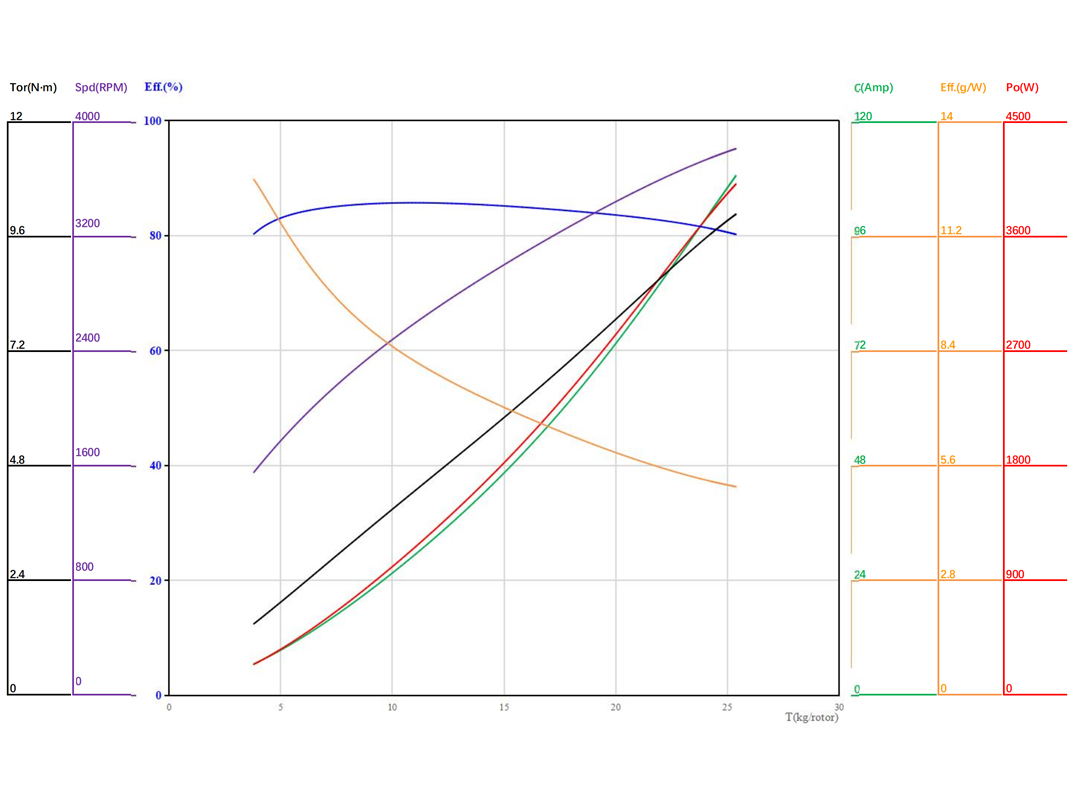

XRotor X9 Plus Load performance parameters
XRotor X9 Plus Motor Propeller Thrust Test Data

Voltage(V)

Propeller

Throttle(%)

Thrust(g)

Current(A)

Power Input(W)

Speed(RPM)

Efficiency(g/W)

Torque (N·m)

Power Output (W)

Temperature (℃)

54V(14S LiPo)

36*19.0"

33%

4470

7.3

394.2

1675

11.3

1.74

305.8

/

35%

4880

8.1

437.3

1746

11.2

1.90

346.4

37%

5367

9.1

493.7

1827

10.9

2.08

397.9

39%

5913

10.4

562.4

1916

10.5

2.29

459.1

42%

6806

12.7

685.5

2053

9.9

2.64

566.8

45%

7756

15.3

828.1

2191

9.4

3.01

690.1

48%

8744

18.2

986.1

2325

8.9

3.40

826.5

51%

9764

21.4

1157.5

2453

8.4

3.79

974.6

54%

10820

24.8

1342.9

2578

8.1

4.20

1134.8

57%

11925

28.6

1544.9

2699

7.7

4.63

1309.0

60%

13095

32.7

1768.8

2820

7.4

5.08

1500.8

63%

14346

37.4

2021.2

2942

7.1

5.57

1715.0

66%

15694

42.8

2311.1

3067

6.8

6.10

1957.5

69%

17146

49.0

2648.5

3197

6.5

6.68

2235.0

72%

18700

56.3

3043.0

3332

6.1

7.32

2553.5

75%

20341

64.8

3500.7

3472

5.8

8.02

2916.3

78%

22040

74.4

4018.0

3613

5.5

8.77

3318.4

81%

23745

84.7

4575.2

3746

5.2

9.54

3740.2

84%

25382

95.0

5131.1

3857

4.9

10.26

4143.6

87%

26852

104.2

5627.7

3935

4.8

10.87

4478.4

90%

27696

109.3

5902.2

3965

4.7

11.25

4623.8

100%

27925

111.3

6005.0

3973

4.7

11.31

4704.3
