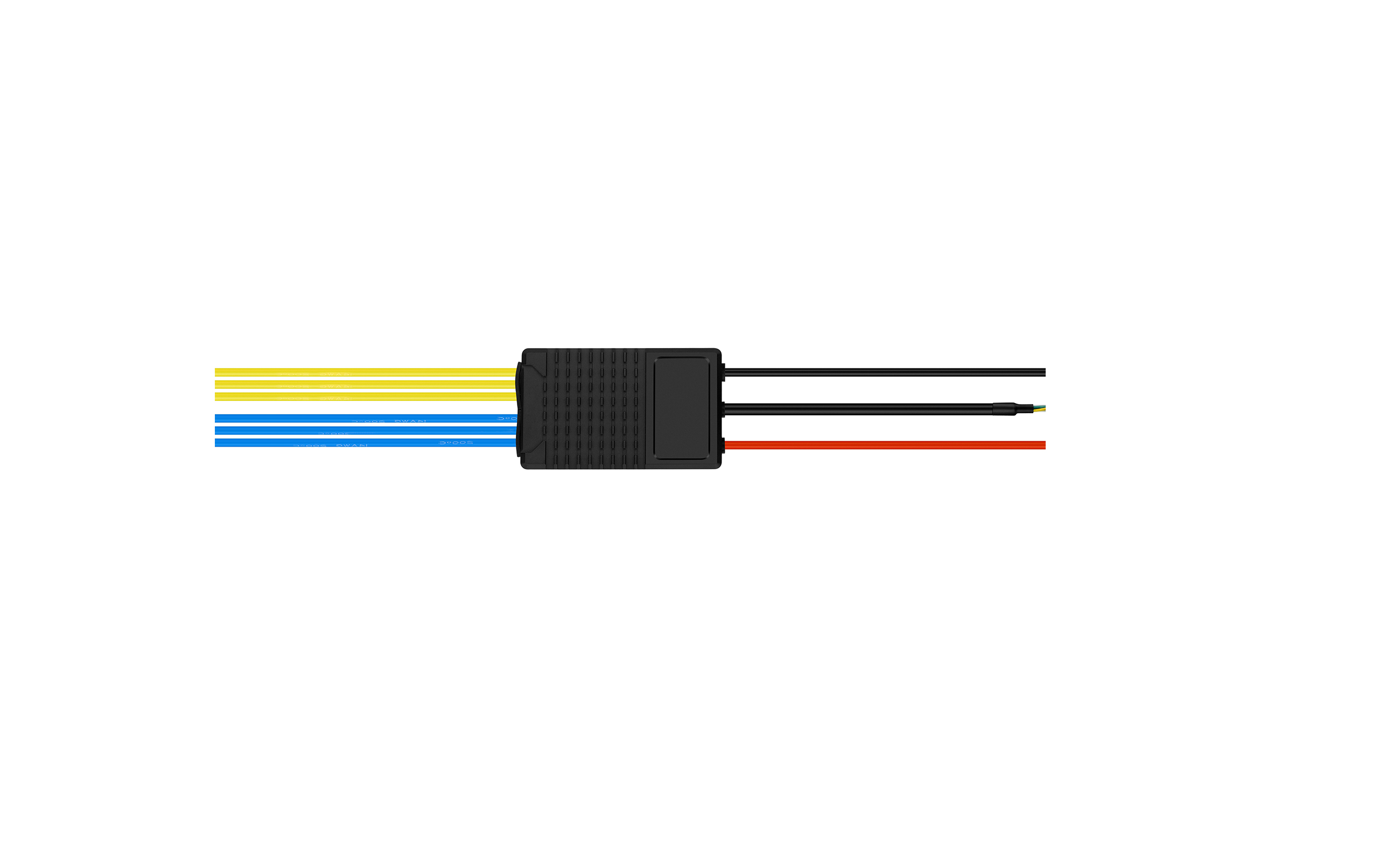

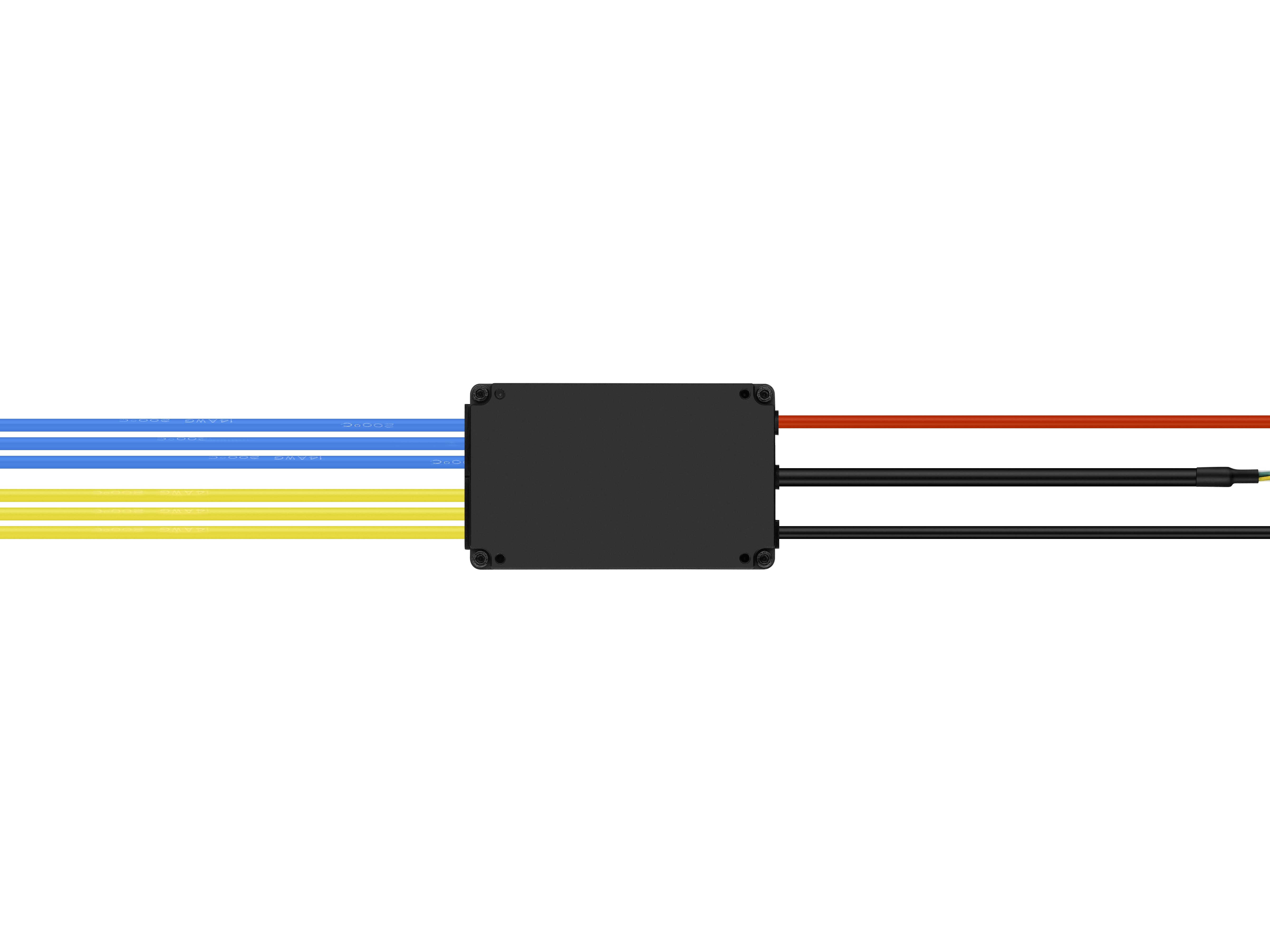

XRotor H60A(2in1) 14S BLDC V1

VTOL 2-in-1 ESC

The ESC is built-in with two independent output to drive two motors at the same time.
It optimizes space for wiring and makes installation convenient;
The overall weight is reduced to make it an ideal choice for vertical
take-off and landing drones and coaxial motor applications.
Note: This ESC is also suitable for multi-rotor applications!
IP55 protection, CAN bus communication, BLDC drive, lightweight

IP55 Protection Class

IP55 protection level is achieved with the use of nano-coating of the PCB circuit board,
together with an aluminum alloy case. The protection level also meets the environmental
tasks of various UAVs in different regions. Aluminum alloy case, nano-coated circuit board

CAN Bus Communication and Real-Time Data Output

Capacitor temperature and other operating output data are sent to the flight control to achieve
the effect of real-time monitoring of the UAV power system. The data will stored in the black box
for accident analysis.
Note: CAN bus communication has the advantages of strong real-time performance, long
transmission distance, strong anti-electromagnetic interference ability, strong error detection
ability, and adaptability to high noise interference environment.

BLDC, Compatible With More Motors

High efficiency and compatibility. Square wave drive technology, plug and play.

Thank you for your interest in HOBBYWING propulsion systems! For customized solutions,
please provide your contact information and technical requirements,
and we will get in touch with you within 24 hours.
captcha
By submitting this form, you agree to HOBBYWING's Privacy Policy
Thanks for reaching out!We have received your message and will get back to you shortly.
Best Regards,
HOBBYWING Team

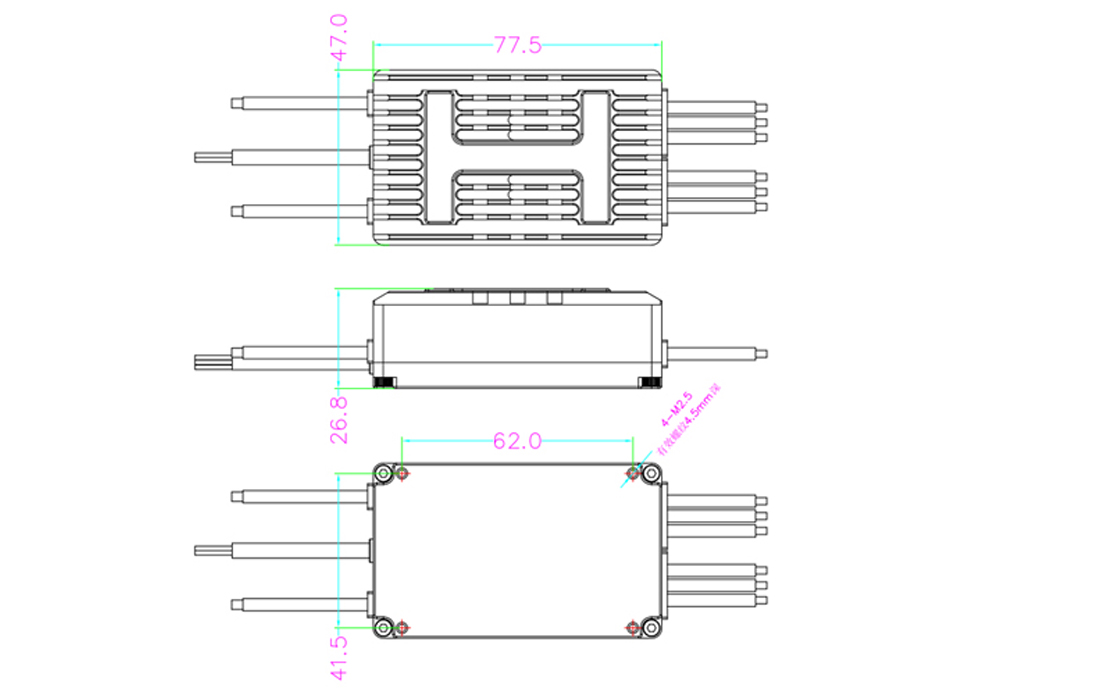

XRotor H60A(2in1) 14S BLDC V1 CAD
Product Name
XRotor H60A(2in1) 14S BLDC V1
Specifications
Input Voltage 6-14S(18-63V)
Continuous current 15A(Good heat dissipation)
Peak Current (3s) 60A(3s)
Operating Temperature -20℃~50℃
Compatibility Good
Magnetic encoder Magnetic encoder No
Waterproof Rating IP55(Custom IP67)
Weight 117.4g(Without wires)
Size 77.5x47x26.8mm
Communication protocol CAN(Custom Serial port)
TThrottle signal isolated Isolated
PWM Input Signal Level 5V/3.3V
Throttle Signal Frequency 50-500Hz
Operating Pulse Width 1100us-1940us
Throttle travel calibration No
Specifications DEO
Double throttle signal Yes
