HOBBYWING officially announces the release of the new X11 G2 UAV propulsion system, delivering enhanced overall performance and advanced features to empower agricultural and industrial multirotor drones with more efficient and intelligent flight capabilities.

X11 G2 drone power system adopts a high-performance 11115 UAV motor, paired with larger MFP 43×14 carbon-fiber folding propellers. Compared to the previous X11, the X11 G2 drone propulsion solution achieves a 15% reduction in system weight, bringing significant improvements in flight efficiency, particularly for 30L agricultural drones and Class IV UAVs.

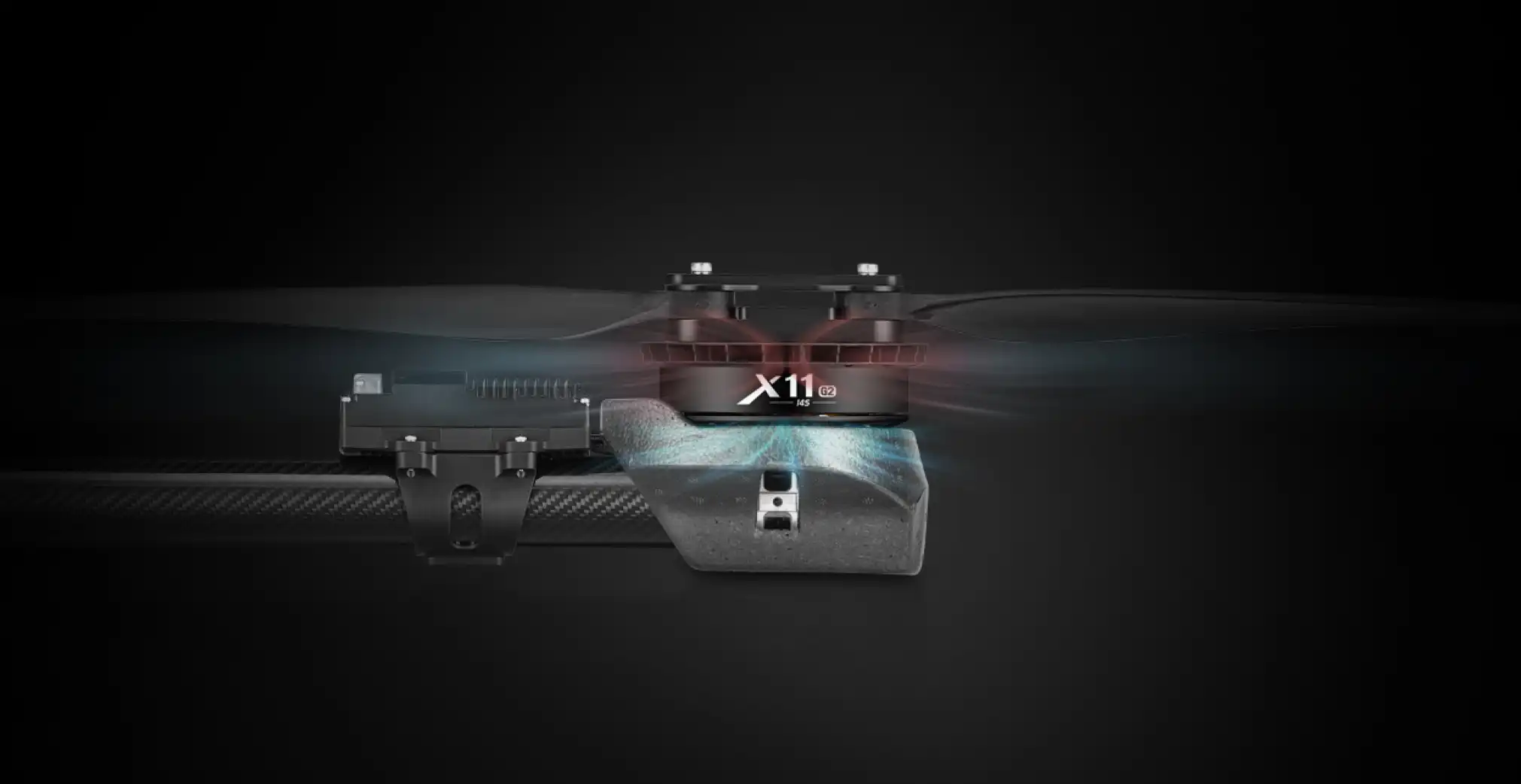

Upgraded Heat Dissipation and Protection Capabilities

HOBBYWING X11 G2 drone motor features a newest rectangular vent design that enhances heat dissipation efficiency while achieving approximately 4% weight reduction, fully unlocking the motor’s performance potential.

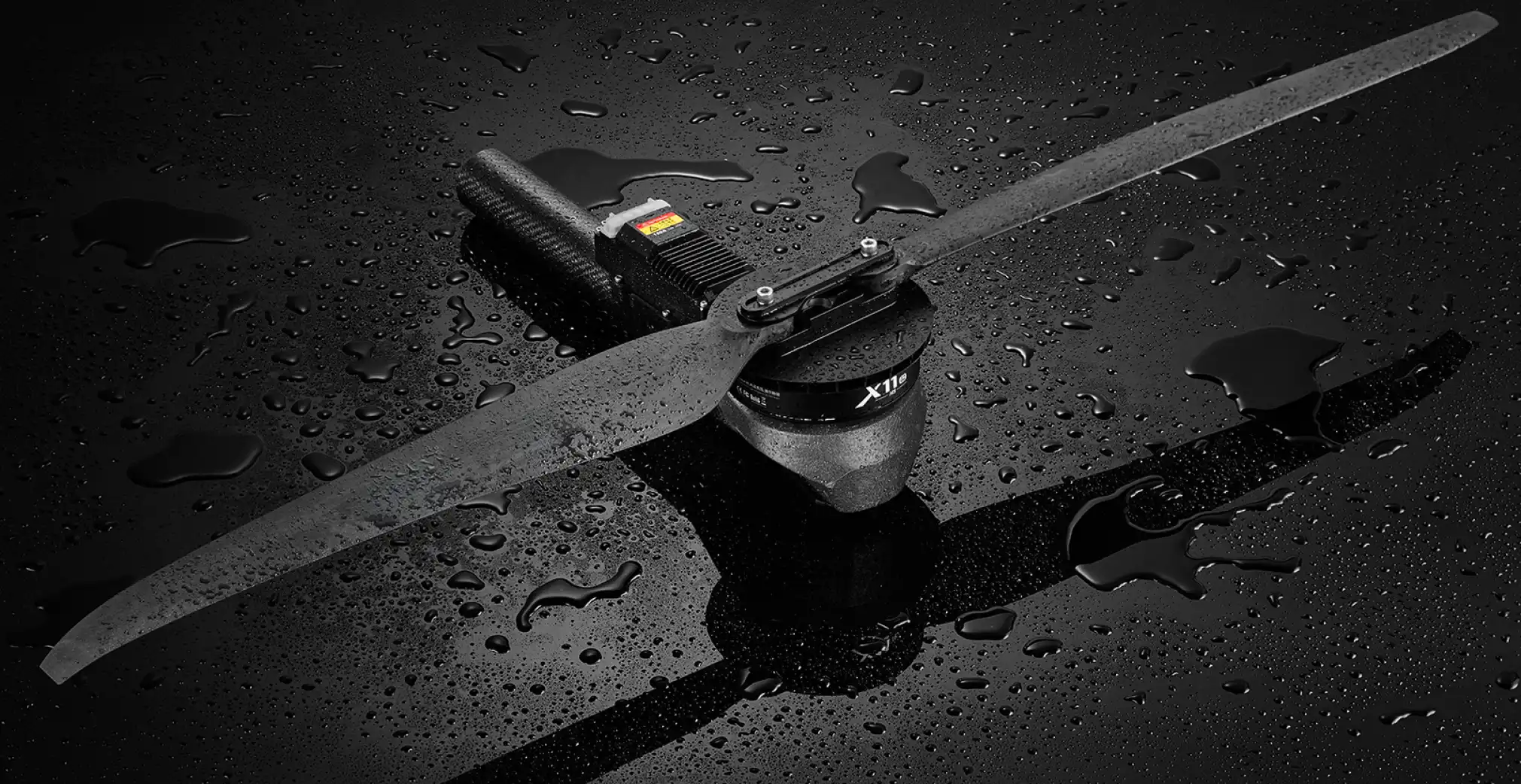

With an IPX6 protection rating, X11 G2 integrated propulsion system supports direct rinsing with clean water, effectively handling rain, pesticides, salt spray, high temperatures, and dust conditions in agricultural drone operations, thus ensuring long-term stable operation of the UAV propulsion system.

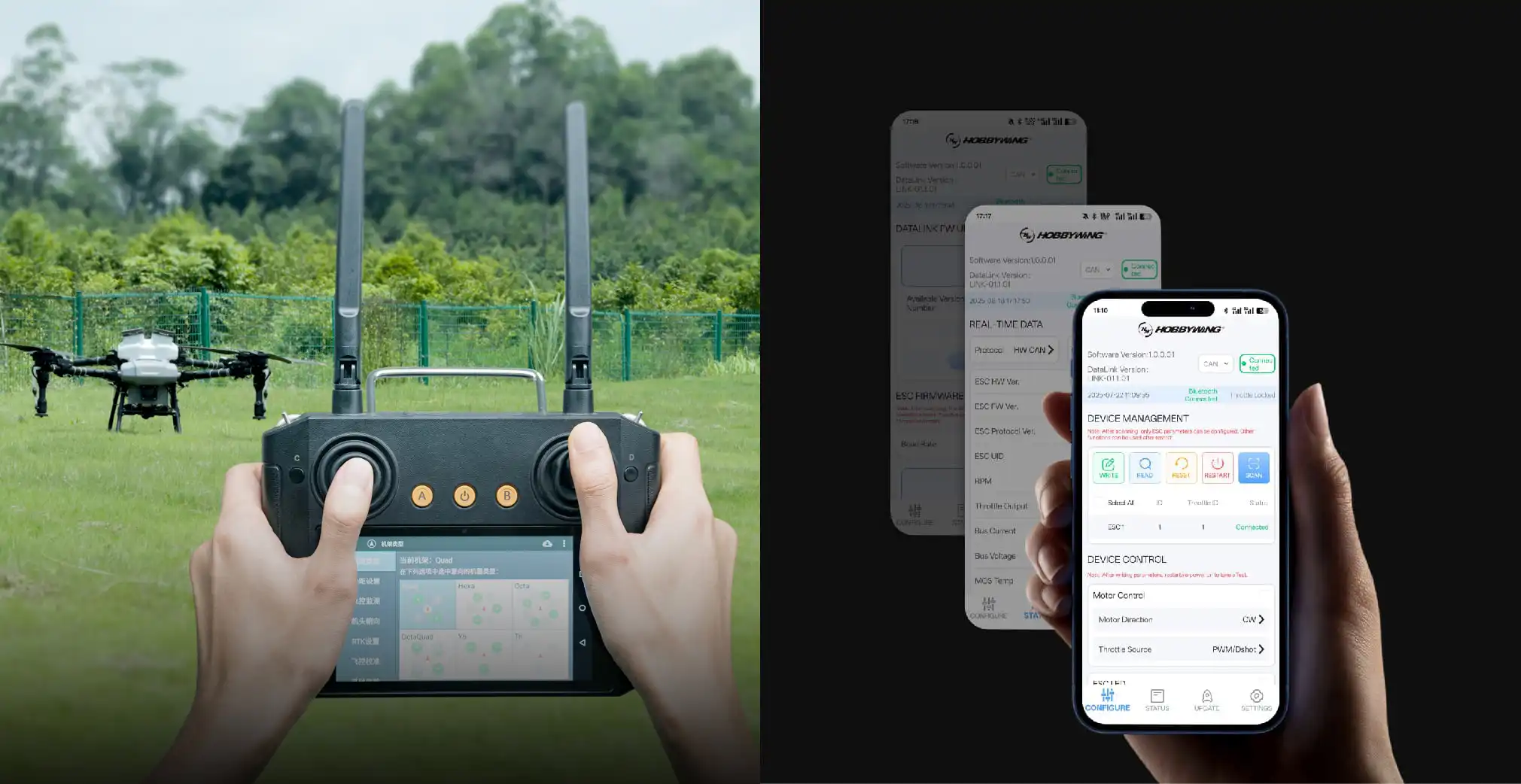

Flexible Parameter Tuning Modes

X11 G2 UAV power system offers versatile tuning options for flexible deployment:
Remote Controller Tuning (New): Quickly adjust motor rotation direction and navigation light colors on-site via remote control, ideal for emergency adjustments. Bluetooth in Mobile App (New)：Paired with the DataLinkBox G3 and DataLink V3 App, users can complete approximately 90% of ESC parameter adjustments outdoors via Bluetooth.

PC Software: the OTA function of the PC DataLink host computer software enables efficient and convenient upgrades of multiple ESC firmware within the same drone.

Dual Mode for Flatland and Highland Operations

Flatland Mode: Provides stable motor speed output and precise speed control within the operating voltage range, ideal for low-altitude, flat terrain scenarios.
Highland Mode: systematically adjust motor rotation speeds when encountering higher-altitude UAV missions.

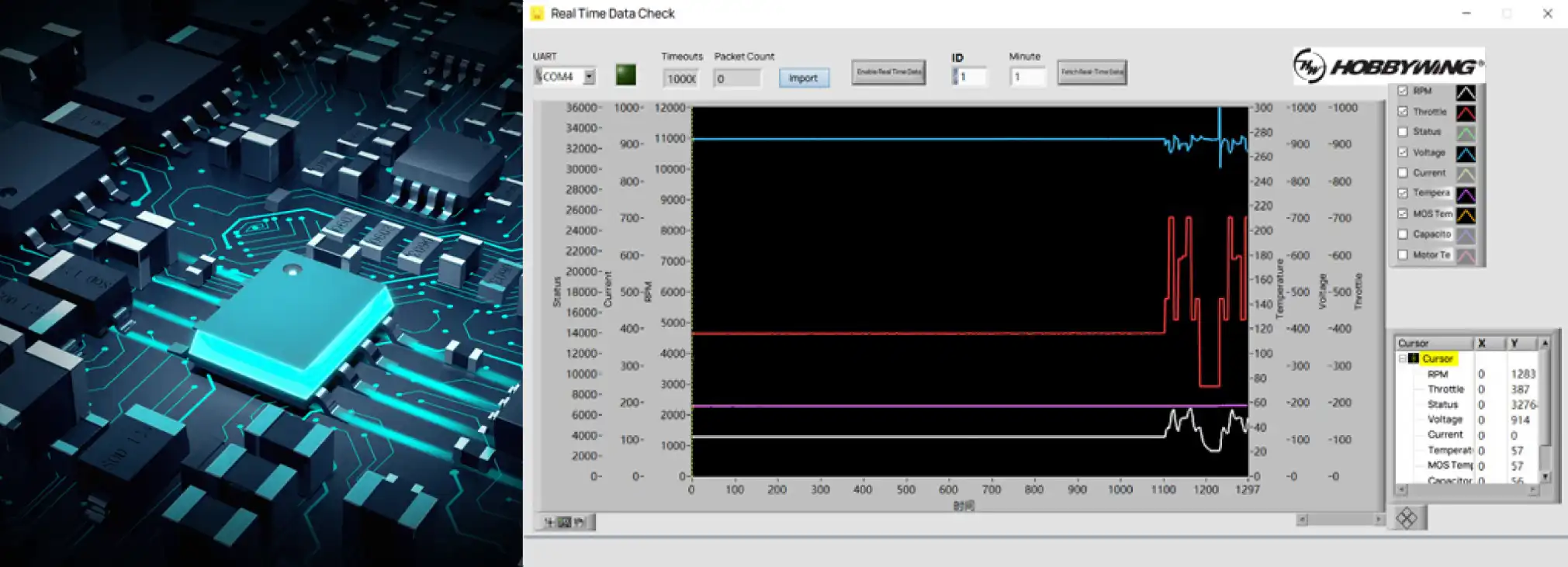

Optimized Black Box Storage Logic

Fault Storage: Precisely records fault data within milliseconds for easier fault analysis and ESC maintenance information logging.
Log Black Box:Records ESC operating data in real time to trace the flight process. Default recording duration is 1 hour, expandable up to 24 hours.

Building an Intelligent and Safe UAV Flight Ecosystem

HOBBYWING X11 G2 drone propulsion system employs a PWM + CAN dual throttle scheme, improving real-time response and interference resistance to ensure precise and reliable throttle control.

In accordance of high-speed dynamic response, X11 G2 UAV propulsion system is able to maintain stable position holding even under standalone GPS operation without RTK, safeguarding drone flight safety and route accuracy.

X11 G2 UAV propulsion system, designed for multirotor drones, supporting DroneCAN and HWCAN protocols (default: HWCAN), and enabling intercommunication with multiple mainstream flight controller systems, such as ArduPilot open source ecosystem, VK, BOYING, JIYI, and ACFLY.

HOBBYWING X11 G2 UAV power system incorporates multiple safety protections to enhance operational reliability throughout the flight mission. Self-check protections include: overvoltage warning, undervoltage warning, fail to reset throttle to zero, short-circuit fault, and disconnection fault. Running protections include: overcurrent fault, motor stall fault, throttle loss warning, MOS over-temperature warning, and capacitor over-teamperature warning.
