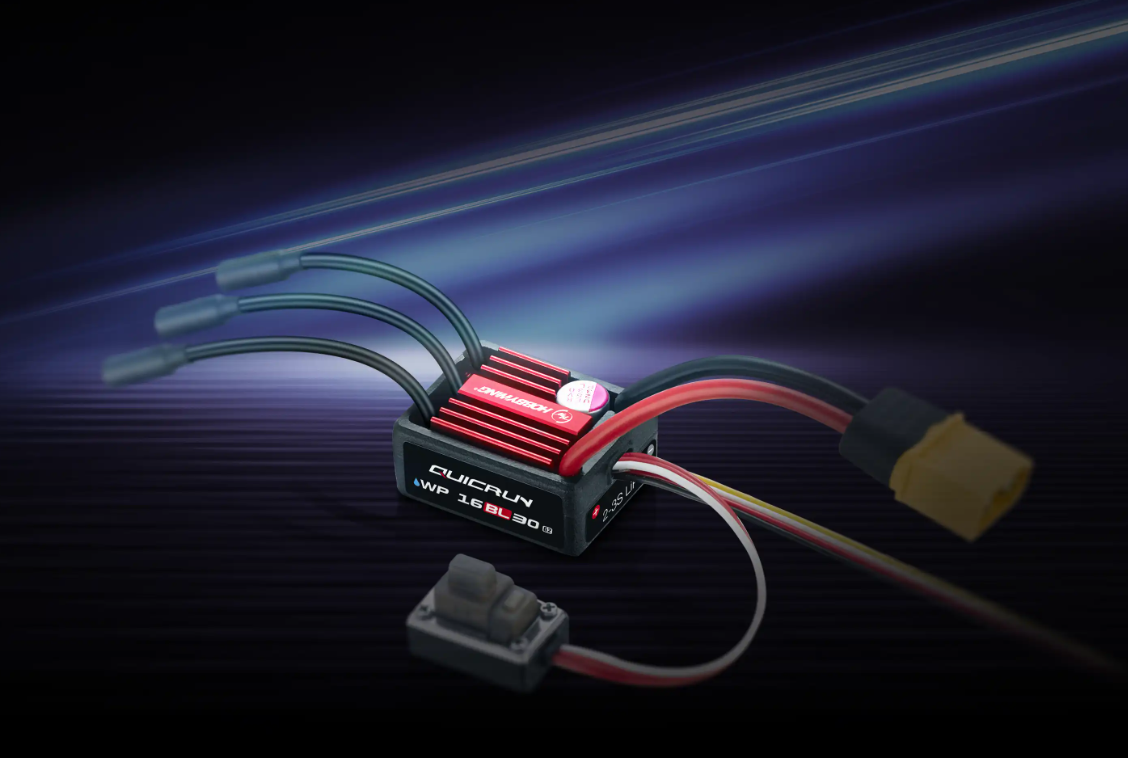

The all-new HOBBYWING QuicRun WP 16BL30 G2 waterproof brushless ESC is specifically designed for 1/16th and 1/18th scale RC cars. With wide compatibility and easy plug-and-play setup, it pairs seamlessly with QuicRun 2030 G2 and 2435 G3 brushless motors, no complex tuning required. Ideal for beginners, this compact ESC delivers a reliable, high-value brushless power system for small-scale RC applications.

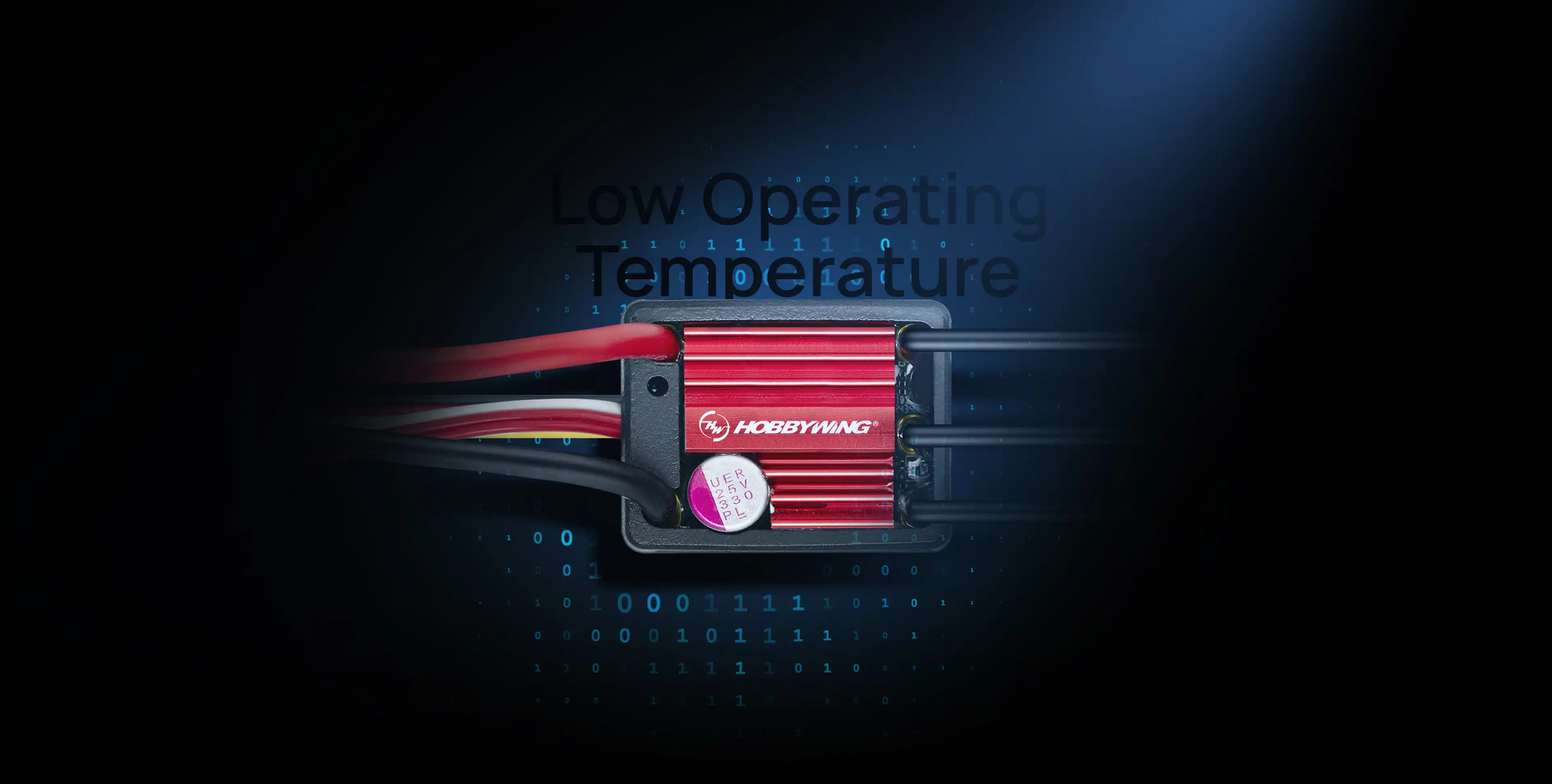

High Efficiency, Excellent Thermal Control

The QuicRun WP 16BL30 G2 ESC features Intelligent Freewheeling Technology, delivering higher drive efficiency, lower operating temperatures, improved stability, and greater reliability.

Compact Size But Powerful

Compared to the previous generation 16BL30, the G2 version features a compact size:
8.3% shorter in length
7.1% narrower in width
16.7% lower in height

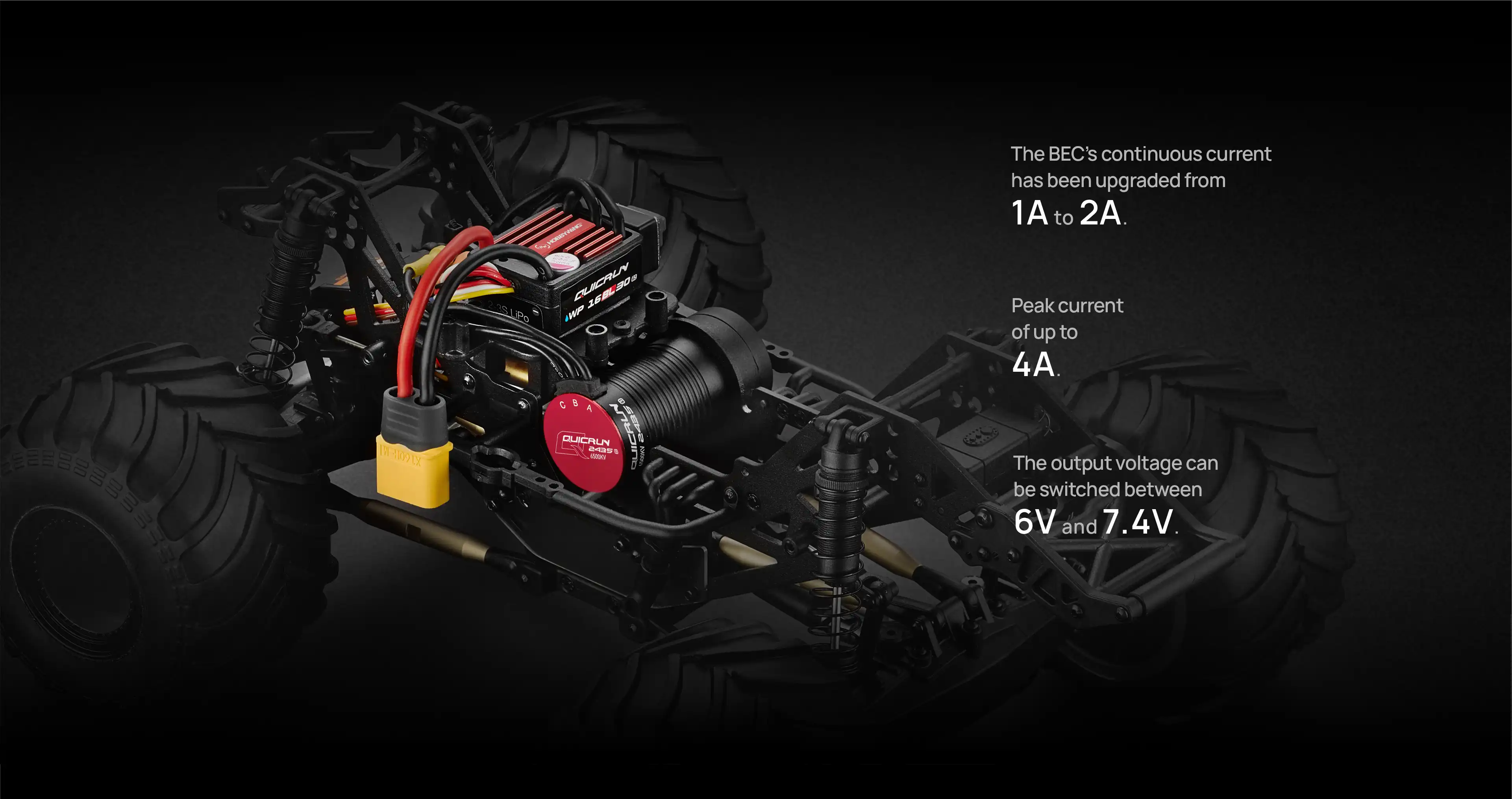

The continuous current of the upgraded BEC is upgraded from 1A to 2A, the maximum current is up to 4A, and the output voltage can be switched between 6V/7.4V. It is more convenient to install and the frame wiring is neater.

High-Reliability IP67 Brushless ESC Protection

IP67-rated protection allows it to easily handle harsh environments such as rain, sand, and muddy roads, ensuring reliable performance without environmental limitations.

Note: The IP67 protection rating described above applies under normal usage conditions, providing splash resistance, water resistance, and dust resistance, as tested under controlled laboratory conditions. These protective features are not permanent, and protection performance may degrade over time due to regular wear and aging. Do not submerge the product in water for extended periods, as this may cause damage.

Multiple Programming Methods

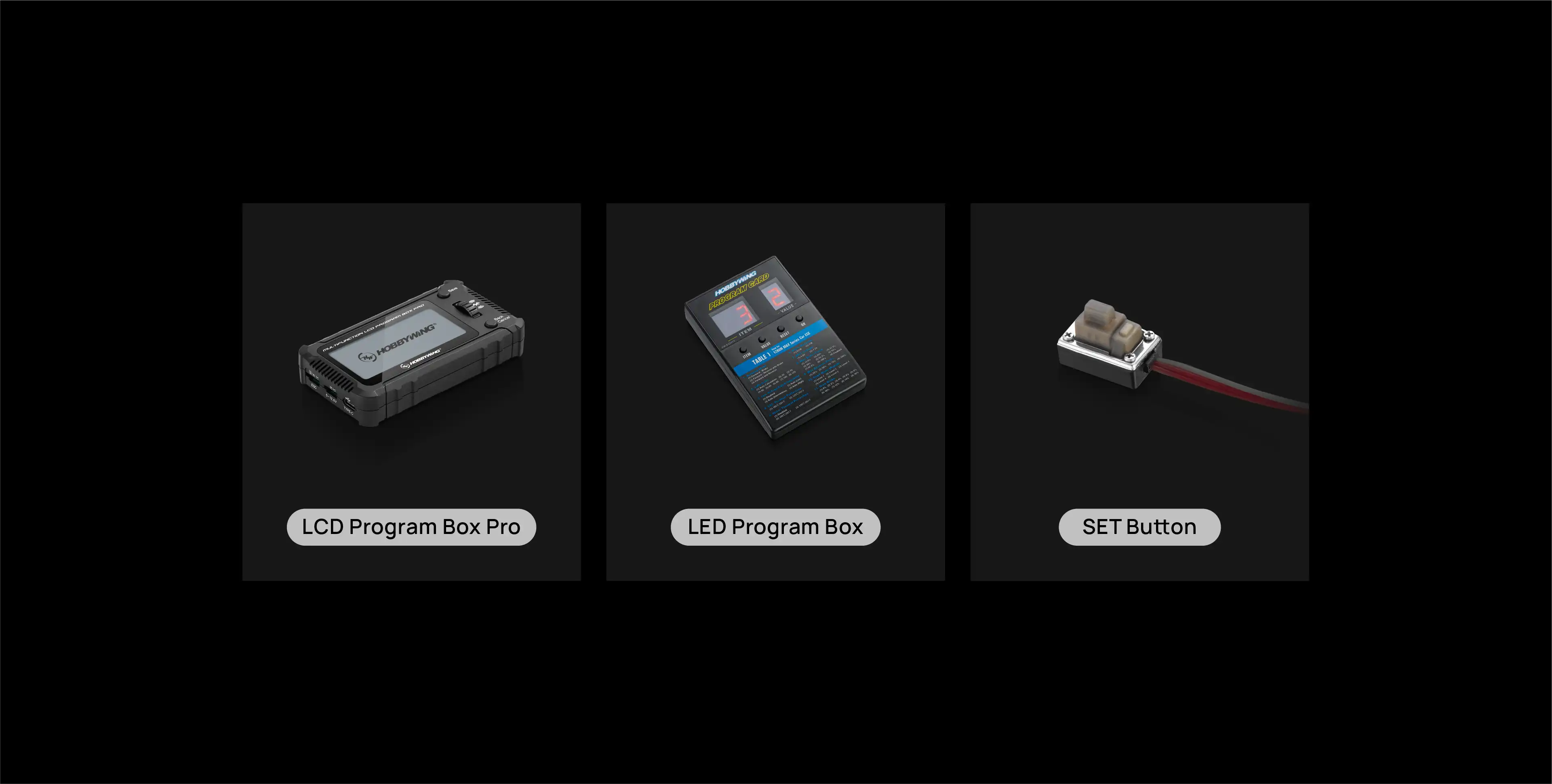

In order to meet the parameter adjustment needs of different users, QuicRun WP 16BL30 G2 ESC supports three parameter adjustment methods: LCD PRO Program Box, LED Program Box, and SET key.
