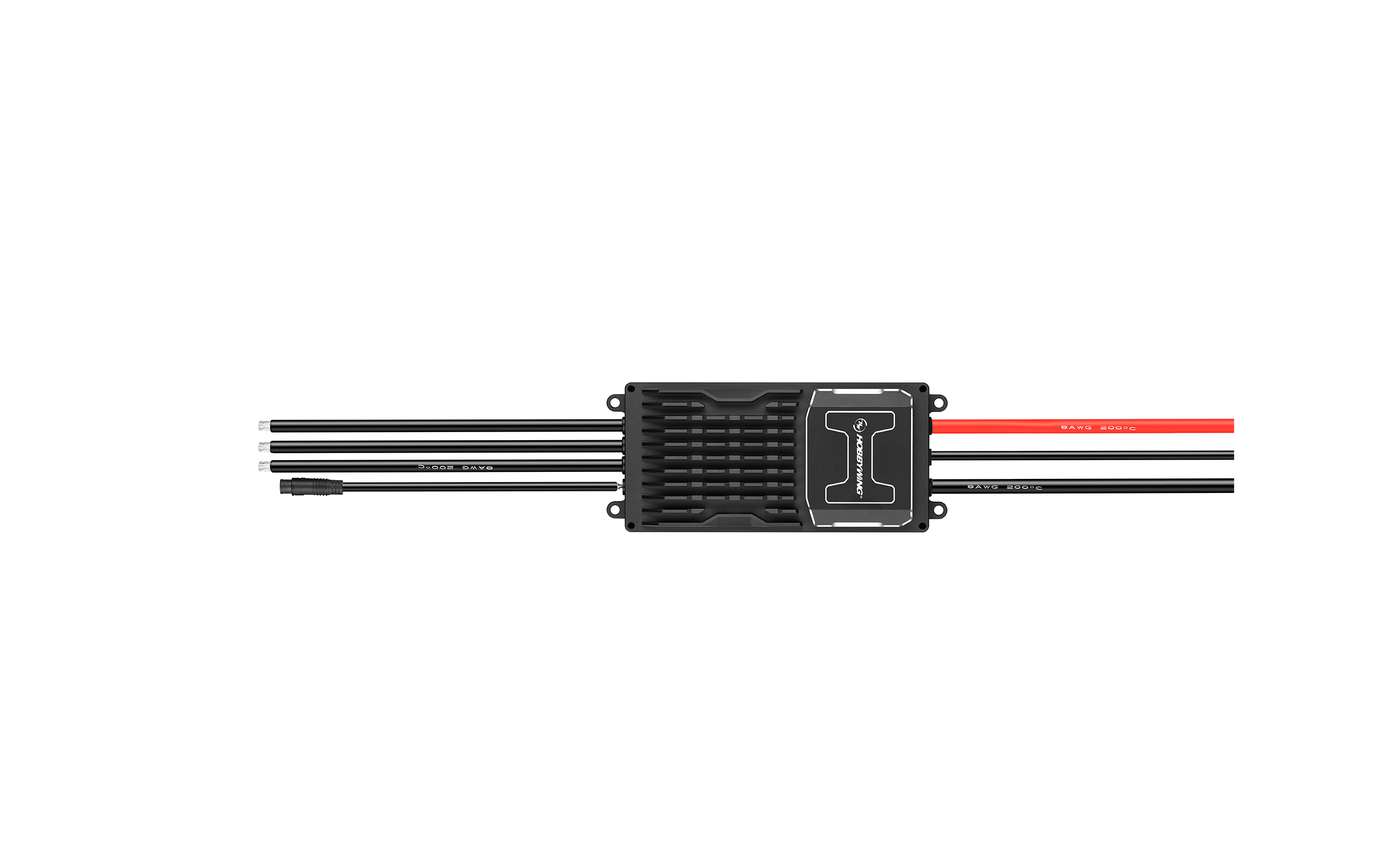

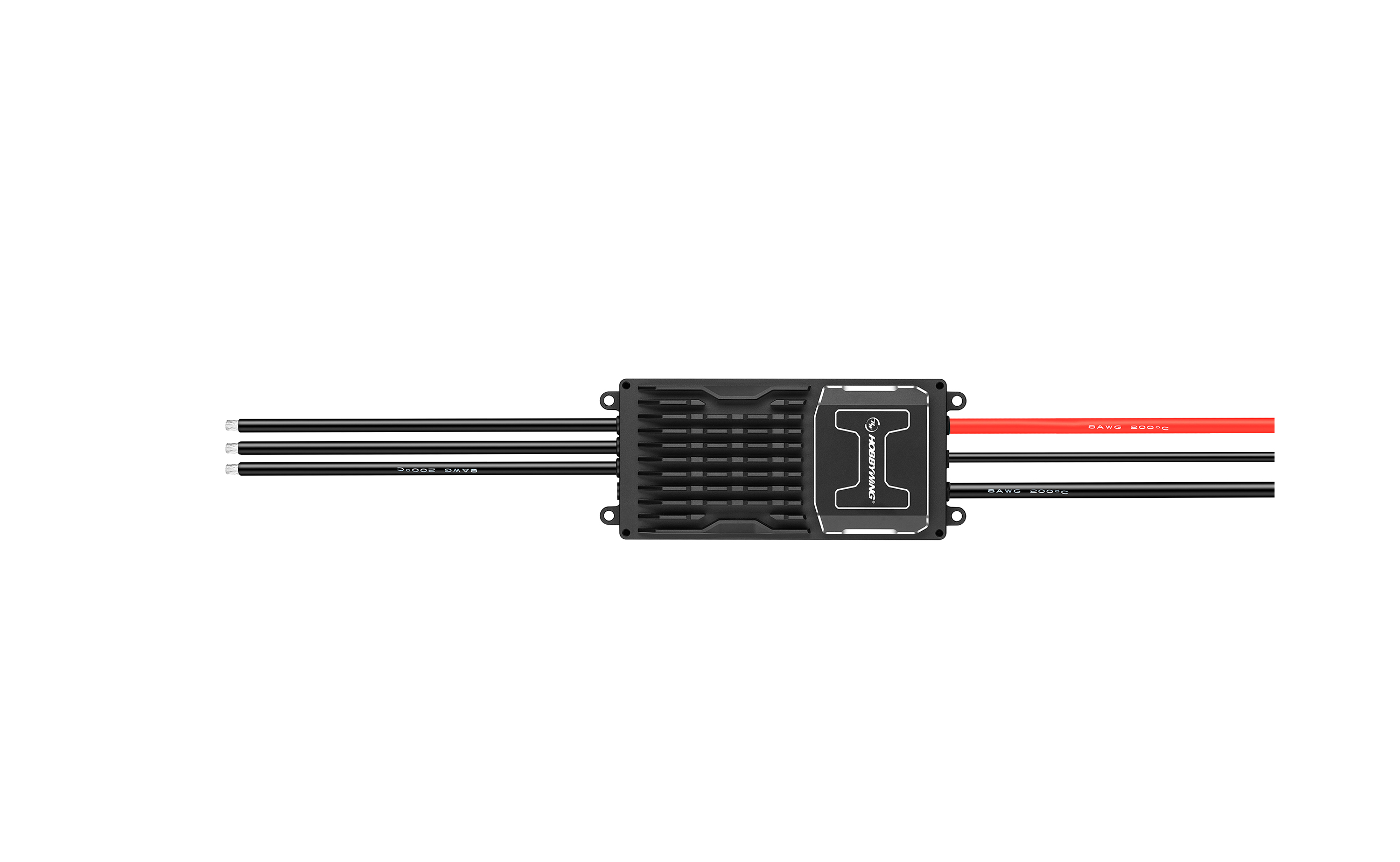

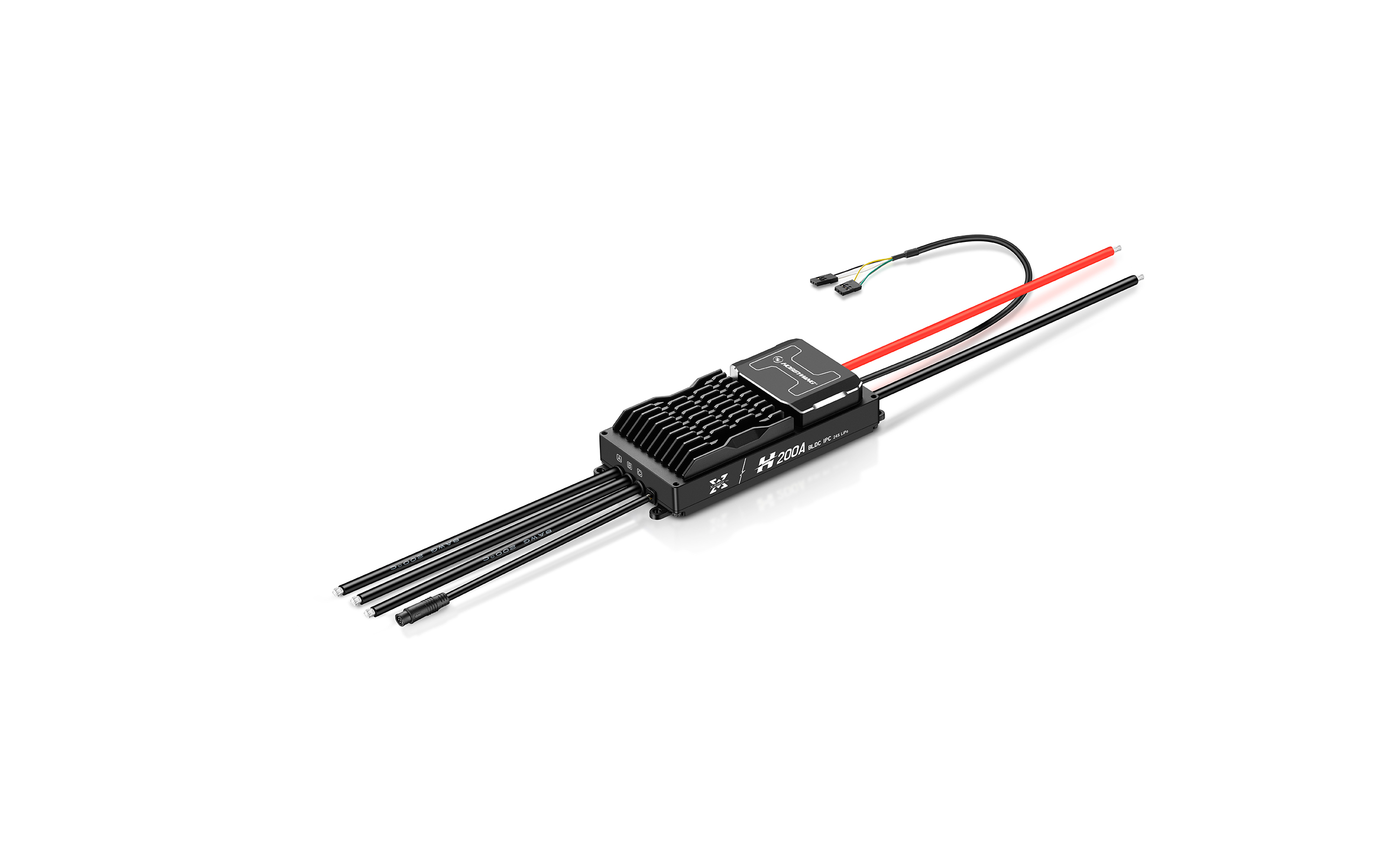

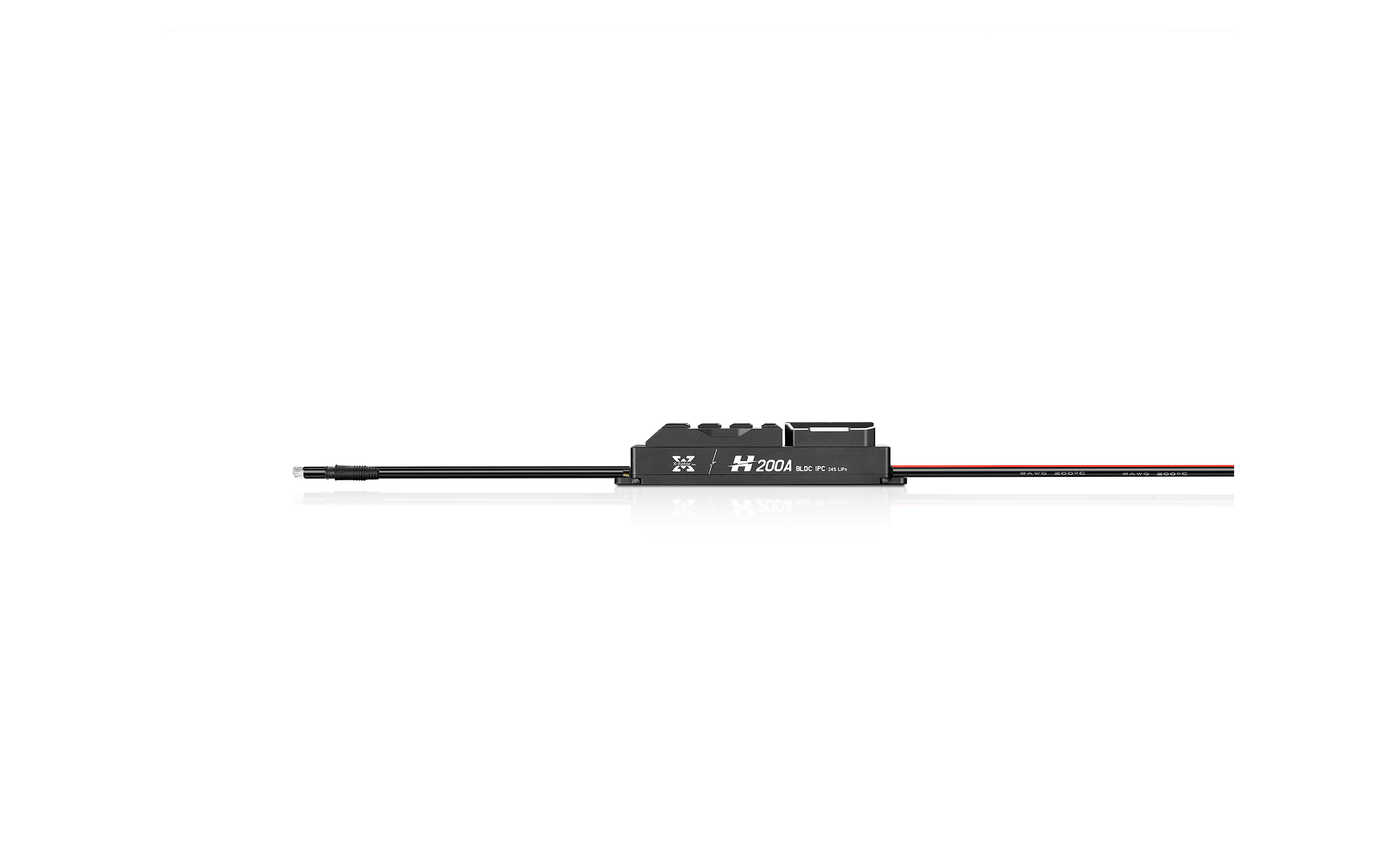

XRotor Pro H200A 24S-BLDC
XRotor Pro
H200A 24S BLDC
High-voltage and High-power Density ESC
for Heavy-load Industrial Drones
  • Specifically designed for heavy-load multi-rotor propulsion,
    medium and large VTOL rotor propulsion and cruise propulsion systems,
  • this ESC is adapted to various high-payload and cruise tasks across
     a wide range of applications.
Reliable Hardware and Software Technology
Software
Adopts a modular architecture,
supported by HOBBYWING's brand-new algorithms.
Hardware PCBA
The hardware PCBA integrates a
new-type diversion process with lower
internal resistance and incorporates
automotive-grade, wide-temperature
and high-power components for enhanced
current tolerance capacity.
Fully Isolated Design
Throttle, communication, and power
circuits are fully isolated,
providing stronger anti-interference
capacity and significantly improving the
quality of signal transmission.
Sensorless Square Wave Control for
Compatibility of Various Motors
  • Better compatibility with motors and more stable drive;
  • By adopting intelligent motor timing and synchronous
  • freewheeling technologies and upgrading algorithms,
  • the compatibility with high-KV motors is further enhanced.
Drive efficiency up to
98%
Brake response increased by
20%
This ESC ensures efficient drive
and rapid response even in
high-payload flights or challenging environments
High Ingress Protection Level,
Efficient Heat Dissipation,
Highly Lightweight,
High Power Density.
The ESC features a lightweight nano-coating,
while the outlet holes are designed with sealing rubber rings to
effectively enhance its waterproof and dustproof ability with
IP55 protection rating (IP67 is customized).
The ESC housing is designed
with double-sided heat dissipation.
The top and bottom housing are directly adhered
to the heat generating area of the power device to rapidly
dissipate heat; a large-area heat dissipation fin is provided for
vertical and horizontal conduction, which further enhances heat
dissipation efficiency under high-load and high-temperature
operation, ensuring long-term operation.
Weighing only
(excluding cables)
420g
Peak power-to-volume ratio
reaches an industry-leading
72W/cm³+
Offering higher
power output
in a smaller volume
H-series Classic Structural Design

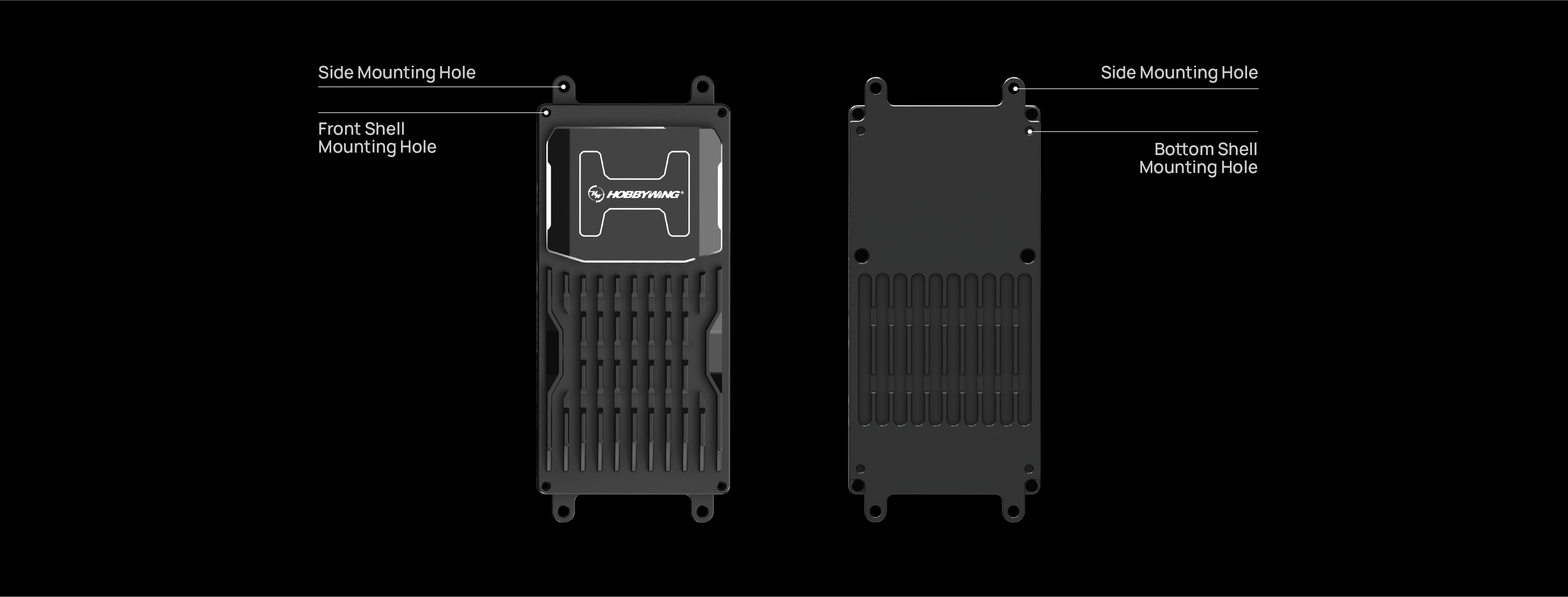

Supports multiple installation methods, including a top shell,
bottom shell, and side hole,
to meet the different installation needs of users.
Highly Reliable and Durable

(RS485 port reserved for customization)
Digital Control

Dual-throttle
Redundancy
ensures fast and seamless
switching of throttle signals
under abnormal conditions

Analog Control

Intelligent Propeller Control
  • H200A-BLDC-IPC specifically designed for VTOL and drone dock applications.
  • Compatible with different motors and propellers.
  • Open parameter settings, and adjust parameters such as the maximum
  • current of the propeller positioning according to the needs.
  • It has strong wind resistance and can effectively prevent the motor from overheating.
Self-test + Protection
The power-on self-test function allows the ESC to identify faults before takeoff.
In addition, multiple intelligent protection,
reporting warnings, and quick restart mechanism provide
comprehensive protection for flight safety and reduce losses.
Rigorous Testing Process for Higher Durability
  • The ESC undergoes stringent industry tests, including drive compatibility test,
  • temperature/humidity combined vibration tests,
  • and high and low temperature tests to ensure the durability
  • and stability of the ESC and maintain superior
  • performance even in complex and extreme environments.
Specific test items are
Drive Performance
Functional Impact
0-600hz&10G Vibration
High and low Temperature Start/Stop
Operation
Storage
Temperature Cycling
Humidity Gradient
Dustproof
Waterproof
Thermal Shock
Load Endurance Test
Over 1000-hour Fatigue Life Test
Fault Analysis,
Portable Parameter Adjustment,
and Smarter Flight

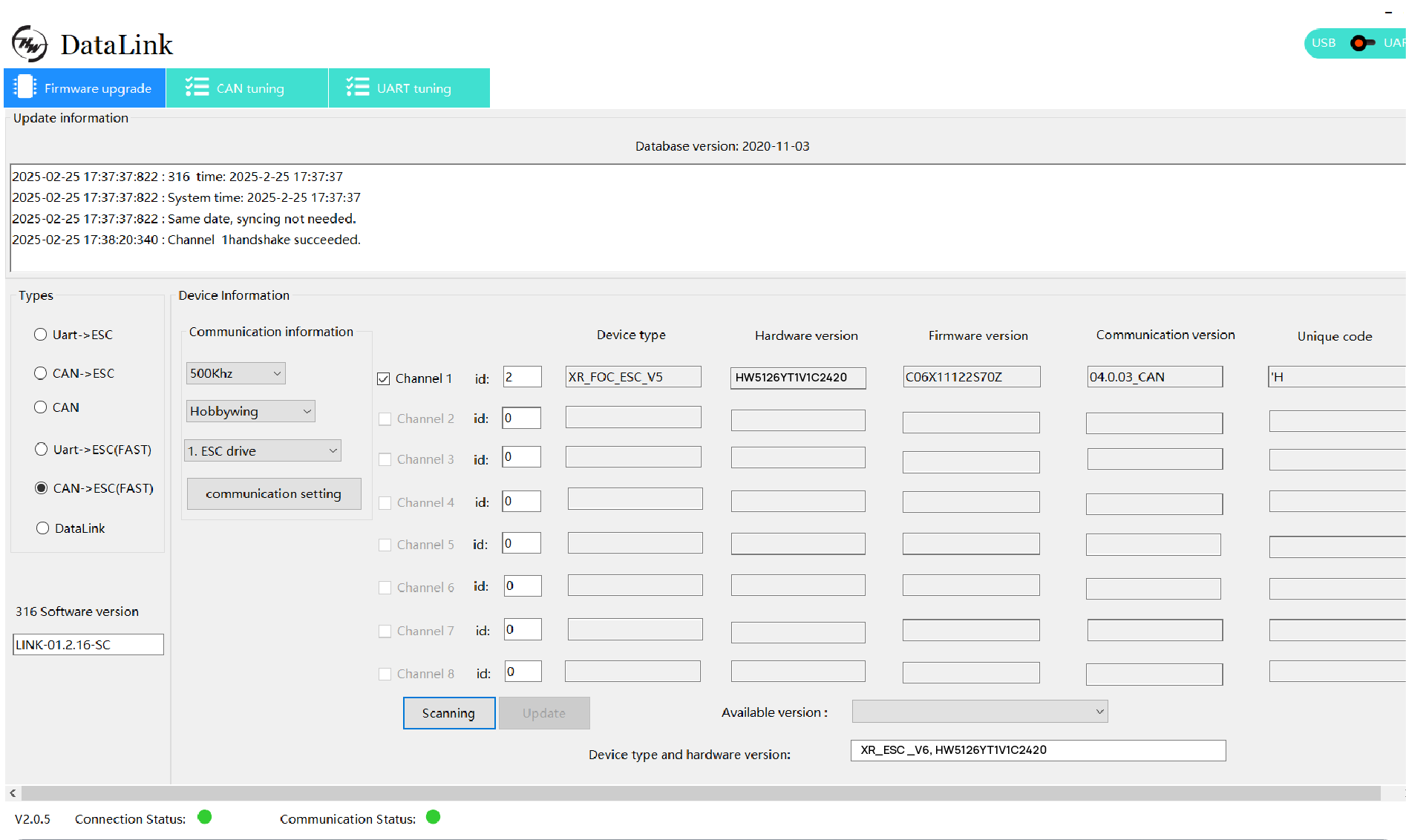

With HOBBYWING’s proprietary host computer software
Users can easily adjust drive parameters,
CW/CCW rotations, and light color
With HOBBYWING’s proprietary host computer software
In addition, OTA firmware upgrade
is supported to optimize flight
performance

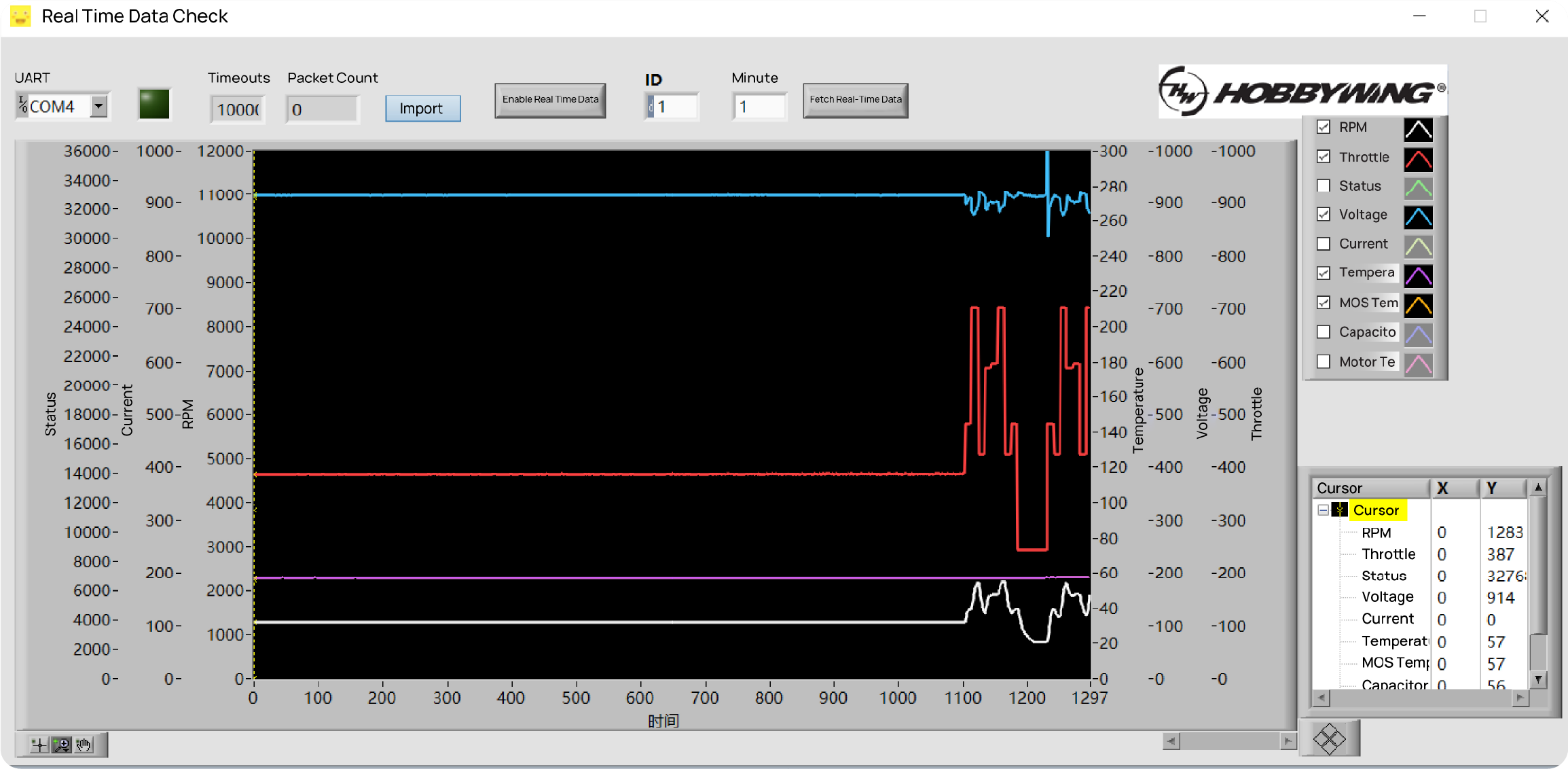

The built-in blackbox
can accurately record the factual operating
data at the millisecond level to facilitate
traceability analysis and fault diagnosis
Fault Analysis,
Portable Parameter Adjustment,
and Smarter Flight
With HOBBYWING’s proprietary host computer software
Users can easily adjust drive parameters,
CW/CCW rotations, and light color
With HOBBYWING’s proprietary host computer software
In addition, OTA firmware upgrade
is supported to optimize flight
performance
The built-in blackbox
can accurately record the factual operating
data at the millisecond level to facilitate
traceability analysis and fault diagnosis
Wide Range of Flight
Control Compatibility
The ESC supports DroneCAN protocol and intercommunication
with multiple mainstream flight control systems,
such as ArduPilot open source ecosystem, VK, Byaero and Jiyi.
It also supports CAN communication to build an intelligent flight ecosystem.

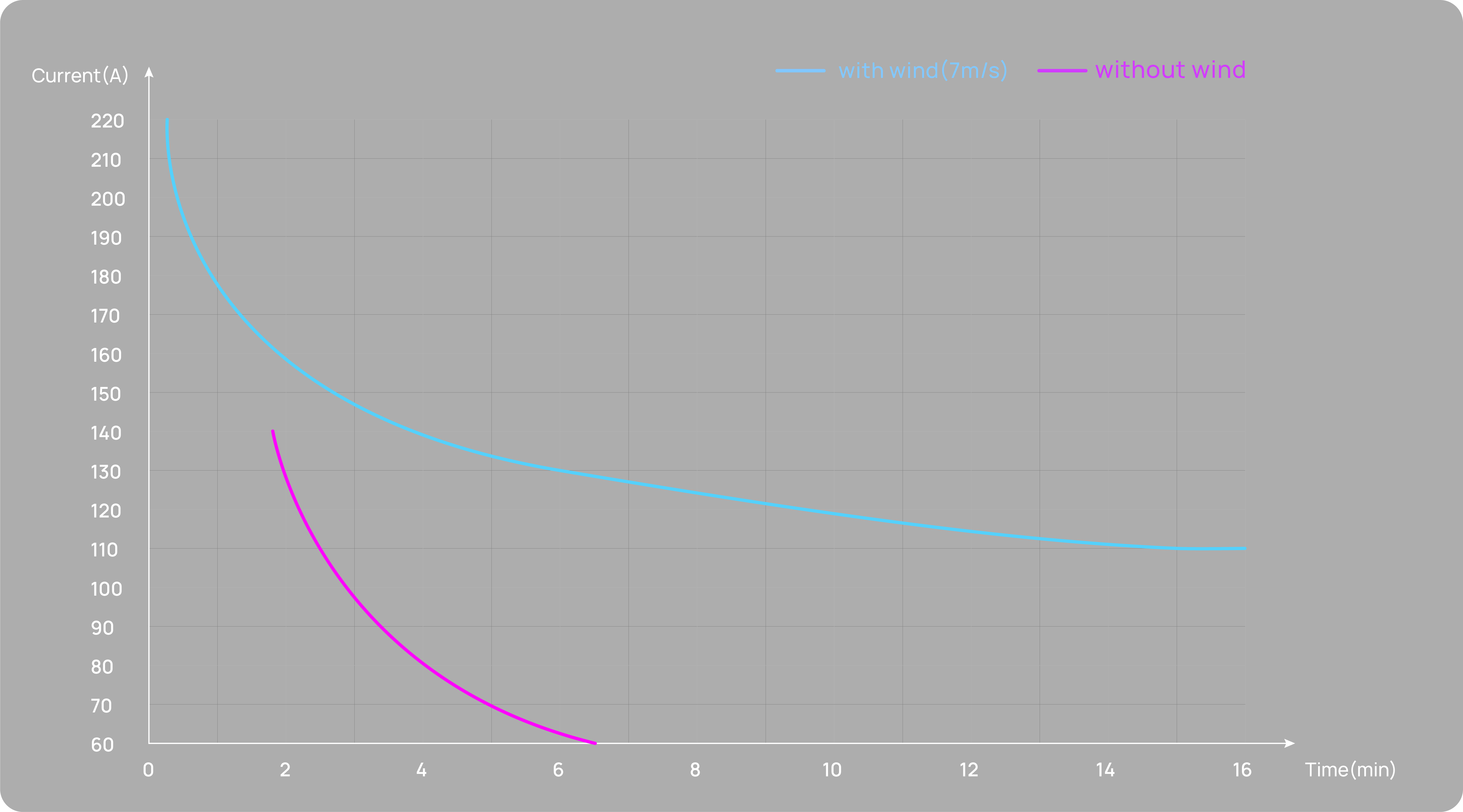

Current-Time Graphs
Measured in a lab environment at a room temperature of 25°C and sea level altitude with current input adjustment.
Results may vary slightly depending on the motor and propeller combination and are provided for reference only.
Recommended Application Combinations
  • Motor
    V11130-55KV,V11122-60KV
  • Takeoff Weight / rotor
    20~26 kg
  • Propeller
    MV 42x16.5",MV 40.1x16"
  • Takeoff Weight of Quadrotor
    80~104 kg
  • Battery
    24S LiPo
Thank you for your interest in HOBBYWING propulsion systems! For customized solutions,
please provide your contact information and technical requirements,
and we will get in touch with you within 24 hours.
captcha
By submitting this form, you agree to HOBBYWING's Privacy Policy
Thanks for reaching out!We have received your message and will get back to you shortly.
Best Regards,
HOBBYWING Team

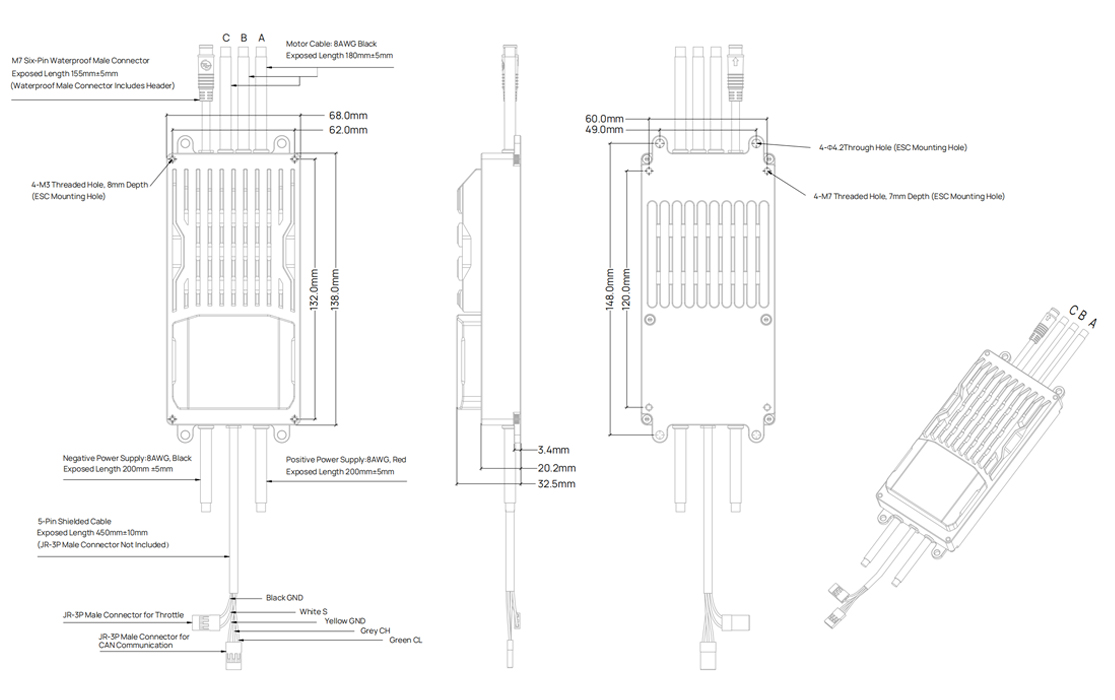

XRotor Pro-H200A-24S-BLDC CAD
XRotor Pro-H200A-24S-BLDC-IPC CAD
Product Name
XRotor Pro-H200A-24S-BLDC XRotor Pro-H200A-24S-BLDC-IPC
Specifications
Input Voltage 36~108V 36~108V
Continuous Current 100A(Good heat dissipation) 100A(Good heat dissipation)
Peak Current (15 seconds) 220A (15s) 220A (15s)
Operating Temperature -40℃~65℃ -40℃~65℃
Communication Protocol CAN / RS485(Custom Serial port) CAN / RS485(Custom Serial port)
Throttle Signal Isolated Mode Throttle And Communication Isolation Throttle And Communication Isolation
Firmware Update Supported Supported
Digital Throttle Supported (CAN) Supported (CAN)
PWM Input Signal Level 5V/3.3V 5V/3.3V
Throttle Signal Frequency 50-500Hz 50-500Hz
Operating Pulse Width 1100-1940μS 1100-1940μS
Throttle Travel Calibration Not Supported Not Supported
Double Throttle Signal Supported (CAN and PWM) Supported (CAN and PWM)
Propeller Positioning Not Supported Supported
Fault Storage 2~48 hours of operating data& fault code storage 2~48 hours of operating data& fault code storage
Ingress Protection Rating IP55 (Customizable up to IP67) IP55 (Customizable up to IP67)
Weight(Without Cable) 420g 420g

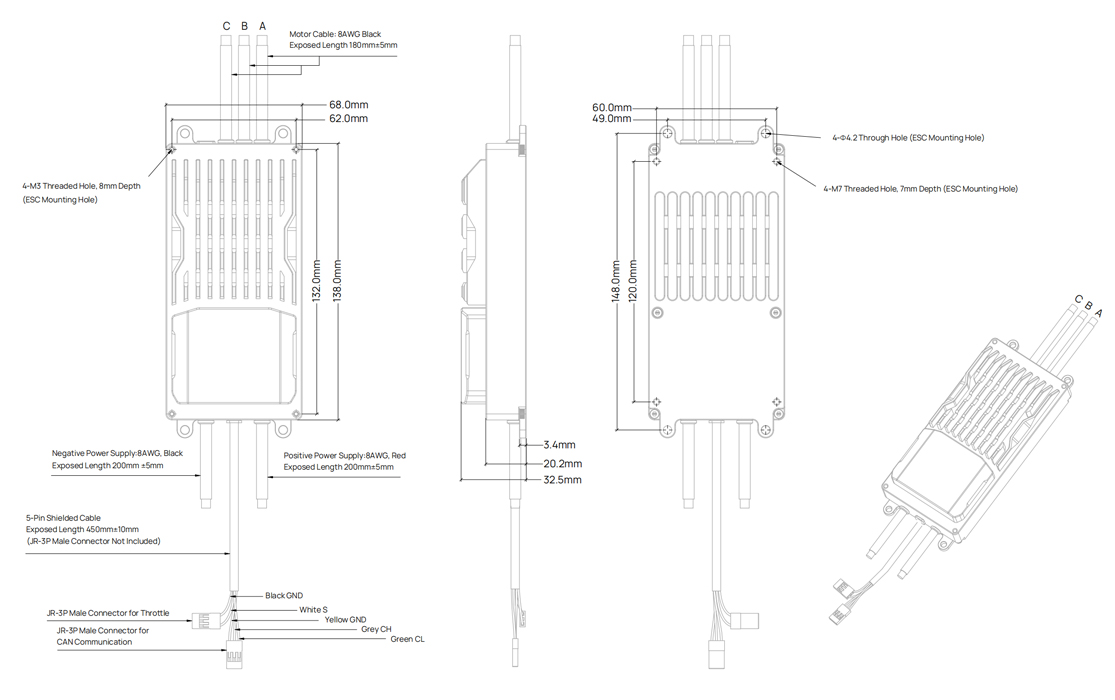

Size 138*68*32.5mm 138*68*32.5mm
Cable Specification Input: Silicone cable-8AWG-200mm *2
Output: Silicone cable-8AWG-180mm *3
Signal: Shielded cable - 5pin - 450mm * 1, JR-3Pin male connector * 2
Input: Silicone cable-8AWG-200mm *2
Output: Silicone cable-8AWG-180mm *3
Signal: Shielded cable - 5pin - 450mm * 1, JR-3Pin male connector * 2
