Source : HOBBYWINGDate : 23rd Sep 2025
The QuicRun Fusion Pro Elite is an advanced FOC all-in-one power system that integrates high performance, a compact design, and intelligent control. Leveraging superior FOC (Field Oriented Control) drive technology, it delivers high low-speed torque and exceptionally smooth operation, making it ideally suited for 1/10th scale crawlers. It empowers drivers to perform reliably across various complex terrains.
1.It features an ultra-compact integrated design with a length of just 48.5mm, 9.5mm shorter than the Fusion Pro version and 1.3mm shorter than the AXE 540 motor, offering greater installation flexibility and compatibility.
2.The ESC supports 2-4S LiPo with a maximum continuous current output of 50A, ensuring consistent power delivery without cutting out.
3.The BEC now offers an additional 8.4V output voltage, with three adjustable options: 6V/7.4V/8.4V and a maximum output current of 10A, easily supporting standard & high-voltage servos, light sets, winches, and other peripherals.

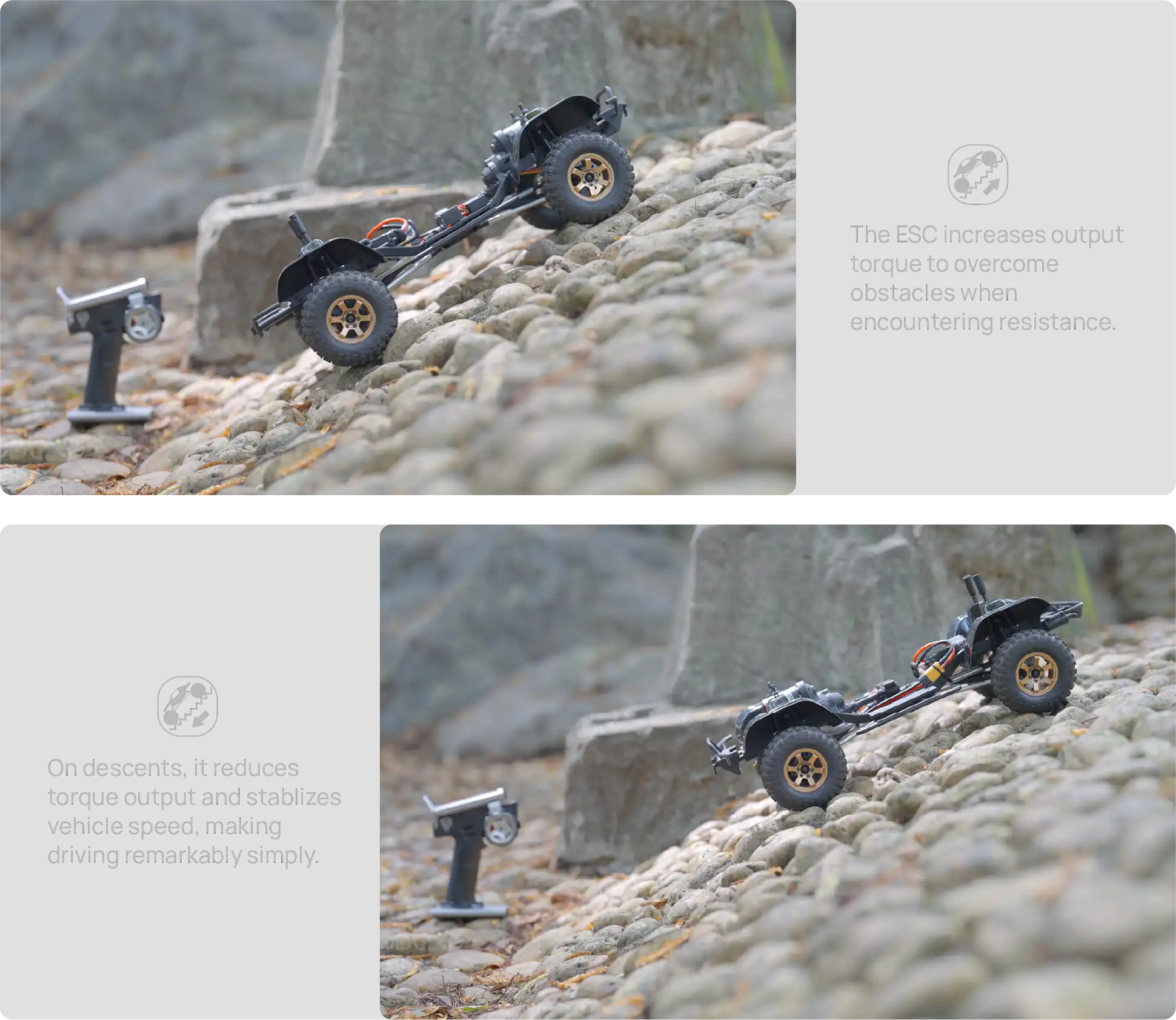

4. Built-in intelligent torque output and speed closed-loop control system automatically adapts to different road conditions for simpler control. The ESC will increase torque output when climbing to overcome resistance and automatically reduces torque and stabilizes speed during descent.。
5. The entire power system is rated IP67 for waterproof and dustproof performance, ready to handle rain, snow, mud, and water-filled tracks with ease.
1.Supports AUX external channel control for real-time parameter adjustment via remote control.
When the yellow wire of the signal cable is connected to a free channel on the receiver, users can adjust ESC parameters (e.g., running mode, drag brake force, drag brake acceleration, reverse force, brake force) remotely.

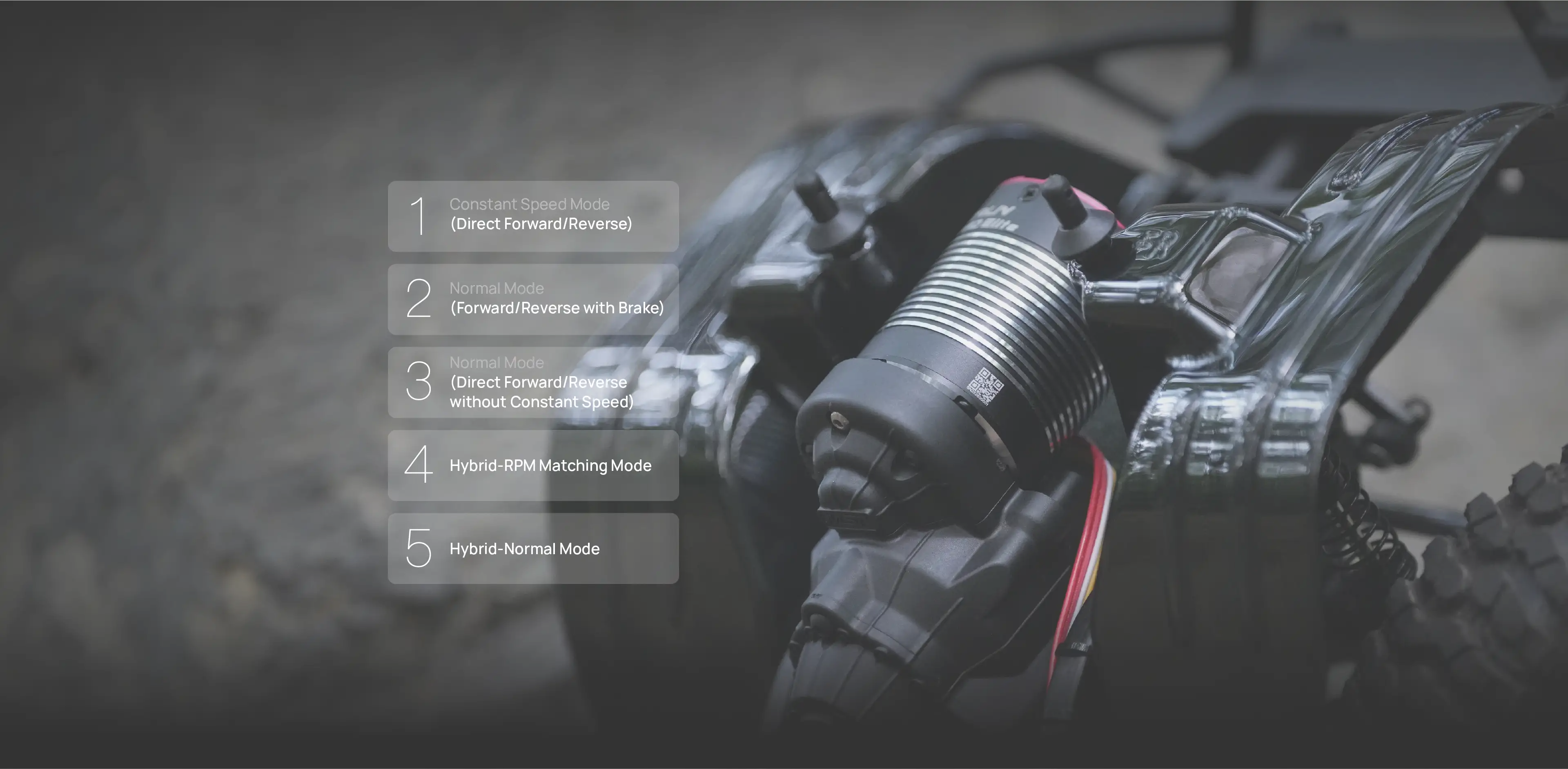

2.Offers five operating modes to freely switch between, meeting a wide range of application needs:
Constant Speed Mode (Direct Forward/Reverse)
Normal Mode (Forward/Reverse with Brake)
Normal Mode(Direct Forward/Reverse without Constant Speed)
Hybrid-RPM Matching Mode
Hybrid-Normal Mode
3.Compatible with both LED and LCD program boxes, providing up to 14 adjustable parameters to fulfill various application and setup requirements.
