XRotor X13-13825

Overview
Specifications
Download
FAQ
Accessories
Detail
Contact us
Shop

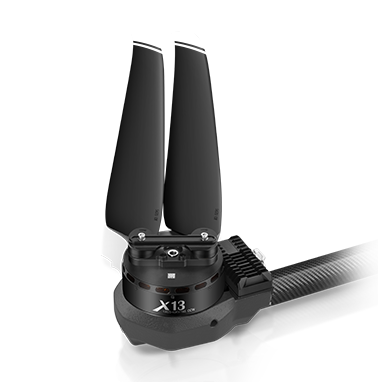

X13

Brand new thrust system for heavy-duty drones,
especially applicable for agricultural UAV drones.

This product is designed for agricultural drones. For industrial and manned drone applications, please purchase our dedicated propulsion systems. The final interpretation right is held by Shenzhen HOBBYWING Technology Co., Ltd.

Highly efficient system with
extremely fast response speeds

High torque. High efficiency. Fast response.

Series Motor
ESC
Propeller

The Digital Age

The comprehensive introduction of CAN communication
brings a closed loop between the flight controller and the thrust
systems. All data is exchanged on "CAN bus".

lmplement real-time data transmission between the
flight controller and ESC/Motor.

Digital Throttle
Dual throttle control,
redundant backup precise
control without interference.
Data Transmission
Easy to query flight status
and the thrust system data.
Remote Upgrade
Link the ESC with the flight controller to
realize OTA cloud upgrade. From then on,
you can enjoy the latest Hobbywing
technology anytime and anywhere.

* Hobbywing CAN protocol has successfully communicated with some flight controller.
For the closed source flight controller, contact the manufacturer for instructions.
For the open source Ardupilot flight controller, refer
https://ardupilot.org/copter/docs/common-hobbywing-dronecan-esc.html

4-Rotors-50L

X13 18S Performance Platform

Maximum thrust 57kg/rotor(sea level)
Rated thrust 27kg/rotor(sea level)
Efficiency up to 8.0g/W

X13-18S

7.2 minutes flight time 18S-30000mAh battery
4-Rotors 108kg take off weight

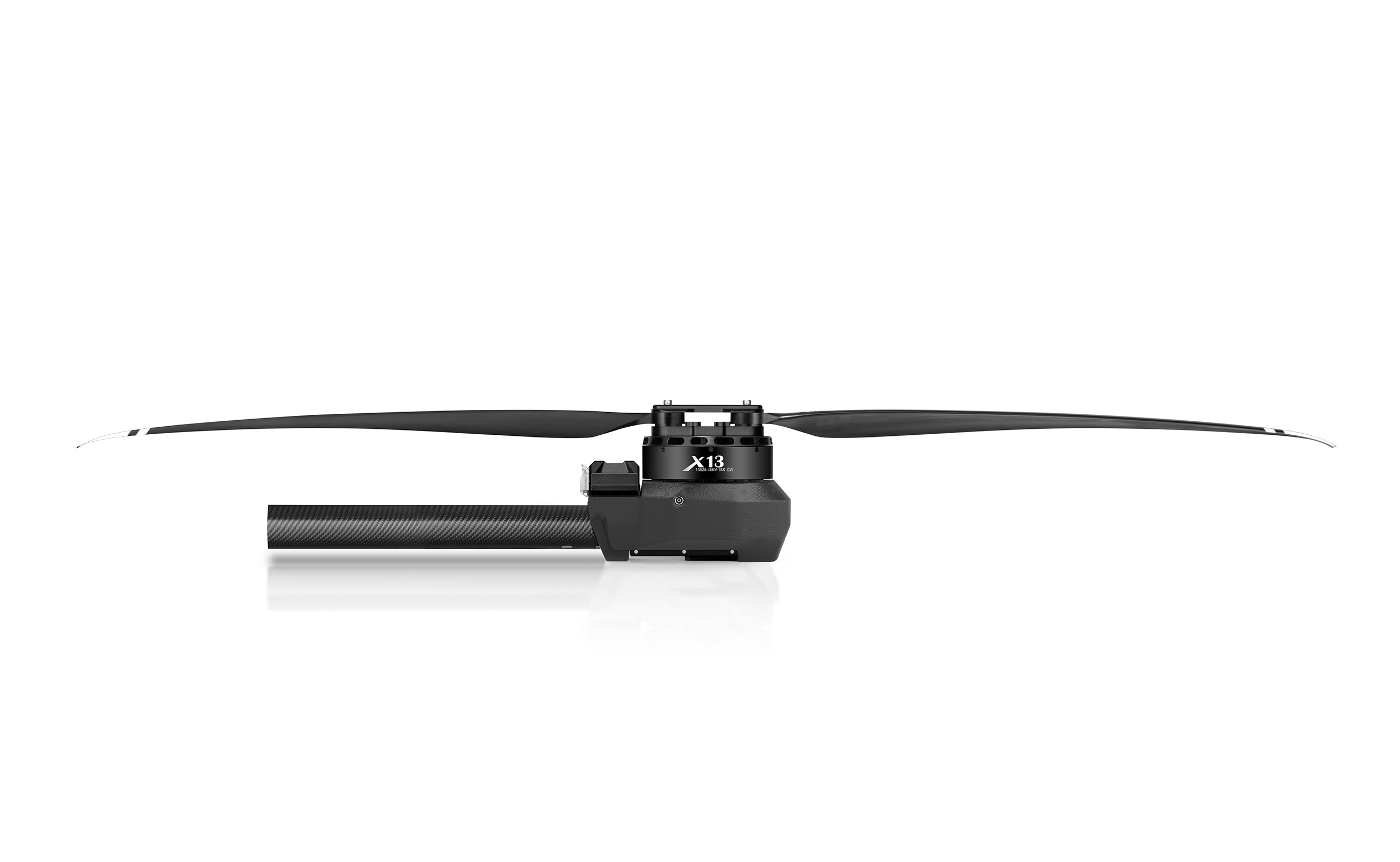

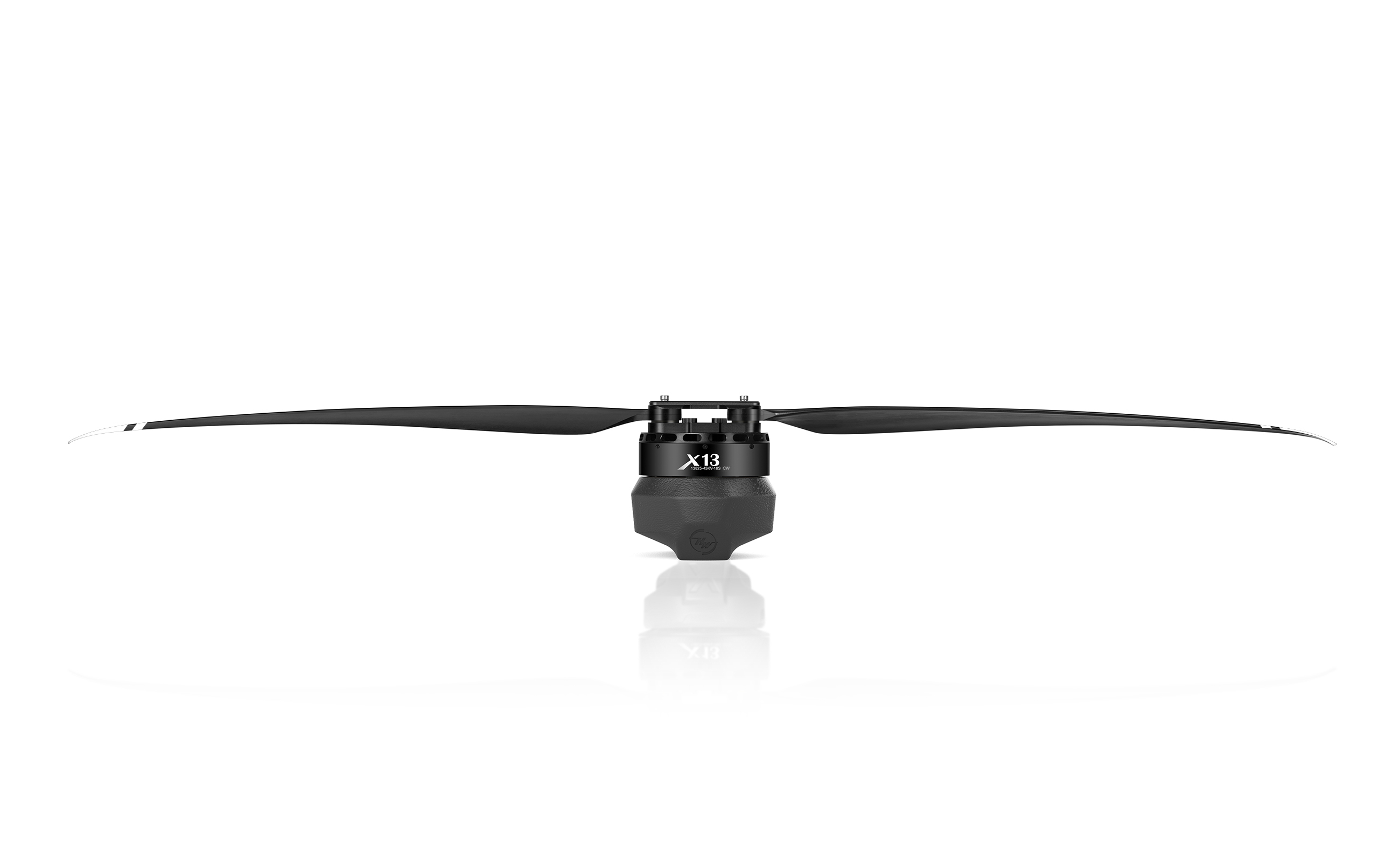

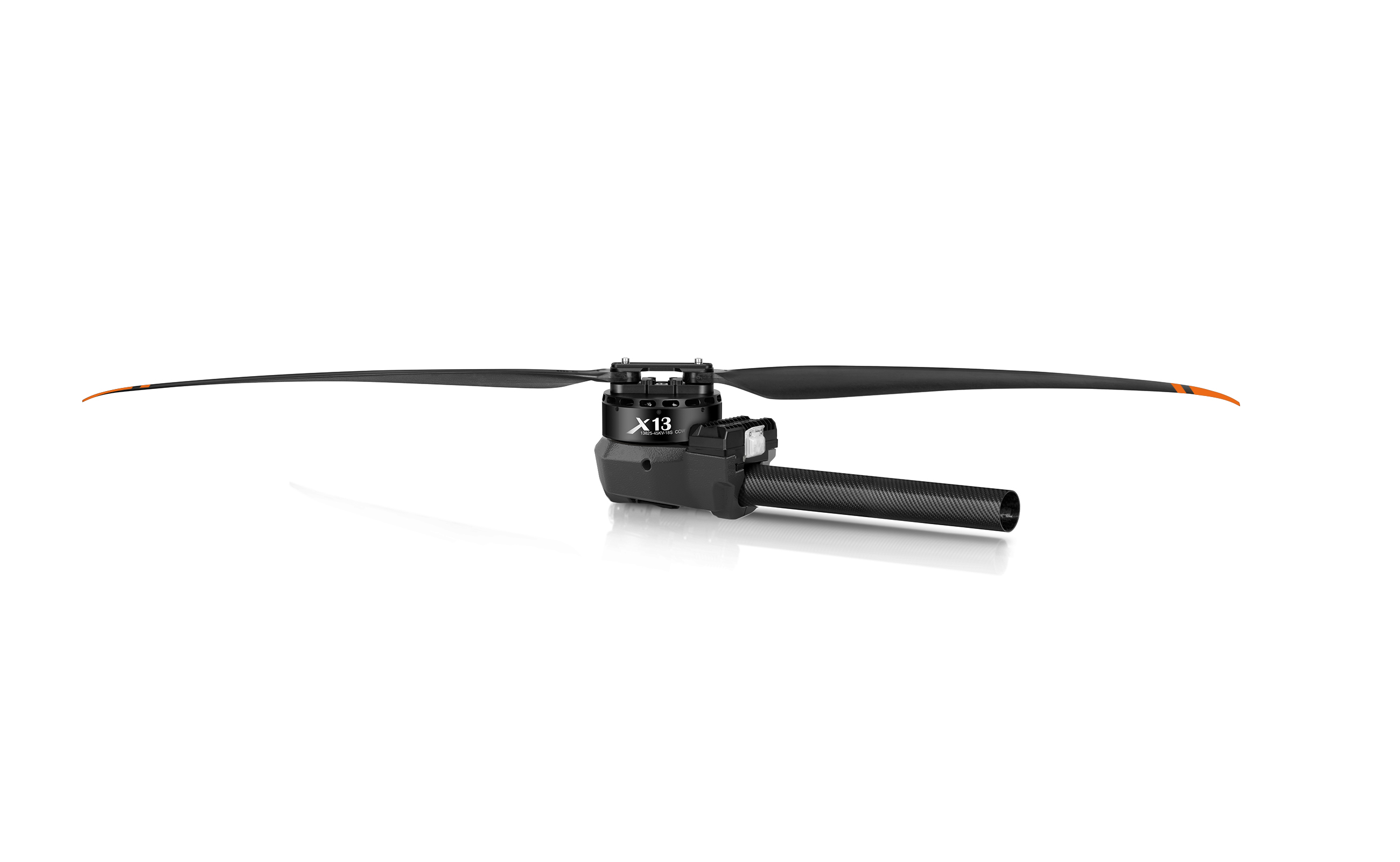

Appearance 2.0 design

Industrial, innovative layout providing
a very clean aesthetic.

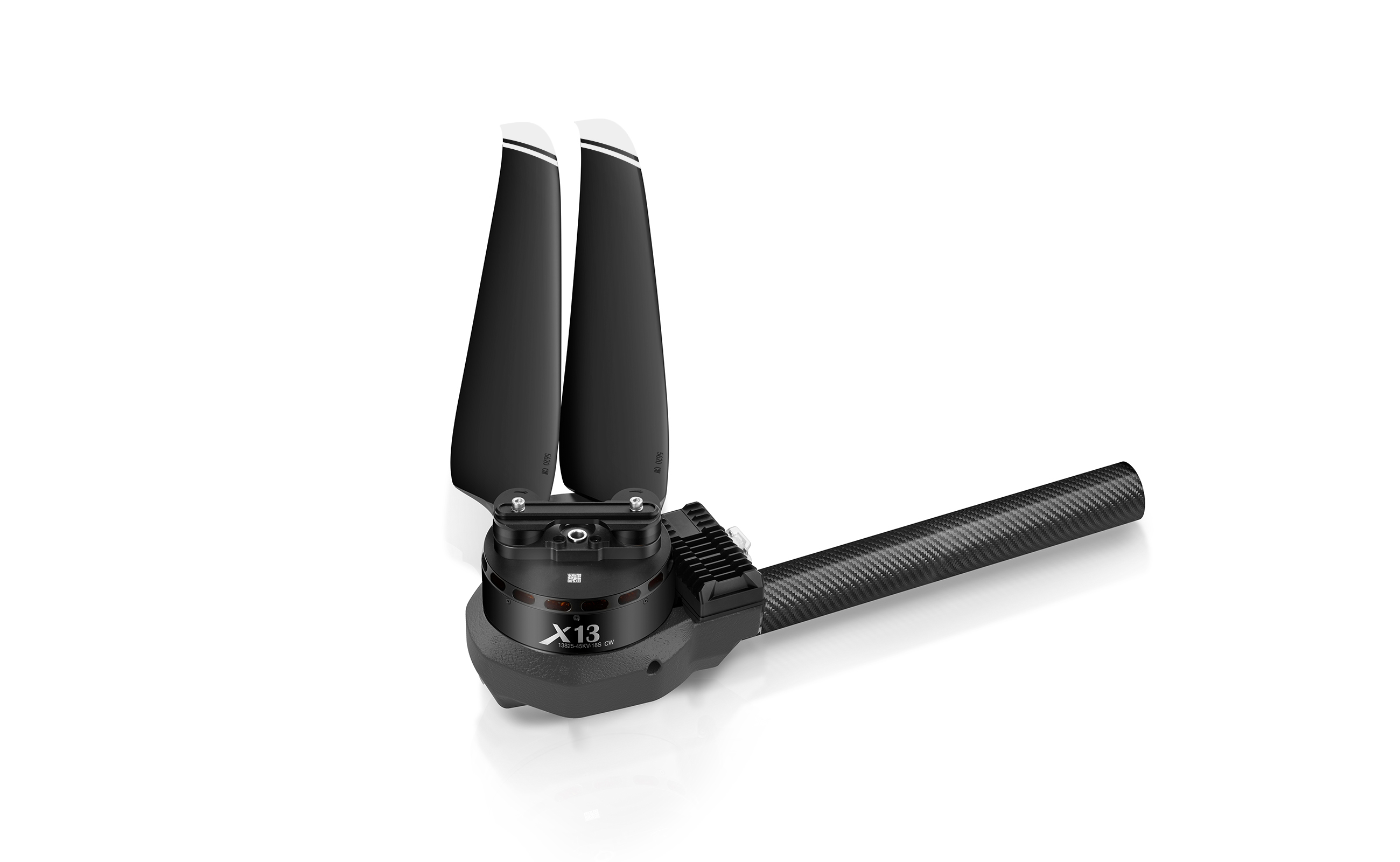

Quick disassembly design
ESC and motor disassembly only takes 1 minute:

High reliability waterproof connector
Easy to install and maintain

ln the event of an external or internal
failure, Smart Protection automatically
restarts. This will reduce the likely
hood of an accident and allow safer flying
Built-in fault storage function, saving
fault information for easy analysis of causes.

Hundreds of tests, stable performance

In response to the rigorous and complex agricultural application operating
environment, a variety of test projects and working conditions
are set up to ensure flight safety.

High and low temperature test

Water-proof test

Hours laboratory aging test

Hours flight test

: Thank you for your interest in HOBBYWING propulsion systems! For customized solutions,
please provide your contact information and technical requirements,
and we will get in touch with you within 24 hours.

By submitting this form, you agree to HOBBYWING's Privacy Policy

Thanks for reaching out!We have received your message and will get back to you shortly.: Best Regards,
HOBBYWING Team

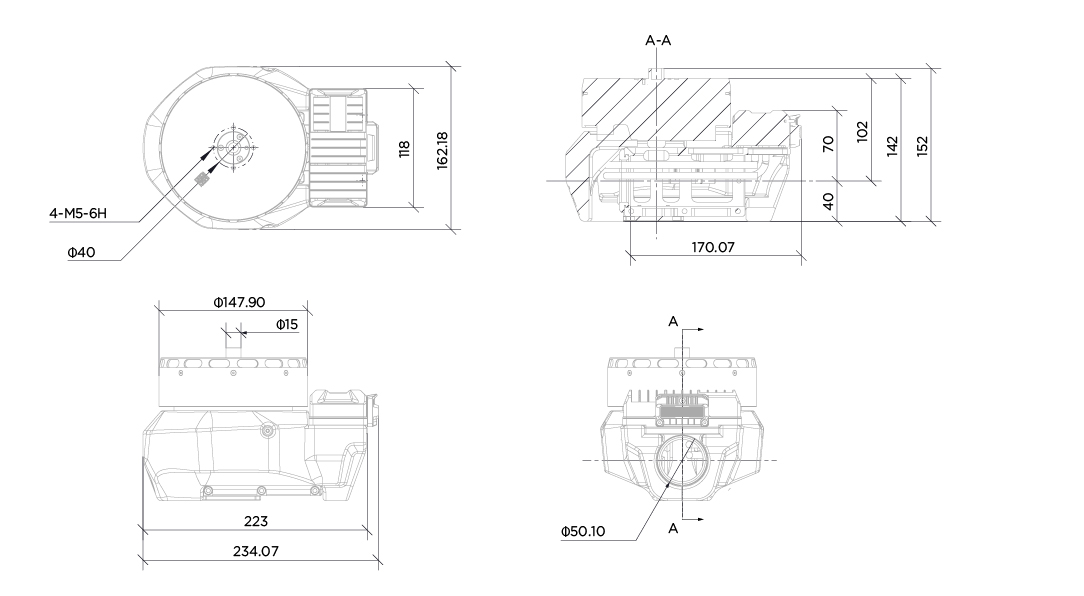

XRotor X13 CAD

Product Name

XRotor X13-14S

XRotor X13-18S

Specifications

Max Thrust	57kg（54V,sea level）	57kg（70V,sea level）
Recommended Takeoff Weight	25-27kg/rotor	25-27kg/rotor
Recommended Battery	12-14S( LiPo)	18S( LiPo)
Operating Temperature	-20~50℃	-20~50℃
Total Weight	4257g(Inc prop)	4087g(Inc prop)
Ingress Protection	IPX6	IPX6
Rated power input	3500W	3500W
Rated power output	3000W	3000W

Motor

KV Rating	60rpm/V	45rpm/V
Stator Size	138*25mm	138*25mm
Powertrain Arm Tube Outer Diameter	50mm	50mm
Bearing	Waterproof	Waterproof

ESC

Recommended LiPo Battery	12-14S(LiPo)	18S(LiPo)
PWM Input Signal Level	3.3V/5V	3.3V/5V
Throttle Signal Frequency	50-500Hz	50-500Hz
Operating Pulse Width	1050-1950us	1050-1950us
Max. Input Voltage	65V	81V
Max. Input Current (Short duration)	200A（Non-hermetic Ambient Temperature ≤60℃）	200A（Non-hermetic Ambient Temperature ≤60℃）
BEC	No	No

Propeller

Diameter×Pitch

56*20"

XRotor X13-18S Load performance parameters

XRotor X13-18S Techenical Parameters

Voltage(V)	Propeller(Inch)	Throttle(%)	Thrust(g)	Current(A)	Power Input(W)	Speed(RPM)	Efficiency(g/W)	Torque(N·m)	Power Output(W)	Temperature(℃)
70V (18S LiPo)	56*20 Inch	33%	9514	10.9	749.3	1004	12.7	6.28	660.5	/
		35%	10649	12.7	874.4	1061	12.2	7.01	778.6
		37%	11916	14.8	1021.8	1121	11.7	7.80	916.2
		39%	13287	17.2	1190.0	1183	11.2	8.65	1071.6
		42%	15487	21.4	1477.5	1275	10.5	9.99	1333.9
		45%	17812	26.1	1802.7	1364	9.9	11.39	1627.0
		48%	20221	31.3	2161.3	1450	9.4	12.82	1947.4
		51%	22693	36.9	2550.9	1532	8.9	14.29	2293.4
		54%	25218	43.0	2971.1	1611	8.5	15.79	2665.0
		57%	27794	49.6	3423.3	1688	8.1	17.33	3063.3
		60%	30426	56.6	3910.4	1762	7.8	18.91	3490.4
		63%	33118	64.3	4436.6	1836	7.5	20.54	3948.3
		66%	35874	72.5	5006.4	1908	7.2	22.22	4438.8
		69%	38691	81.4	5623.4	1980	6.9	23.94	4962.0
		72%	41557	91.1	6289.6	2050	6.6	25.69	5515.7
		75%	44447	101.4	7002.5	2119	6.3	27.46	6094.1
		78%	47319	112.3	7753.4	2186	6.1	29.22	6687.1
		81%	50109	123.5	8524.6	2248	5.9	30.92	7279.6
		84%	52731	134.5	9286.5	2305	5.7	32.52	7850.3
		87%	55070	144.8	9995.8	2355	5.5	33.94	8371.0
		90%	56981	153.4	10594.6	2396	5.4	35.10	8805.0
		100%	58749	161.7	11163.7	2433	5.3	36.18	9214.8

The above data is measured by HobbyWing laboratory at room temperature 25℃, sea level, change the throttle input adjustment.

XRotor X13-14S Load performance parameters

XRotor X13-14S Technical Parameters

Voltage(V)	Propeller(Inch)	Throttle(%)	Thrust(g)	Current(A)	Power Input(W)	Speed(RPM)	Efficiency(g/W)	Torque(N·m)	Power Output(W)	Temperature(℃)
54V (14S LiPo)	56*20"	33%	9420	13.5	728.3	982	12.9	5.73	589.2	/
		35%	10898	16.2	873.8	1055	12.5	6.58	726.6
		37%	11847	18.1	977.4	1100	12.1	7.13	821.0
		39%	13854	22.6	1219.3	1190	11.4	8.31	1035.1
		42%	15967	27.8	1502.6	1279	10.6	9.57	1280.8
		45%	18157	33.7	1821.8	1365	10.0	10.88	1555.3
		48%	20026	39.1	2111.8	1434	9.5	12.02	1804.6
		51%	21930	44.8	2421.7	1501	9.1	13.18	2071.7
		54%	25042	54.7	2957.1	1605	8.5	15.08	2535.3
		57%	27031	61.4	3317.0	1668	8.1	16.31	2848.3
		60%	29056	68.4	3698.0	1730	7.9	17.55	3179.7
		63%	31958	79.0	4270.3	1815	7.5	19.35	3676.2
		66%	34081	87.1	4710.3	1874	7.2	20.66	4055.1
		69%	37118	99.4	5374.5	1956	6.9	22.55	4619.8
		72%	40219	112.8	6098.3	2037	6.6	24.48	5222.4
		75%	42008	121.0	6538.4	2082	6.4	25.60	5581.5
		78%	45131	136.0	7348.6	2159	6.1	27.55	6227.7
		81%	48182	151.6	8191.3	2231	5.9	29.45	6880.5
		84%	49854	160.5	8674.0	2270	5.7	30.48	7246.2
		87%	52923	177.6	9594.7	2340	5.5	32.37	7929.7
		90%	53938	183.4	9908.2	2362	5.4	32.98	8158.9
		100%	57390	203.0	10968.3	2436	5.2	34.98	8924.1

The above data is measured by HobbyWing laboratory at room temperature 25℃, sea level, change the throttle input adjustment, the motor temperature is 65% and the throttle runs for 10 minutes, for reference only.

Support

Manuals & Documents

Disclaimer

The purpose of this website is only to introduce you to the basic situation of HOBBYWING company and product information. Unless otherwise stated, all information provided on this website should not be regarded as an offer or acceptance, and this website will not assume any binding obligations to you as a result of the provision of information. For all your requests, HOBBYWING reserves the full right to decide whether to commit or not.

This Website and its contents are provided for your convenience on an "as is" basis and your use of this Website is at your sole risk. HOBBYWING does not guarantee that this website will be uninterrupted or error-free, and reserves the right to amend this website or withdraw access to this Website at any time. We make no warranties, express or implied, as to the content, existence, accuracy or reliability of this Website, including, but not limited to, warranties of title, non-infringement or implied warranties of merchantability or fitness for a particular purpose or use.

HOBBYWING shall not be liable for any direct, indirect, incidental, special or consequential damages, loss of profits or business interruption caused by the use or inability to use the services provided by the Website, even if HOBBYWING has been advised of the possibility of similar losses. The exclusions and limitations of the warranty liability of HOBBYWING shall be effective to the extent permitted by applicable law.

HOBBYWING shall not be liable for any damage or loss to your computer system or any other software, hardware, IT system or property caused by viruses or other destructive programs caused by accessing, viewing and using this website or downloading any content from this Website (including but not limited to 2D model files, 3D model files).

HOBBYWING shall not be liable for any direct or indirect damage or loss caused by any third party using illegal means to access the website to obtain the relevant passwords, information and content.

If you or your company is located in the United States or Canada, you need to fill out this disclaimer confirmation letter online and submit it successfully before you can download the relevant materials you are interested in. The link address you fill in online is https://www.hobbywingdirect.com/pages/digital-file-release-form

If you do not agree with this disclaimer, please do not continue to this page. If you continue to access, browse and use this interface, you have read, understood and agreed to be bound by this statement and comply with all applicable laws and regulations.

HOBBYWING reserves the right to correct, modify and update this statement at any time.

Confirm >

X13-14S Manuals

X13-18S Manuals

HW-X13-14S 5620 Techenical Parameters

X13 .step

HW-X13-18S 5620 Techenical Parameters

X13 . dxf

Propeller's apater.step

Propeller .dxf

X13 single motor.step

DATALINKV2

Name: DATALINKV2
Telemetry: USB, CAN, Serial
Voltage: 6-81V
Size: 57*40*13mm(without wires)
Weight: 27g
