ESC Motor All-in-one Power System

MULTIROTOR

VTOL

FIXED WING

FPV

USB Link Software (USB Link V5.1.0)

HW DATA Link

RC Systems

Drone Propulsion System

Personal Travel Systems

XRotor H120A 14S FOC V1

Input Voltage: 12-14S(44-63V)
Peak Current (3s): 120A (Good heat dissipation)
Weight: 185.6g(Without wires)
Size: 113*56*25.9mm
Communication protocol: CAN(Custom Serial port)
Throttle signal isolated: Isolated (Custom non-isolated)

XRotor H120A 18S FOC V1

Input Voltage: 12-18s（44-78.3V）
Peak Current (3s): 120A (Good heat dissipation)
Weight: 234g (Without wires)
Size: 116*49.4*34.8mm
Communication protocol: CAN
Throttle signal isolated: Isolated

XRotor H130A 14S BLDC/FOC

Input Voltage:6-14S（18-65V）
Peak Current: 60A（Good heat dissipation）
Weight（Without Cable）:148g
Size: 96.5*46*23.5mm
Communication protocol: CAN+485(Custom Serial port)
Throttle signal isolated: Throttle And Communication Isolation

XRotor H150A 14S FOC

Input Voltage: 12-14S（44-60.9V）
Continuous current:60A（Good heat dissipation）
Weight（Without Cable）: 198g
Size: 116*49.4*29.6mm
Communication protocol: CAN(Custom Serial port)
Throttle signal isolated: Isolated

XRotor H150A 24S FOC V1

Input Voltage: 18-24s（54~104.4V）
Peak Current (3s): 50A (Good heat dissipation)
Weight: 464g (Without wires)
Size: 164*66*38mm
Communication protocol: CAN(Custom Serial port)
Throttle signal isolated: Isolated

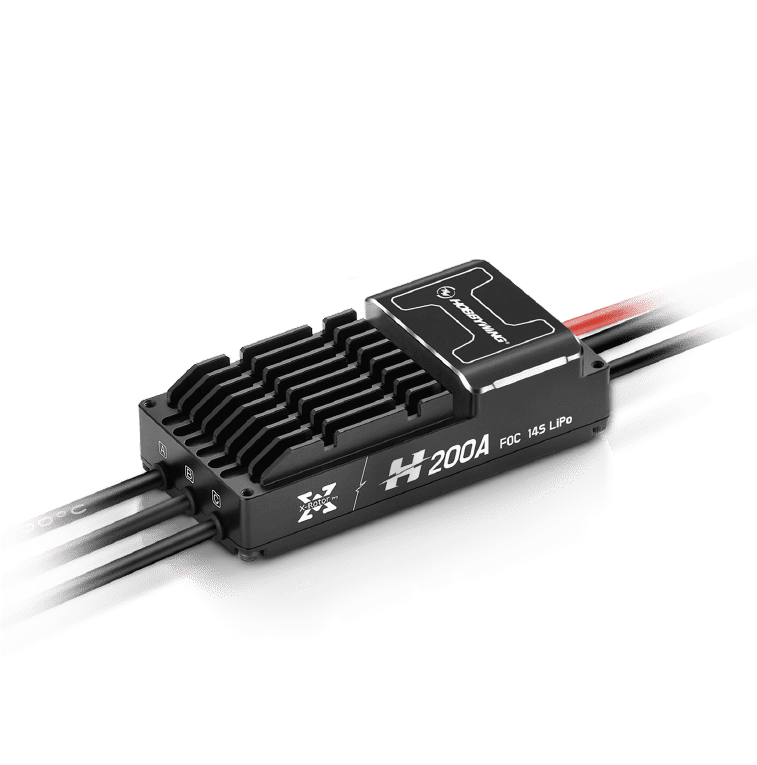

XRotor H200A-14S-BLDC/FOC

Input Voltage: 6-14S（18-65V）
Continuous current :100A（Good heat dissipation）
Weight（Without Cable）: 270g
Size: 116*56*31.5mm
Communication protocol: CAN(Custom Serial port)
lsolation mode: Throttle/ communication supported

XRotor X11 Plus

Agricultural UAV thrust systems

XRotor X11 Plus

Thrust/rotor：15-18kg/axis
Total Weight：2490g
Recommended LiPo Battery：12-14S
Propeller：4314
Tube Diameter：50mm
Recommended Drone: For 30L agricultural quadcopter

XRotor X13-13825

Agricultural UAV thrust systems

XRotor X13-13825

Thrust/rotor: 25-27kg/rotor
Total Weight: 4257g(Inc prop) / 4087g(Inc prop)
Recommended LiPo Battery: 12-14S/18S(LiPo)
Propeller: 5620
Tube Diameter: 50mm
Recommended Drone: For 50L agricultural quadcopter

XRotor X11 Max

Agricultural UAV thrust systems

XRotor X11 Max

Thrust/rotor: 20-22kg/axis
Total Weight: 2800g
Recommended LiPo Battery: 18S(LiPo)
Propeller: 48175
Tube Diameter: 50mm
Recommended Drone: For 40L agricultural quadcopter
